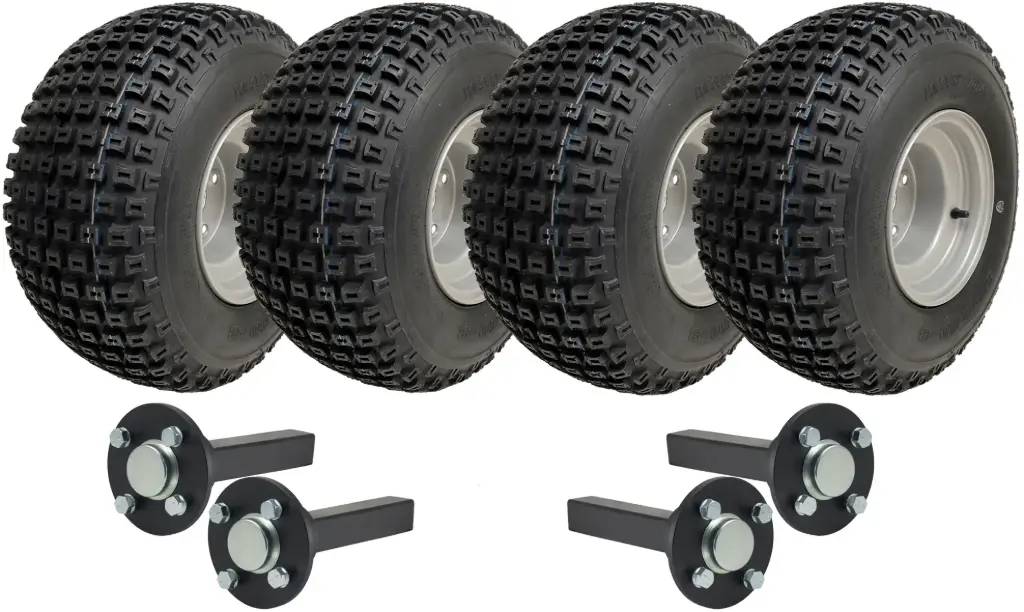

Set of 4 - 18x9.50-8 4ply P322 KNOBBY WHEEL 4/100 & Hub & Stub axle 4/100 M12 wheel bolt  35x35mm

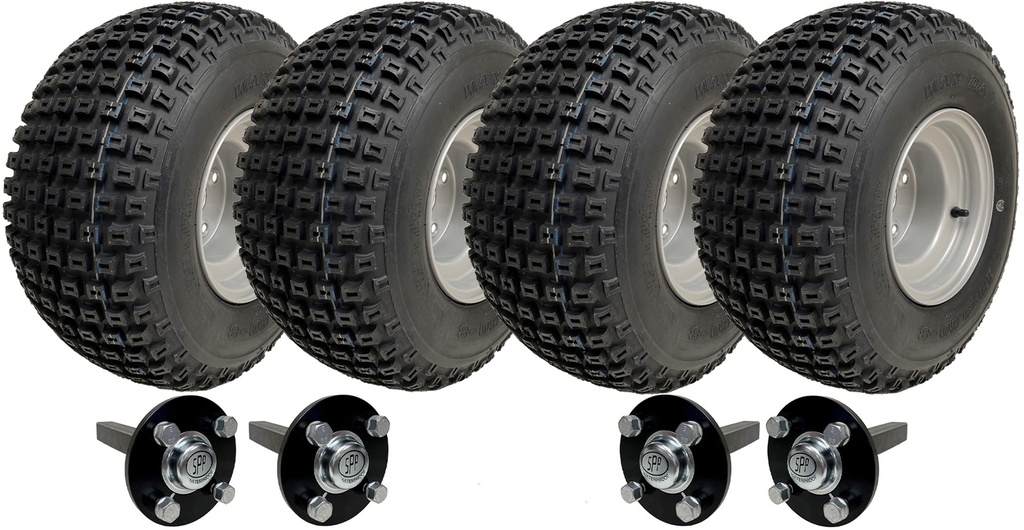

18x9.50-8 twin axle ATV trailer kit.


Contents of this kit include:

4 x Wheels.

4 x Hub & Stub axles.

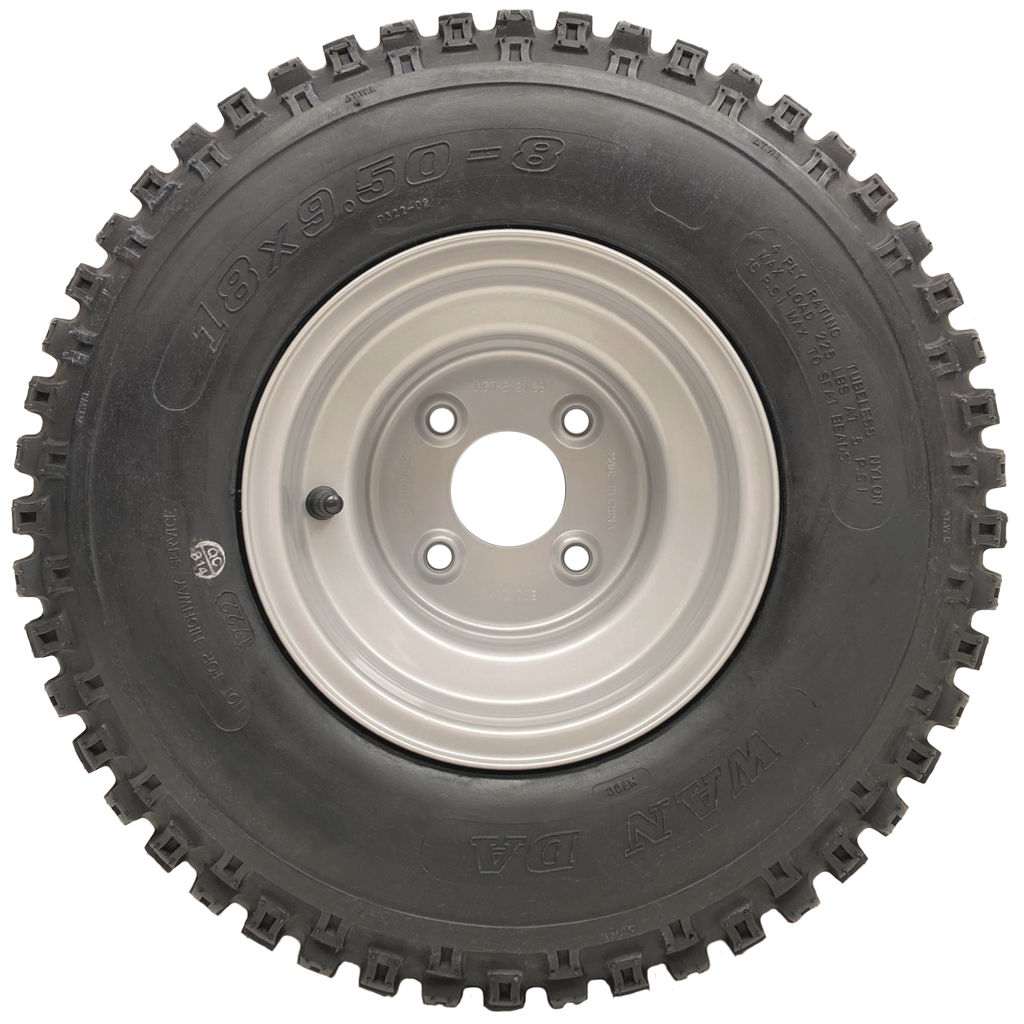

Wheel Specifications:

18x9.50-8 4ply Journey P322 knobby tyres on steel rim 4x100mm PCD.

Overall diameter: 460mm,

Max width of tyre: 212mm,

Tread depth: 9.5mm,

Inflation: 5psi,

Max load per wheel: 102kg (225 lbs),

Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

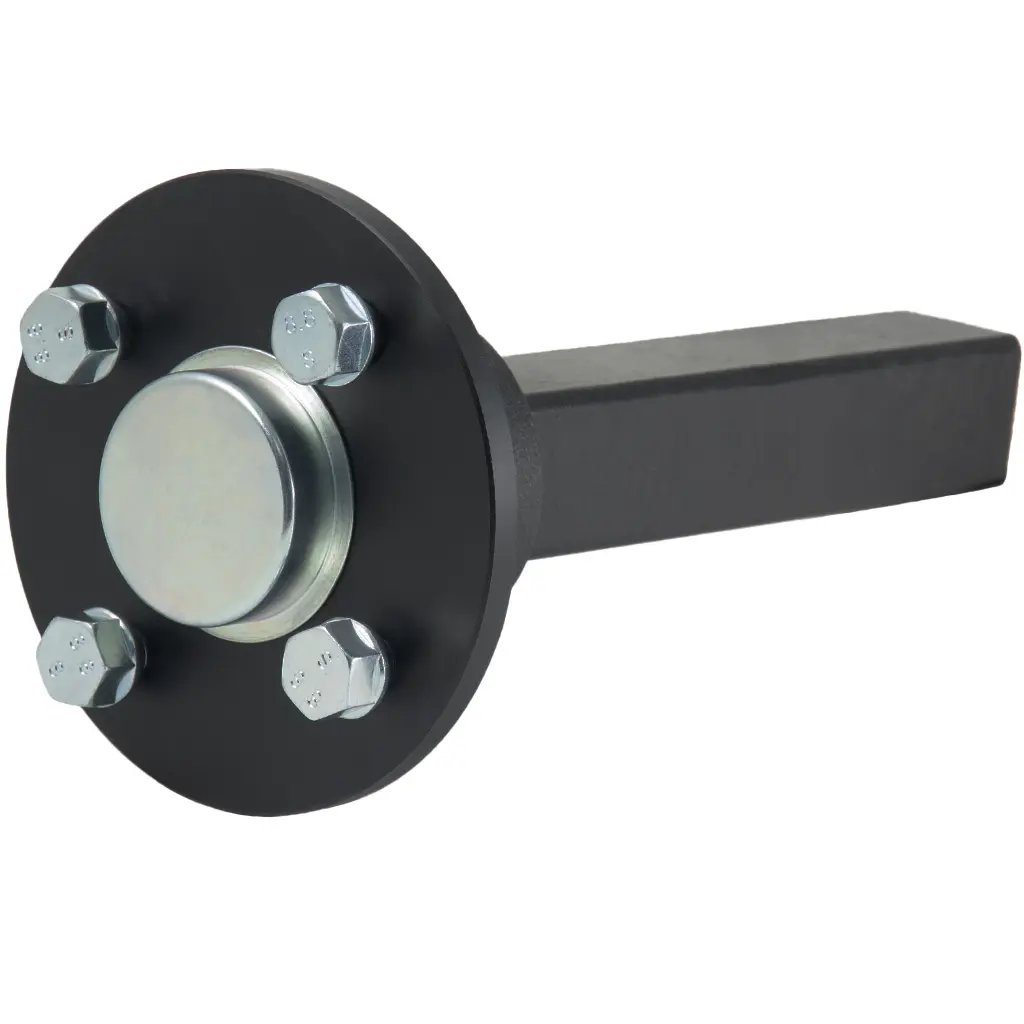

Hub & Stub Axle Specifications:

Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts.

PCD is 100mm,

Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long.

The hubs are waterproof.

The shaft is 35x35mm x 200mm long, solid steel.

Manufactured by SPP (Steelpress, Poland).


Maximum Kit weight capacity 408kgs.

(This kit is for off road use only)

Part Number EC1324
Brand Parnells
Rim Colour Silver
Tyre Size 18x9.50-8
Ply 4
TT/TL TL
Pattern P322
Tread Depth (mm) 9.5
Rim Width (in) 7.0
SW (mm) 212
OD (mm) 460
PSI 5
Stud / PCD 4x100
E-Mark No
Max Load (Kg) 408
Hub & Stub Axle (4pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
