20x10.00-8 ATV Twin axle quad trailer kit, Wheels, Axles and Swivel hitch 1800kgs
Part Number: EC1325
Wheel Size: 20x10.00-8
Stub Axles: 40mm square & 125mm long
Load Capacity: 1800kgs
This is a very high quality ATV Quad trailer kit.

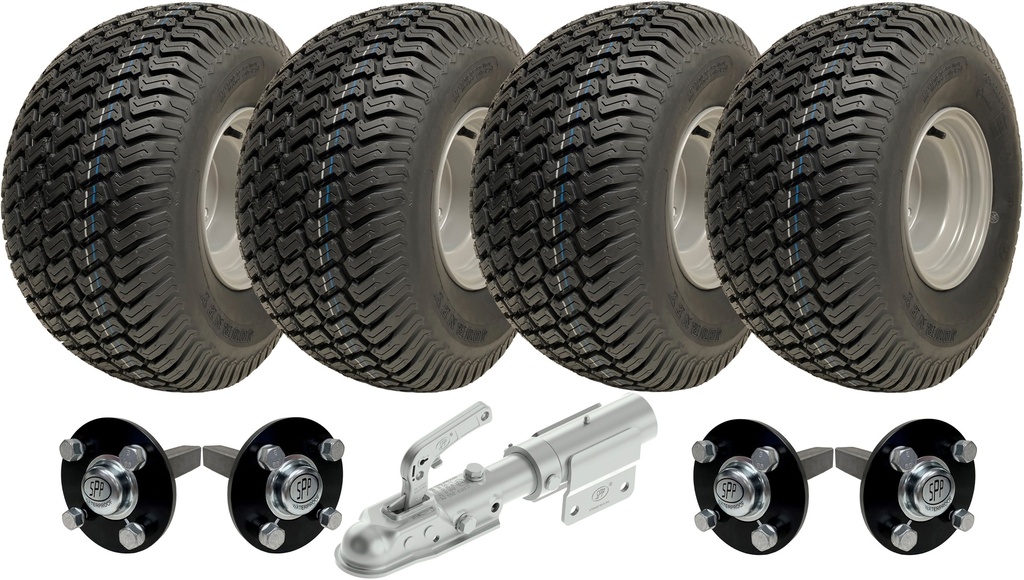

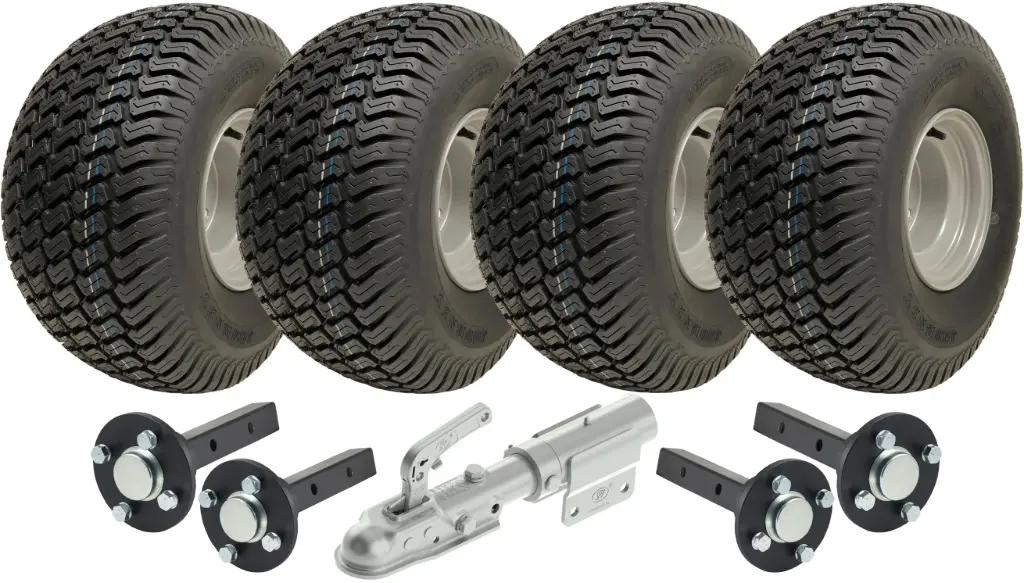

It contains:
4x Grass tyres fitted to 4 stud rims
4x hub/stub axle 4x100 forged hub, 40x40x125mm stub
1x 360 degree swivel tow hitch
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces.
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
This is an ATV trailer kit Maximum recommended speed: 20 km/h
Off road use only.
| Part Number | EC1325 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 20x10.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 7.1 |
| Rim Width (in) | 7.0 |
| SW (mm) | 240 |
| OD (mm) | 500 |
| PSI | 22 |
| Load/Speed Index | 74/87 A4 |
| E-Mark | E4-106R-003460 |
| Max Load (Kg) | 545 |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
| Hitch (1pcs) | swivel hitch |
