22x11.00-8 Wanda P308 ATV trailer kit
Part Number: EC1337
Wheel Size: 22x11.00-8
Axle Size: 35mm Square, 200mm Long
Load Capacity: 310kgs

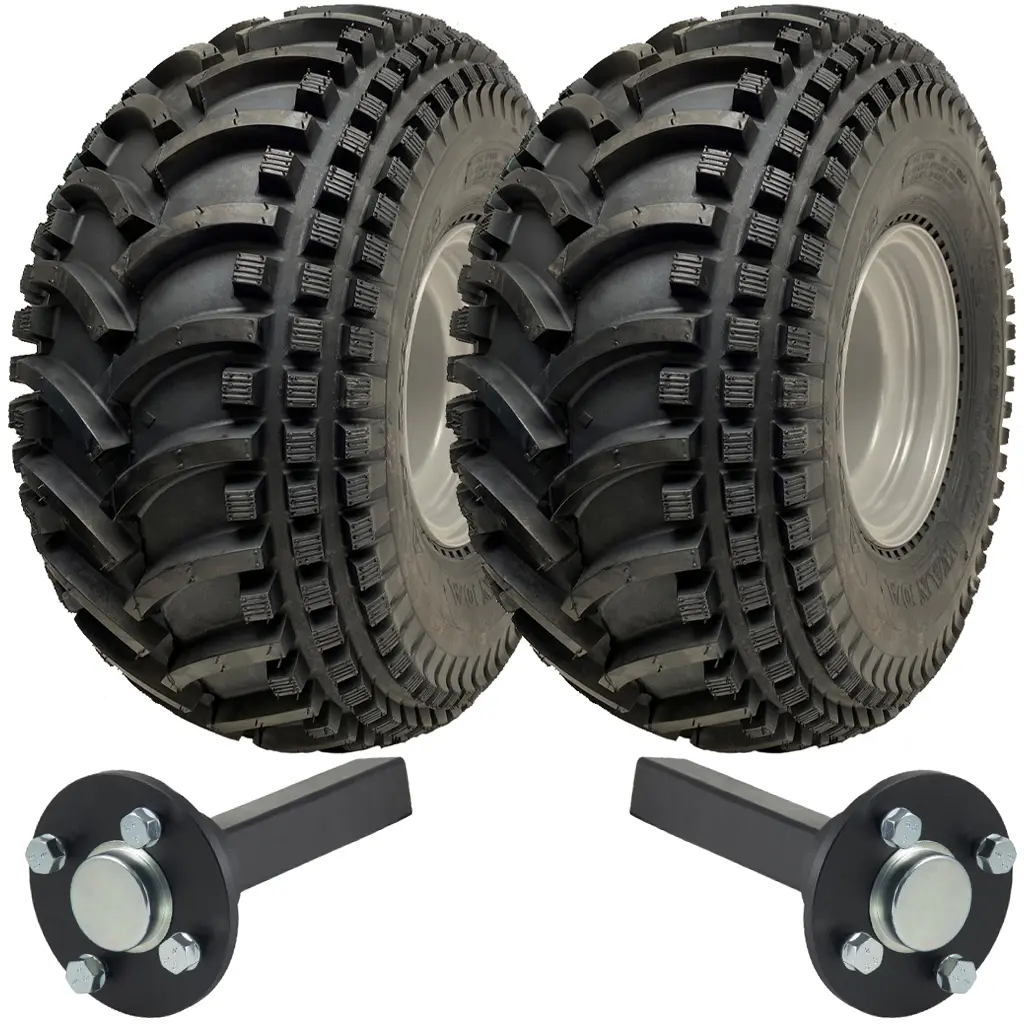

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x Stub axles, 35x35x200mm solid stub.
Item specifications: Wheels.
• 22x11.00-8 4ply Wanda P308 knobby open centre tyres on steel rim 4x100mm PCD,
• Overall diameter: 535mm,
• Max width of tyre: 260mm,
• Tread depth: 16mm,
• Inflation: 5psi,
• Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),
• E-marked road legal tyres,
• Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.
Item specifications: Stub axles.
• Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
• PCD is 100mm,
• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
• The hubs are waterproof,
• The shaft is 35x35mm x 200mm long, solid steel,
• Manufactured by SPP (Steelpress, Poland).
Maximum Kit load capacity 310kgs.
| Part Number | EC1337 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 22x11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P308 |
| Tread Depth (mm) | 16.0 |
| SW (mm) | 260 |
| OD (mm) | 535 |
| PSI | 5 |
| Load/Speed Index | 43J |
| Stud / PCD | 4x100mm |
| E-Mark | E4-75R-0006182 |
| Max Load (Kg) | 310 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
