Kit of 4 - 20x10.00-8 4ply P332 GRASS on 4/100 & Hub & Stub axle 4/100 M12stud 40x40 High speed (waterproof) & SPP 3000kg Cast body / pressed handle hitch 20 km/h Max

https://www.parnells.eu/web/image/product.template/87225/image_1920?unique=4402fab
(0 review)

Part Number: EC1373
Tyre Size: 20x10.00-8
Axles: 40x40 square, 125mm long
Load Capacity: 1800kgs

795.66 € 795.66 EUR 795.66 €

924.11 €

Login for trade prices

Not Available For Sale


  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)
  • Hitch (1pcs)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

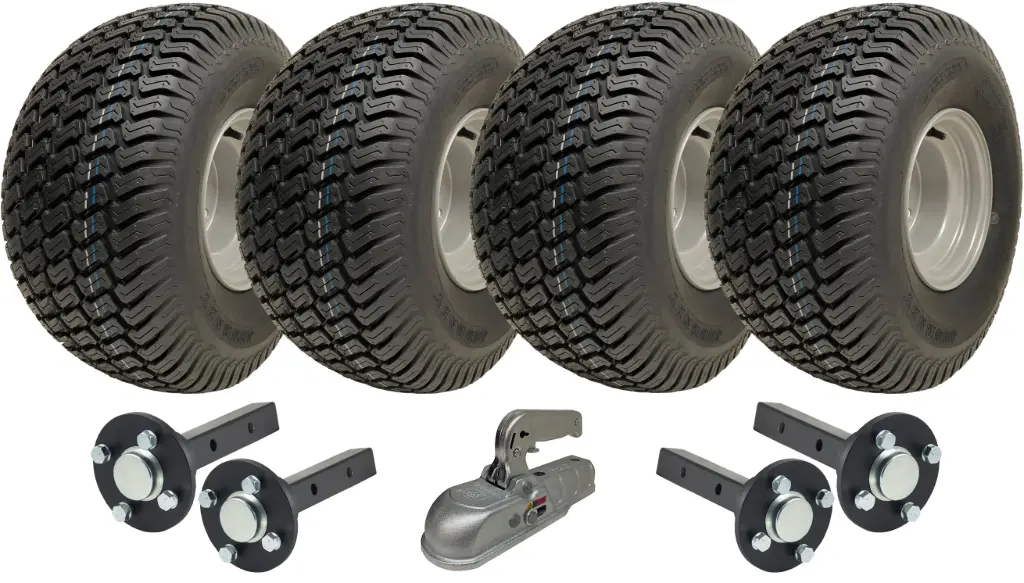

Kit of 4 - 20x10.00-8 4ply P332 GRASS on 4/100 & Hub & Stub axle 4/100 M12stud  40x40 High speed (waterproof) &  SPP 3000kg cast coupling

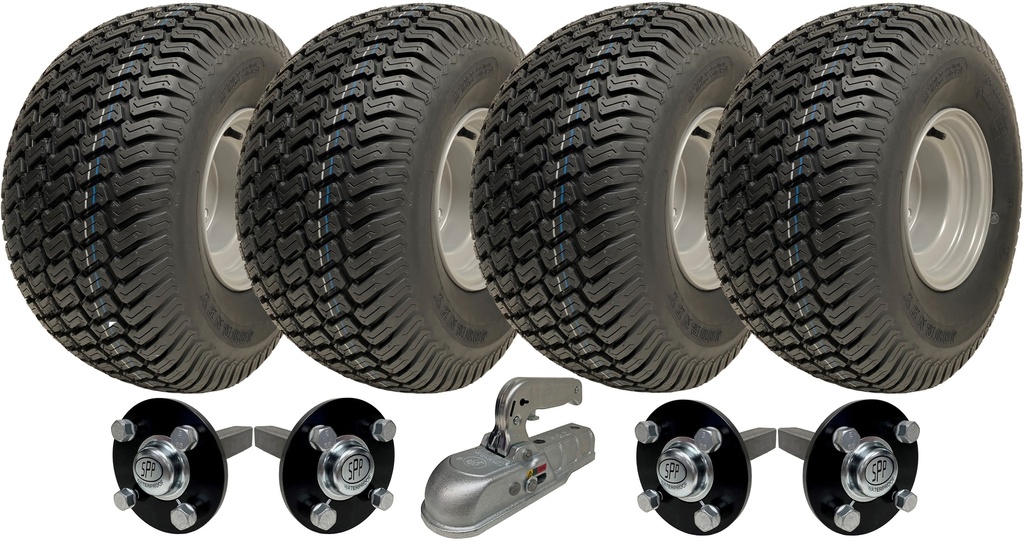

This kit contains:

Four – 20x10.00-8 wheels

&

Four - 40mm x 40mm hub and stub axles.

1 - Cast tow hitch.

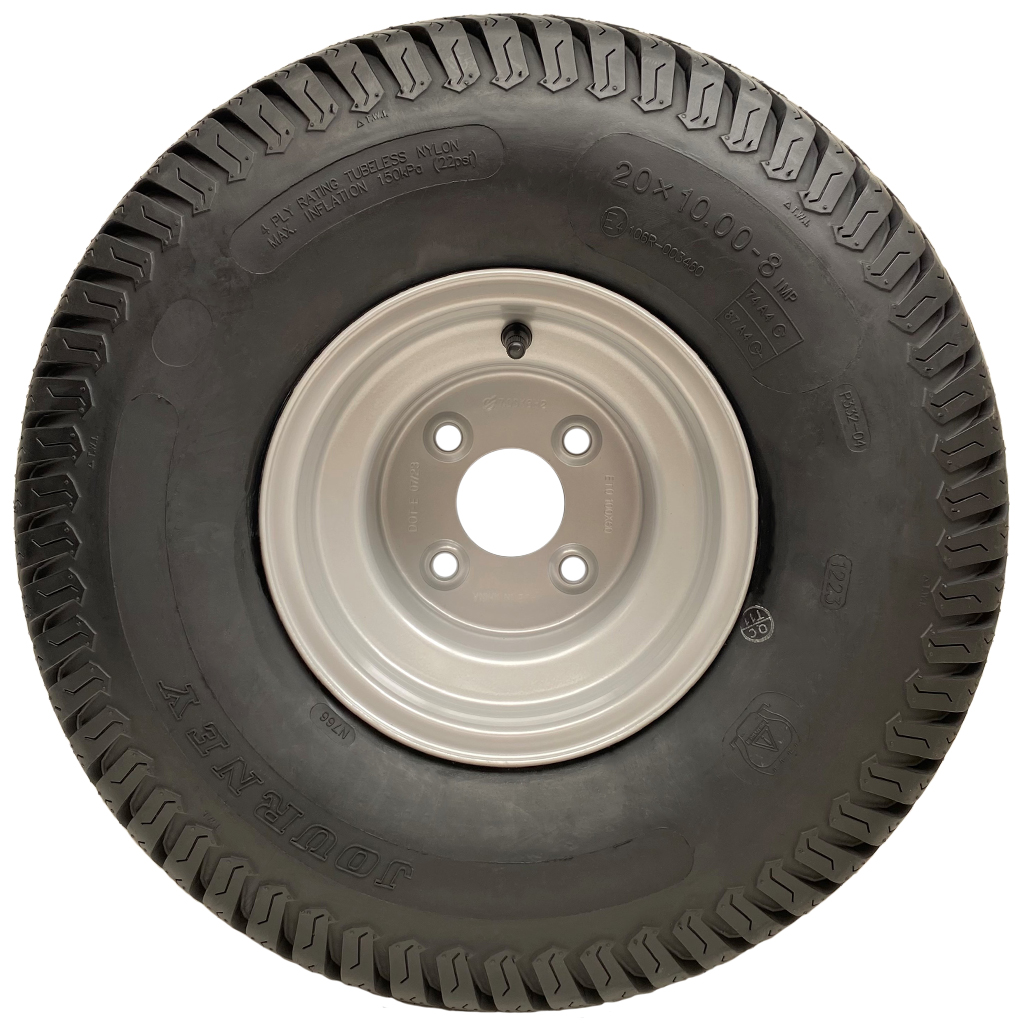

Wheel Specification:

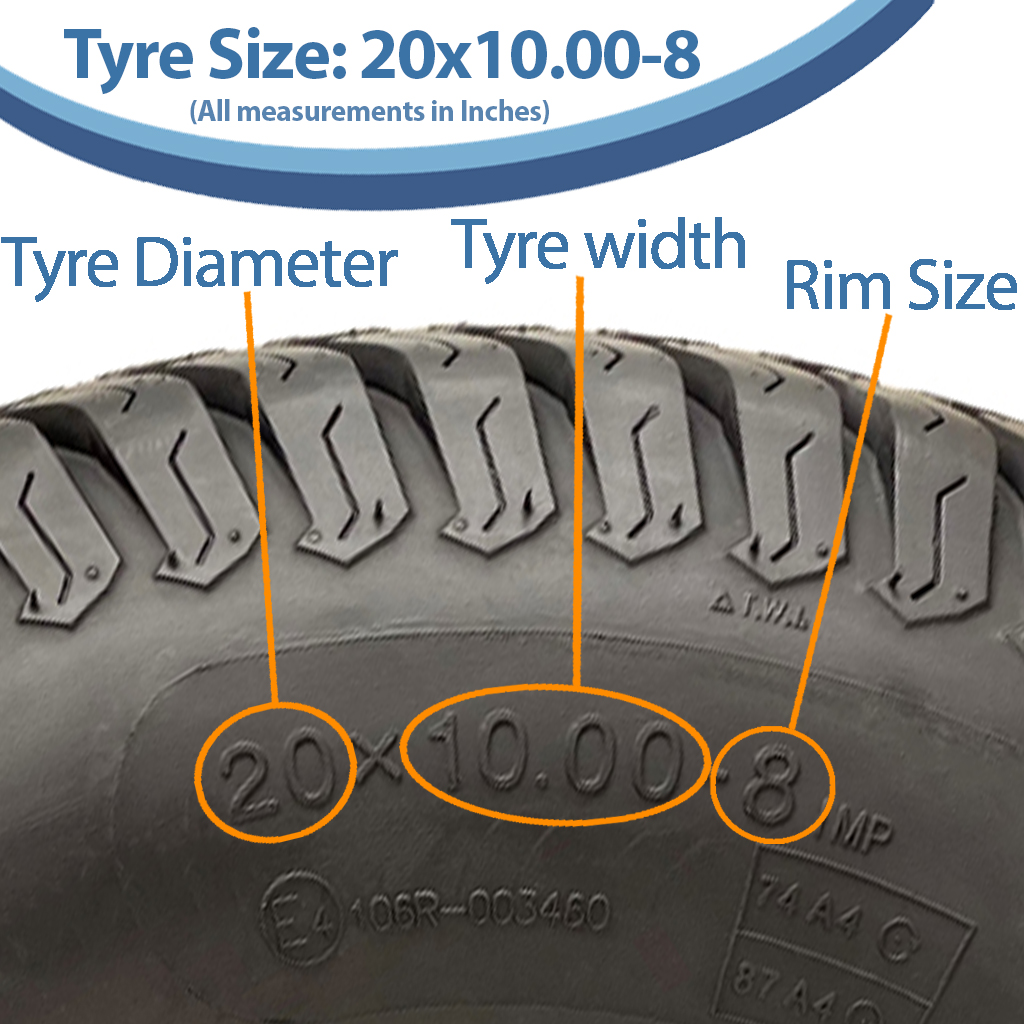

Size: 20x10.00-8,

Brand: Wanda,

Tyre pattern: P332,

Ply rating: 4ply,

Load capacity: 545kgs at 22PSI,

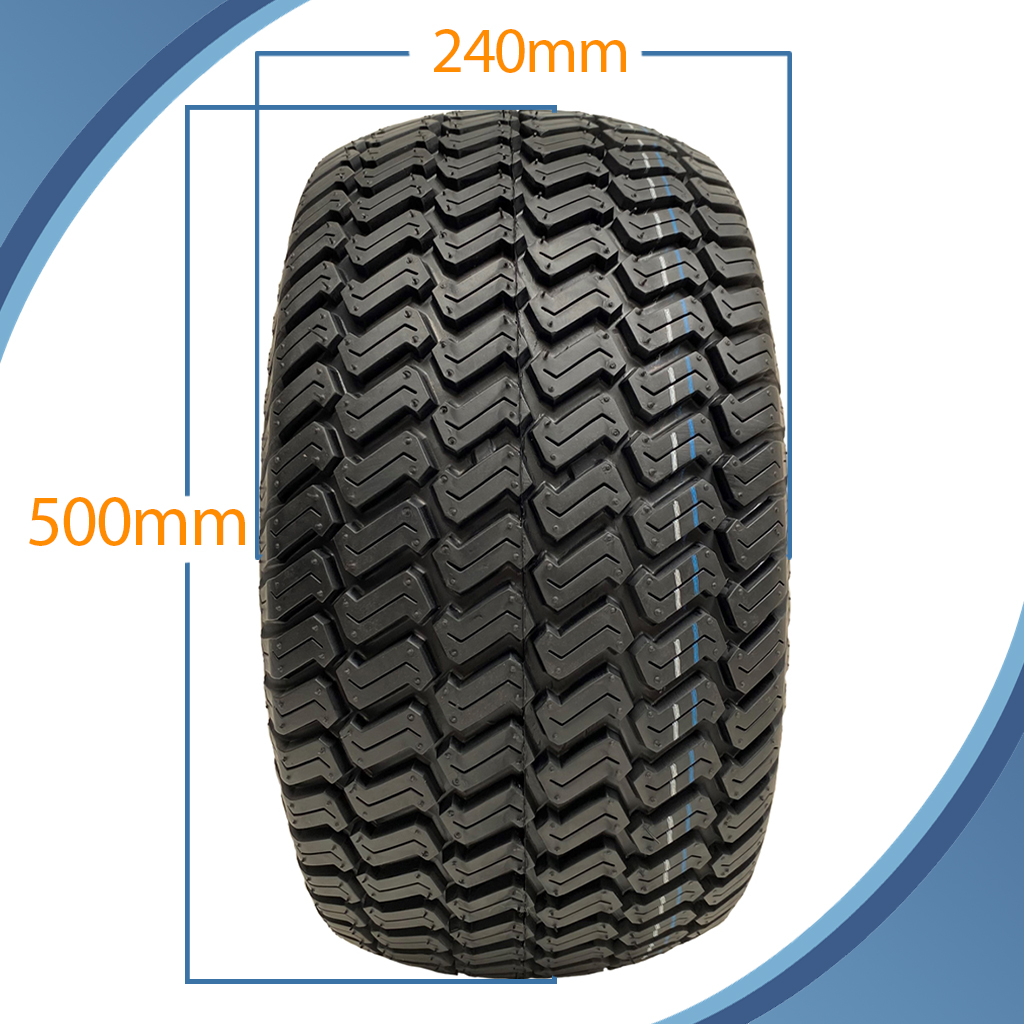

Tyre height: 500mm,

Tyre width: 240mm,

Tread Depth: 7.1mm,

Speed rating A4: 20km/h,

E Marked road legal: E4-106R-003460.


Solid steel heavy duty rims.

100mm PCD stud spacing.

60mm centre hole diameter.

13.5mm stud hole diameter.

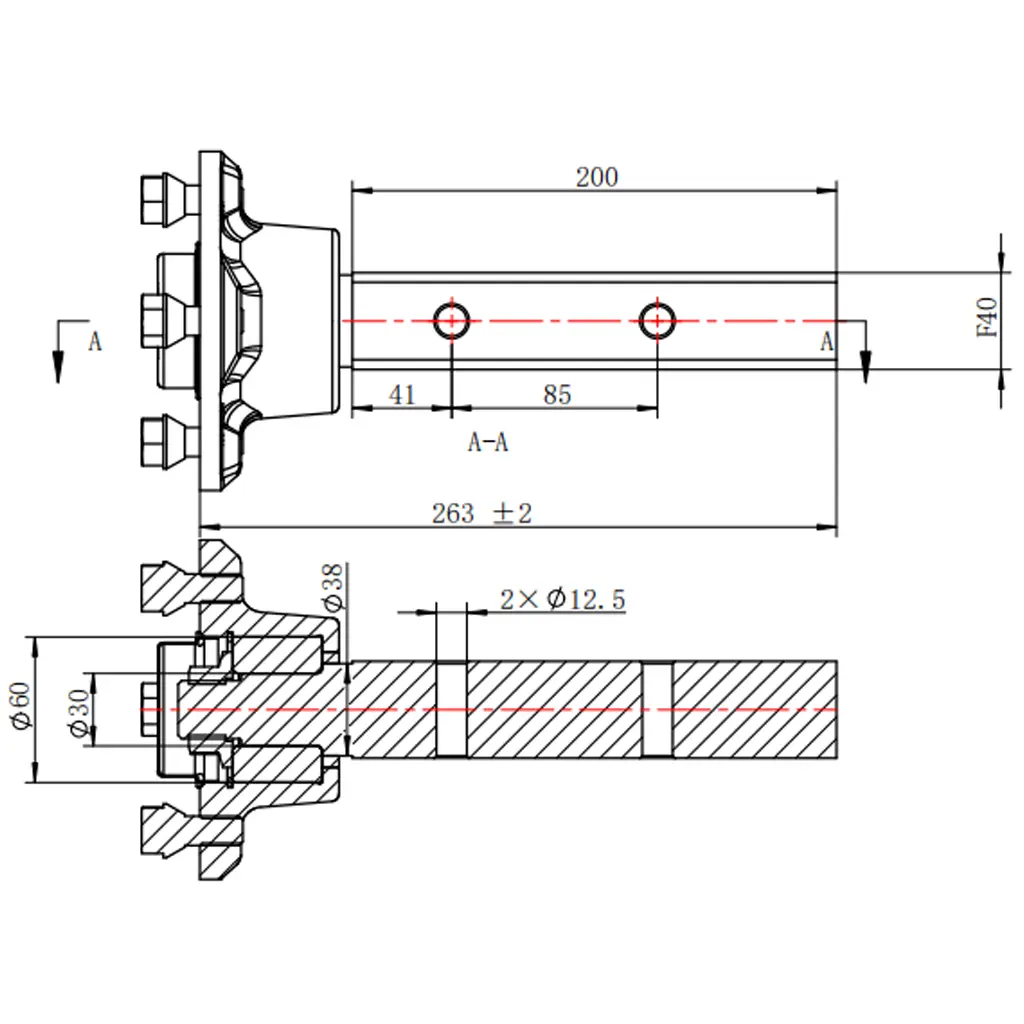

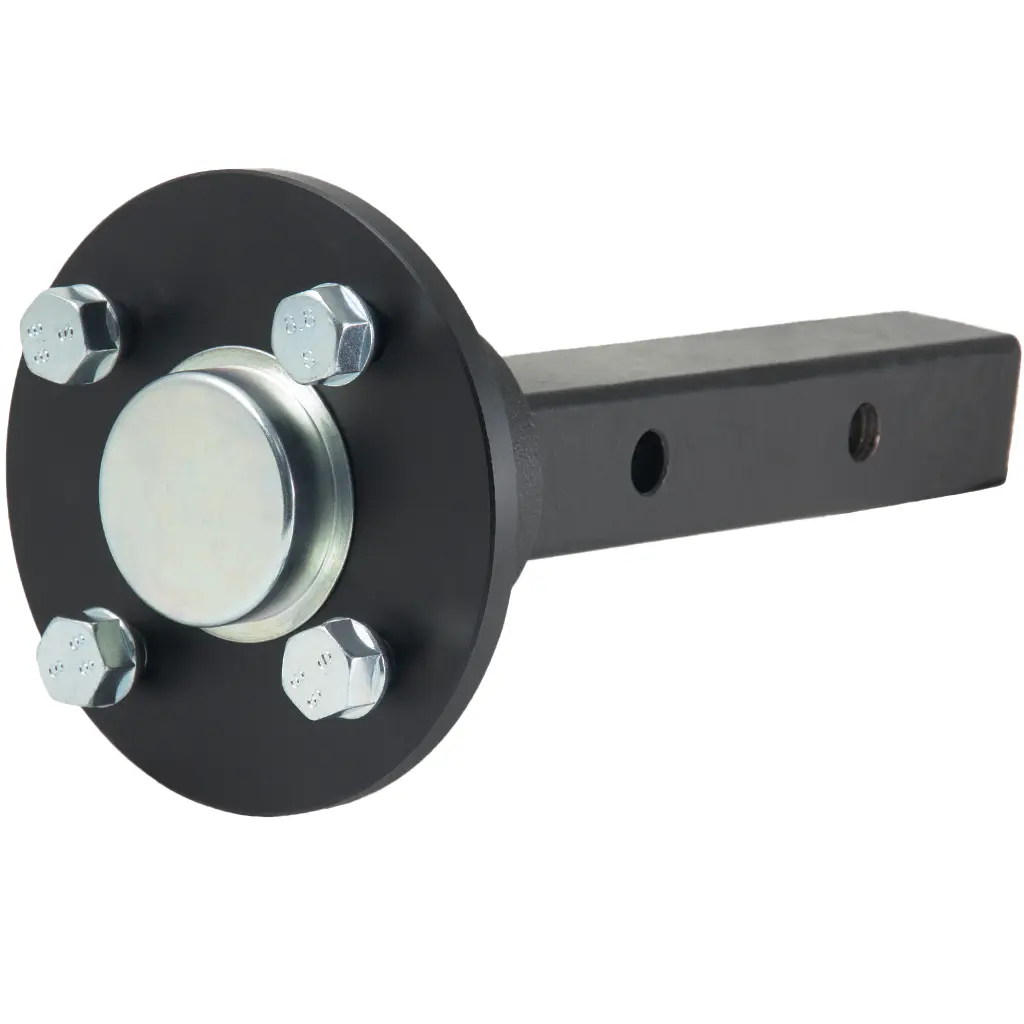

Hub & Stub Specification:

These are genuine 'Steelpress Production' parts, manufactured in the EU.

High Speed road legal axles, rated up to 80mp/h (130km/h).

They have sealed precision ball bearings, they never need to be greased.

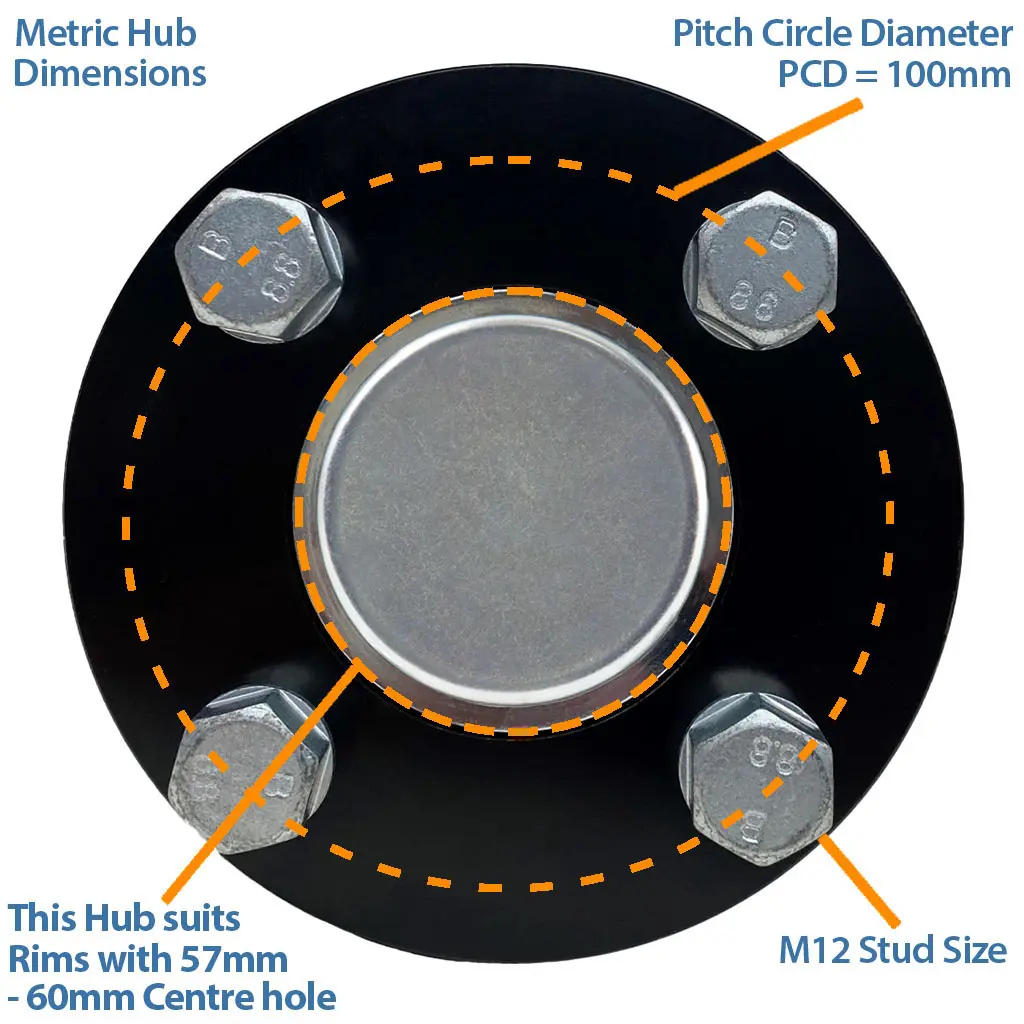

The hub has 4 x M12 studs, the PCD is 100mm.

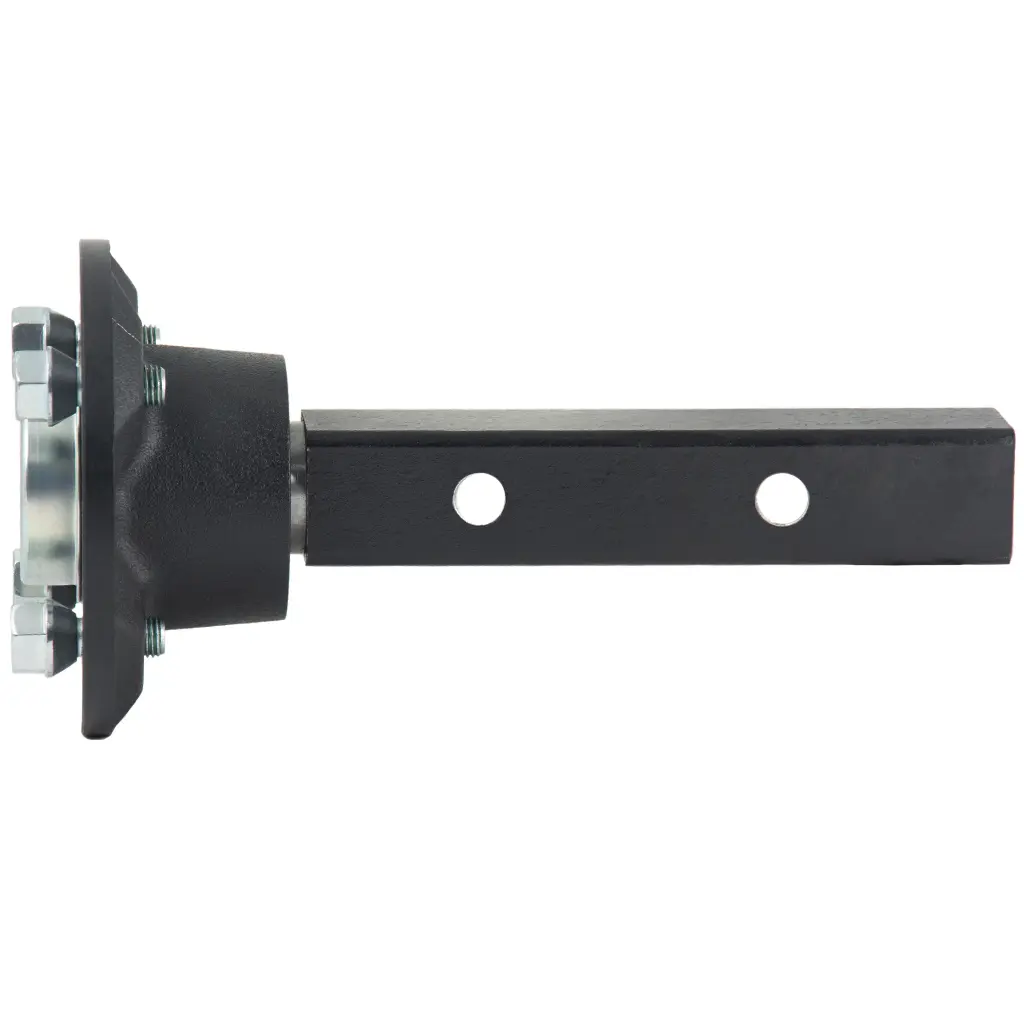

The shaft is 40x40mm square, 125mm long (solid steel) with rounded edges for ease of fitment.

Weight capacity is 900kg per pair.

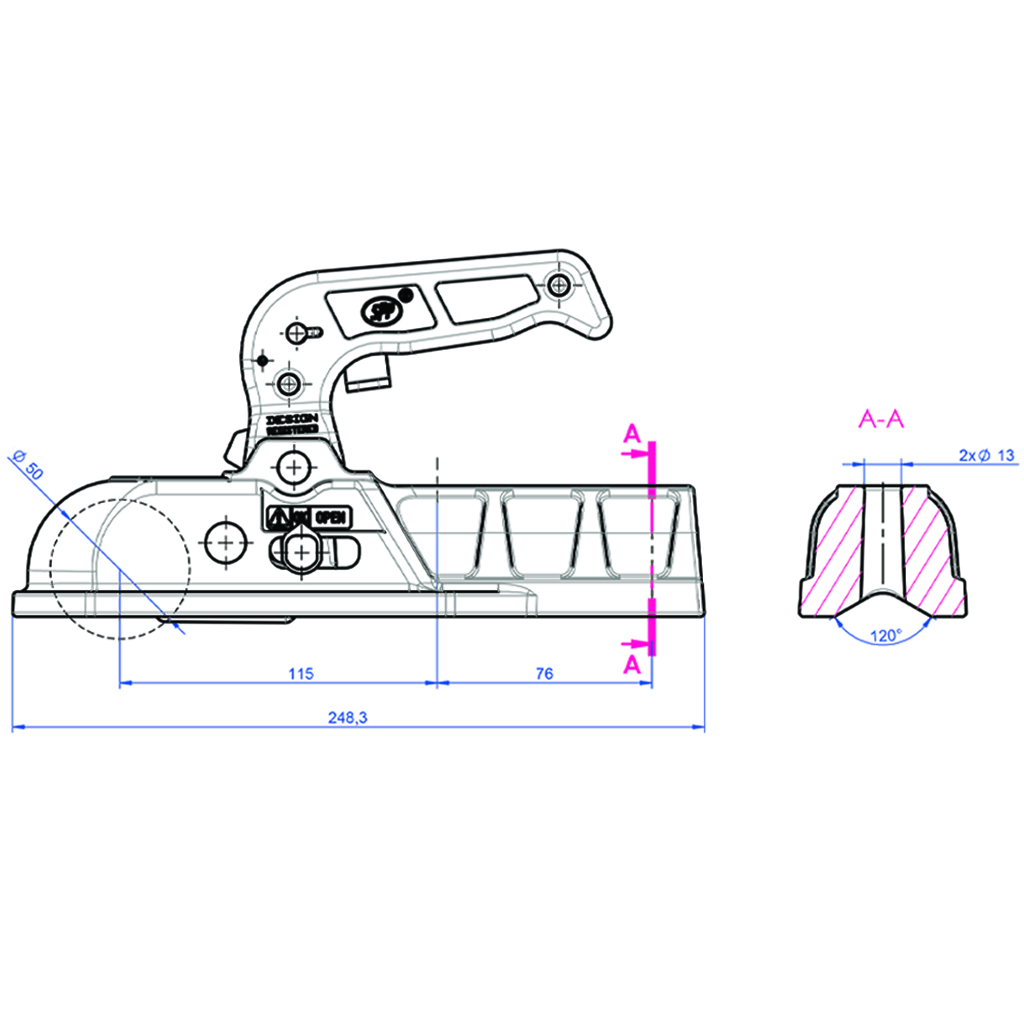

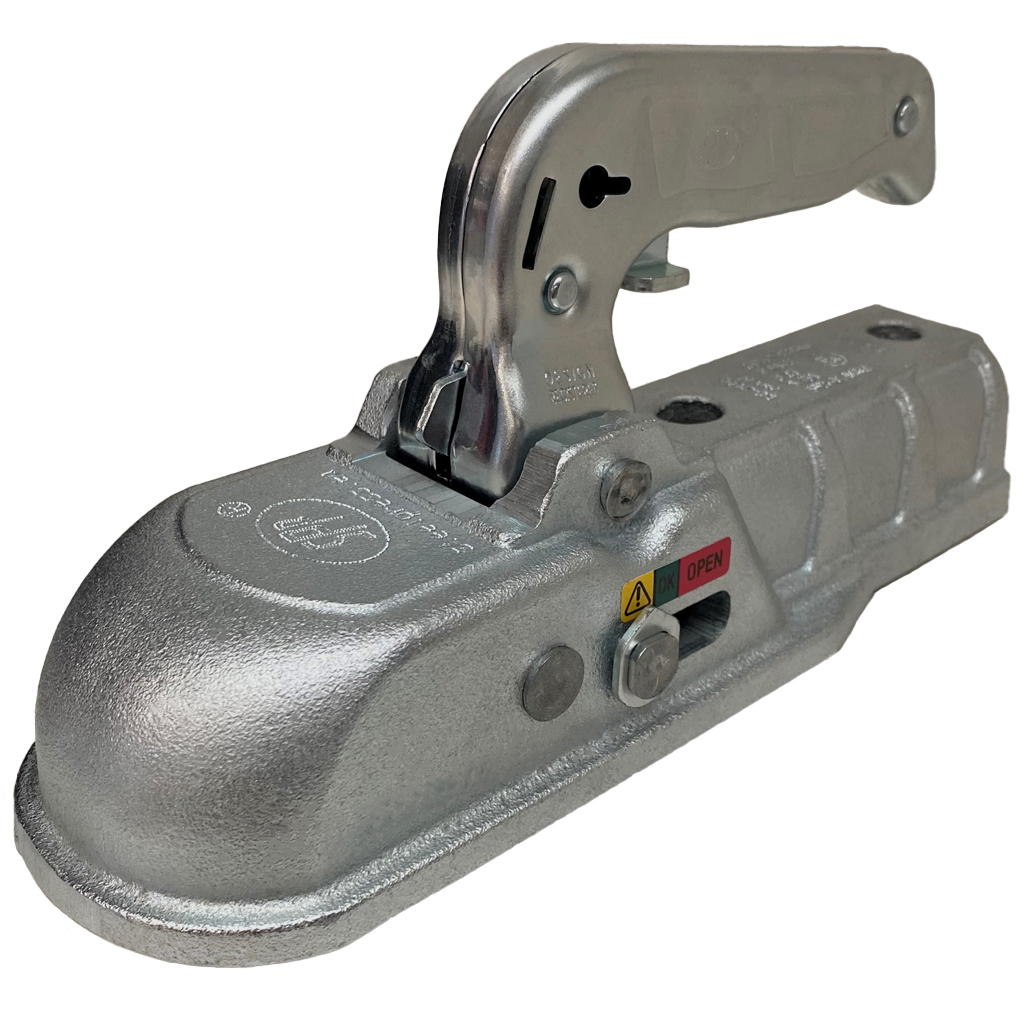

Item specifications: Hitch.

SPP SteelPress Production European manufactured.

High quality trailer coupling, Cast iron body with pressed steel handle. Double movement opening.

To fit on round or square bar.


This kit is for on and off road use, up to a maximum of 20km/h.

The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces.

The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.


Maximum kit weight capacity 1800kgs.

Add to cart

Sign in

Pay

Get Delivered

Part Number EC1373
Tyre Size 20x10.00-8
Ply 4
TT/TL TL
Pattern P332
Tread Depth (mm) 7.1
SW (mm) 236
OD (mm) 500
PSI 22
Load/Speed Index 74/87 A4
Stud / PCD 4x100mm
E-Mark E4-106R-003460
Max Load (Kg) 540
Hub & Stub Axle (2pcs) hub & Stub axle 4/100 M12 wheel bolt 40x40
Hitch (1pcs) SPP 3000kg Cast Hitch
