20.5x8.00-10 Trailer Kit, 4ply Trailer Wheels & Hub & Stub axles 35mm x 35mm High Speed Road Legal

https://www.parnells.eu/web/image/product.template/87269/image_1920?unique=9f140a9

Part Number: EC1391
Wheel Size: 20.5x8.00-10
Hub & Stub Axle Size: 35mm Square, 200mm long
Load Capacity: 750kg

364.36 € 364.36 EUR 364.36 €

423.18 €

Login for trade prices

Not Available For Sale


  • Brand
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Stud / PCD
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

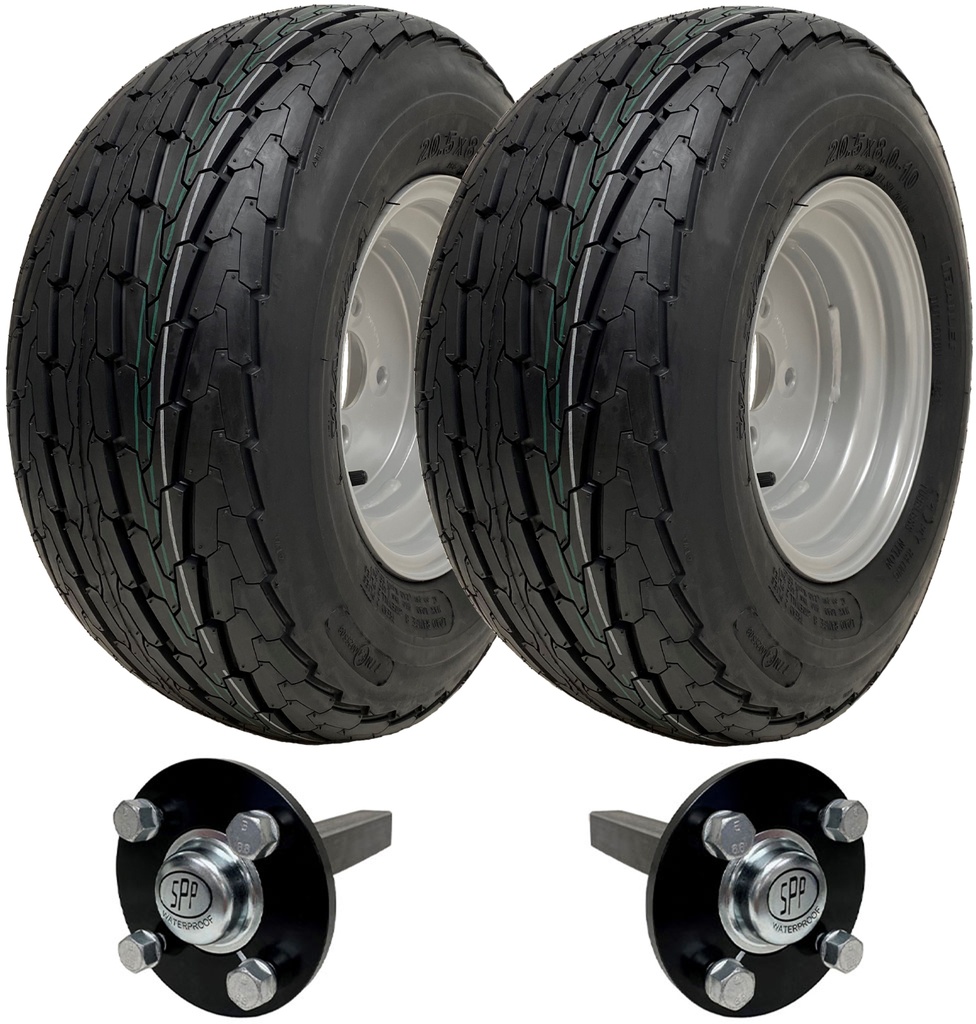

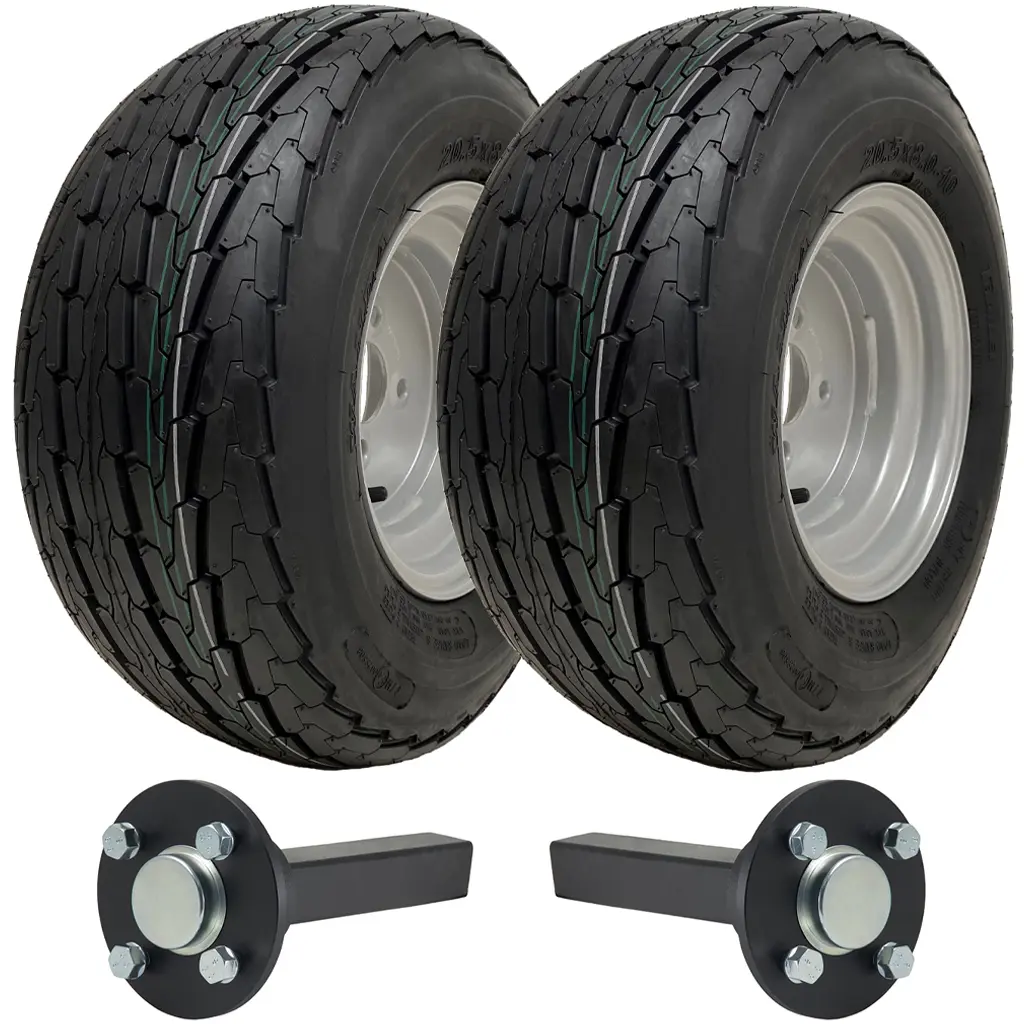

Trailer kit - 20.5x8.00-10 4ply TRAILER WHEEL 4/100 & Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed

This Kit contains:

Two: High Speed Wheels (tyres fitted on rims)

&

Two: High Speed Hub & Stub Axles.


Wanda P815 trailer tyre fitted to a heavy duty 4 stud 100mm PCD steel rim. These are tubeless tyres.

They are E marked for road legal use in Europe and the UK.

They are hard wearing 4ply tyres with a tread depth of 7mm.

The wheels are heavy duty steel rims with 4 studs 100mm PCD,

(the centre hole is 60mm).


Wheel Specifications:

Overall diameter: 520mm,

Max section width: 205mm,

Max load: 910lbs (412kg),

tread Depth: 7mm,

Brand: Wanda,

Tyre pattern: P815,

PSI: 35,

Max speed: 130km/h (81mp/h).


Rim Specifications:

Rim Size: 6.00x10,

Pitch Circle Diameter: 100mm PCD,

Centre Hole Size: 60mm,

Stud Hole Size: 14.5mm,

Rim Offset: ET-4 (offset 4mm towards the inside edge),

Silver powder coated finish with electro coating.


Hub & Stub Axle Specifications:

These hubs are rated to 80mph, they are fully legal to use on the road.

They have sealed precision ball bearings, they never need to be greased.

The hub has 4 x M12 studs, the PCD is 100mm.

The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.

These are genuine "SPP" Steelpress Production parts, manufactured in Poland.


Maximum Kit Load Capacity 750kgs.

Part Number EC1391
Brand Parnells
Tyre Size 20.5x8.00-10
Ply 4
TT/TL TL
Pattern P815
Tread Depth (mm) 7.0
SW (mm) 205
OD (mm) 520
PSI 35
Stud / PCD 4x100
Max Load (Kg) 750
Hub & Stub Axle (2pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
