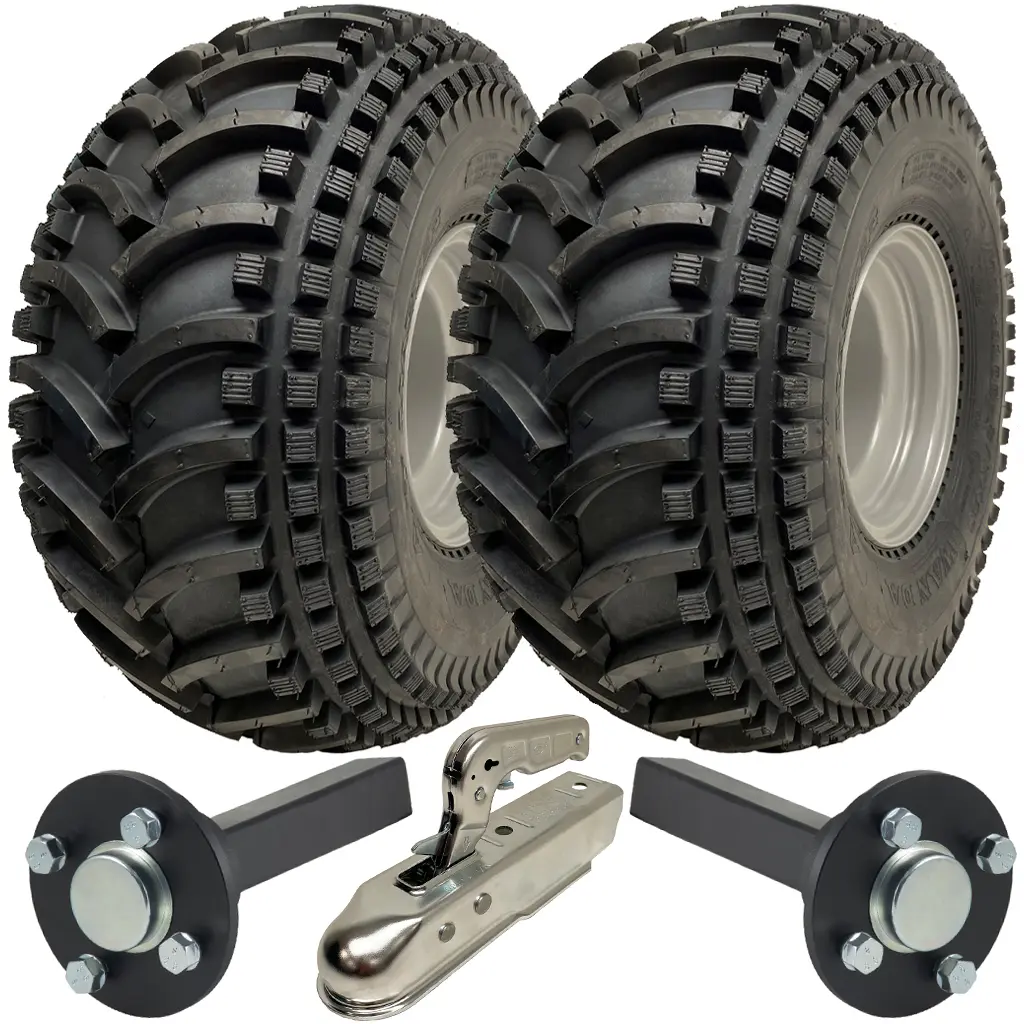

Kit of 2 - 22x11.00-8 P308 ATV tyre on 4/100mm Rim & Hub & Stub axle 4/100 M12 wheel bolt 35x35mm hub & stub & 750kg Pressed hitch

Contents of this kit include:

2 x Wheels, 22x11.00-8.

2 x Stub axles, 35x35x200mm solid stub.

1 x Pressed Steel Tow Hitch.


Item specifications: Wheels.

• 22x11.00-8 4ply Wanda P308 knobby open centre tyres on steel rim 4x100mm PCD,

• Overall diameter: 535mm,

• Max width of tyre: 260mm,

• Tread depth: 16mm,

• Inflation: 5psi,

• Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),

• E-marked road legal tyres,

• Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.


Item specifications: Stub axles.

• Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,

• PCD is 100mm,

• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

• The hubs are waterproof,

• The shaft is 35x35mm x 200mm long, solid steel,

• Manufactured by SPP (Steelpress, Poland).


Item specifications: Hitch.

• 750kg pressed steel hitch, high quality zinc plated finish,

• Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts

(bolts & lock nuts are provided with this kit).

• These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).

These hitches may be coupled only with class A ball hitch couplings (Ø50). The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.

• In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.

• Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.


Maximum Kit load capacity 310kgs.


Part Number EC1458
Brand Parnells
Tyre Size 22x11.00-8
Ply 4
TT/TL TL
Pattern P308
Tread Depth (mm) 16.0
SW (mm) 260
OD (mm) 535
PSI 5
Load/Speed Index 43J
Stud / PCD 4x100mm
E-Mark E4-75R-0006182
Max Load (Kg) 310
Hub & Stub Axle (2pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
Hitch (1pcs) SPP 750kg Pressed Hitch
