Twin axle 145x10 Wanda WR068 TRAILER Kit, Four Wheels & Hub & Stub axles
Part Number: EC1461
Tyre Size; 145R10
Stub axle: 35mm x 35mm, 200mm long

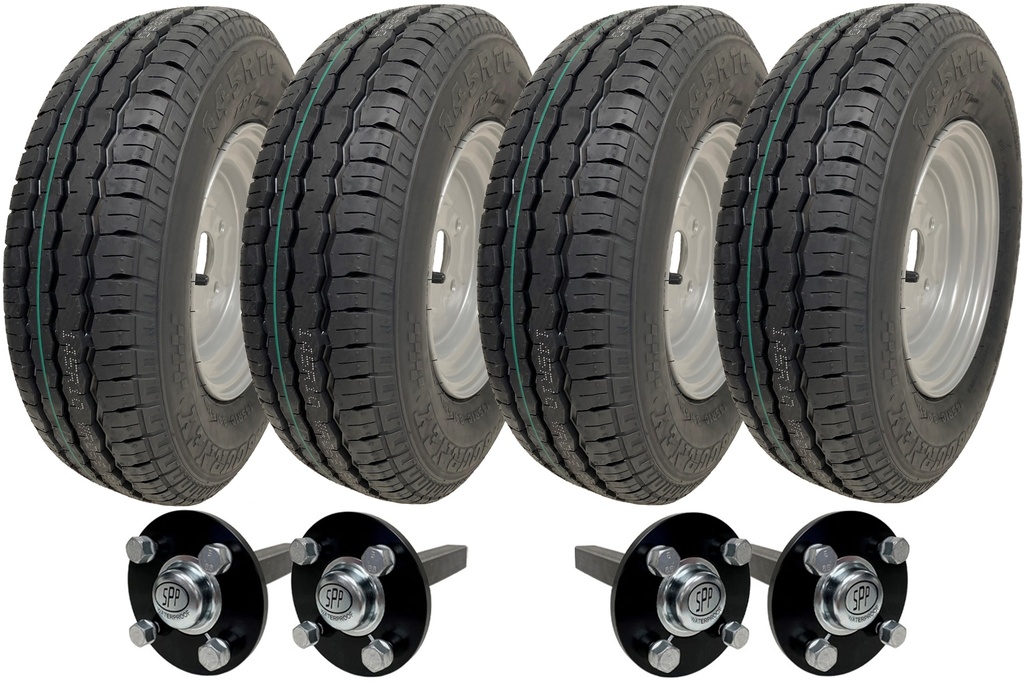

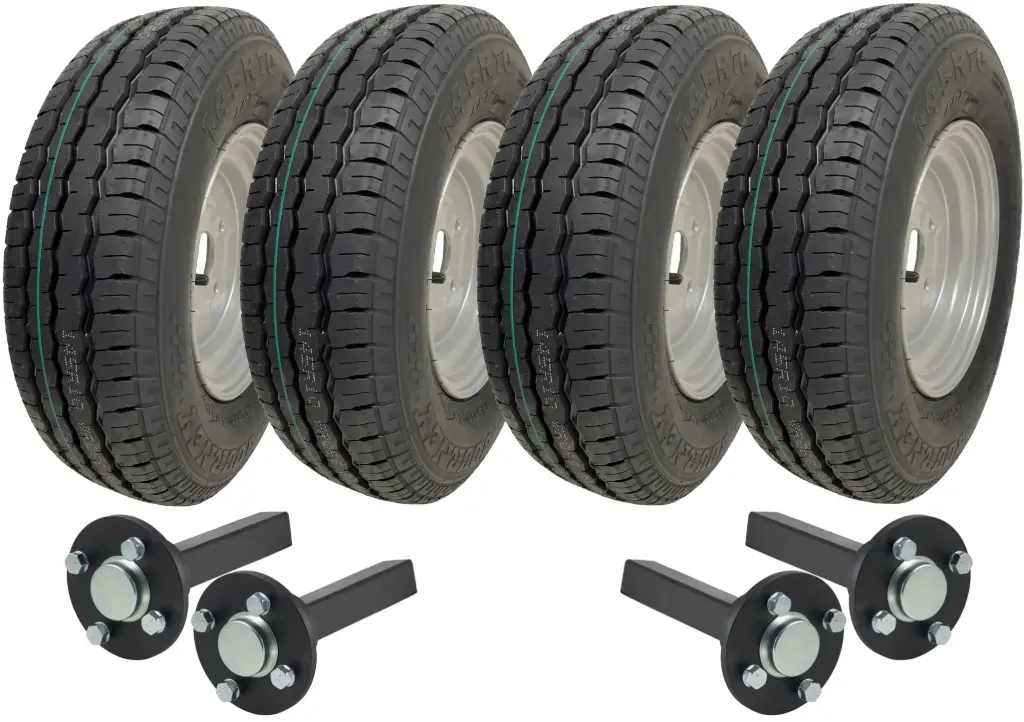

145R10 Twin axle Trailer Kit.
This Kit contains:
Four: 145R10 Trailer Wheels (Tyres fitted on rims).
&
Four: High Speed Hub & Stub Axles.
Wanda WR068 Trailer Tyre fitted 4 x 100 PCD metric rim.
High speed Radial trailer tyre on heavy duty steel rim.
They are E-Marked for legal use on European roads.
Tyre Specification:
Tyre Diameter: 492mm,
Tyre Width: 147mm,
Tyre Pattern: WR068,
Tyre Brand: Wanda,
Tread Depth: 7mm,
Load rating: 84/82 = 500kgs for single axle & 475kg for dual axle,
Speed Rating: N = 140km/h (86mp/h),
E-Mark Number: E4-0036064.
Rim Specification:
Rim Size: 3.50x10,
Rim Finish: Powder coated Steel (Grey),
Pitch Circle Diameter: 100mm PCD (metric),
Centre hole size: 60mm,
Rim Offset: Zero (equal distance front and back).
Hub & Stub Axle Specifications:
These hubs are rated to 80mph, they are fully legal to use on the road.
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.
These are genuine "SPP" Steelpress Production parts, manufactured in Poland.
The tread is a combined vertical and block pattern giving enhance grip on and off road.
Excellent water dispersion and hydroplaning resistance.
Good heat dissipation and grip with quiet driving performance at high speeds.
The maximum load capacity of a trailer without brakes is 750kgs.
| Part Number | EC1461 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 145R10 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | WR068 |
| Tread Depth (mm) | 7.0 |
| SW (mm) | 147 |
| OD (mm) | 492 |
| PSI | 65 |
| Load/Speed Index | 84/82N |
| E-Mark | E4-0036064 |
| Max Load (Kg) | 500 |
| Hub & Stub Axle (4pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
