Twin axle 18x8.50-8 P332 ATV Trailer Kit, ALKO hub & stub axles, cast steel hitch
Part Number: EC7553
Wheel Size: 18x8.50-8
Stub Axles: 35mm square & 200mm long
Load Capacity: 1500kgs
Twin axle 18x8.50-8 ATV trailer kit.

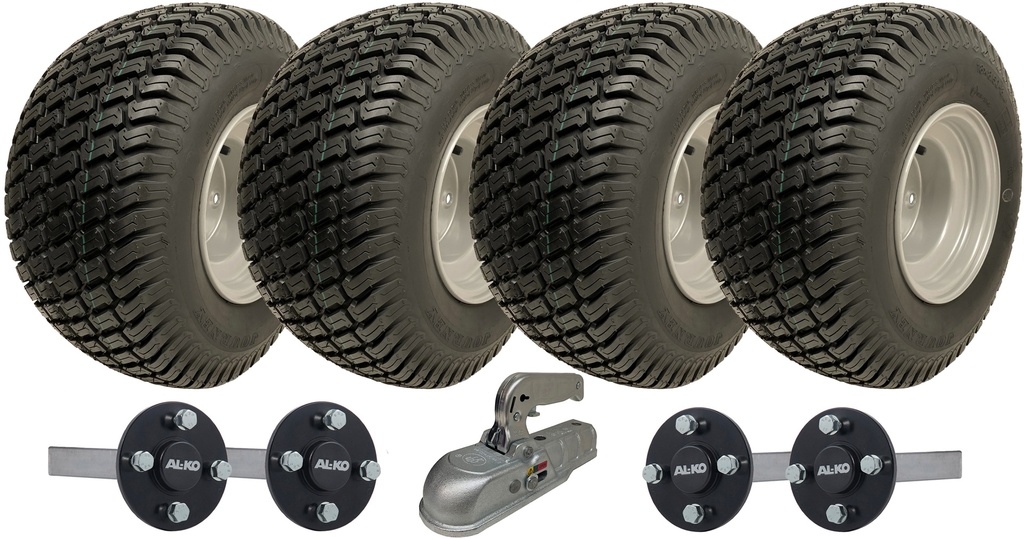

This kit contains:
4 - 18x8.50-8 wheels
4 - 35mm x 35mm ALKO hub and stub axles.
1 - Cast Steel Tow Hitch.

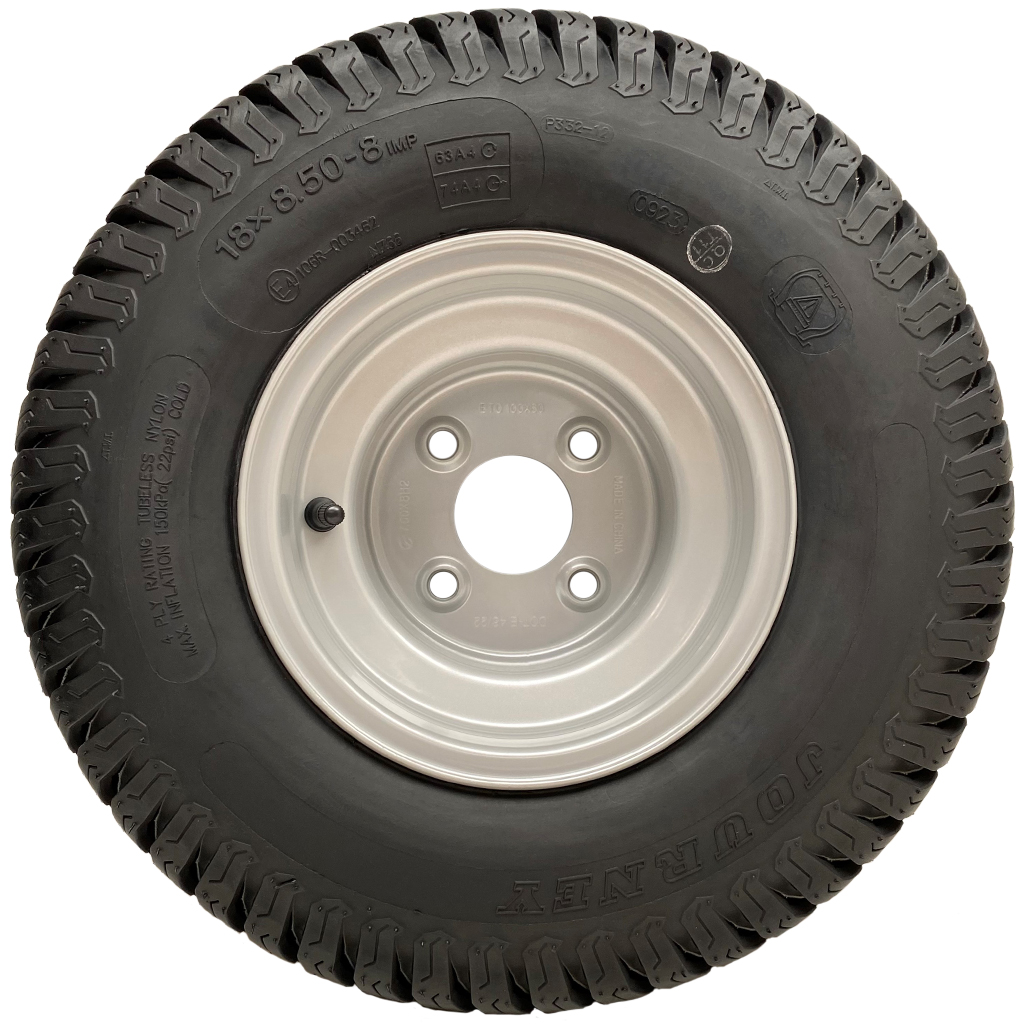

Wheel Specification:

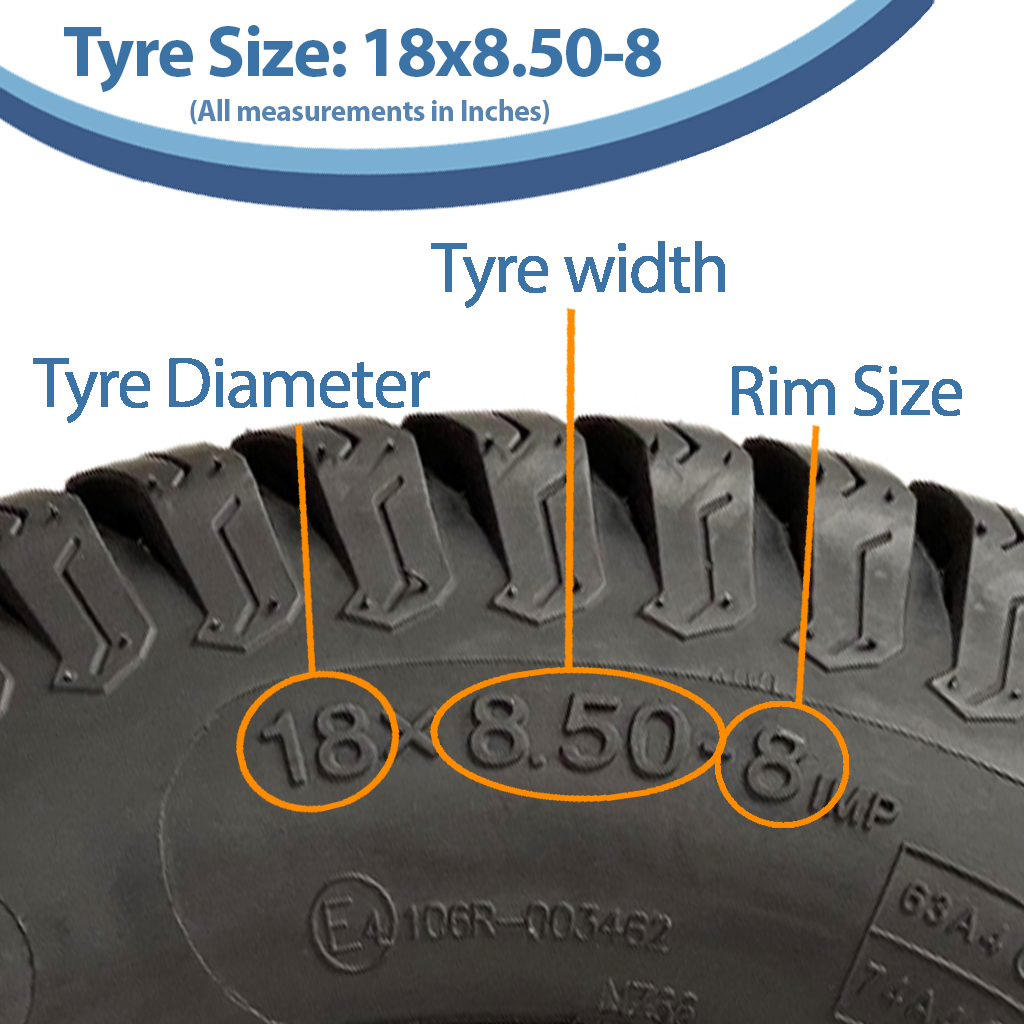

Size:18x8.50-8,
Brand: Wanda (Journey),
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 375 kgs at 22PSI,

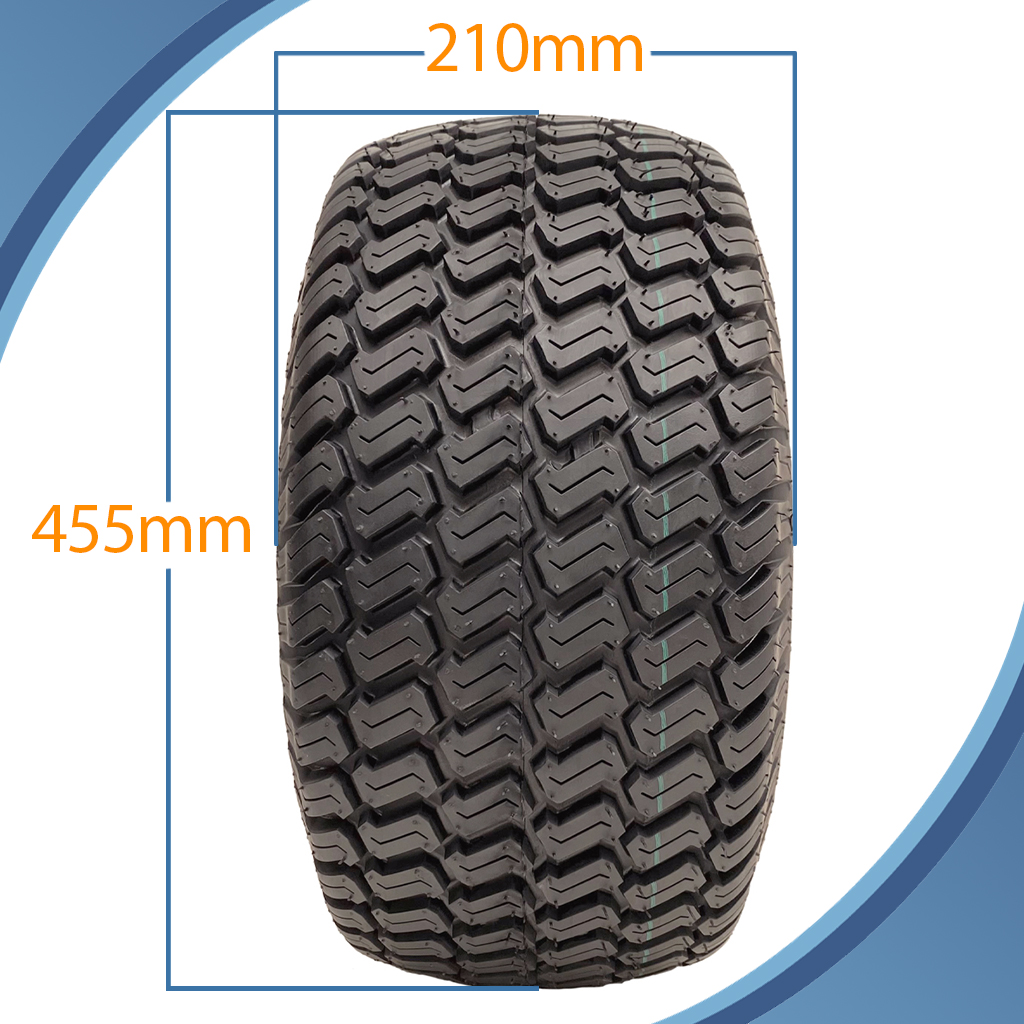

Tyre height: 455mm,
Tyre width: 210mm,
Tread Depth: 7.1mm,
E Marked road legal: E4-106R-003462.
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

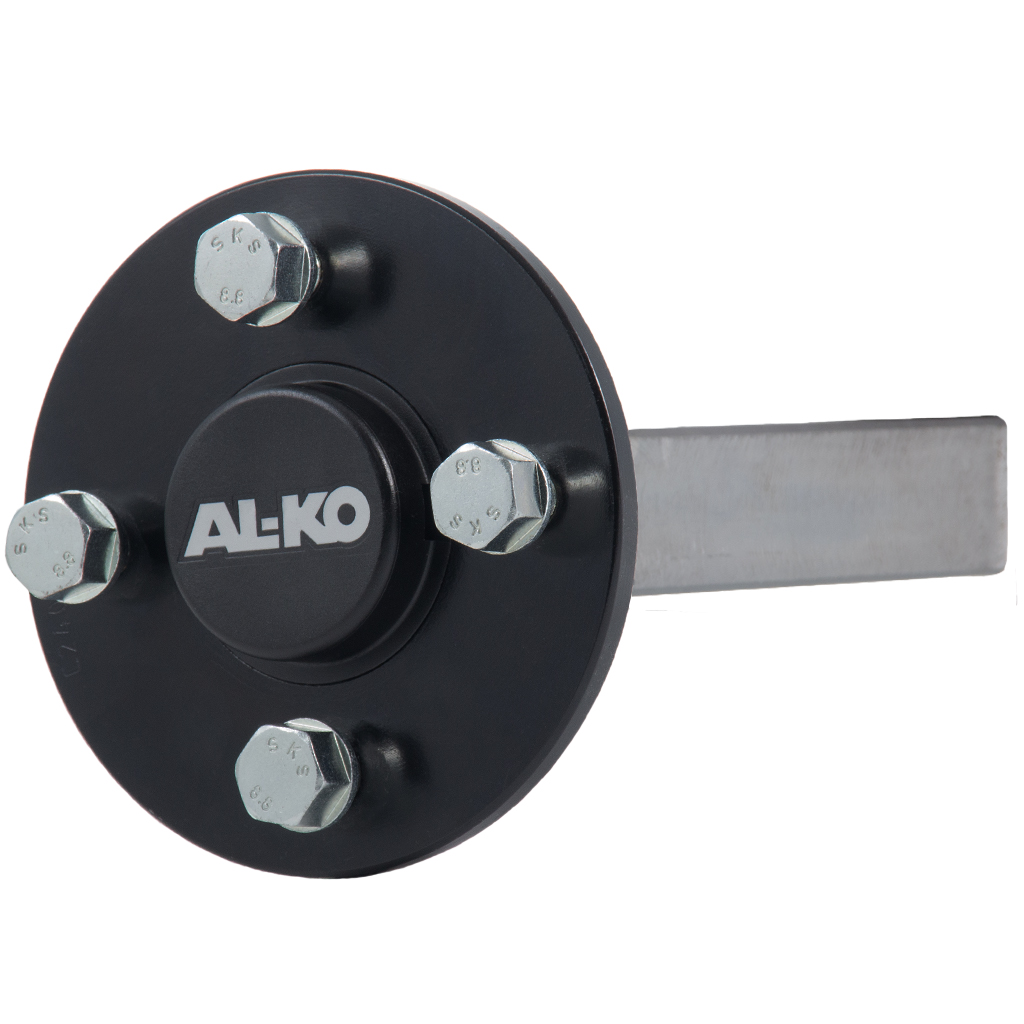

Hub & Stub Specification:
These are genuine ALKO parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.

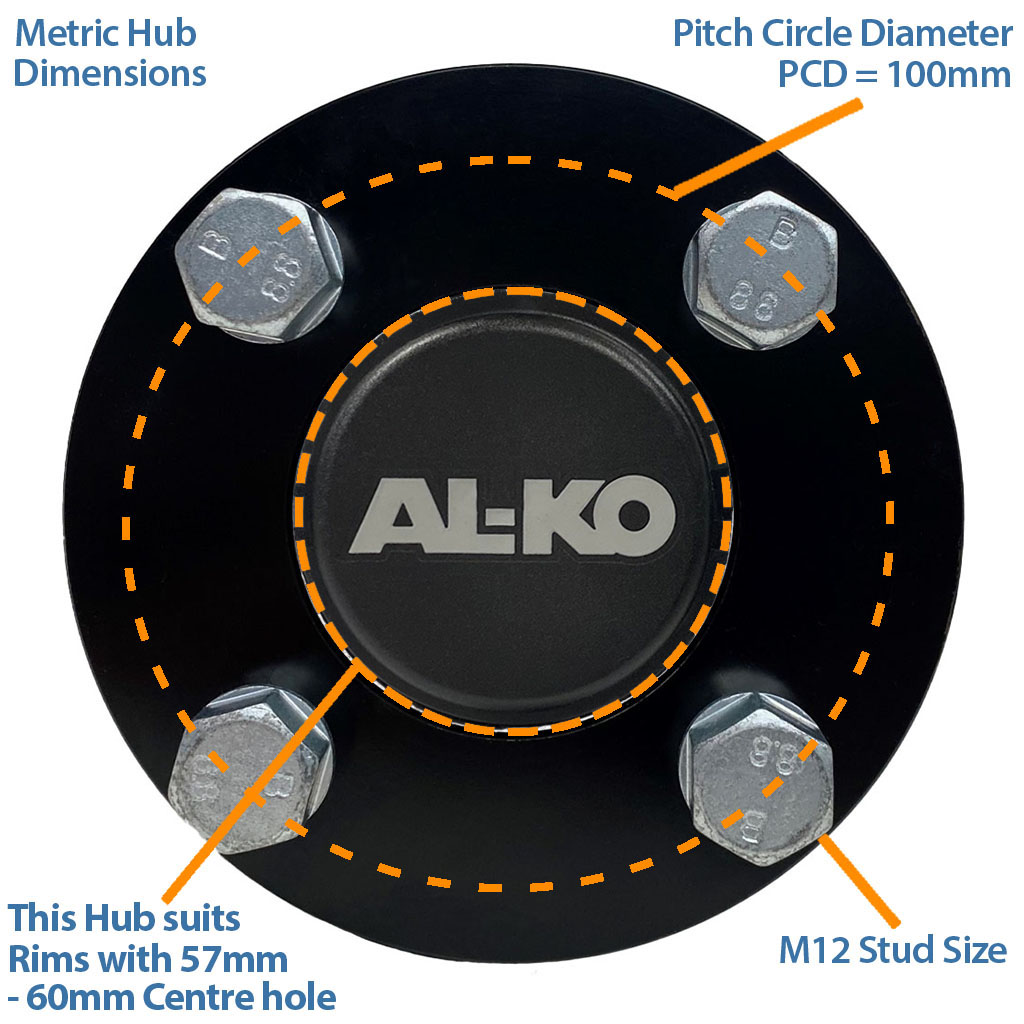

The hub has 4 x M12 studs, the PCD is 100mm.

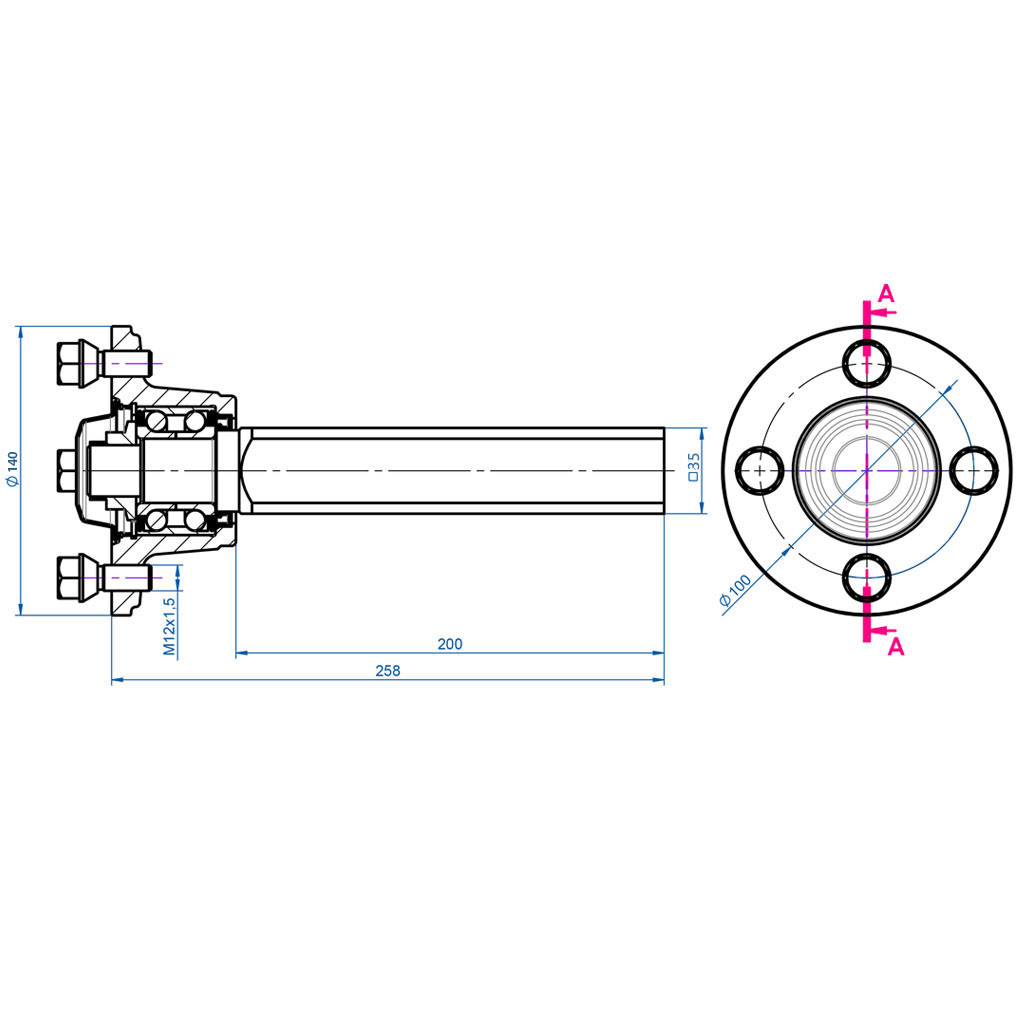

The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 750kg per pair.

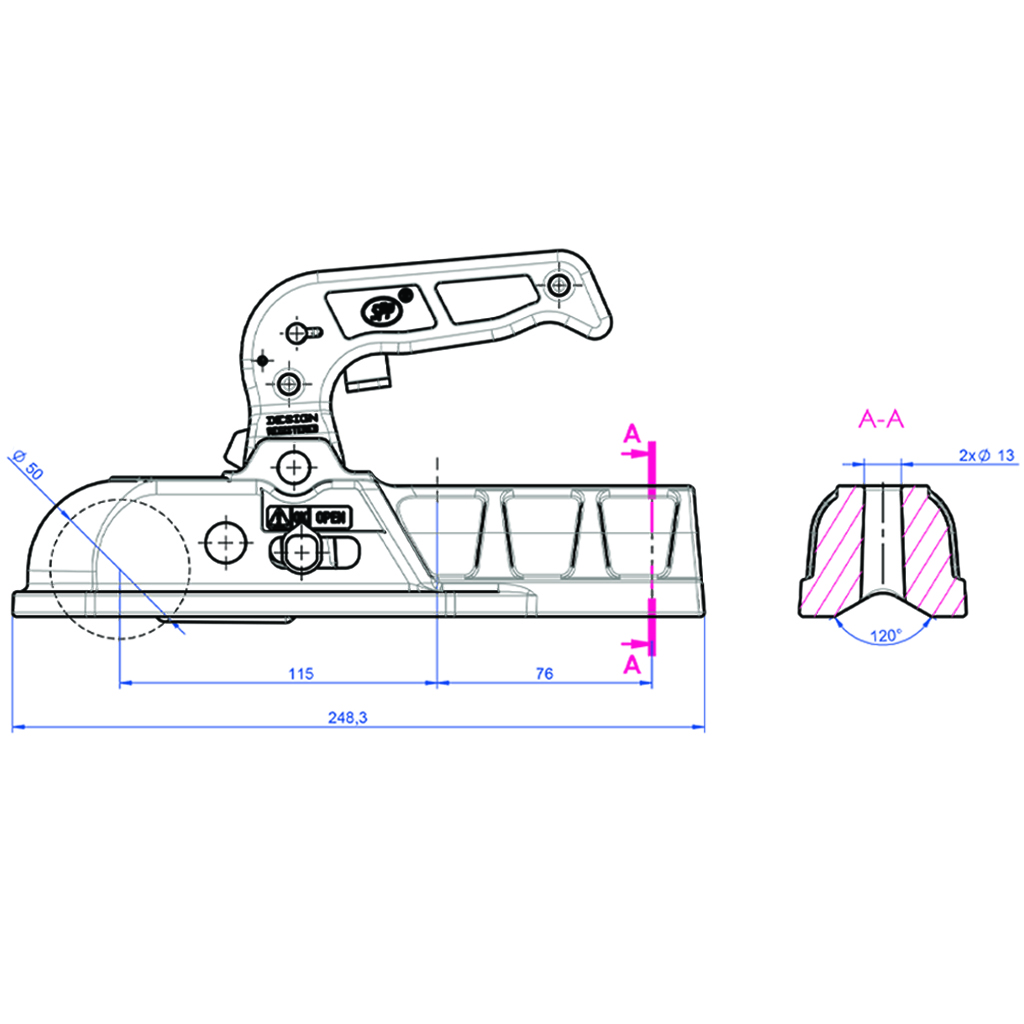

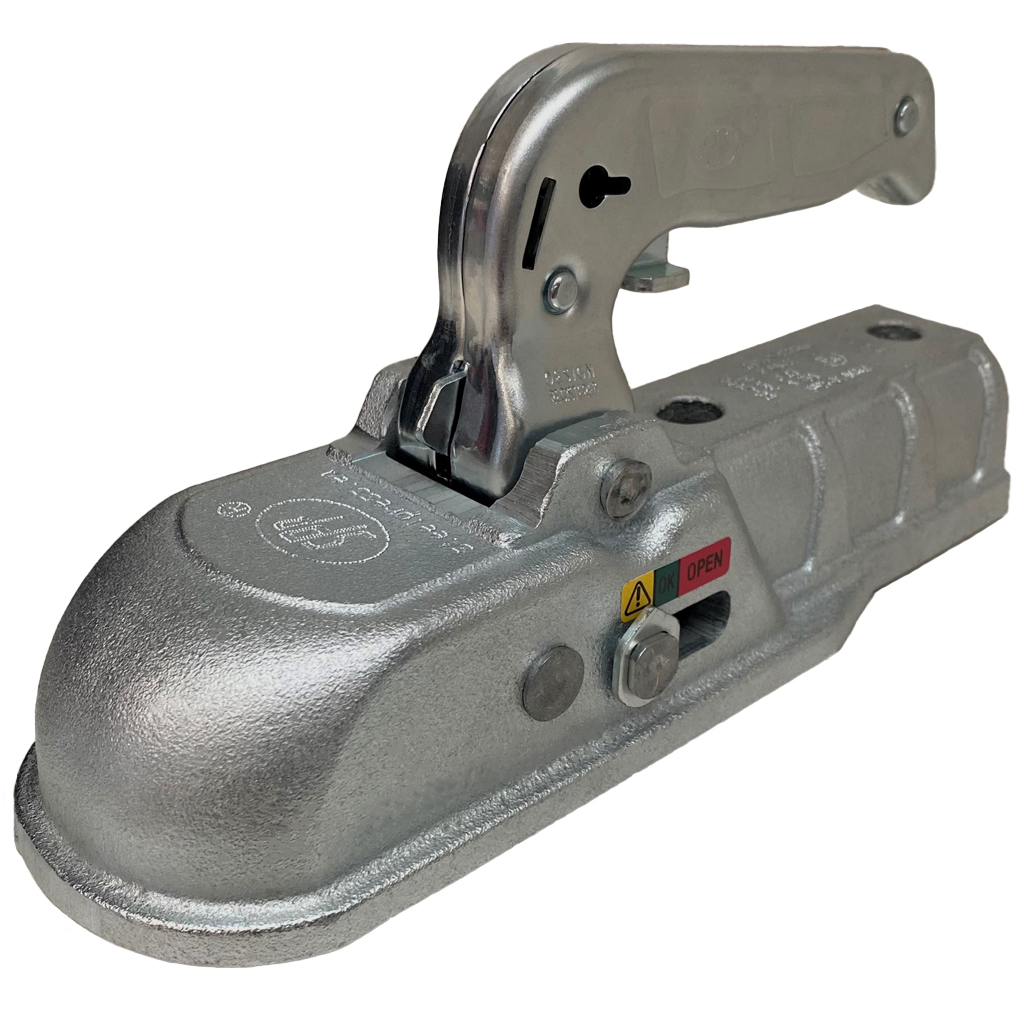

Item specifications: Hitch.
SPP SteelPress Production European manufactured.
High quality trailer coupling, Cast iron body with pressed steel handle.
3000kgs load capacity.
Double movement opening.
To fit on round or square bar.
This kit is predominantly for off road use. But it is road legal up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces.
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 1500kgs.
Part Number | EC7553 |
Brand | Parnells |
Tyre Size | 18X8.50-8 |
Ply | 4 |
TT/TL | TL |
Pattern | P332 |
Tread Depth (mm) | 7.1 |
SW (mm) | 210 |
OD (mm) | 455 |
PSI | 22 |
Load/Speed Index | 63/74 A4 |
E-Mark | E4-106R-003462 |
Max Load (Kg) | 375 |
Hitch (1pcs) | SPP 3000kg Cast Hitch |
Hub & Stub Axle (4pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
