5.00-10 Trailer Kit, 4ply WANDA P802 TRAILER WHEEL 4x100 & ALKO Hub & Stub axle 4x100, No Hitch
Part Number: EC7556
Wheel Size: 5.00-10
Stub axles: 35mm square, 200mm long
Load Capacity: 710kg
5.00-10 trailer wheel kit.

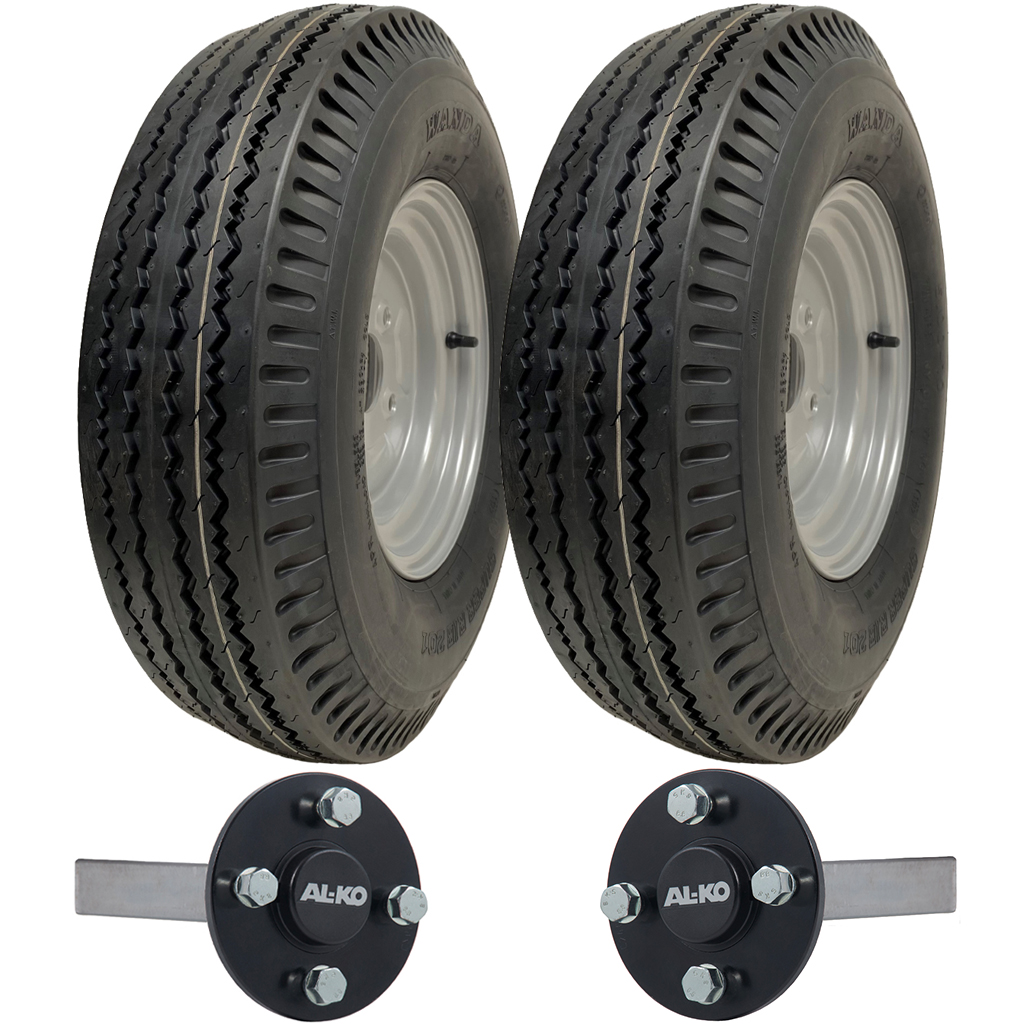

Kit contains:
Two - 5.00x10 Trailer wheels.
&
Two - ALKO Hub and stub axles.

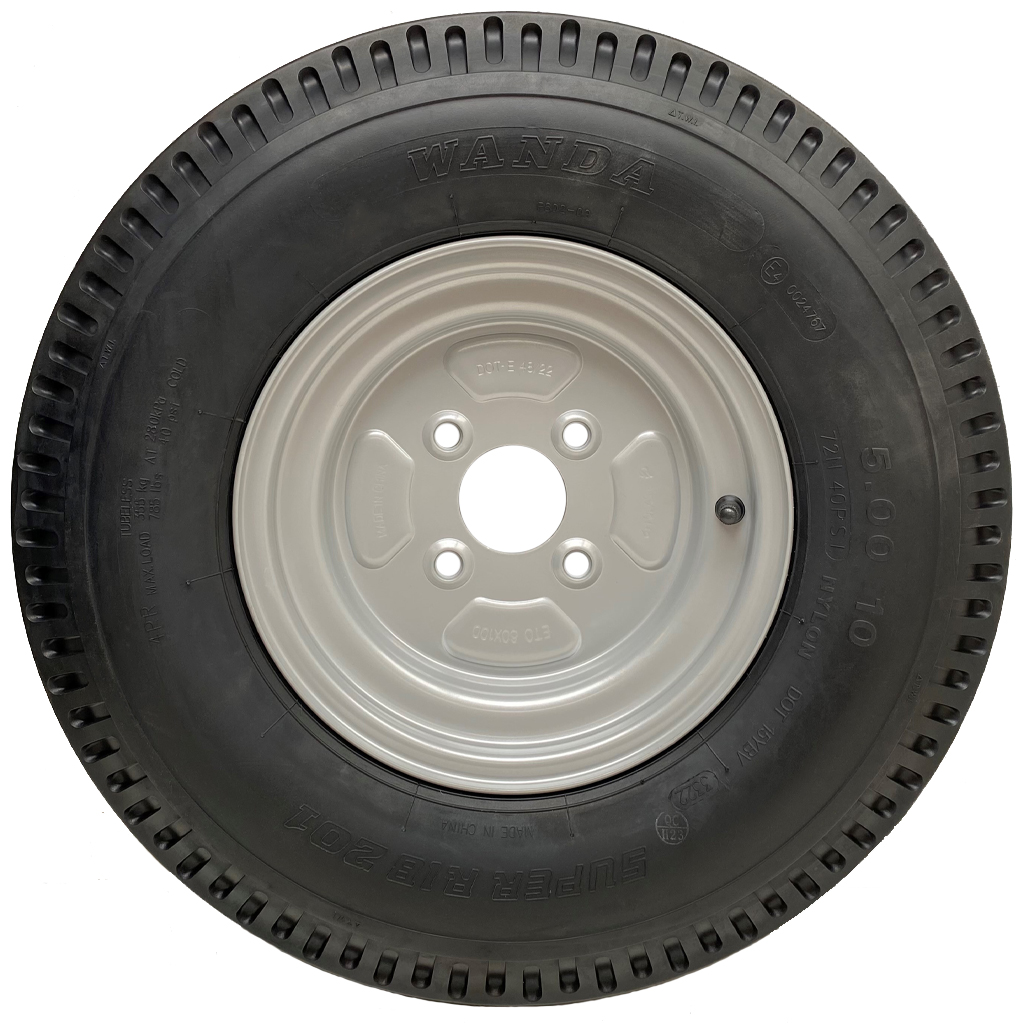

Wheel Specifications:
5.00x10 tyres on steel rim 4x100mm PCD,

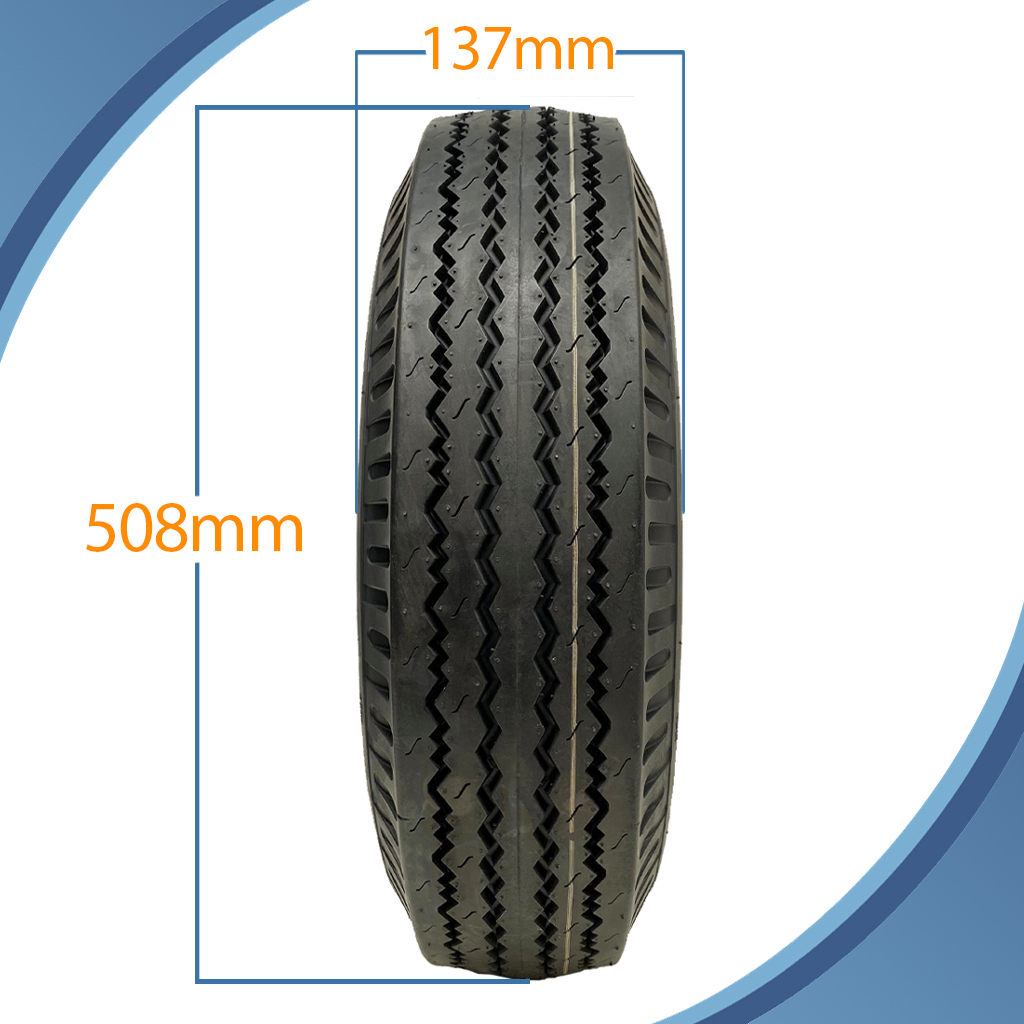

Overall diameter: 508mm,
Max width of tyre: 137mm,
Tread depth: 6mm,
Inflation: 40psi,

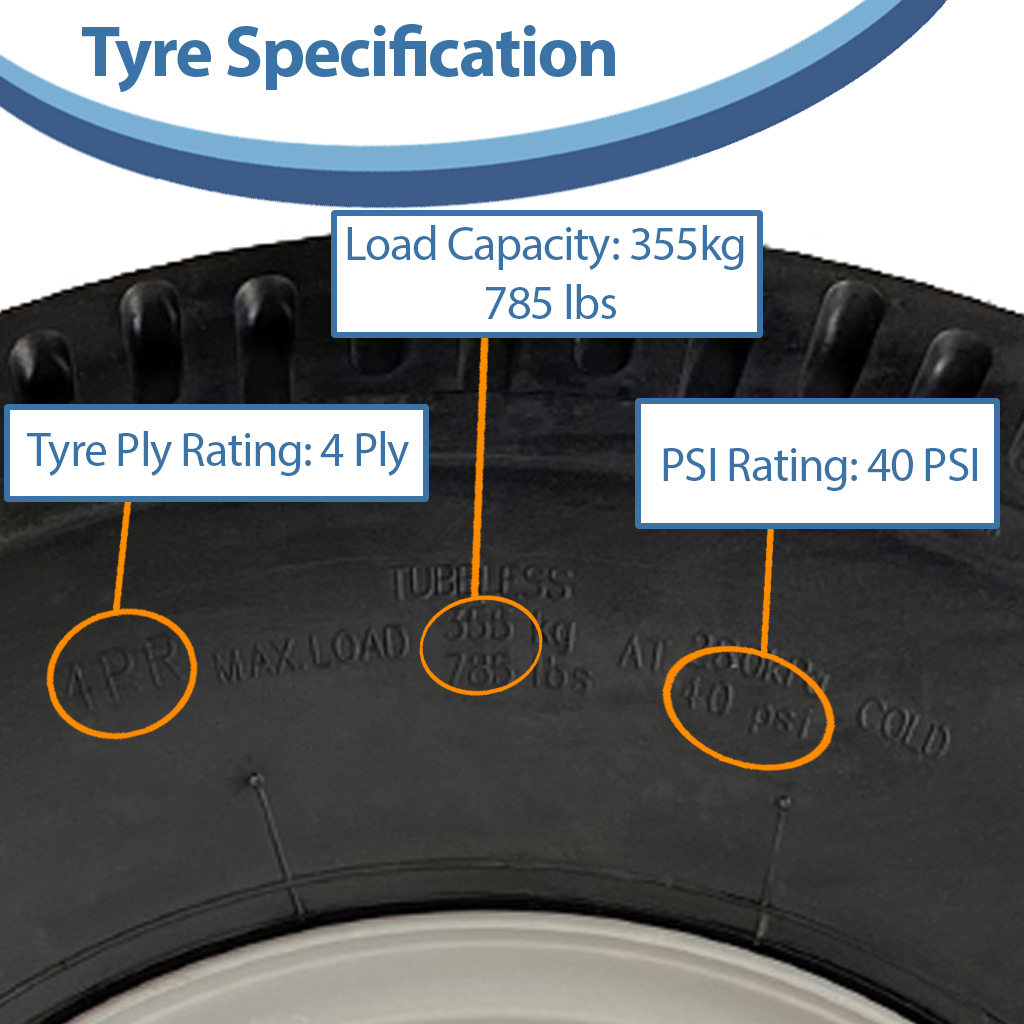

Ply Rating: 4Ply,
Tyre Brand: Wanda (Journey),

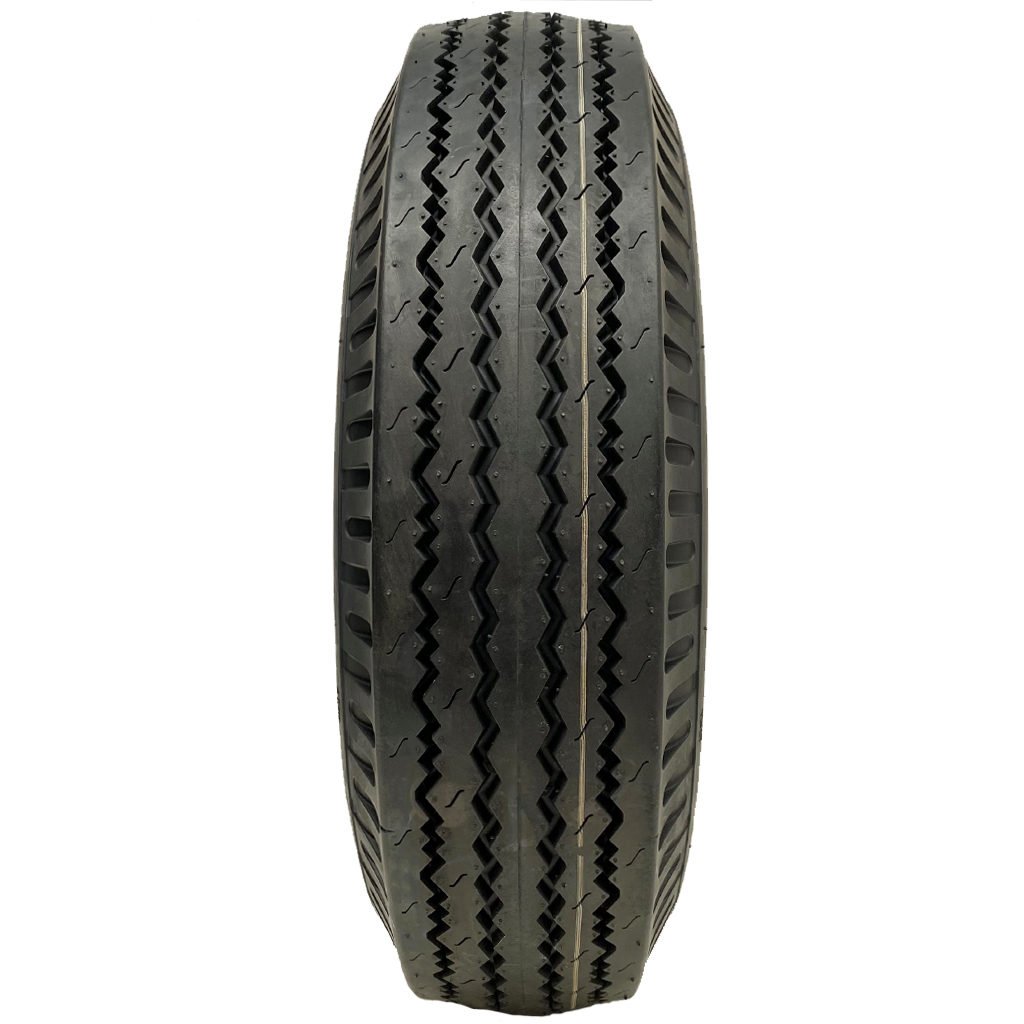

Tyre Pattern : P802 (Super Rib 201),
Max load per wheel: 355kg,
Load & Speed index: 72N,
E-marked road legal number: E4-0024767,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

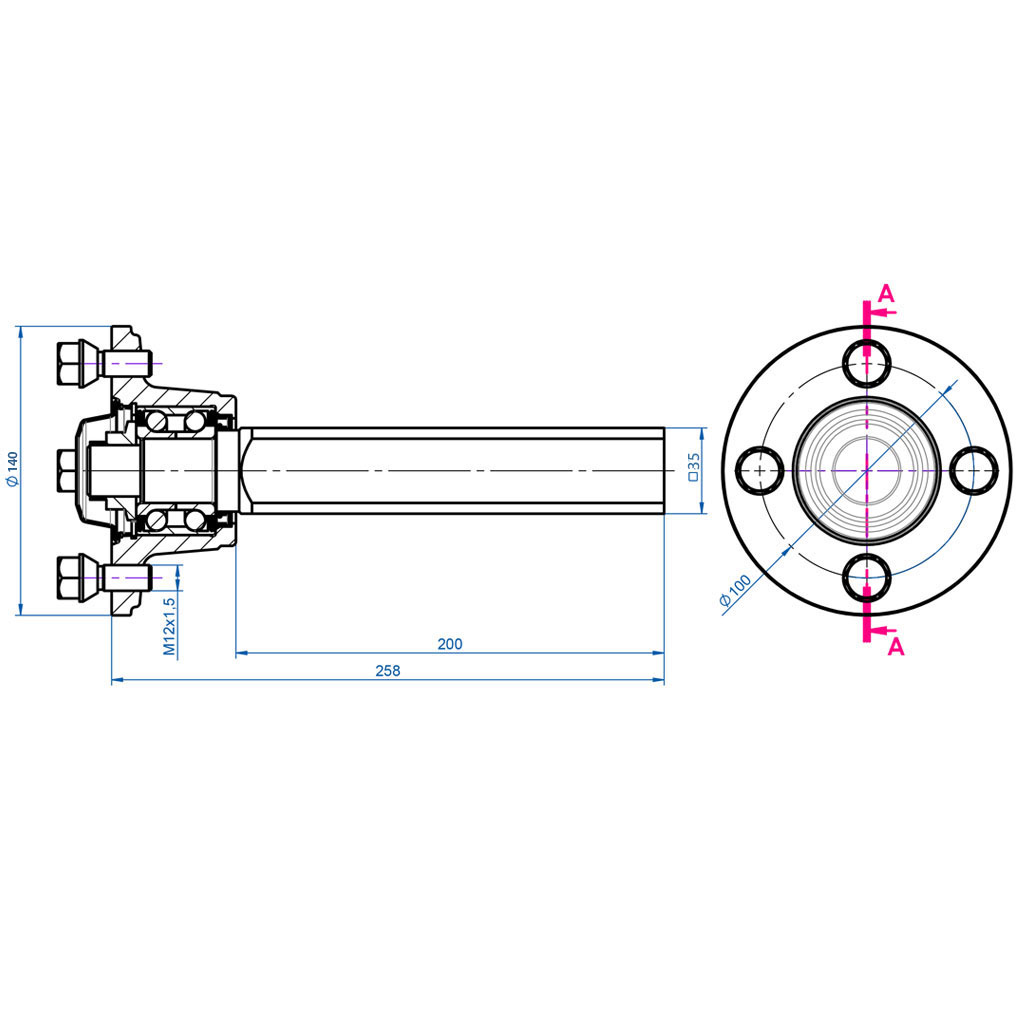

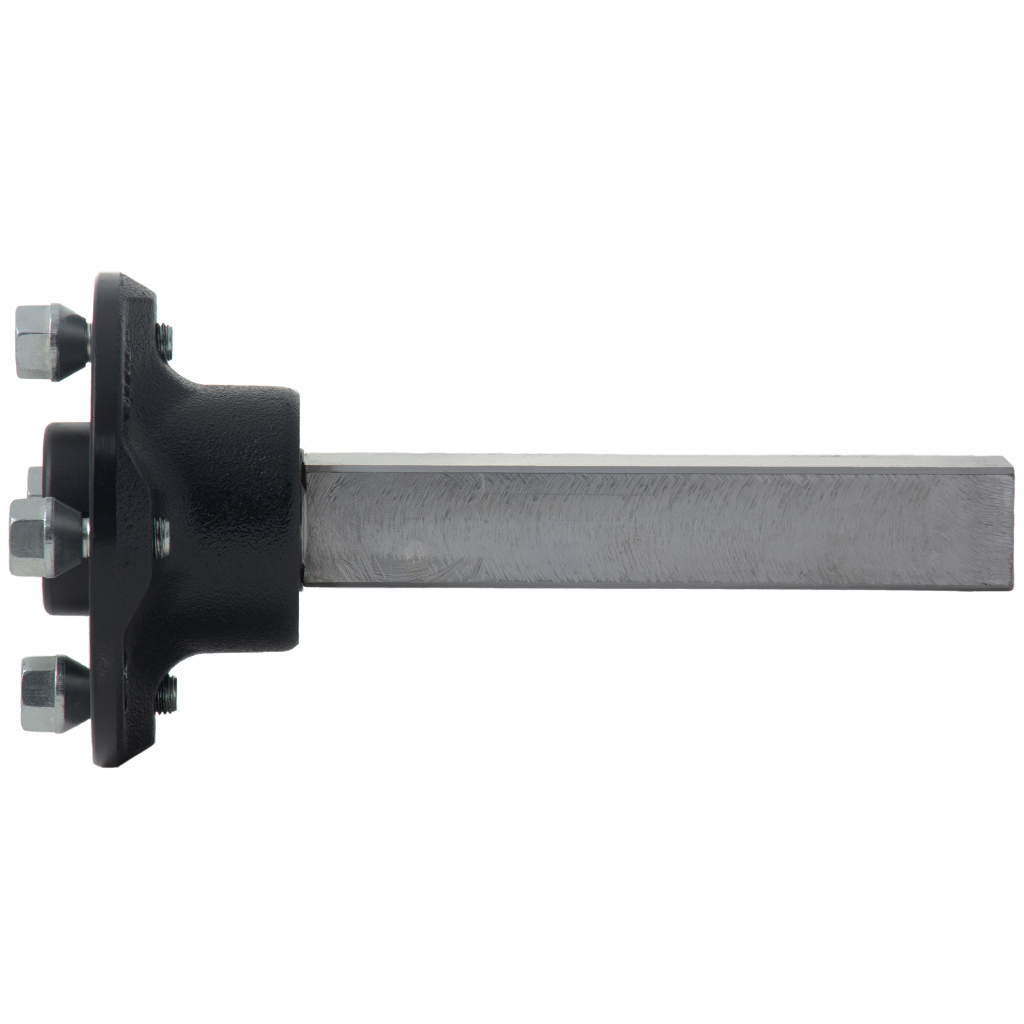

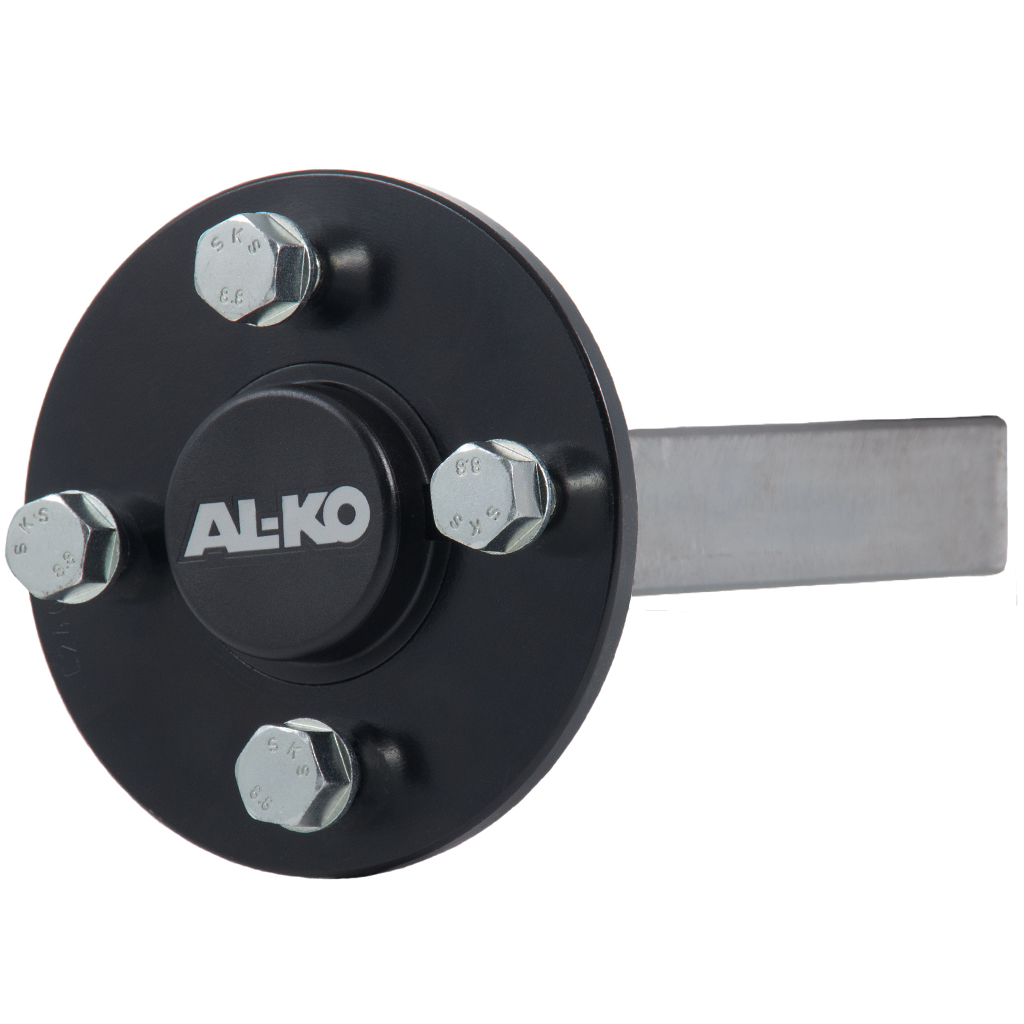

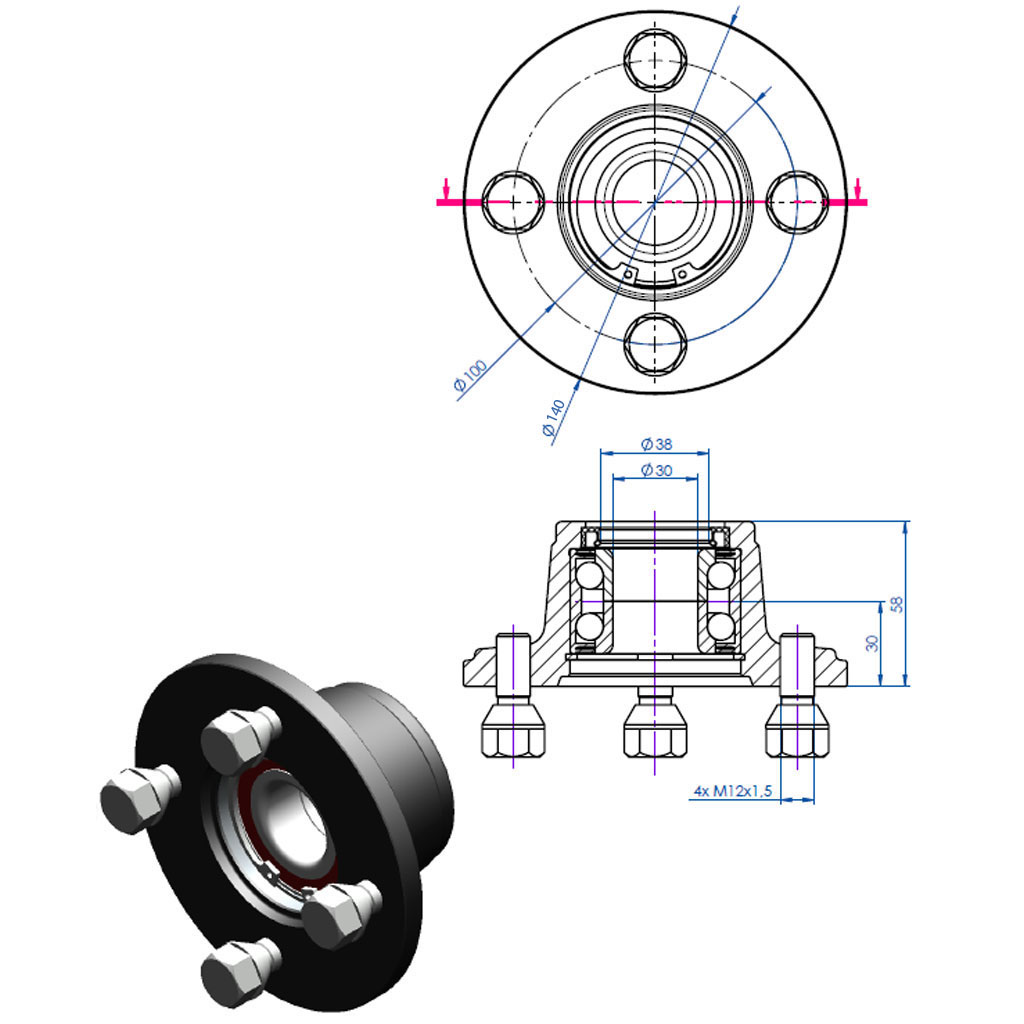

Stub Axle Specifications:
Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The axles are high speed and road legal for Europe and the UK,
The shaft is 35x35mm x 200mm long, solid steel,
Axles can be drilled and bolt, or welded in place,
It is recommend to remove the hub before welding, and reattach after welding is completed,
Manufactured by ALKO in Europe.
High speed road legal kit.
Max weight per kit 710kgs.
| Part Number | EC7556 |
| Brand | Parnells |
| Tyre Size | 5.00-10 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P802 |
| Tread Depth (mm) | 6.0 |
| SW (mm) | 137 |
| OD (mm) | 508 |
| PSI | 40 |
| E-Mark | E4-0024767 |
| Max Load (Kg) | 355 |
| Wheel & Tyres (2pcs) | (77588, '[AS7010] 500x10 4ply trailer wheel & tyre assembly 4/100/60') |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
