18x9.50-8 Twin Axle Knobby ATV Trailer kit, 4 Wheels & 4 ALKO Hub & Stub Axles
Part Number: EC7565
Wheel Size: 18x9.50-8
Stub axles: 35mm square, 200mm long
Load Capacity: 408kg
For sale is 1 new 18x9.50-8 twin axle ATV trailer kit.

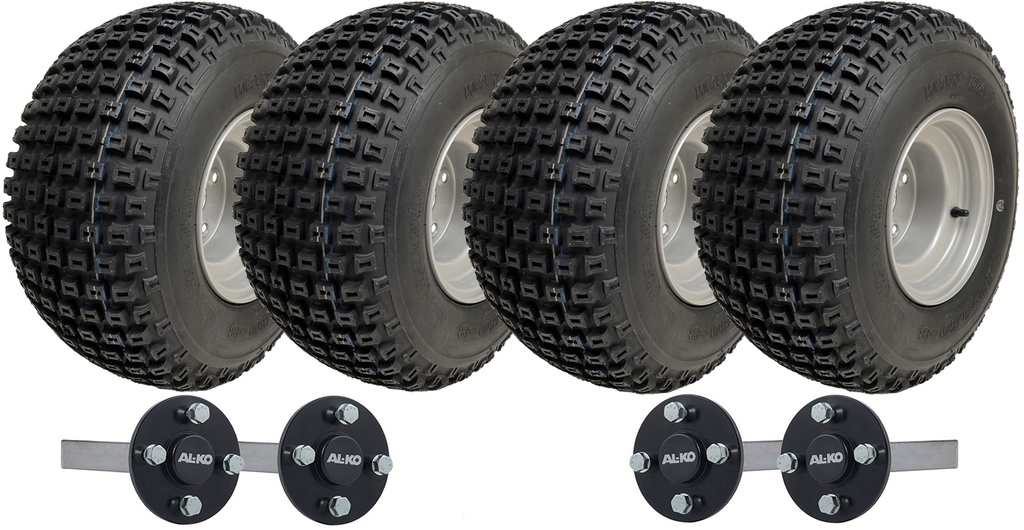

Contents of this kit include:
4 x Wheels.
4 x ALKO Hub & Stub axles.
Wheel Specifications:
18x9.50-8 4ply Journey P322 knobby tyres on steel rim 4x100mm PCD.
Overall diameter: 460mm,
Max width of tyre: 212mm,
Tread depth: 9.5mm,
Inflation: 5psi,
Max load per wheel: 102kg (225 lbs),
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

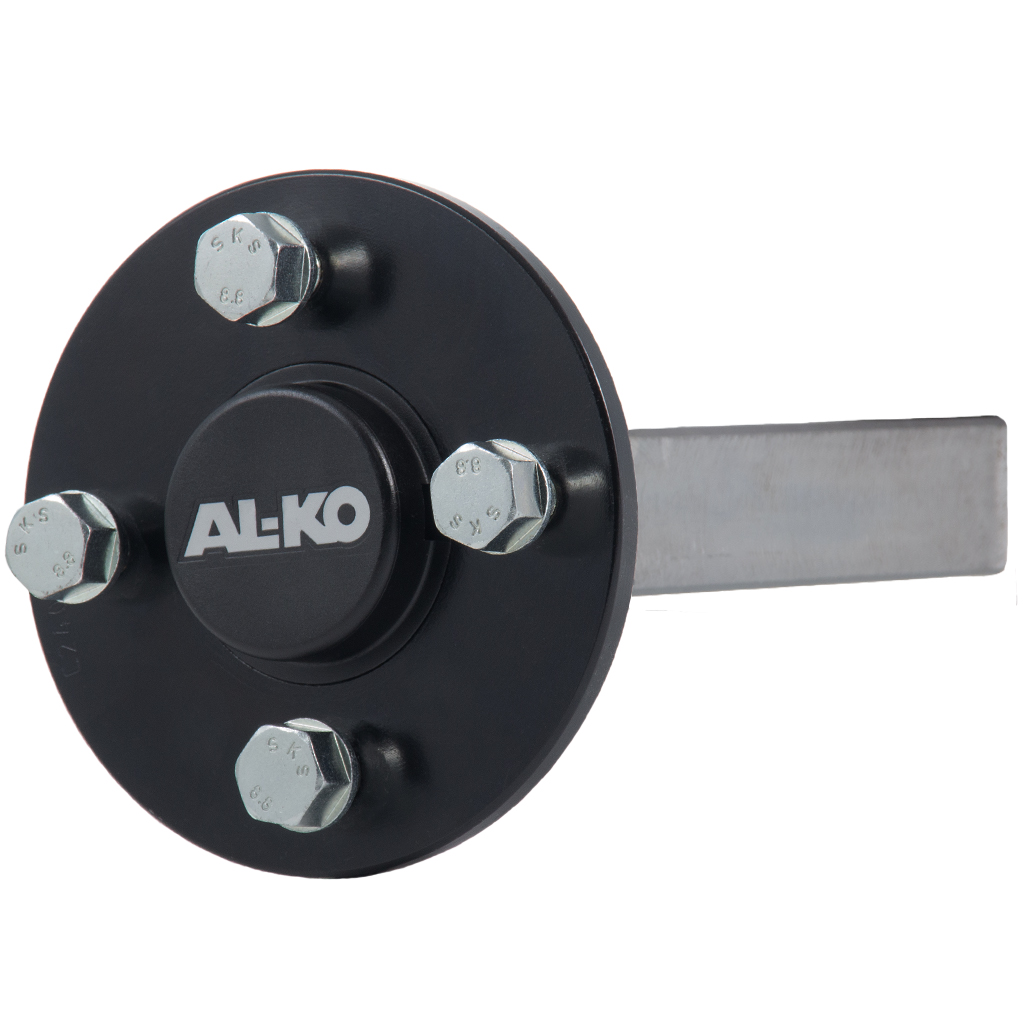

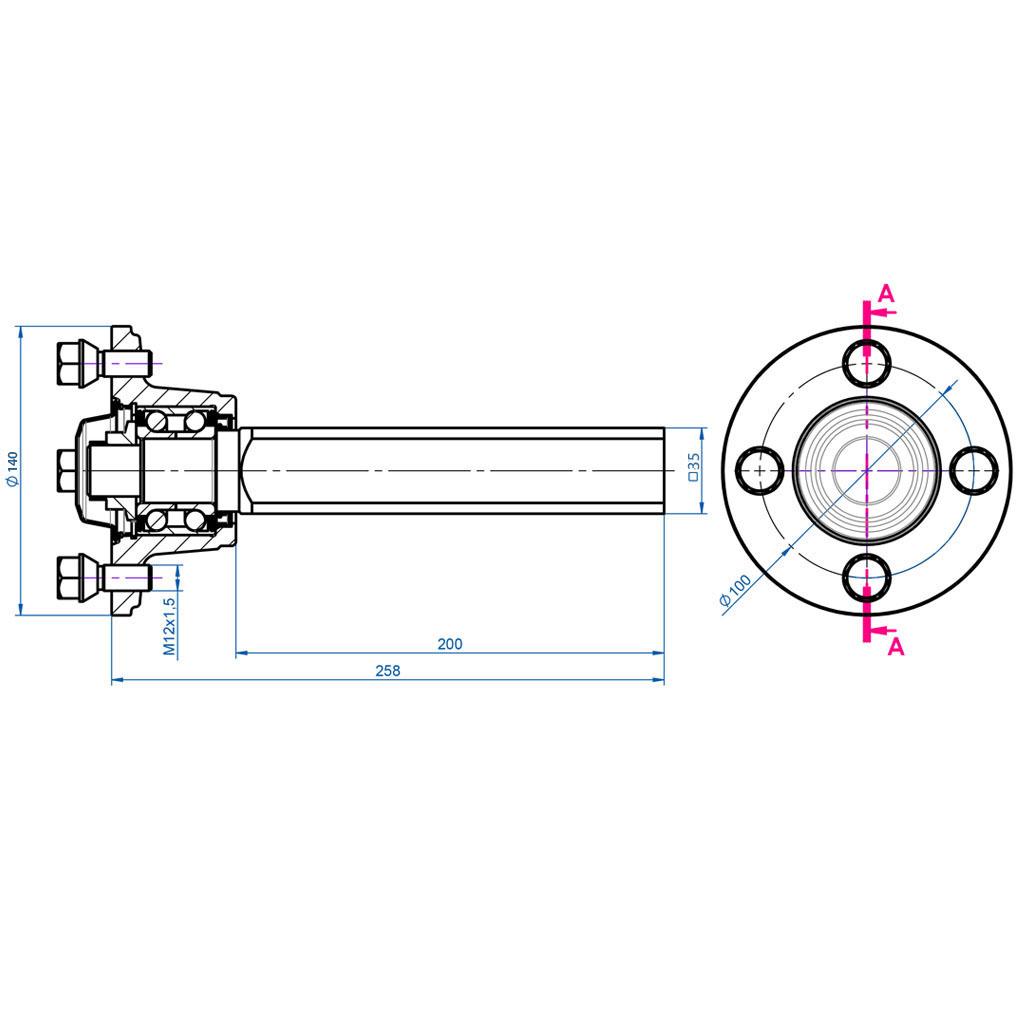

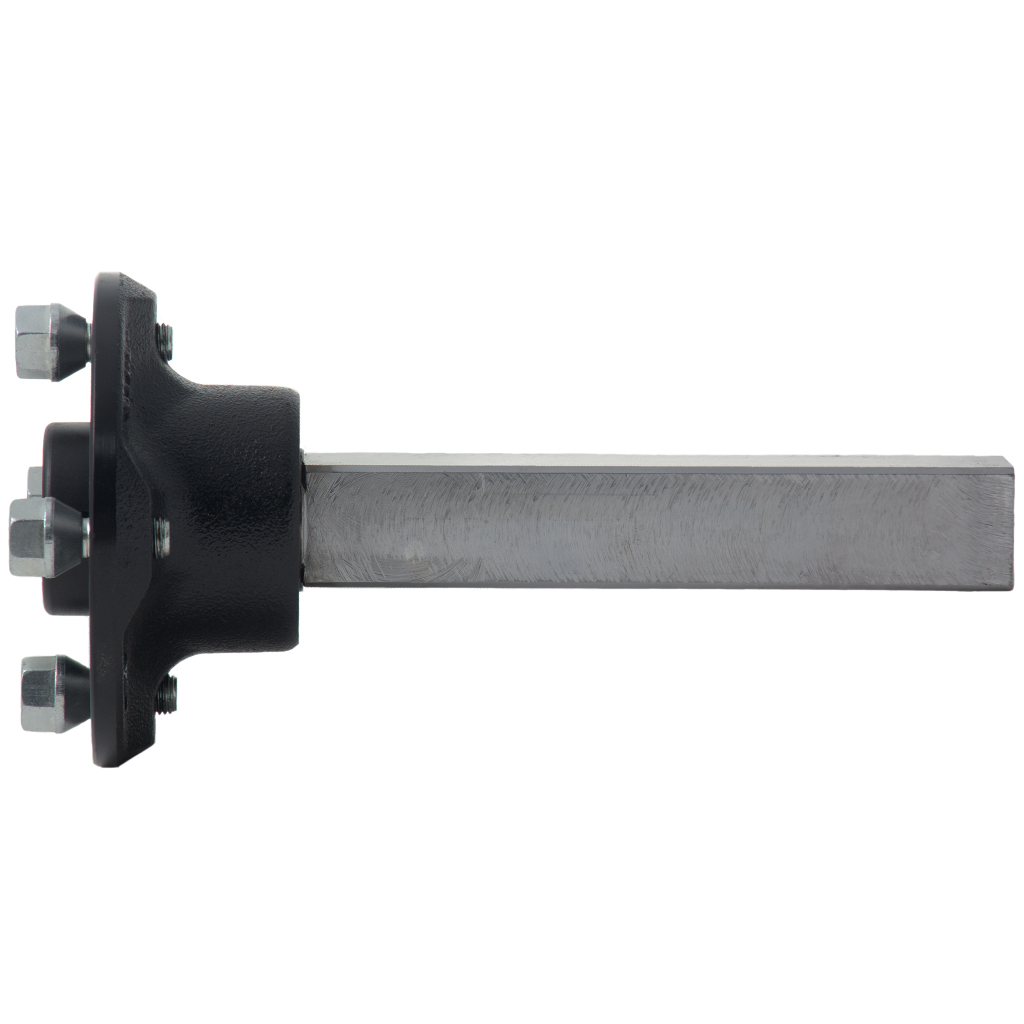

Hub & Stub Axle Specifications:
Hubs are forged steel, fitted with 4x 12mm wheel bolts.
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long.
The shaft is 35x35mm x 200mm long, solid steel.
Manufactured by ALKO in Europe.
Maximum Kit weight capacity 408kgs.
(This kit is for off road use only)
Part Number | EC7565 |
Brand | Parnells |
Rim Colour | Silver |
Tyre Size | 18x9.50-8 |
Ply | 4 |
TT/TL | TL |
Pattern | P322 |
Tread Depth (mm) | 9.5 |
Rim Width (in) | 7.0 |
SW (mm) | 212 |
OD (mm) | 460 |
PSI | 5 |
Stud / PCD | 4x100mm |
E-Mark | No |
Max Load (Kg) | 408 |
Hub & Stub Axle (4pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
