Twin axle 145x10 Wanda WR068 TRAILER Kit, 4 Wheels, ALKO Hub & Stub axles 35x35mm & 750kg Pressed hitch

https://www.parnells.eu/web/image/product.template/94246/image_1920?unique=170fdd6

Part Number: EC7573
Tyre Size: 145R10
Stub axles: 35mm x 35mm, 200mm long

603.34 € 603.34 EUR 603.34 €

700.74 €

Login for trade prices

Not Available For Sale


  • Brand
  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hitch (1pcs)
  • Hub & Stub Axle (4pcs)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
Set of 4 - 145x10 Wanda WR068 TRAILER WHEEL 4/100mm & Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed(Alko) & 750kg Pressed hitch

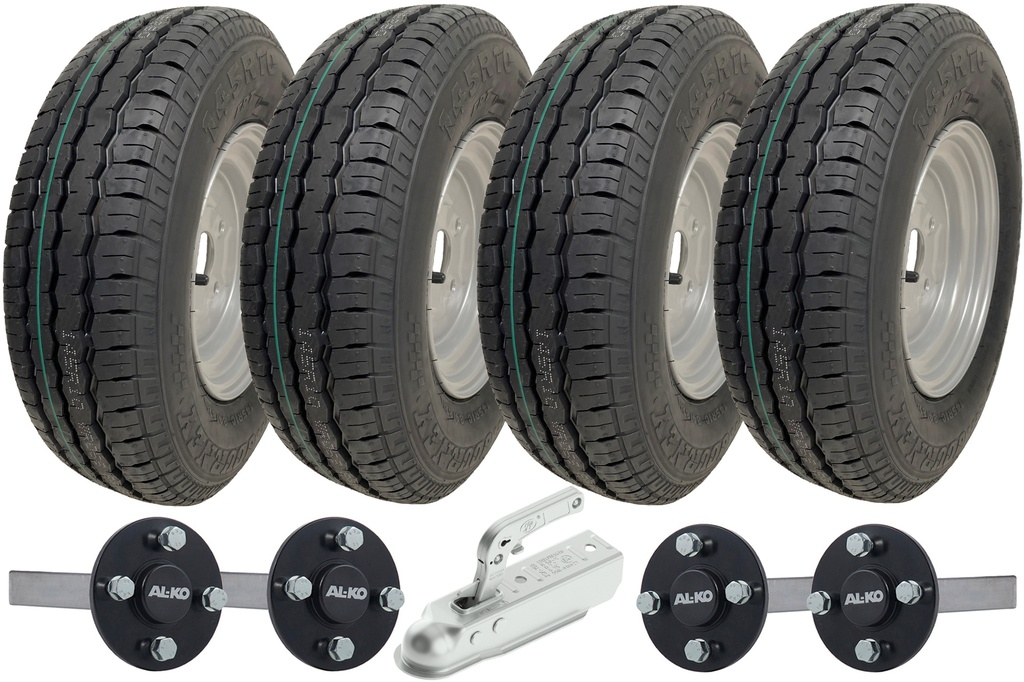

145R10 Twin axle Trailer Kit.


This Kit contains:

Four: 145R10 Trailer Wheels (Tyres fitted on rims).

&

Four: High Speed ALKO Hub & Stub Axles.

One: Pressed Steel tow hitch.

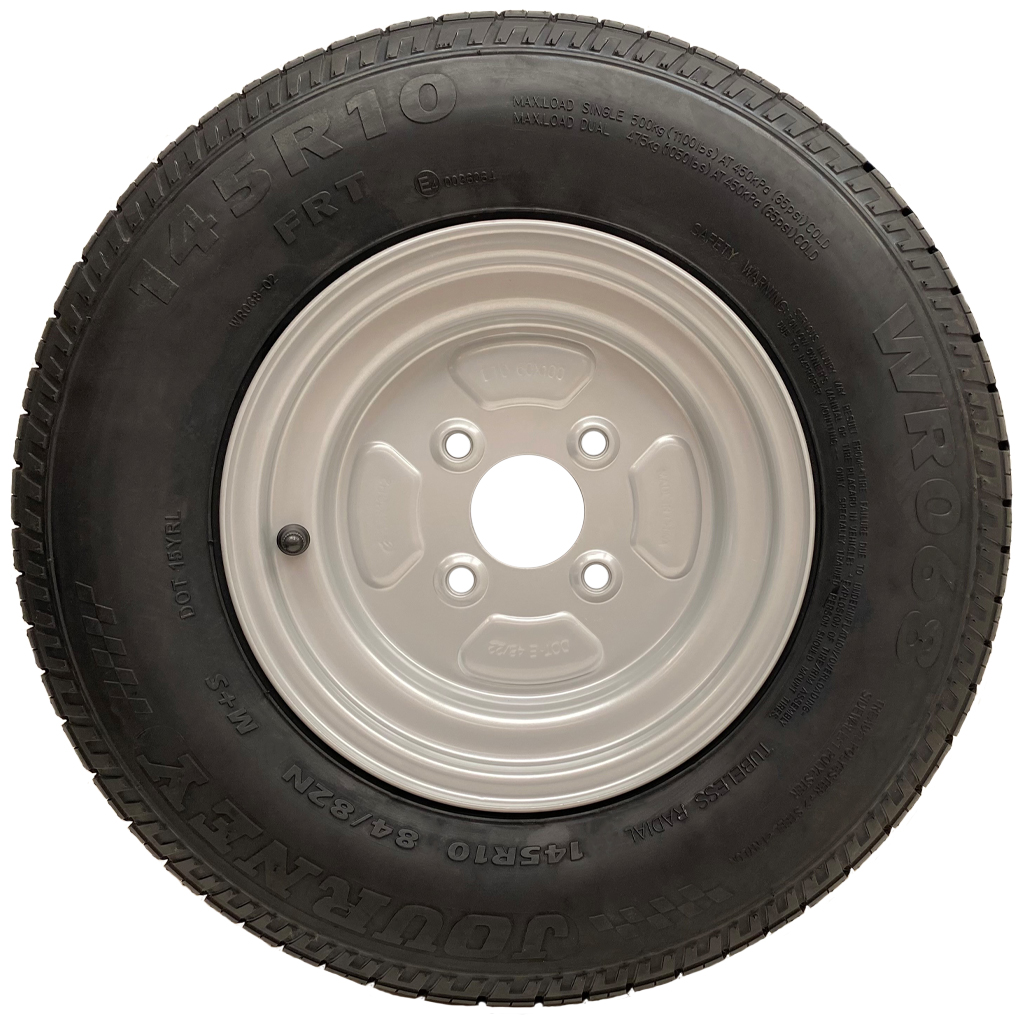

Wanda WR068 Trailer Tyre fitted 4 x 100 PCD metric rim.

High speed Radial trailer tyre on heavy duty steel rim.

They are E-Marked for legal use on European roads.

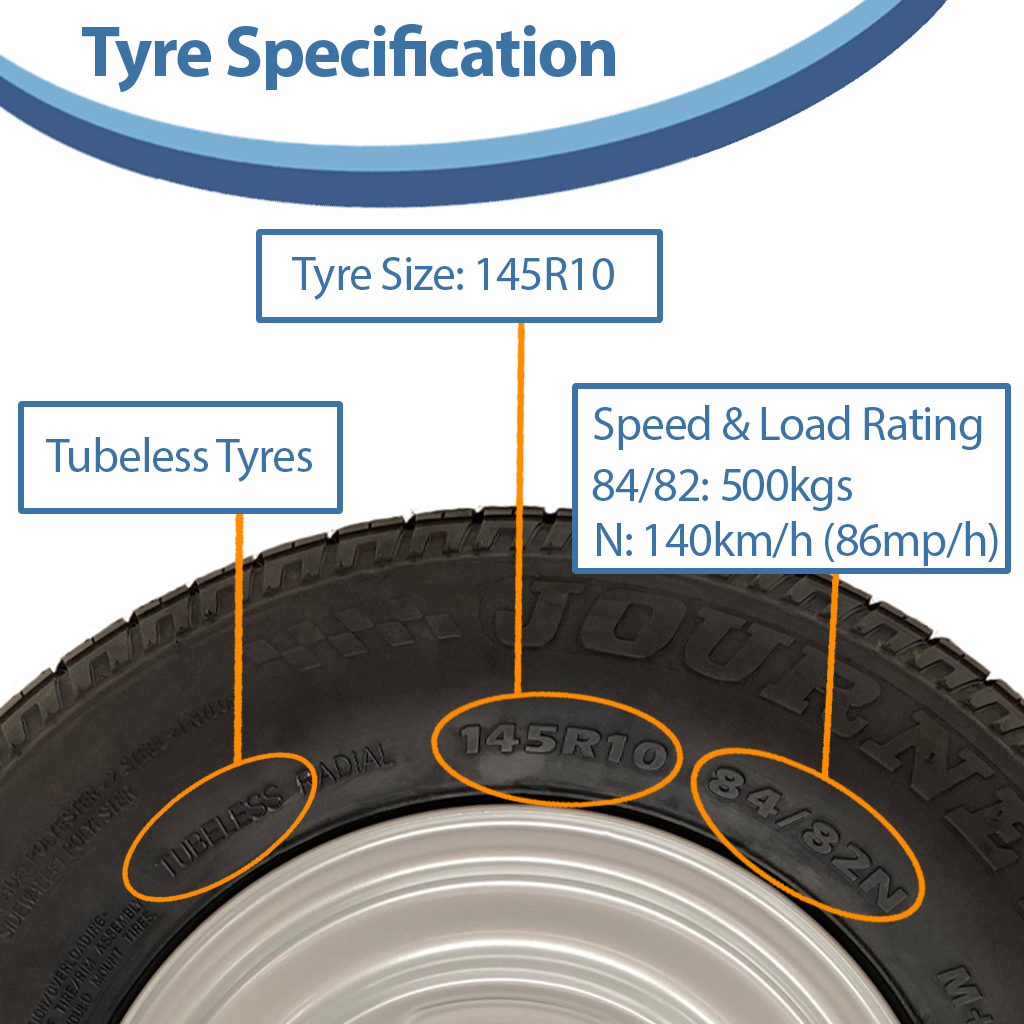

Tyre Specification:

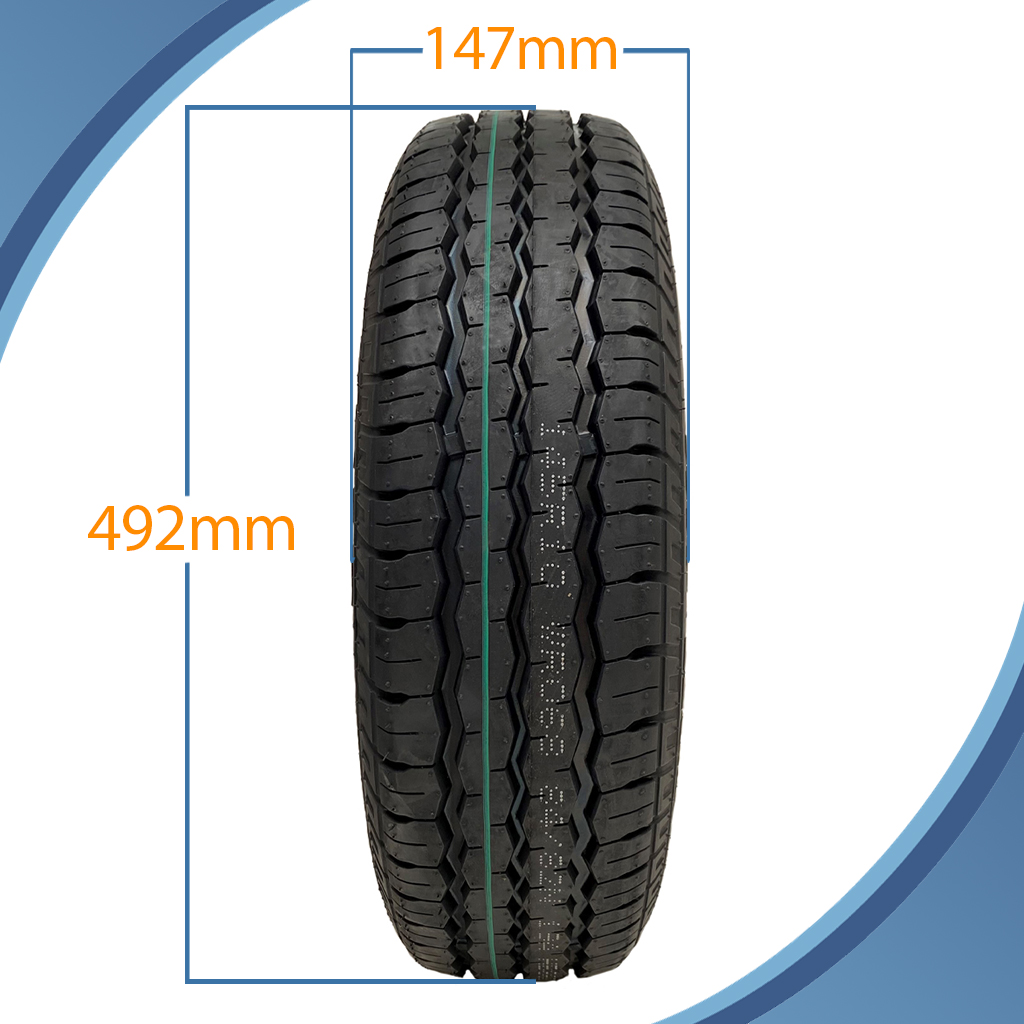

Tyre Diameter: 492mm,

Tyre Width: 147mm,

Tyre Pattern: WR068,

Tyre Brand: Wanda,

Tread Depth: 7mm,

Load rating: 84/82 = 500kgs for single axle & 475kg for dual axle,

Speed Rating: N = 140km/h (86mp/h),

E-Mark Number: E4-0036064.


Rim Specification:

Rim Size: 3.50x10,

Rim Finish: Powder coated Steel (Grey),

Pitch Circle Diameter: 100mm PCD (metric),

Centre hole size: 60mm,

Rim Offset: Zero (equal distance front and back).

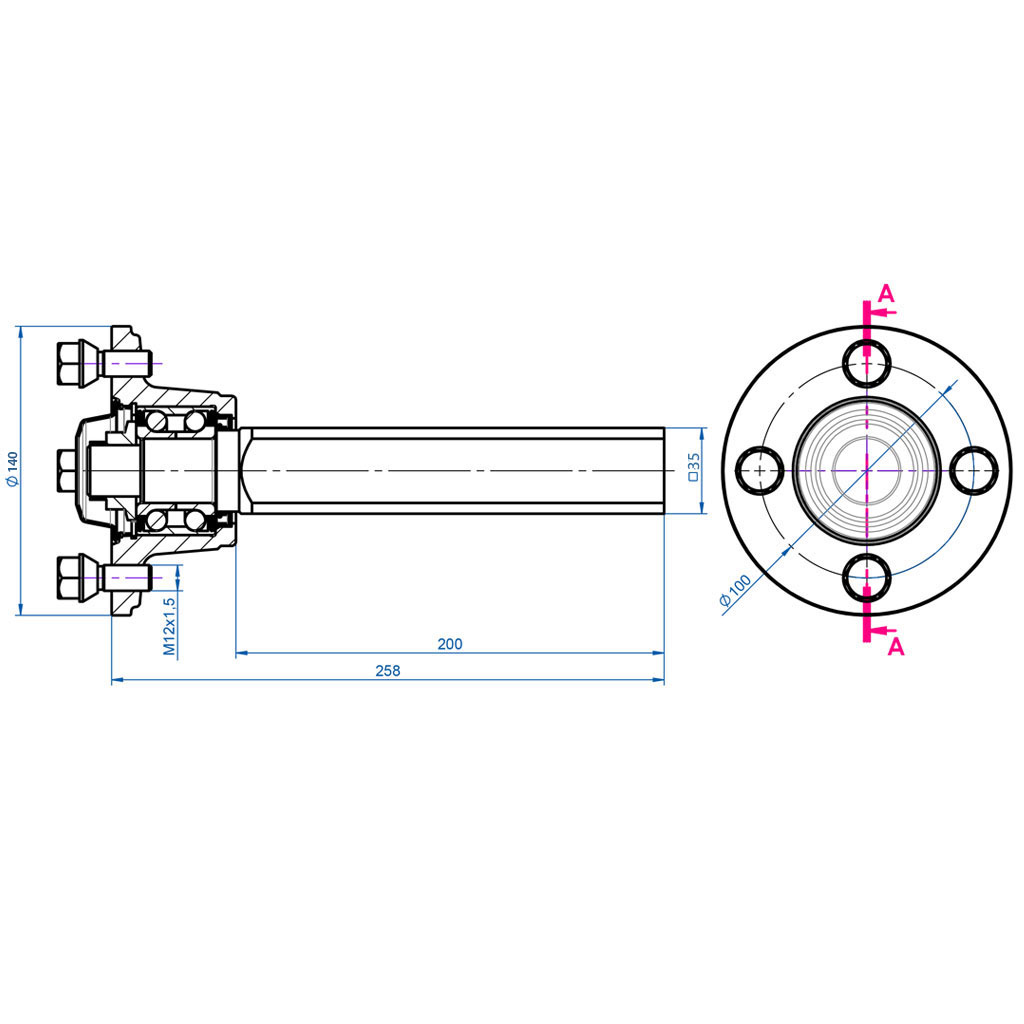

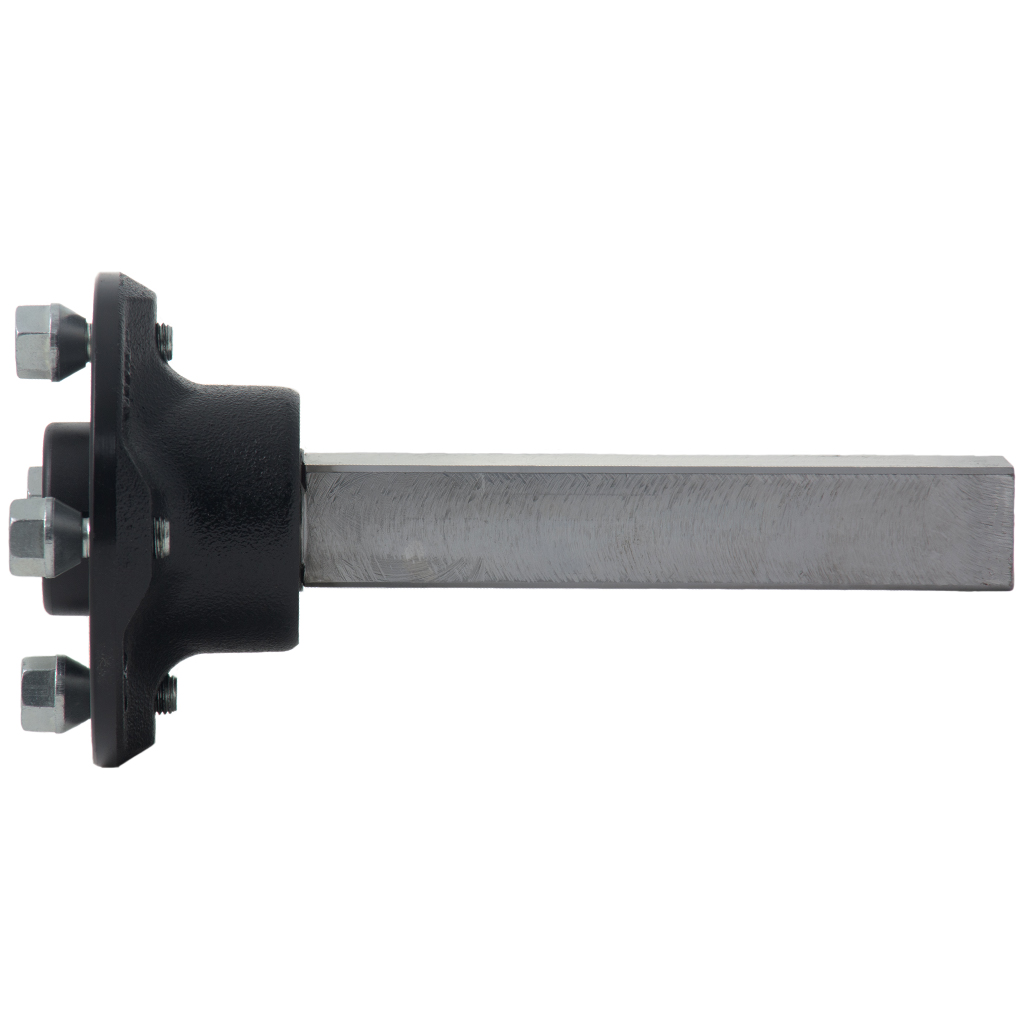

Hub & Stub Axle Specifications:

These hubs are rated to 80mph, they are fully legal to use on the road.

They have sealed precision ball bearings.

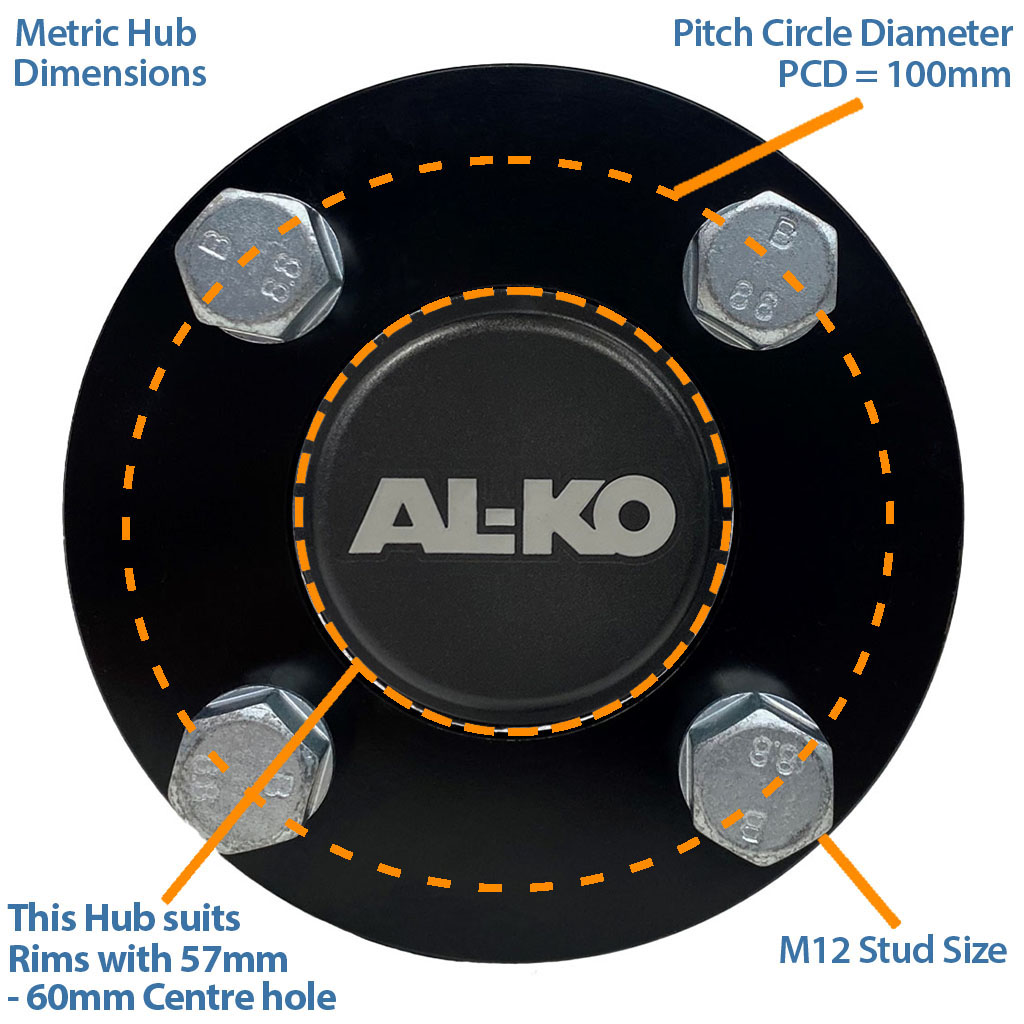

The hub has 4 x M12 studs, the PCD is 100mm.

The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.

These are genuine ALKO parts, manufactured in Europe.

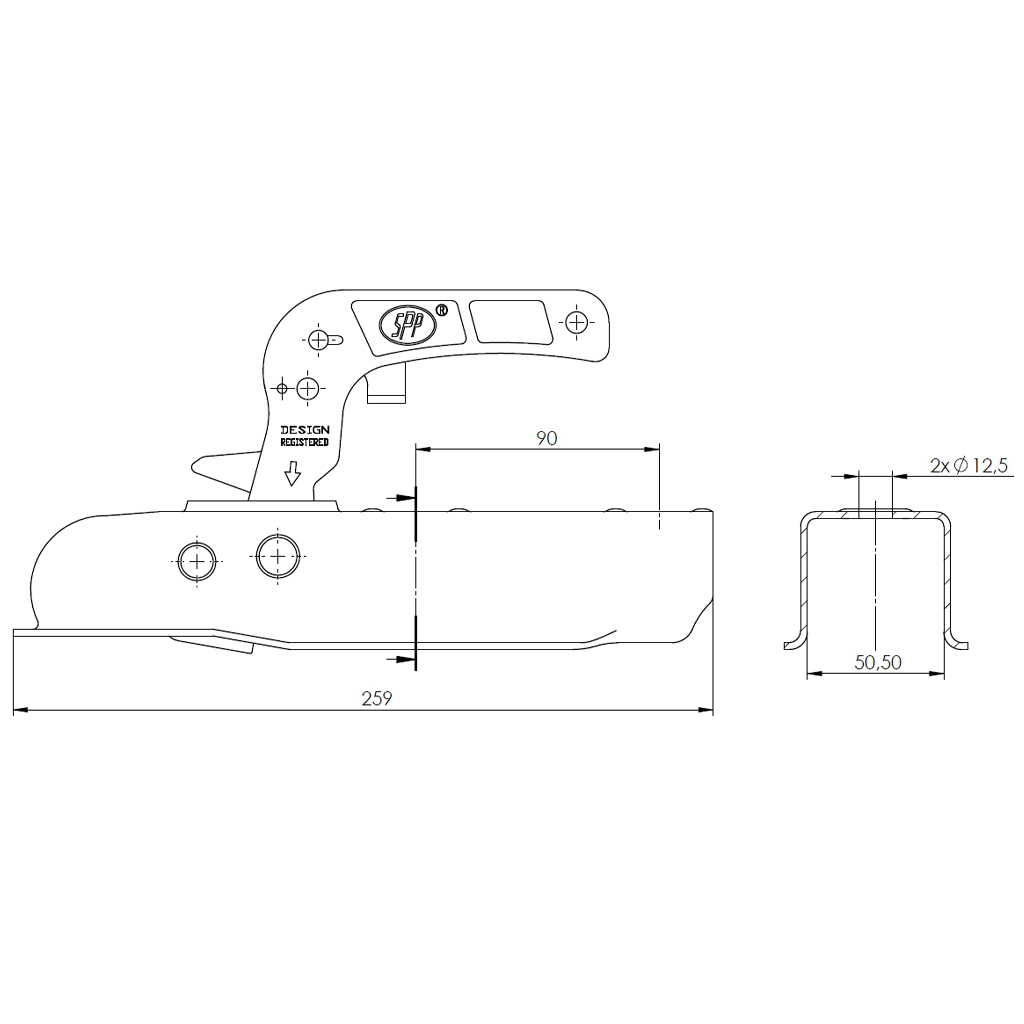

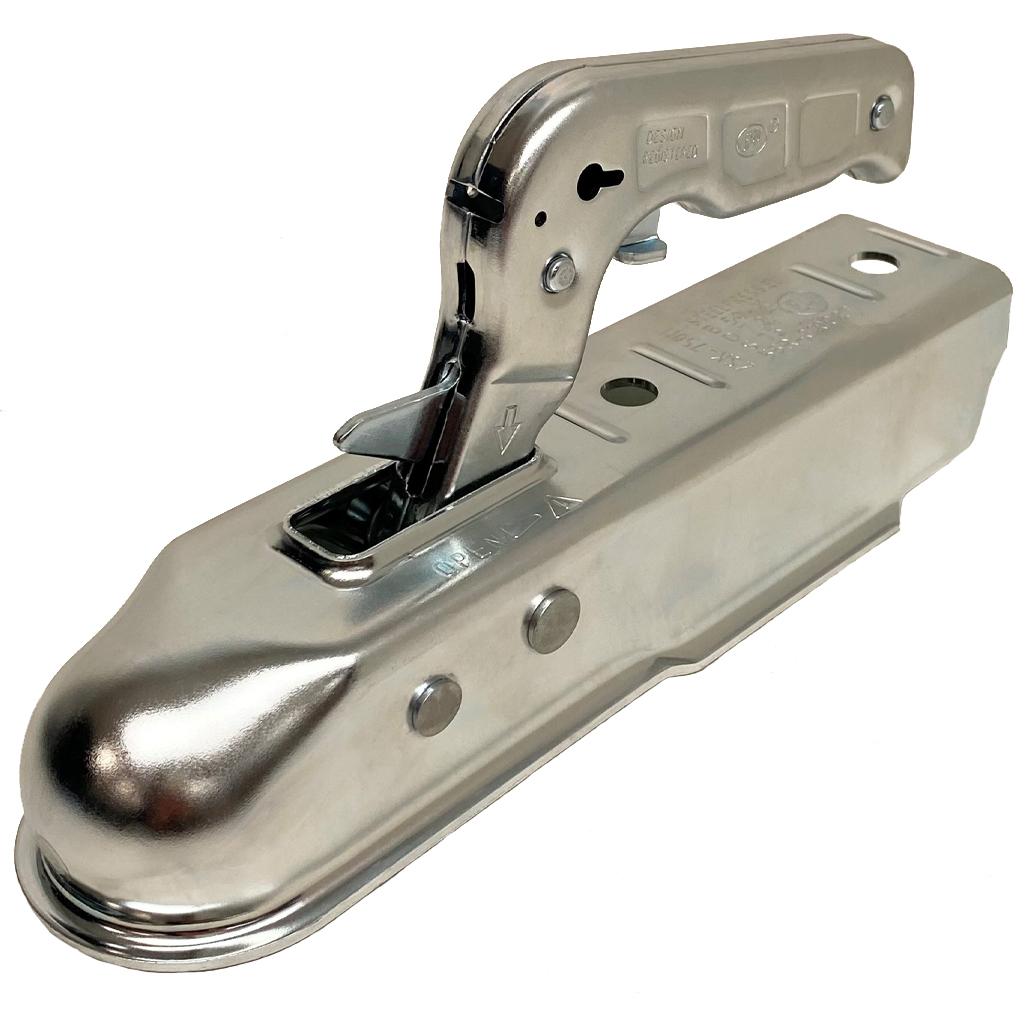

Hitch Specifications:

750kg pressed steel hitch, high quality zinc plated finish.

Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.

(bolts & lock nuts are provided with this kit).

These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).

These hitches may be coupled only with class A ball hitch couplings (Ø50).

The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.

SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.


The tread is a combined vertical and block pattern giving enhance grip on and off road.

Excellent water dispersion and hydroplaning resistance.

Good heat dissipation and grip with quiet driving performance at high speeds.


The maximum load capacity of a trailer without brakes is 750kgs.

Part Number EC7573
Brand Parnells
Rim Colour Silver
Tyre Size 145R10
Ply 4
TT/TL TL
Pattern WR068
Tread Depth (mm) 7.0
SW (mm) 147
OD (mm) 492
PSI 65
Load/Speed Index 84/82N
Stud / PCD 4x100mm
E-Mark E4-0036064
Max Load (Kg) 500
Hitch (1pcs) SPP 750kg Pressed Hitch
Hub & Stub Axle (4pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
