M16x150 stainless steel levelling foot with 100mm plastic base and fixing holes 1500kg AISI 304/A2

https://www.parnells.eu/web/image/product.template/35895/image_1920?unique=688af7d
(0 review)

Part Number: HPA101-16-150
Base Diameter: 100mm
Tread Length: M16x140mm
Thread Material: Stainless Steel
Base Material: Plastic
Load Capacity: 1500kg

23.81 € 23.81 EUR 23.81 €

27.65 €

Login for trade prices

Not Available For Sale


  • Hole Diameter (mm)
  • Thread Size
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Hole Position (mm)
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

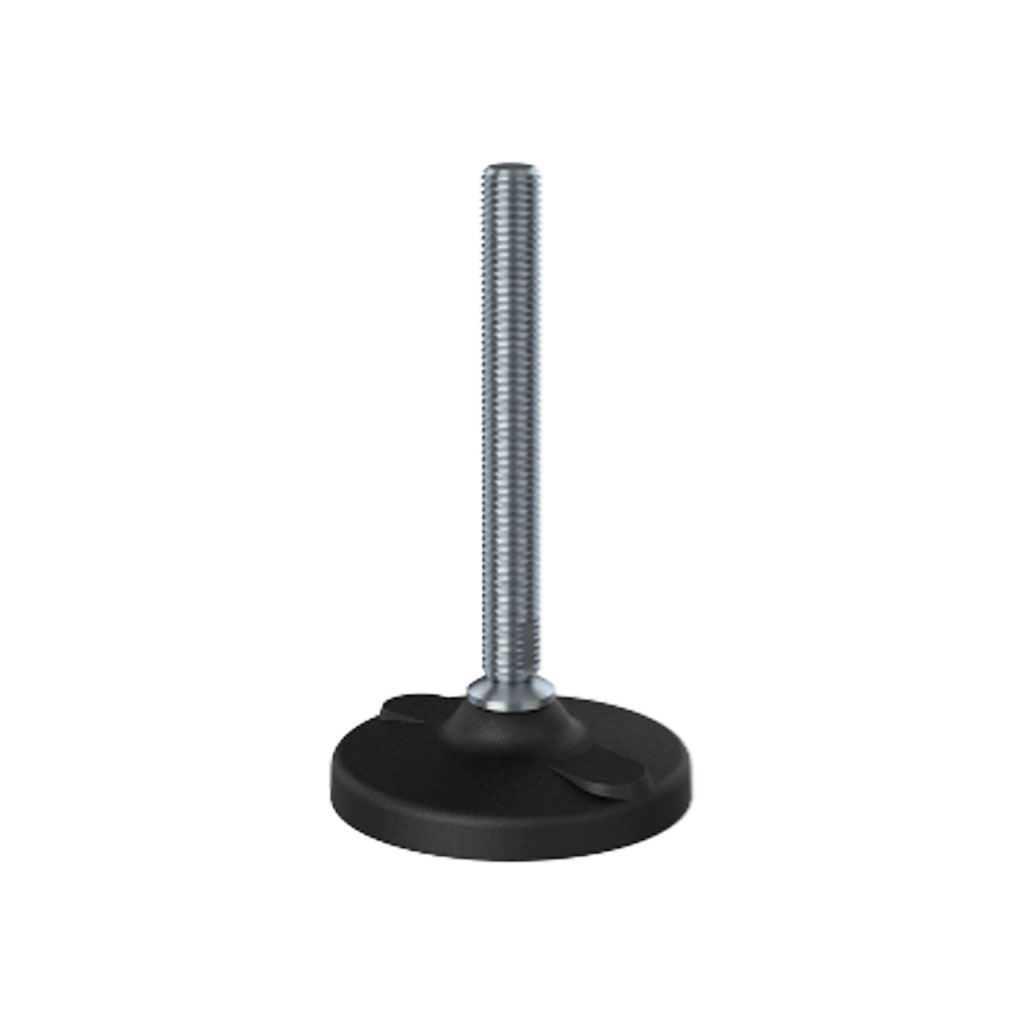

M16x150 stainless steel levelling foot with 100mm plastic base and fixing holes 1500kg AISI 304/A2

  • Fully threaded levelling foot made of stainless steel thread (material no.  AISI304/A2) and plastic base.
  • 10° articulation for uneven floors.
  • Hygienic-oriented design due to self-draining surfaces.
  • It is possible to fasten the base to the floor by the two pre-pressed fixing holes, which are easily pressed out using a screwdriver.
M16x150 Stainless levelling foot 100mm plastic base with holes 1500kg AISI 304/A2

Add to cart

Sign in

Pay

Get Delivered

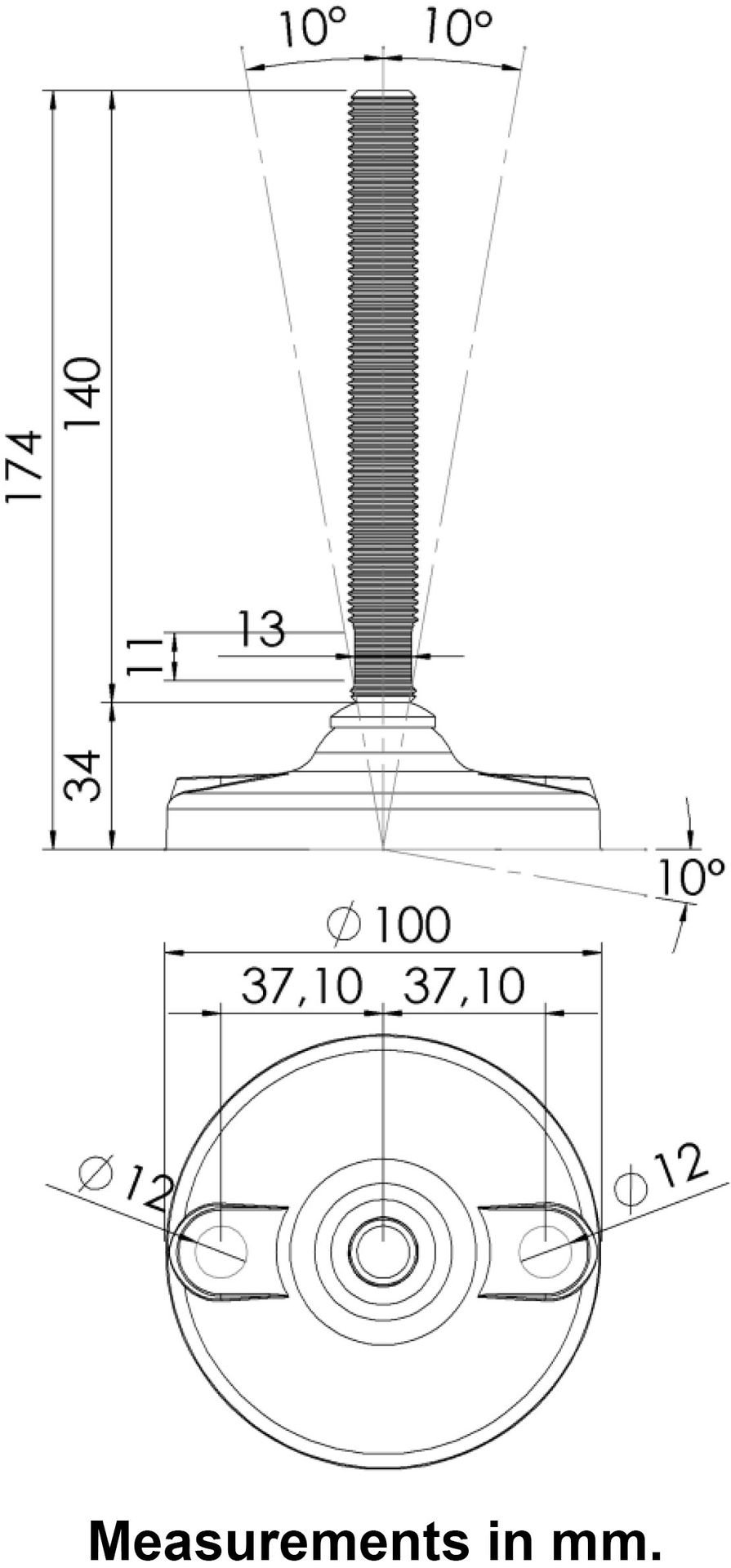

Part Number HPA101-16-150
Hole Diameter (mm) 12
Thread Size M16
Thread Length (mm) 140
Base Height (mm) 34
Base Diameter (mm) 100
Hole Position (mm) 37.1
Max Load (Kg) 1500
