35x35mm Hub & Stub axle 4/100 M12 wheel bolt Hi speed

https://www.parnells.eu/web/image/product.template/31628/image_1920?unique=3b209a9
(0 review)

60.34 € 60.34 EUR 60.34 €

70.08 €

Login for trade prices

Not Available For Sale


  • Max Load per Hub & Stub (< 25km/h)
  • Max Load per Hub & Stub (25-90km/h)
  • Max Load per Hub & Stub (>90km/h)
  • Dimension 'A' (mm)
  • Dimension 'B' (mm)
  • Dimension 'C' (mm)
  • Hub
  • Max Load (Kg) (< 25km/h)
  • Max Load (Kg) (25-90km/h)
  • Max Load (Kg) (> 90km/h)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

SPP high quality hub & stub axle set.

35x35mm solid square stub axle for welding or drilling and bolting.

High-speed bearing fitted.

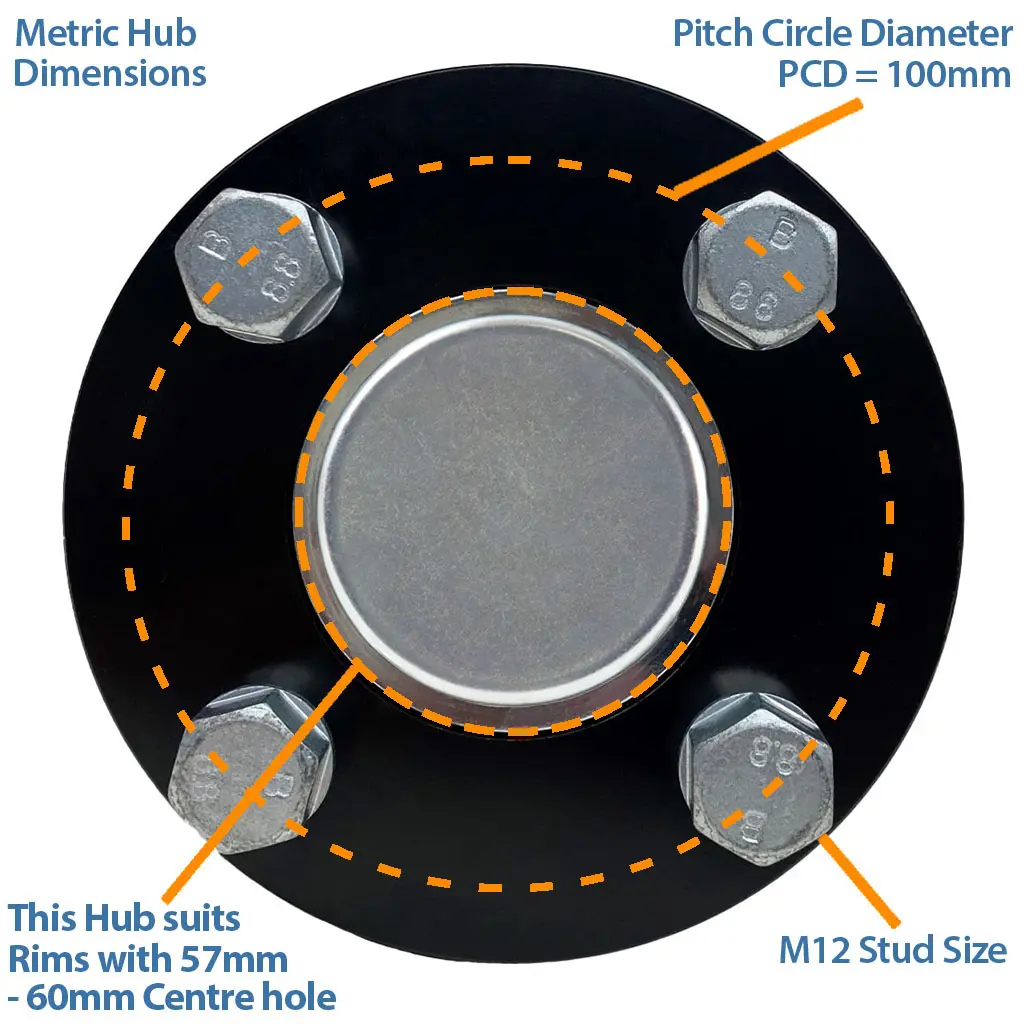

4x12mm studs @ 100mm P.C.D

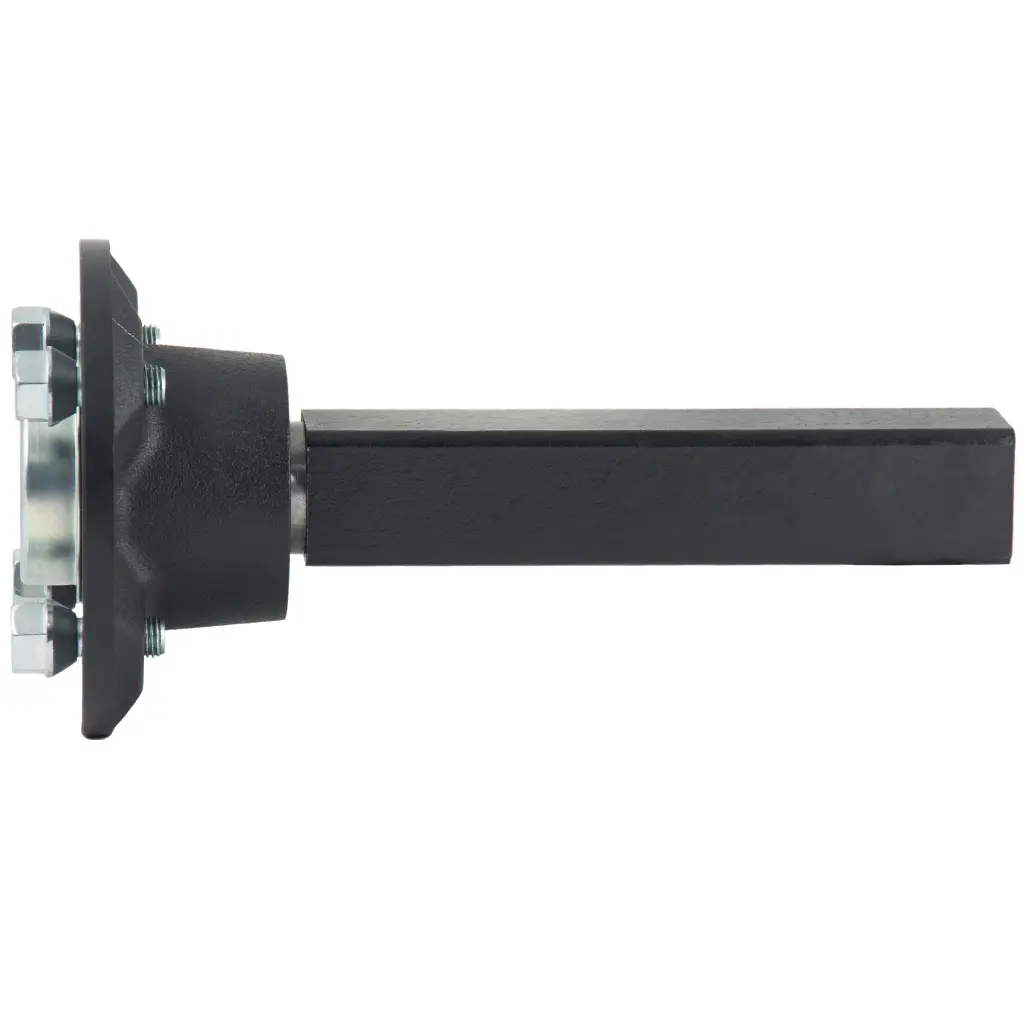

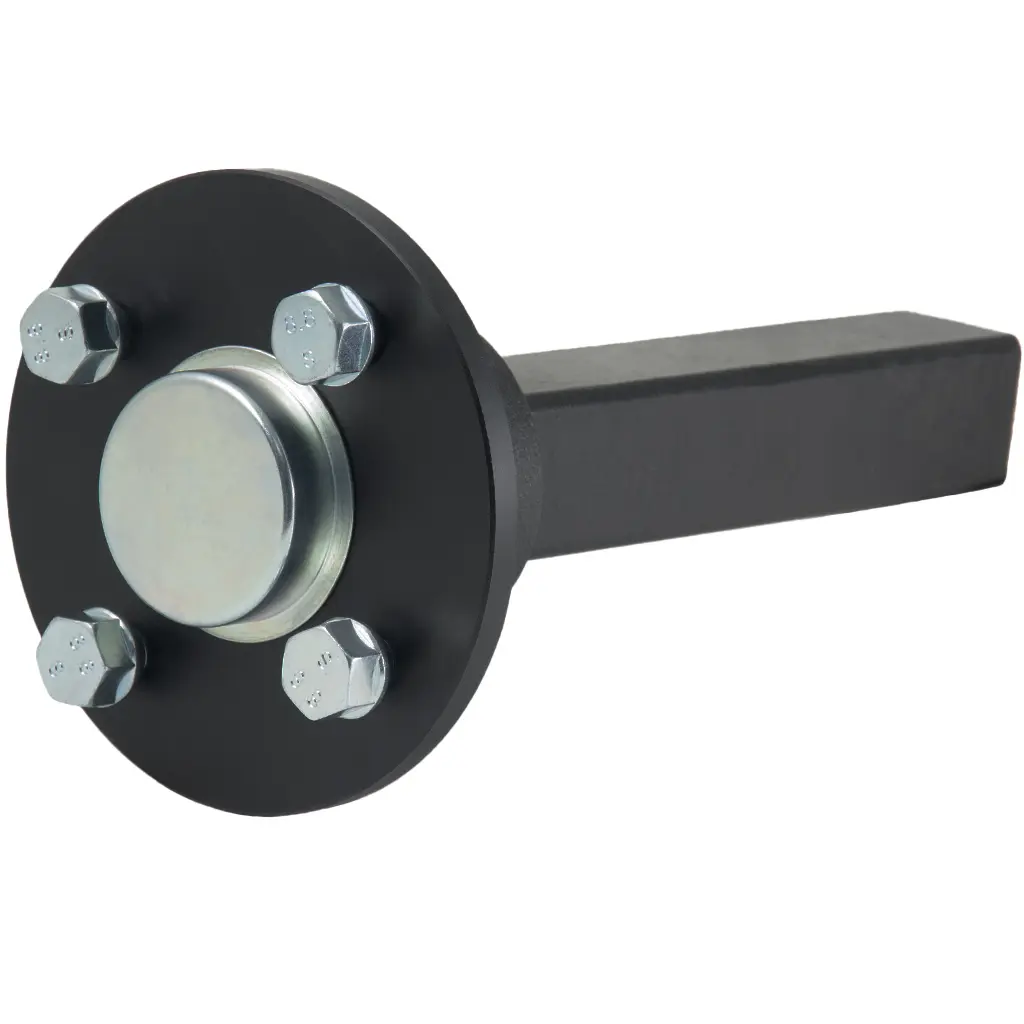

Hub & Stub axle 4/100 M12 wheel bolt  35x35mm Hi speed

Add to cart

Sign in

Pay

Get Delivered

Part Number HU1002
Max Load per Hub & Stub (< 25km/h) 750.0
Max Load per Hub & Stub (25-90km/h) 500.0
Max Load per Hub & Stub (>90km/h) 375.0

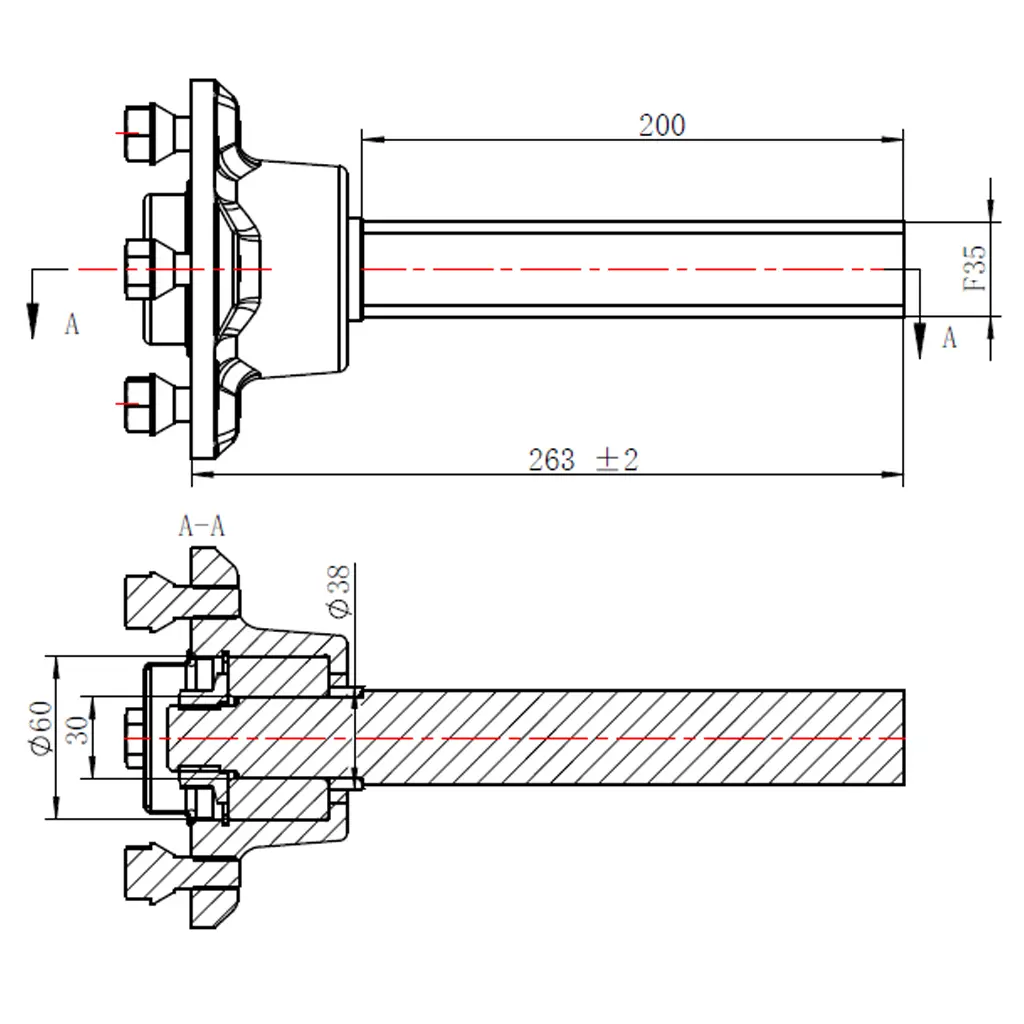

Dimension 'A' (mm) 200
Dimension 'B' (mm) 258.0
Dimension 'C' (mm) 35.0
Hub 4x100
Max Load (Kg) (< 25km/h) 750.0
Max Load (Kg) (25-90km/h) 500.0
Max Load (Kg) (> 90km/h) 375.0
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now

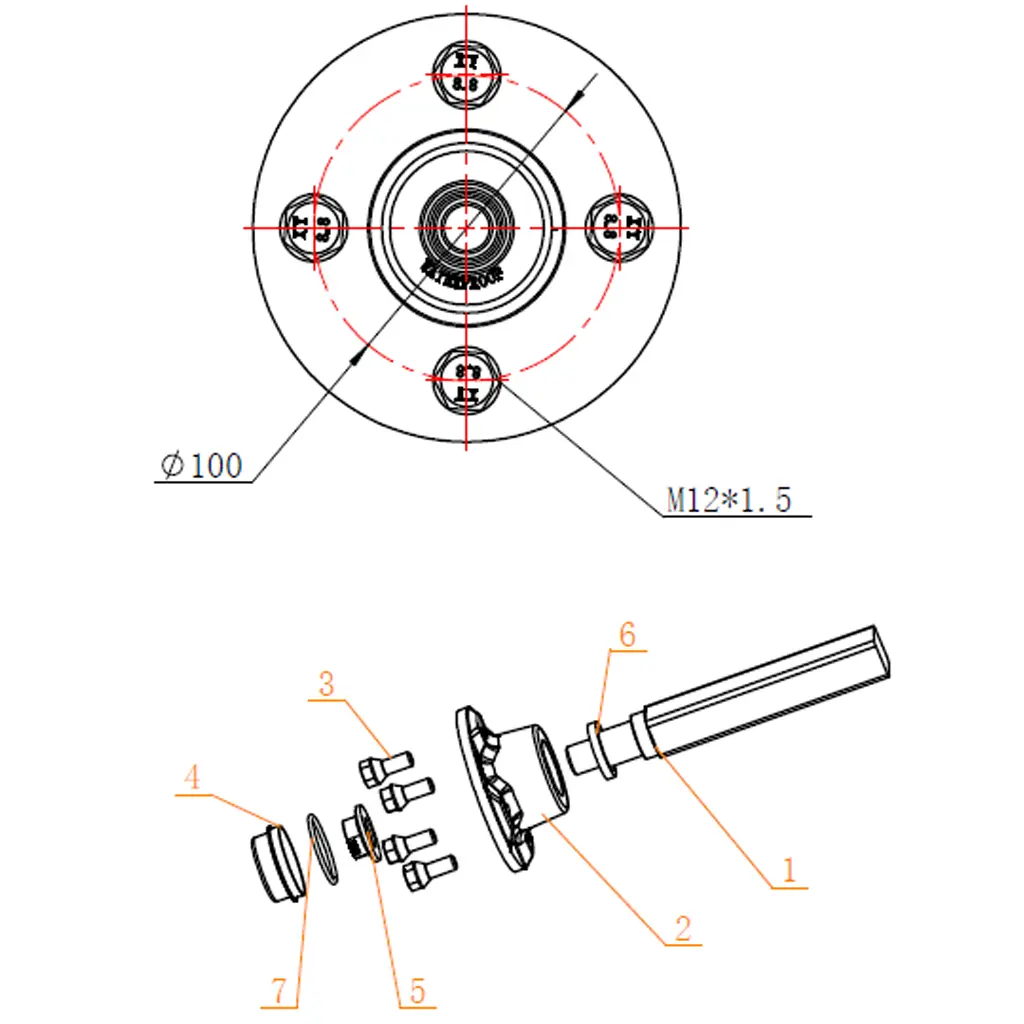

Drawing of HU1002.PDF
Download
Certificate of conformity for Hub stub axle.pdf
Download

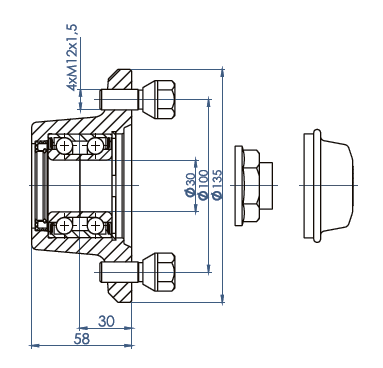

4x100 hub.pdf
Download
4x100 hub drawing.png
Download
Hub & stub axles.pdf
