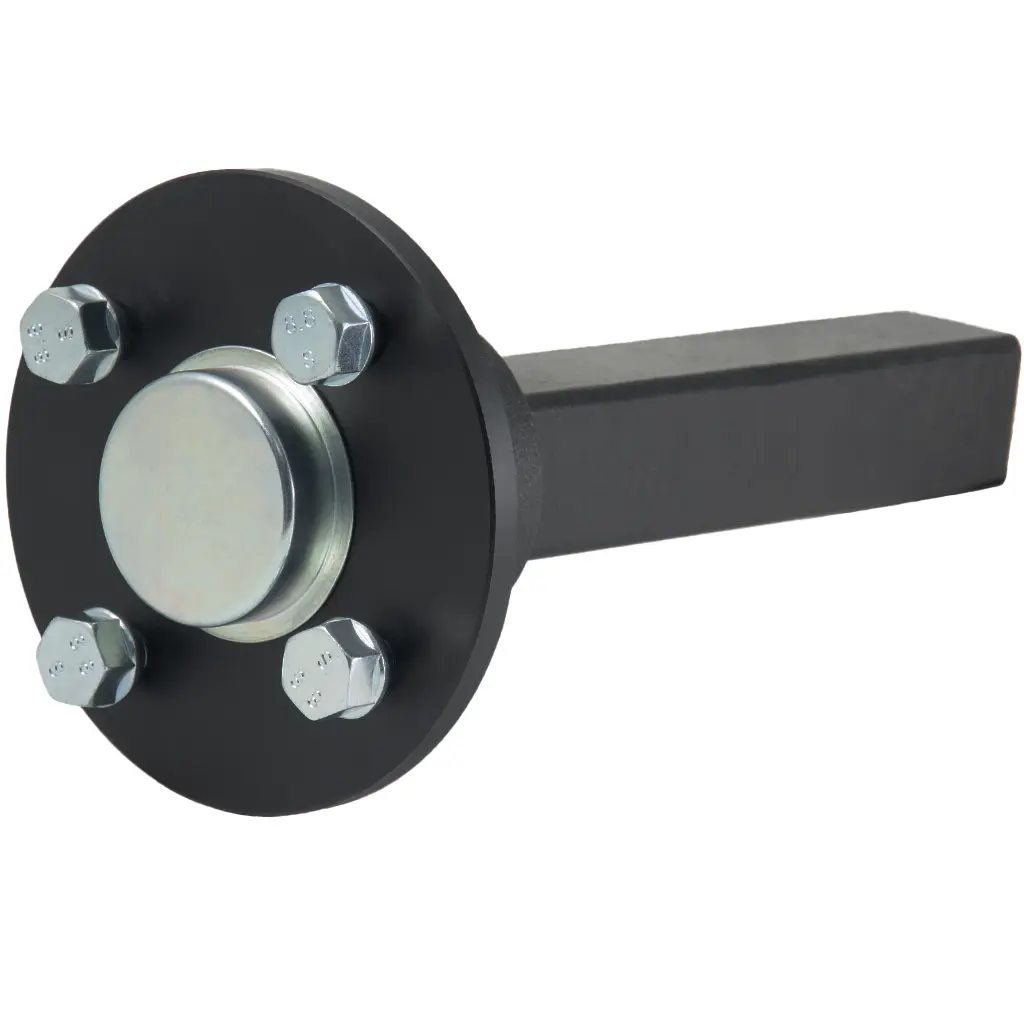

35x35mm Hub & Stub axle 4/100 M12 wheel bolt Hi speed
3 sold in last 24 hours
Stub Thickness: 35mm x 35mm
Stub Length: 200mm
Max Capacity: 375kg (750kg per pair)
For sale is 1 complete Hubs & Stub axle.
These hubs are rated to 80mph, they are fully legal to use on the road.
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.
These axles can be used on:
• high speed road trailers,
• ride-on lawn mowers,
• garden trailers,
• ATV quad trailers,
• buggies,
• karts,
• hay bobs,
• hay turners,
• tedders,
• small agricultural machinery.
Weight capacity is 375kgs (750kg per pair).
| Part Number | HU1002 |
| Max Load per Hub & Stub (< 25km/h) | 750.0 |
| Brand | Parnells |
| Max Load per Hub & Stub (25-90km/h) | 500.0 |
| Max Load per Hub & Stub (>90km/h) | 375.0 |
| Dimension 'A' (mm) | 200 |
| Dimension 'B' (mm) | 258.0 |
| Dimension 'C' (mm) | 35.0 |
| Hub | 4x100 |
| Max Load (Kg) (< 25km/h) | 750.0 |
| Max Load (Kg) (25-90km/h) | 500.0 |
| Max Load (Kg) (> 90km/h) | 375.0 |
