40x40mm Hub & Stub axle 4/100 M12 wheel bolt High speed
6 sold in last 24 hours
Stub Thickness: 40mm x 40mm
Stub Length: 200mm
Max Capacity: 450kg (900kg per pair)

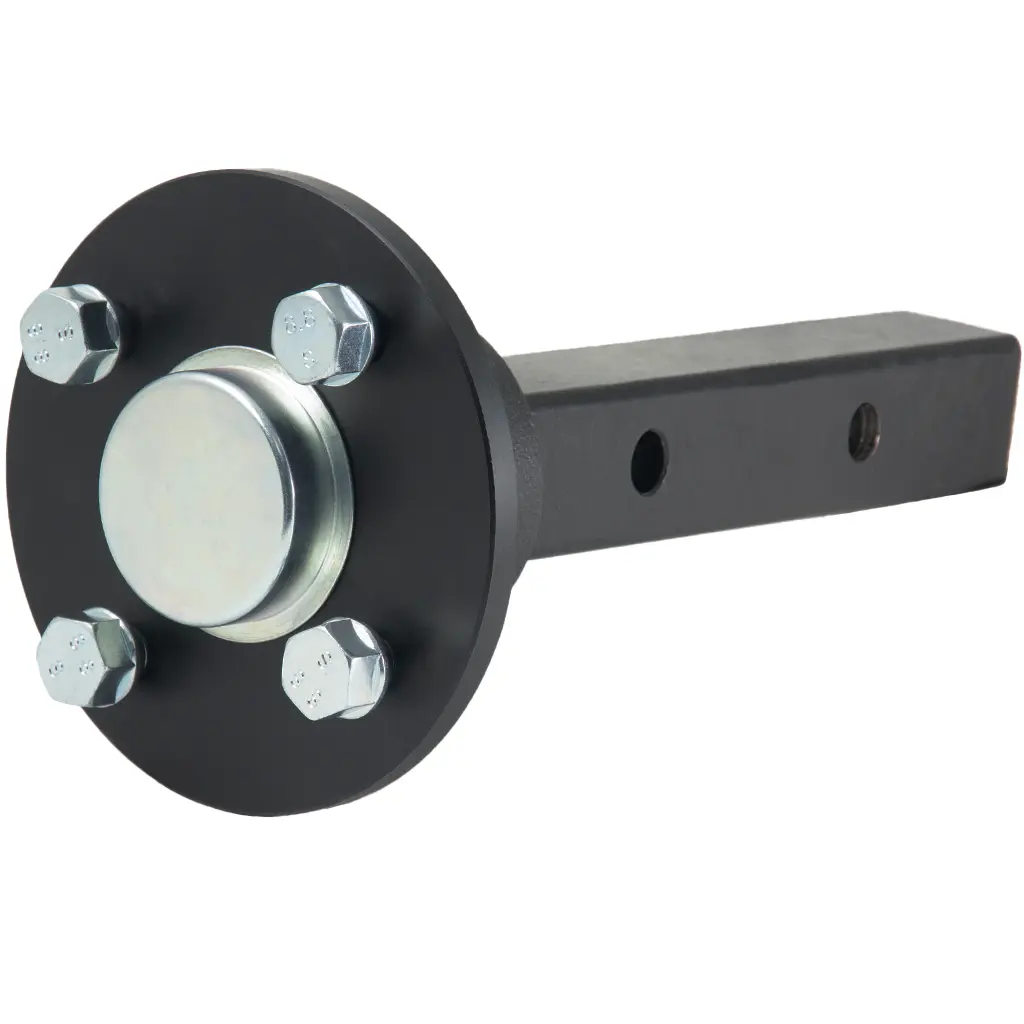

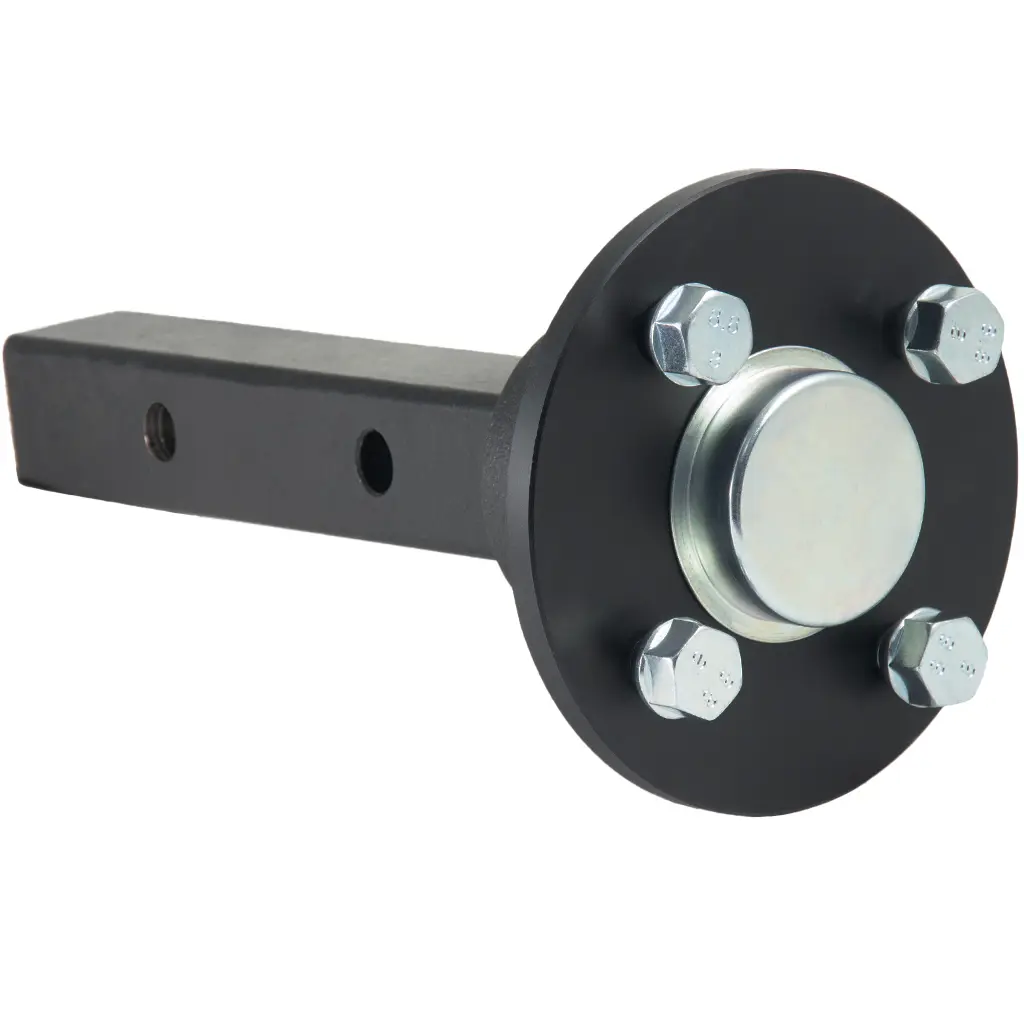

For sale is one complete hub & stub axle.
(Not a pair)
The hub can be used for road trailers, lawn mowers & garden trailers, ATV quad trailers, buggies, karts, small agricultural machinery.
This hub is rated to 80mph, they are fully legal to use on the road in Europe and the UK.
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 40x40mm square - 200mm long (solid steel) with with two pre-drilled mounting holes.
Weight capacity is 450kg (900 per pair).
| Part Number | HU1004 |
| Max Load per Hub & Stub (< 25km/h) | 750.0 |
| Brand | Parnells |
| Max Load per Hub & Stub (25-90km/h) | 500.0 |
| Max Load per Hub & Stub (>90km/h) | 350.0 |
| Dimension 'A' (mm) | 126 |
| Dimension 'B' (mm) | 184.0 |
| Dimension 'C' (mm) | 40.0 |
| Hub | 4x100 |
| Max Load (Kg) (< 25km/h) | 750.0 |
| Max Load (Kg) (25-90km/h) | 500.0 |
| Max Load (Kg) (> 90km/h) | 350.0 |
