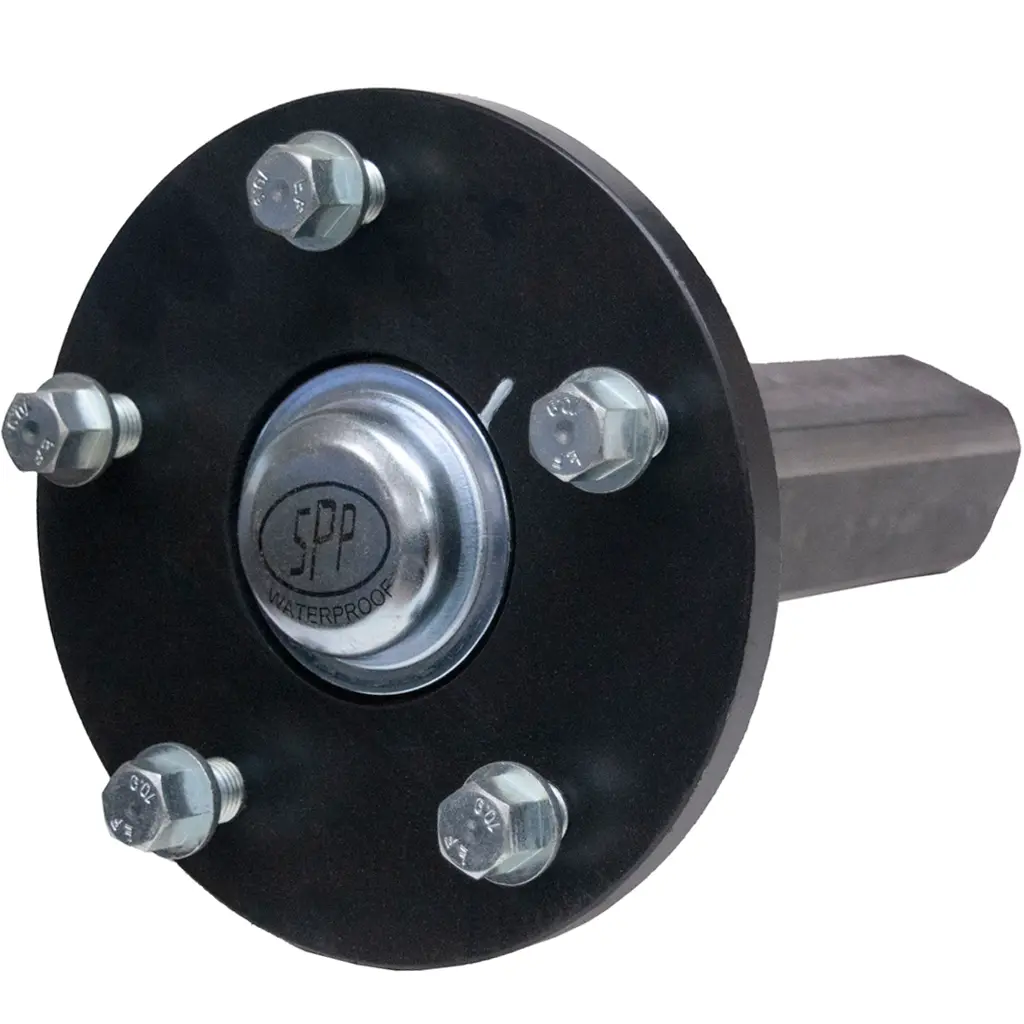

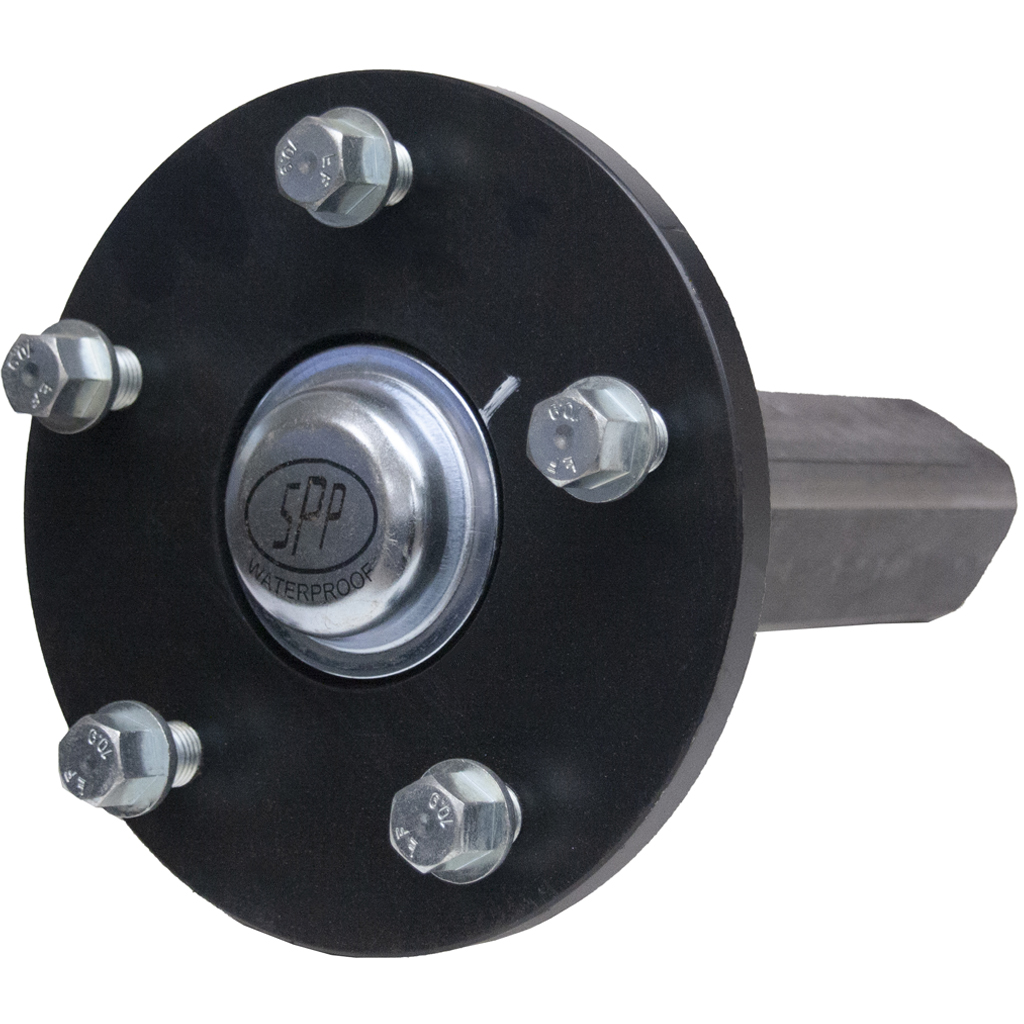

Hub & Stub axle 5/140 M14stud 50x50mm

SPP high quality hub & stub axle set.

50x50mm solid square stub axle for welding or drilling and bolting.

High-speed bearing fitted.

5x14mm studs @ 140mm P.C.D.

Add to cart

Sign in

Pay

Get Delivered

Part Number HU1006
Max Load per Hub & Stub (< 25km/h) 1100.0
Max Load per Hub & Stub (25-90km/h) 750.0
Max Load per Hub & Stub (>90km/h) 550.0
Dimension 'A' (mm) 200
Dimension 'B' (mm) 258.0
Dimension 'C' (mm) 50.0
Hub 5x140
Max Load (Kg) (< 25km/h) 1100.0
Max Load (Kg) (25-90km/h) 750.0
Max Load (Kg) (> 90km/h) 550.0
