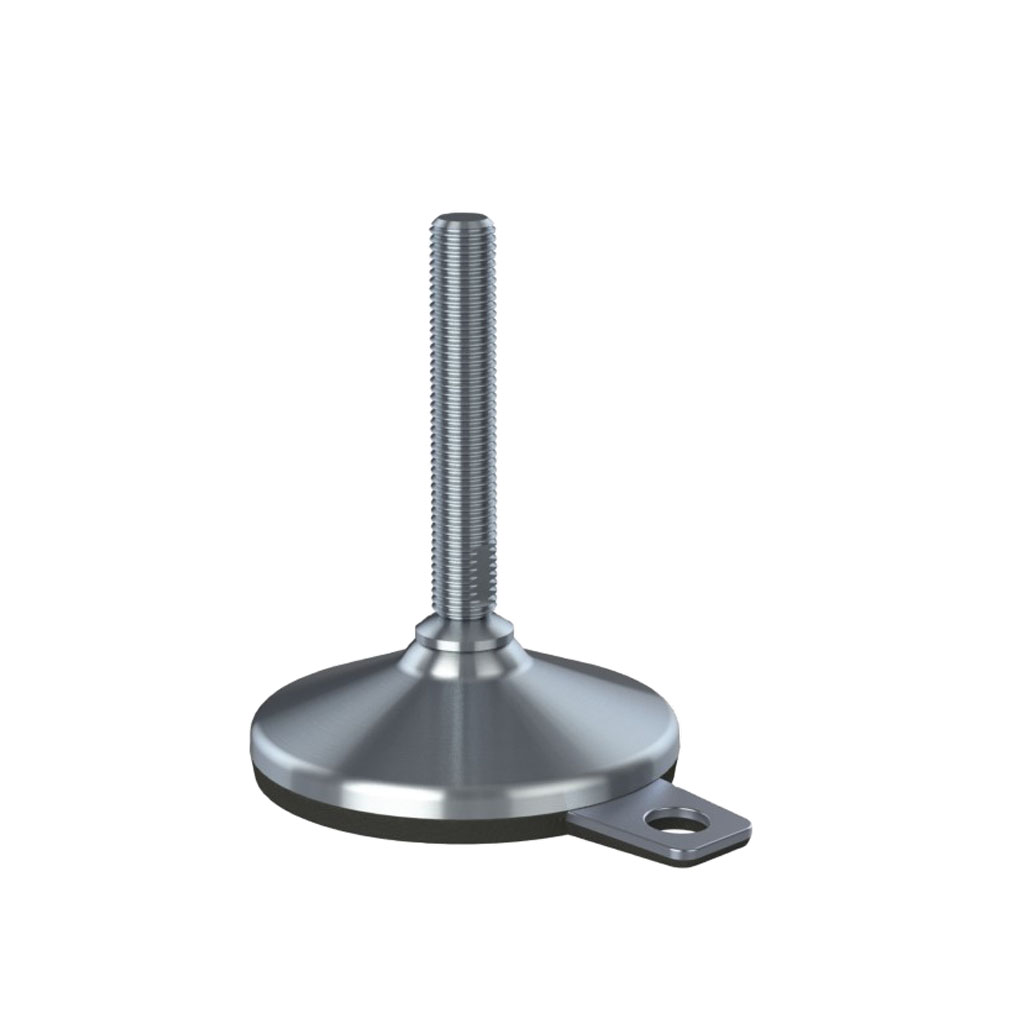

M16x100 stainless steel levelling foot with 105mm stainless base and anti-vibration rubber pad 2200kg AISI 304/A2
Part Number: HX106-16-100
Base Diameter: 105mm
Tread Length: M16x97mm
Thread and Base Material: Stainless Steel
Load Capacity: 2200kg
M16x100 stainless steel levelling foot with 105mm stainless base and anti-vibration rubber pad 2200kg AISI 304/A2
- Fully threaded levelling foot made of stainless steel (material no. 1.4301, AISI304/A2).
- 10° articulation for uneven floors.
- Minimum cleaning effort obtained by the design of self-draining surfaces.
- The base is designed to be fastened to the floor by the fixing plate.
- Vulcanized FDA-approved, anti-vibration and anti-slip rubber pad under the base.
- Design and patent protected.
| Hole Diameter (mm) | 15 |
| Thread Size | M16 |
| Thread Length (mm) | 97 |
| Base Height (mm) | 39 |
| Base Diameter (mm) | 105 |
| Hole Position (mm) | 70 |
| Max Load (Kg) | 2200 |
