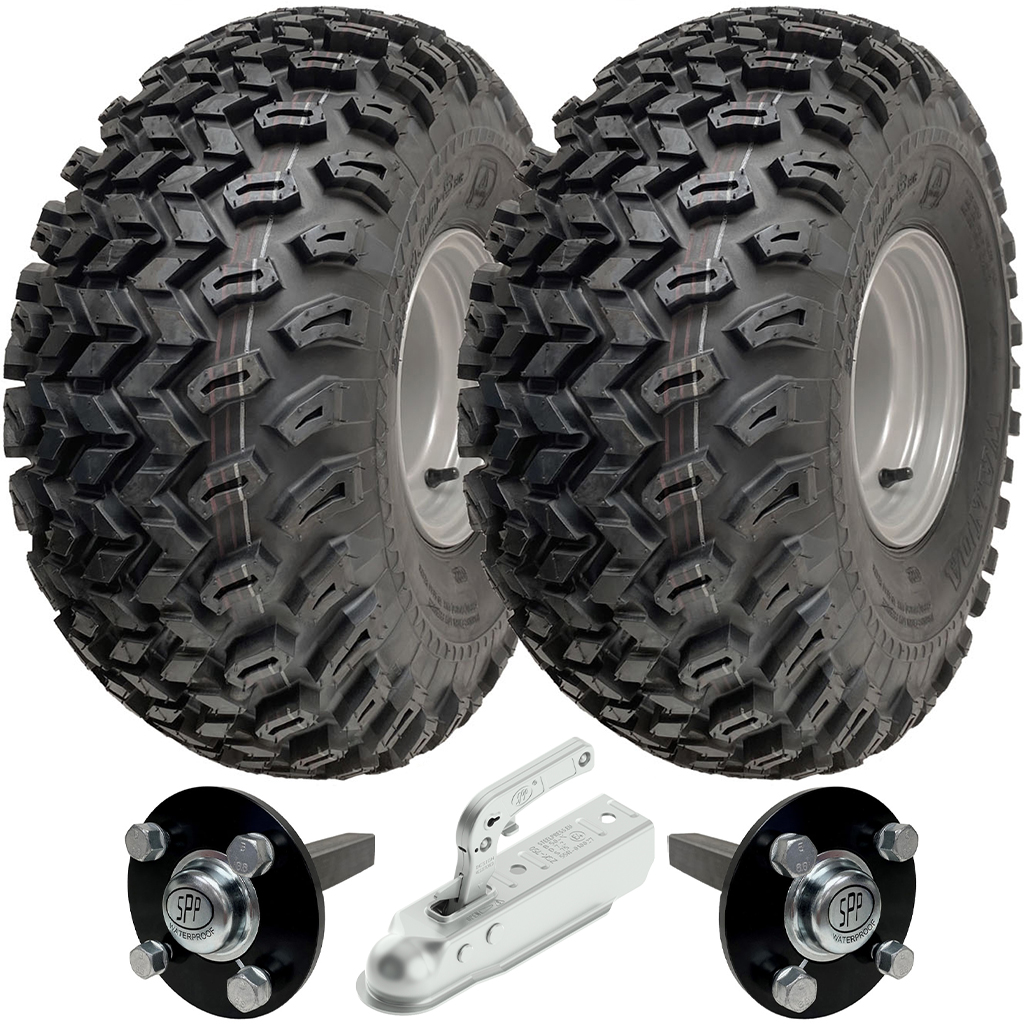

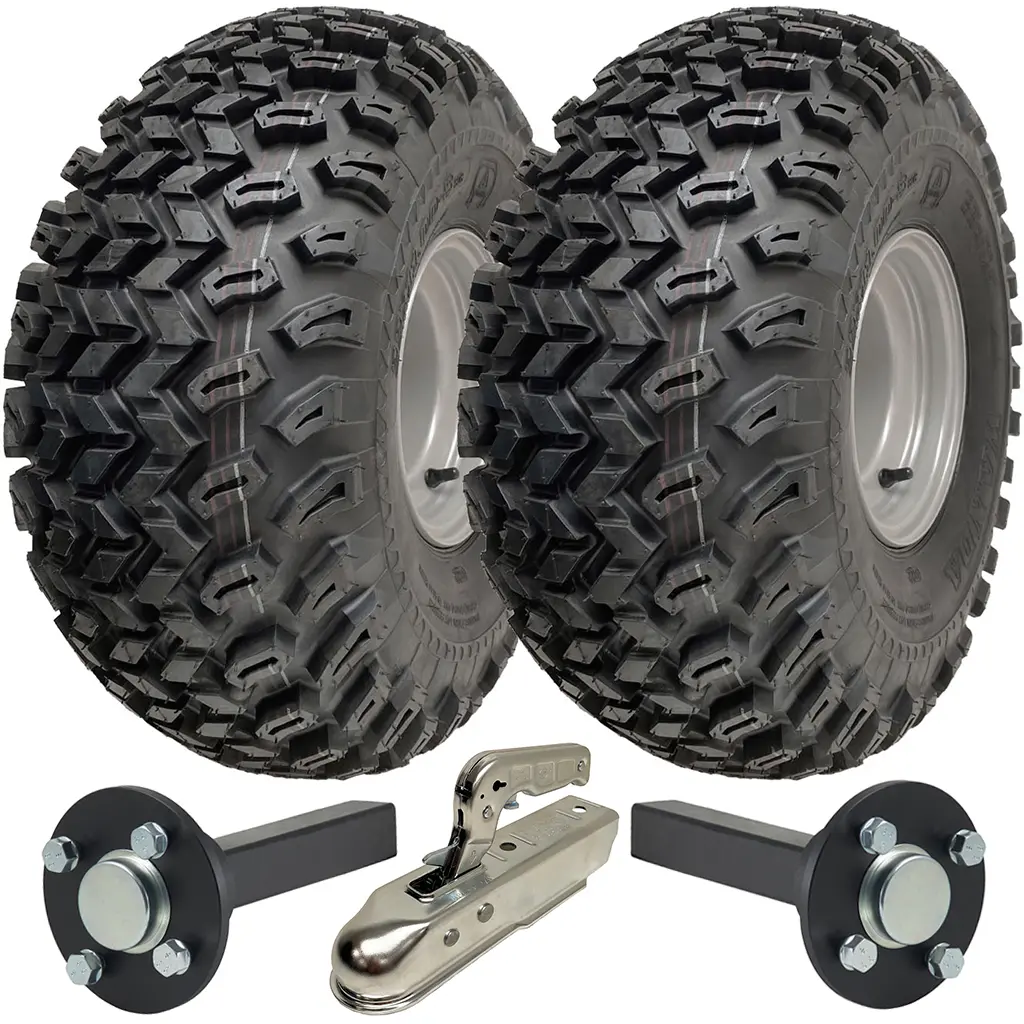

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x Stub axles, 35x35x200mm solid stub.
1 x Pressed steel tow hitch.
Rugged & tubeless utility Wheels.
They are hard wearing 4ply tyres with a tread depth of 15.5mm.
Suitable for both on and off-road use.
Road legal up to 50km/h in Europe and the UK.

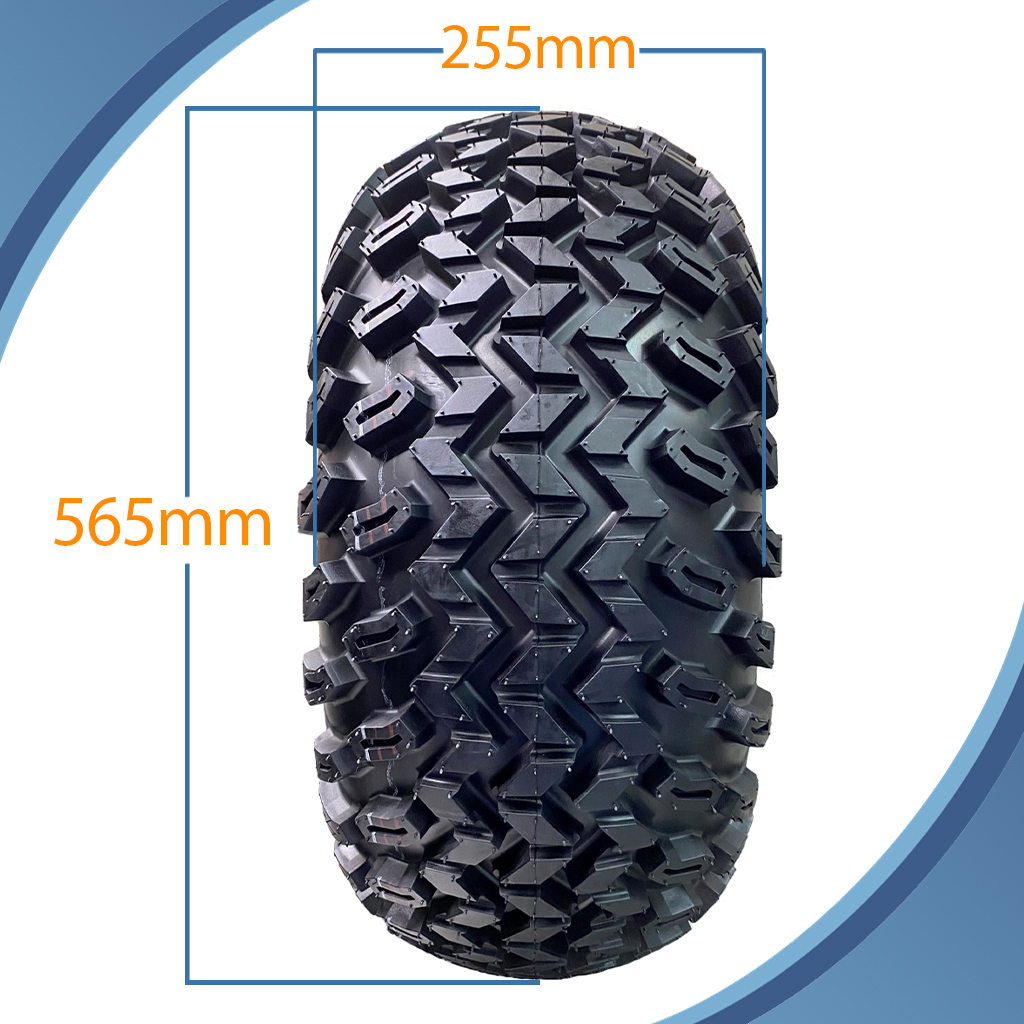

Tyre Specifications:

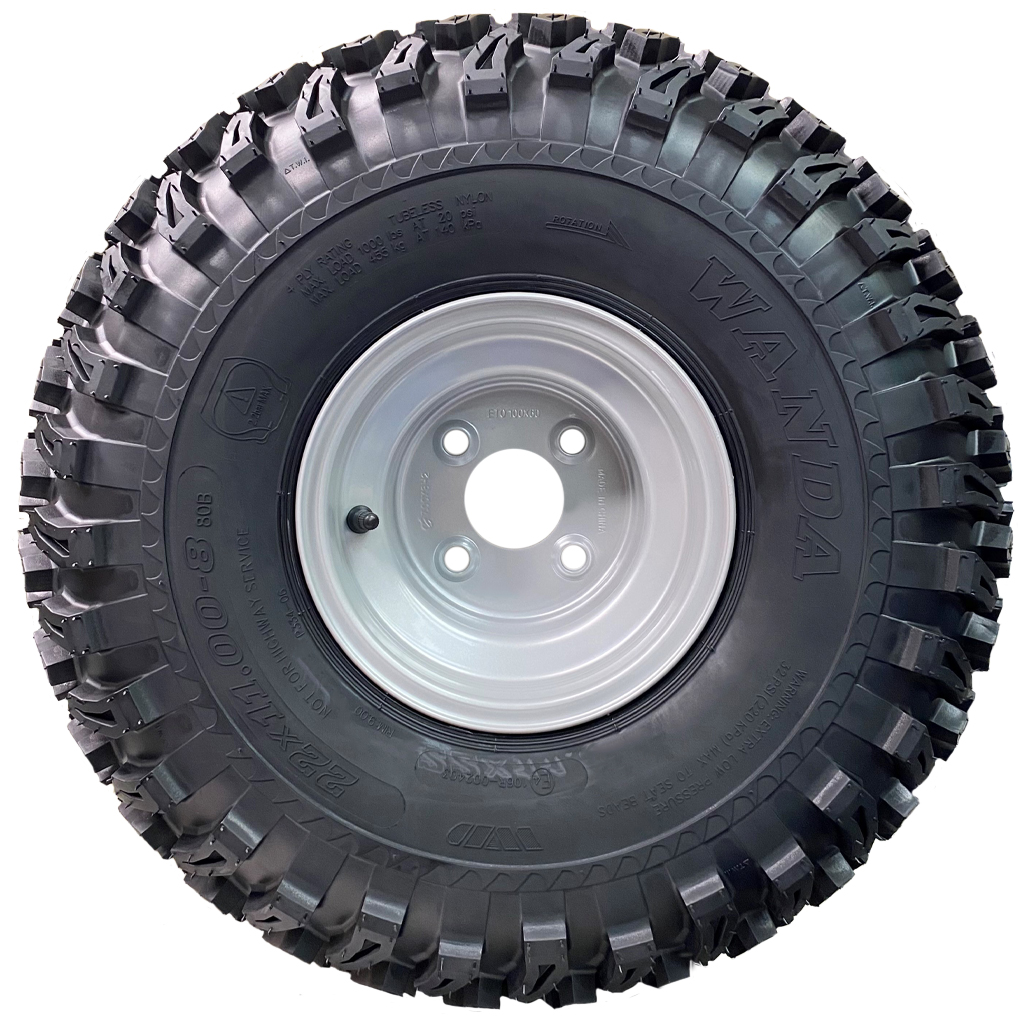

• 22x11.00-8 4ply Wanda P334 Utility tyres,
• Overall diameter: 565mm,
• Max width of tyre: 255mm,
• Tread depth: 15.50mm,
• Inflation PSI: 20psi,
• Max load per wheel: 455kg @ 50km/h,
• load/speed index: 80B,
• E-marked tyres: E4-75R-0005149,
Wheel rims:
Heavy duty welded rims,
Powder coat paint with E-coating anti-corrosion treatment for superior finish,

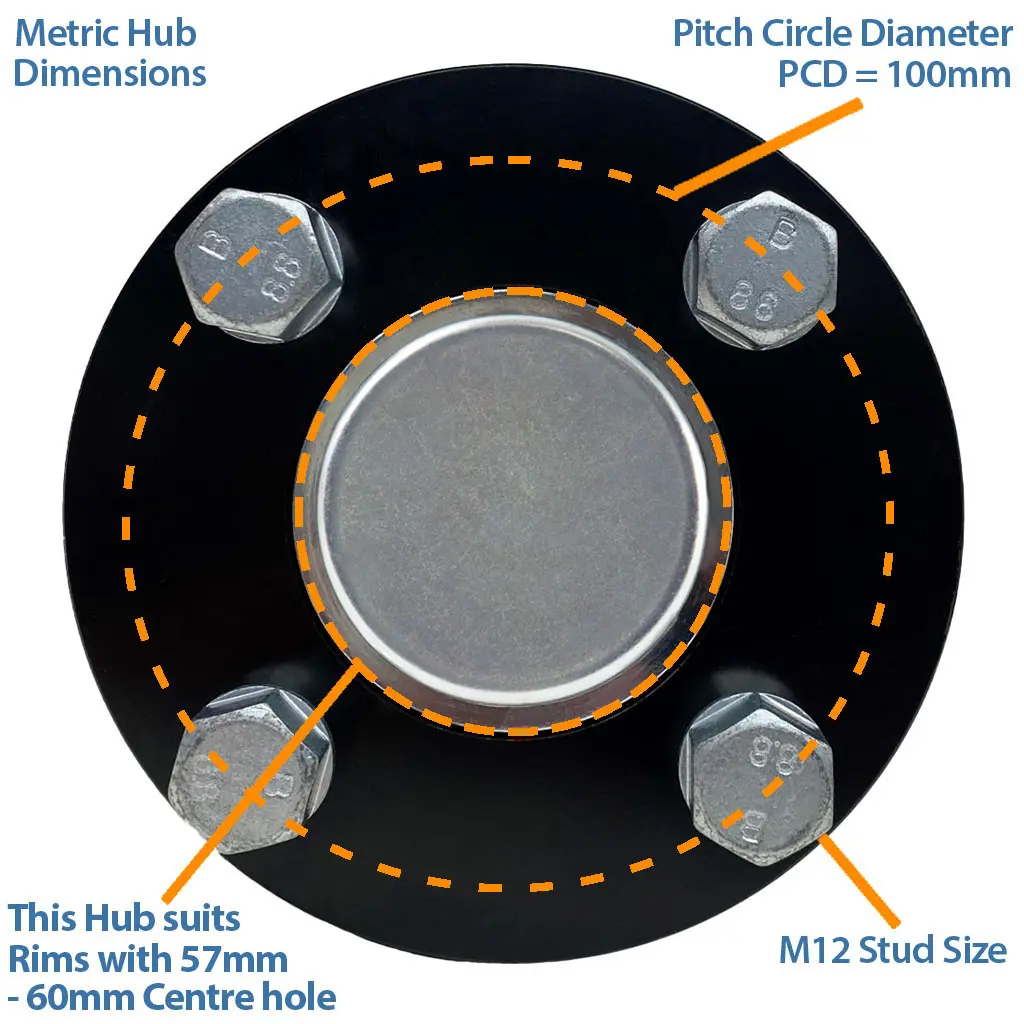

Pitch Circle Diameter: 100mm,
Centre hole diameter: 60mm.

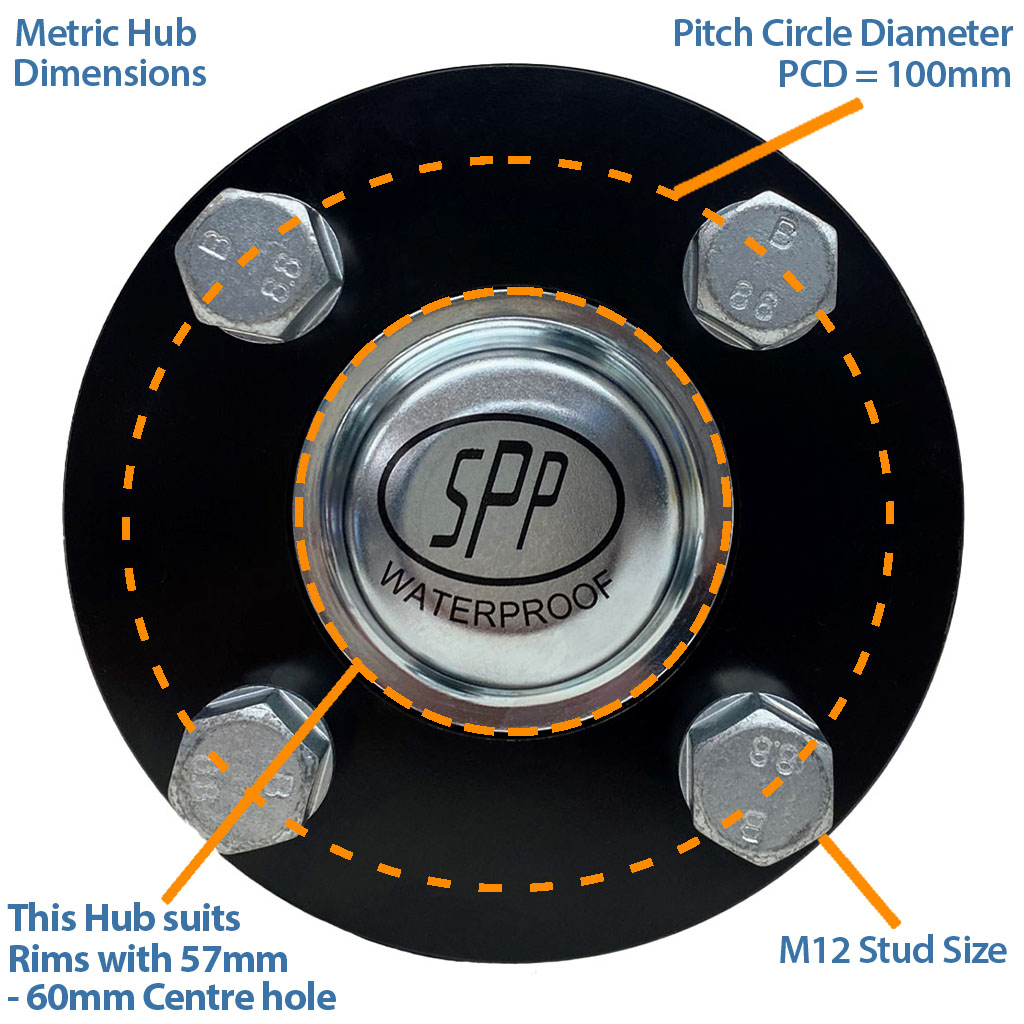

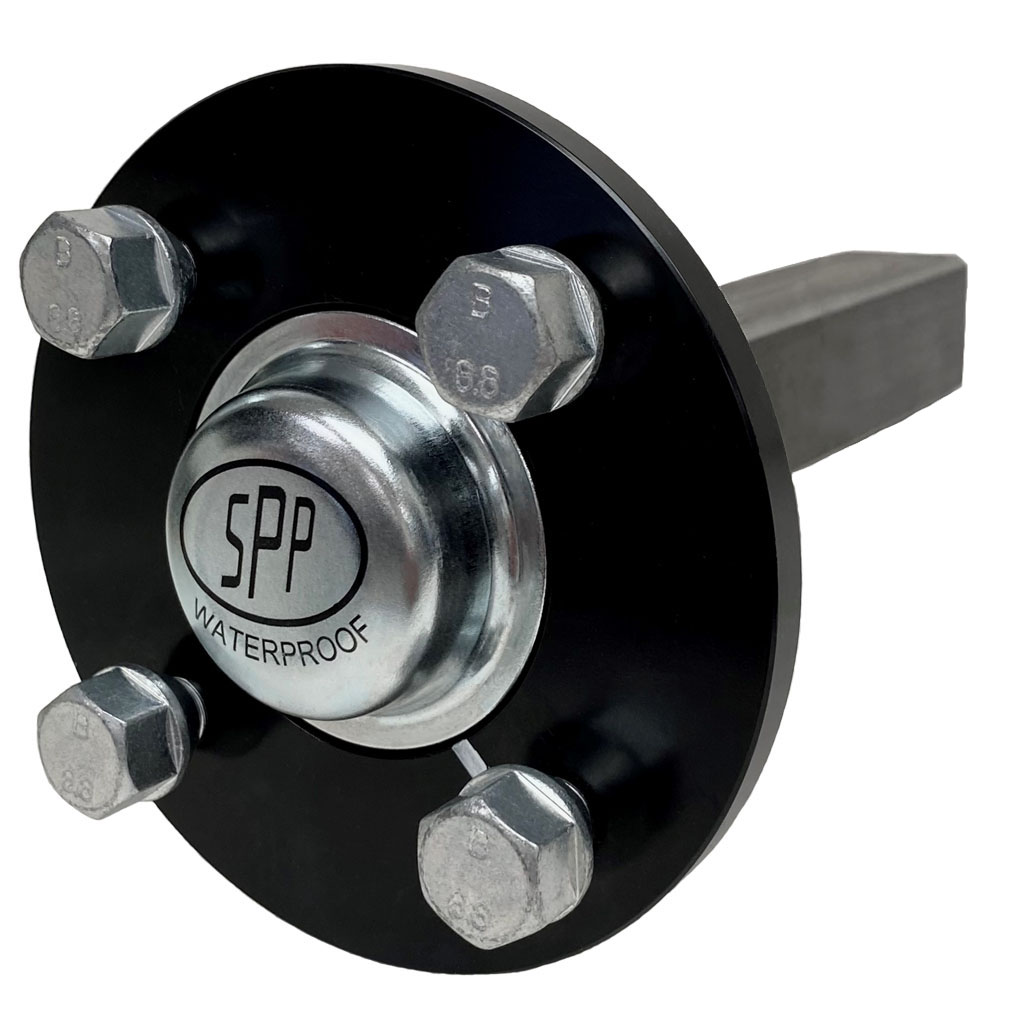

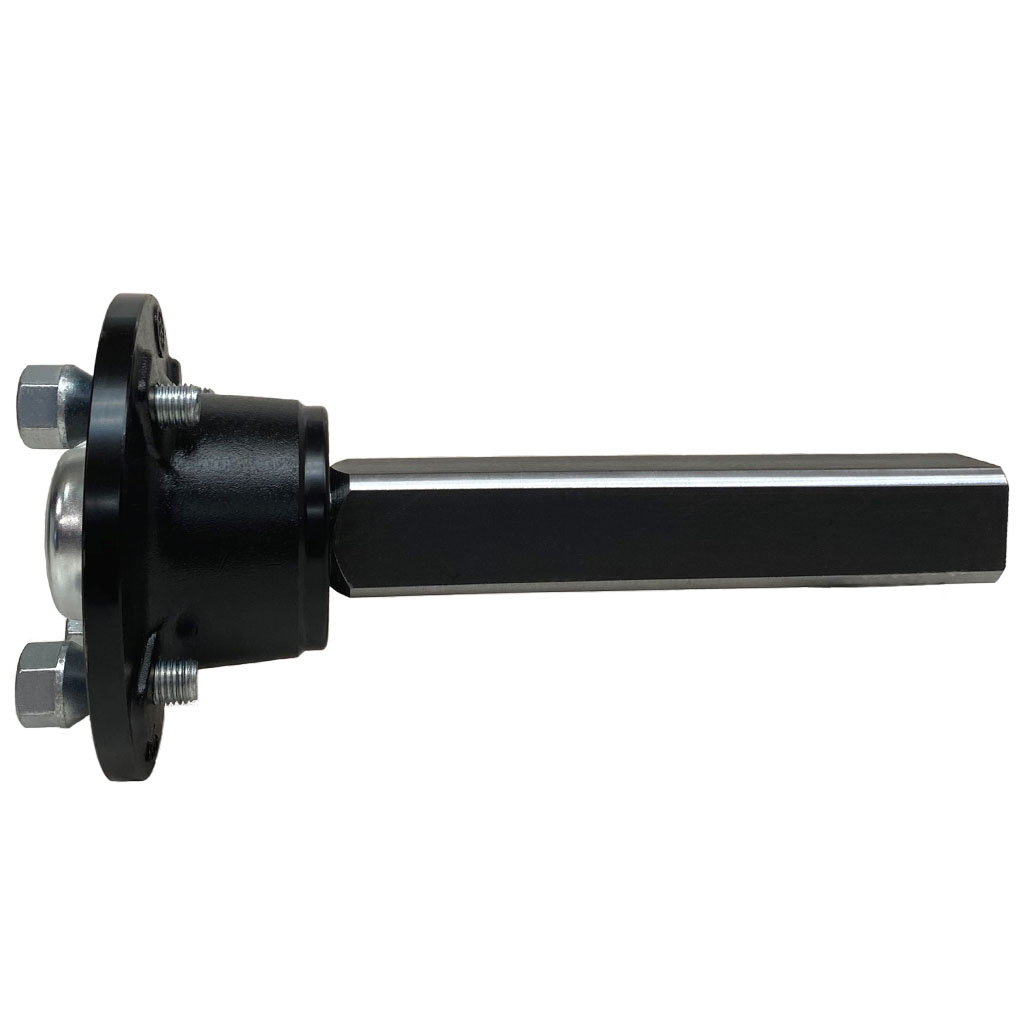

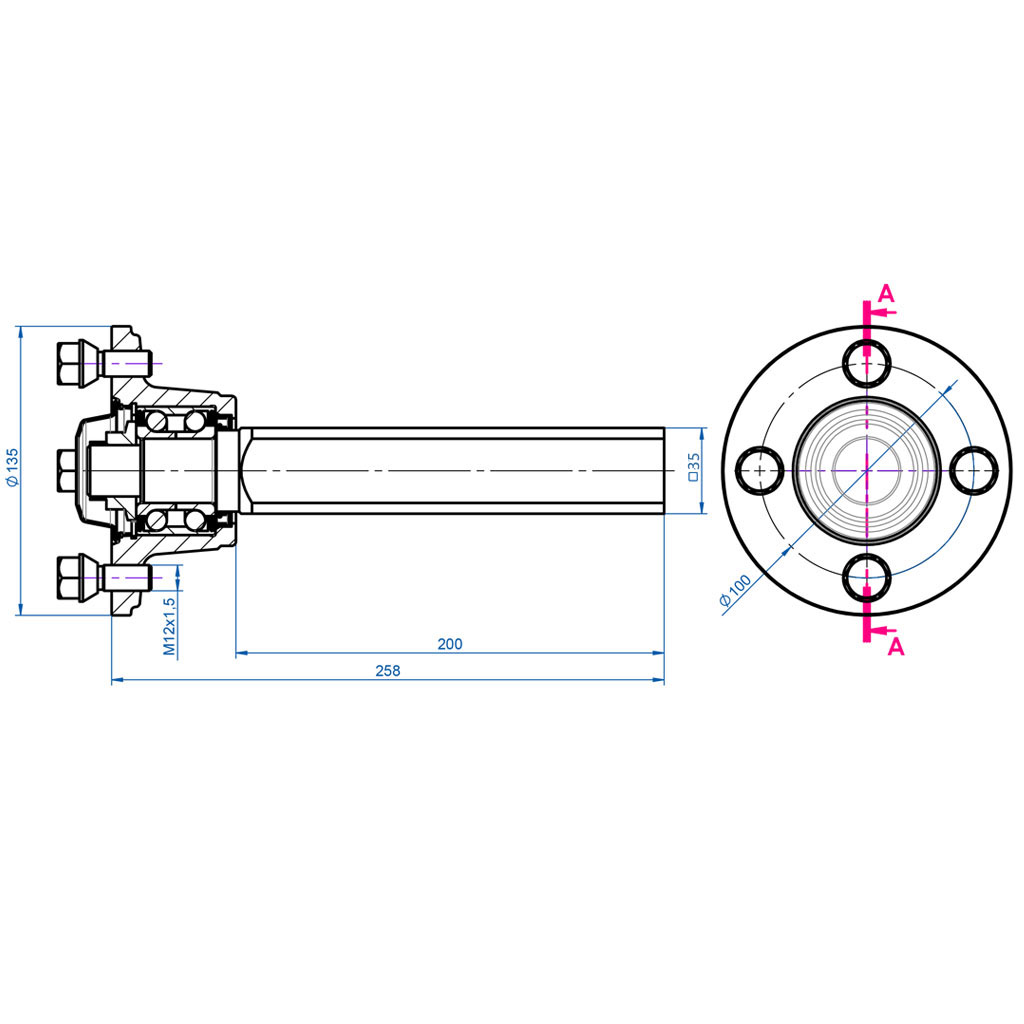

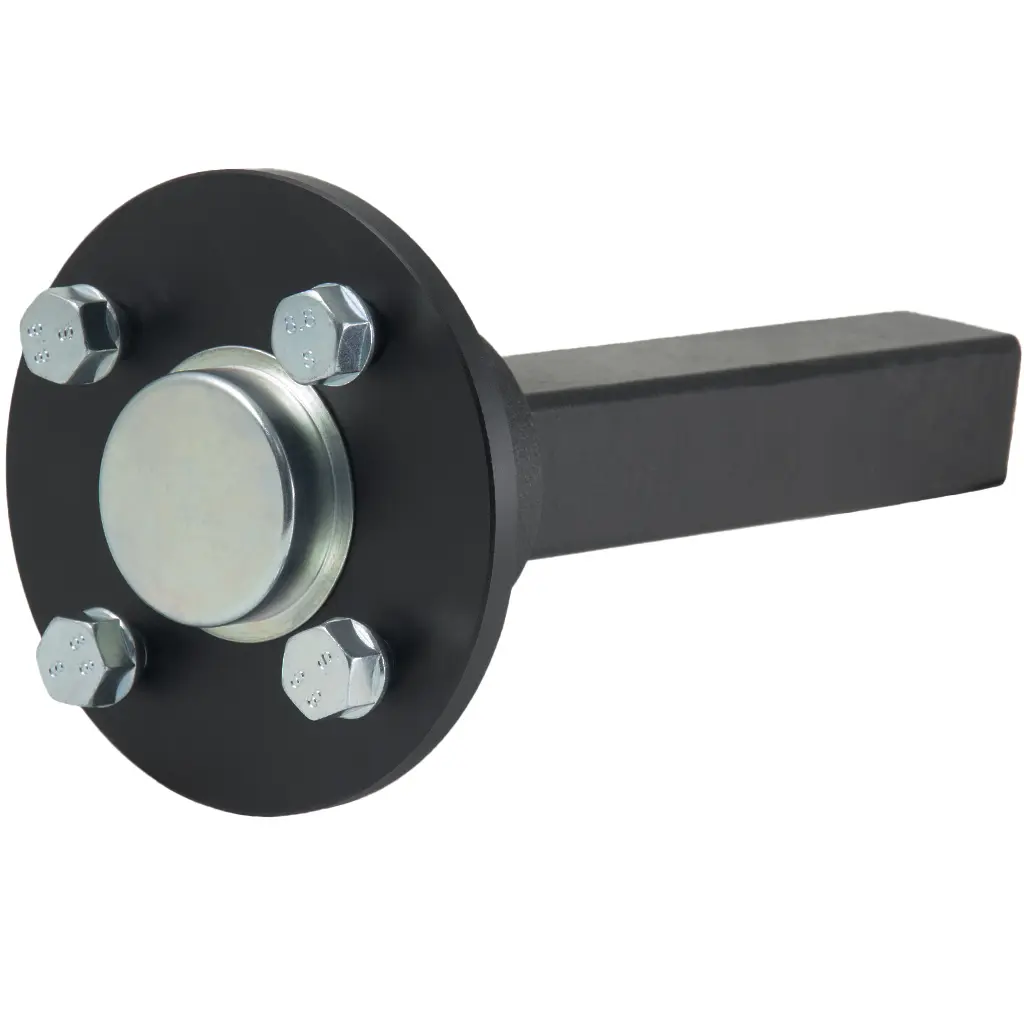

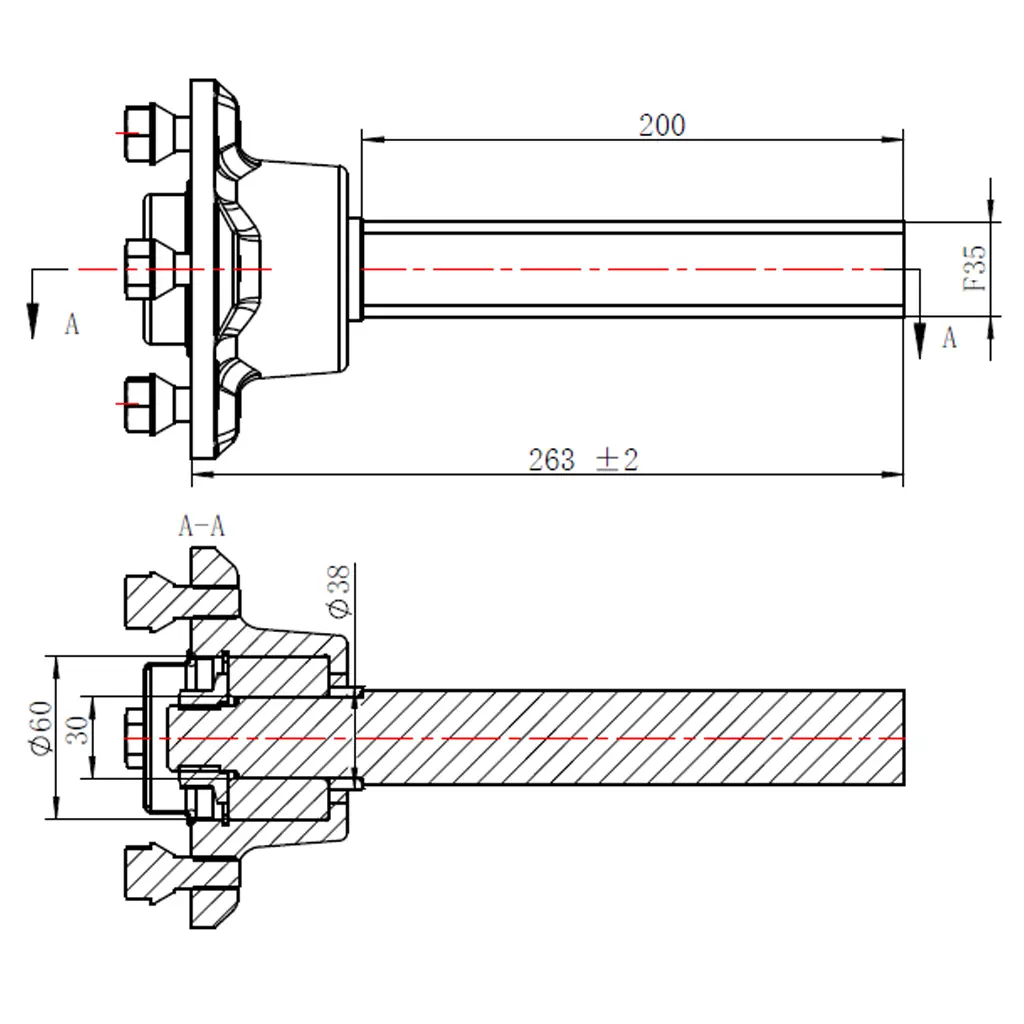

Item specifications: Stub axles.
• Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
• PCD is 100mm,
• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
• The hubs are waterproof,
• The shaft is 35x35mm x 200mm long, solid steel,
• Manufactured by SPP (Steelpress, Poland).

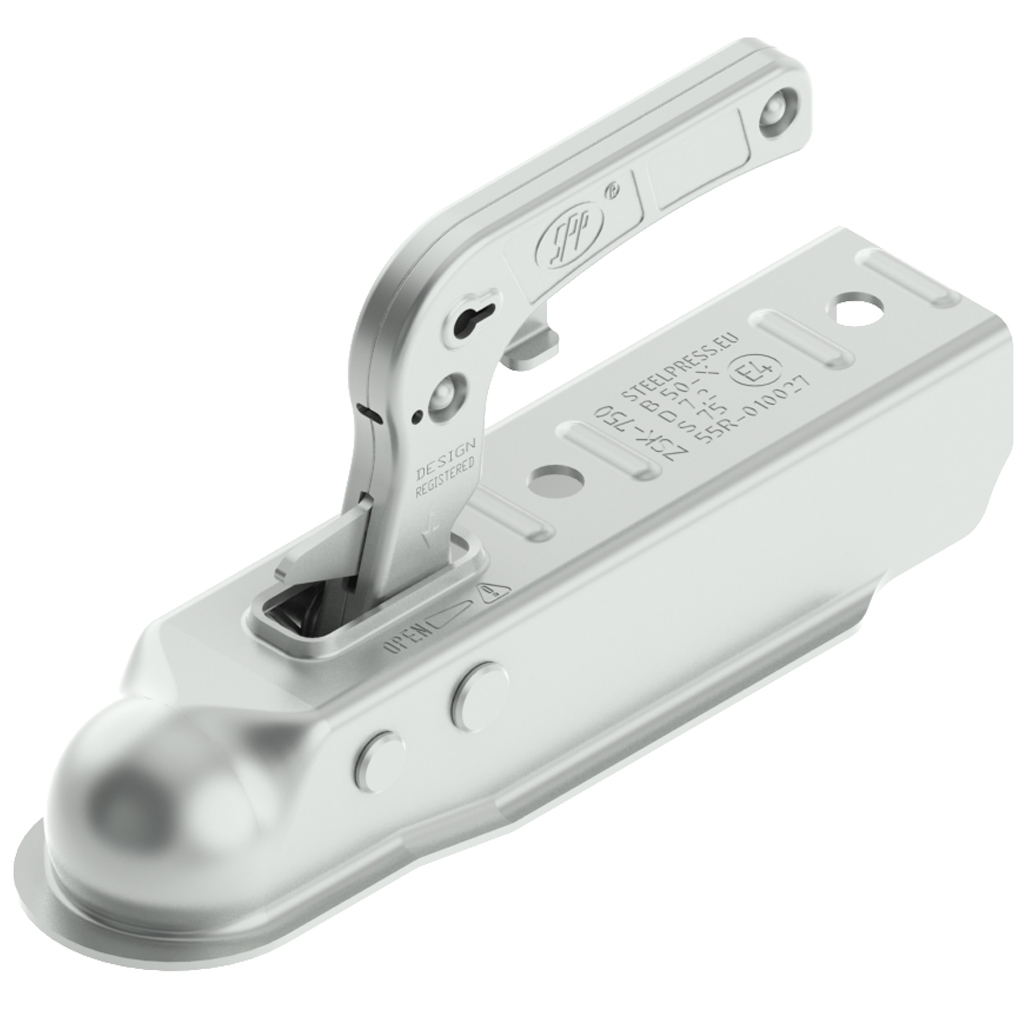

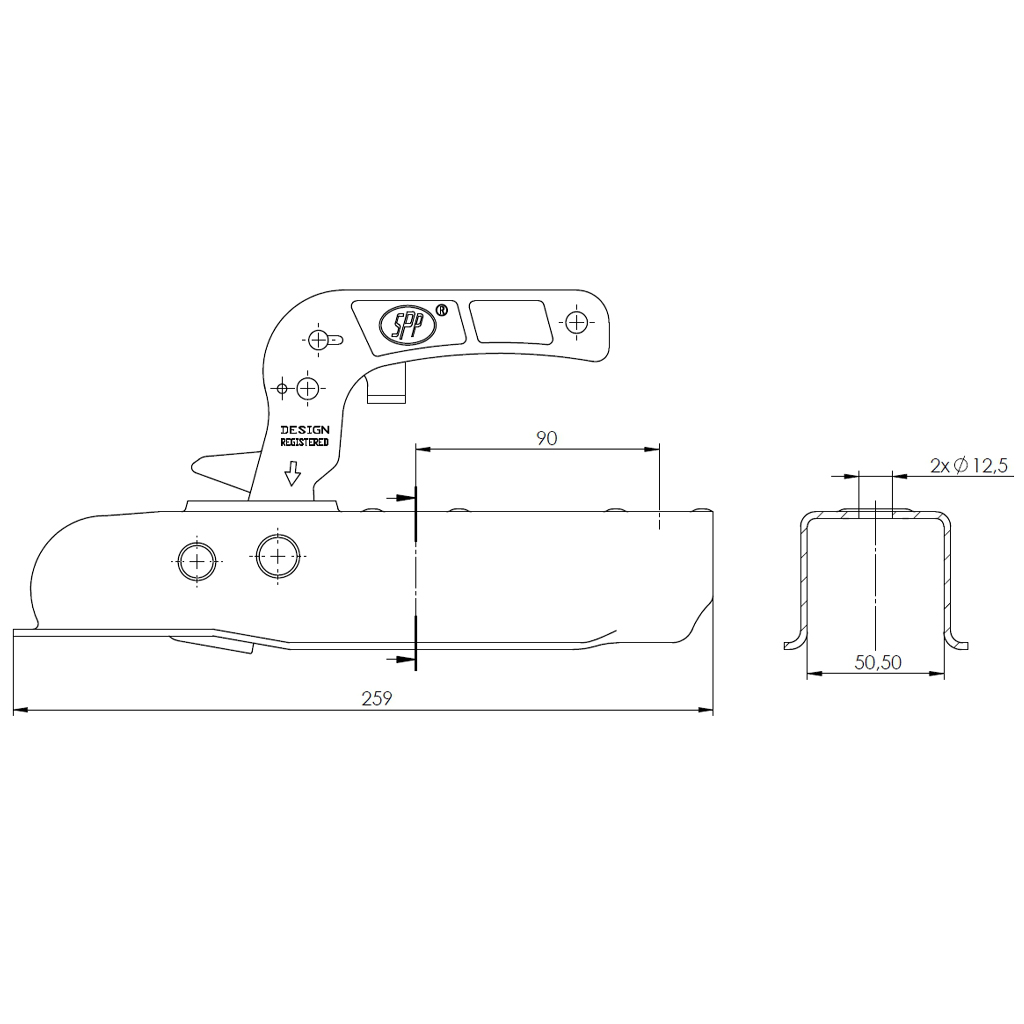

Item specifications: Hitch.
• 750kg pressed steel hitch, high quality zinc plated finish,
• Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts
(bolts & lock nuts are provided with this kit).
• These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50). The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
• In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.
• Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
Maximum Kit Load Capacity 750kgs.
Add to cart
Sign in
Pay
Get Delivered
Part Number | KIT1002 |
Rim Colour | Silver |
Tyre Size | 22x11.00-8 |
Ply | 4 |
TT/TL | TL |
Pattern | P334 |
Tread Depth (mm) | 15.5 |
SW (mm) | 255 |
OD (mm) | 565 |
PSI | 20 |
Load/Speed Index | 80B |
Stud / PCD | 4x100mm |
E-Mark | E4-106R-002403 |
Max Load (Kg) | 750 |
Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
Hitch (1pcs) | TR1002 1300kg pressed steel hitch |
