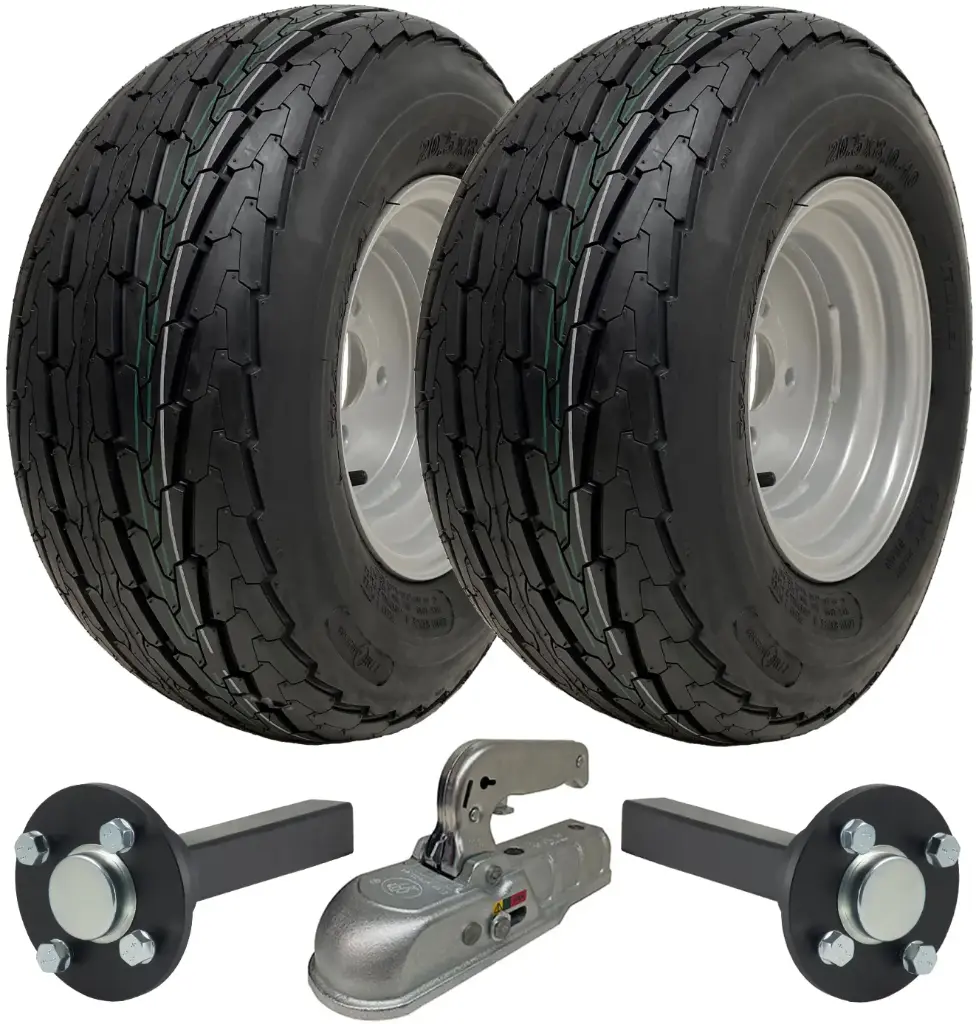

20.5x8.00-10 High Speed Trailer Kit, Wheels + Hub & Stub Axles with Cast Steel Hitch, 750kg
Part Number: KIT1006

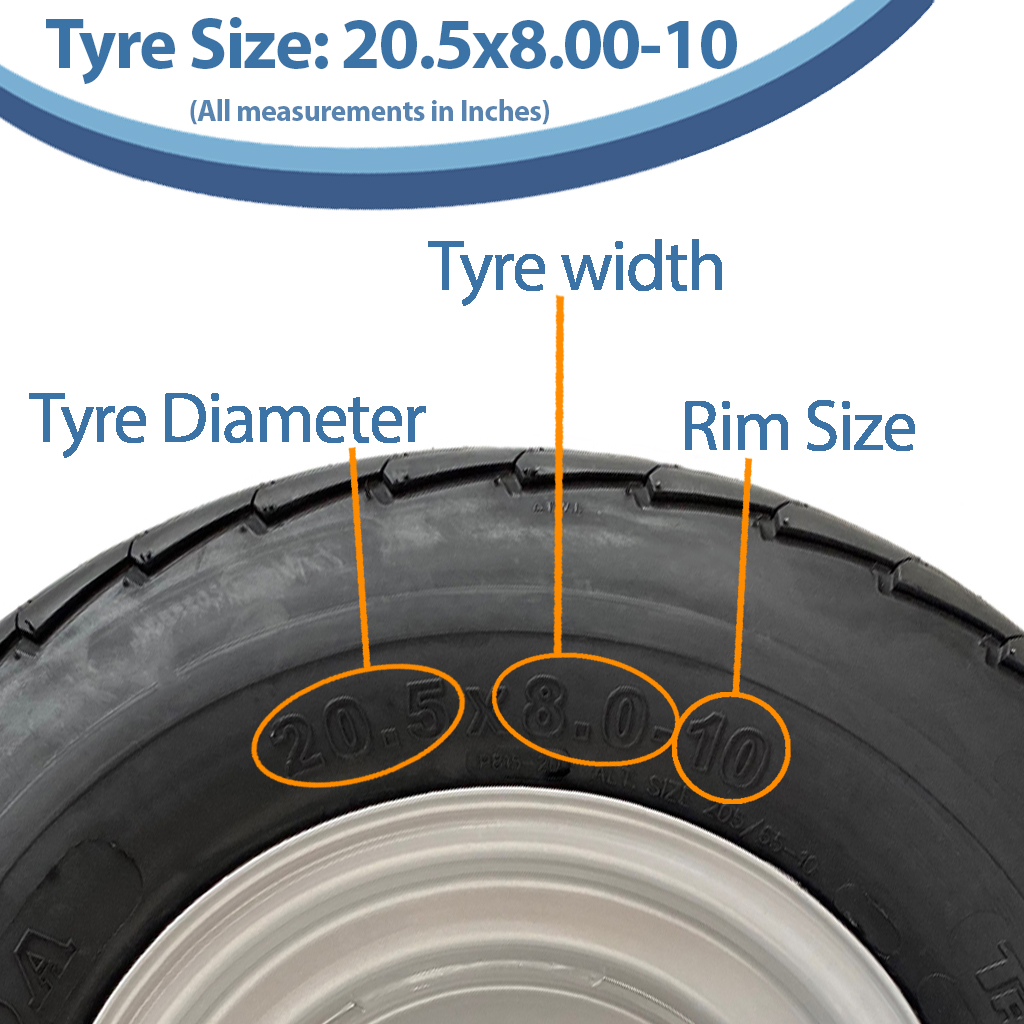

Wheel Size: 20.5x8.00-10
Hub & Stub Axle Size: 35mm Square, 200mm long
Load Capacity: 750kg

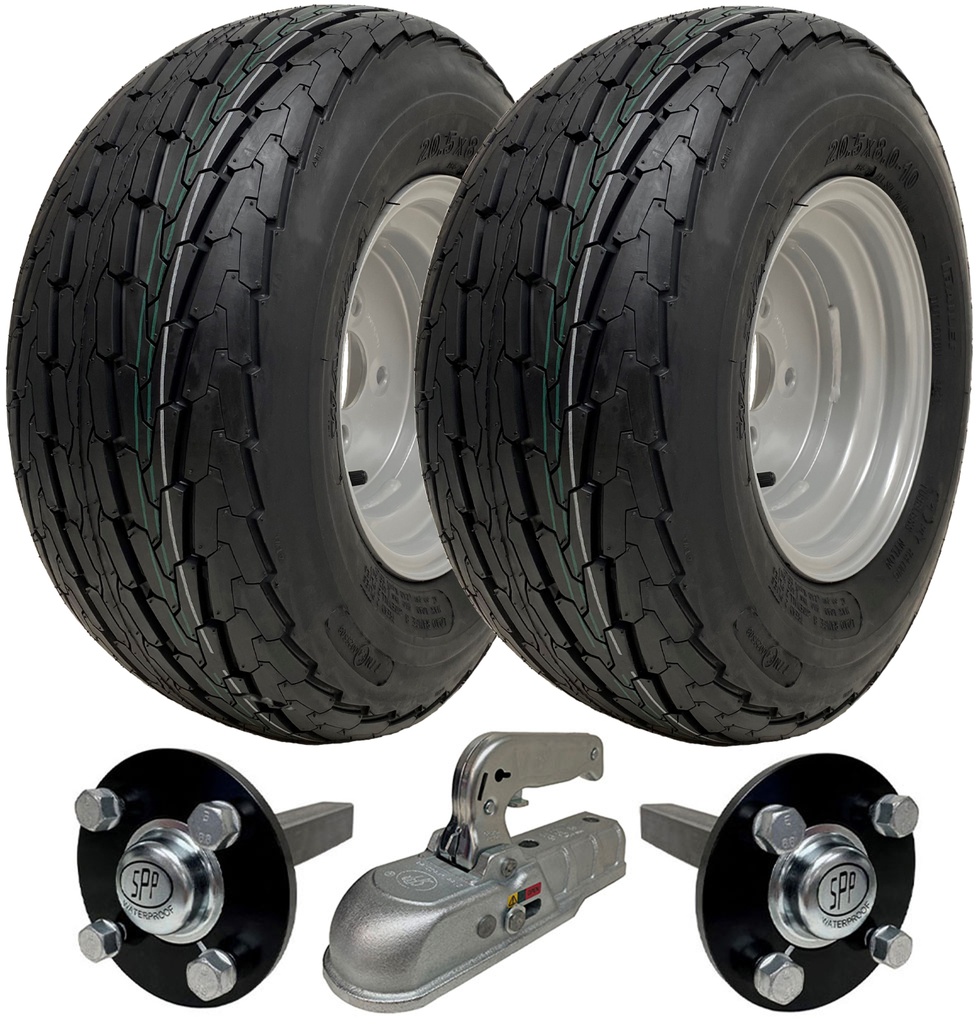

This Kit contains:
Two: High Speed Wheels (tyres fitted on rims).
&
Two: High Speed Hub & Stub Axles.
&
One: Cast Steel Tow Hitch.

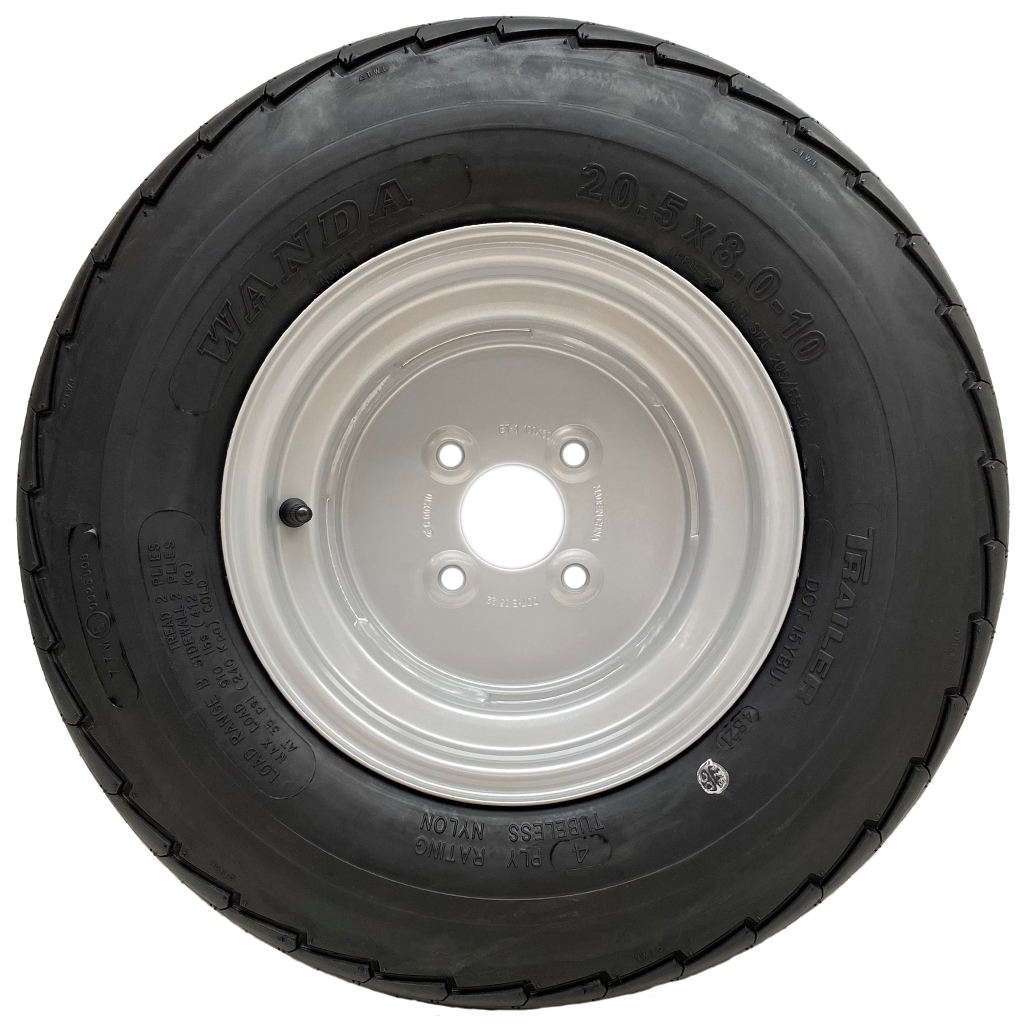

Wanda P815 trailer tyre fitted to a heavy duty 4 stud 100mm PCD steel rim. These are tubeless tyres.
They are E marked for road legal use in Europe and the UK.
They are hard wearing 4ply tyres with a tread depth of 7mm.
The wheels are heavy duty steel rims with 4 studs 100mm PCD,
(the centre hole is 60mm).

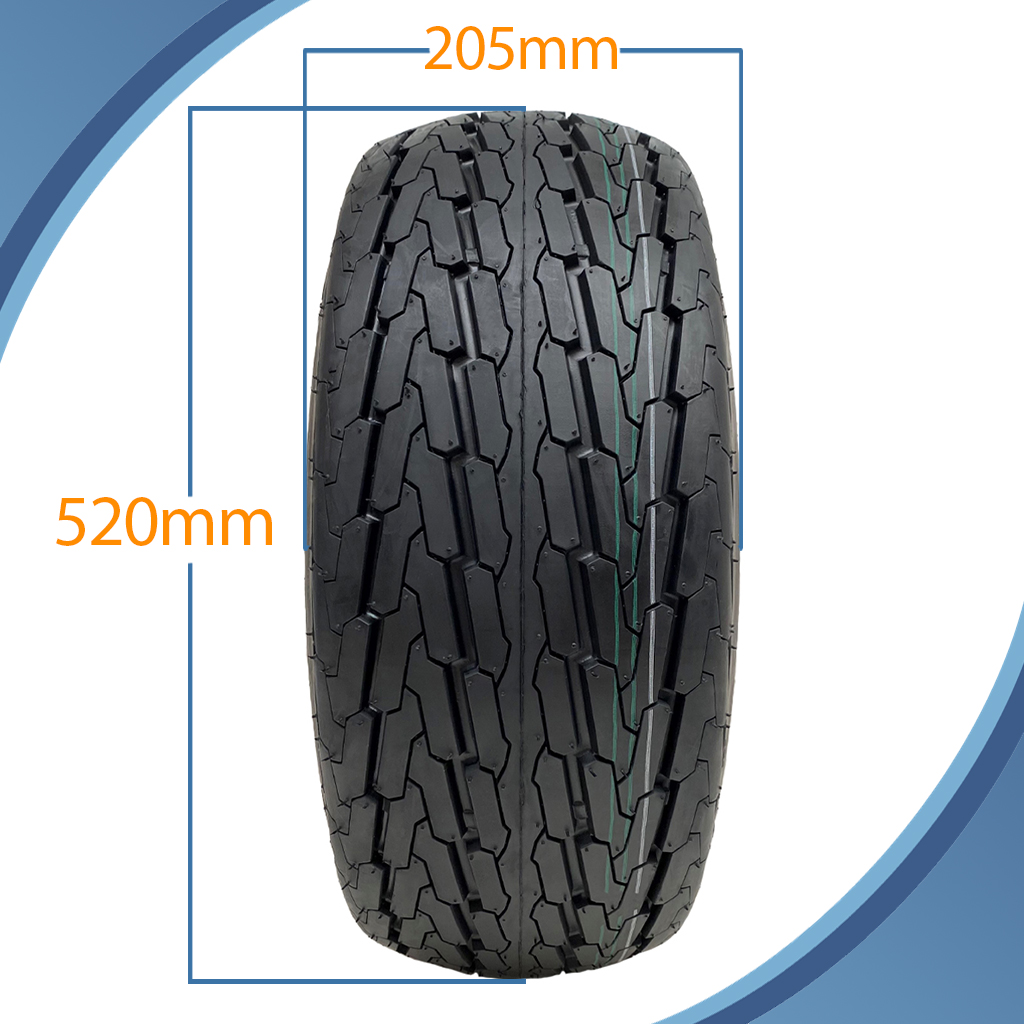

Wheel Specifications:
Overall diameter: 520mm,
Max section width: 205mm,
Max load: 910lbs (412kg),
tread Depth: 7mm,
Brand: Wanda,
Tyre pattern: P815,
PSI: 35,
Max speed: 130km/h (81mp/h).
Rim Specifications:
Rim Size: 6.00x10,
Pitch Circle Diameter: 100mm PCD,
Centre Hole Size: 60mm,
Stud Hole Size: 14.5mm,
Rim Offset: ET-4 (offset 4mm towards the inside edge),
Silver powder coated finish with electro coating.

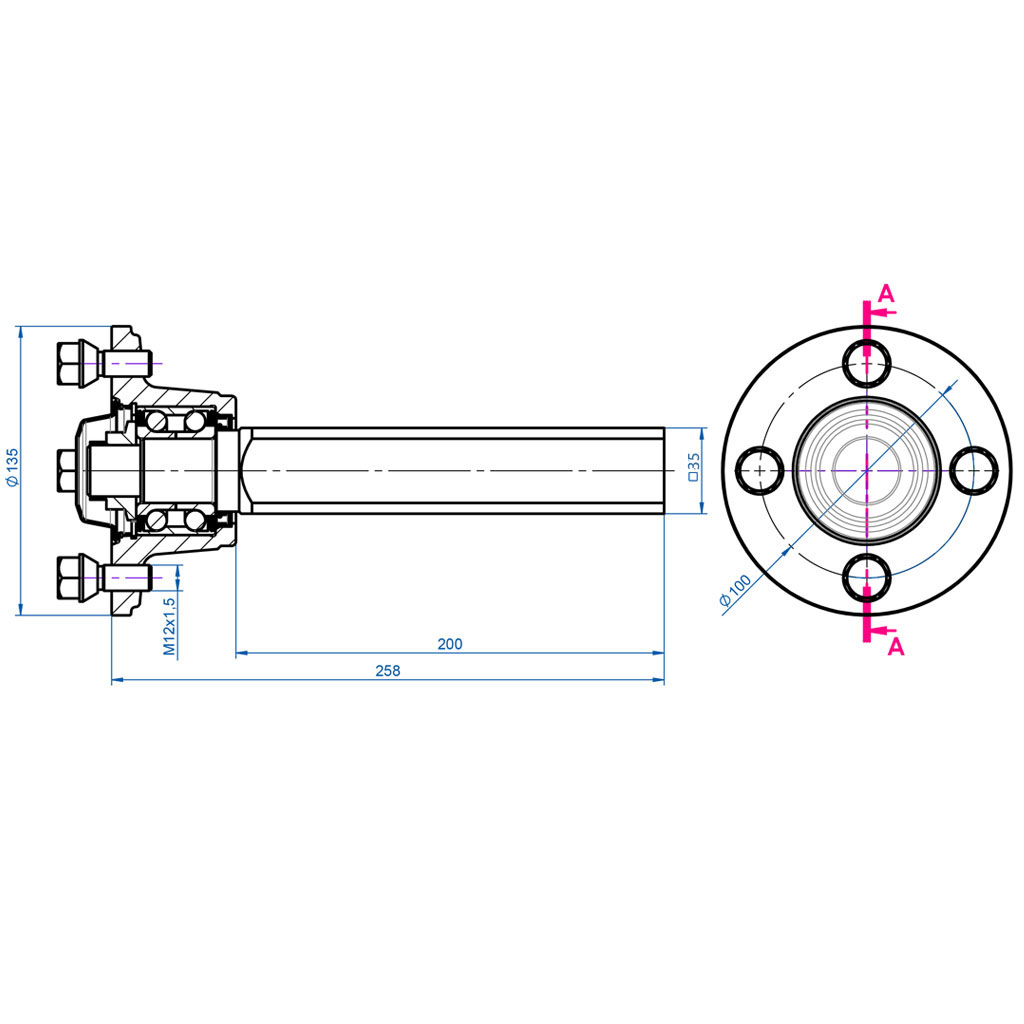

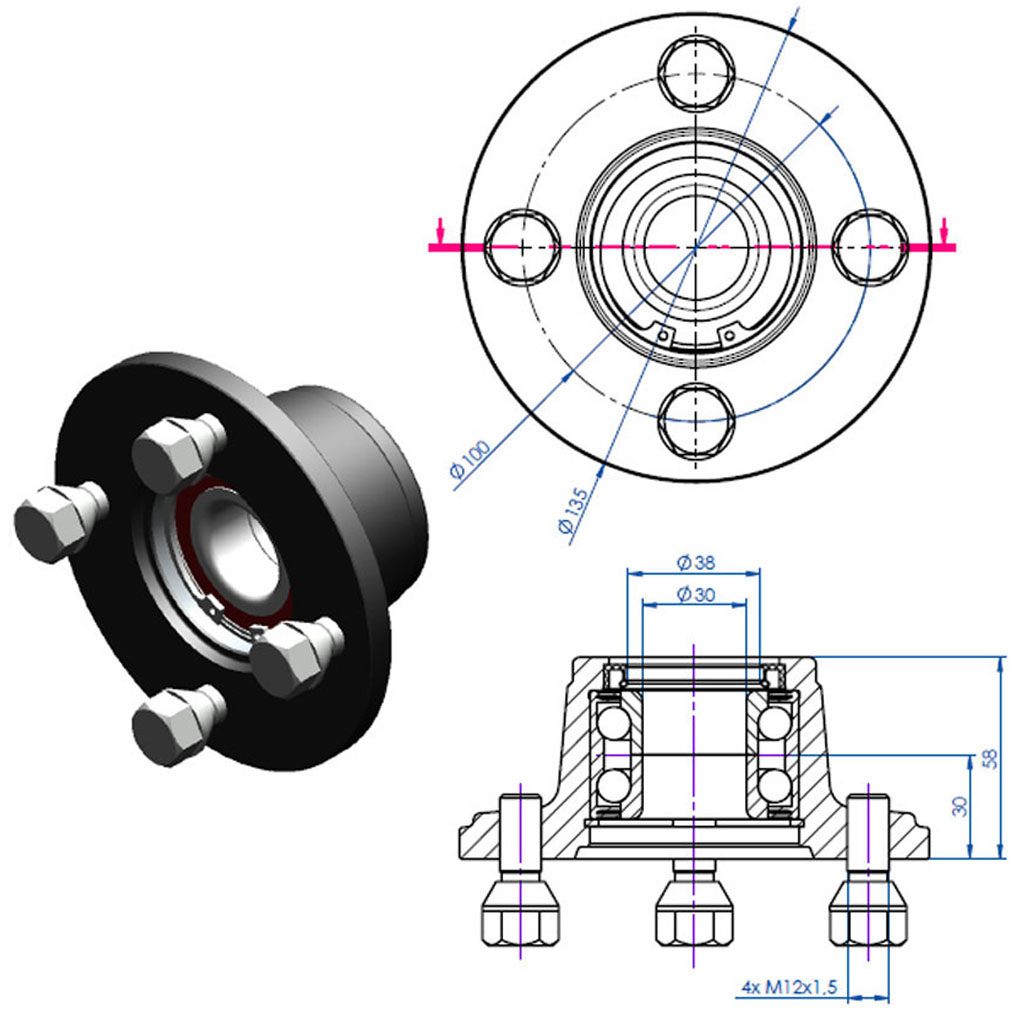

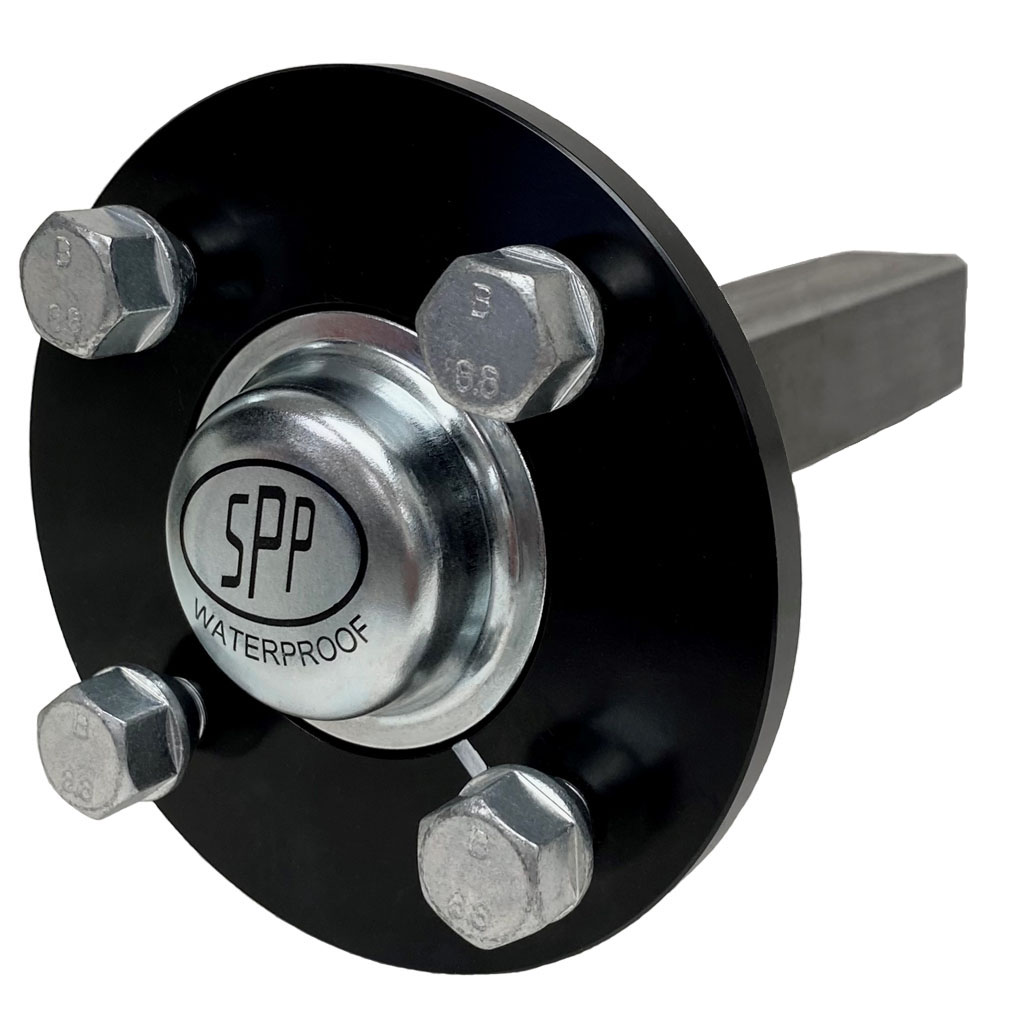

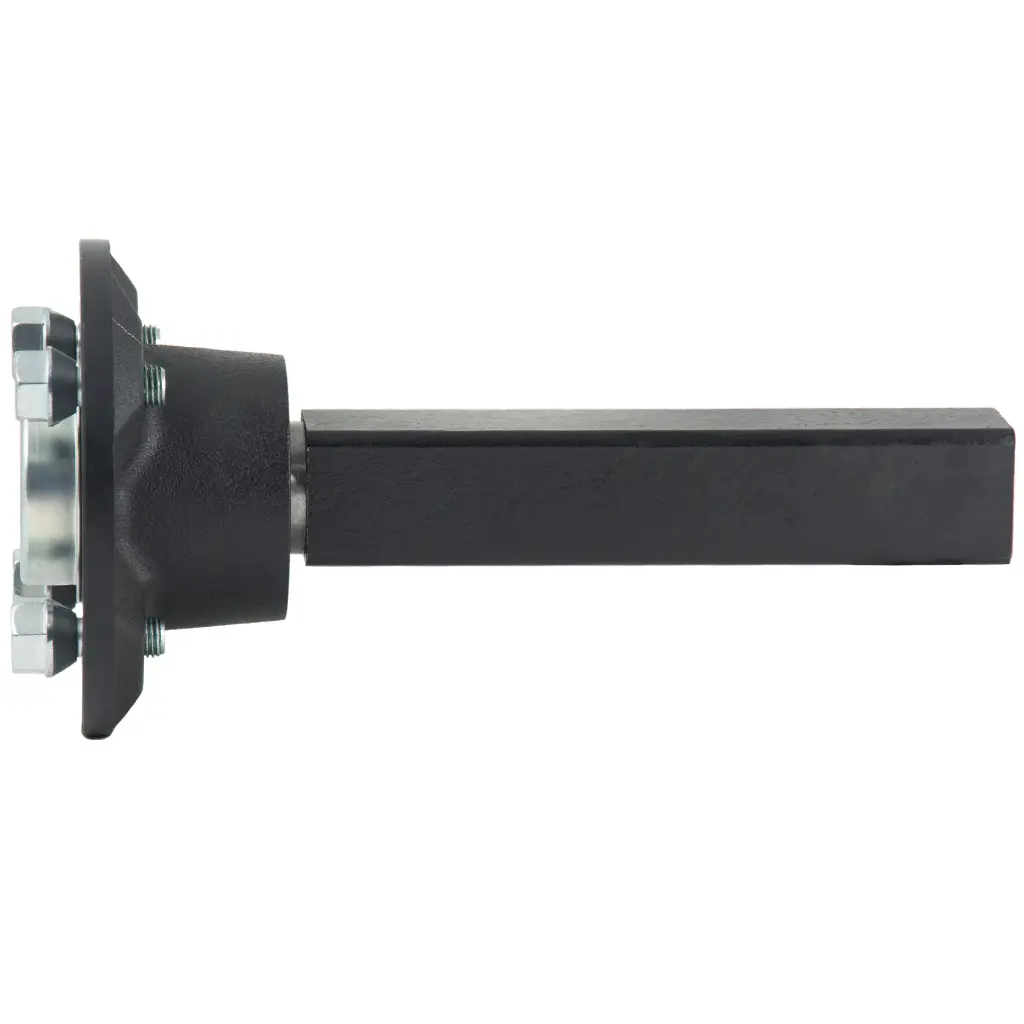

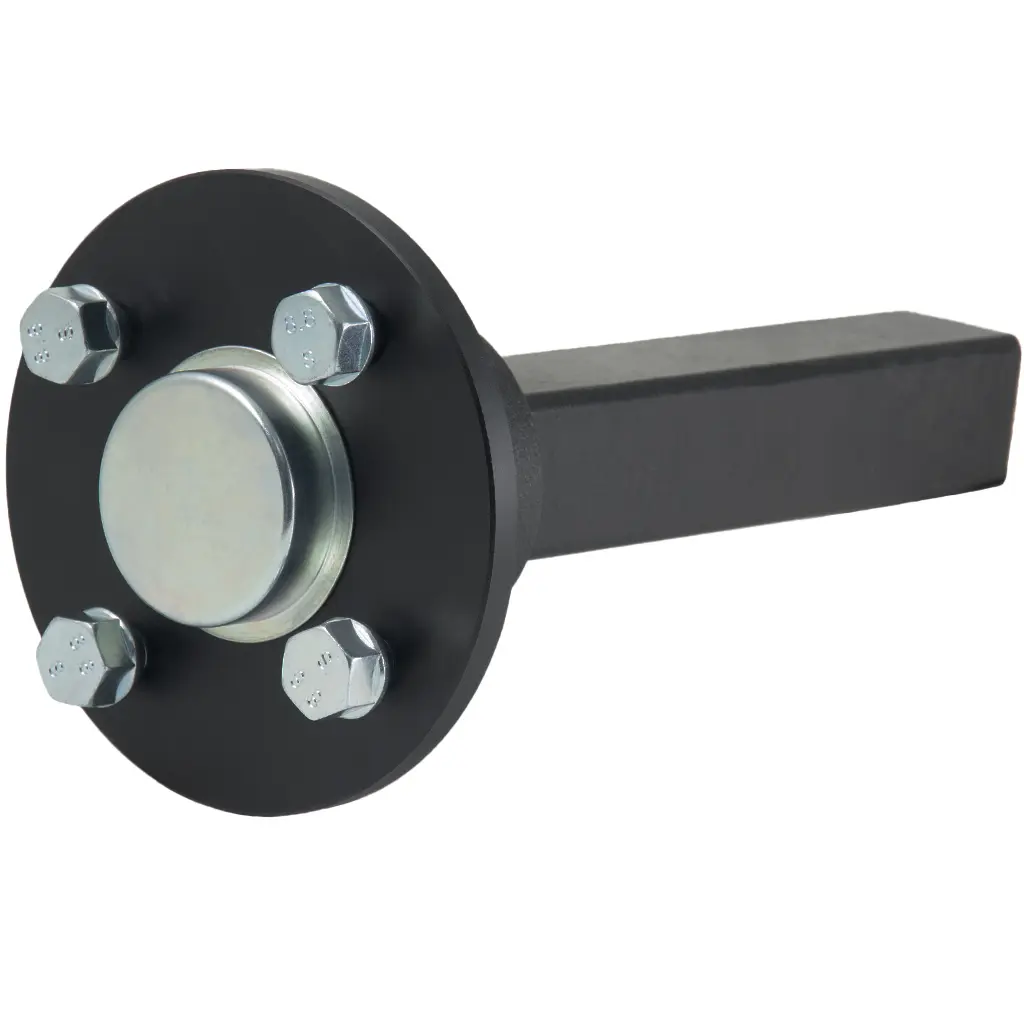

Hub & Stub Axle Specifications:
These hubs are rated to 80mph, they are fully legal to use on the road.
They have sealed precision ball bearings, they never need to be greased.

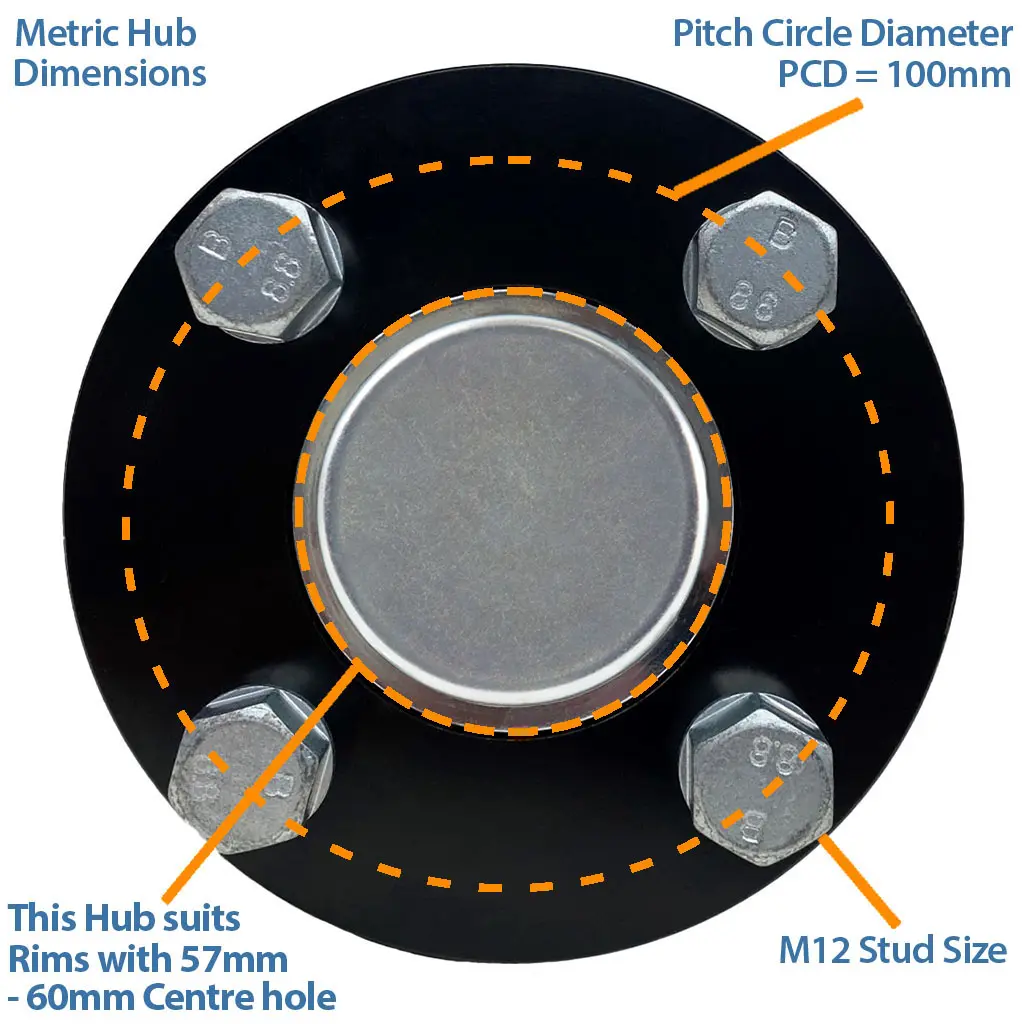

The hub has 4 x M12 studs, the PCD is 100mm.

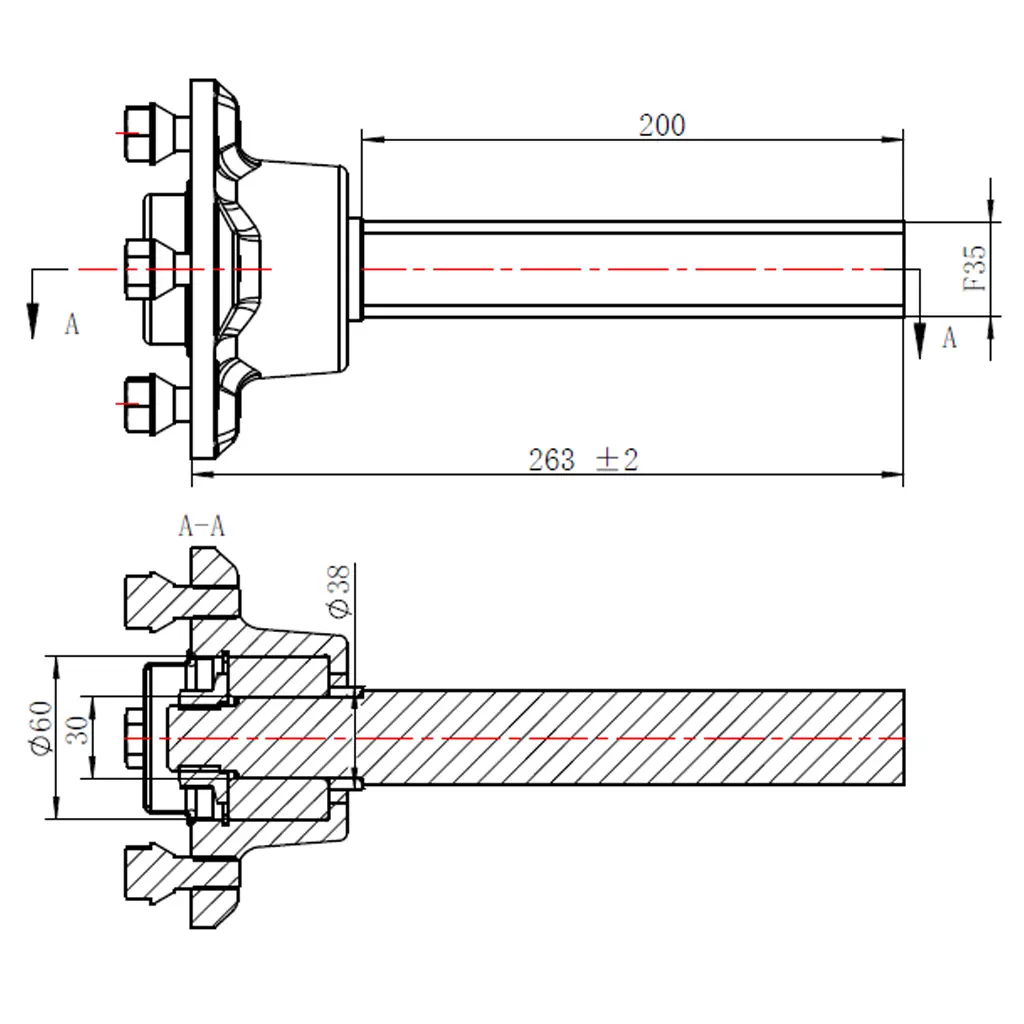

The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.
These are genuine "SPP" Steelpress Production parts, manufactured in Poland.

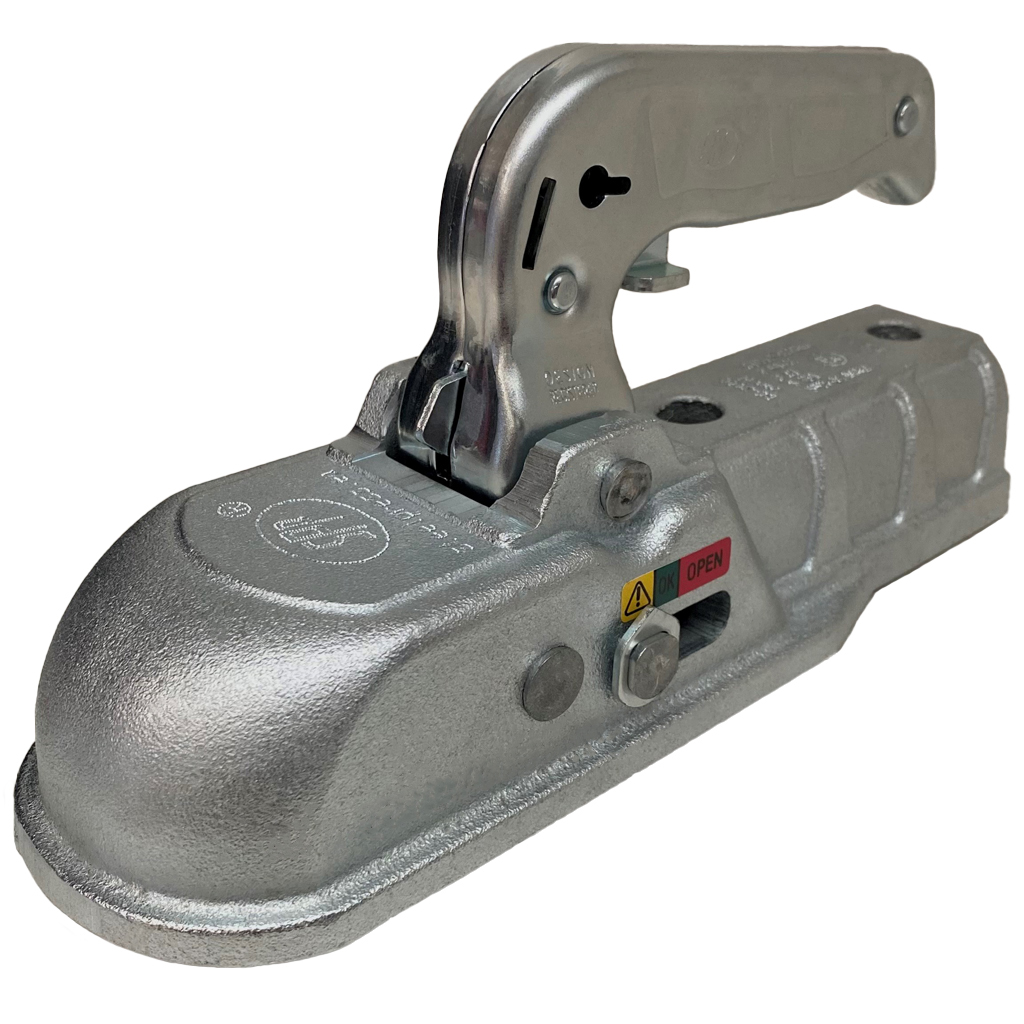

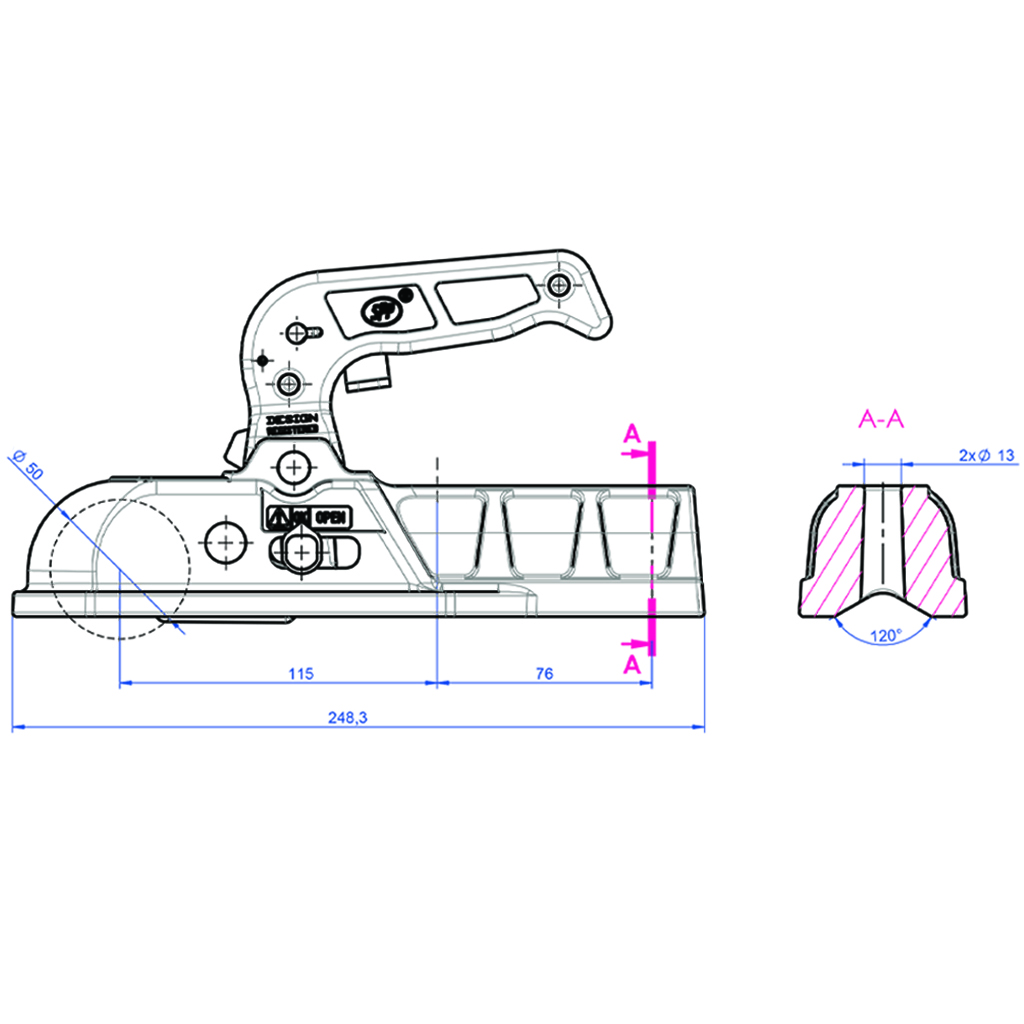

Hitch Specification:
SPP SteelPress Production European manufactured.
High quality trailer coupling, Cast iron body with pressed steel handle. Double movement opening.
To fit on round or square bar.
Non directional Tyre.
The Wanda P815 is a classic high speed trailer tyre pattern.
The wide profile gives increased stability.
Maximum Kit Load Capacity 750kgs.
| Part Number | KIT1006 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 20.5x8.00-10 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P815 |
| Tread Depth (mm) | 7.0 |
| SW (mm) | 205 |
| OD (mm) | 520 |
| PSI | 35 |
| Stud / PCD | 4x100 |
| Max Load (Kg) | 750 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1pcs) | SPP 3000kg Cast Hitch |
