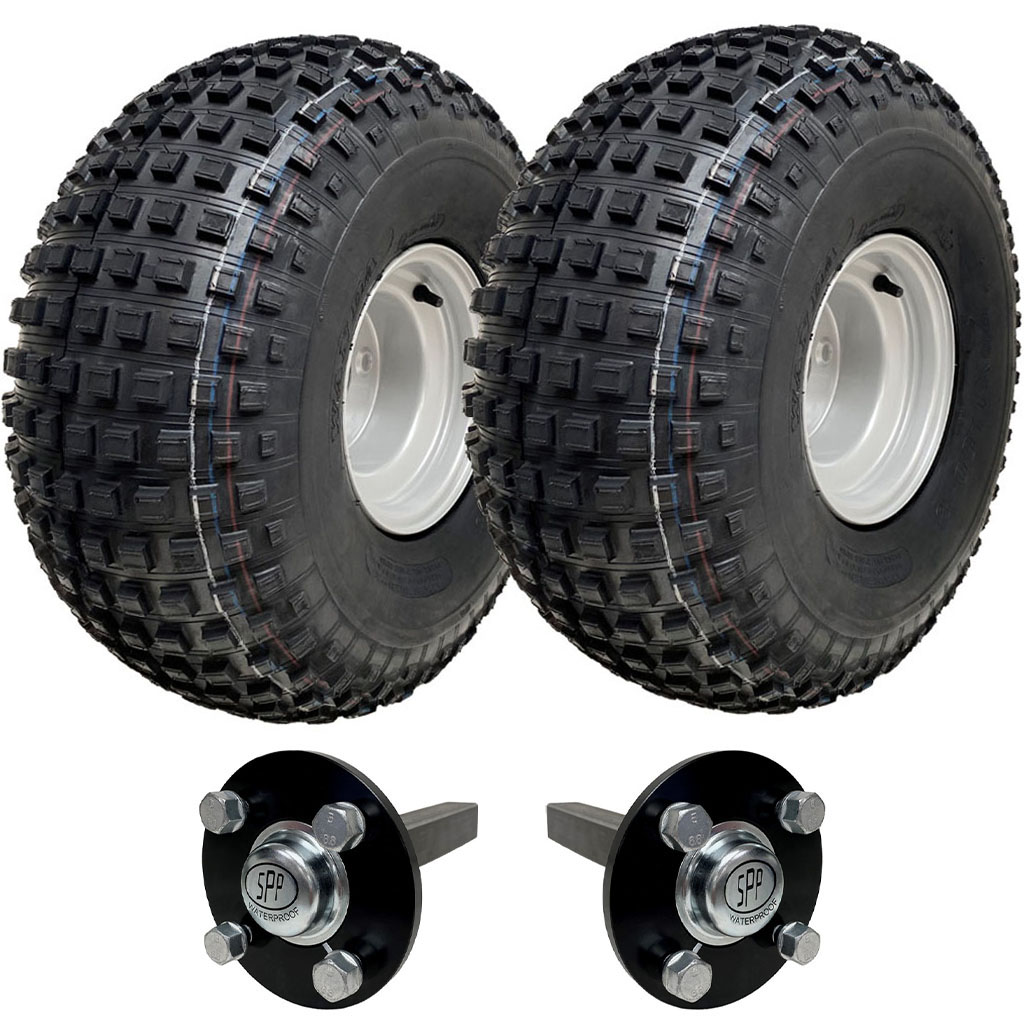

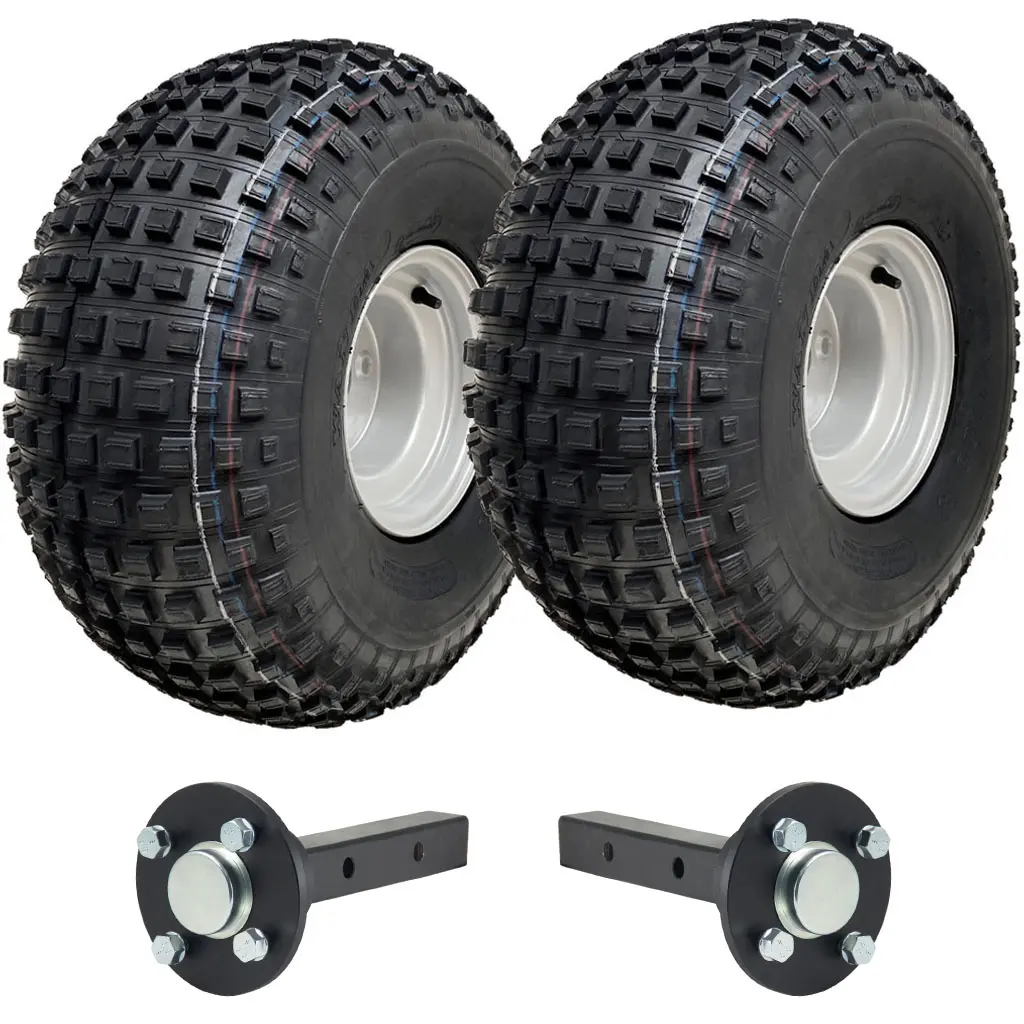

22x11.00-8 Knobby ATV quad trailer kit, wheels and 40mm x 40mm axles (no hitch)
Part Number: KIT1010
Wheel Size: 22x11.00-8
PCD: 100mm
Load Capacity: 310kgs
Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x Stub axles, 40x40x125mm solid stub.
Item specifications: Wheels.
• 22x11.00-8 4ply Wanda P323 knobby tyres on steel rim 4x100mm PCD,
• Overall diameter: 538mm,
• Max width of tyre: 270mm,
• Tread depth: 9.5mm,
• Inflation: 5psi,
• Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),
• E-marked road legal tyres,
• Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

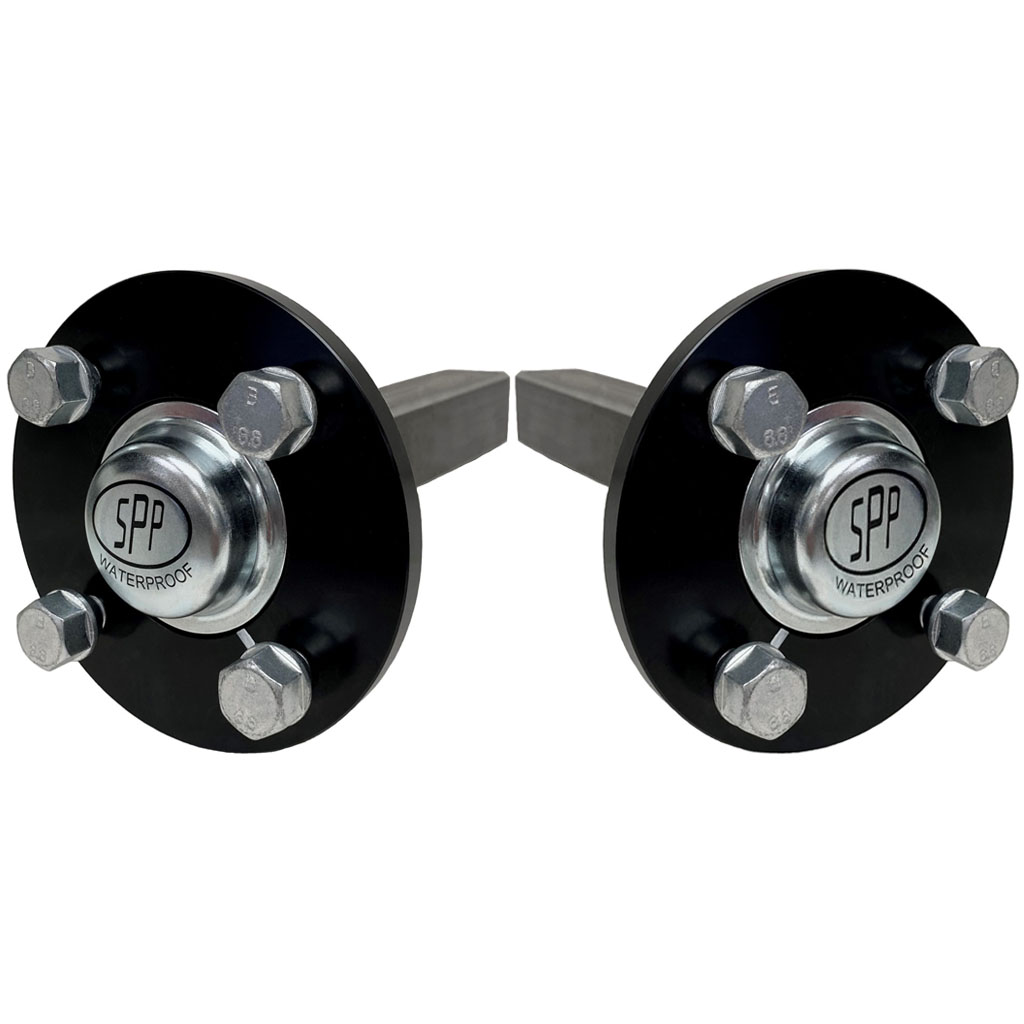

Item specifications: Stub axles.
• Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,
• PCD is 100mm,
• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
• The hubs are waterproof,
• The shaft is 40x40mm x 125mm long, solid steel,
• Manufactured by SPP (Steelpress, Poland).
Maximum Kit Load Capacity 310kgs.
Part Number | KIT1010 |
Brand | Parnells |
Tyre Size | 22X11.00-8 |
Ply | 4 |
TT/TL | TL |
Pattern | P323 |
Tread Depth (mm) | 9.5 |
SW (mm) | 270 |
OD (mm) | 538 |
PSI | 5 |
Load/Speed Index | 43J |
E-Mark | E4-75R-0006182 |
Max Load (Kg) | 310 |
Hub & Stub Axle (2pcs) | (86250, '[EC1060] Set of 2 - Hub & Stub axle 4/100 M12stud 40x40 High speed (waterproof)') |
