22x11.00-8 Knobby ATV Quad trailer kit 310kg capacity, wheels, Axles & cast hitch
Part Number: KIT1012
Tyre Size: 22x11.00-8
Stub Axles: 35x35 steel 200mm long
Load Capacity: 310kgs

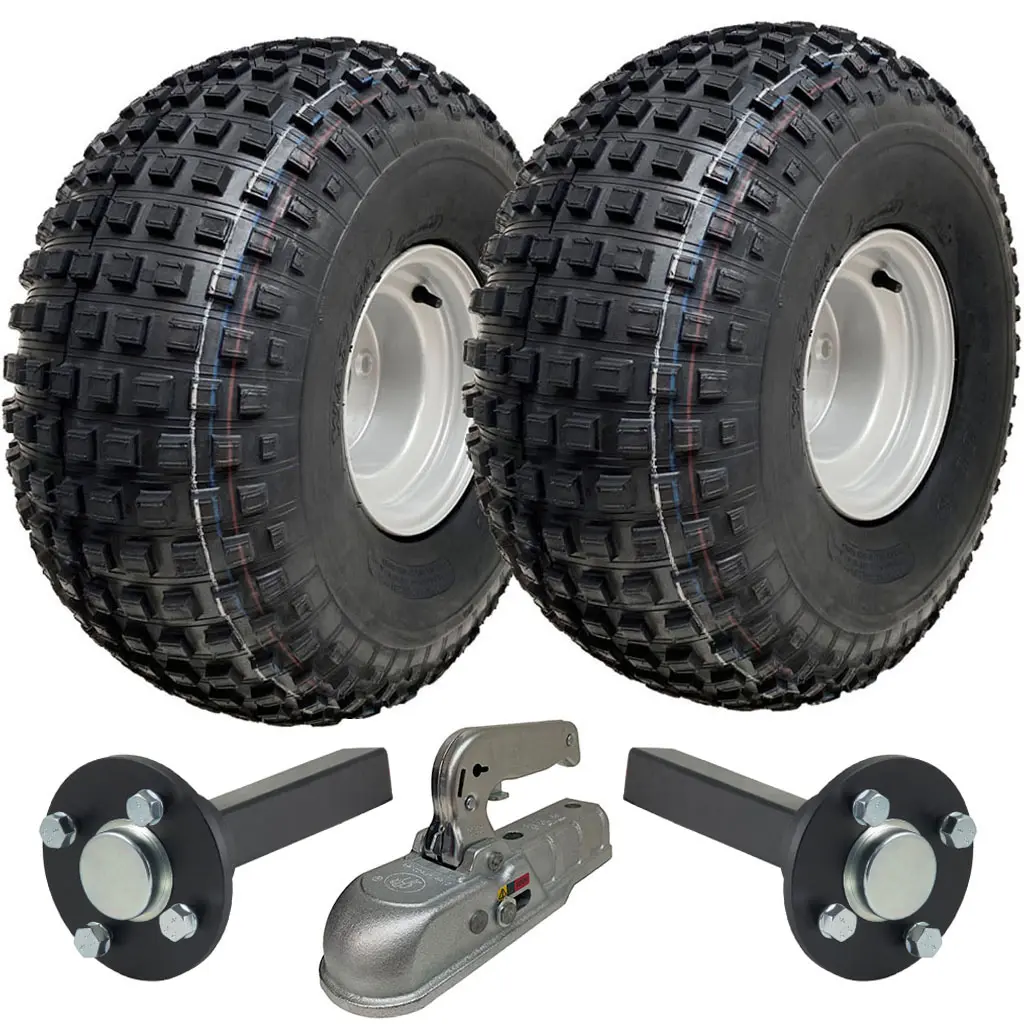

22x11.00-8 ATV trailer kit.

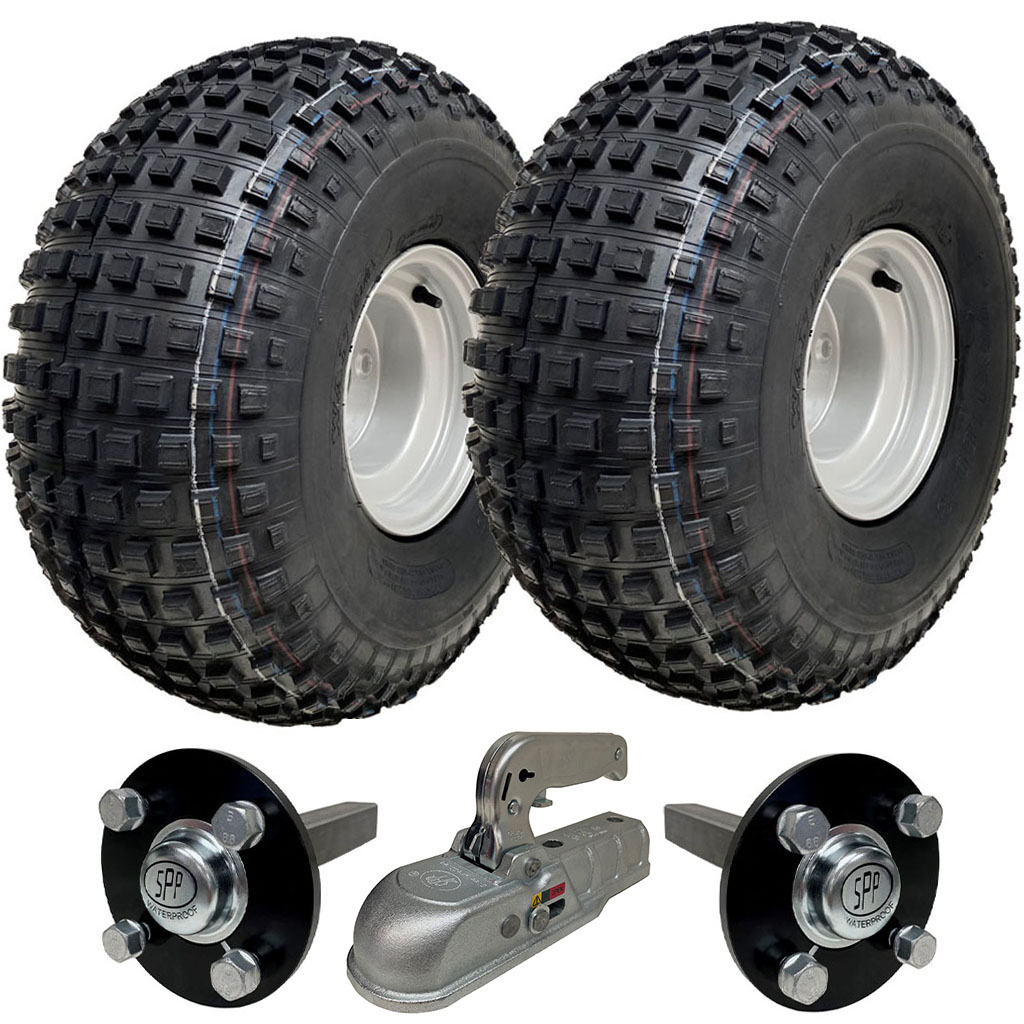

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x Stub axles, 35x35x200mm solid stub.
1 x cast steel hitch for 50x50mm box section.
Road Legal for Europe and the UK.

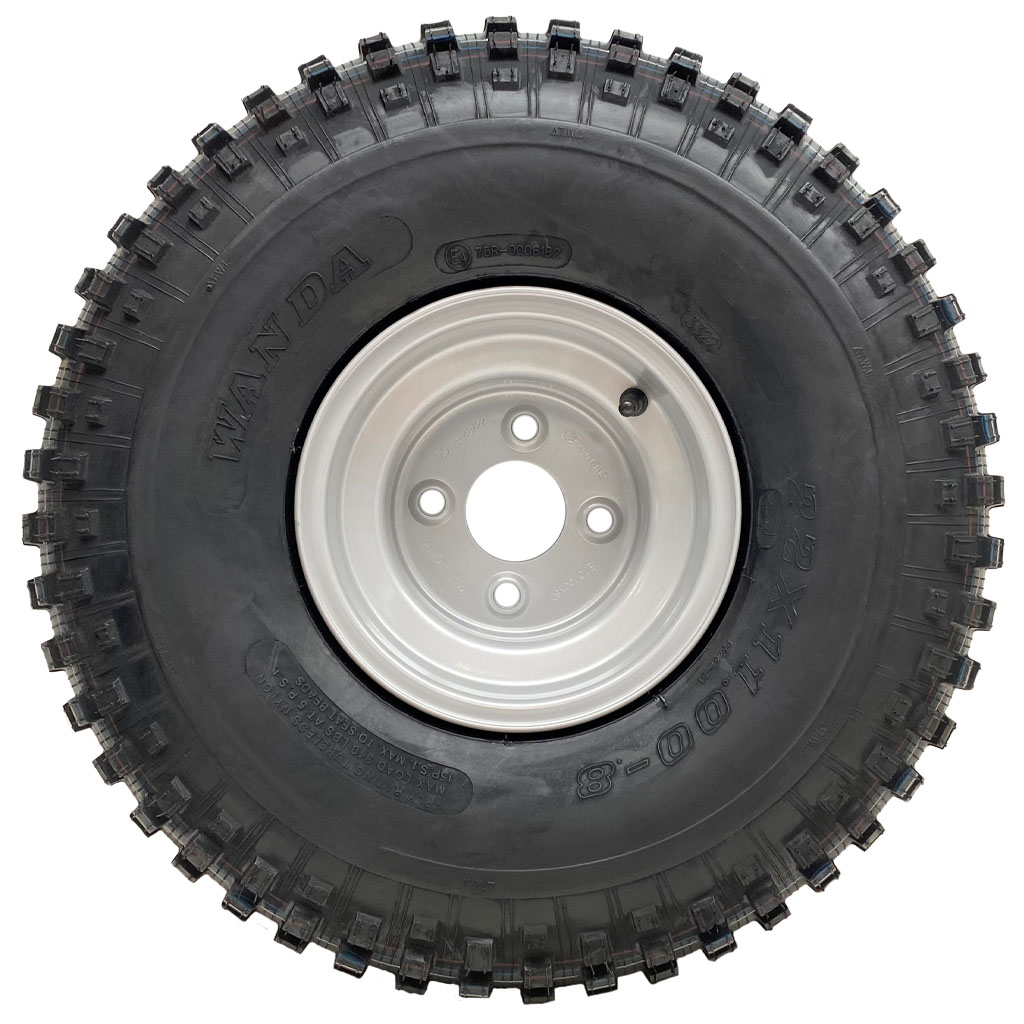

Tyre Specification:

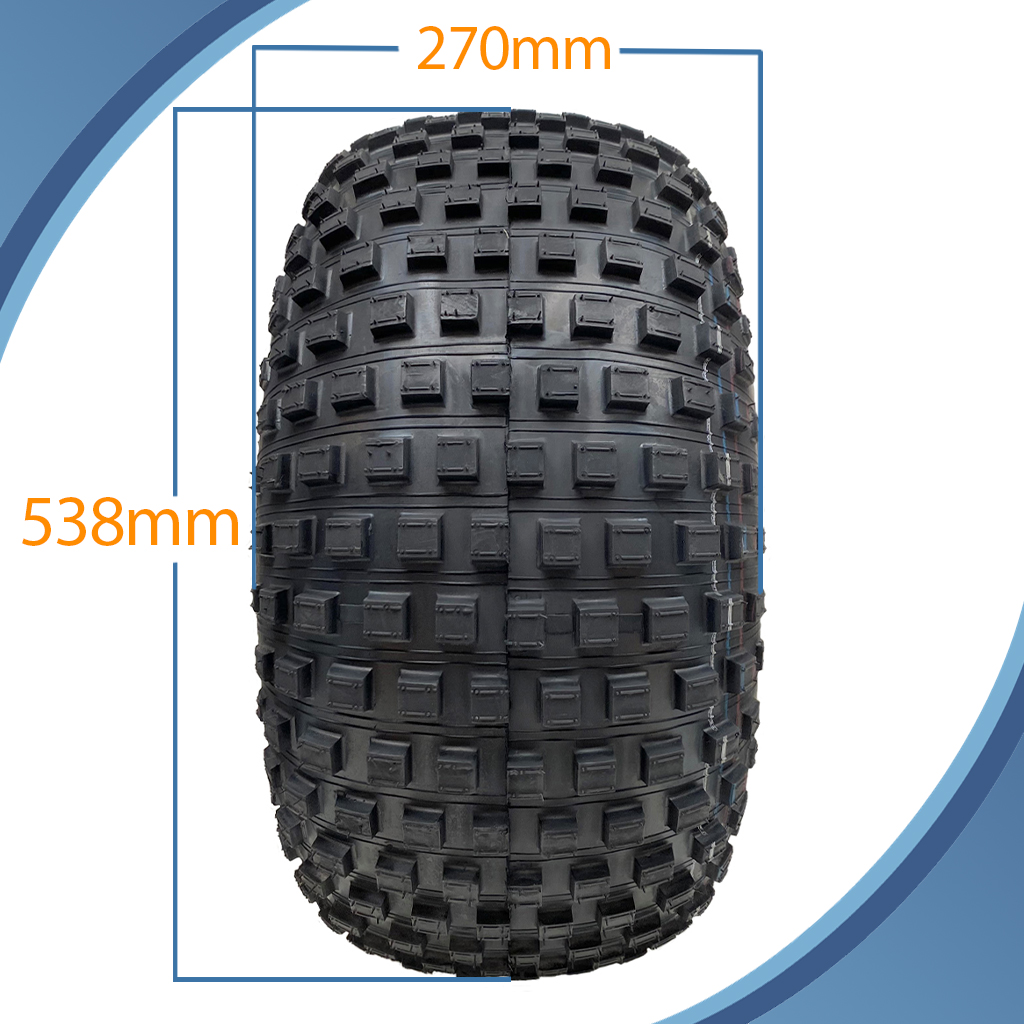

Overall diameter: 538mm,
Max section width: 270mm,
Max load: 342lbs (155kg),
PSI: 5,
Ply Rating: 4ply,
Brand: Wanda,
Tyre Pattern: P323,
Max speed: 100km/h (62mph),
Load & Speed rating: 43J,
E-Marked Road Legal Number: E4-75R-0006182.

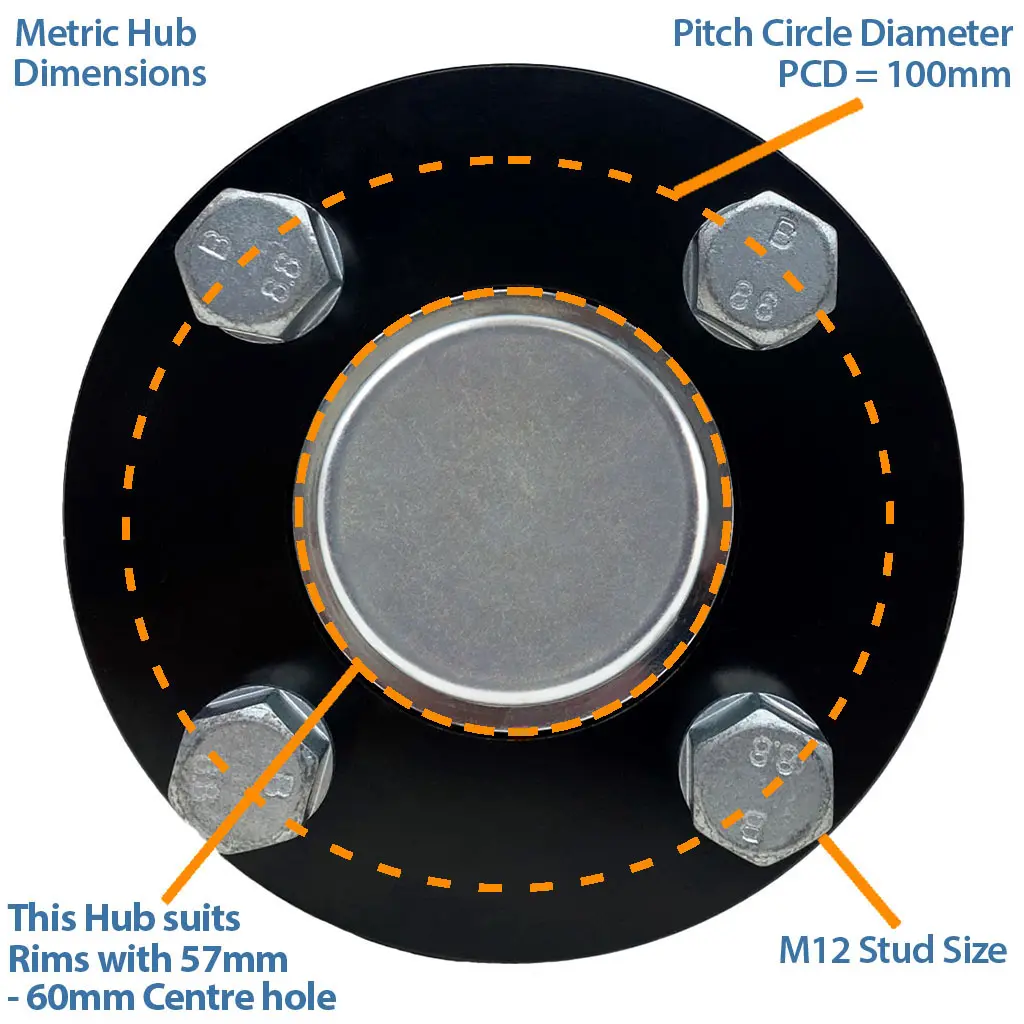

Rim Specification:
Solid steel welded heavy duty rims,
100mm PCD stud spacing,
60mm centre hole diameter,
13.5mm stud hole diameter.

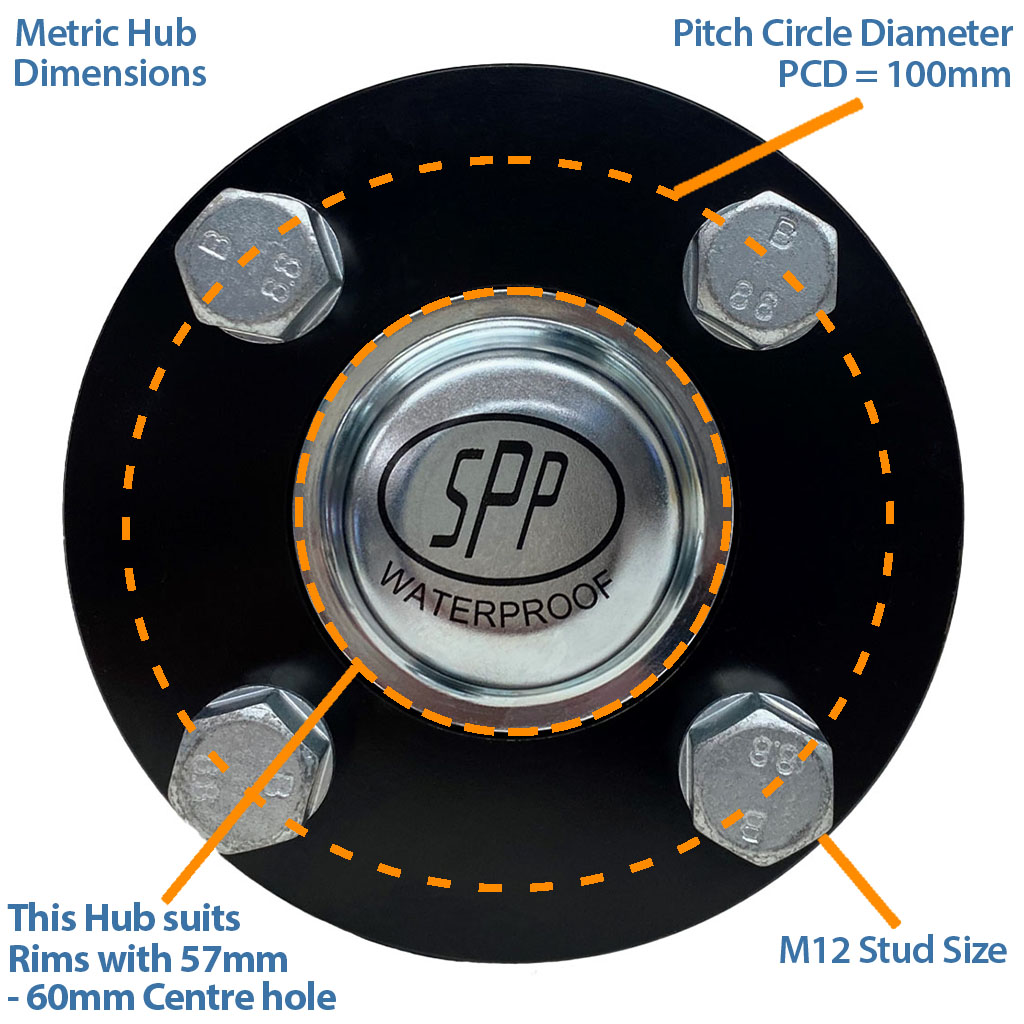

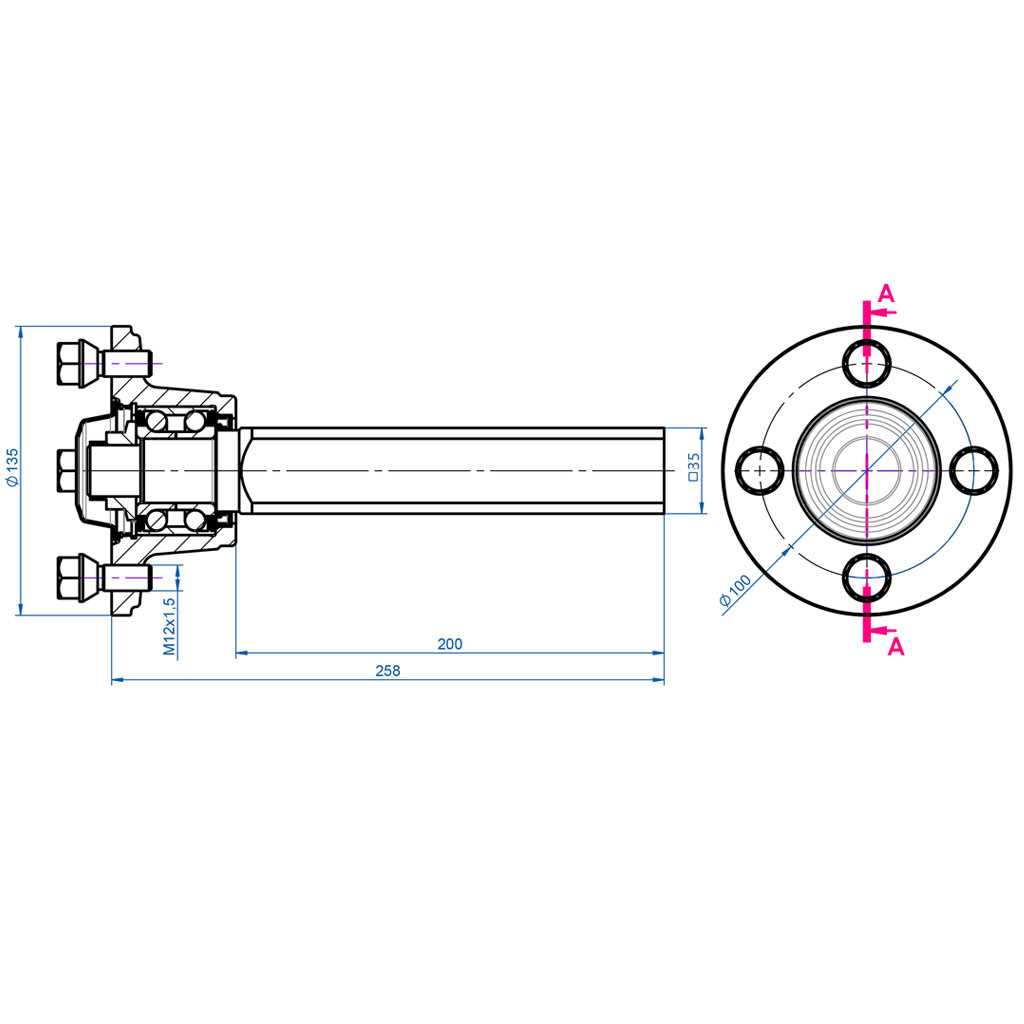

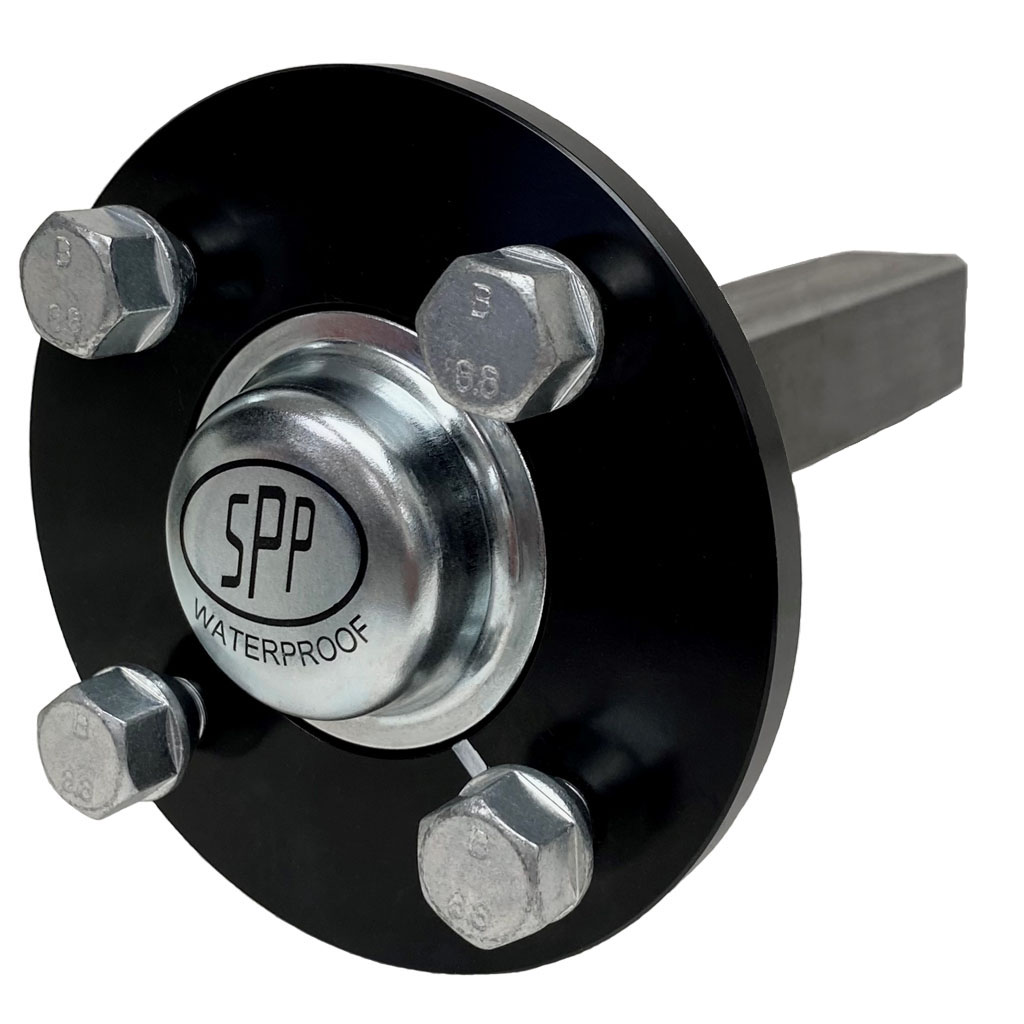

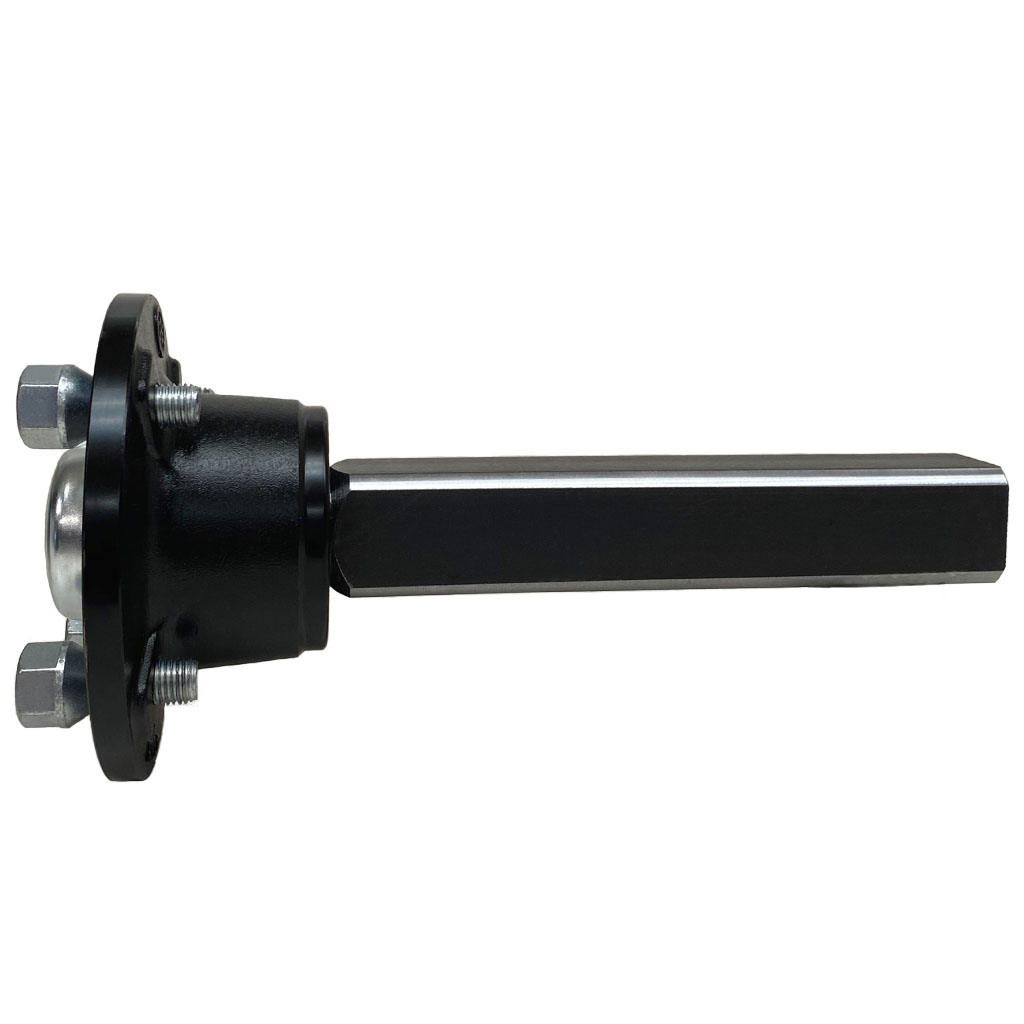

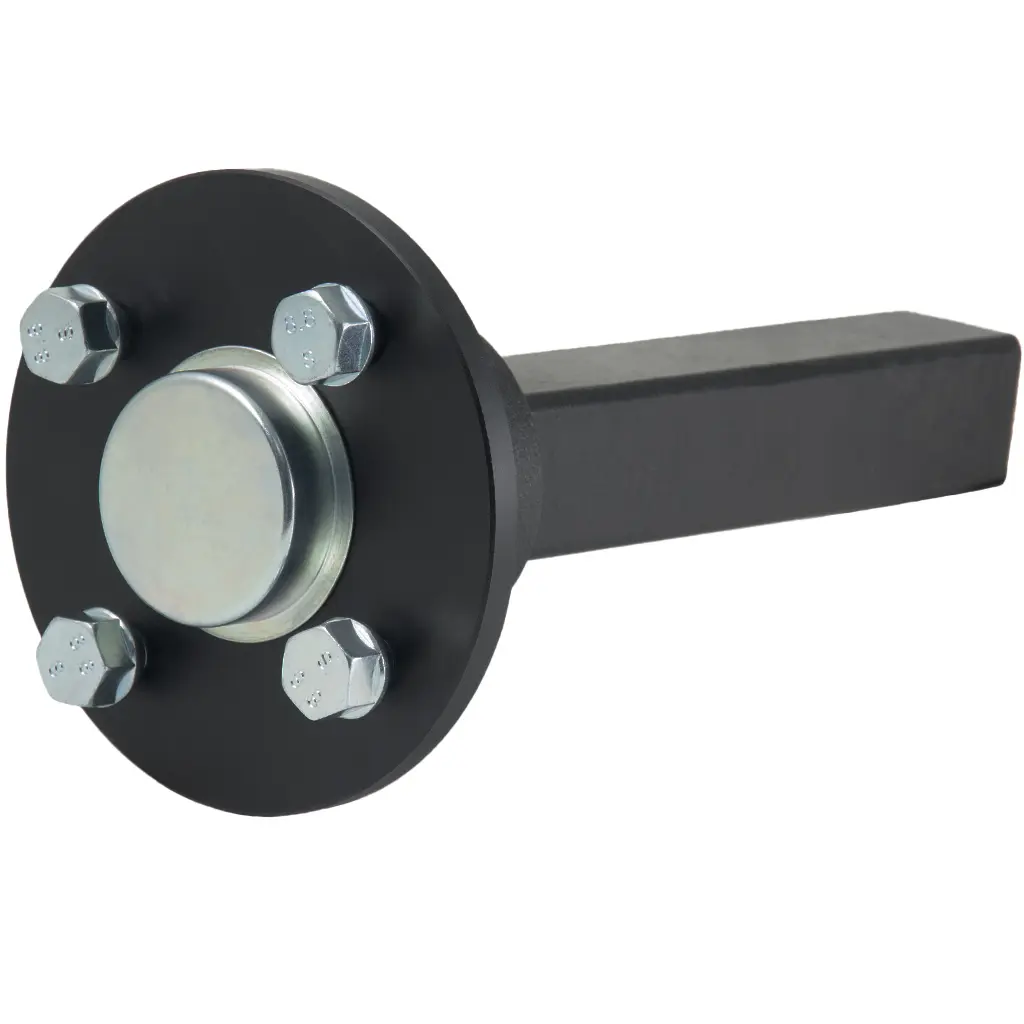

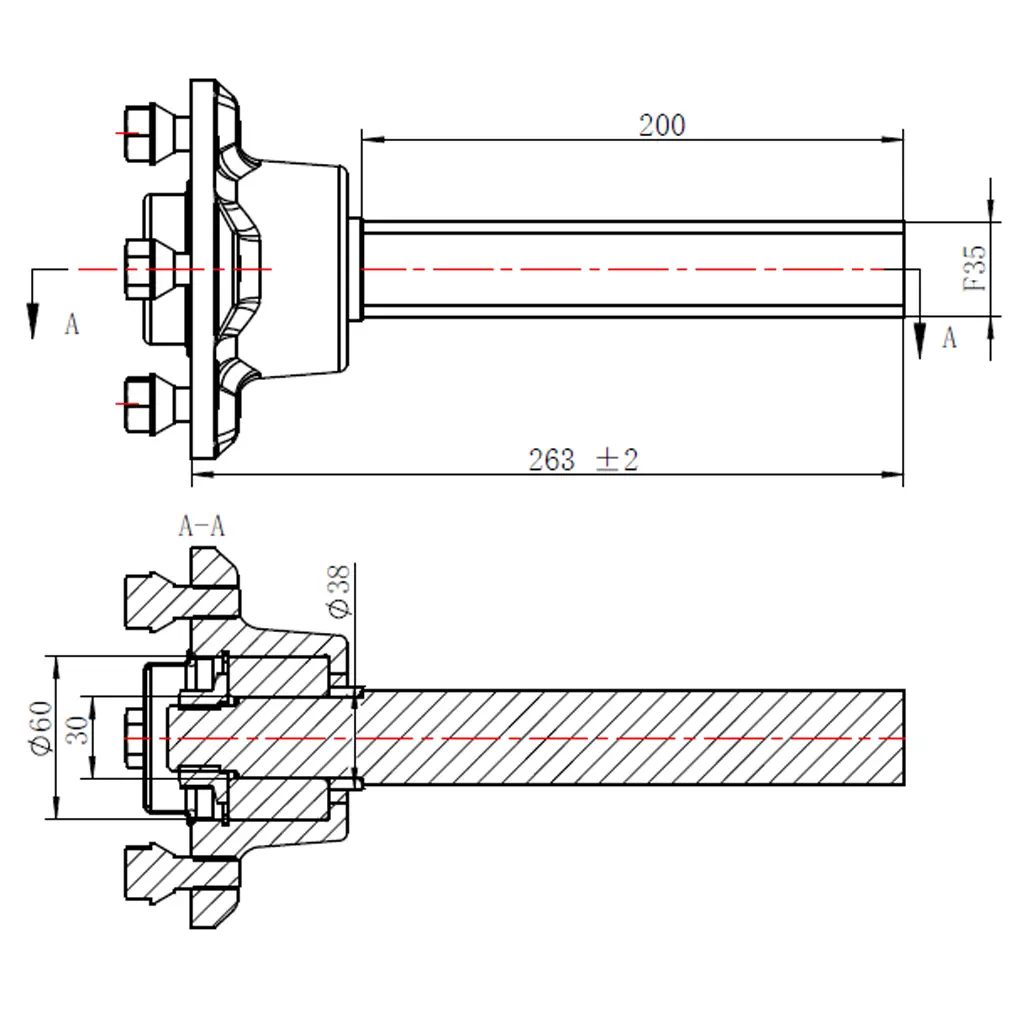

Item specifications: Stub axles:
Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,
The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by SPP (Steelpress, Poland).

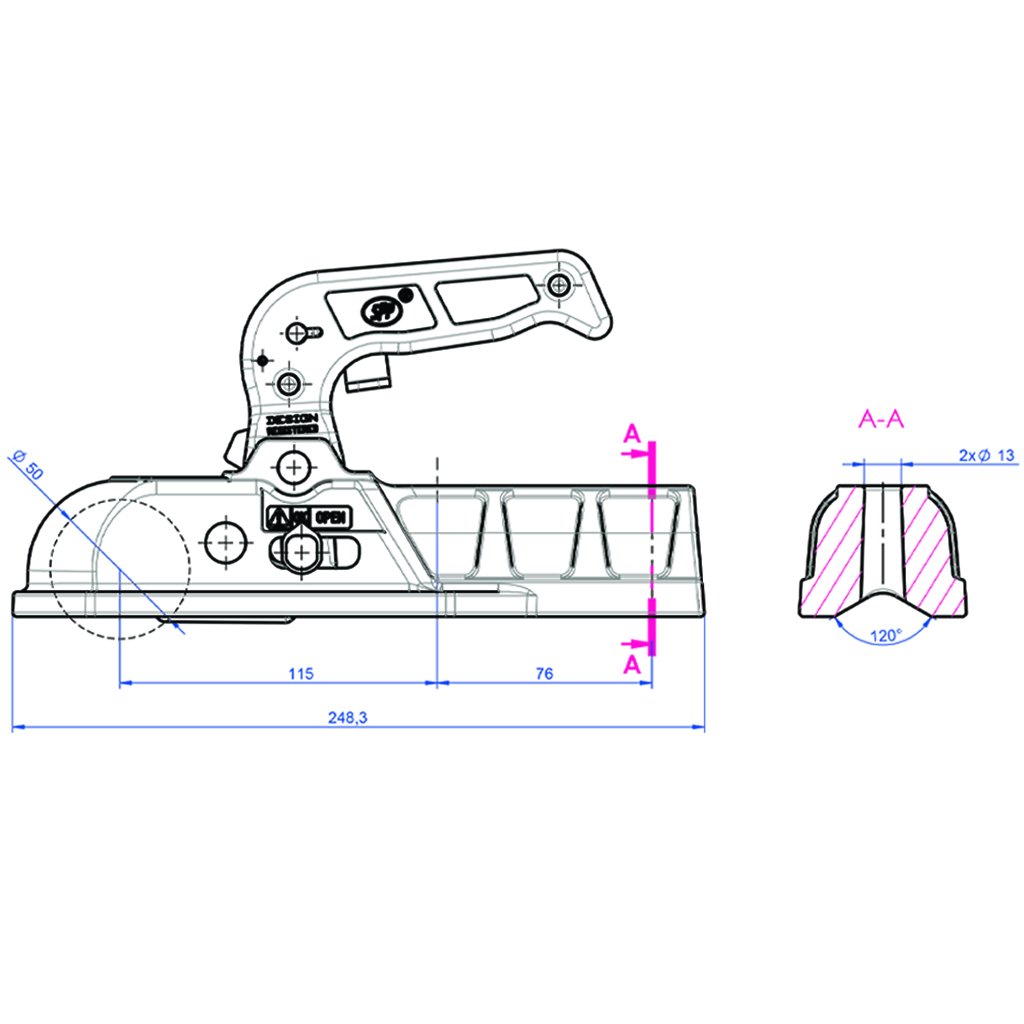

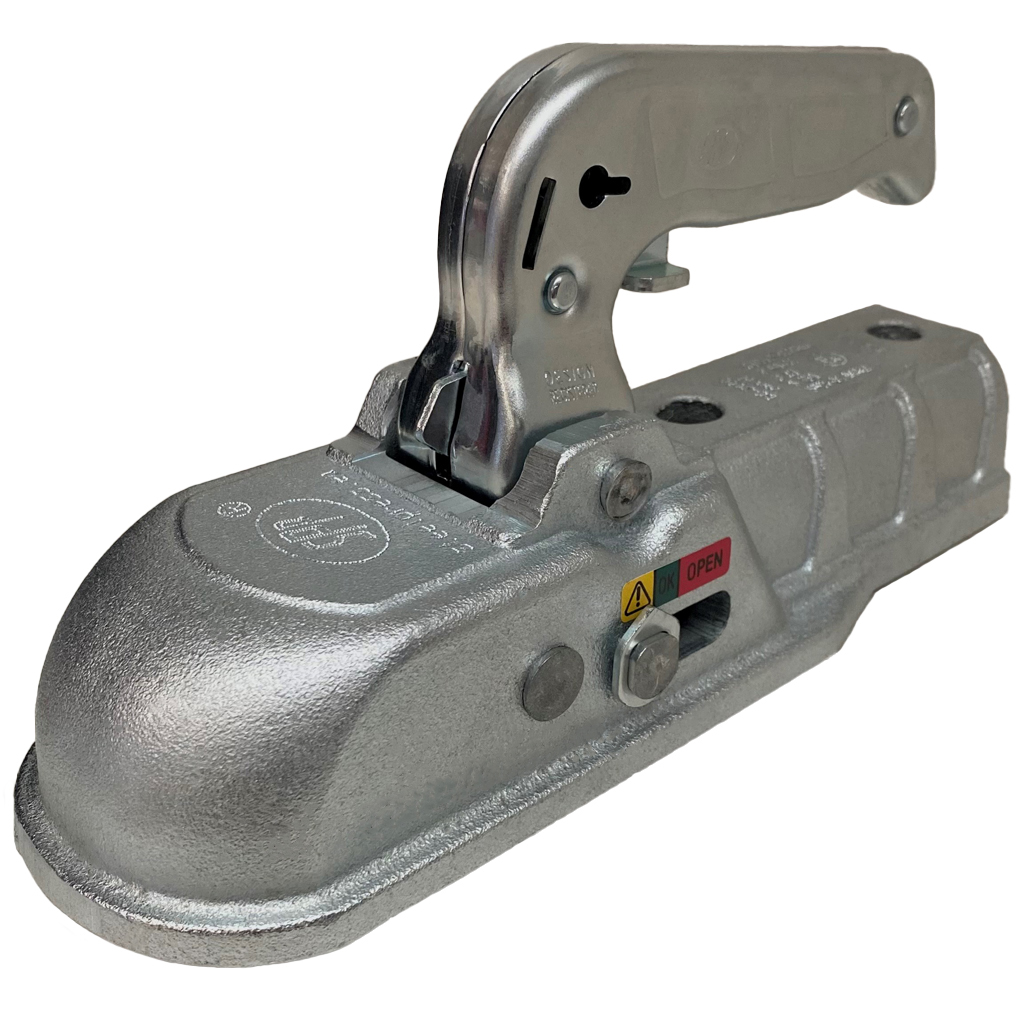

Item specifications: Hitch.
SPP SteelPress Production European manufactured.
High quality trailer coupling, Cast iron body with pressed steel handle.
Double movement opening.
To fit on round or square bar.
Maximum Kit Load Capacity 310kgs.
| Part Number | KIT1012 |
| Brand | Parnells |
| Tyre Size | 22X11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P323 |
| Tread Depth (mm) | 9.5 |
| SW (mm) | 270 |
| OD (mm) | 538 |
| PSI | 5 |
| Load/Speed Index | 43J |
| E-Mark | E4-75R-0006182 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1pcs) | SPP 3000kg Cast Hitch |
