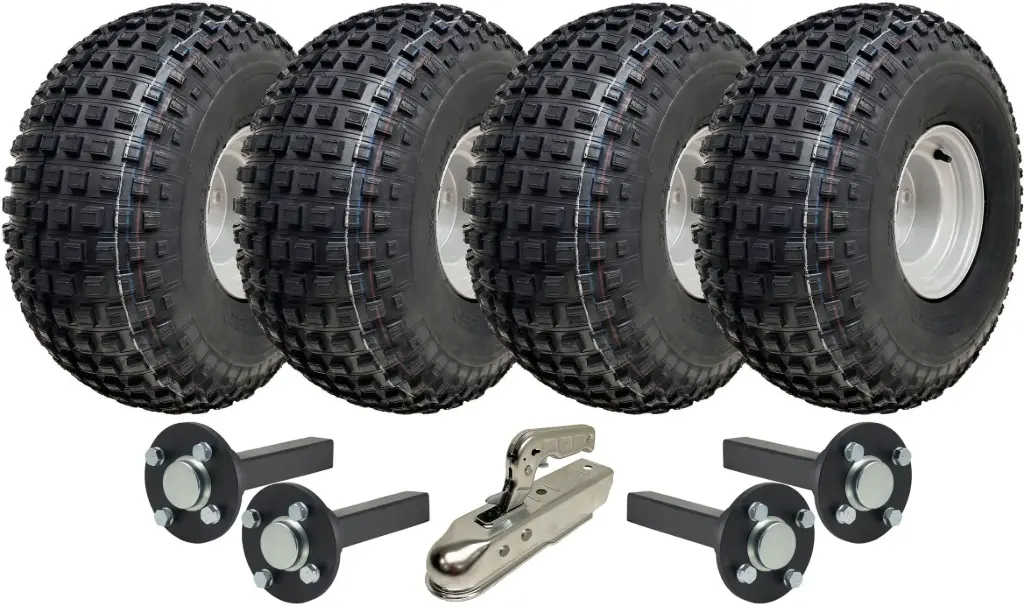

Twin axle 22x11.00-8 ATV quad trailer kit 620kg capacity, knobby wheels
Part Number: KIT1013
Tyre size: 22x11.00-8
Stub axles: 35mm square, 200mm long
Load Capacity: 620kg

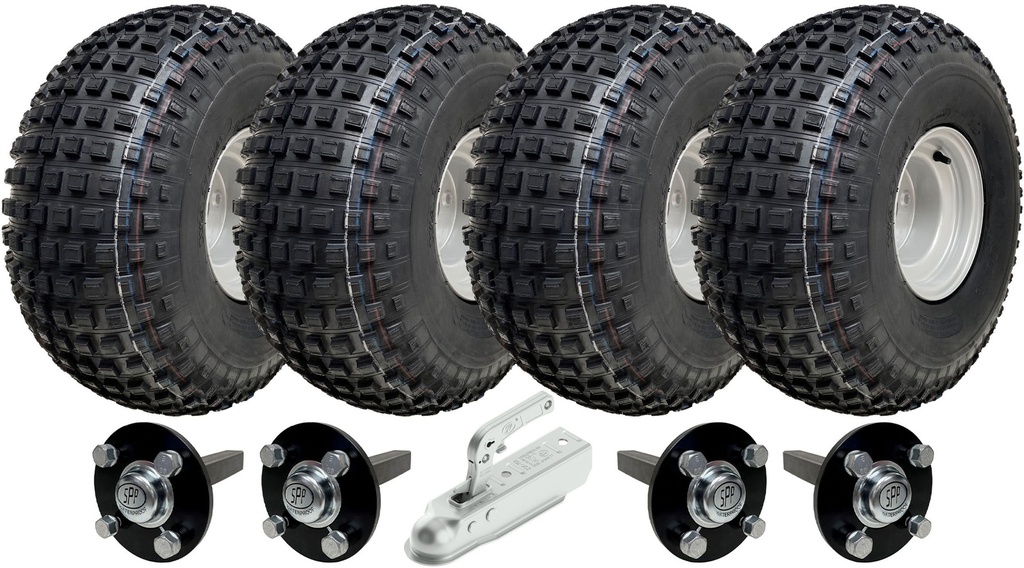

Contents of this kit include:
4 x Wheels, 22x11.00-8.
4 x Stub axles, 35x35x200mm solid stub.
1 x Pressed steel hitch for 50x50mm box section.
Road Legal for Europe and the UK.

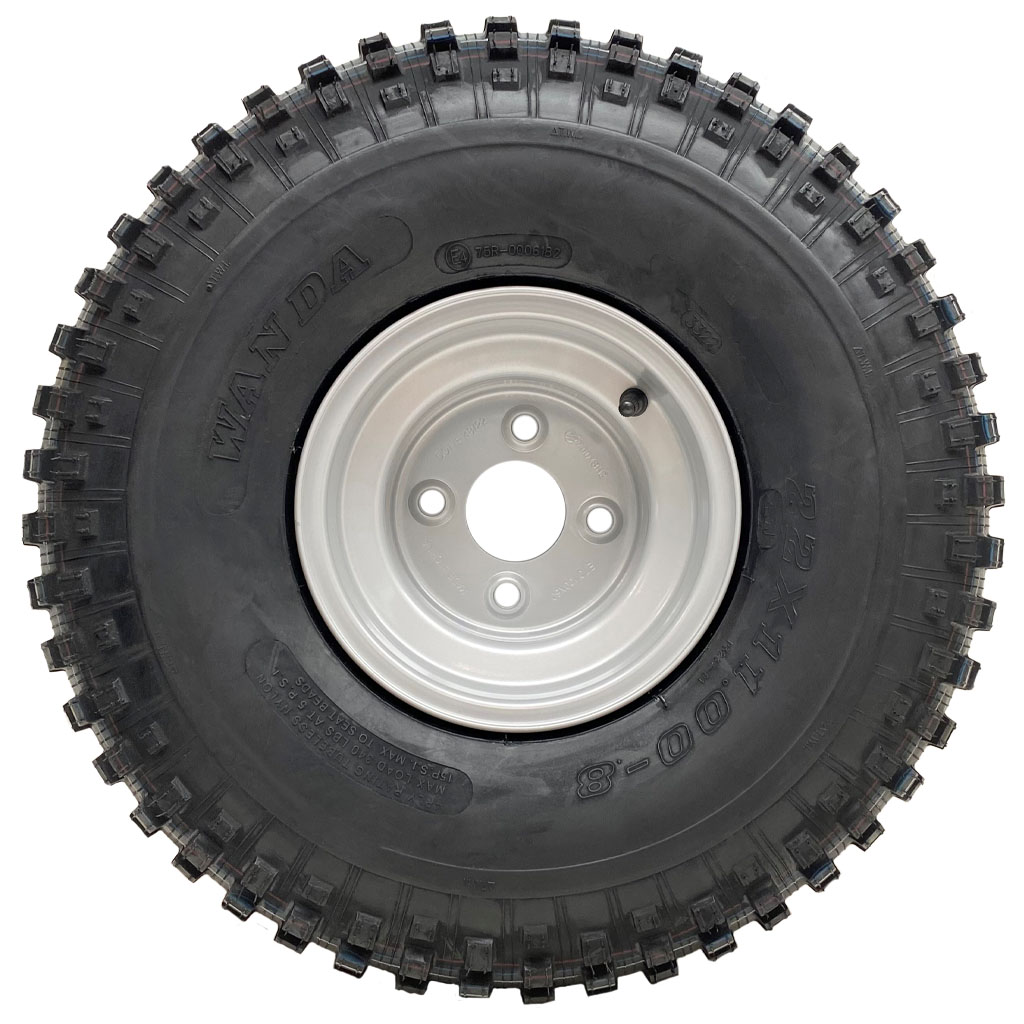

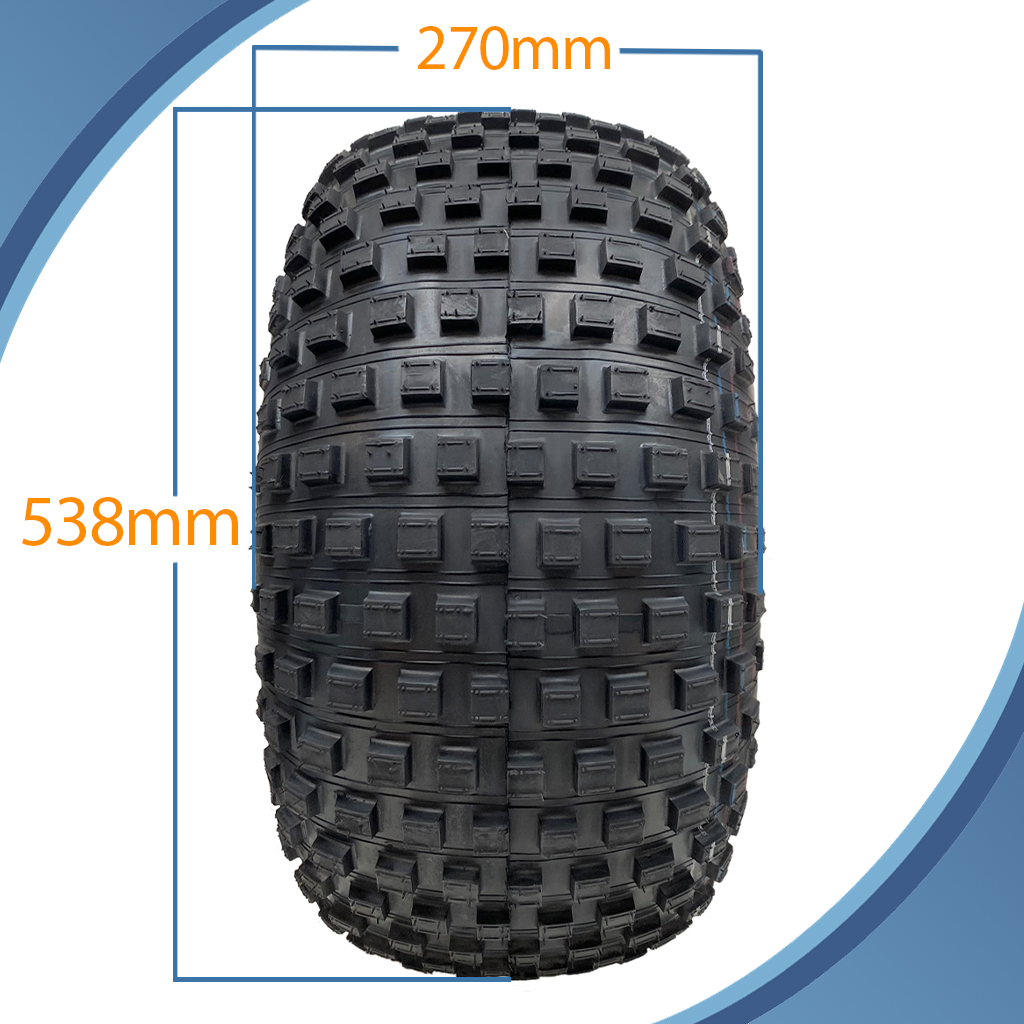

Tyre Specification:
Overall diameter: 538mm,
Max section width: 270mm,
Max load: 342lbs (155kg),
PSI: 5,
Ply Rating: 4ply,
Brand: Wanda,
Tyre Pattern: P323,
Max speed: 100km/h (62mph),
Load & Speed rating: 43J,
E-Marked Road Legal Number: E4-75R-0006182.
Rim Specification:
Solid steel welded heavy duty rims,
100mm PCD stud spacing,
60mm centre hole diameter,
13.5mm stud hole diameter,

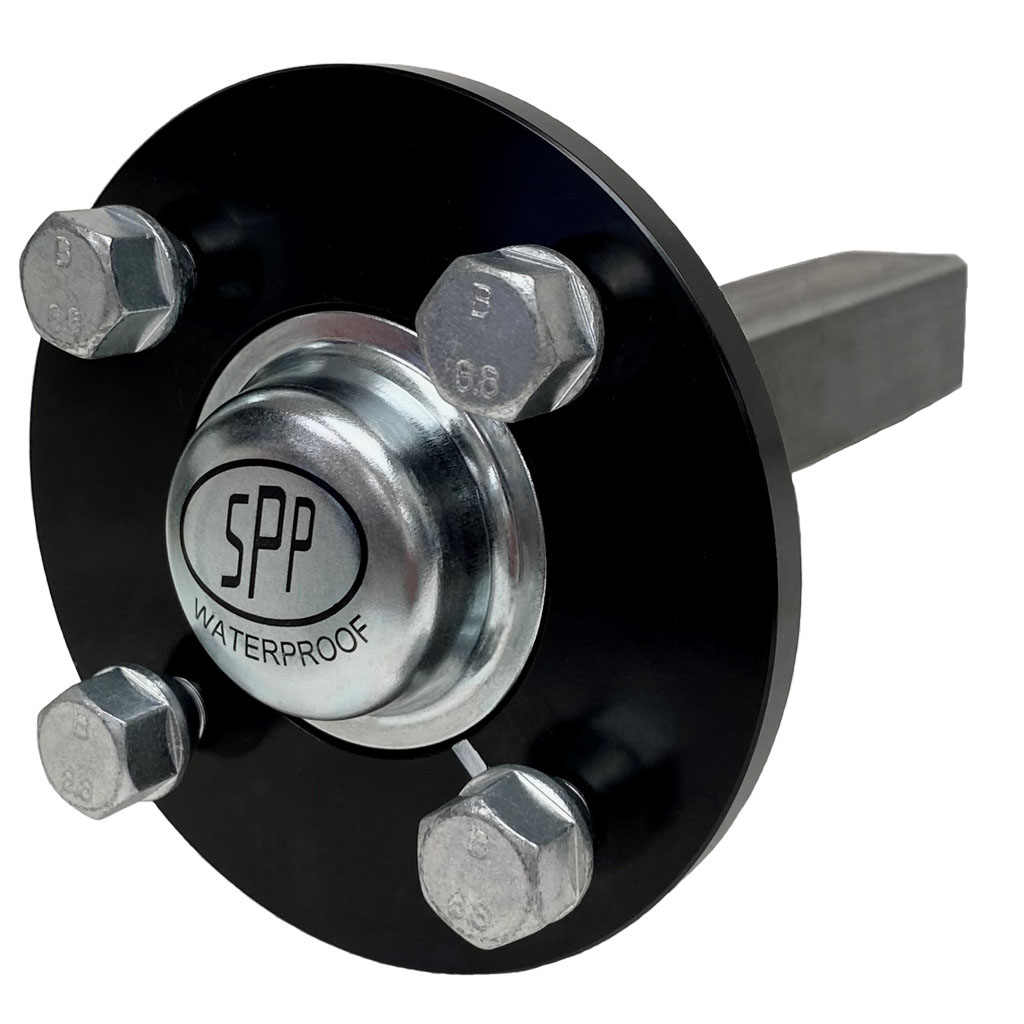

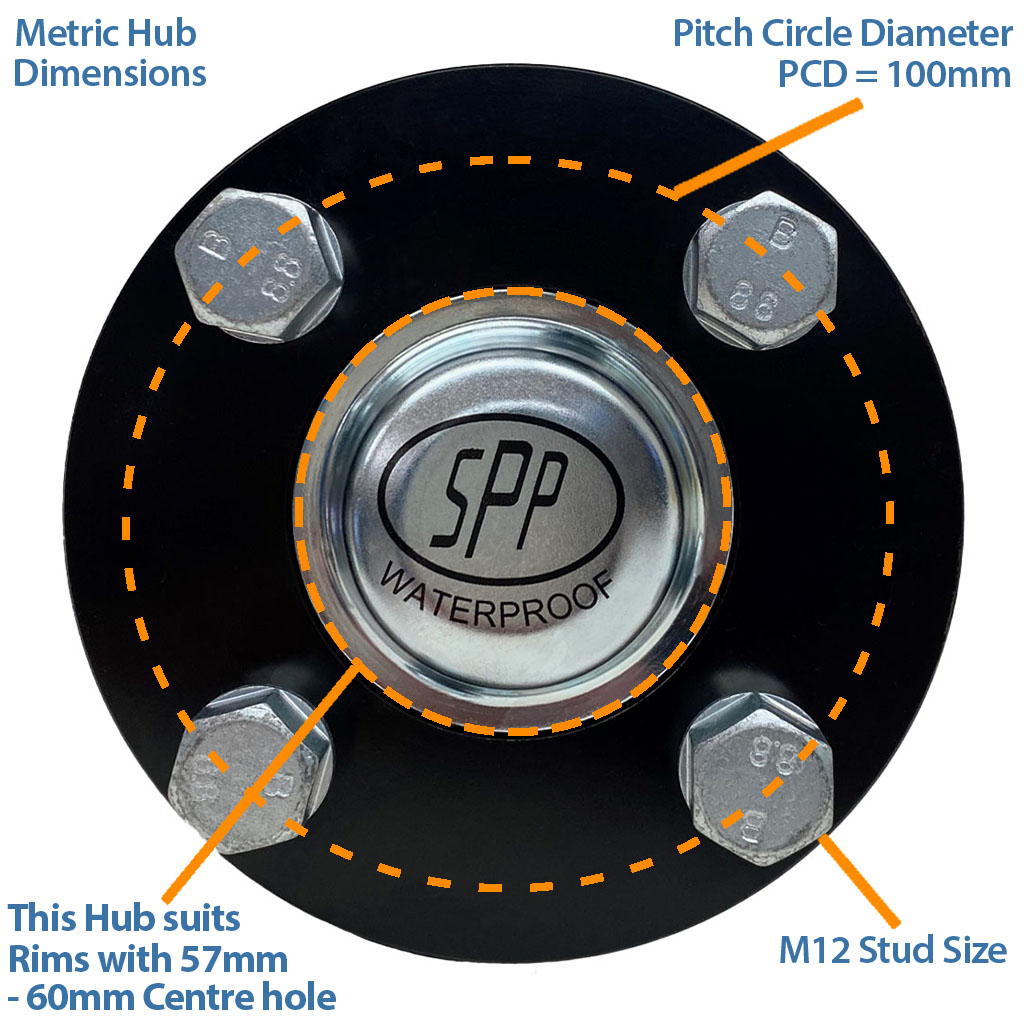

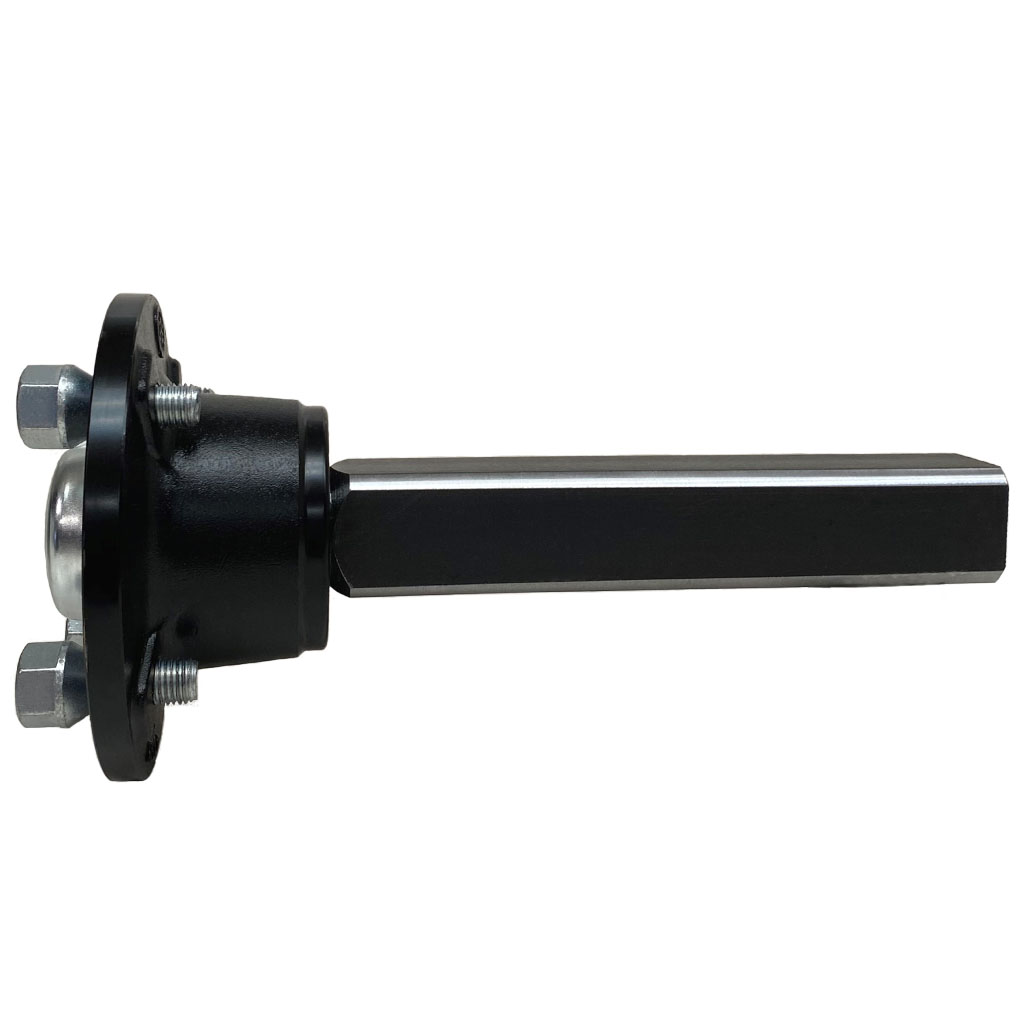

Item specifications: Stub axles:
Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,
The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by SPP (Steelpress, Poland).

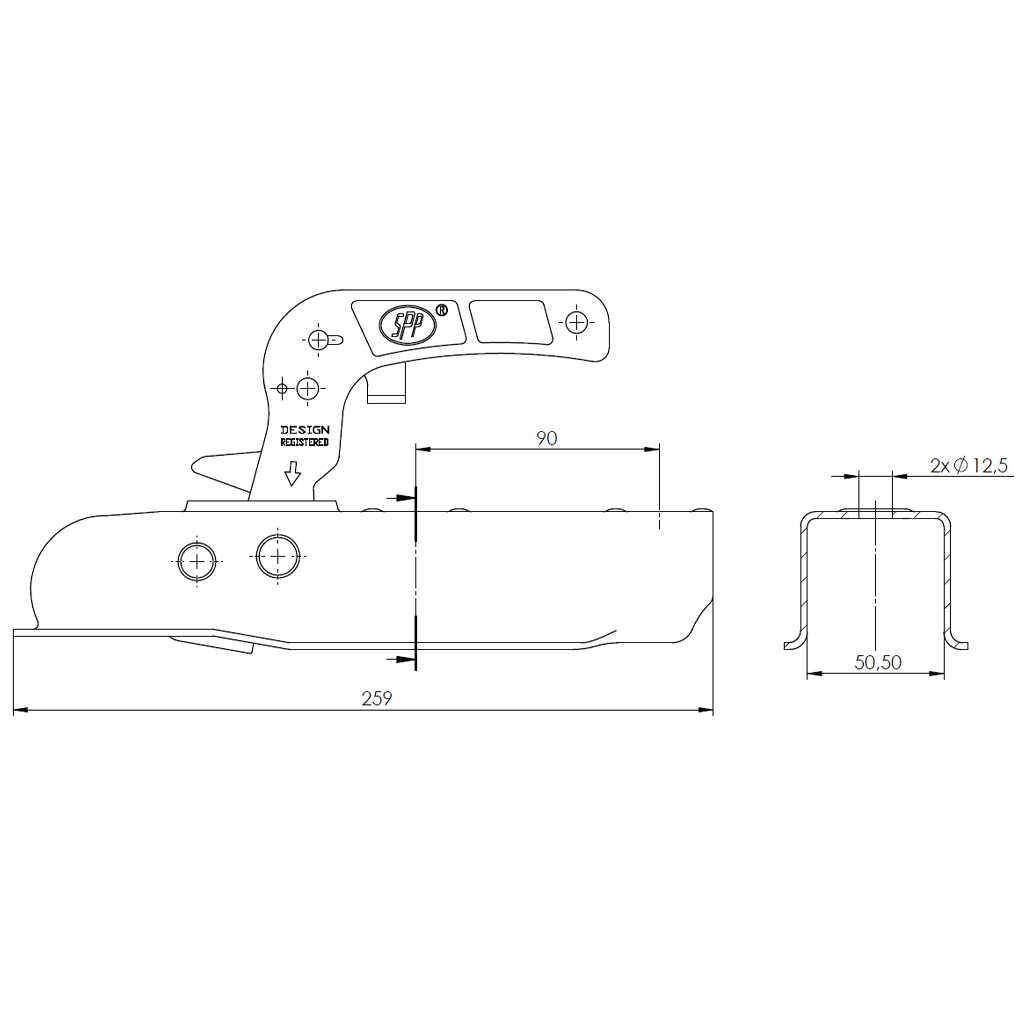

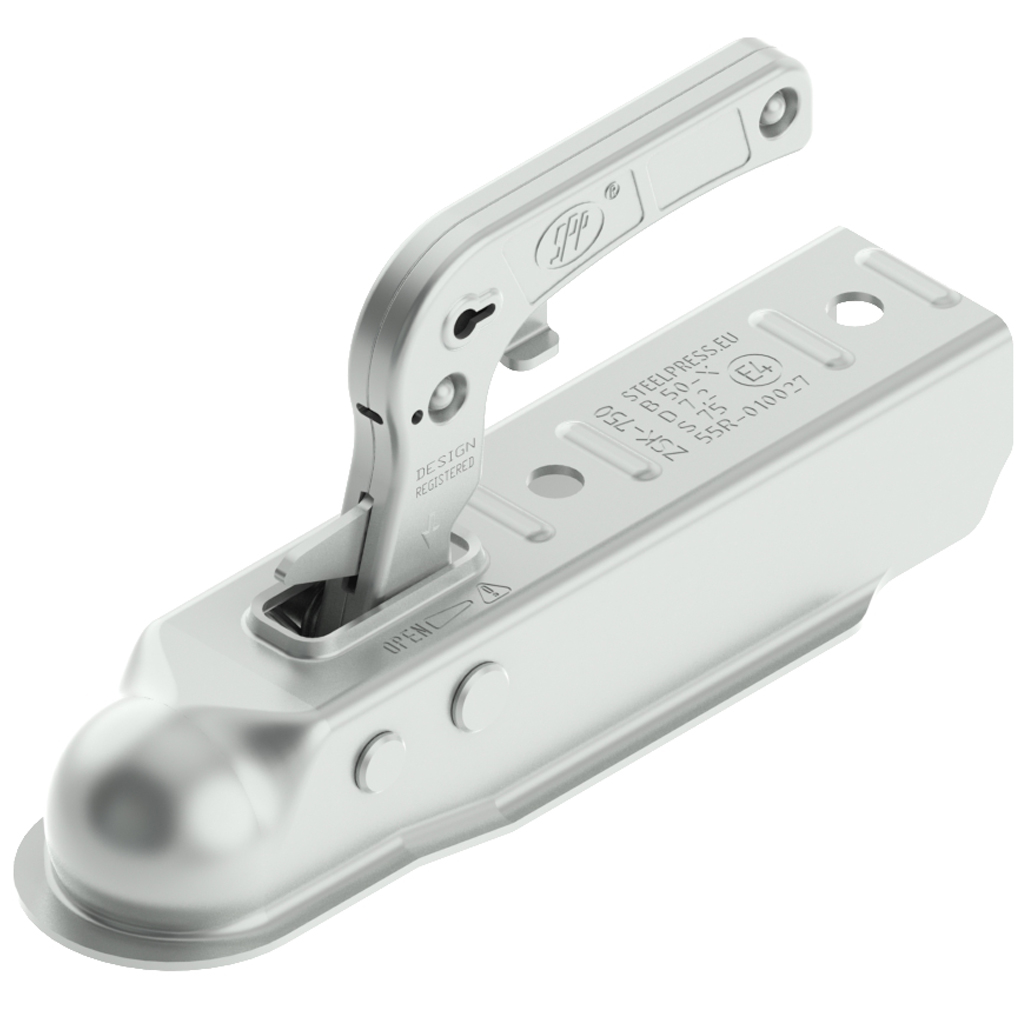

Item specifications: Hitch:
750kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
The low pressure knobby tyres give a very smooth ride, offering excellent grip in all conditions.
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof
This kit can be used on and off-road.
Maximum recommended speed: 100 km/h.
Total kit load capacity 620kgs.
| Part Number | KIT1013 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 22x11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P323 |
| SW (mm) | 270 |
| OD (mm) | 538 |
| PSI | 5 |
| Load/Speed Index | 43J |
| E-Mark | E4-75R-0006182 |
| Max Load (Kg) | 155 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1pcs) | SPP 750kg Pressed Hitch |
