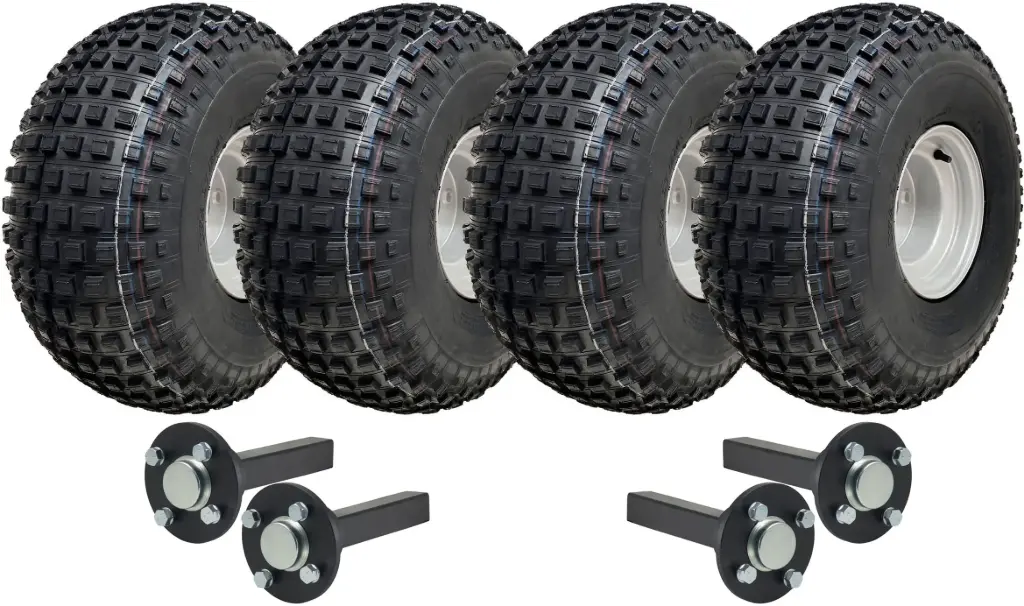

Twin axle 22x11.00-8 ATV Quad Trailer kit 620kg capacity, Knobby wheels (no hitch)
Part number: KIT1016
Wheel Size: 22x11.00-8
Stub axles: 35mm square, 200mm long
Load Capacity: 620kg

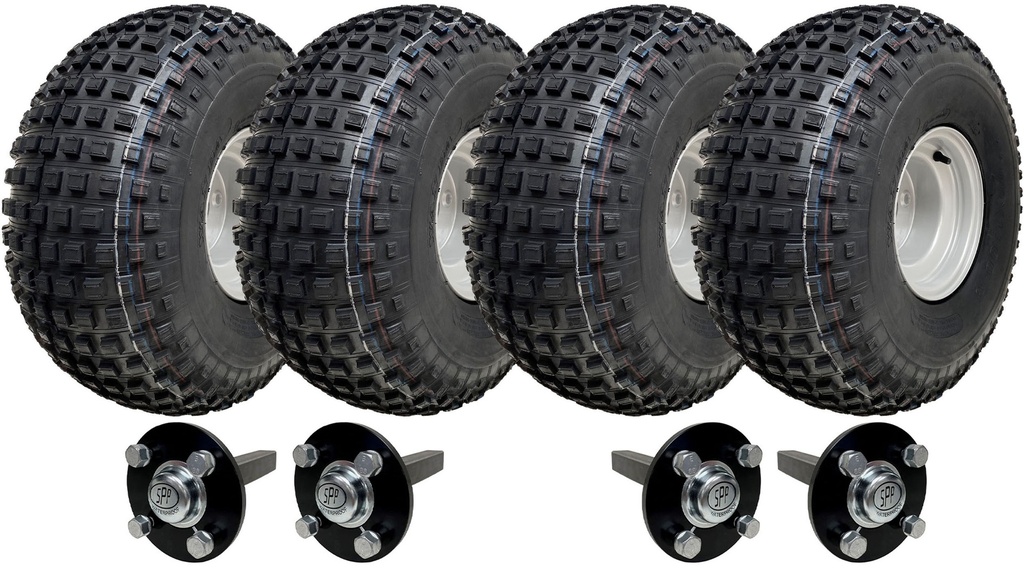

Contents of this kit include:
4 x Wheels, 22x11.00-8.
4 x Stub axles, 35x35x200mm solid stub.
Road Legal for Europe and the UK.

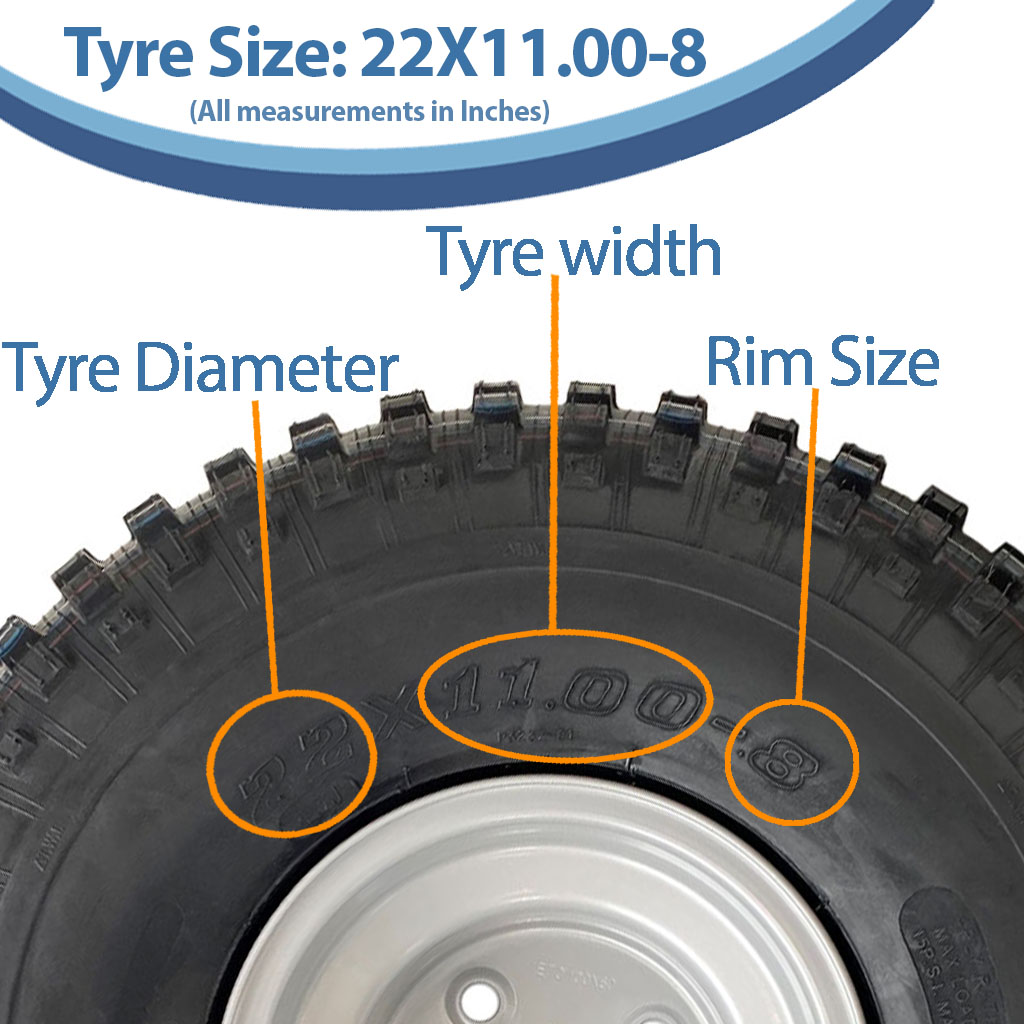

Tyre Specification:

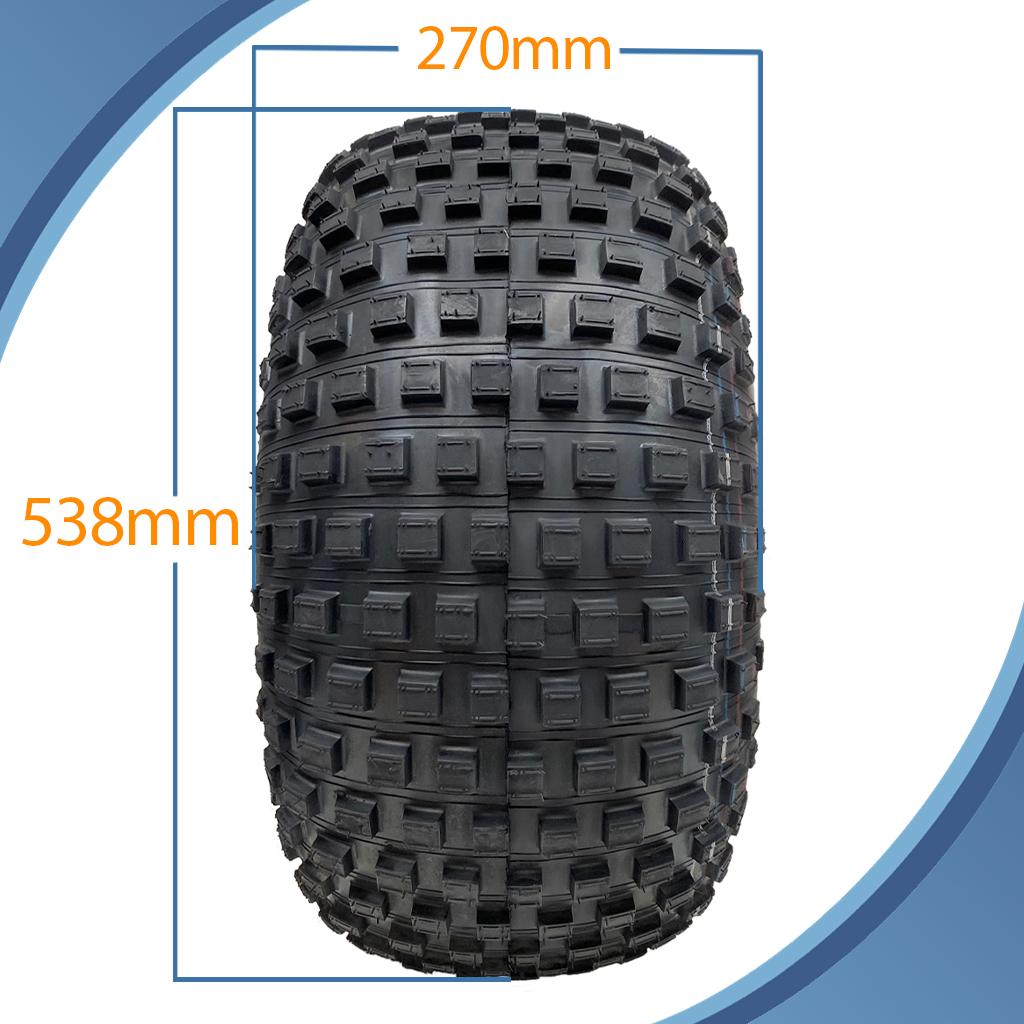

Overall diameter: 538mm,
Max section width: 270mm,
Max load: 342lbs (155kg),
PSI: 5,
Ply Rating: 4ply,
Brand: Wanda,
Tyre Pattern: P323,
Max speed: 100km/h (62mph),
Load & Speed rating: 43J,
E-Marked Road Legal Number: E4-75R-0006182.

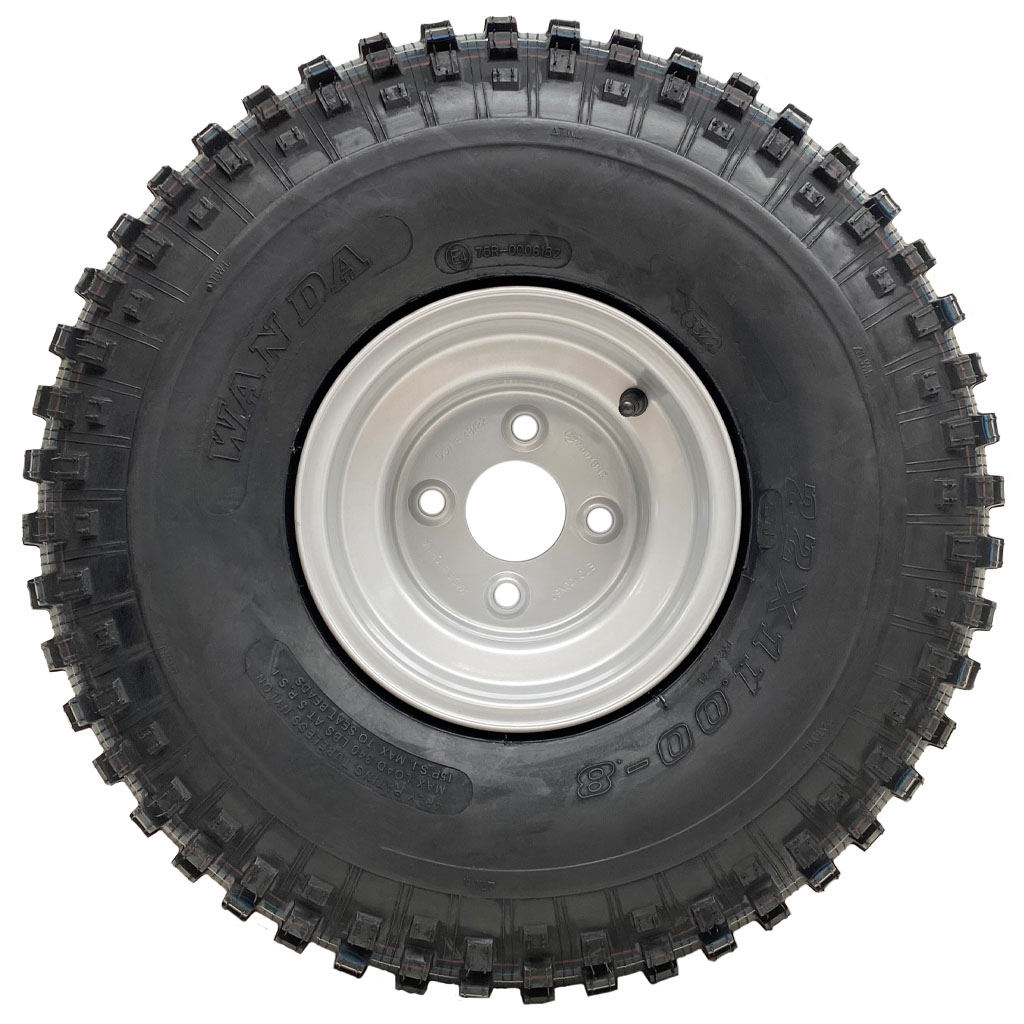

Rim Specification:
Solid steel welded heavy duty rims,

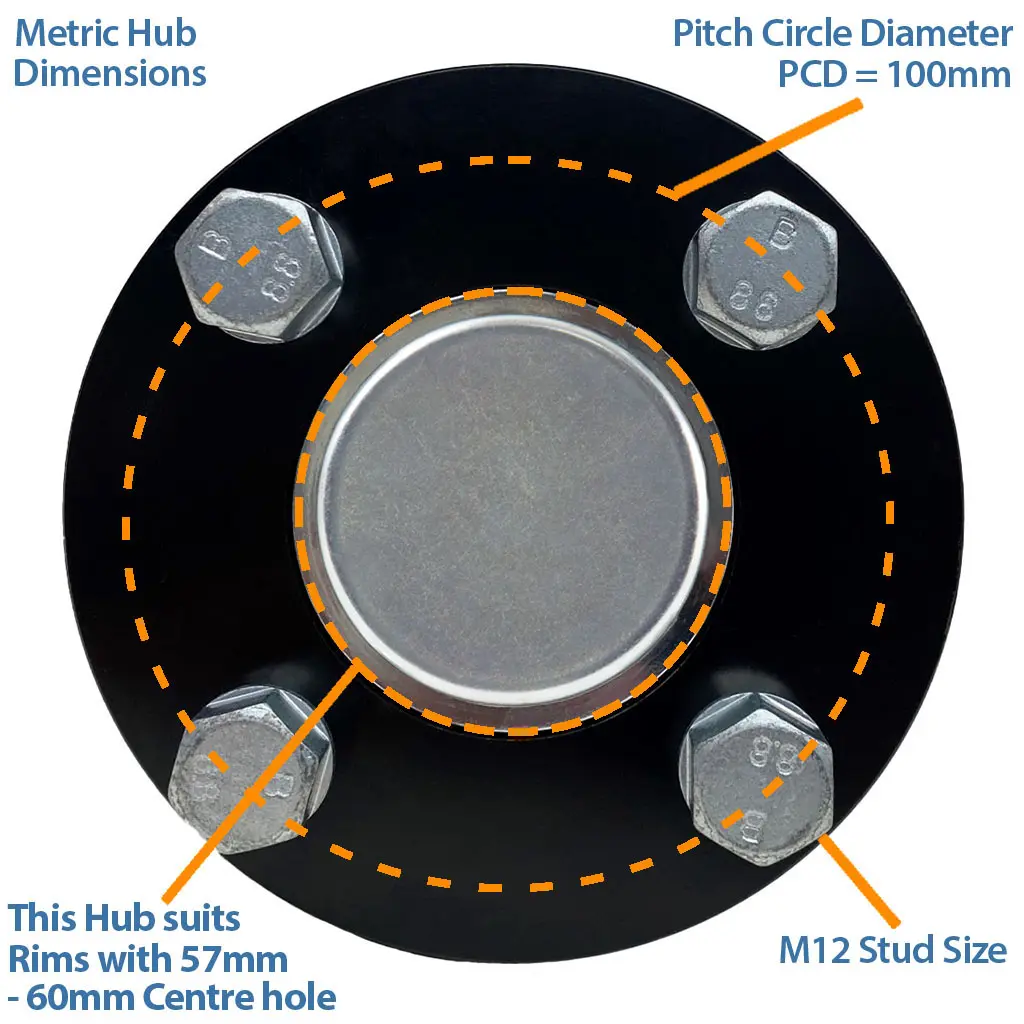

100mm PCD stud spacing,
60mm centre hole diameter,
13.5mm stud hole diameter,

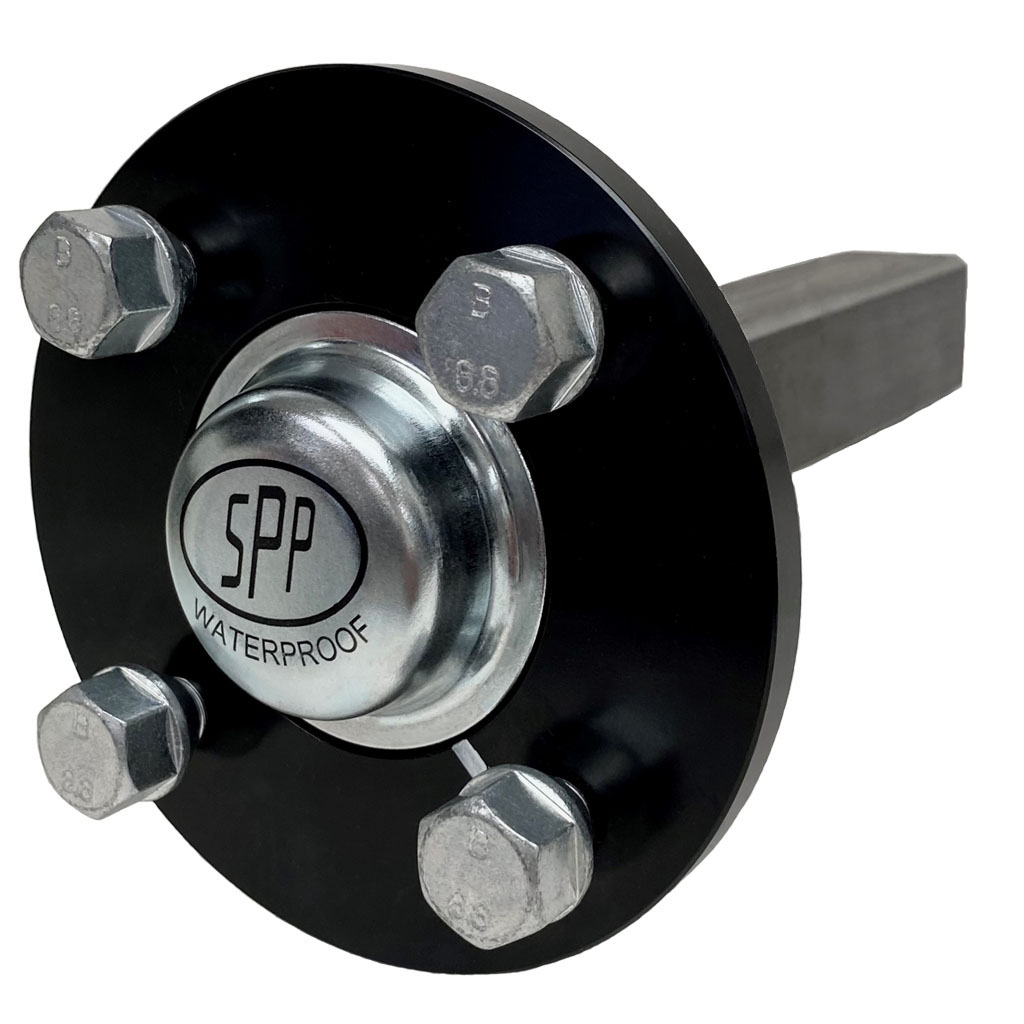

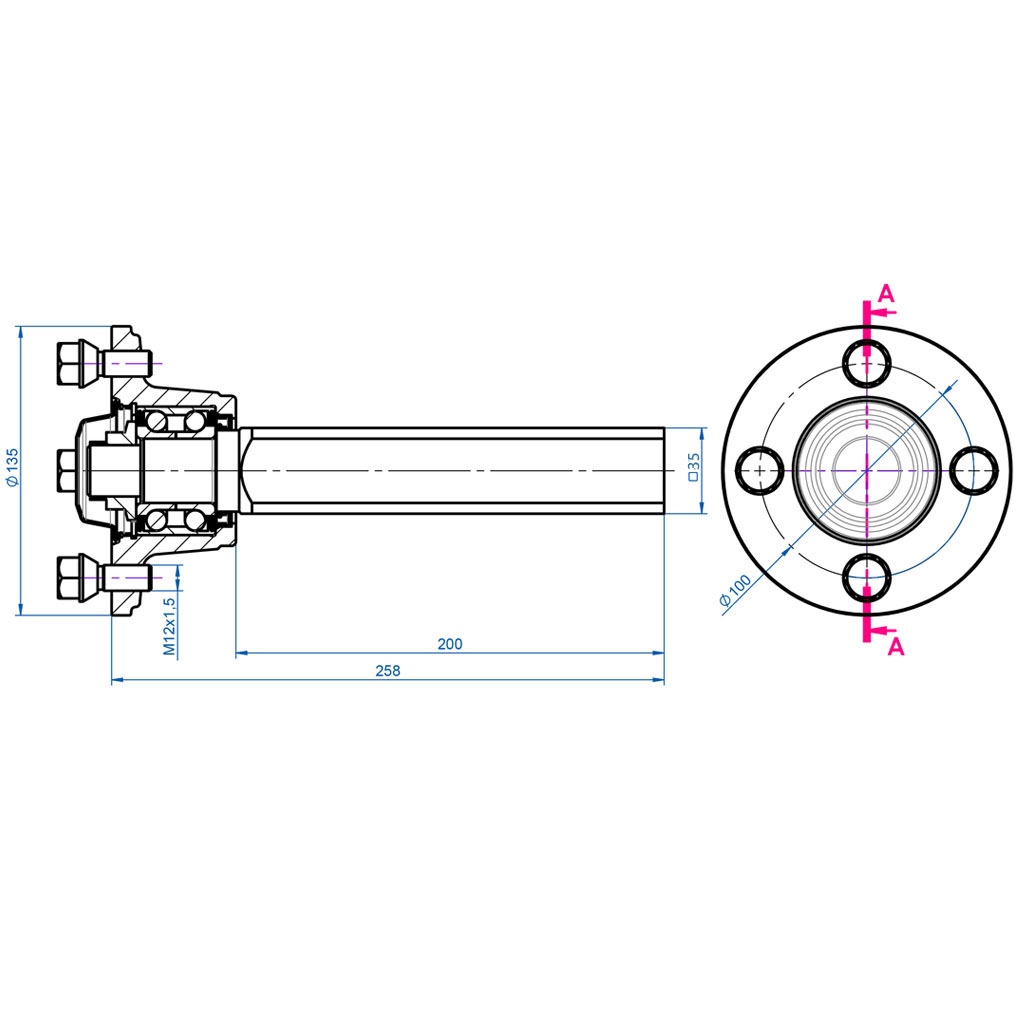

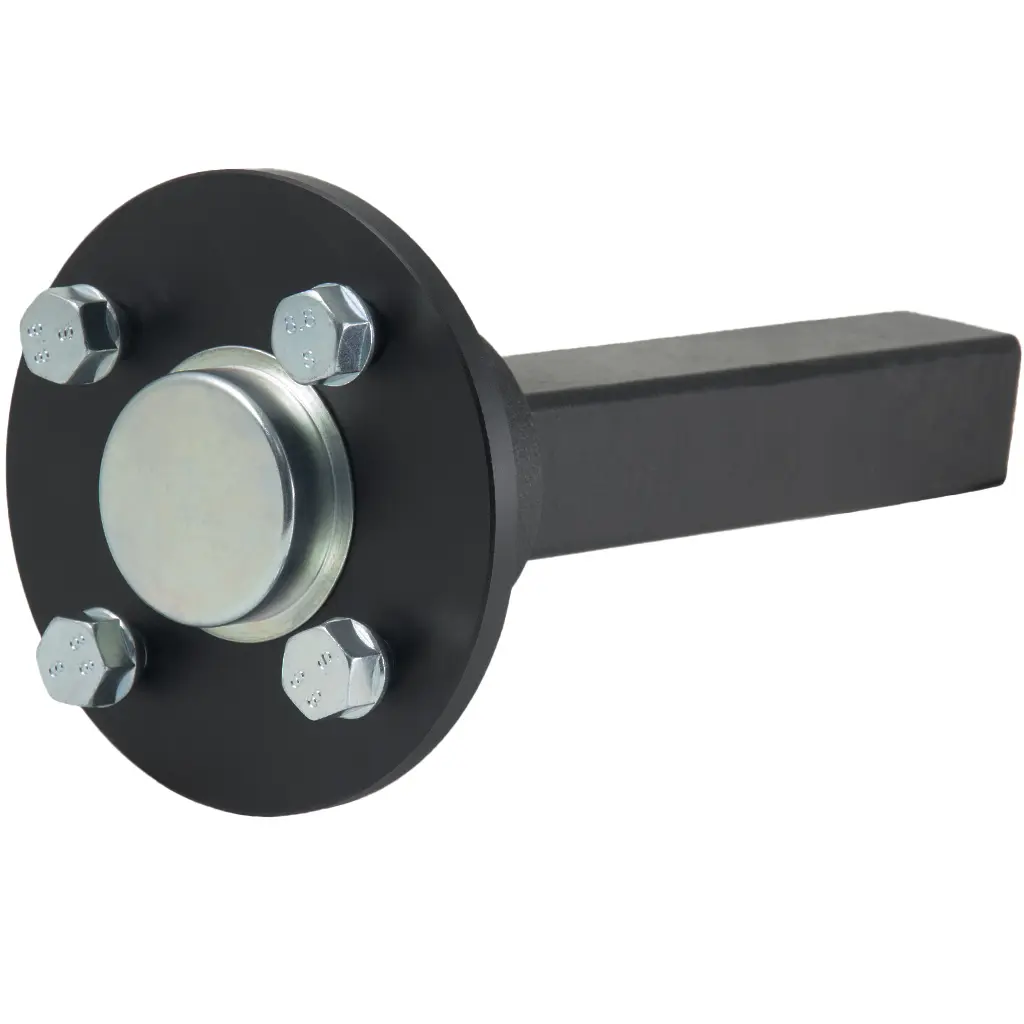

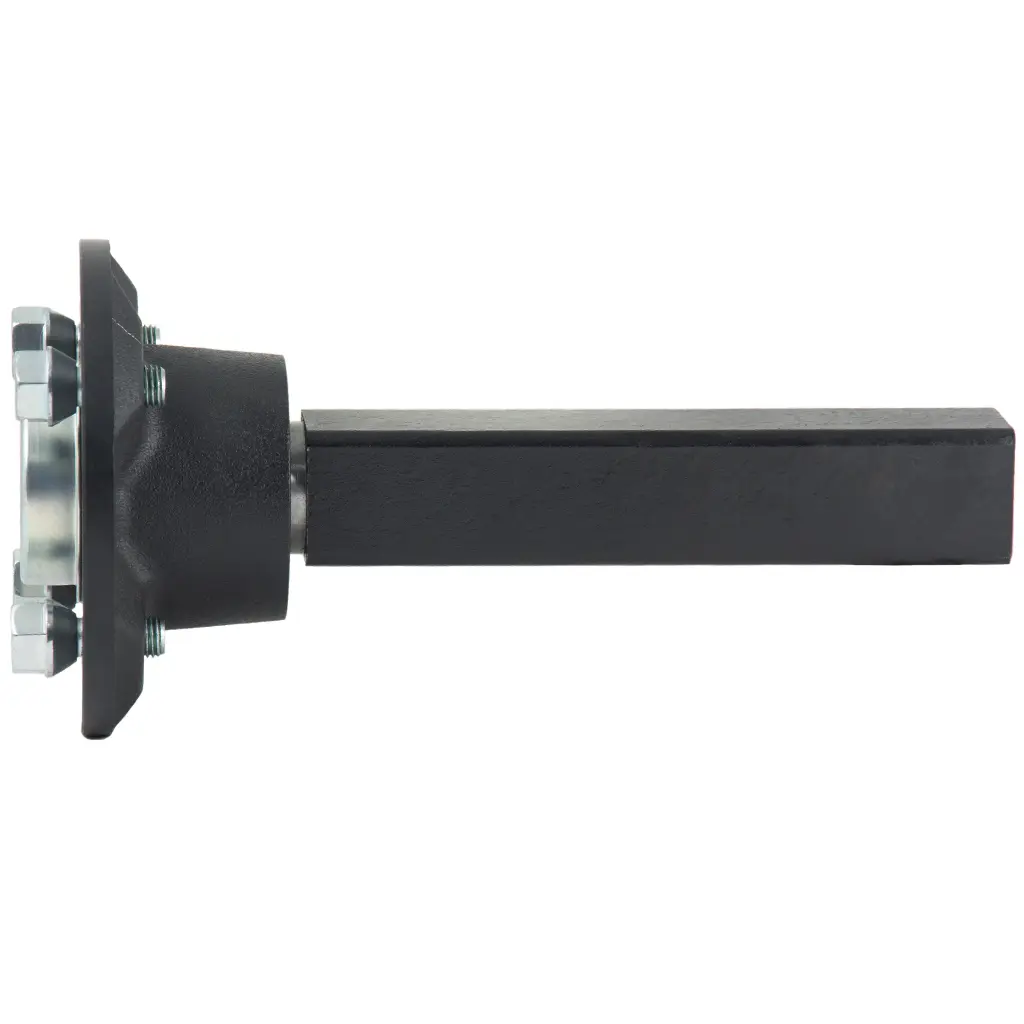

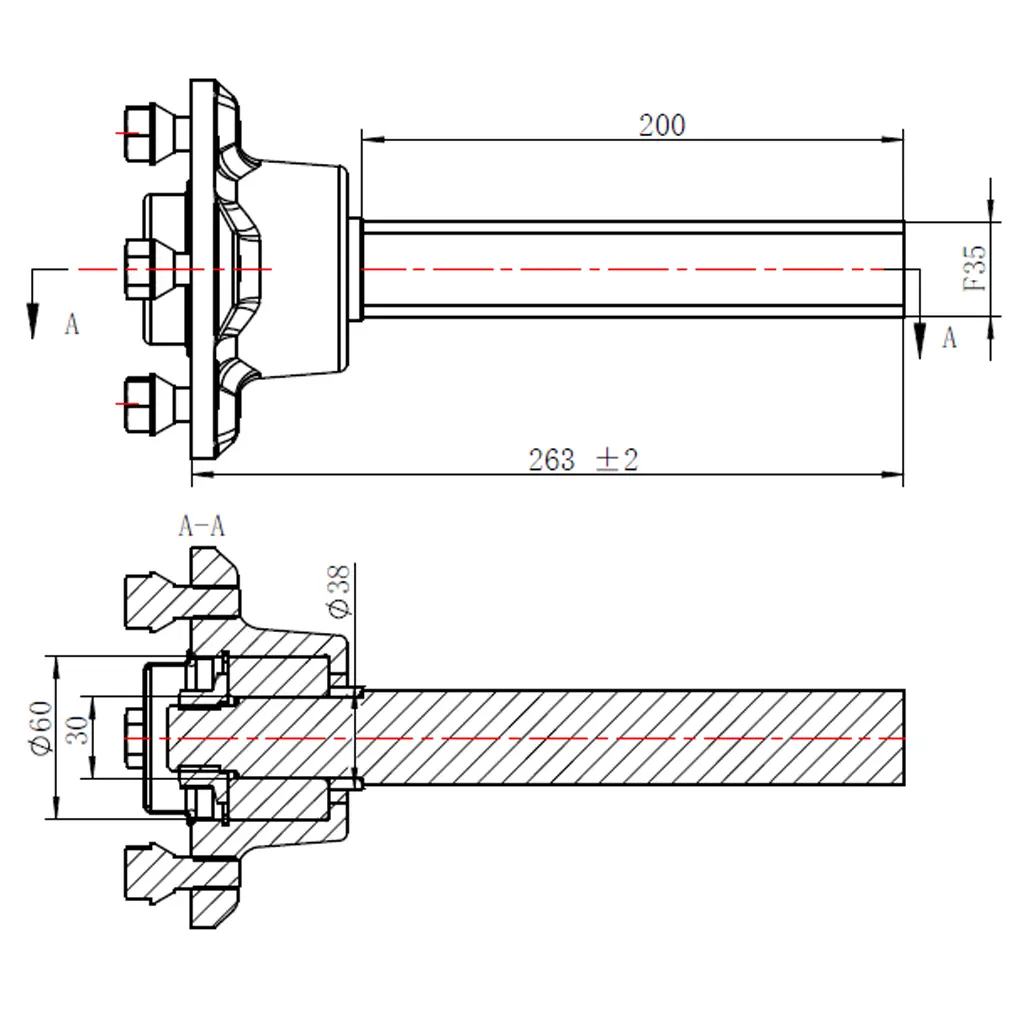

Item specifications: Stub axles:

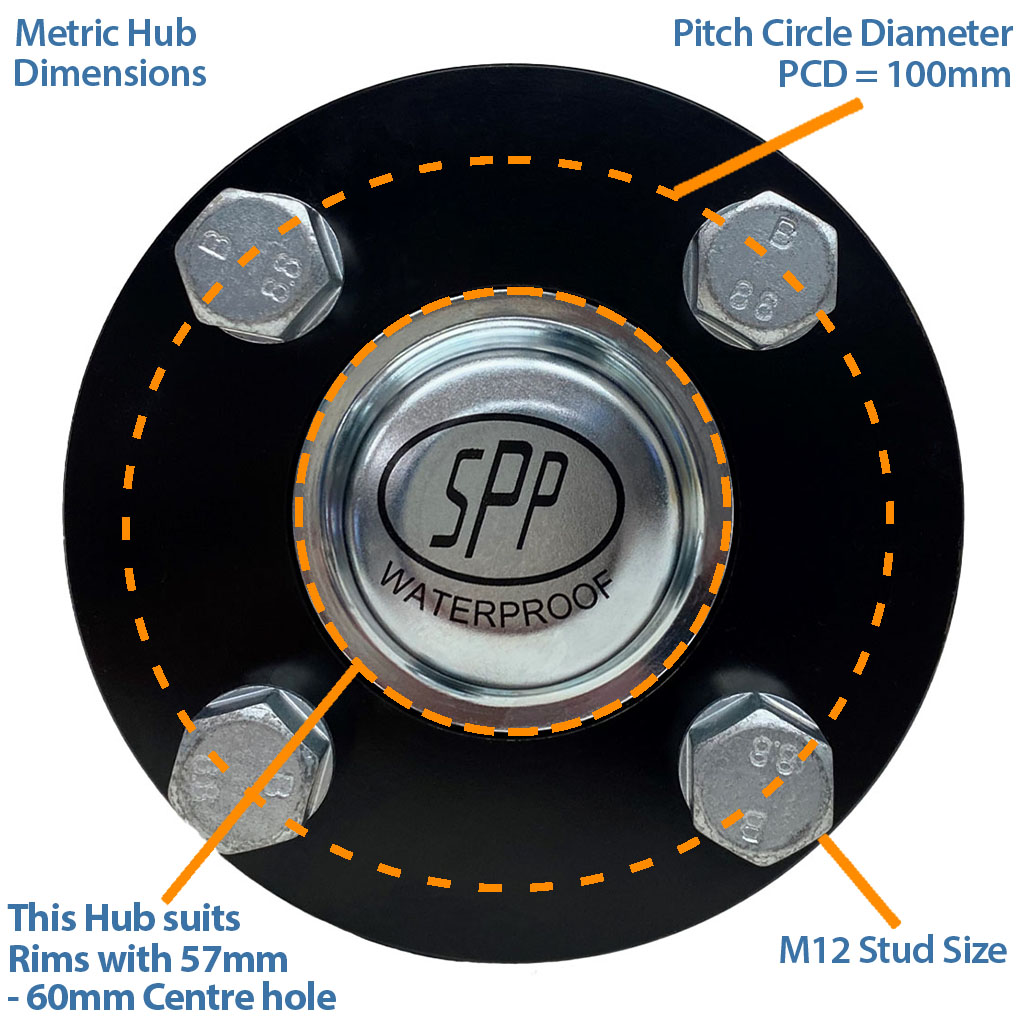

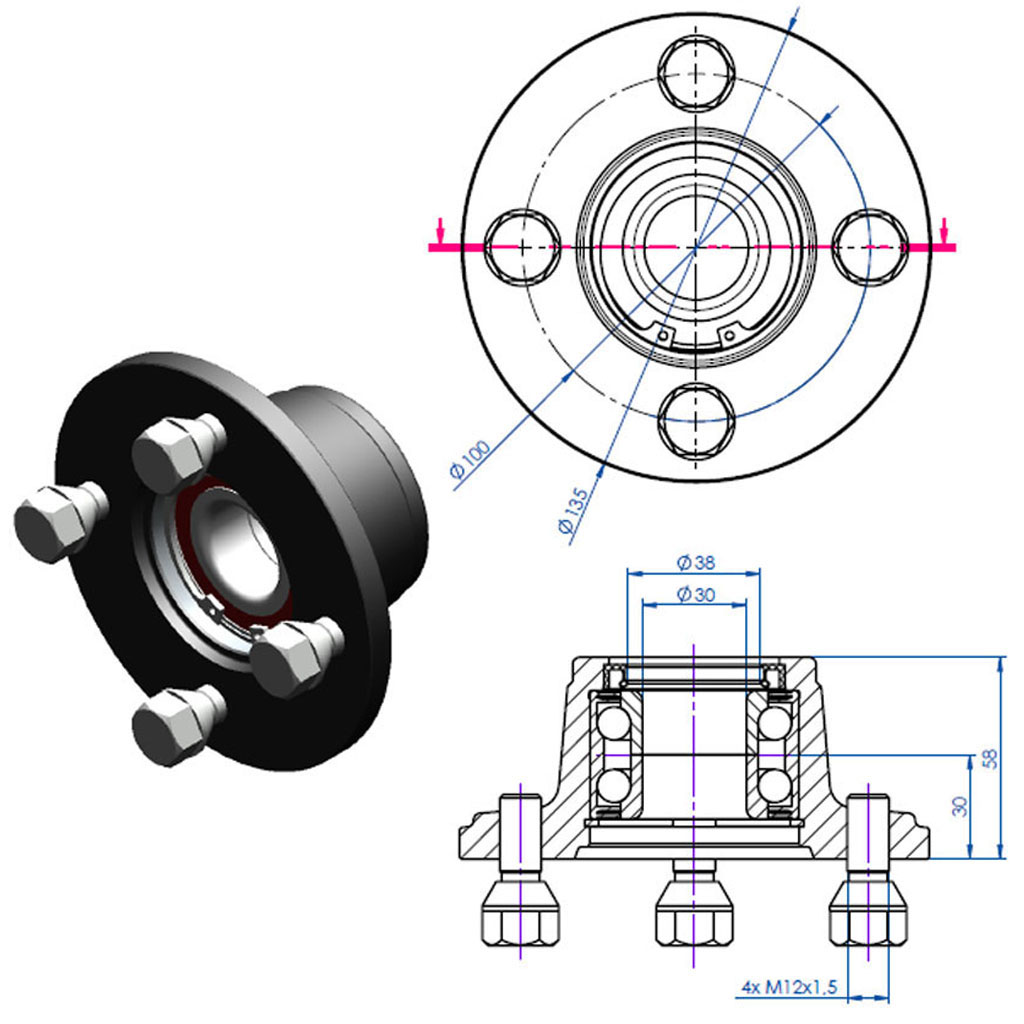

Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,

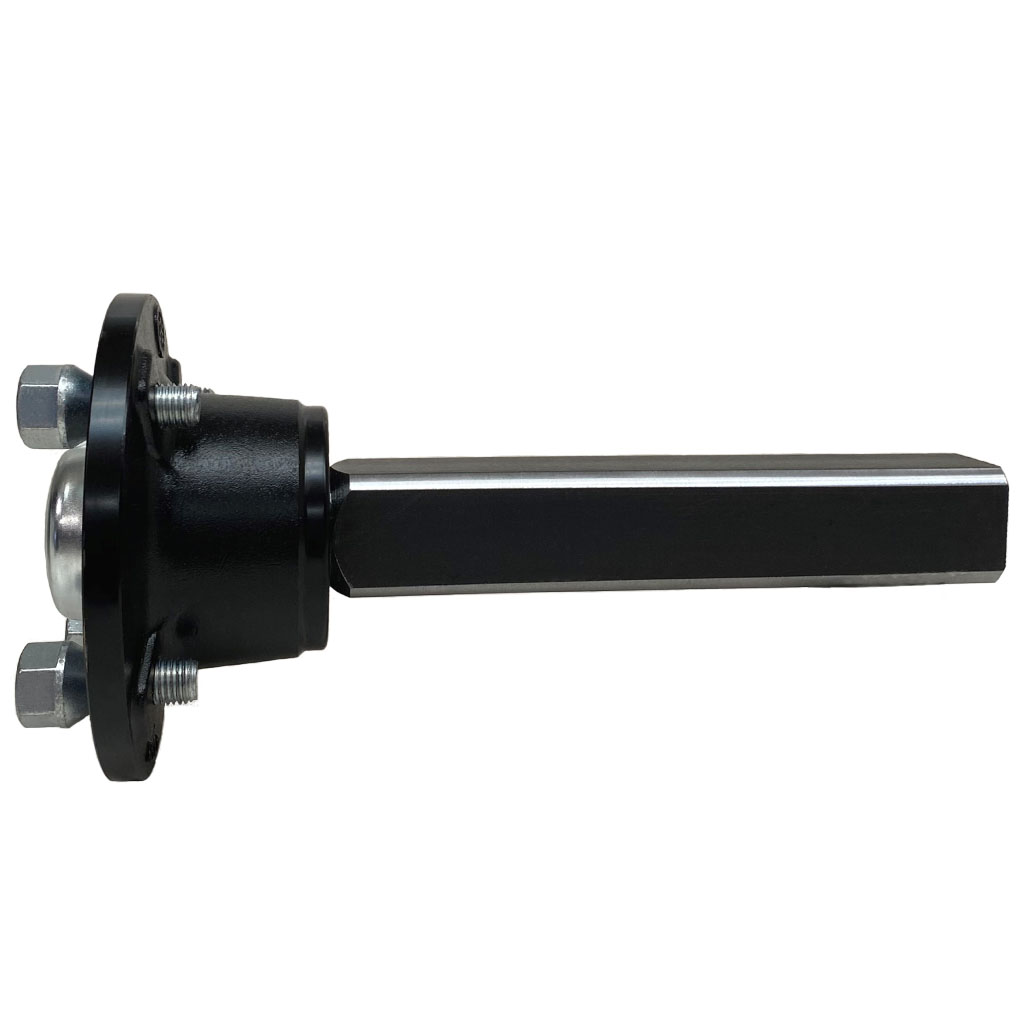

The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by SPP (Steelpress, Poland).
Maximum Kit Load Capacity 620kgs.
| Part Number | KIT1016 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 22x11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P323 |
| Tread Depth (mm) | 9.5 |
| SW (mm) | 270 |
| OD (mm) | 538 |
| PSI | 5 |
| Load/Speed Index | 43J |
| E-Mark | E4-75R-0006182 |
| Max Load (Kg) | 616 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
