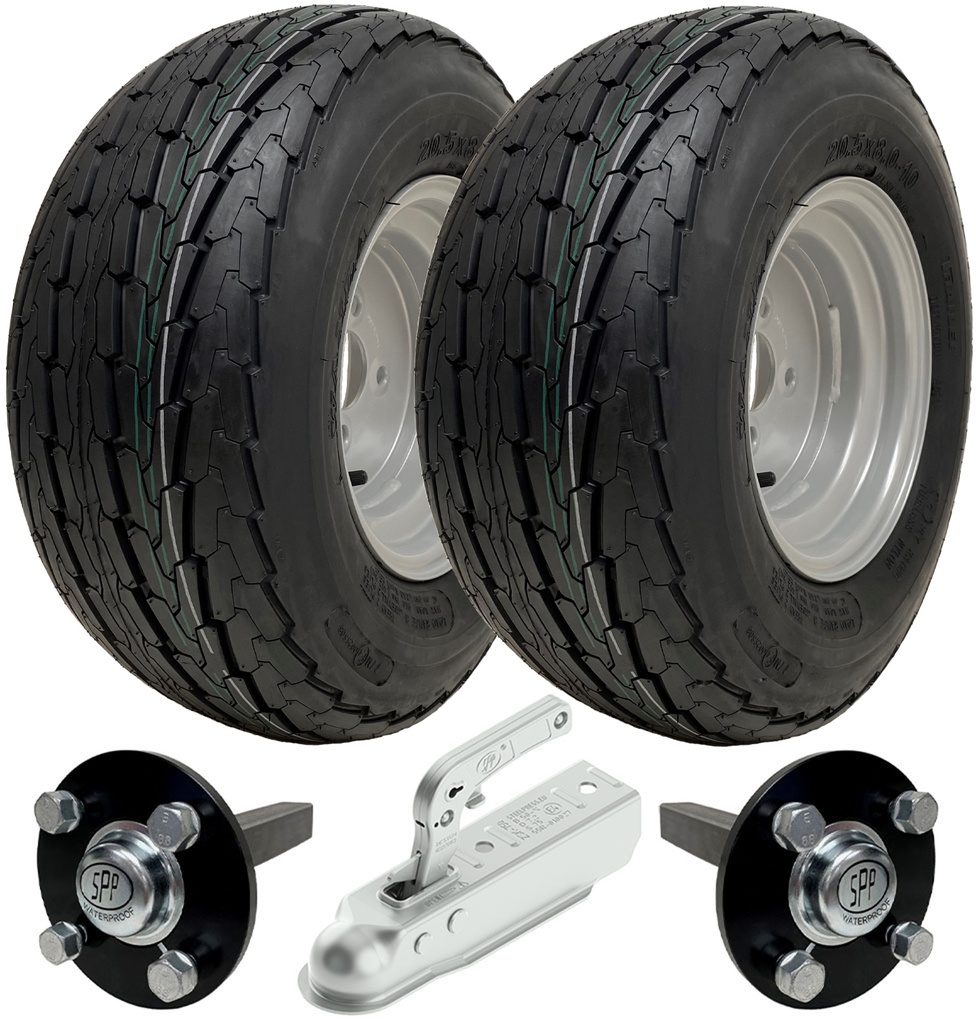

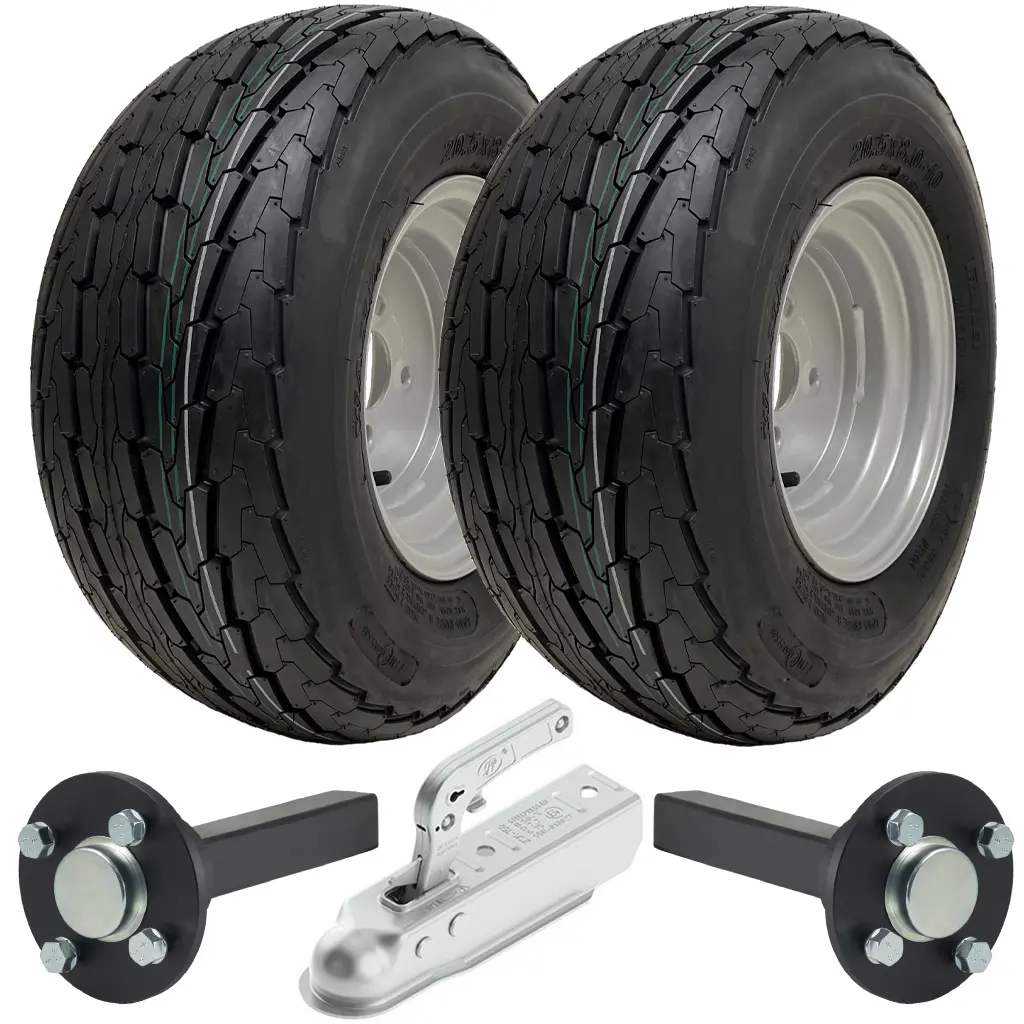

This Kit contains:
Two: High Speed Wheels (tyres fitted on rims).
&
Two: High Speed Hub & Stub Axles.
&
One: Pressed Steel Tow Hitch.
Wanda P815 trailer tyre fitted to a heavy duty 4 stud 100mm PCD steel rim. These are tubeless tyres.
They are E marked for road legal use in Europe and the UK.
They are hard wearing 4ply tyres with a tread depth of 7mm.
The wheels are heavy duty steel rims with 4 studs 100mm PCD,
(the centre hole is 60mm).
Wheel Specifications:
Overall diameter: 520mm,
Max section width: 205mm,
Max load: 910lbs (412kg),
tread Depth: 7mm,
Brand: Wanda,
Tyre pattern: P815,
PSI: 35,
Max speed: 130km/h (81mp/h).
Rim Specifications:
Rim Size: 6.00x10,
Pitch Circle Diameter: 100mm PCD,
Centre Hole Size: 60mm,
Stud Hole Size: 14.5mm,
Rim Offset: ET-4 (offset 4mm towards the inside edge),
Silver powder coated finish with electro coating.
Hub & Stub Axle Specifications:
These hubs are rated to 80mph, they are fully legal to use on the road.
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.
These are genuine "SPP" Steelpress Production parts, manufactured in Poland.
Hitch Specifications:
750kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
Non directional Tyre.
The Wanda P815 is a classic high speed trailer tyre pattern.
The wide profile gives increased stability.
Maximum Kit Load Capacity 750kgs.
Rim Colour | Silver |
Tyre Size | 20.5x8.00-10 |
Ply | 4 |
TT/TL | TL |
Pattern | P815 |
Tread Depth (mm) | 7.0 |
SW (mm) | 205 |
OD (mm) | 520 |
PSI | 35 |
Rim Size | 6.00x10 |
Max Load (Kg) | 750 |
Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
Hitch (1pcs) | SPP 750kg Pressed Hitch |
