22x11.00-8 ATV Trailer Kit 6ply, Knobby Pattern, 40mm x 40mm Hub & Stub axles, Load Capacity 612kgs

https://www.parnells.eu/web/image/product.template/89913/image_1920?unique=48aa623

Part number: KIT1028
Wheel Size: 22x11.00-8
Stub axles: 40mm square, 125mm long
Load Capacity: 612kg

389.94 € 389.94 EUR 389.94 €

452.89 €

Login for trade prices

Not Available For Sale


  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • Rim Width (in)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)
  • Hitch (1pcs)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

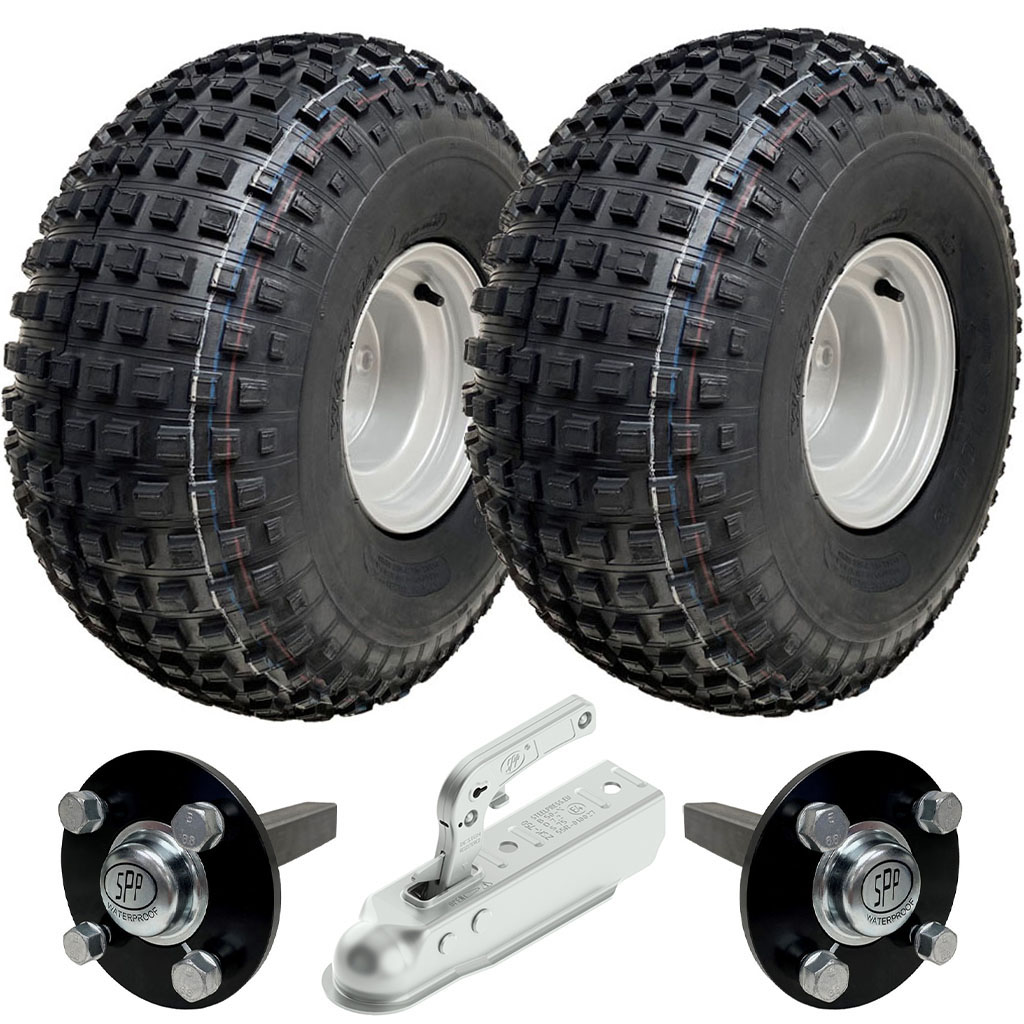

ATV Trailer Kit, 22x11.00-8 6pr P323 Knobby tyre, Hub/stub axle 40x40mm, pressed hitch, 612kg load capacity

Contents of this kit include:

2 x Wheels, 22x11.00-8.

2 x Stub axles, 40x40x125mm solid stub.

1 x Pressed steel hitch for 50x50mm box section.


Item specifications: Wheels.

• 22x11.00-8 6ply Wanda P323 knobby tyres on steel rim 4x100mm PCD,

• Overall diameter: 551mm,

• Max width of tyre: 267mm,

• Tread depth: 9.5mm,

• Inflation: 14psi,

• Max load per wheel: 306kg @ 80km/h (load/speed index: 67F),

• E-marked road legal tyres,

• Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.


Item specifications: Stub axles.

• Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,

• PCD is 100mm,

• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

• The hubs are waterproof,

• The shaft is 40x40mm x 125mm long, solid steel,

• Manufactured by SPP (Steelpress, Poland).


Item specifications: Hitch.

• 750kg pressed steel hitch, high quality zinc plated finish,

• Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts

(bolts & lock nuts are provided with this kit).

• These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).

These hitches may be coupled only with class A ball hitch couplings (Ø50). The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.

• In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.

• Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.


Maximum Kit Load Capacity 612kgs.

Rim Colour Silver
Tyre Size 22X11.00-8
Ply 6
TT/TL TL
Pattern P323
Tread Depth (mm) 9.5
Rim Width (in) 7.0
SW (mm) 267
OD (mm) 551
PSI 14
Load/Speed Index 67F
Stud / PCD 4x100mm
E-Mark E4-75R-0010566
Max Load (Kg) 612
Hub & Stub Axle (2pcs) (86250, '[EC1060] Set of 2 - Hub & Stub axle 4/100 M12stud 40x40 High speed (waterproof)')
Hitch (1pcs) SPP 750kg Pressed Hitch
