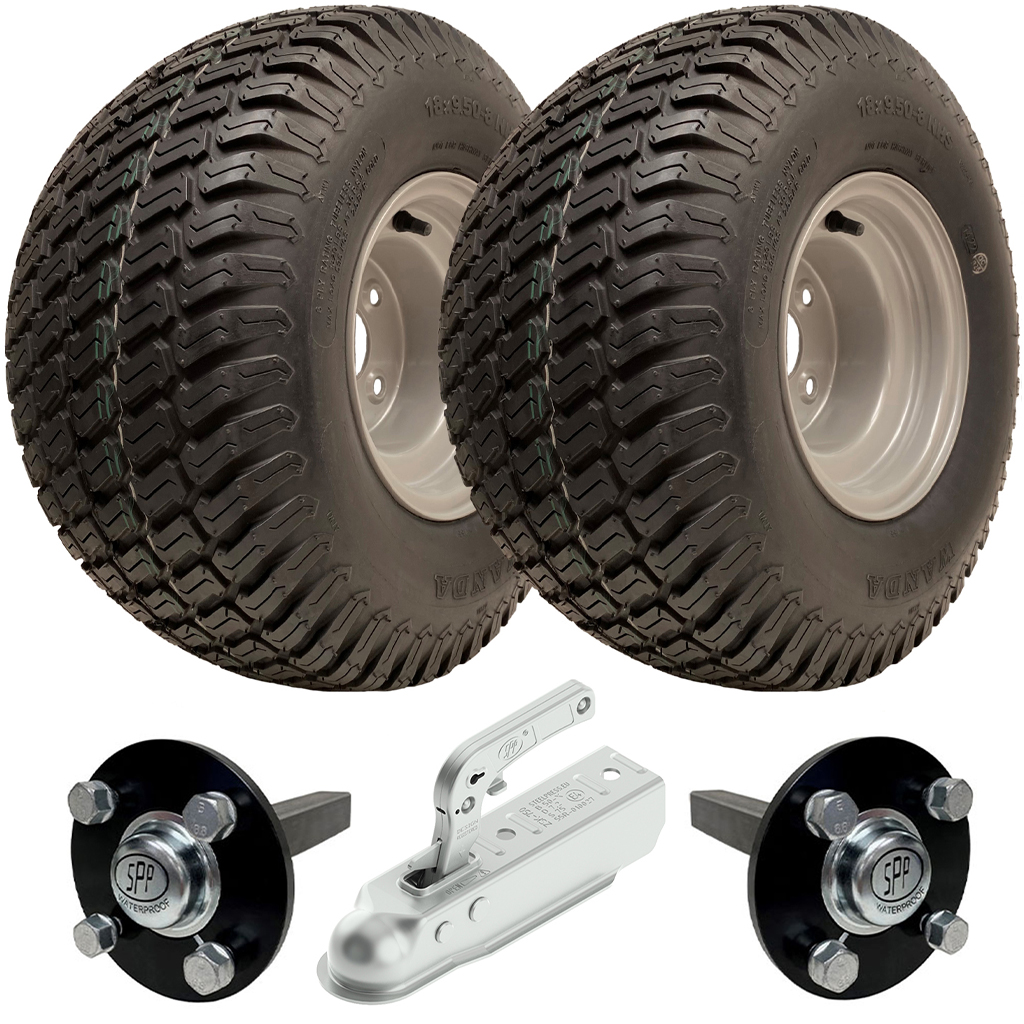

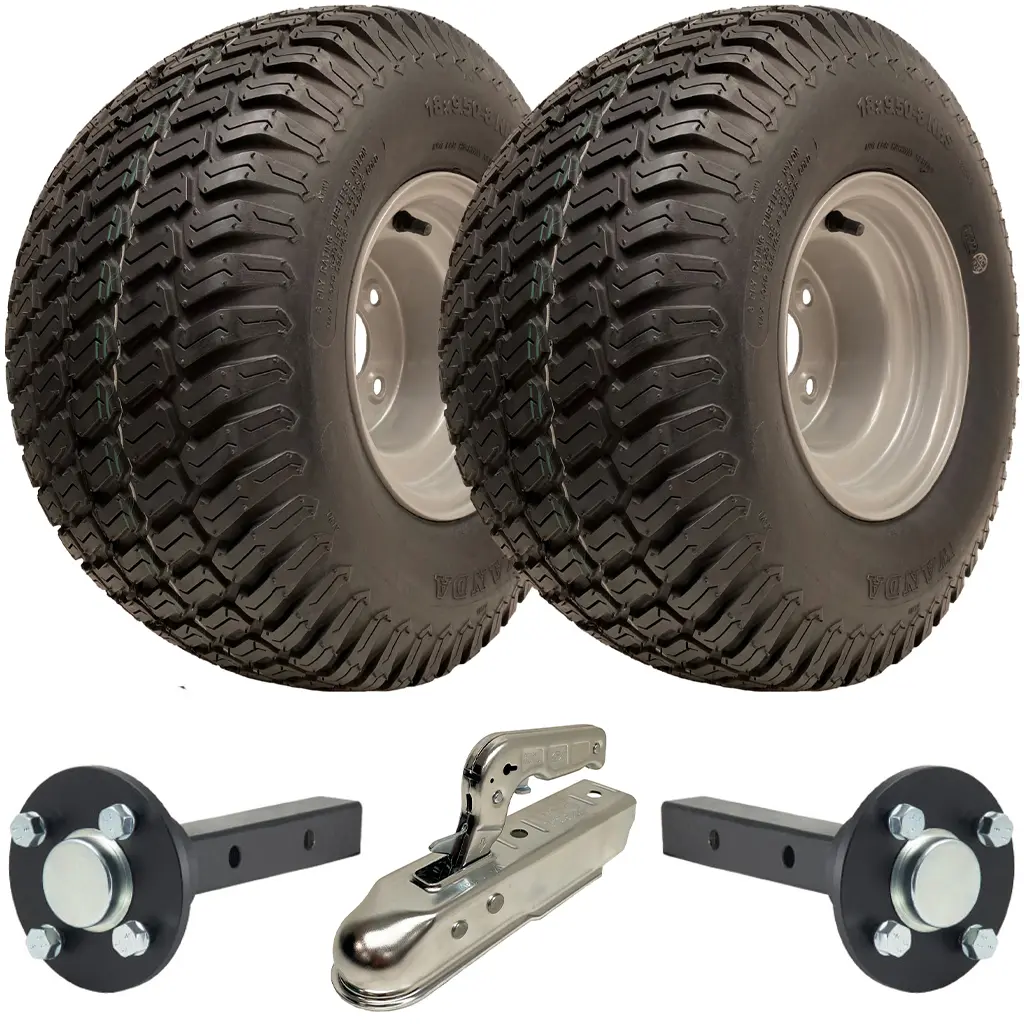

18x9.50-8 Grass care trailer kit, 40mmx40mm SPP axles, Pressed steel hitch
Part number: KIT1033
Tyre Size: 18x9.50-8
Stub Axle: 40x40mm square, 125mm long
Load Capacity: 900kgs
ATV Grass trailer kit 18x9.50-8.
This kit contains:
2 - 18x9.50-8 wheels
2 - 40mm x 40mm hub and stub axles.
&
1 - Pressed Steel tow hitch.
Wheel Specification:
Size:18x9.50-8,
Brand: Wanda,
Tyre pattern: P332,
Ply rating: 6ply,
Load capacity: 595kgs at 36PSI,
Tyre height: 465mm,
Tyre width: 223mm,
Tread Depth: 5mm,
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.
Hub & Stub Specification:
These are genuine 'Steelpress Production' parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 40x40mm square, 125mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 900kg per pair.
Hitch Specifications:
1300kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
This kit is for off road use only.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 900kgs.
| Part Number | KIT1033 |
| Rim Colour | Silver |
| Tyre Size | 18x9.50-8 |
| Ply | 6 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 5.0 |
| Rim Width (in) | 7.0 |
| SW (mm) | 223 |
| OD (mm) | 465 |
| PSI | 36 |
| Stud / PCD | 4x100mm |
| E-Mark | No |
| Max Load (Kg) | 900 |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
| Hitch (1pcs) | TR1002 1300kg pressed steel hitch |
