19x7.00-8 Journey P330 ATV Trailer Kit - 200kgs capacity
8 sold in last 24 hours
Tyre Size: 19x7.00-8
Tyre Pattern: P330
Kit Load Capacity: 200kgs

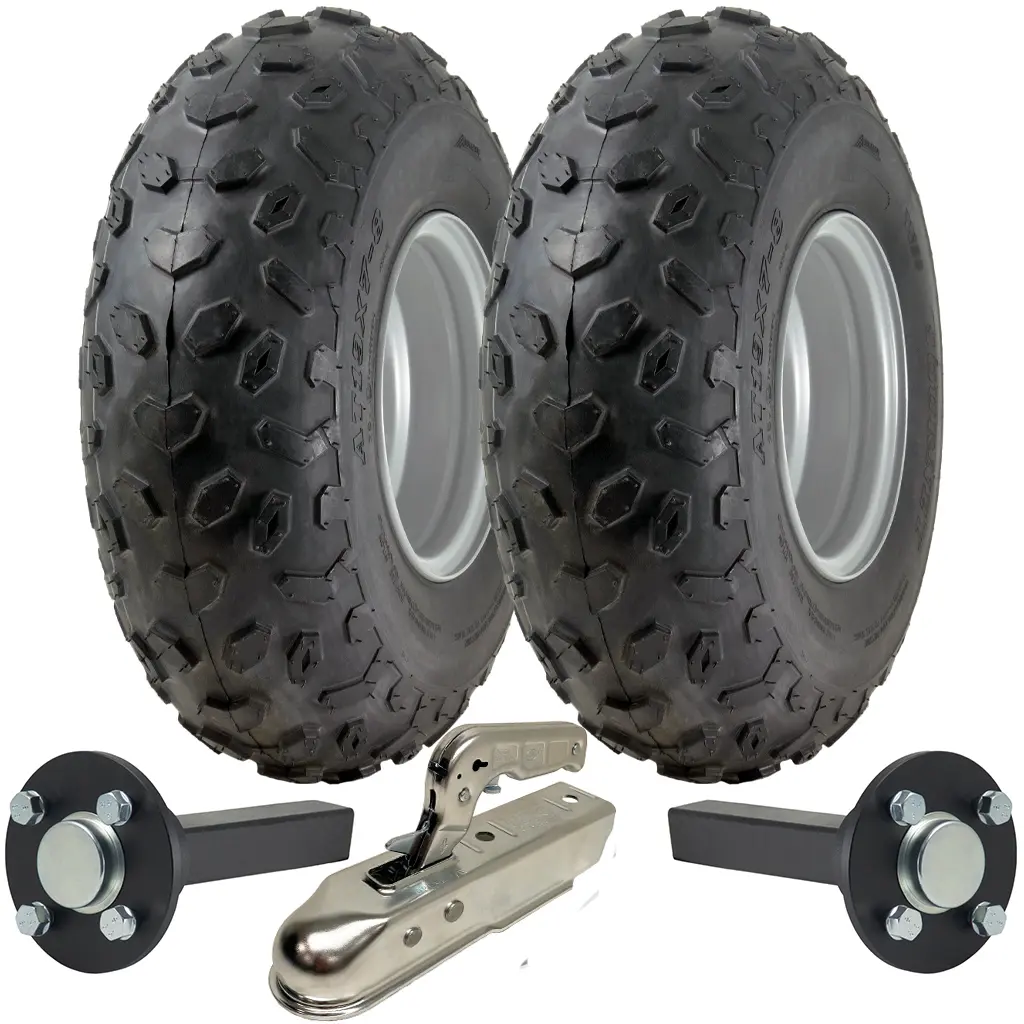

19x7.00-8 ATV trailer kit.
One: Pressed steel Tow hitch.
These are rugged ATV tyres.
These are tubeless tyres & are E marked.
They are hard wearing 4ply tyres with a tread depth of 8mm.

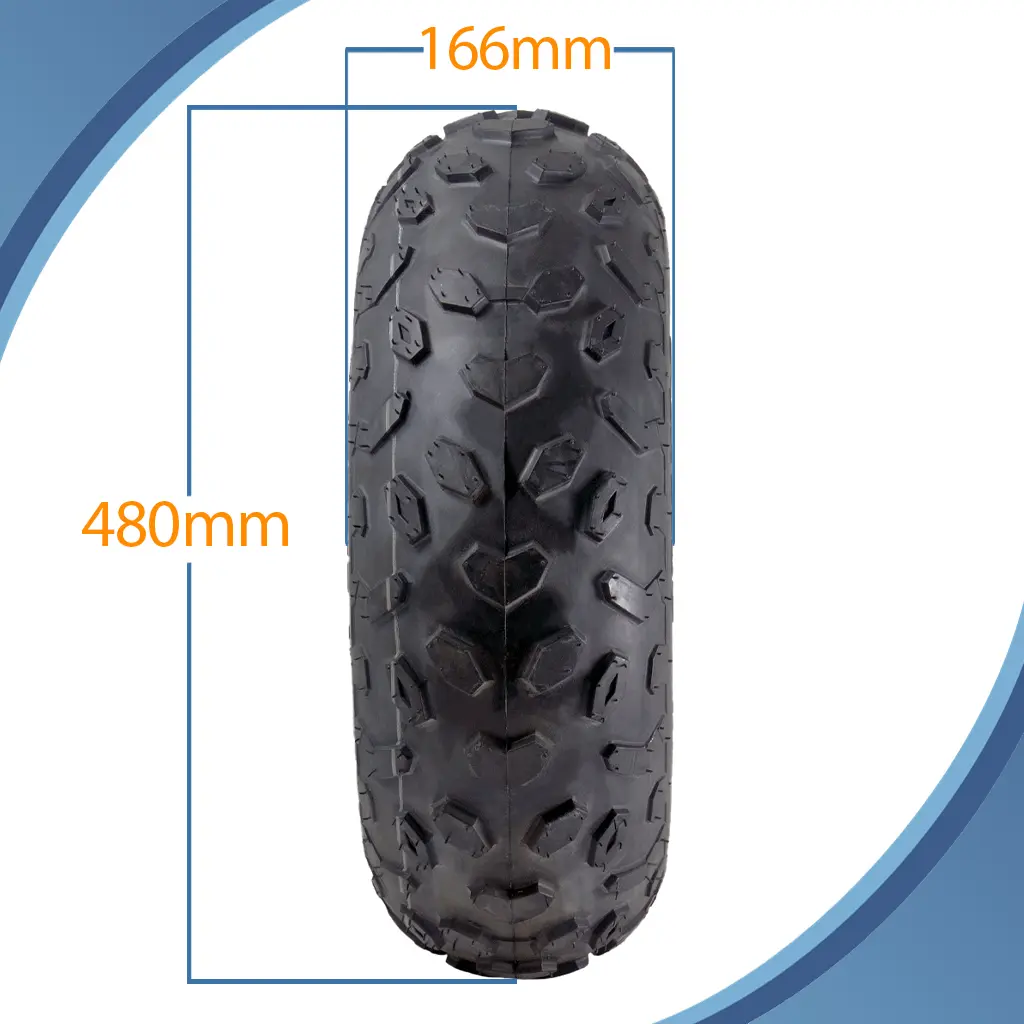

Tyre dimensions:
Overall diameter: 480mm,
Max section width: 166mm,
Max load: 220lbs (100kg) per wheel @ 10psi,
Max Speed: 100km/h. 63mph.

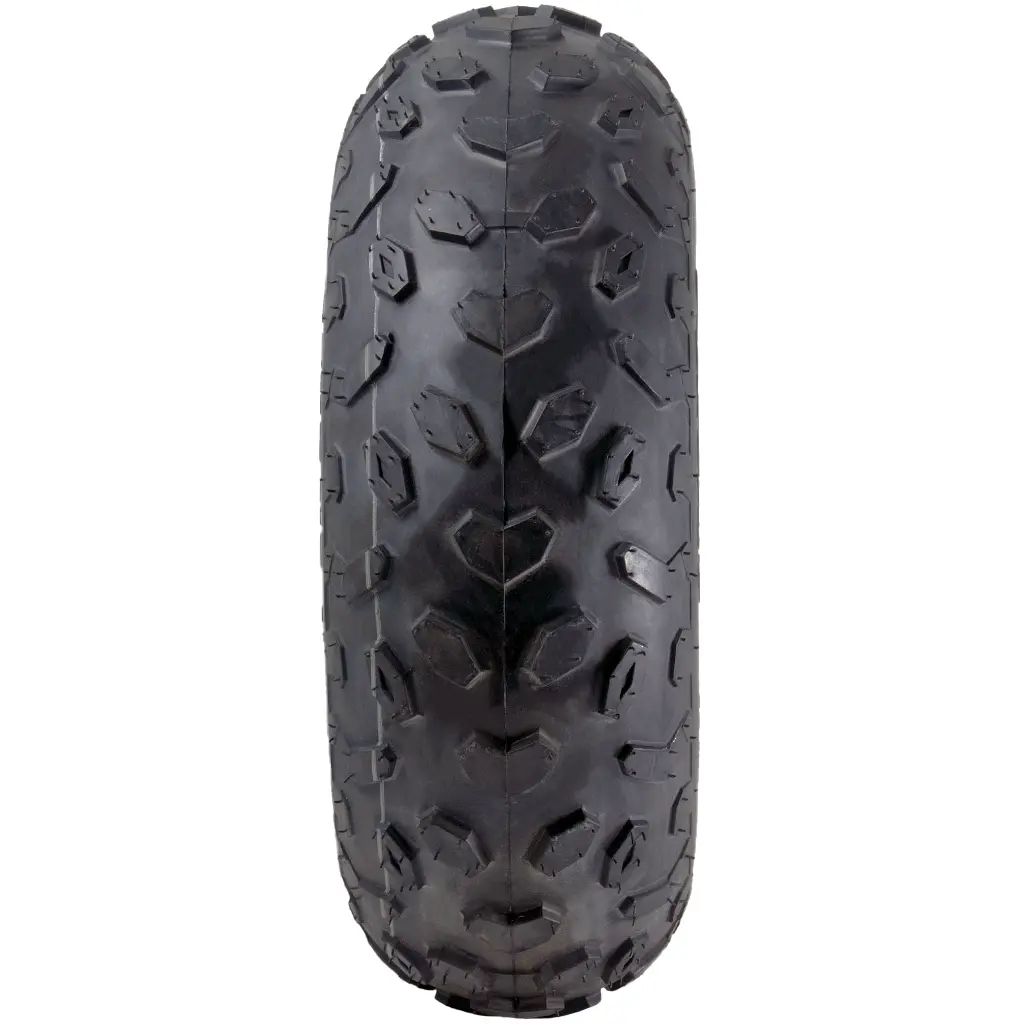

Modified knobbly tread P330 pattern.
Rim Specification:
5.50x8 inch Rim, 100mm PCD.
Heavy duty welded steel rim.
Metric 100mm PCD.
(PCD = pitch circle diameter).
4 mounting holes,
100mm diagonally apart.
8 inch rim diameter.
5.50 inch rim width.
60mm centre hole.
Stud holes 13.5 mm.
This 5.5x8H2 rim has no offset.
Rims are powder coated Silver.

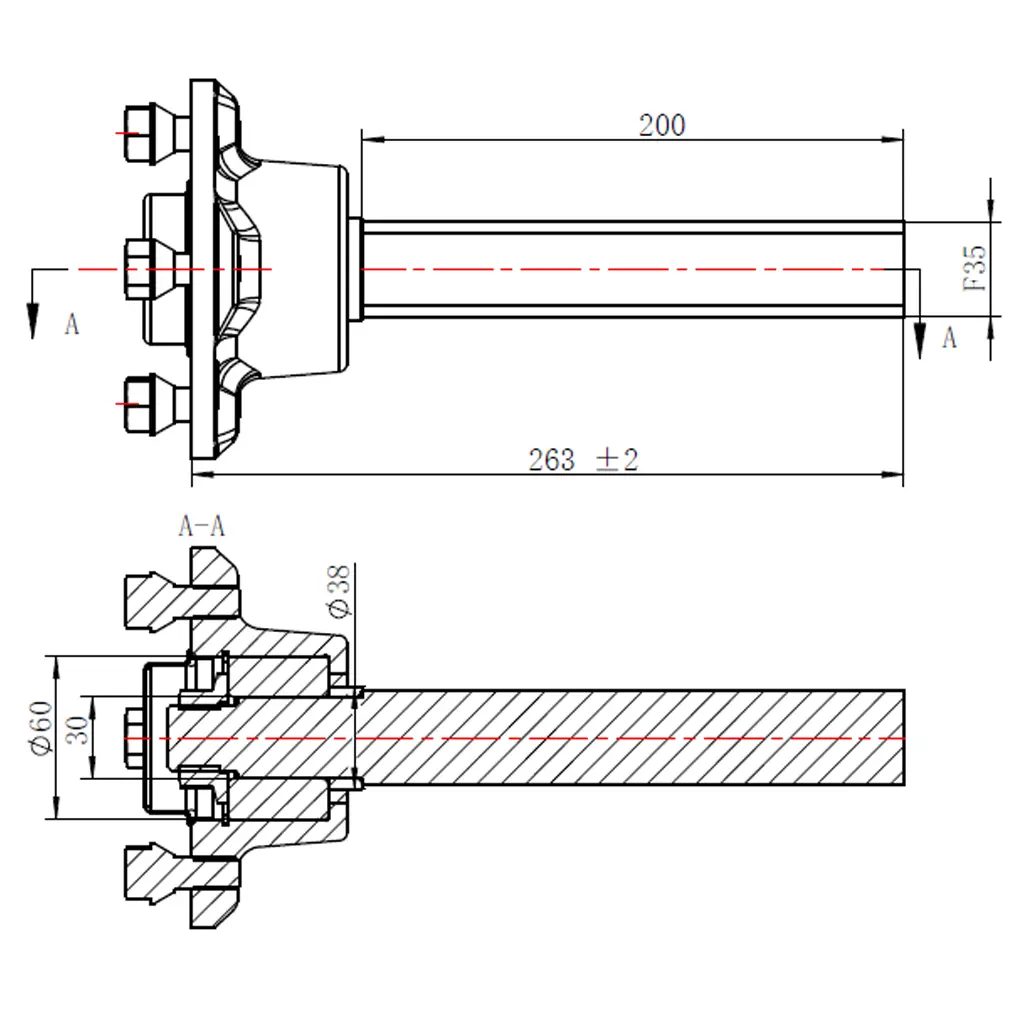

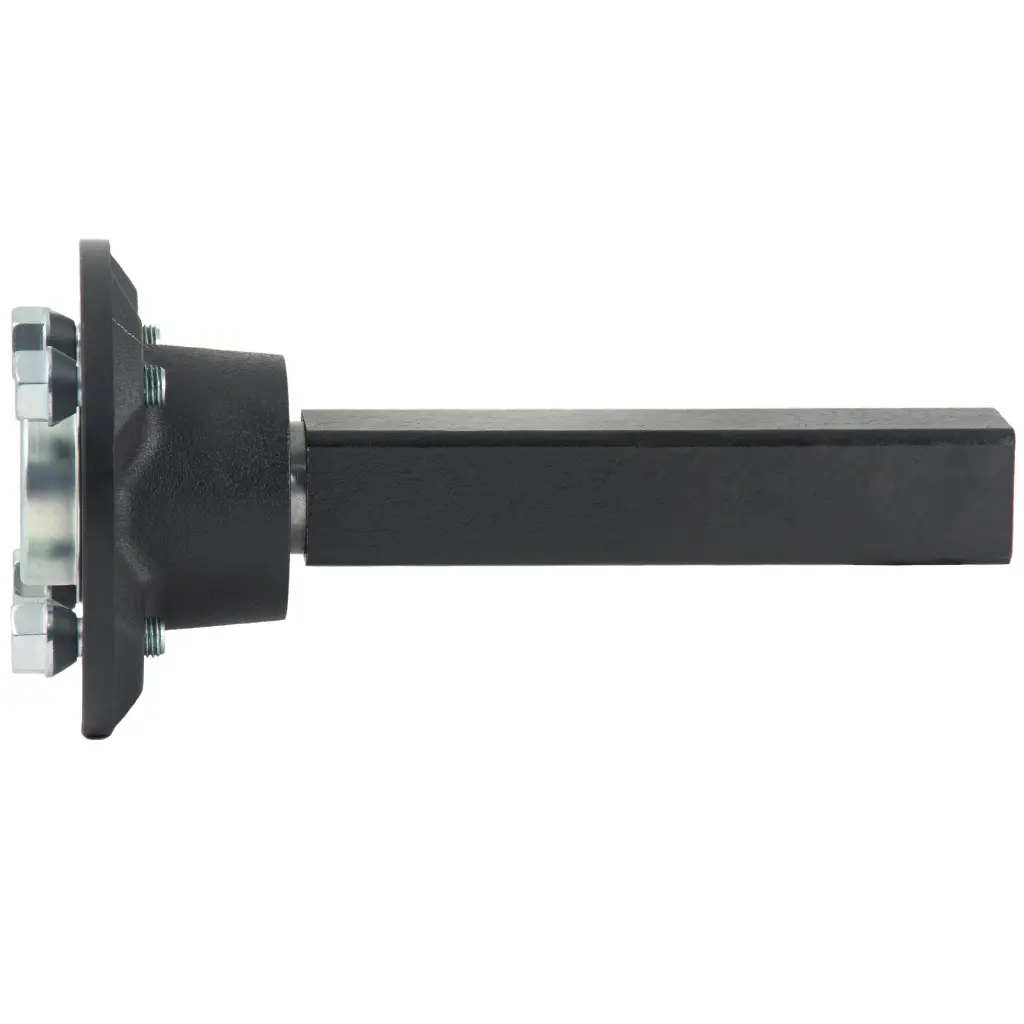

Hub & Stub Axle Specifications:
These hubs are rated to 80mph, they are fully legal to use on the road.
They have sealed precision ball bearings, they never need to be greased.

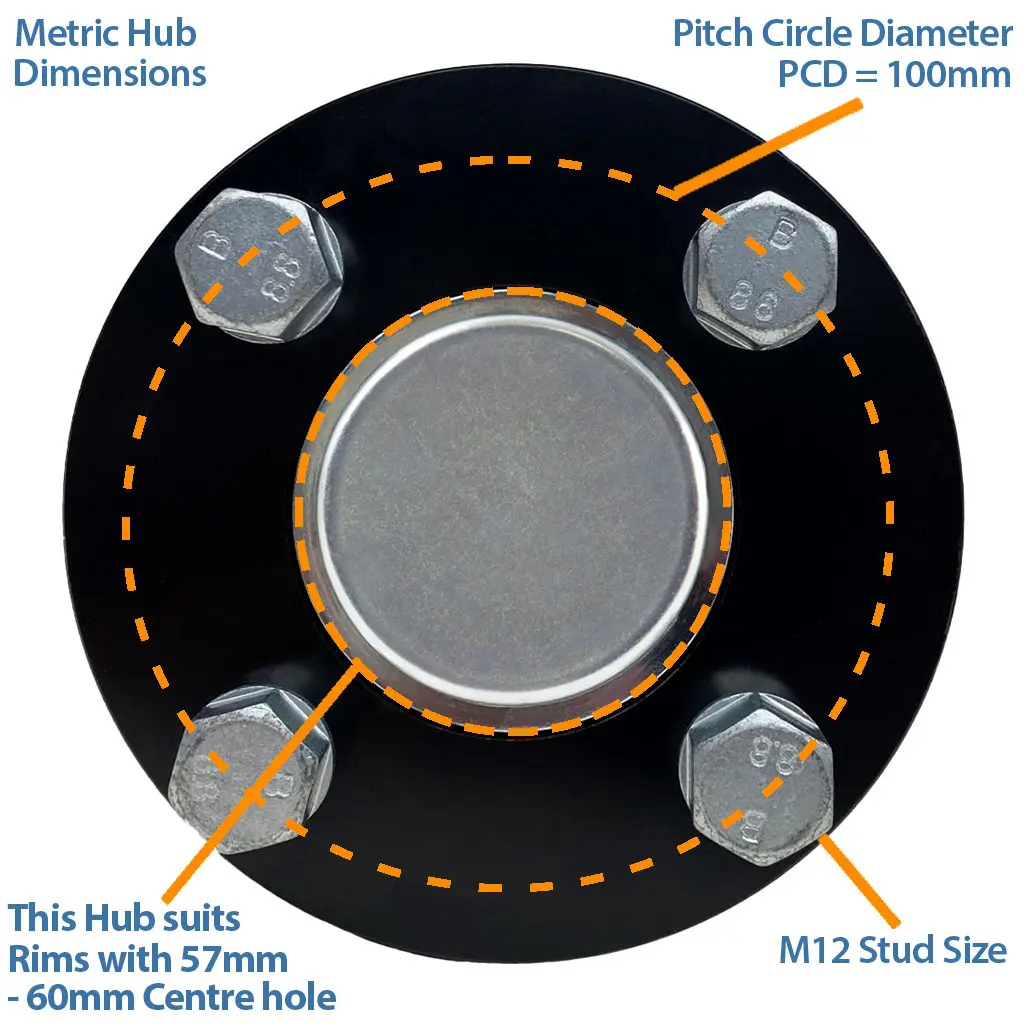

The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35mmx35mm square - 200mm long (solid steel).

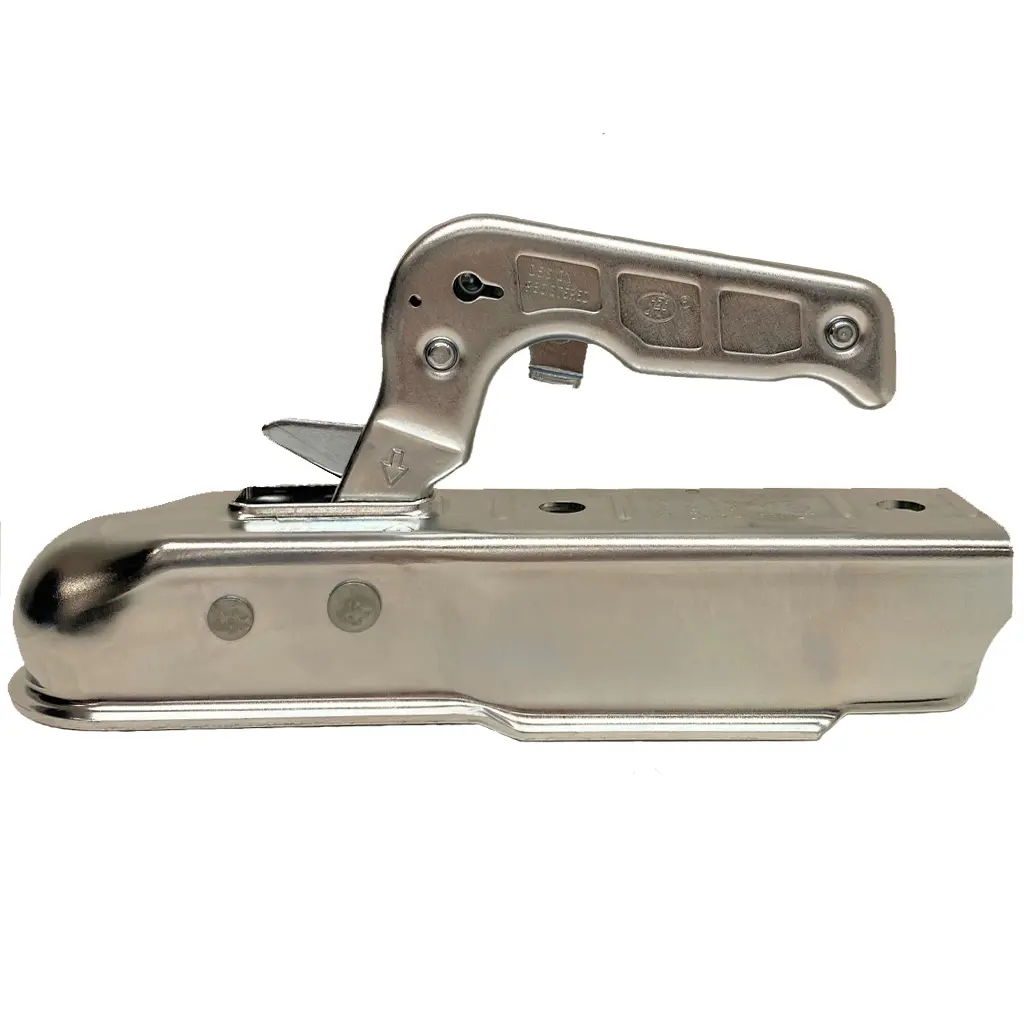

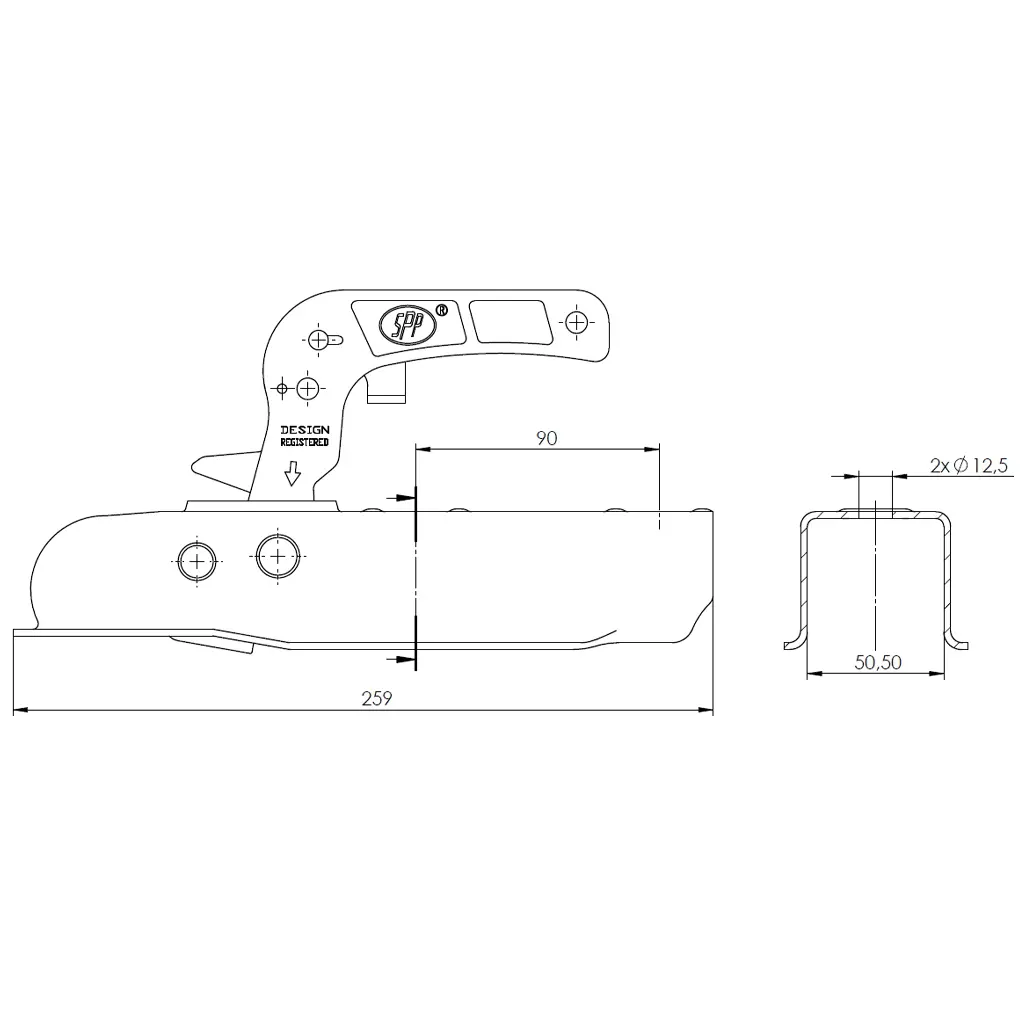

Hitch Specifications:
750kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
Maximum Kit Load Capacity 200kgs.
This Tyre has a directional tread pattern.
Please Note: These tyres say "Not for Highway Service", this is only relative for the USA market.
It does not apply to UK & Europe, where they're fully road legal. This is Denoted by E4 (encircled) followed by 75R-0004840
| Part Number | KIT1037 |
| Pattern | P330 |
| Tyre Size | 19x7.00-8 |
| OD (mm) | 480 |
| PSI | 10 |
| Load/Speed Index | 28J |
| Tube Tyre (TT/TL) | TL |
| Tread Depth (mm) | 8.0 |
| Section Width (mm) | 166 |
| Max Load Each (Kg) | 100 |
| E-Mark | E4-75R-0004840 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1 piece) | SPP 750kg Pressed Hitch |
