22x11.00-8 Grass trailer kit, P512 wheels and 40mm x 40mm axles, pressed steel hitch
15 sold in last 24 hours
Part Number: KIT1039
Tyre Size: 22x11.00-8
Tyre Pattern: P512
Load Capacity: 900kgs
Tyre Size: 22x11.00-8
Tyre Pattern: P512
Load Capacity: 900kgs

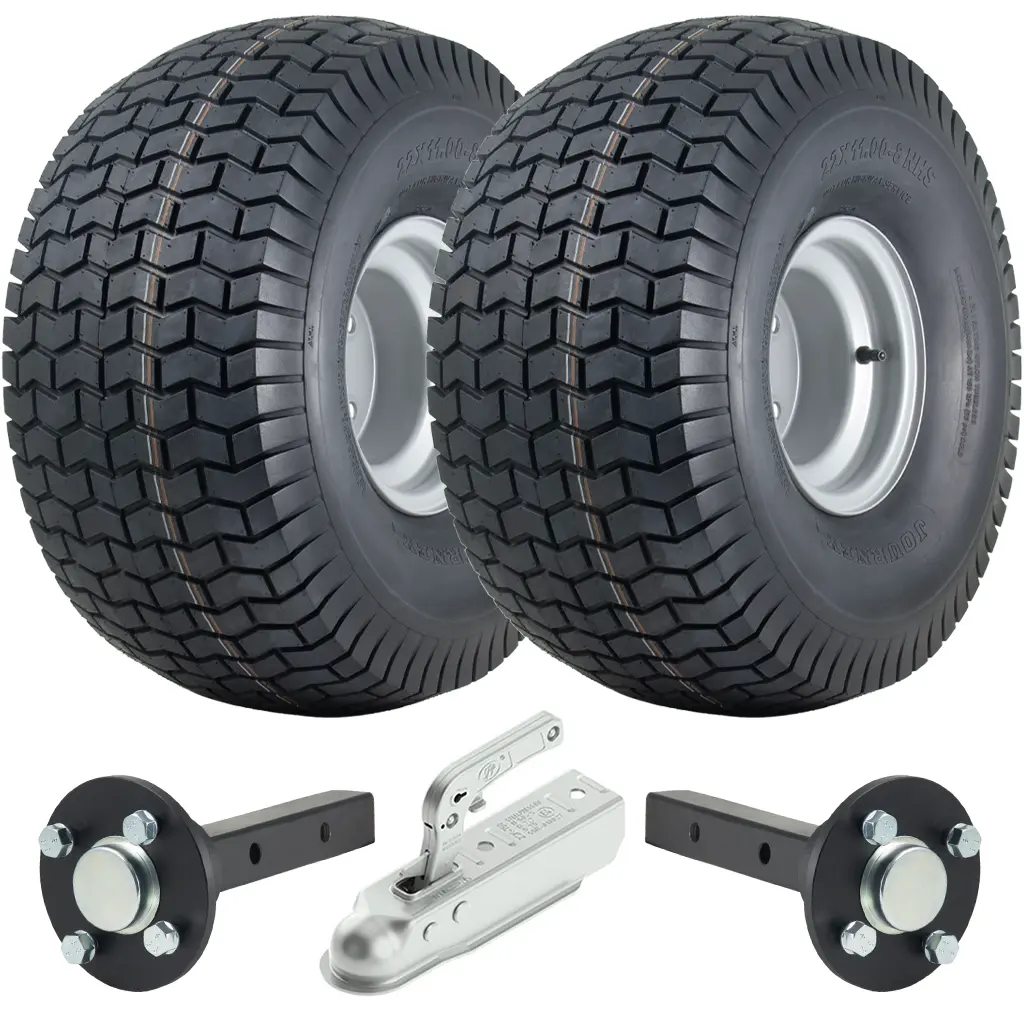

ATV Grass trailer kit 22x11.00-8.
This kit contains:
2 - 22x11.00-8 wheels
2 - 40mm x 40mm hub and stub axles.
&
1 - Pressed Steel tow hitch.

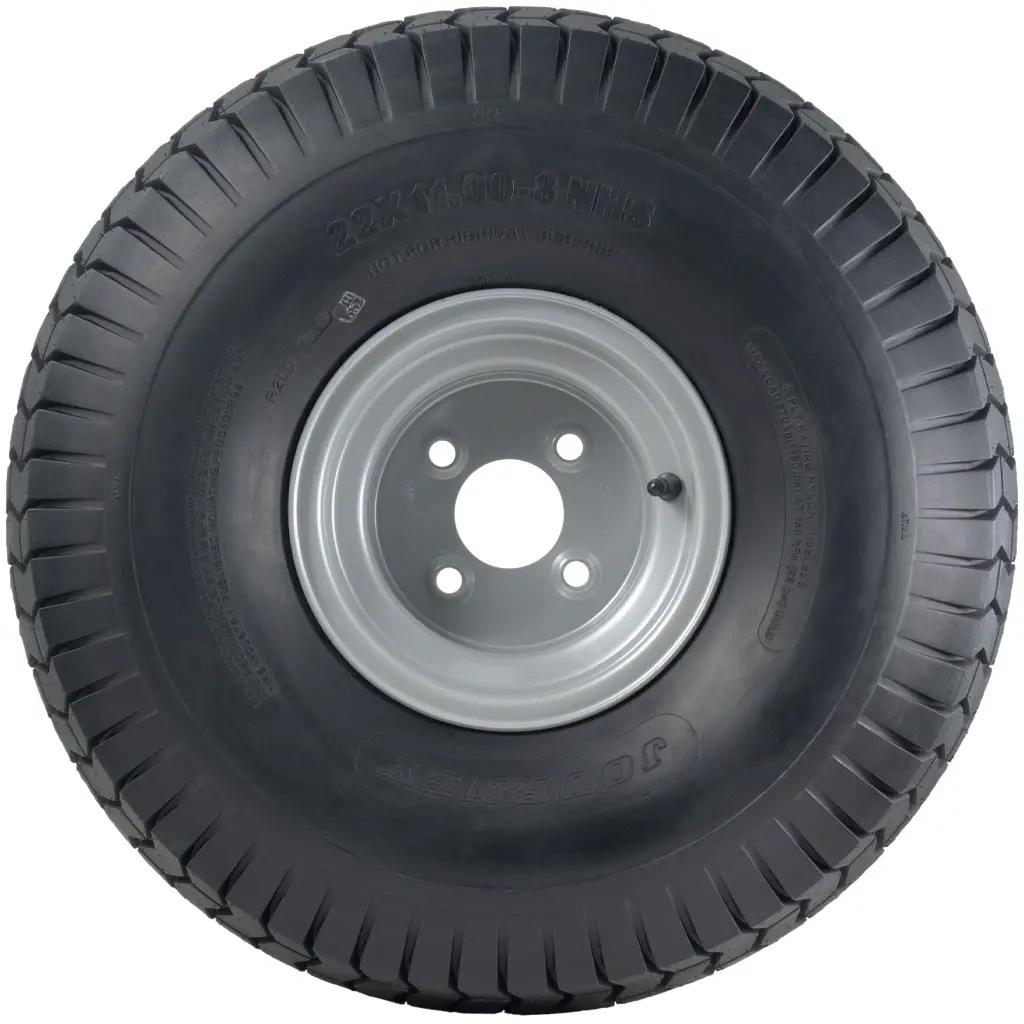

Wheel Specification:
Size: 22x11.00-8,
Brand: Wanda,

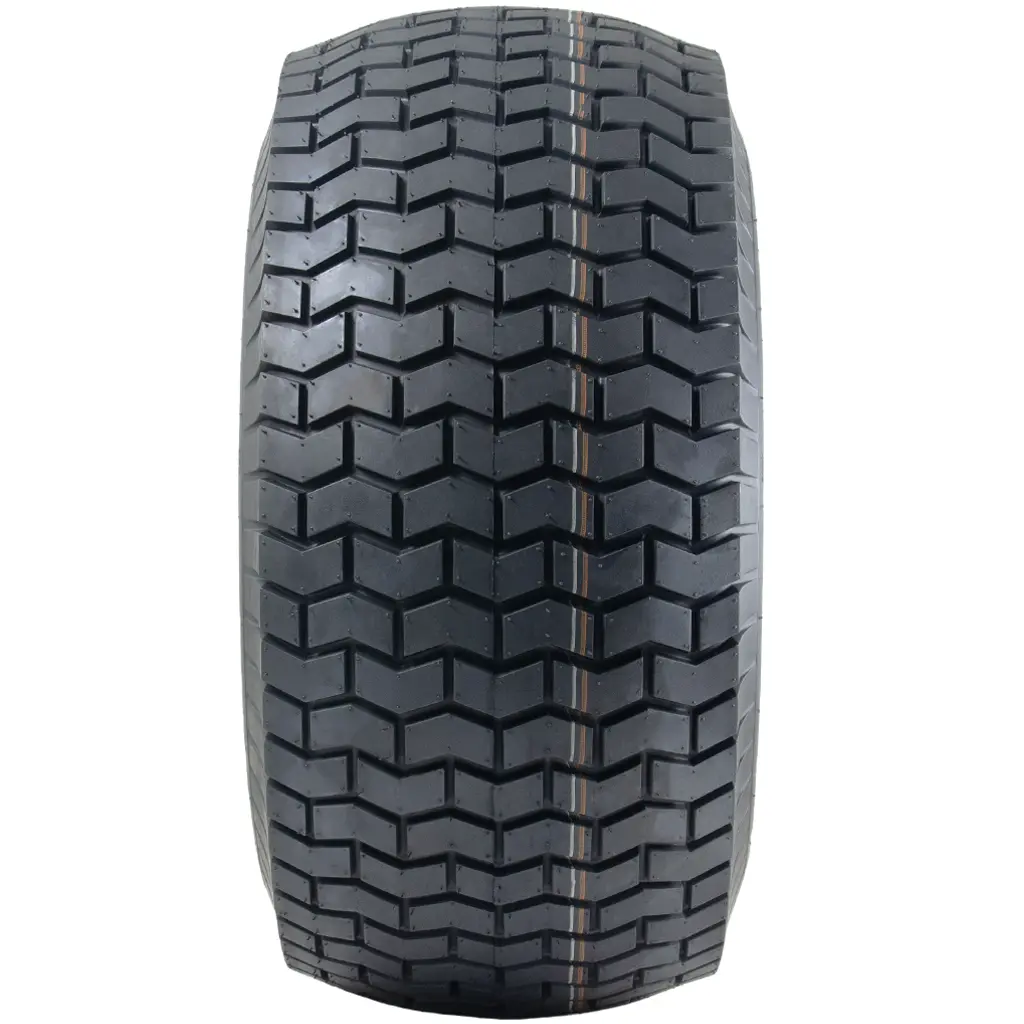

Tyre pattern: P512,
Ply rating: 4ply,
Load capacity: 670kgs at 22PSI,

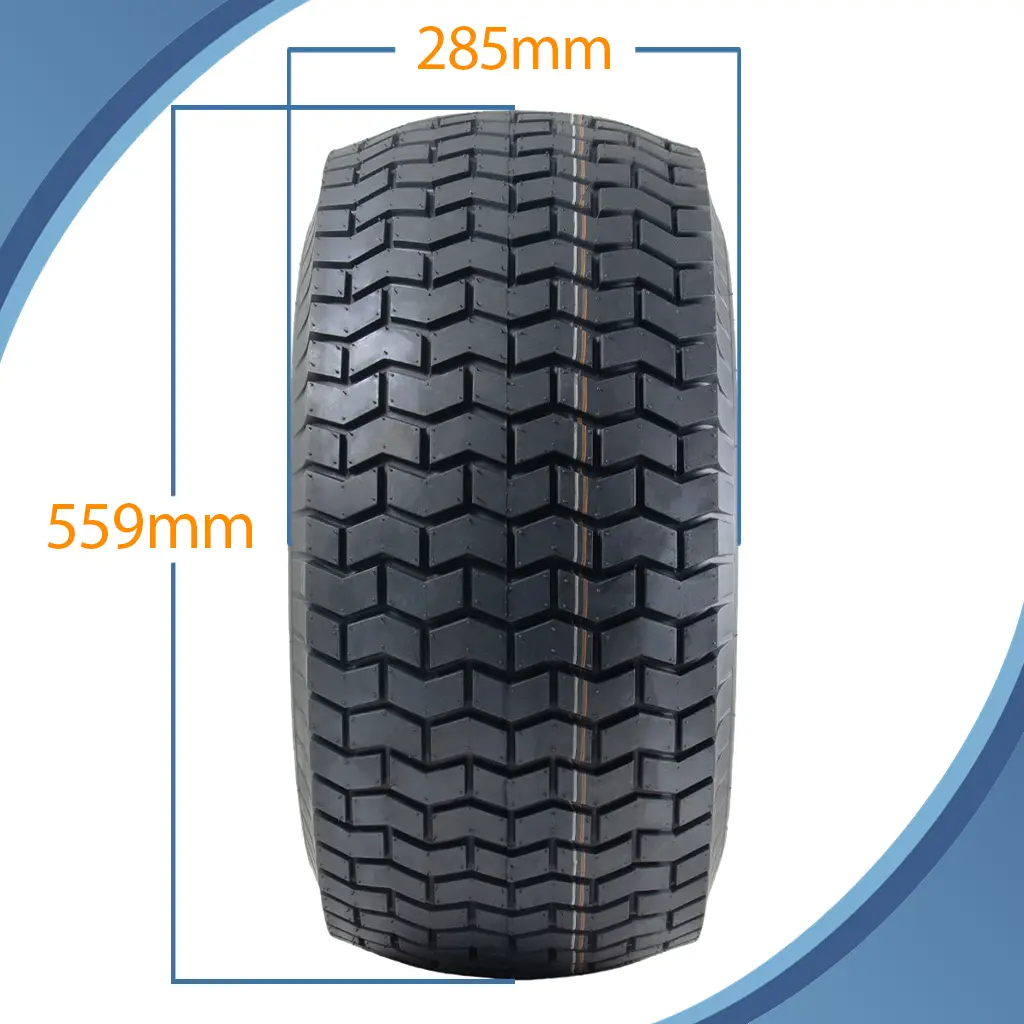

Tyre height: 559mm,
Tyre width: 285mm,
Tread Depth: 6mm,
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

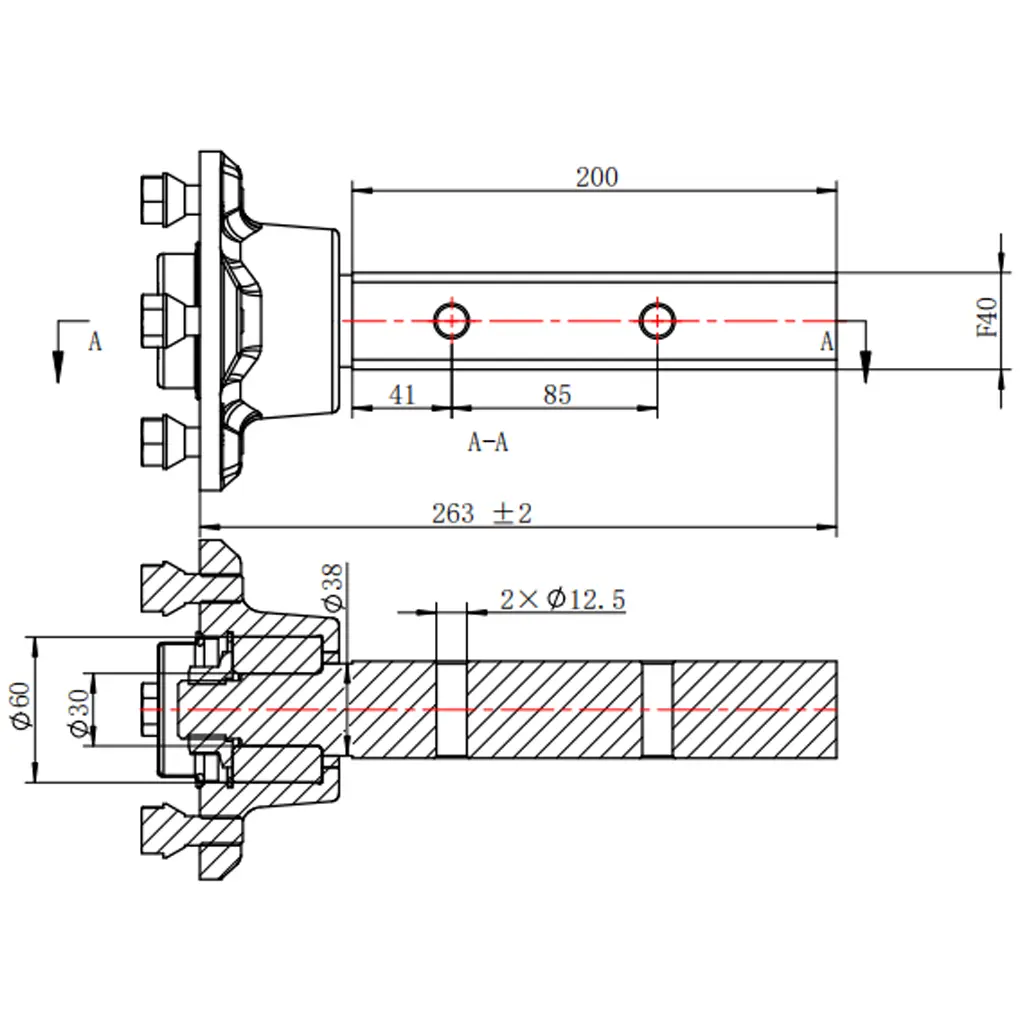

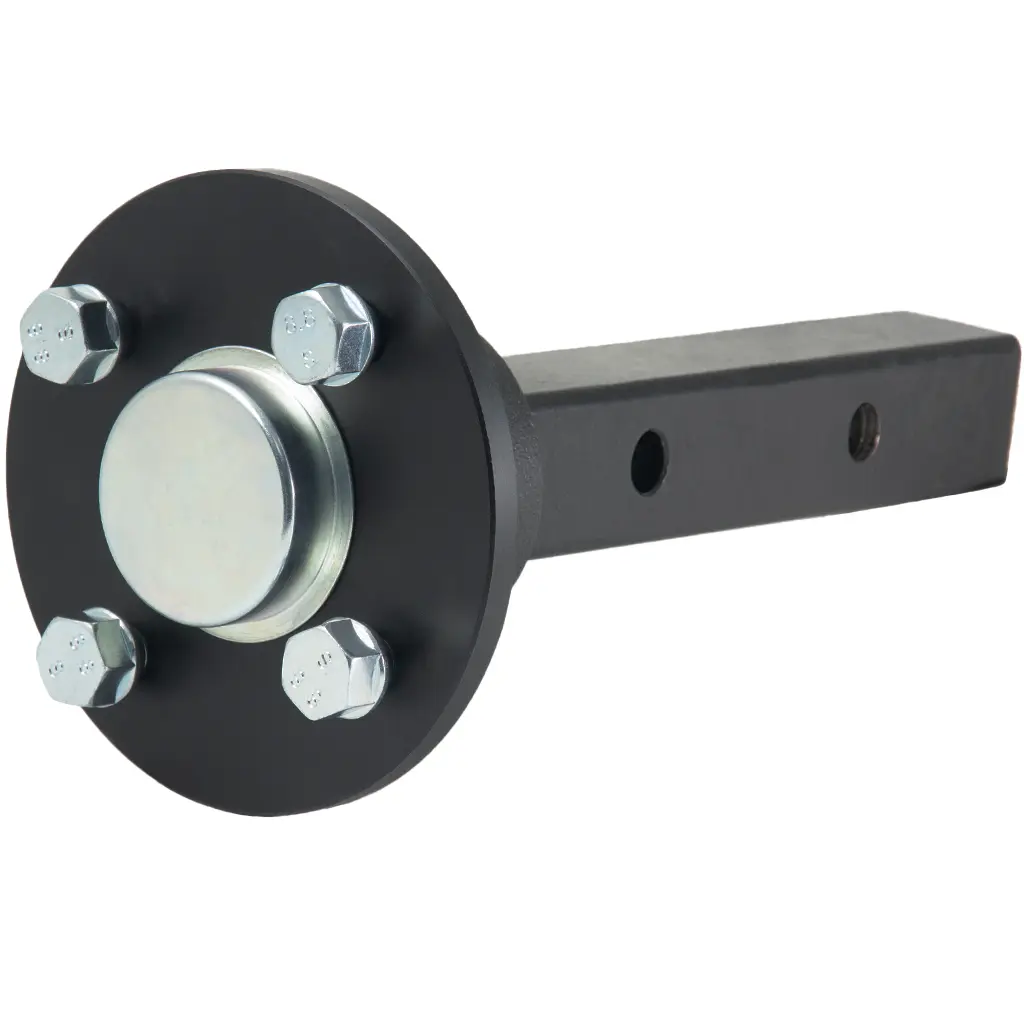

Hub & Stub Specification:
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.

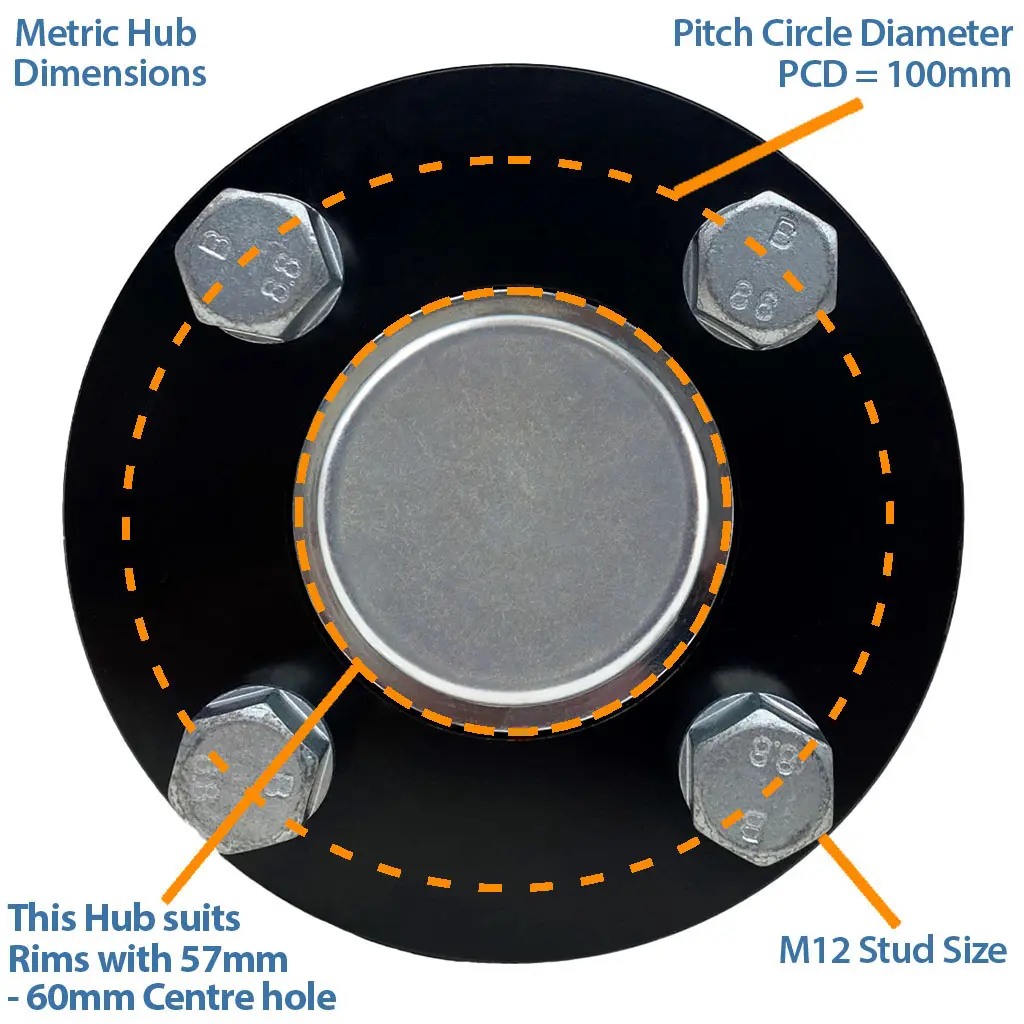

The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 40x40mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
The stub bar has two pre-drilled mounting holes.
Weight capacity is 900kg per pair.

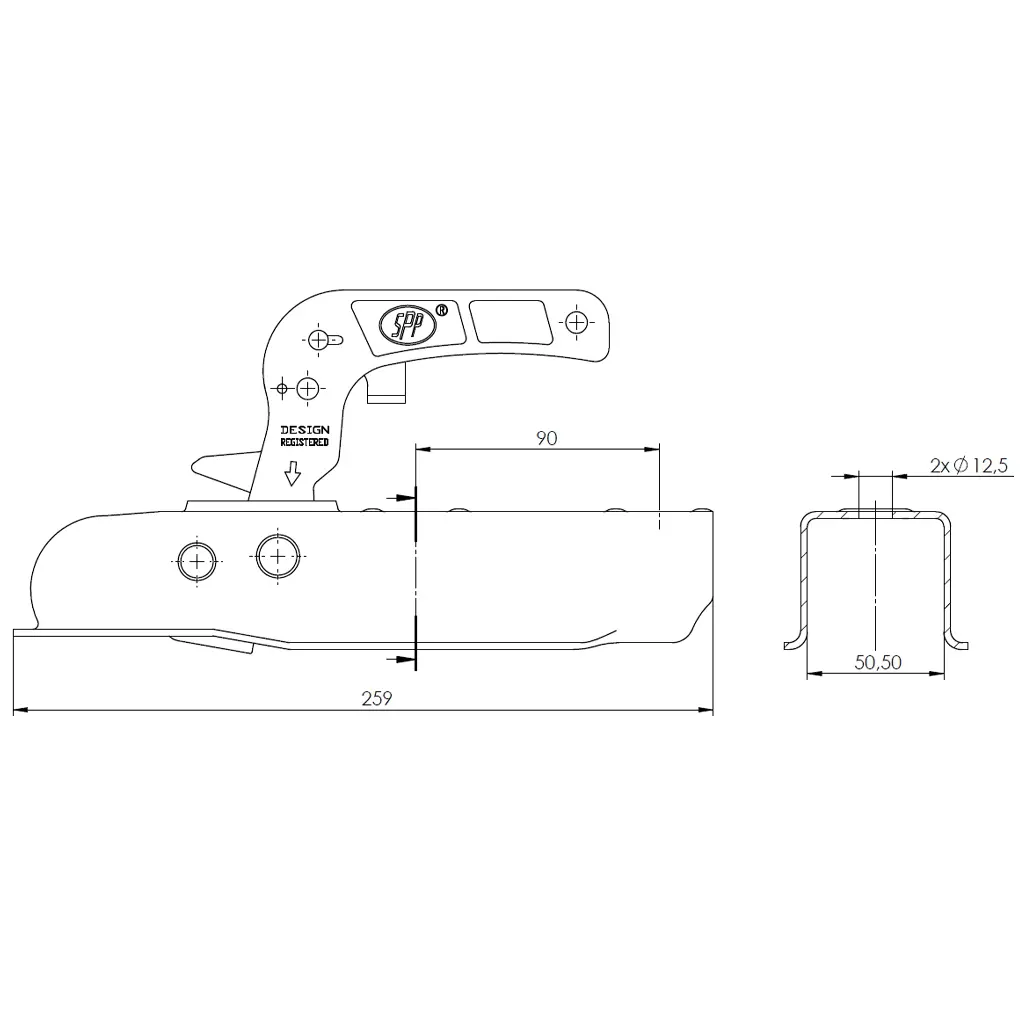

Hitch Specifications:
1300kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
This kit is for off road use only.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 900kgs.
| Part Number | KIT1039 |
| Tyre Size | 22x11.00-8 |
| Ply | 4 |
| Tube Tyre (TT/TL) | TL |
| Pattern | P512 |
| Tread Depth (mm) | 6 |
| Section Width (mm) | 285 |
| OD (mm) | 559 |
| PSI | 22 |
| Stud / PCD | 4x100mm |
| Rim Colour | Silver |
| Hitch (1 piece) | TR1002 1300kg pressed steel hitch |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
| E-Mark | No |
| Max Load (Kg) (25-90km/h) | 900 |
