18x9.50-8 Grass care trailer kit, 35mmx35mm SPP axles, Pressed steel hitch 750kgs

https://www.parnells.eu/web/image/product.template/91494/image_1920?unique=42f547d

Part number: KIT1041
Tyre Size: 18x9.50-8
Stub Axle: 35x35mm square, 200mm long
Load Capacity: 750kgs

390.19 € 390.19 EUR 390.19 €

453.18 €

Login for trade prices

Not Available For Sale


  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • Rim Width (in)
  • SW (mm)
  • OD (mm)
  • PSI
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)
  • Hitch (1pcs)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

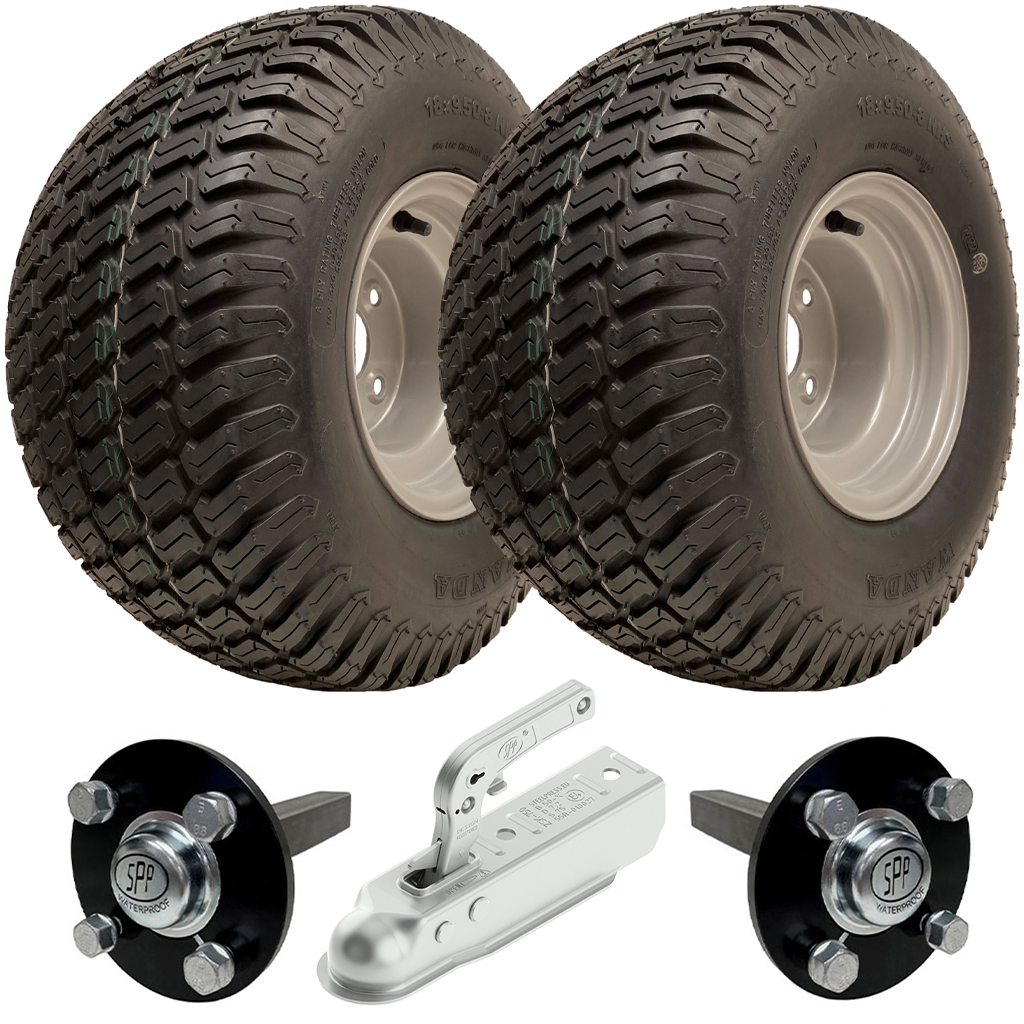

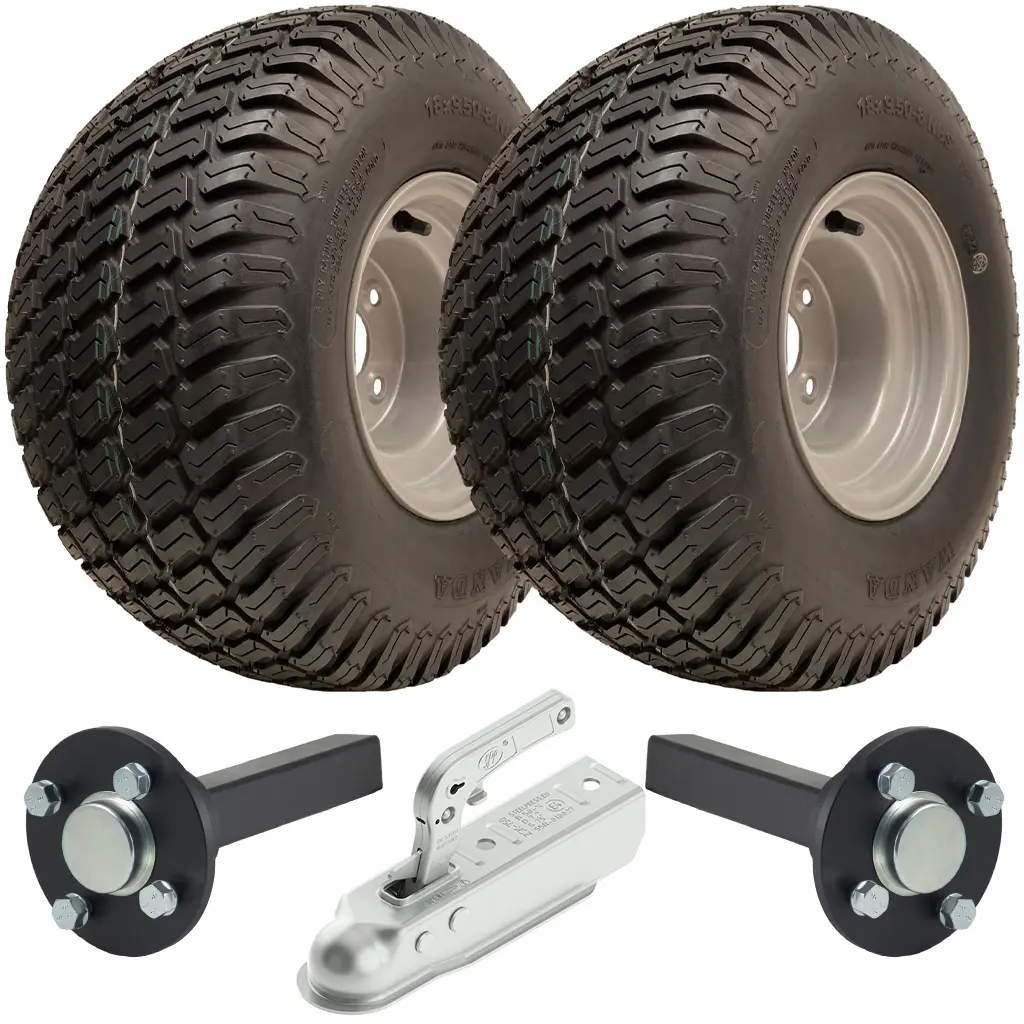

ATV Trailer Kit, 18x9.50-8 6pr P332 Grass tyre, Hub/stub axle 35x35mm, pressed hitch, 750kg load capacity

ATV Grass trailer kit 18x9.50-8.


This kit contains:

2 - 18x9.50-8 wheels

2 - 35mm x 35mm hub and stub axles.

&

1 - Pressed Steel tow hitch.


Wheel Specification:

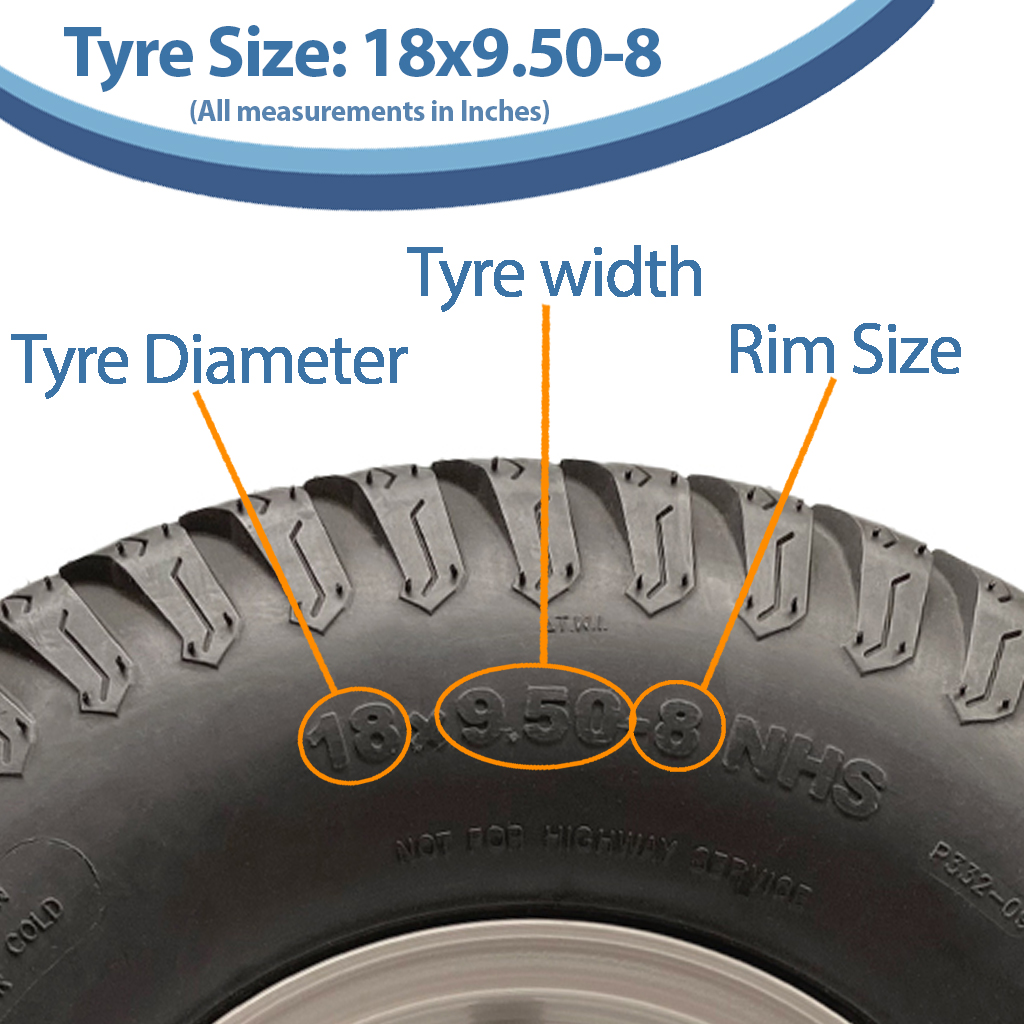

Size:18x9.50-8,

Brand: Wanda,

Tyre pattern: P332,

Ply rating: 6ply,

Load capacity: 595kgs at 36PSI,

Tyre height: 465mm,

Tyre width: 223mm,

Tread Depth: 5mm,


Solid steel heavy duty rims.

100mm PCD stud spacing.

60mm centre hole diameter.

13.5mm stud hole diameter.


Hub & Stub Specification:

These are genuine 'Steelpress Production' parts, manufactured in the EU.

High Speed road legal axles, rated up to 80mp/h (130km/h).

They have sealed precision ball bearings, they never need to be greased.

The hub has 4 x M12 studs, the PCD is 100mm.

The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.

Weight capacity is 750kg per pair.


Hitch Specifications:

750kg pressed steel hitch, high quality zinc plated finish.

Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.

(bolts & lock nuts are provided with this kit).

These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).

These hitches may be coupled only with class A ball hitch couplings (Ø50).

The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.

SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.


This kit is for off road use only.

The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .

The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.


Maximum kit weight capacity 750kgs.

Part Number KIT1041
Rim Colour Silver
Tyre Size 18x9.50-8
Ply 6
TT/TL TL
Pattern P332
Tread Depth (mm) 5.0
Rim Width (in) 7.0
SW (mm) 223
OD (mm) 465
PSI 36
Stud / PCD 4x100mm
E-Mark No
Max Load (Kg) 750
Hub & Stub Axle (2pcs) (31628, '[HU1002] Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed')
Hitch (1pcs) SPP 750kg Pressed Hitch
