18x9.50-8 Twin Axle Knobby ATV trailer Kit with swivel hitch

https://www.parnells.eu/web/image/product.template/92990/image_1920?unique=bc969d8

Part Number: KIT1049
Wheel Size: 18x9.50-8
Axle: 35x35 solid steel, 200mm long
Load Capacity: 408kgs

793.57 € 793.57 EUR 793.57 €

921.68 €

Login for trade prices

Not Available For Sale


  • Brand
  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hitch (1pcs)
  • Hub & Stub Axle (4pcs)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

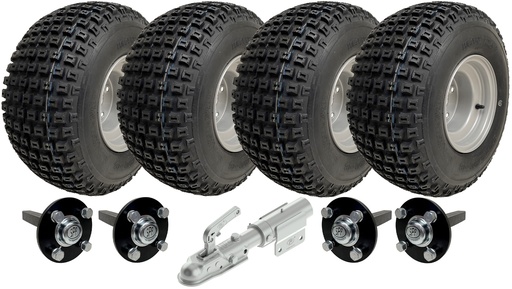

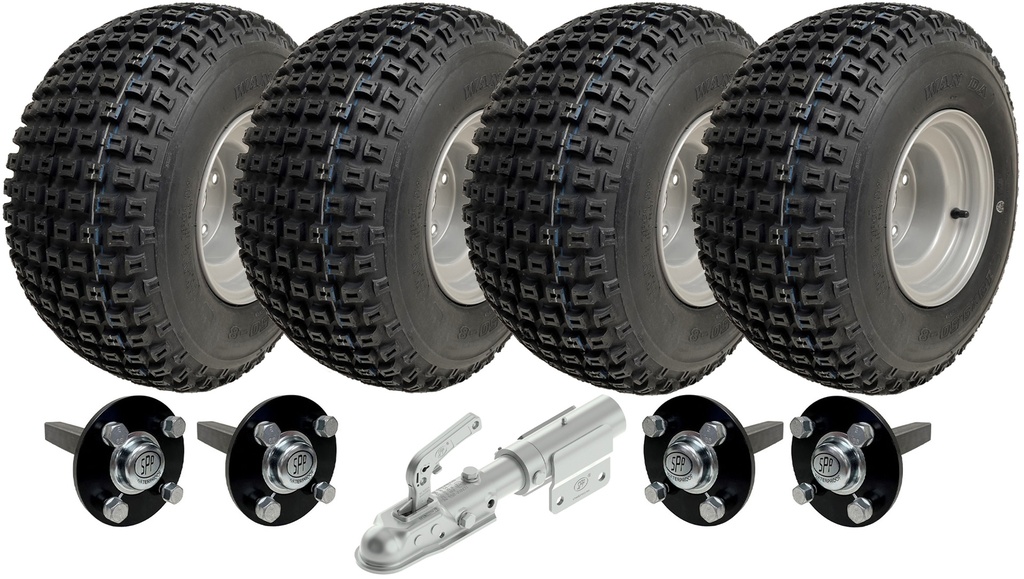

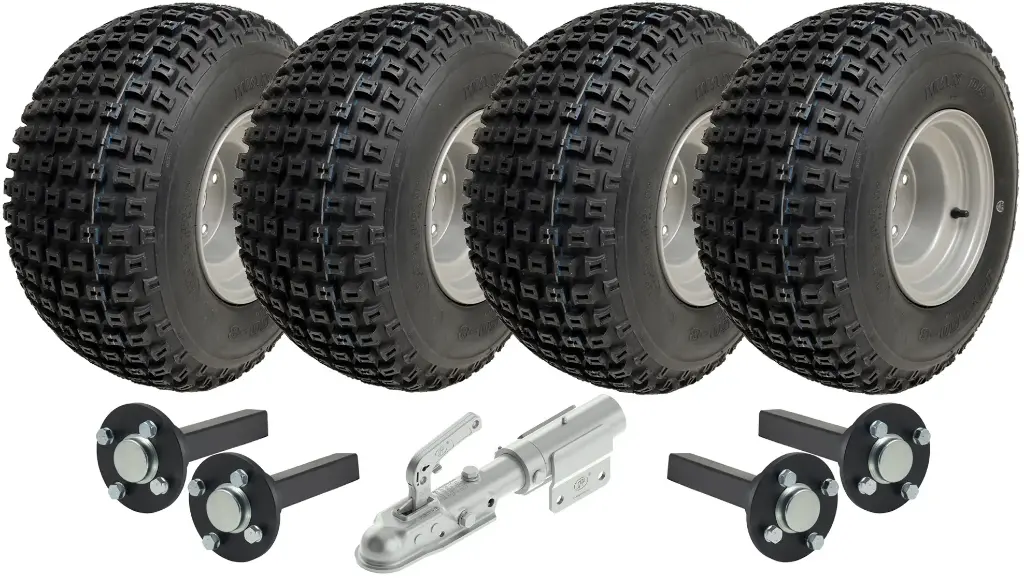

Set of 4 - 18x9.50-8 4ply P322 KNOBBY WHEEL 4/100 & Hub & Stub axle 4/100 M12 wheel bolt  35x35mm & swivel hitch

Contents of this kit include:

4 x Wheels,

4 x Hub & Stub axles,

1 x 360 degree swivel tow hitch.

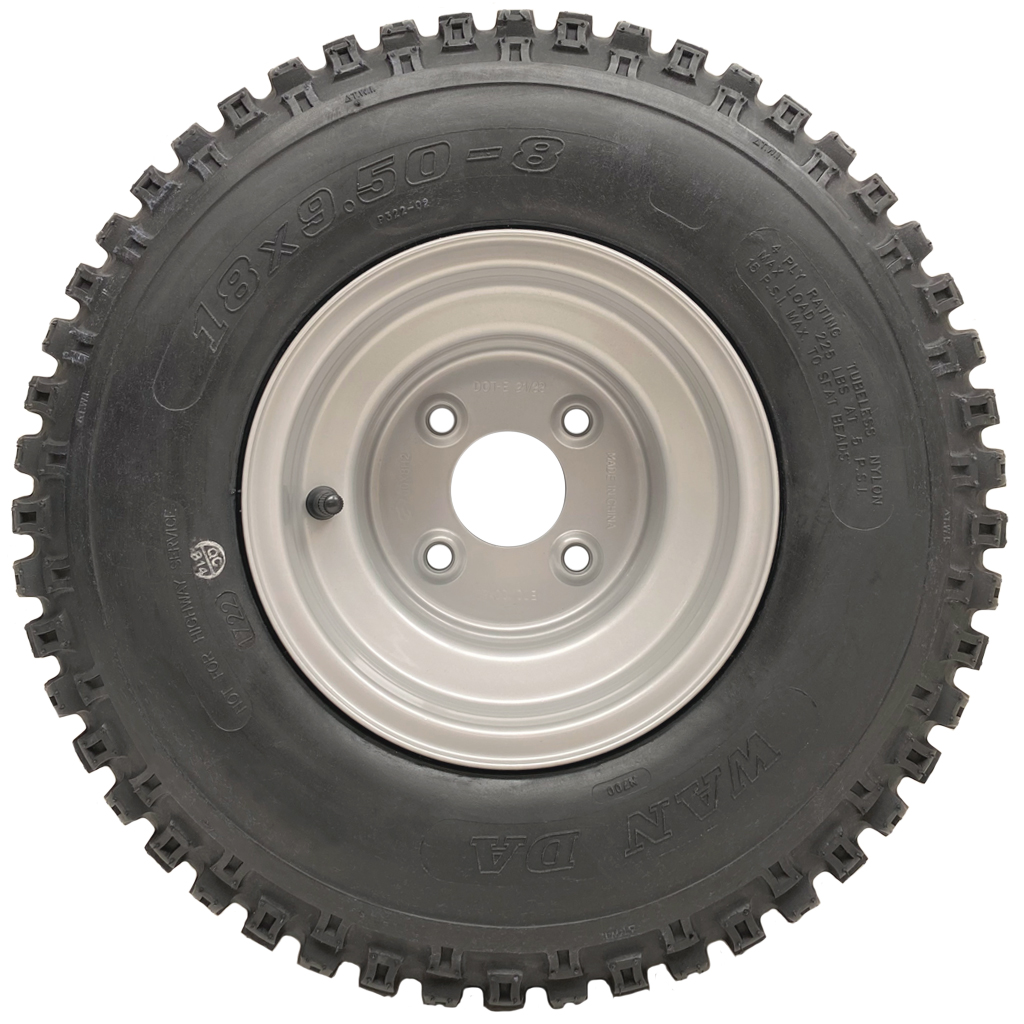

Item specifications: Wheels:

18x9.50-8 4ply Wanda P322 knobby tyres on steel rim 4x100mm PCD.

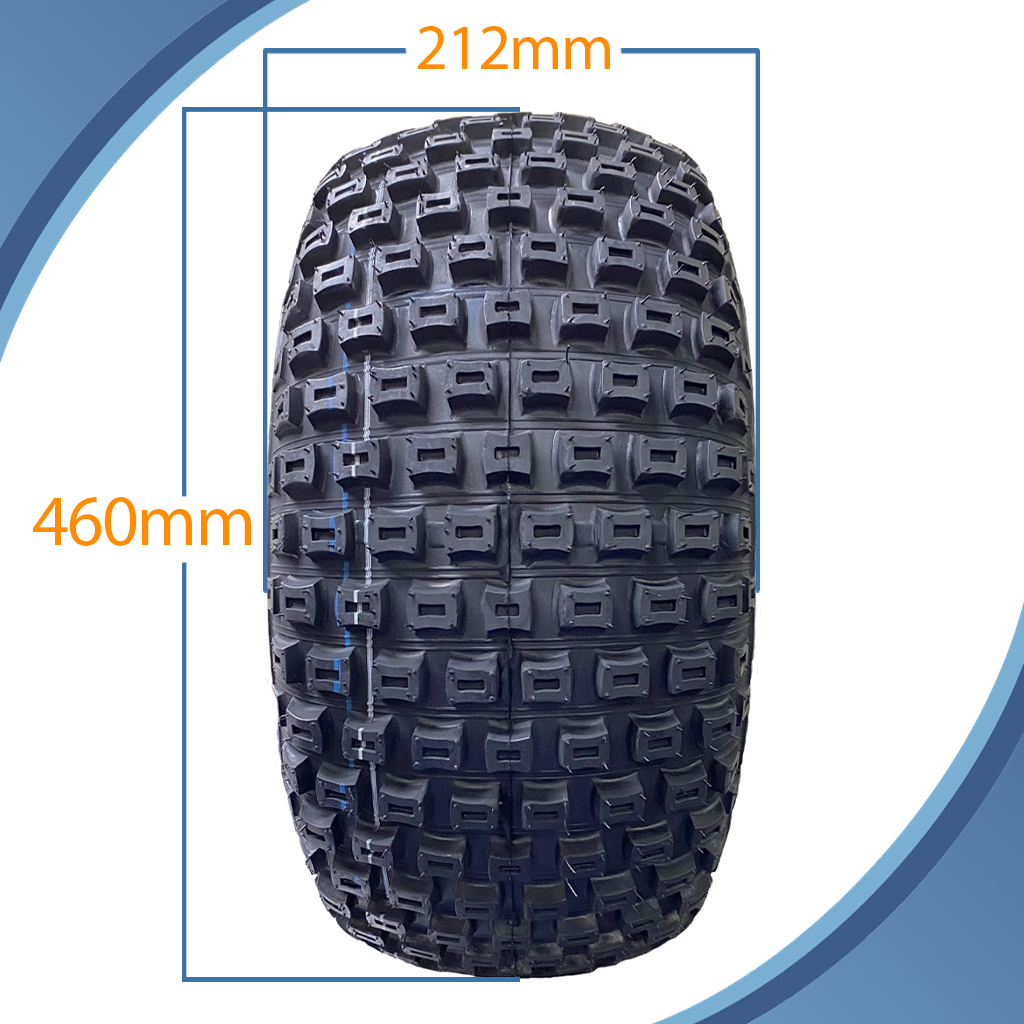

Overall diameter: 460mm,

Max width of tyre: 212mm,

Tread depth: 9.5mm,

Inflation: 5psi,

Max load per wheel: 102kg (225 lbs),

Wheel rims are heavy duty welded rims, powder coat paint with

E-coating anti-corrosion treatment for superior finish.

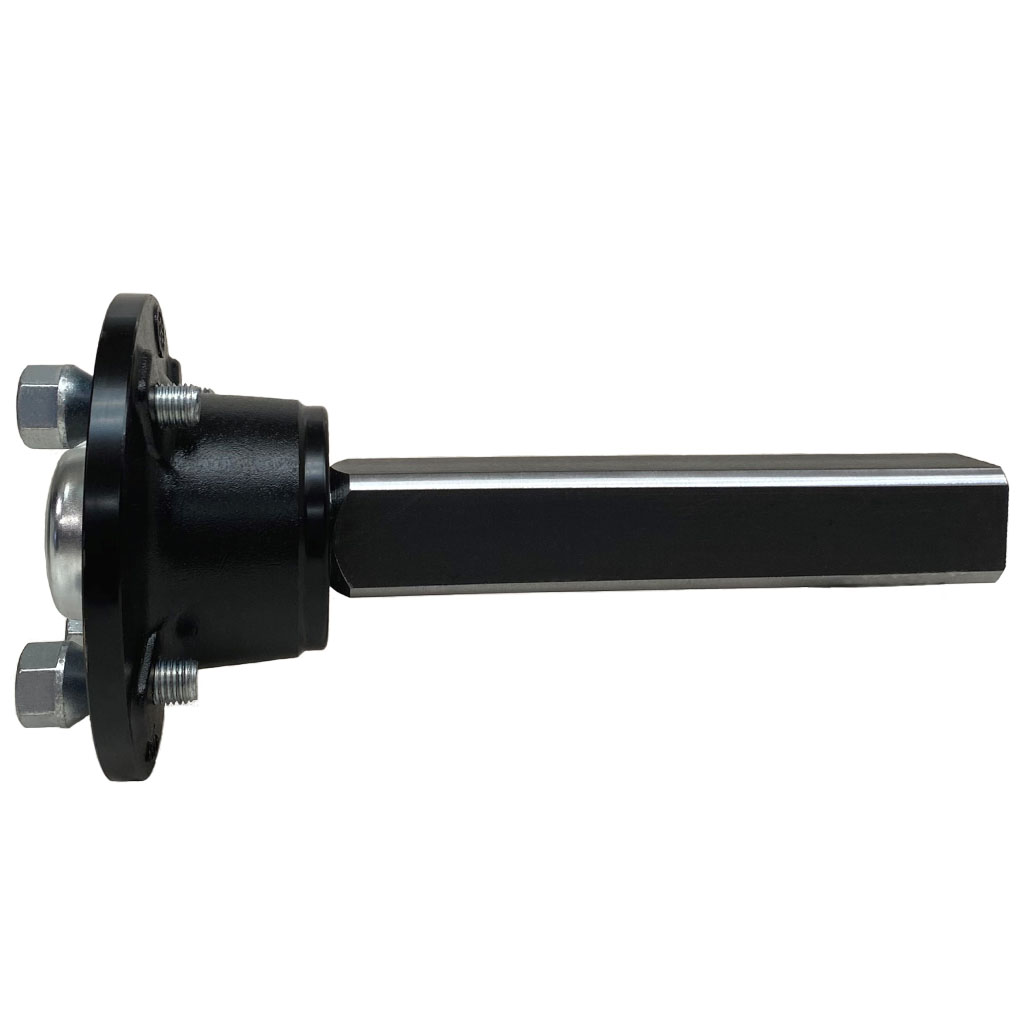

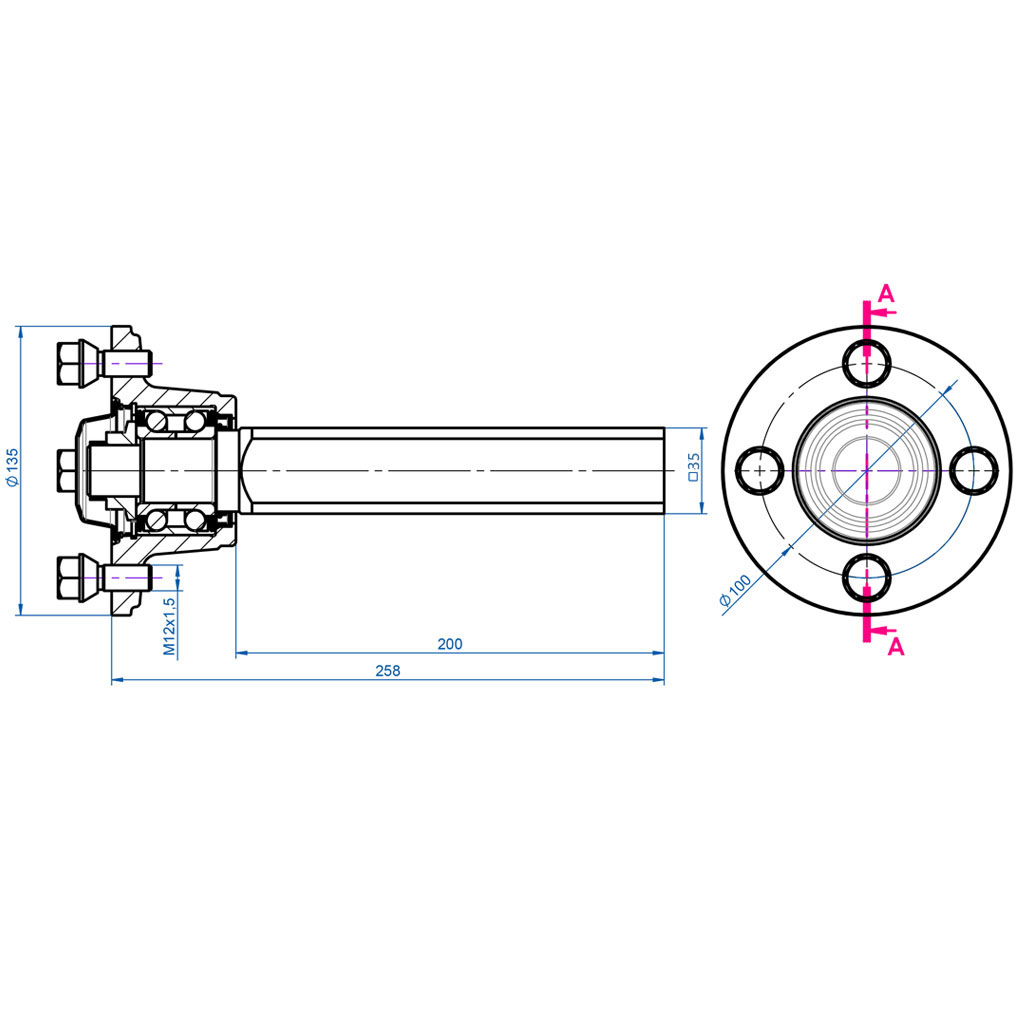

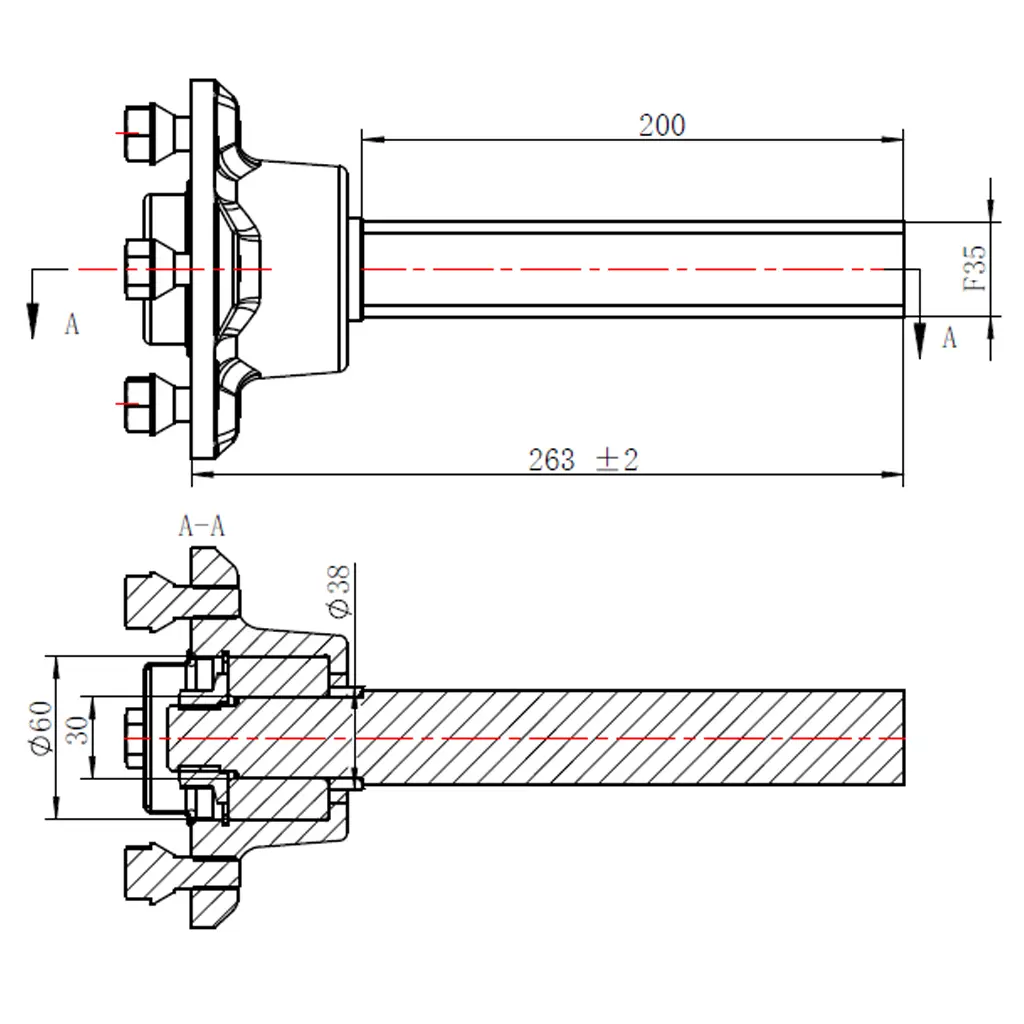

Item specifications: Stub axles:

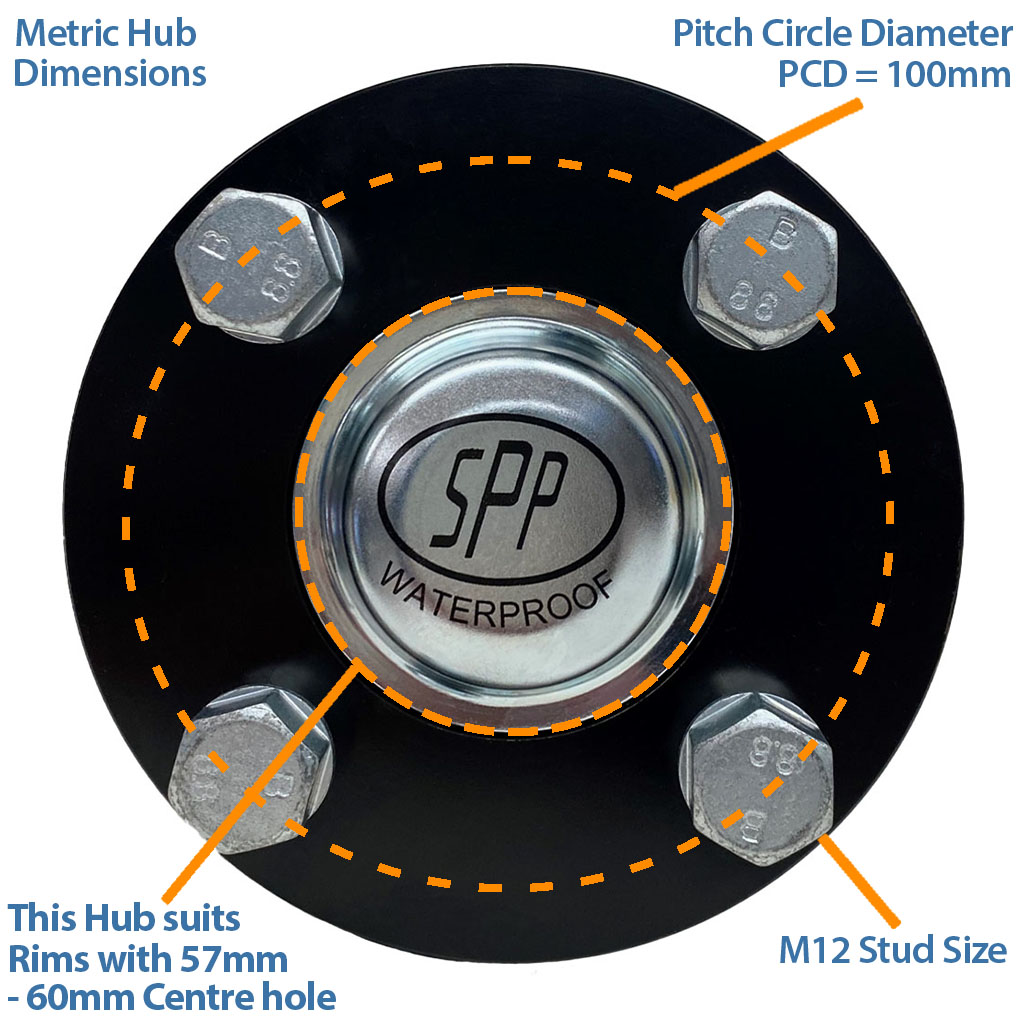

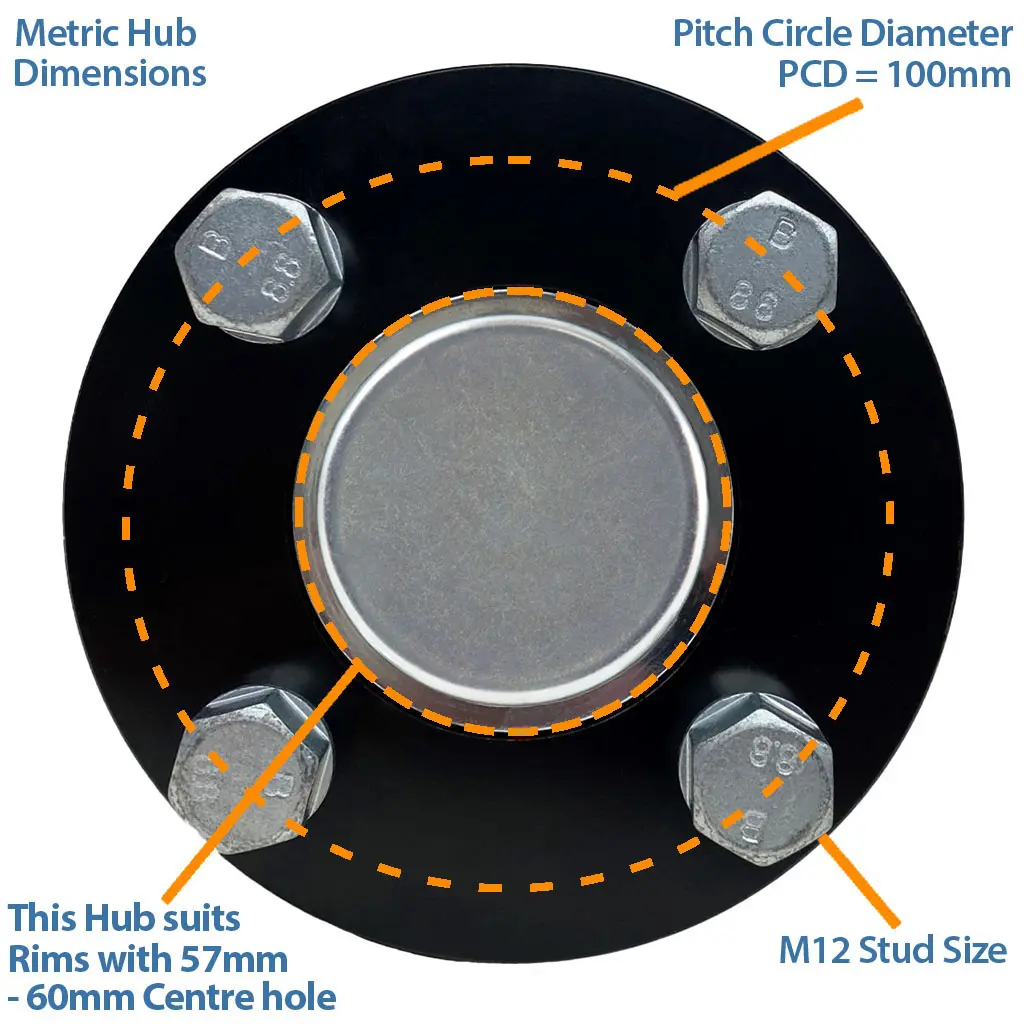

•Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts.

PCD is 100mm,

Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long.

The hubs are waterproof.

The shaft is 35x35mm x 200mm long, solid steel.

Manufactured by SPP (Steelpress, Poland).

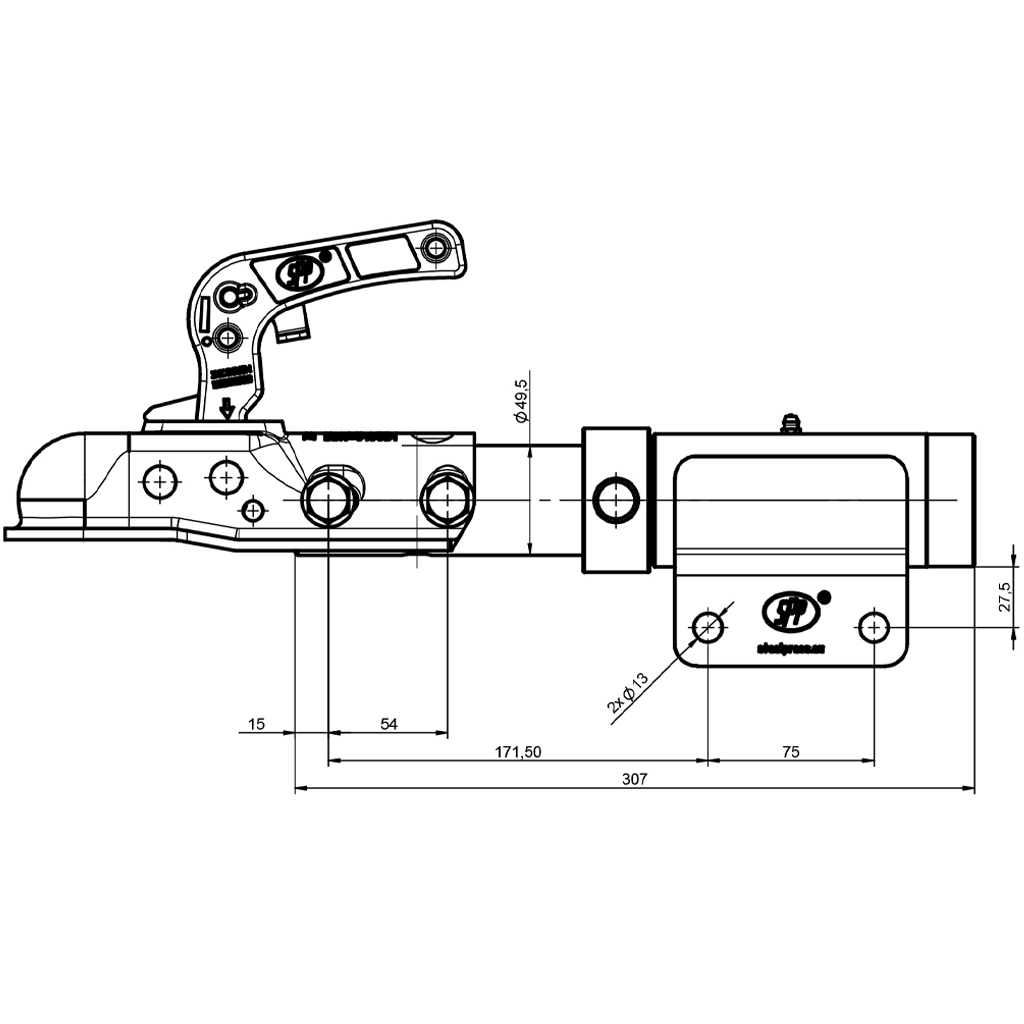

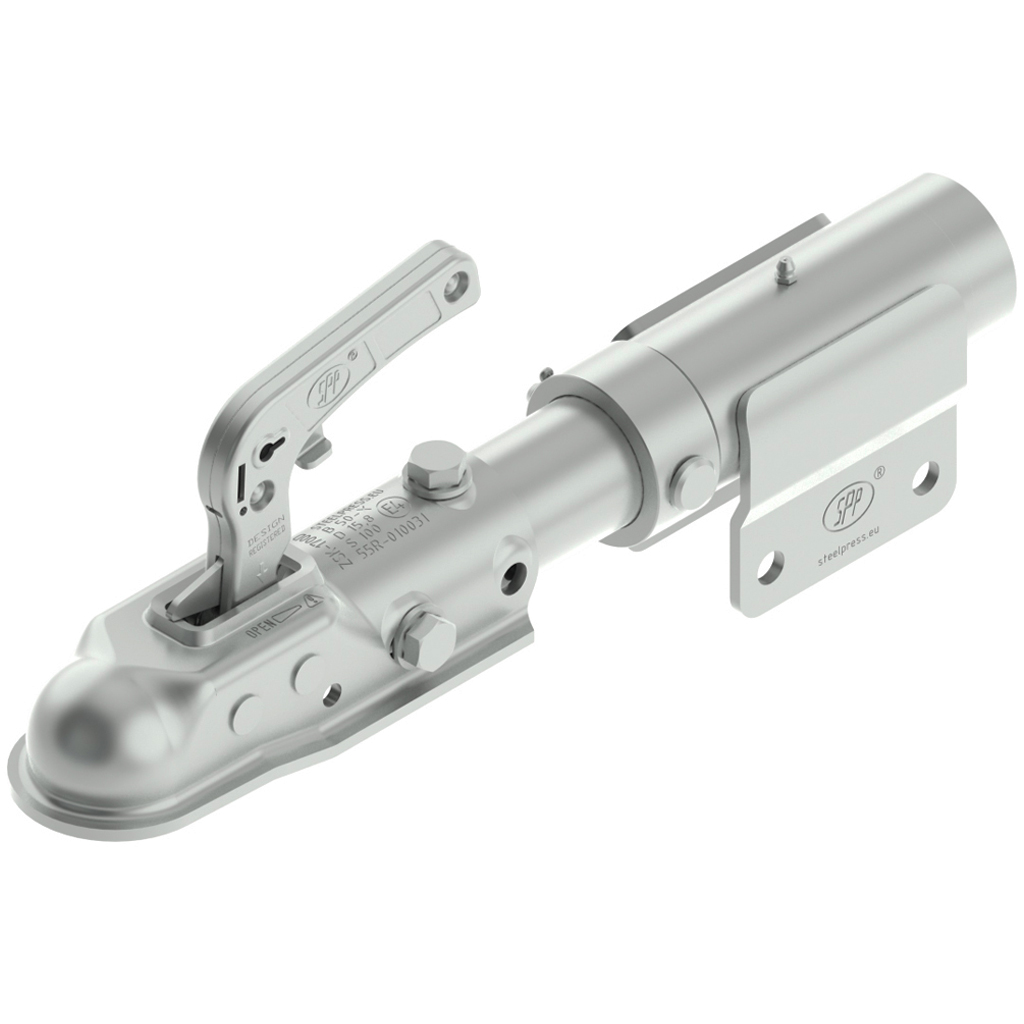

Item specifications: Tow Hitch:

Heavy duty steel towing hitch with 360 Degree rotation.

This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart).

The bolt holes are from an M12 bolt.

Overall length is 440mm.

Max load is 1700kg

This is for use on ATV trailers & equipment Off Road use only.

It is produced in the EU.

Safety feature for off road towing.

If your trailer turns over the swivel hitch rotates and your vehicle towing is not flipped with it.


Maximum Kit weight capacity 408kgs.

Part Number KIT1049
Brand Parnells
Rim Colour Silver

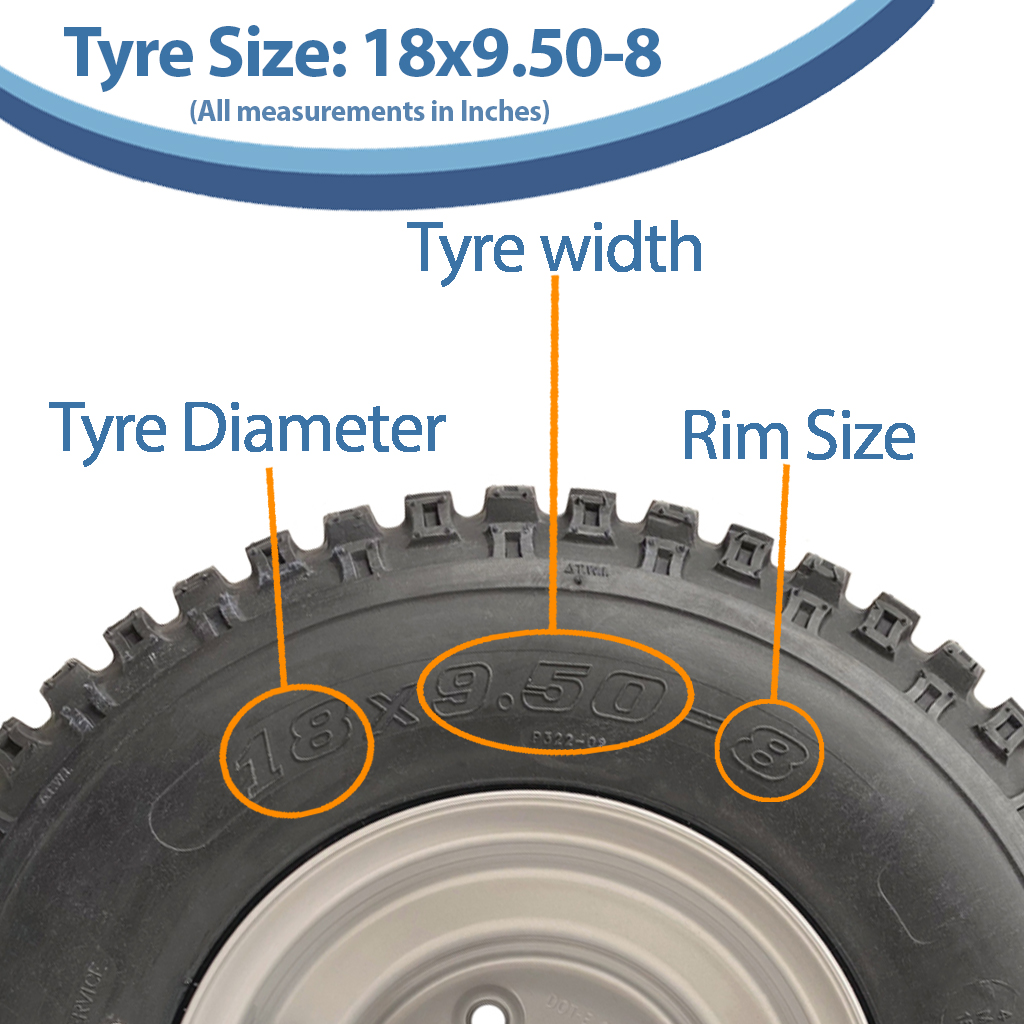

Tyre Size 18x9.50-8
Ply 4
TT/TL TL
Pattern P322
Tread Depth (mm) 9.5
SW (mm) 212
OD (mm) 460
PSI 5
Stud / PCD 4x100mm
E-Mark No
Max Load (Kg) 408
Hitch (1pcs) swivel hitch
Hub & Stub Axle (4pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
