18x9.50-8 Wanda P328 ATV trailer kit

(0 review)

Part Number: KIT1054
Wheel Size: 18x9.50-8
Axle Size: 35mm Square, 200mm Long
Load Capacity: 750kgs

380.70 € 380.7 EUR 380.70 €

442.16 €

Login for trade prices

Not Available For Sale

  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • Rim Width (in)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)

This combination does not exist.

Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

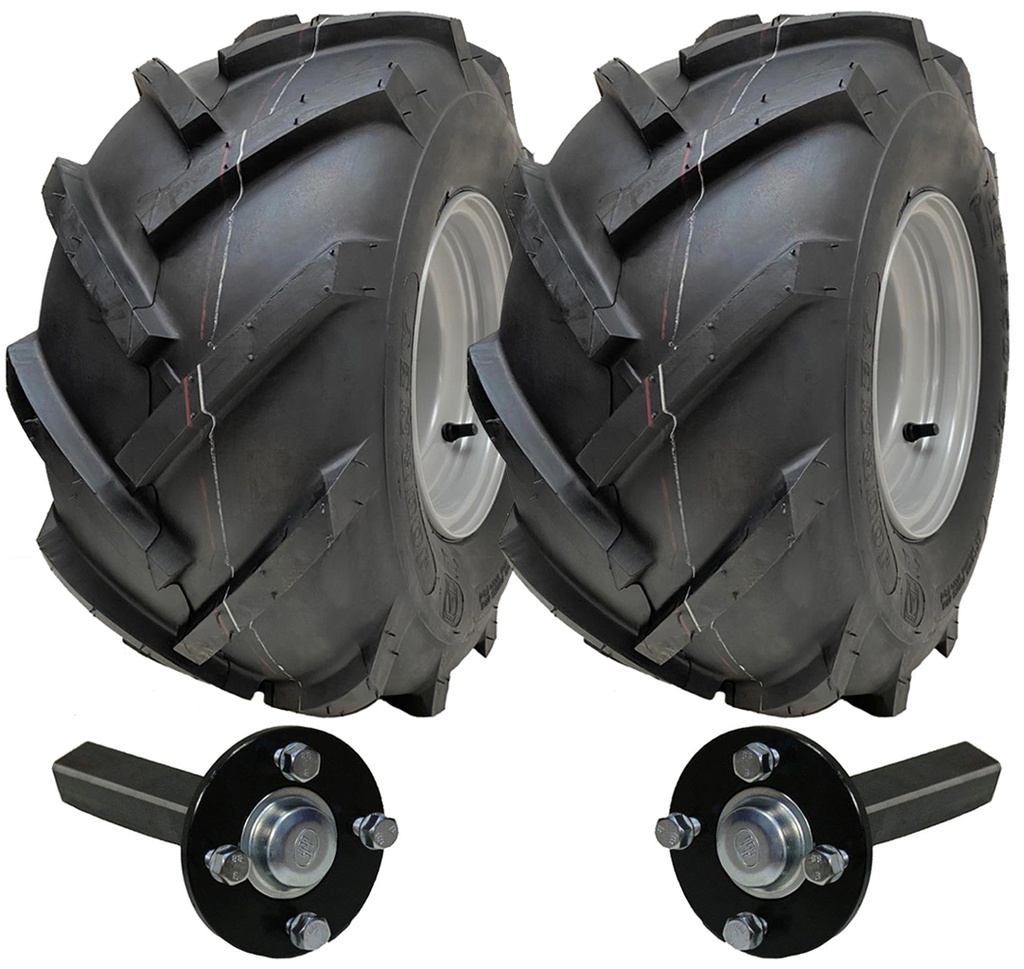

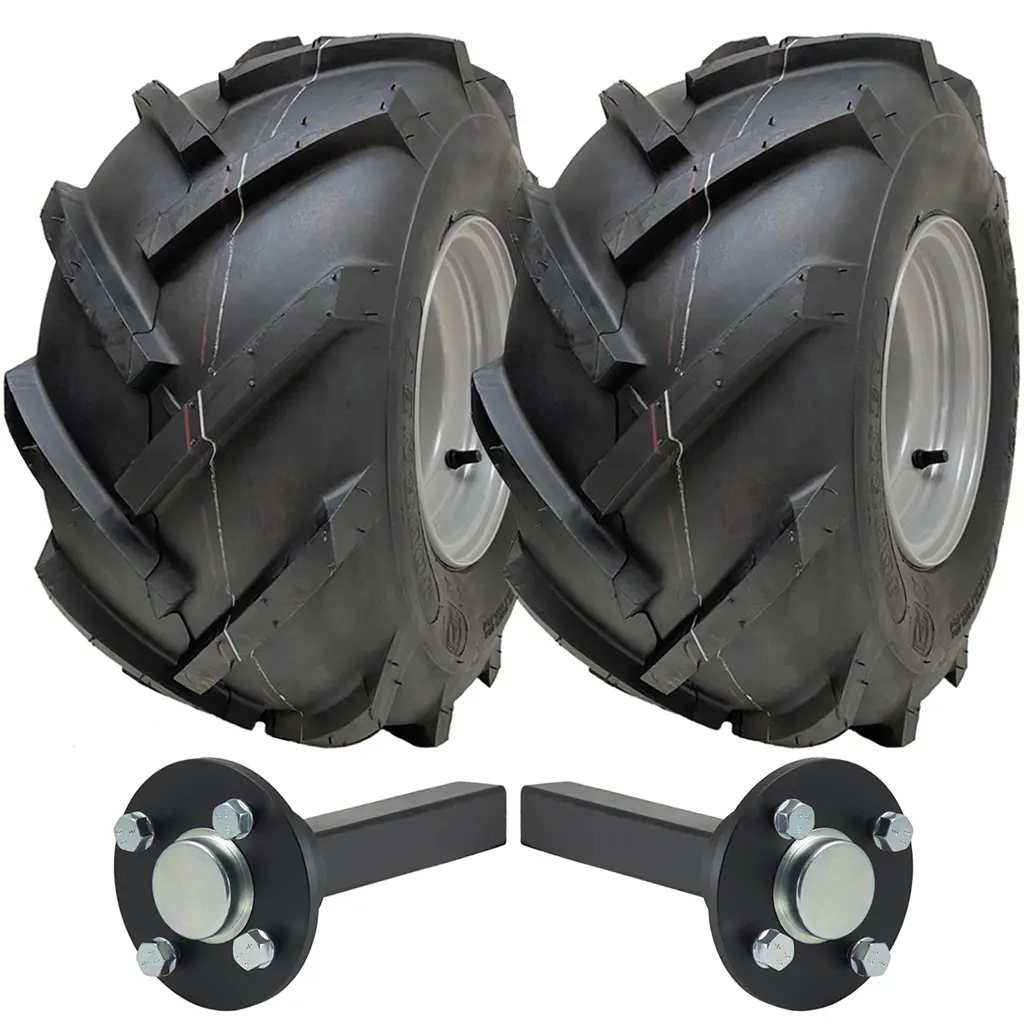

Trailer kit - 2 wheel - 18x9.50-8 Open Centre tyre 4/100mm, Hub/stub axle 35x35mm - no coupling

Contents of this kit include:

2 x Wheels, 18x9.50-8.

2 x Stub axles, 35x35x200mm solid stub.

E-Marked road legal for low speed use in Europe and the UK up to 20km/h.

Tyre Specifications:

Overall diameter: 455mm,

Max section width: 222mm,

Max load: 1047lbs (475kg),

Tread depth: 16mm,

Brand: Wanda,

Tyre Pattern: P328,

Ply Rating: 4 Ply,

PSI Rating: 24 PSI,

E-Marked: E4-106R-004646,

Speed Rating: A4 - 20km/h.

Rim Specifications:

Heavy duty welded rim.

Powder coated paint with E-coating anti-corrosion treatment for superior finish.

These are metric measurements rims.

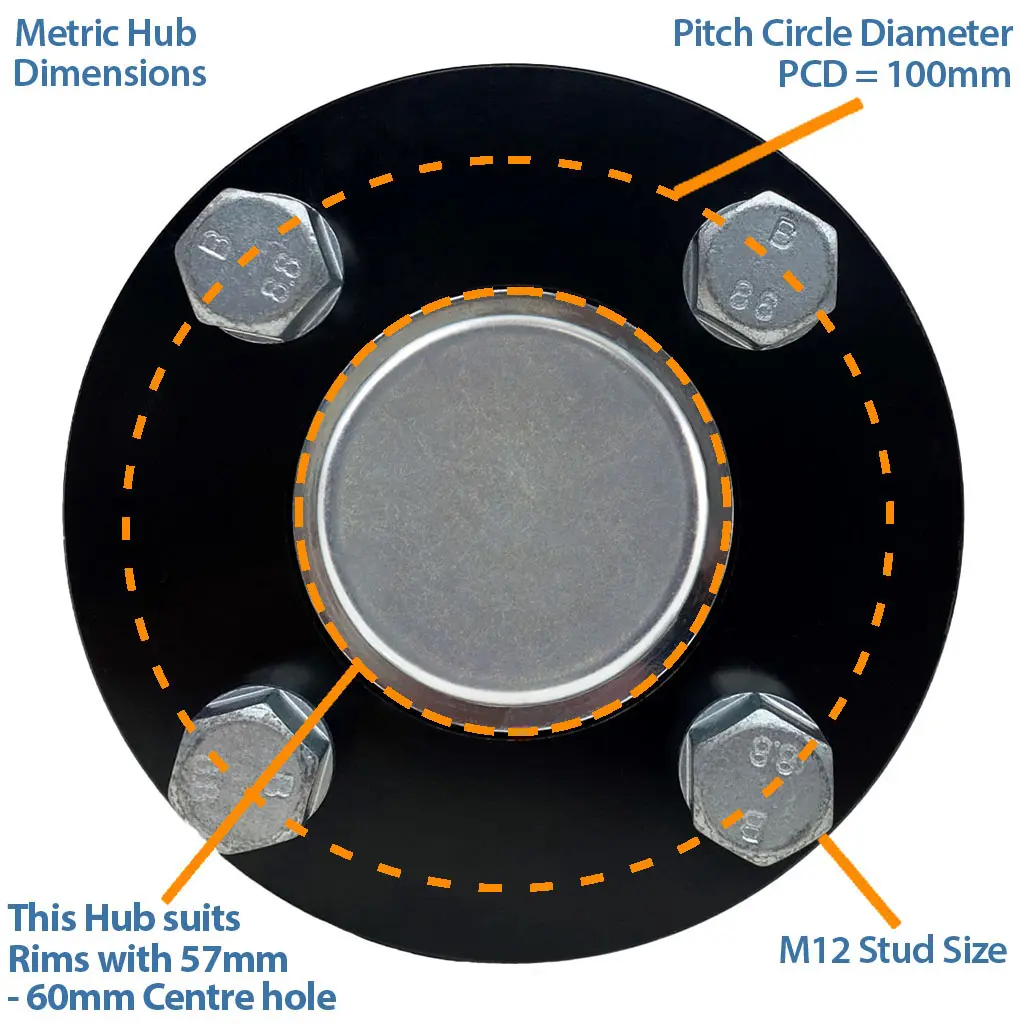

100mm Pitch Circle diameter (PCD).

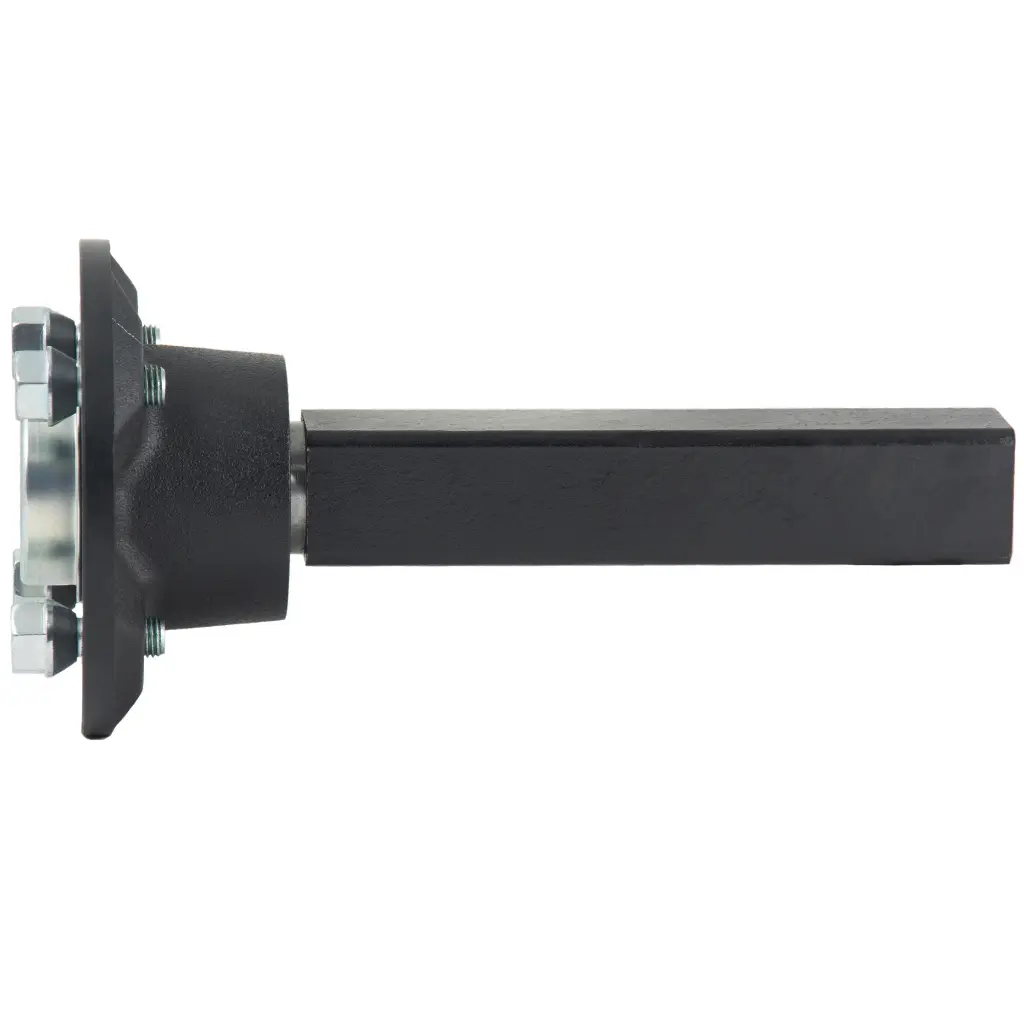

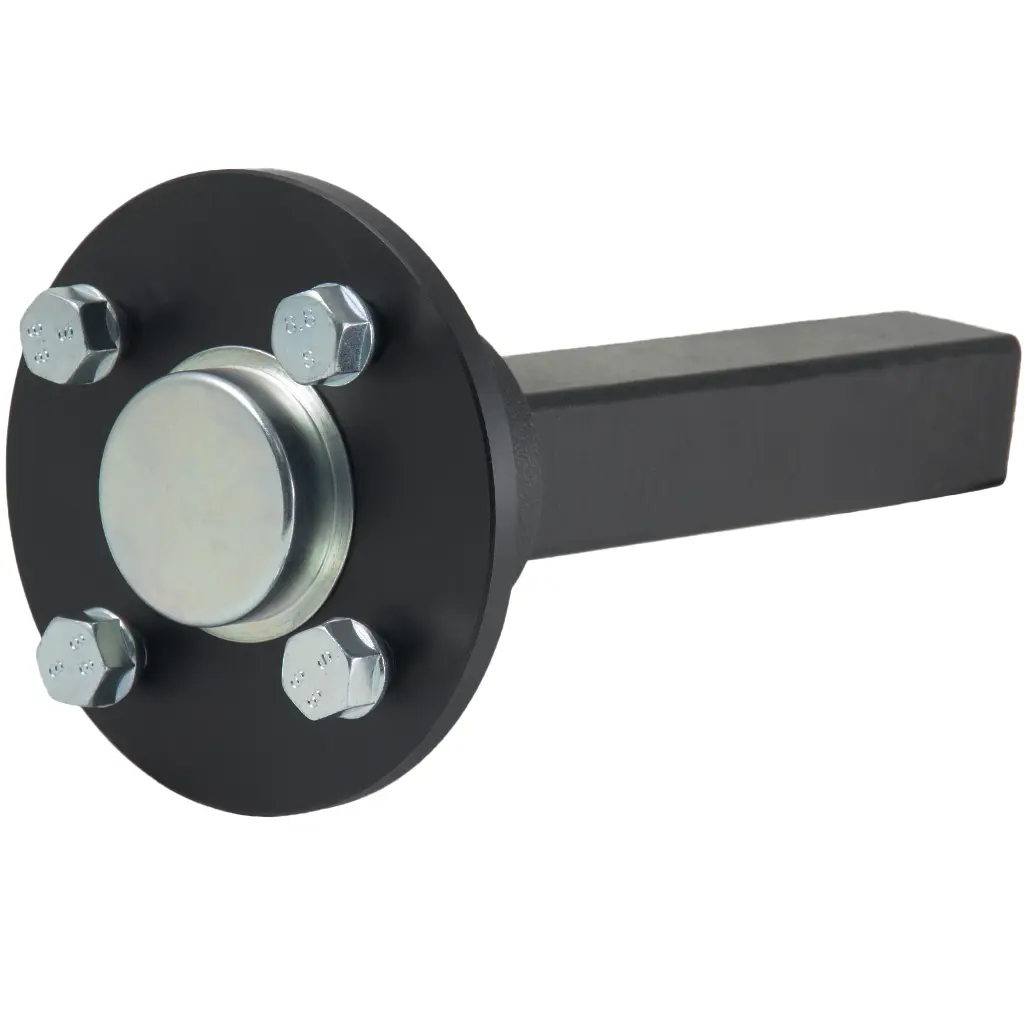

Item specifications: Stub axles.

• Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,

• PCD is 100mm,

• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

• The hubs are waterproof,

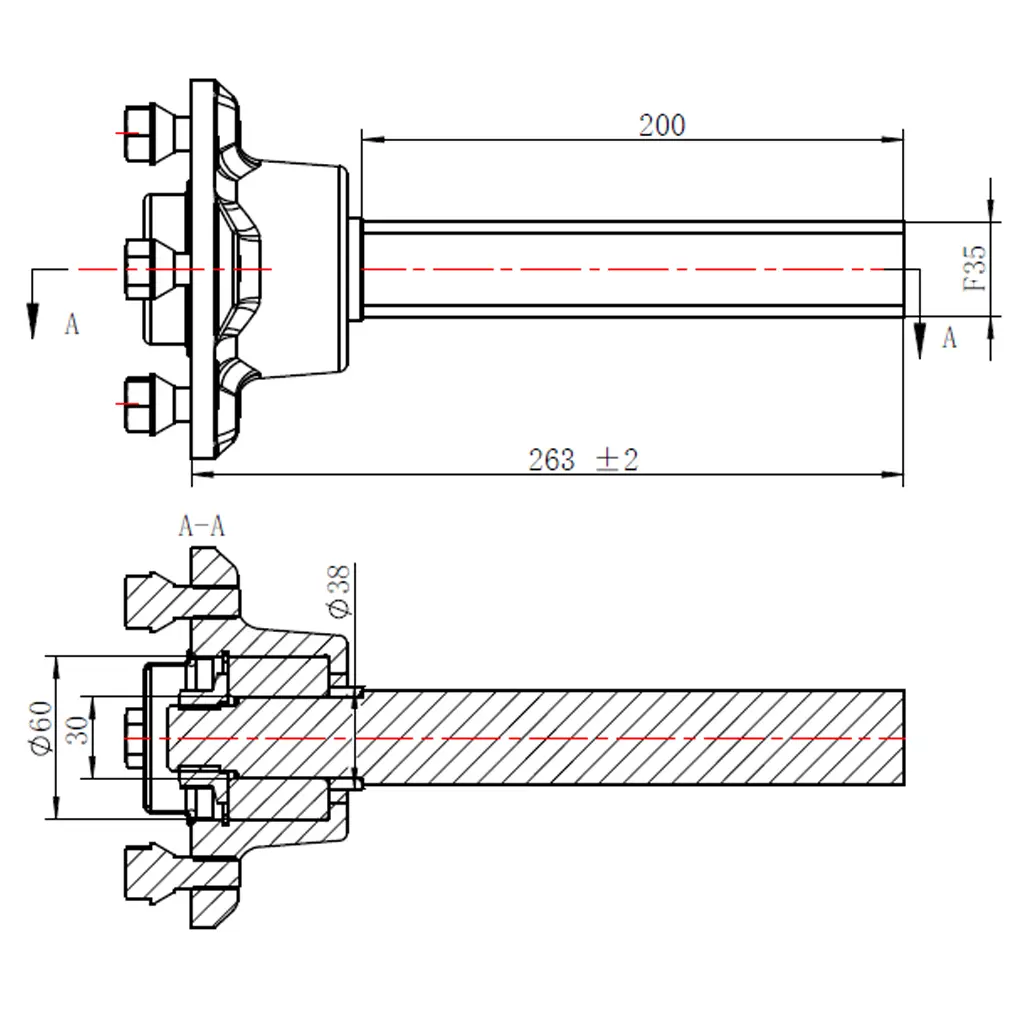

• The shaft is 35x35mm x 200mm long, solid steel,

• Manufactured by SPP (Steelpress, Poland).

Maximum Kit load capacity 750kgs.

Add to cart

Sign in


Get Delivered

Part Number KIT1054
Tyre Size 18x9.50-8
Ply 4
Pattern P328
Tread Depth (mm) 16.0
Rim Width (in) 7.0
SW (mm) 222
OD (mm) 455
PSI 24
Load/Speed Index 82/A4
Stud / PCD 4x100mm
E-Mark E4-106R-004646
Max Load (Kg) 475
Hub & Stub Axle (2pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
