22x11.00-8 Knobby ATV Quad trailer kit 310kg capacity, wheels, ALKO Axles & cast hitch

https://www.parnells.eu/web/image/product.template/94261/image_1920?unique=5256033

Part Number: KIT1067
Tyre Size: 22x11.00-8
Stub Axles: 35x35 steel 200mm long
Load Capacity: 310kgs

377.63 € 377.63 EUR 377.63 €

438.60 €

Login for trade prices

Not Available For Sale


  • Brand
  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • E-Mark
  • Hub & Stub Axle (2pcs)
  • Hitch (1pcs)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
ATV Trailer Kit, 22x11.00-8 4pr P323 Knobby tyre, Hub/stub axle 35x35mm (Alko), Cast hitch, 310kg load capacity

ATV trailer kit.

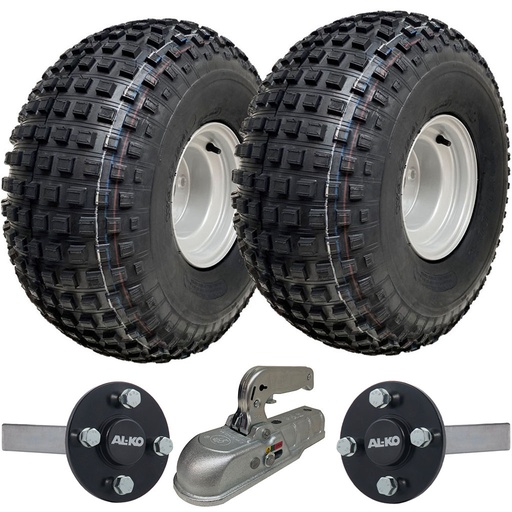

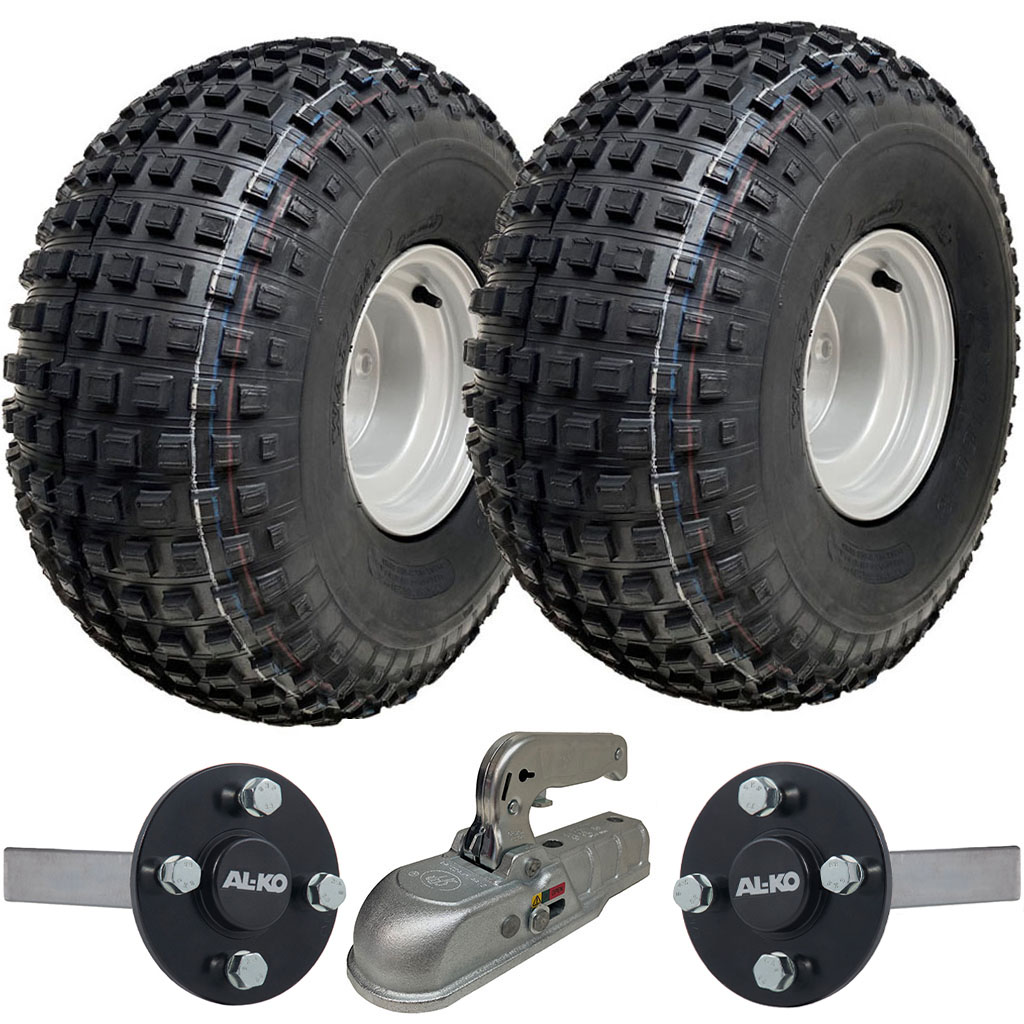

Contents of this kit include:

2 x Wheels, 22x11.00-8.

2 x ALKO Stub axles, 35x35x200mm solid stub.

1 x cast steel hitch for 50x50mm box section.

Road Legal for Europe and the UK.

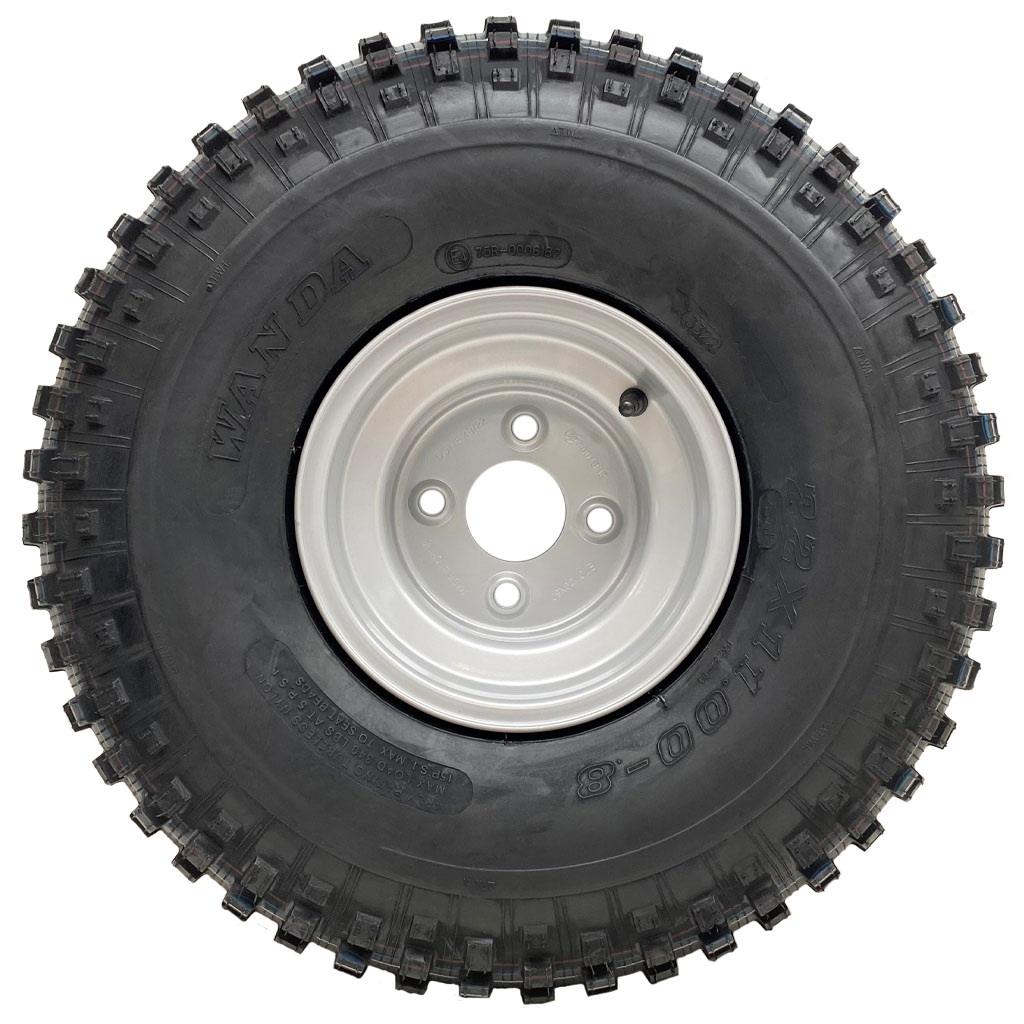

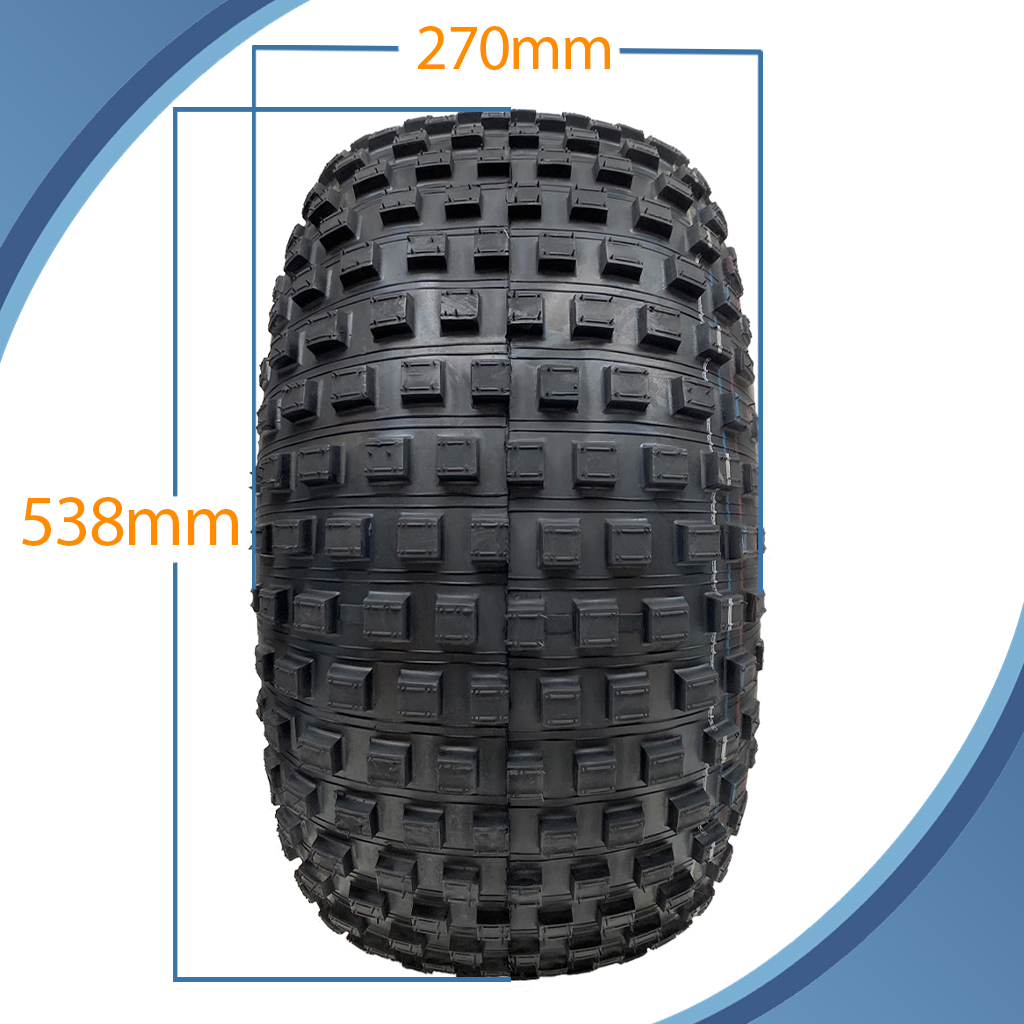

Tyre Specification:

Overall diameter: 538mm,

Max section width: 270mm,

Max load: 342lbs (155kg),

PSI: 5,

Ply Rating: 4ply,

Brand: Wanda,

Tyre Pattern: P323,

Max speed: 100km/h (62mph),

Load & Speed rating: 43J,

E-Marked Road Legal Number: E4-75R-0006182.


Rim Specification:

Solid steel welded heavy duty rims,

100mm PCD stud spacing,

60mm centre hole diameter,

13.5mm stud hole diameter.

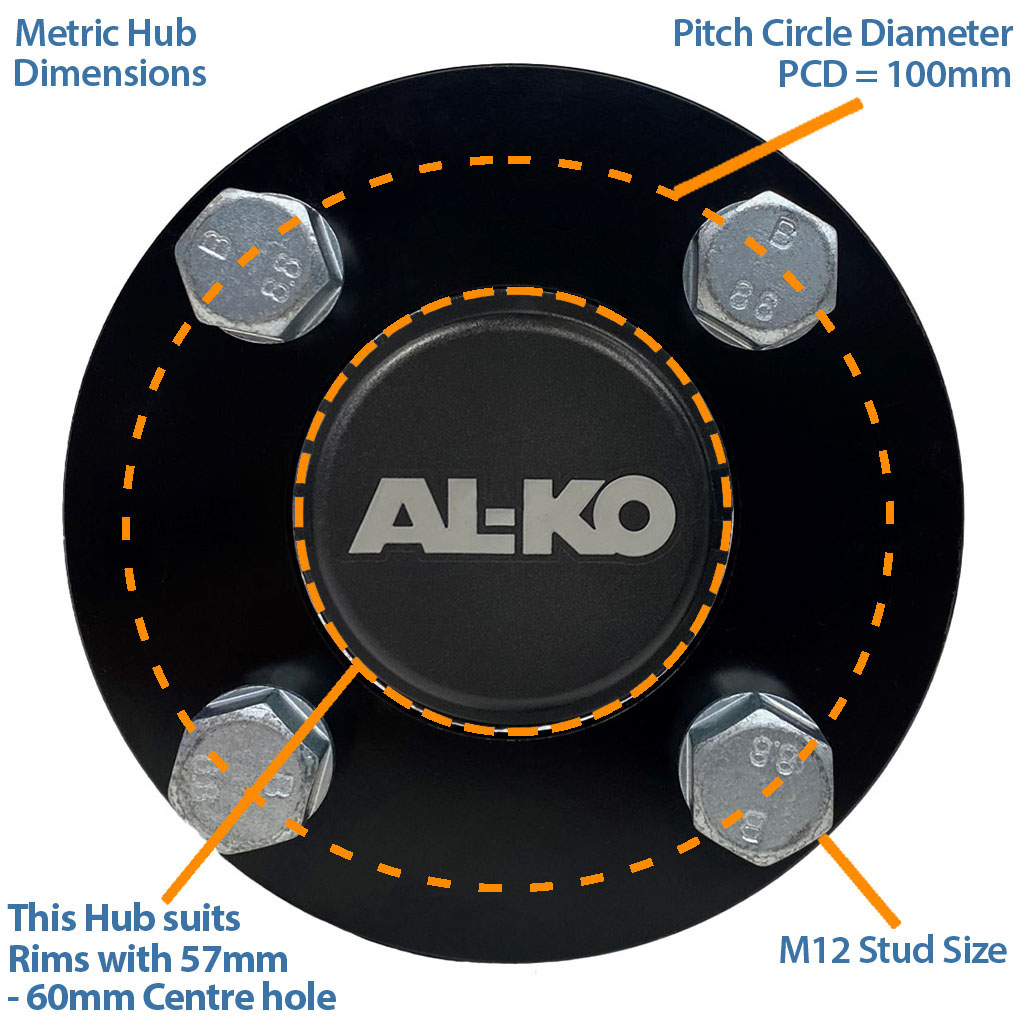

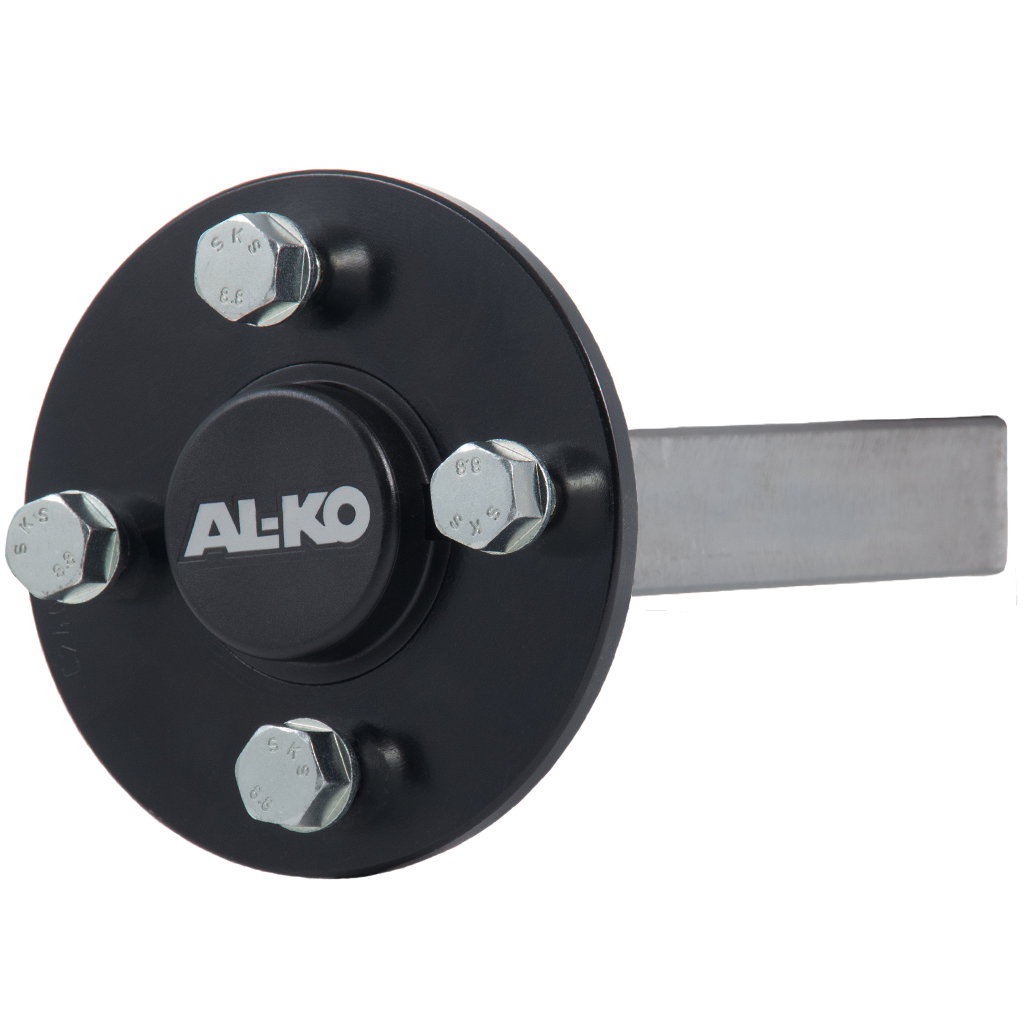

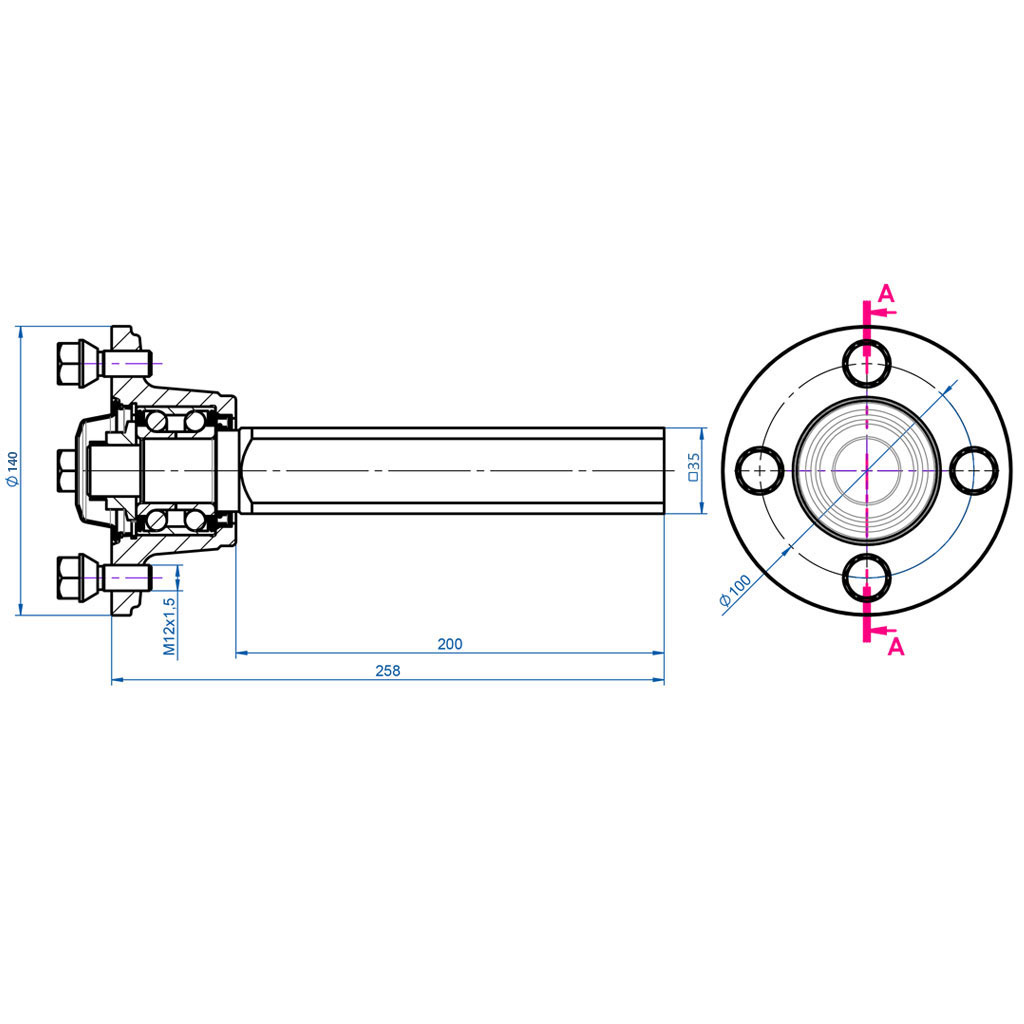

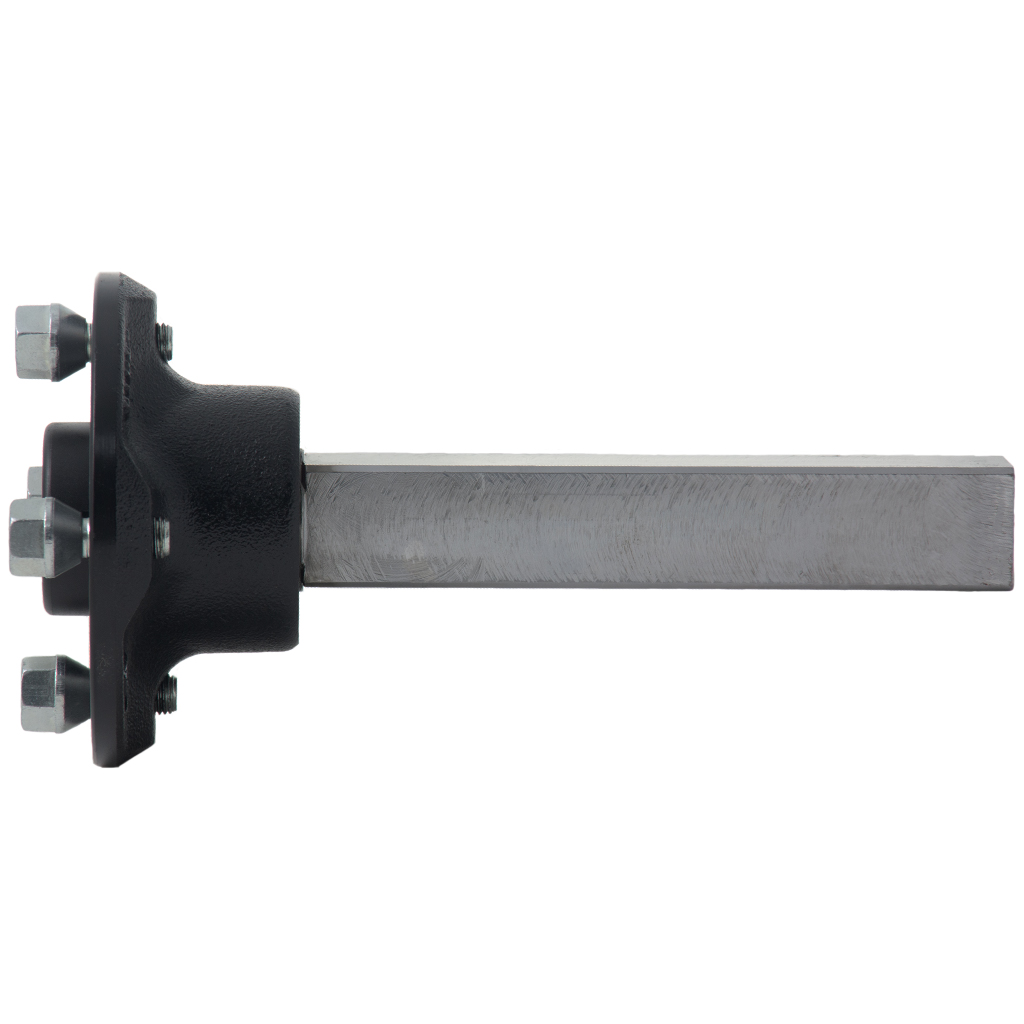

Item specifications: Stub axles:

Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,

PCD is 100mm,

Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

The shaft is 35x35mm x 200mm long, solid steel,

Manufactured by ALKO in Europe.

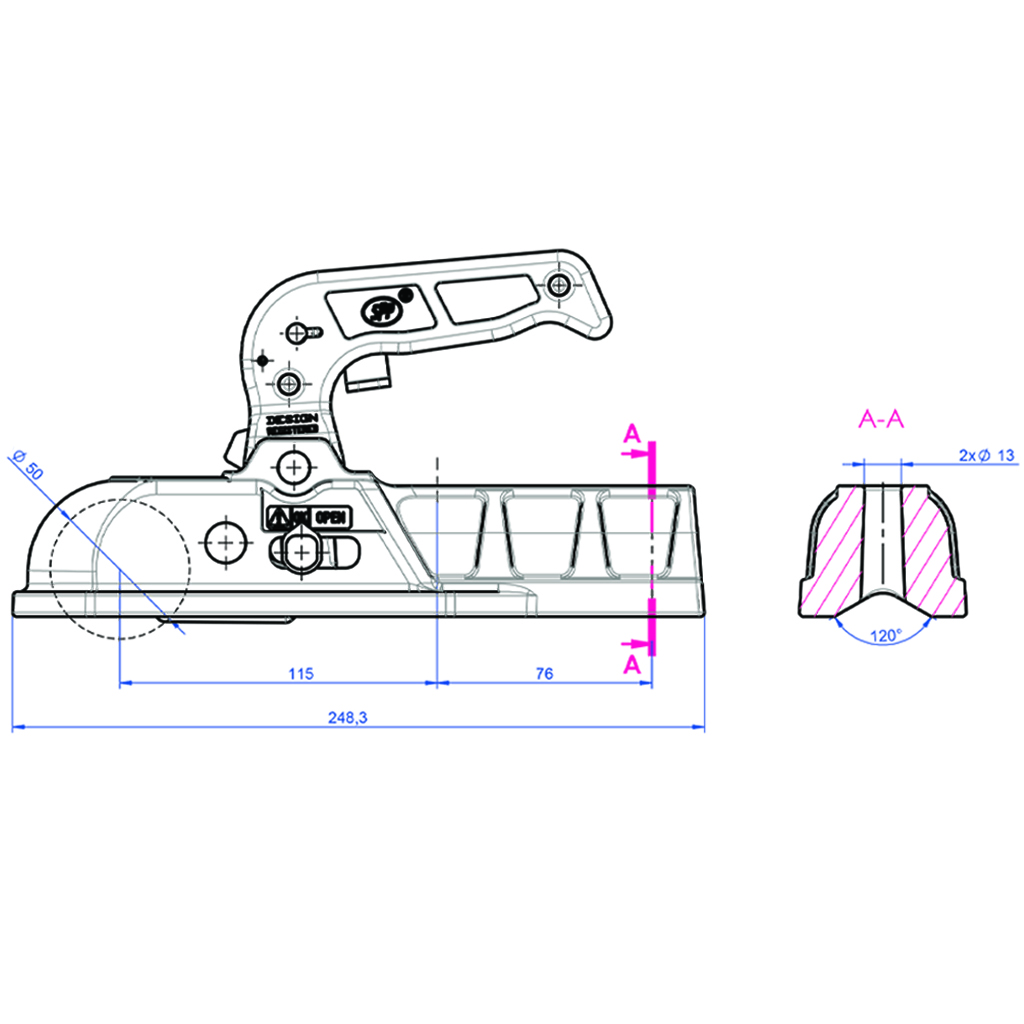

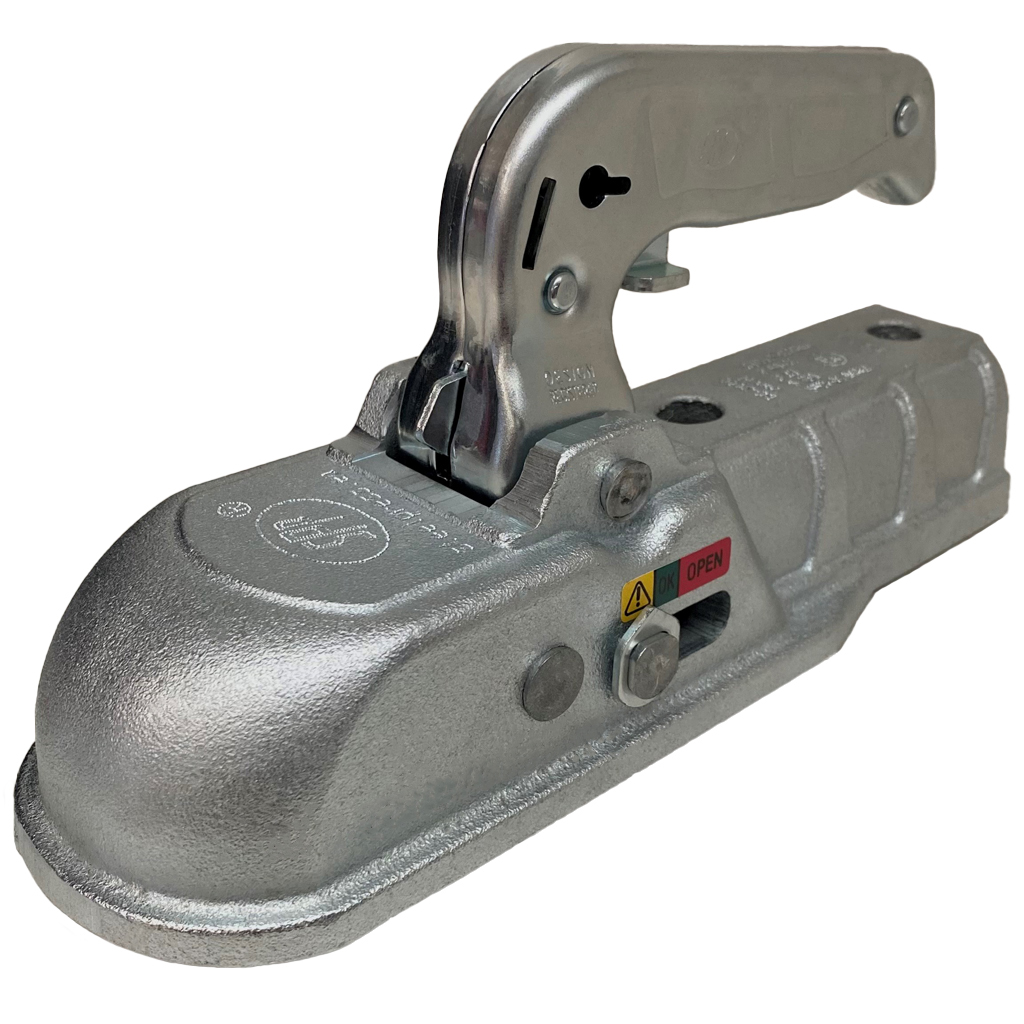

Item specifications: Hitch.

SPP SteelPress Production European manufactured.

High quality trailer coupling, Cast iron body with pressed steel handle.

Double movement opening.

To fit on round or square bar.


Maximum Kit Load Capacity 310kgs.

Part Number KIT1067
Brand Parnells
Rim Colour Silver
Tyre Size 22X11.00-8
Ply 4
TT/TL TL
Pattern P323
Tread Depth (mm) 9.5
SW (mm) 270
OD (mm) 538
PSI 5
Load/Speed Index 43J
E-Mark E4-75R-0006182
Hub & Stub Axle (2pcs) HU1044
Hitch (1pcs) SPP 3000kg Cast Hitch
