20x10.00-8 ATV quad trailer kit, Grass wheels, AKLO Hub & stub axles and tow hitch 750kgs
Part Number: KIT1072
Wheel Size: 20x10.00-8
Stub Axles: 35mm square & 200mm long
Load Capacity: 750kgs
20x10.00-8 ATV trailer kit.

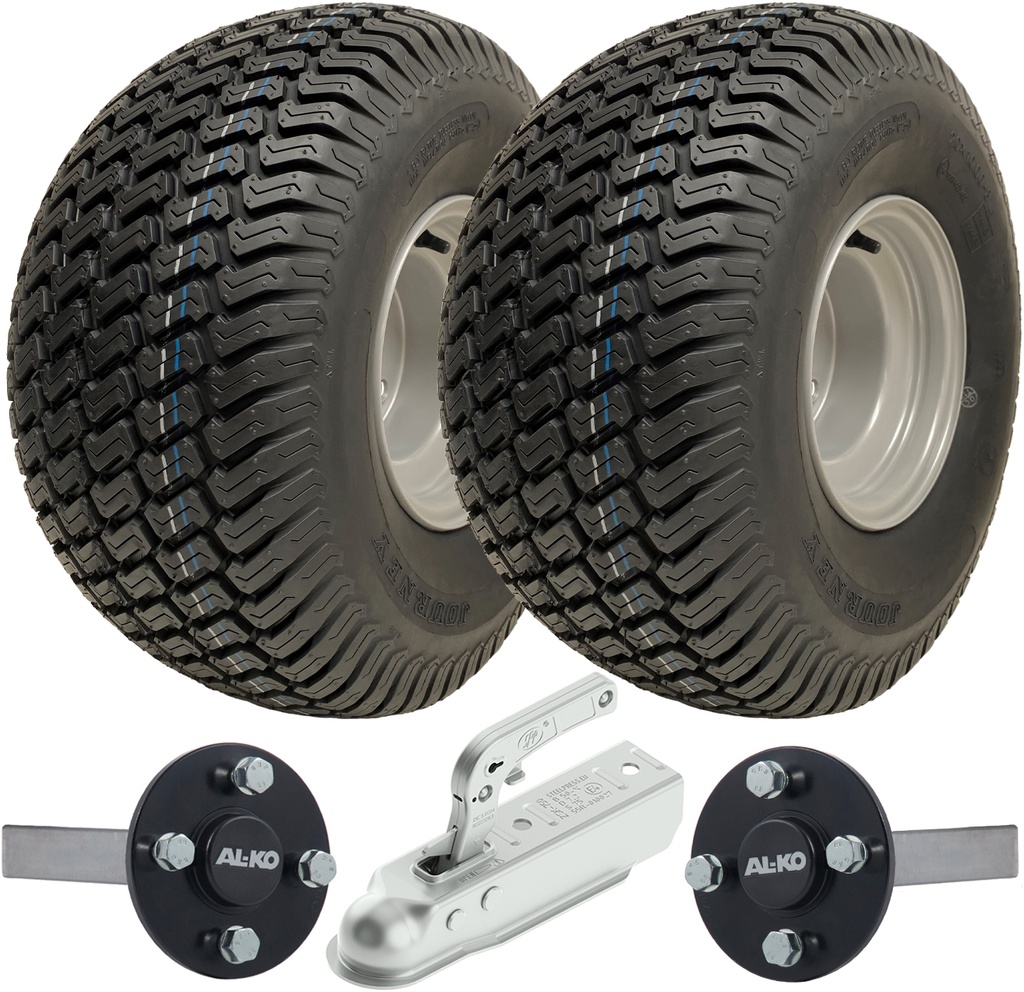

This kit contains:
2 - 20x10.00-8 wheels
2 - ALKO 35mm x 35mm hub and stub axles.
1 - Pressed Steel Tow Hitch.

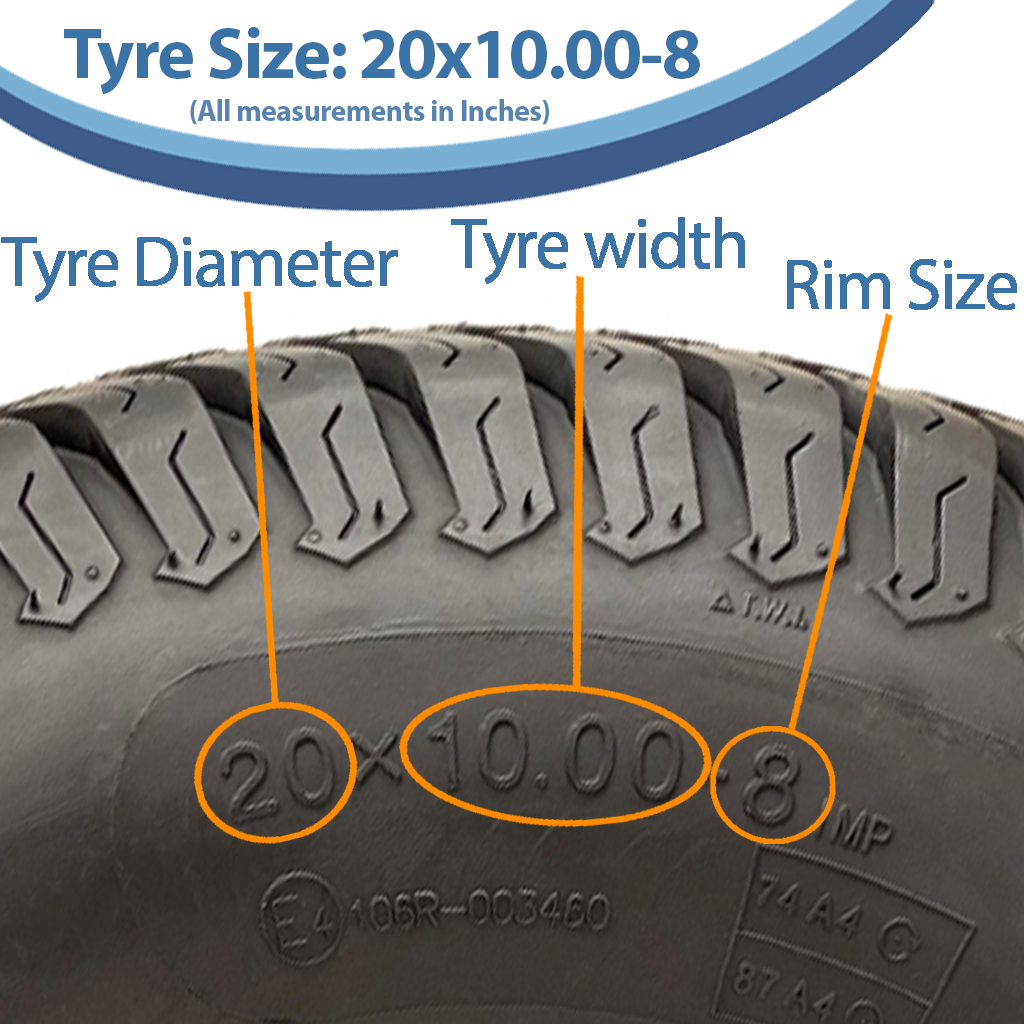

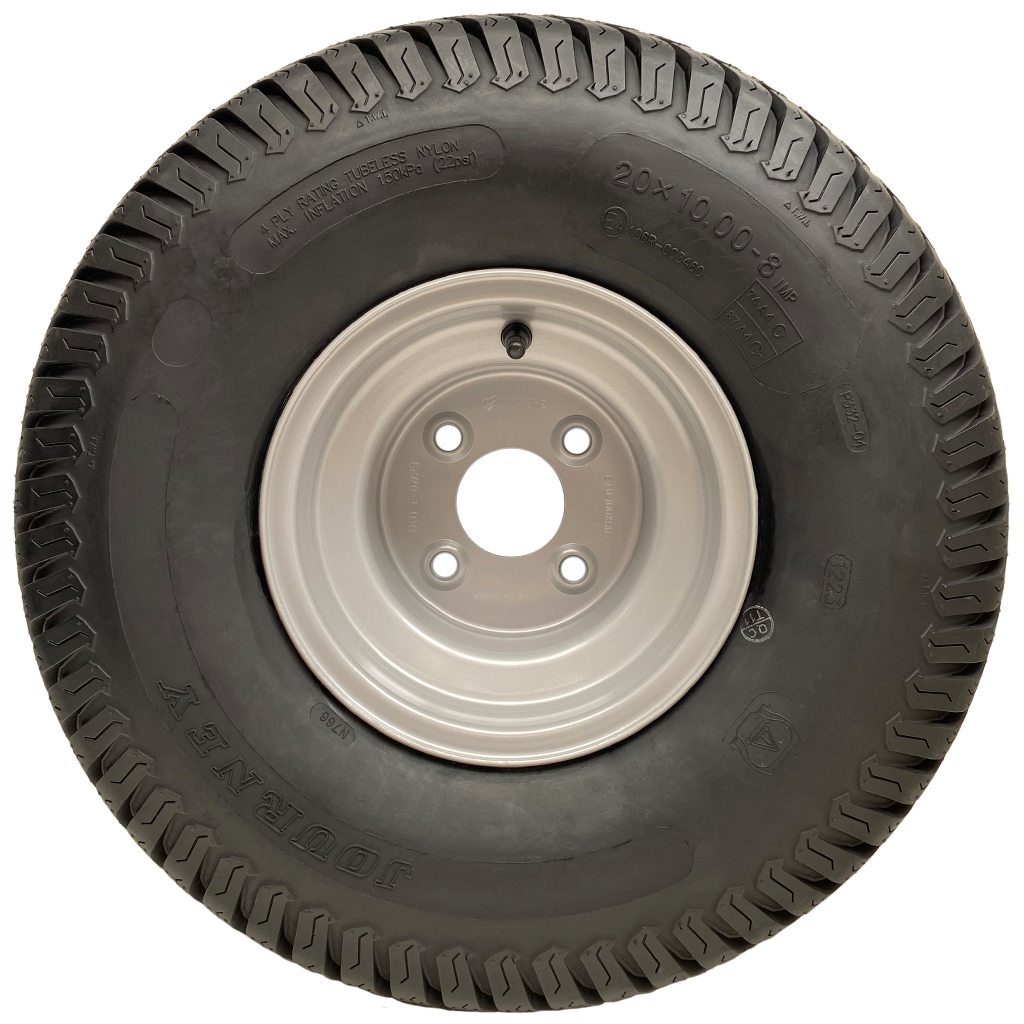

Wheel Specification:
Size: 20x10.00-8,
Brand: Wanda (Journey),
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 545kgs at 22 PSI,

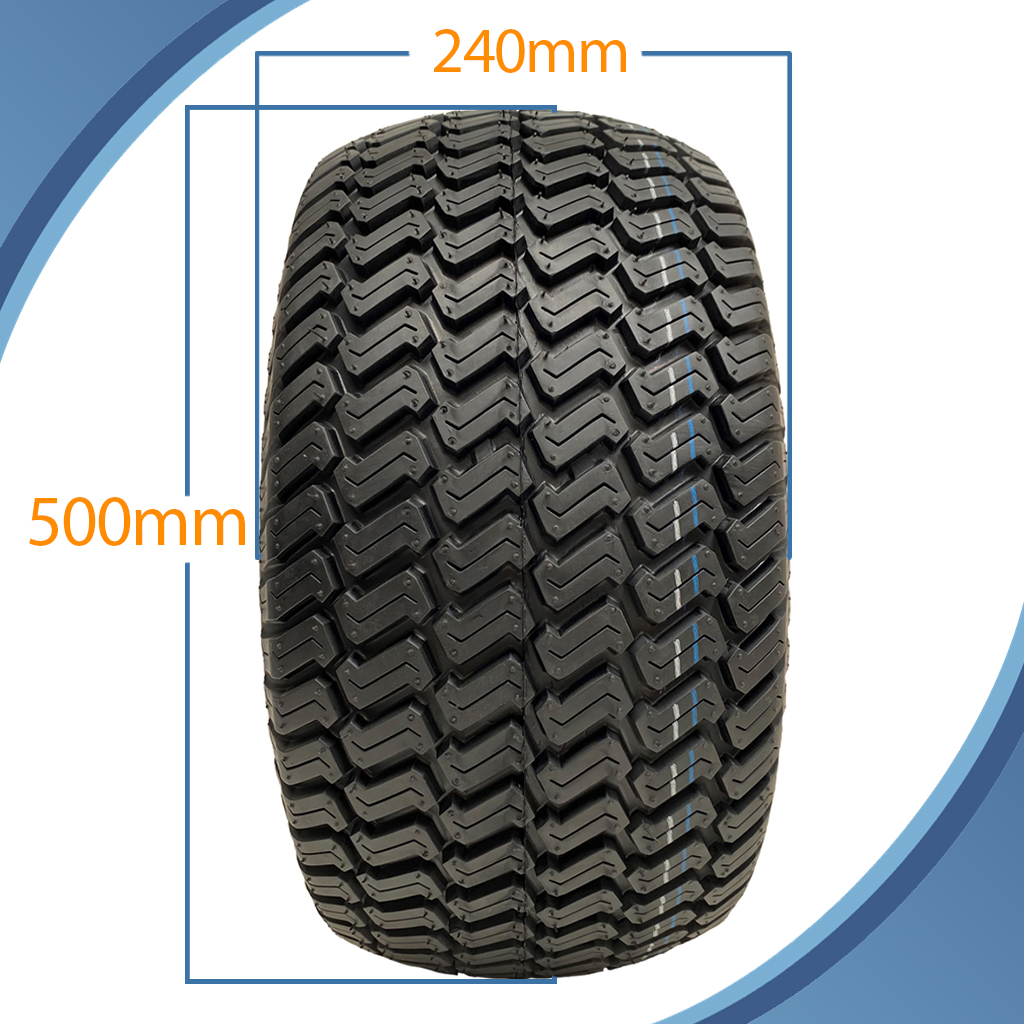

Tyre height: 500mm,
Tyre width: 240mm,
Tread Depth: 7.1mm,
E Marked road legal: E4106R-003460.
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

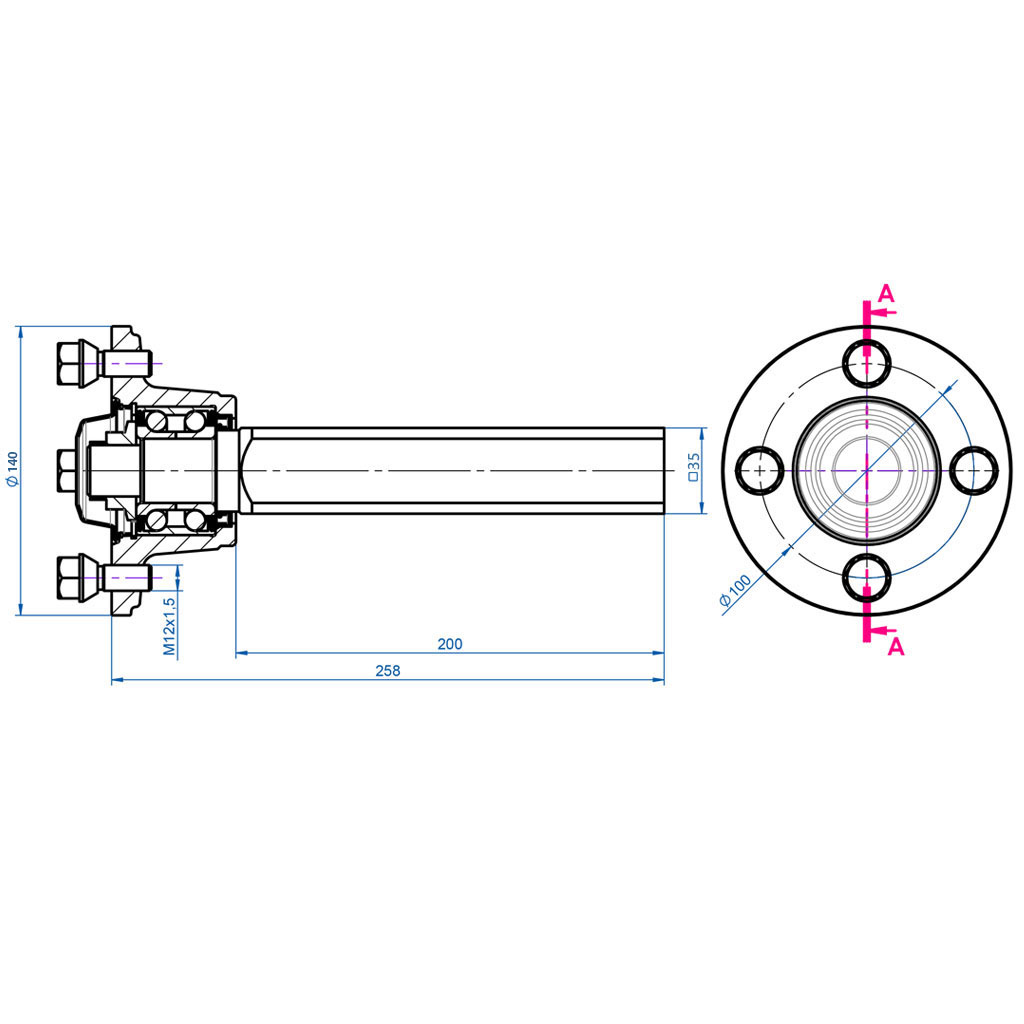

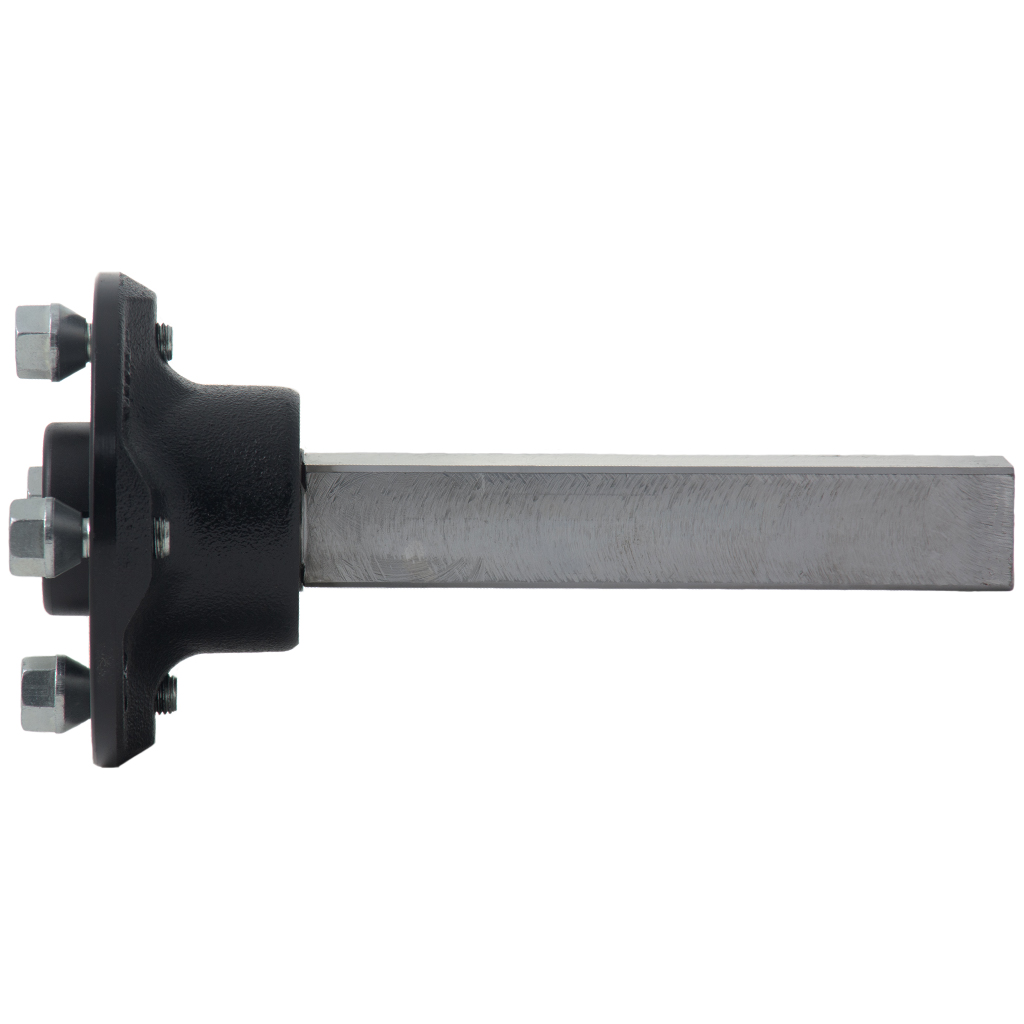

Hub & Stub Specification:
These are genuine ALKO parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings.

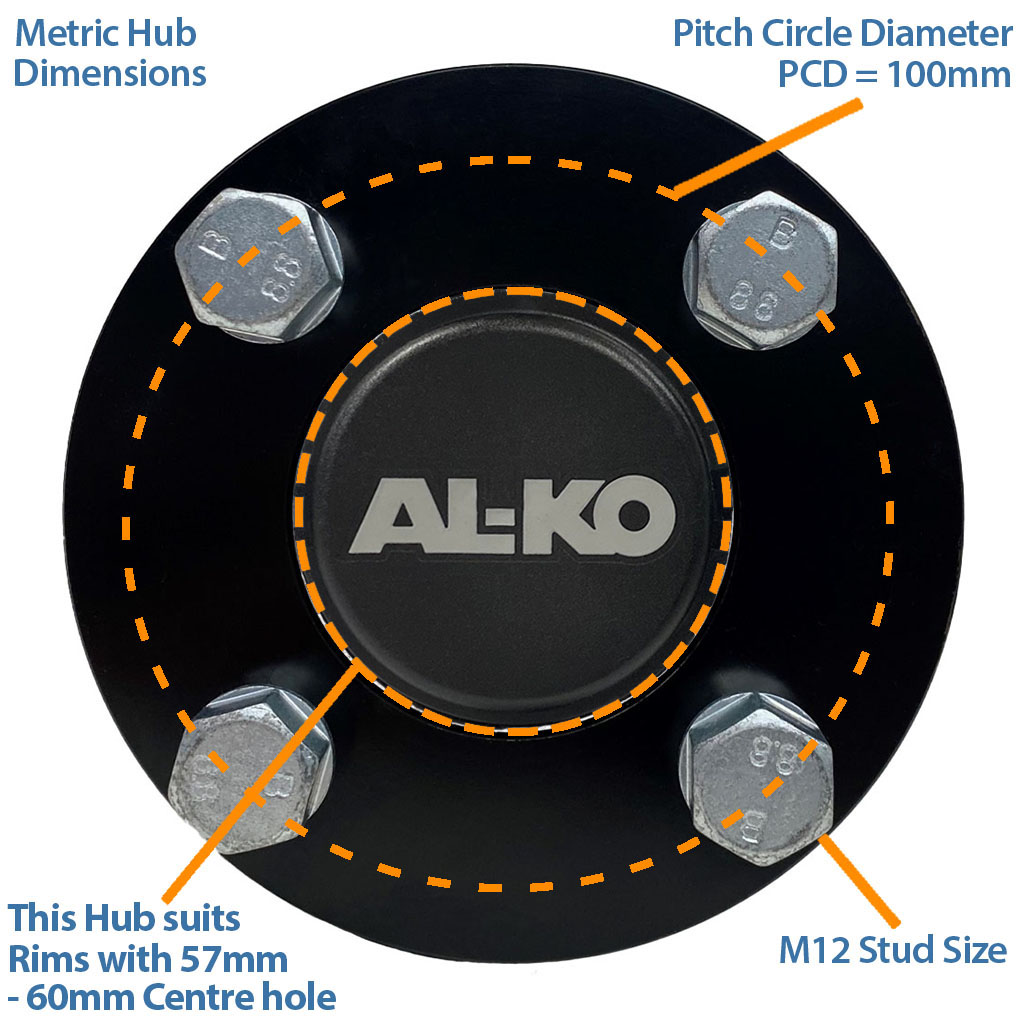

The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 750kg per pair.

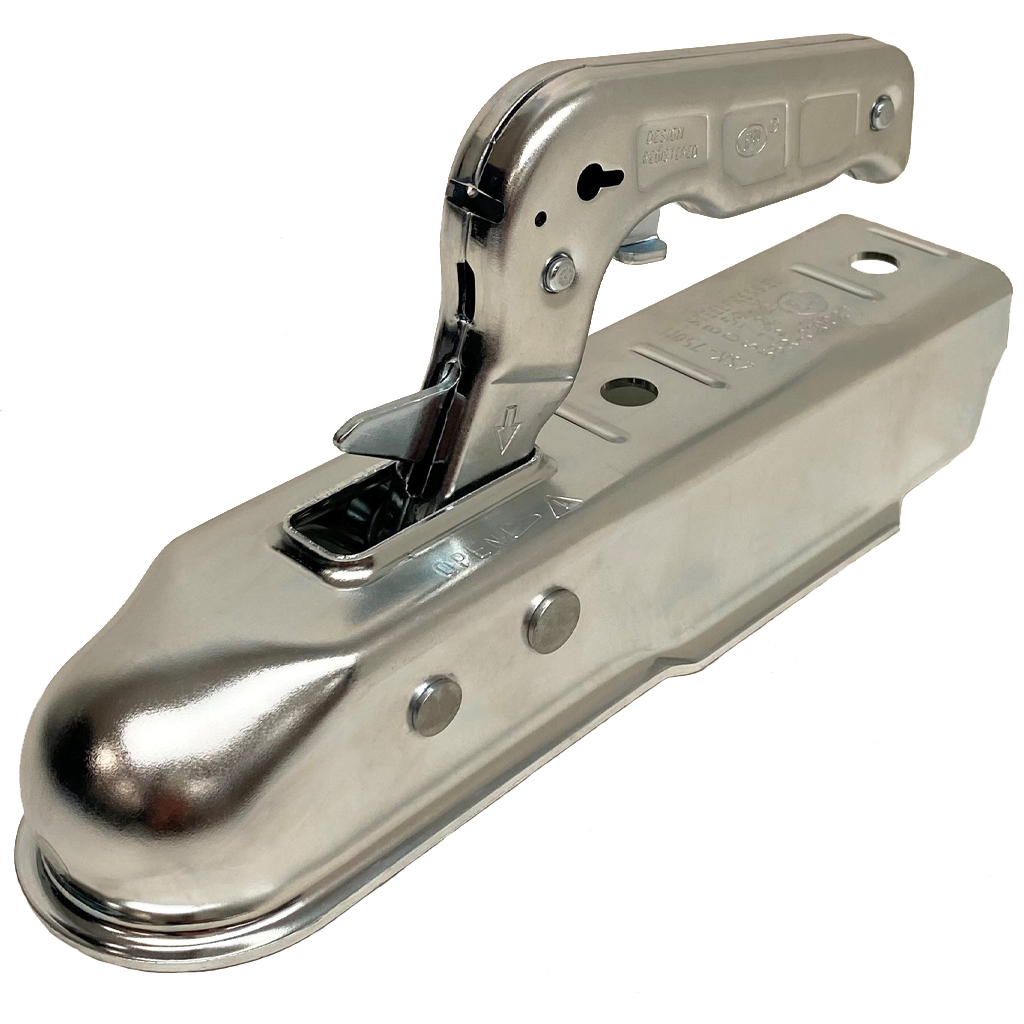

Item specifications: Hitch.

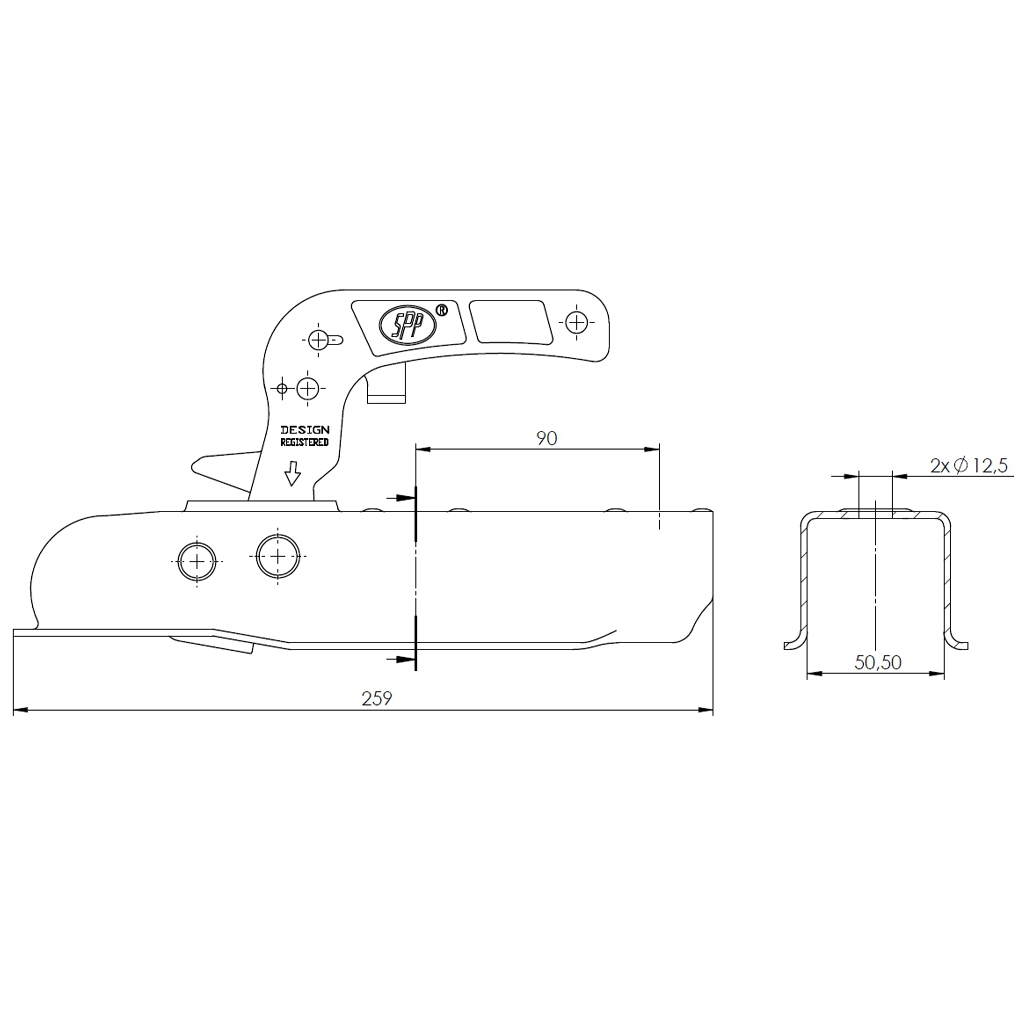

1300kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50). The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.
Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
This kit is predominantly for off road use. But it is road legal up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .
The hubs are fitted with sealed automotive precision bearings, designed to be maintenance free.
Maximum kit weight capacity 750kgs.
| Part Number | KIT1072 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 20x10.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 7.1 |
| Rim Width (in) | 7.0 |
| SW (mm) | 240 |
| OD (mm) | 500 |
| PSI | 22 |
| Load/Speed Index | 74/87 A4 |
| Stud / PCD | 4x100mm |
| E-Mark | E4-106R-003460 |
| Max Load (Kg) | 545 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1pcs) | TR1002 1300kg pressed steel hitch |
