22x11.00-8 Wanda (Journey) P308 Twin Axle ATV trailer kit with swivel hitch

https://www.parnells.eu/web/image/product.template/94436/image_1920?unique=f1ff94a

Part Number: KIT1086
Wheel Size: 22x11.00-8
Axle Size: 35mm Square, 200mm Long
Load Capacity: 620kgs

793.28 € 793.28 EUR 793.28 €

1,030.24 €

Login for trade prices

Not Available For Sale


  • Brand
  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • E-Mark
  • Max Load (Kg)
  • Hitch (1pcs)
  • Hub & Stub Axle (4pcs)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
ATV Trailer Kit, 4x (22x11.00-8 4pr P308 ATV tyre, Hub/stub axle 35x35mm,1x swivel hitch (off road use), 600kg load capacity

Twin Axle ATV trailer kit with swivel hitch.

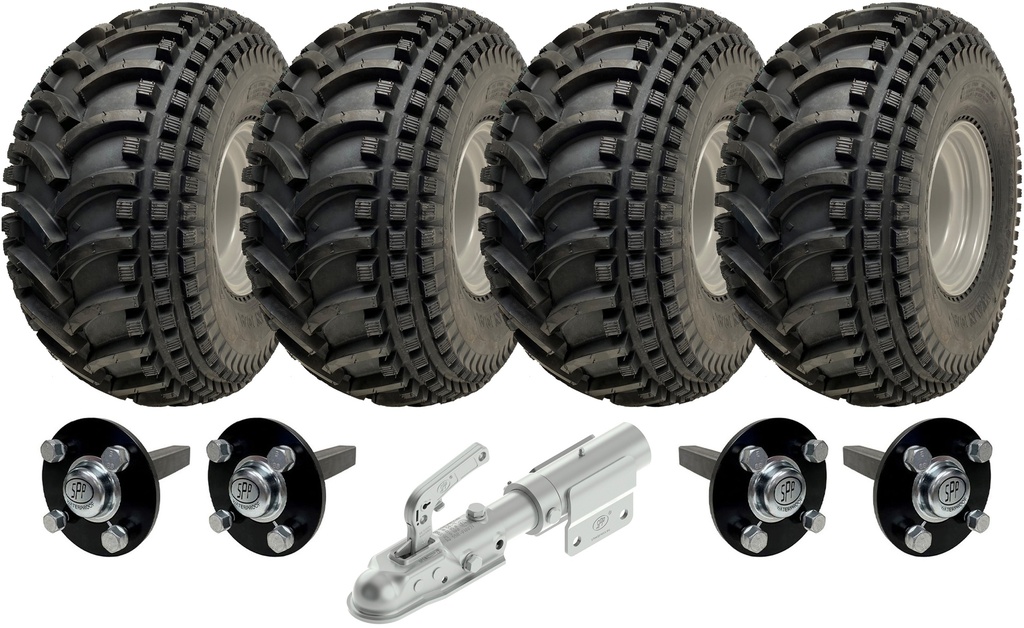

Contents of this kit include:

4 x Wheels, 22x11.00-8.

4 x Stub axles, 35x35x200mm solid stub.

1 x Swivel Tow Hitch.

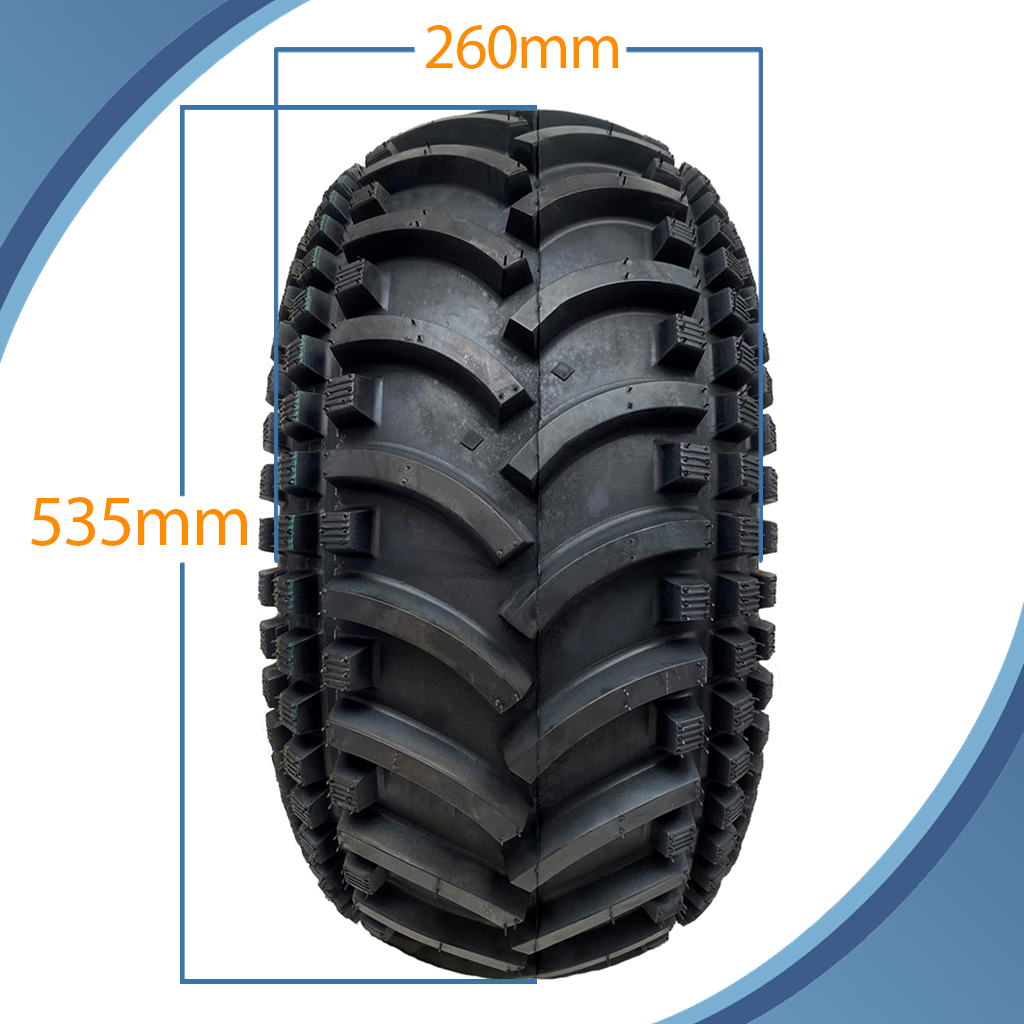

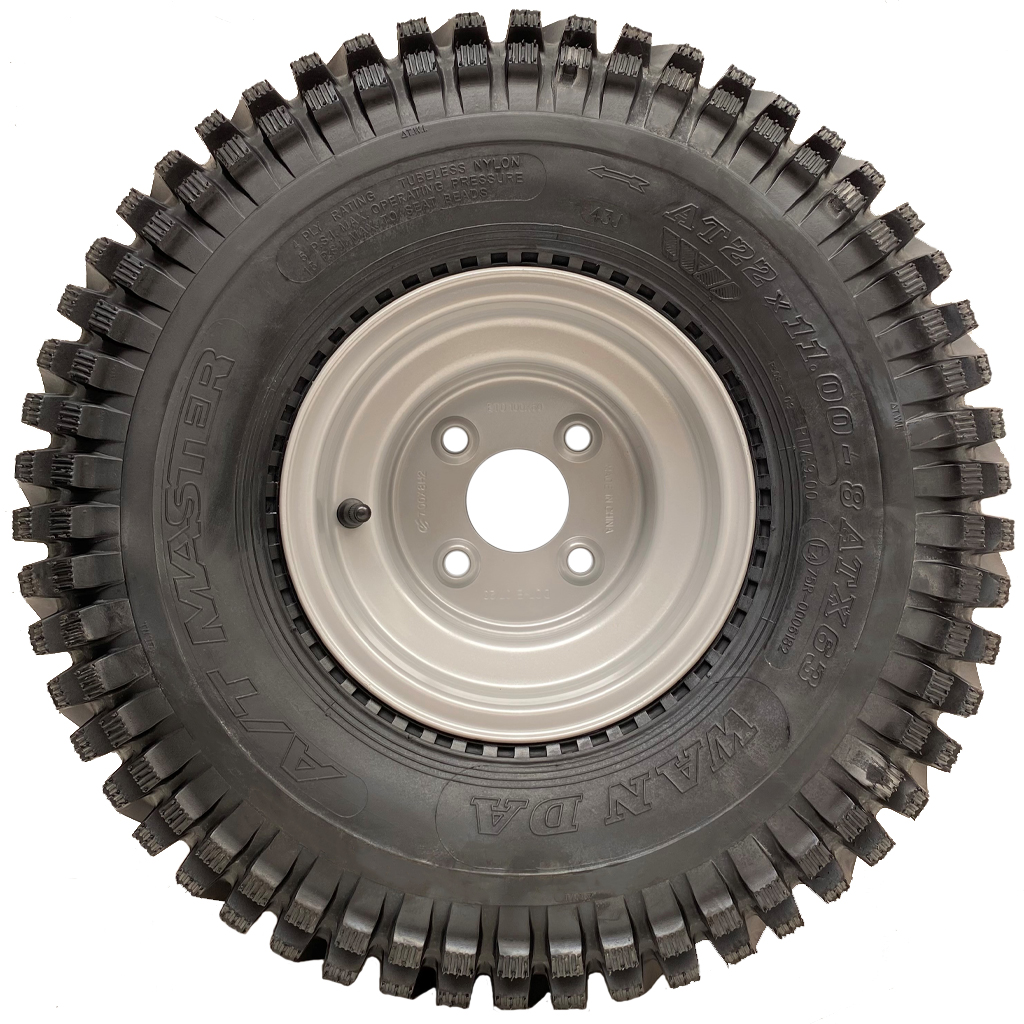

Wheel Specifications:

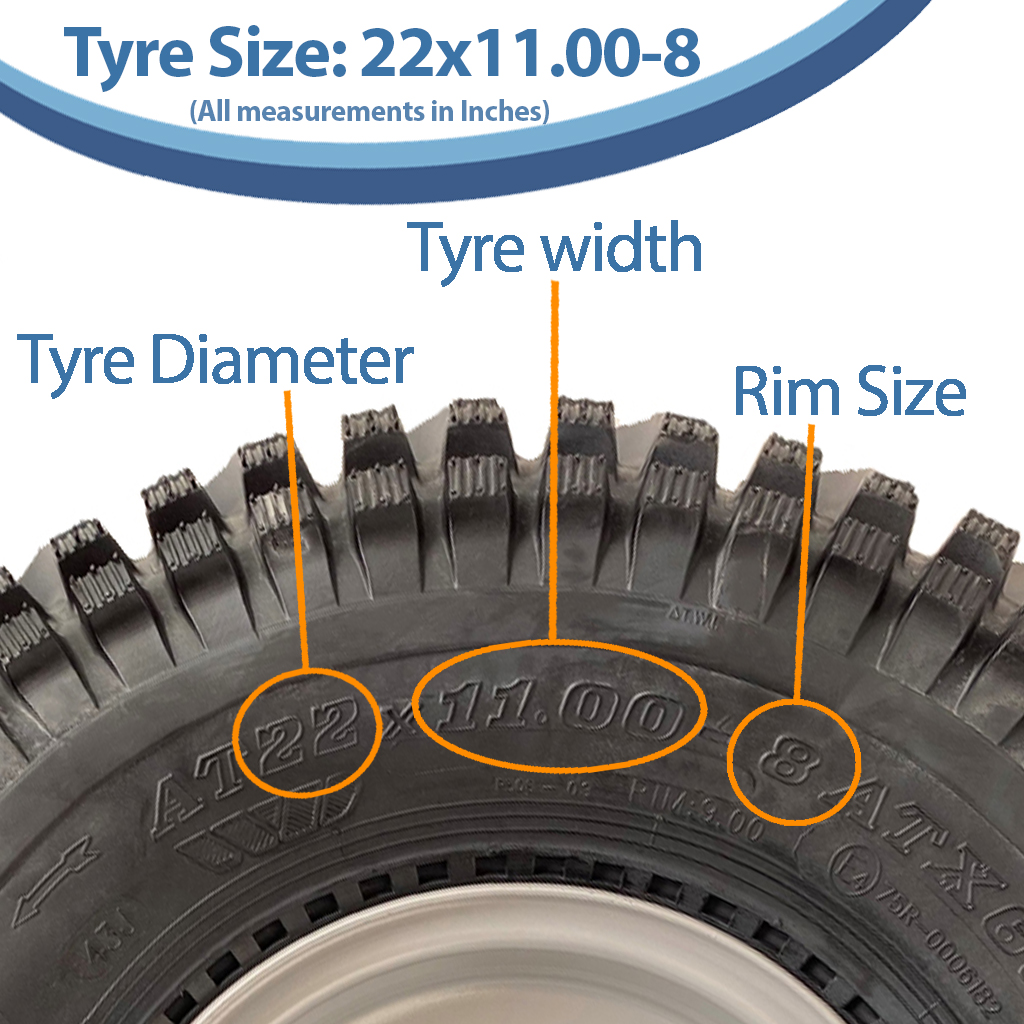

22x11.00-8 4ply Wanda P308 knobby open centre tyres on steel rim 4x100mm PCD,

Overall diameter: 535mm,

Max width of tyre: 260mm,

Tread depth: 16mm,

Inflation: 5psi,

Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),

Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

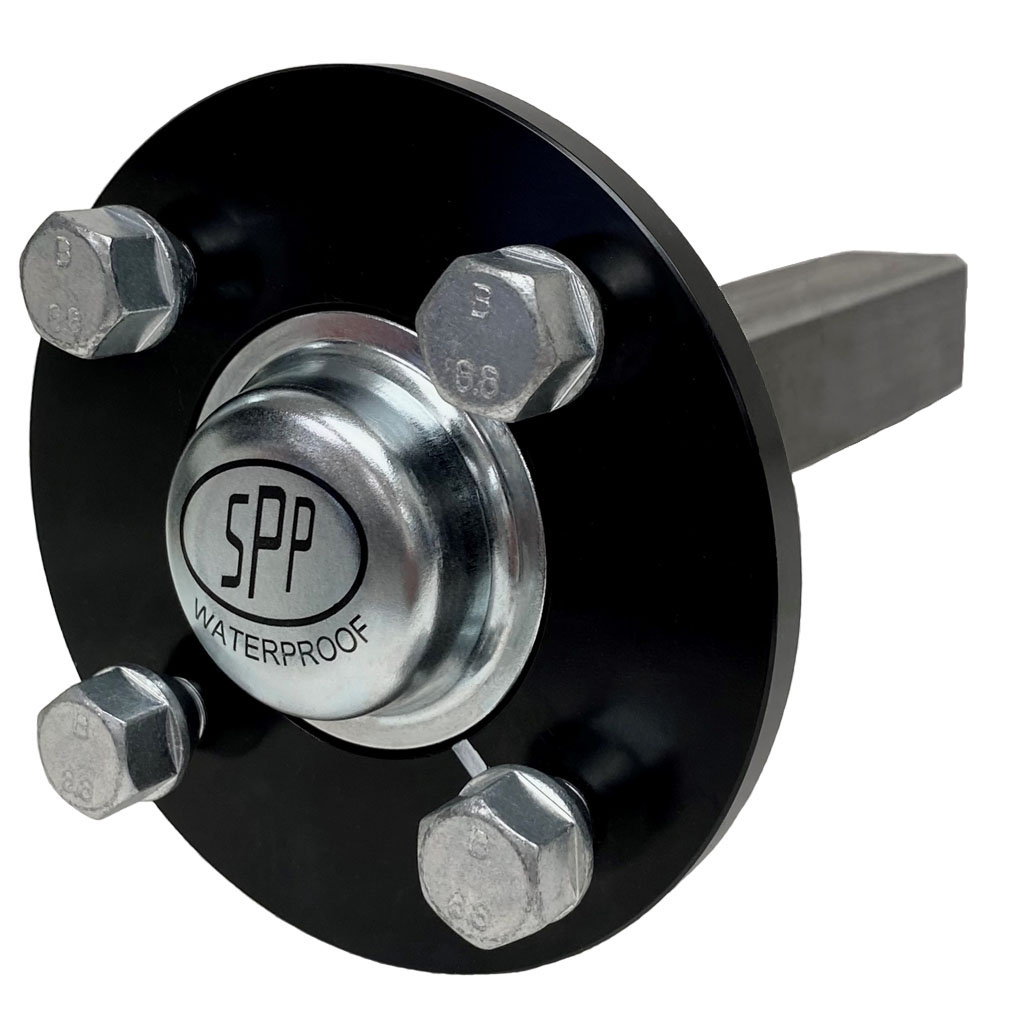

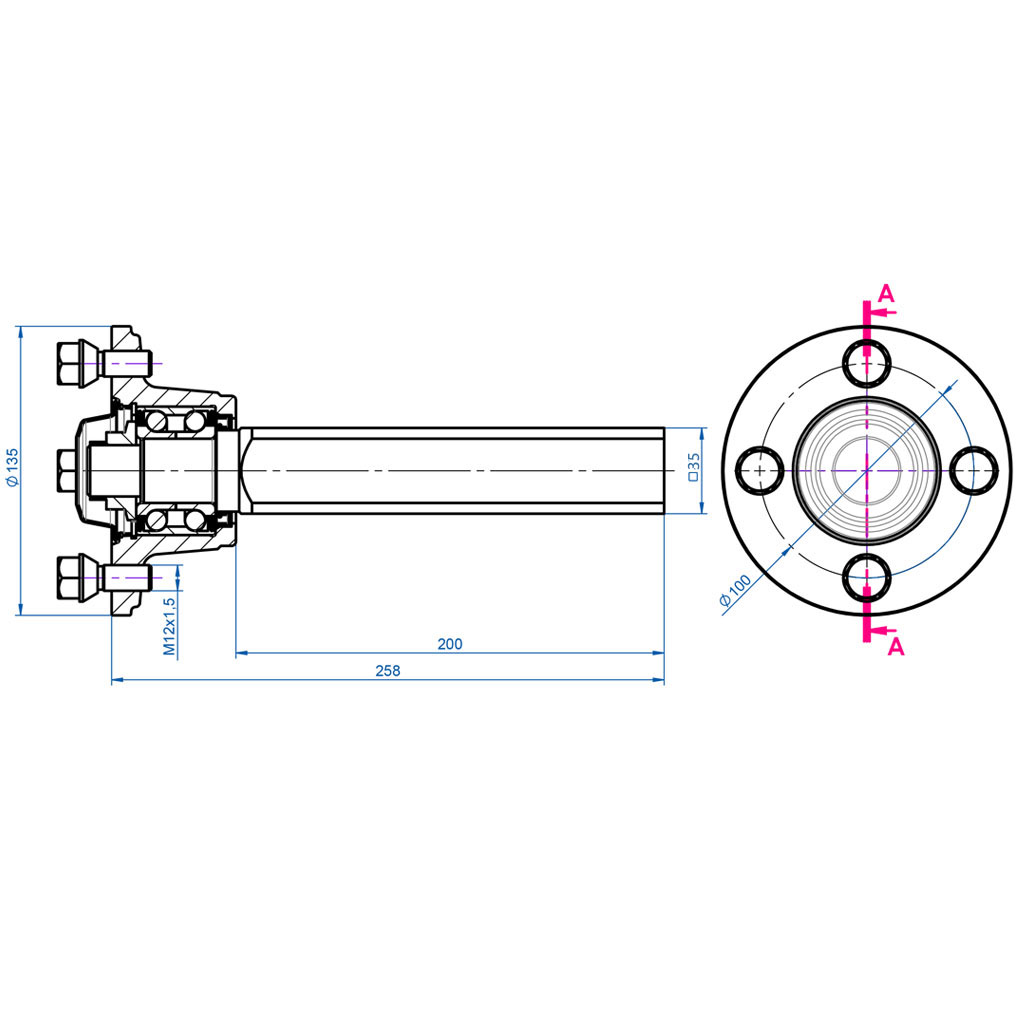

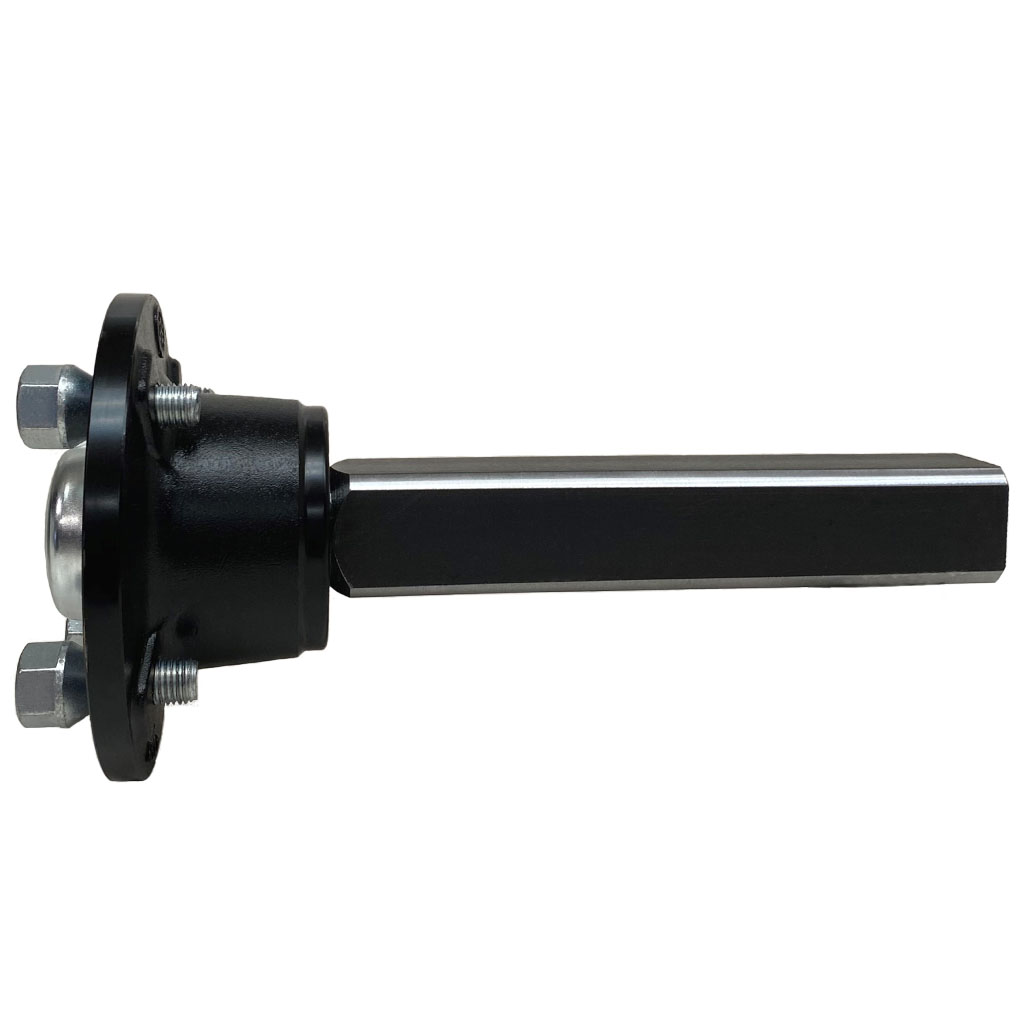

Stub Axle specifications:

Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,

PCD is 100mm,

Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

The hubs are waterproof,

The shaft is 35x35mm x 200mm long, solid steel,

Manufactured by SPP (Steelpress, Poland).

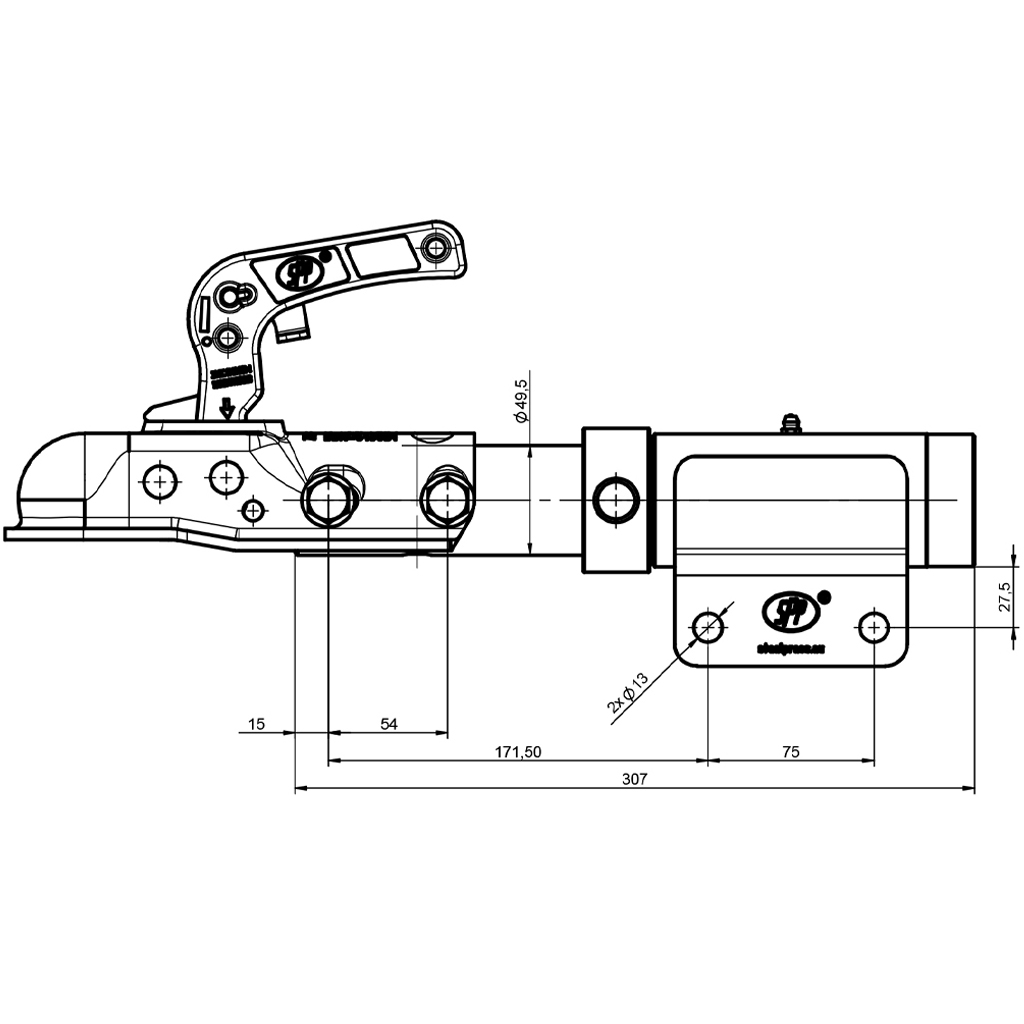

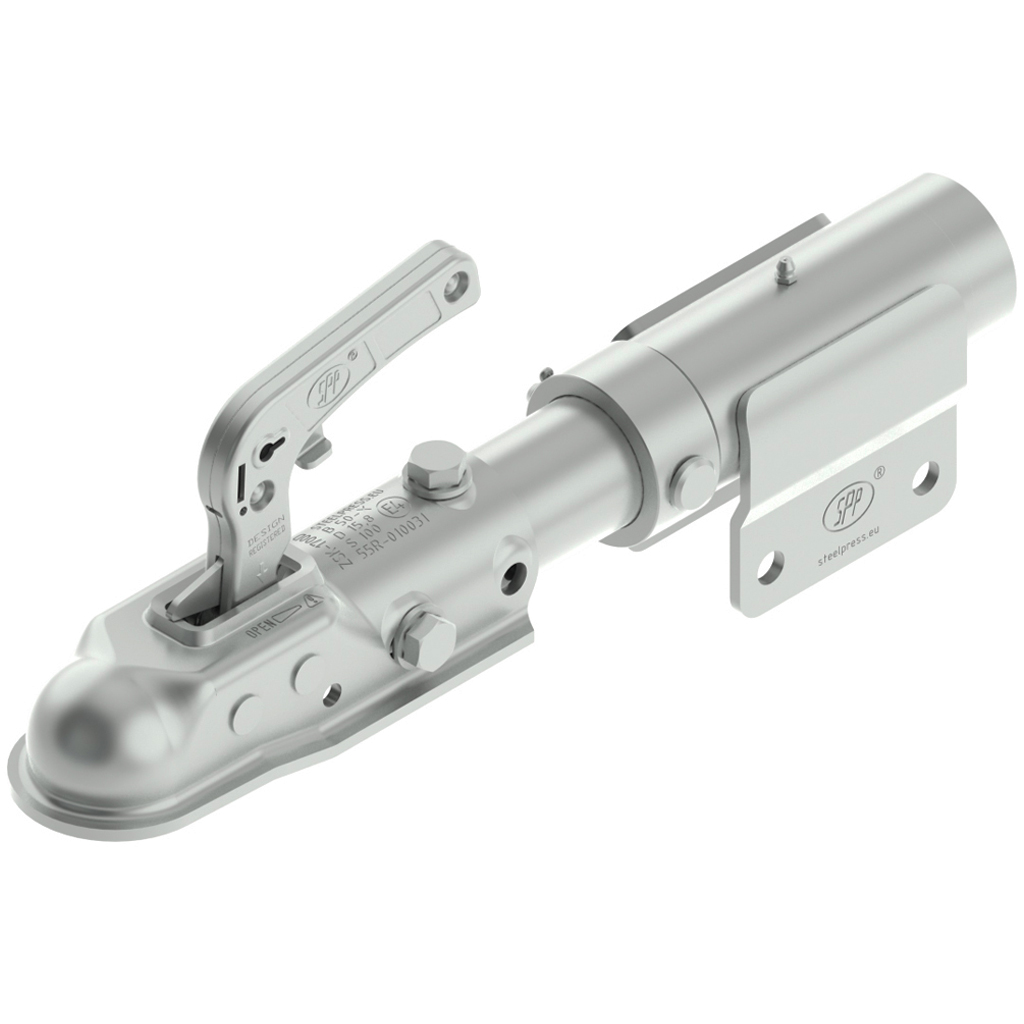

Swivel Tow Hitch Specifications:

Heavy duty steel towing hitch with 360 Degree rotation.

This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart).

The bolt holes are from an M12 bolt.

Overall length is 440mm.

Max load is 1700kg


This is for use on ATV trailers & equipment Off Road use only.

It is produced in the EU.

Safety feature for off road towing.

If your trailer turns over the swivel hitch rotates and your vehicle towing is not flipped with it.


Maximum Kit load capacity 620kgs.

Part Number KIT1086
Brand Parnells
Rim Colour Silver
Tyre Size 22X11.00-8
Ply 4
TT/TL TL
Pattern P308
SW (mm) 260
OD (mm) 535
PSI 5
Load/Speed Index 43J
E-Mark E4-75R-0006182
Max Load (Kg) 620
Hitch (1pcs) swivel hitch
Hub & Stub Axle (4pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
