26x12.00-12 P332 ATV Trailer Kit, 5x140 Stub Axles, Bradley Cast Hitch
14 sold in last 24 hours
Part Number: KIT1087

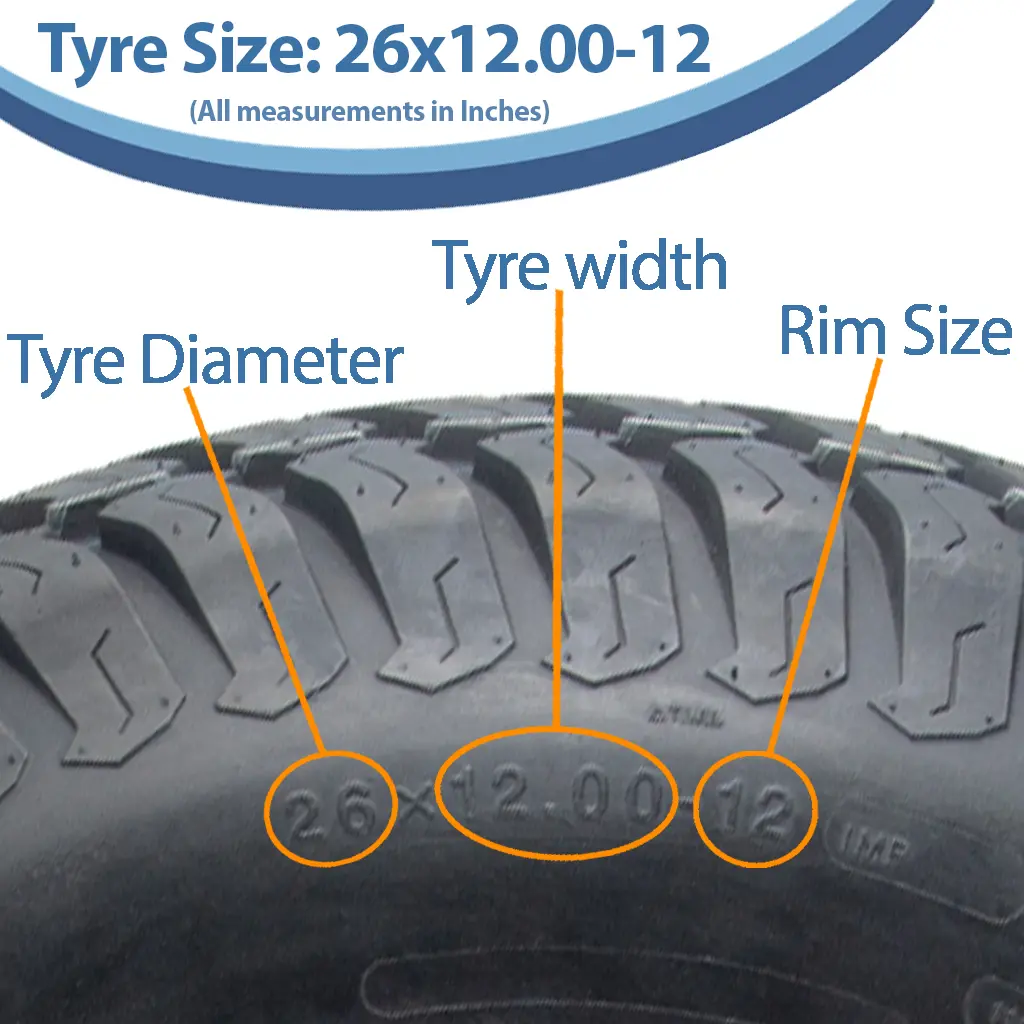

Wheel Size: 26x12.00-12
Stub Axles: 50mm square & 258mm long
Kit Load Capacity: 2200kgs
Wheel Size: 26x12.00-12
Stub Axles: 50mm square & 258mm long
Kit Load Capacity: 2200kgs

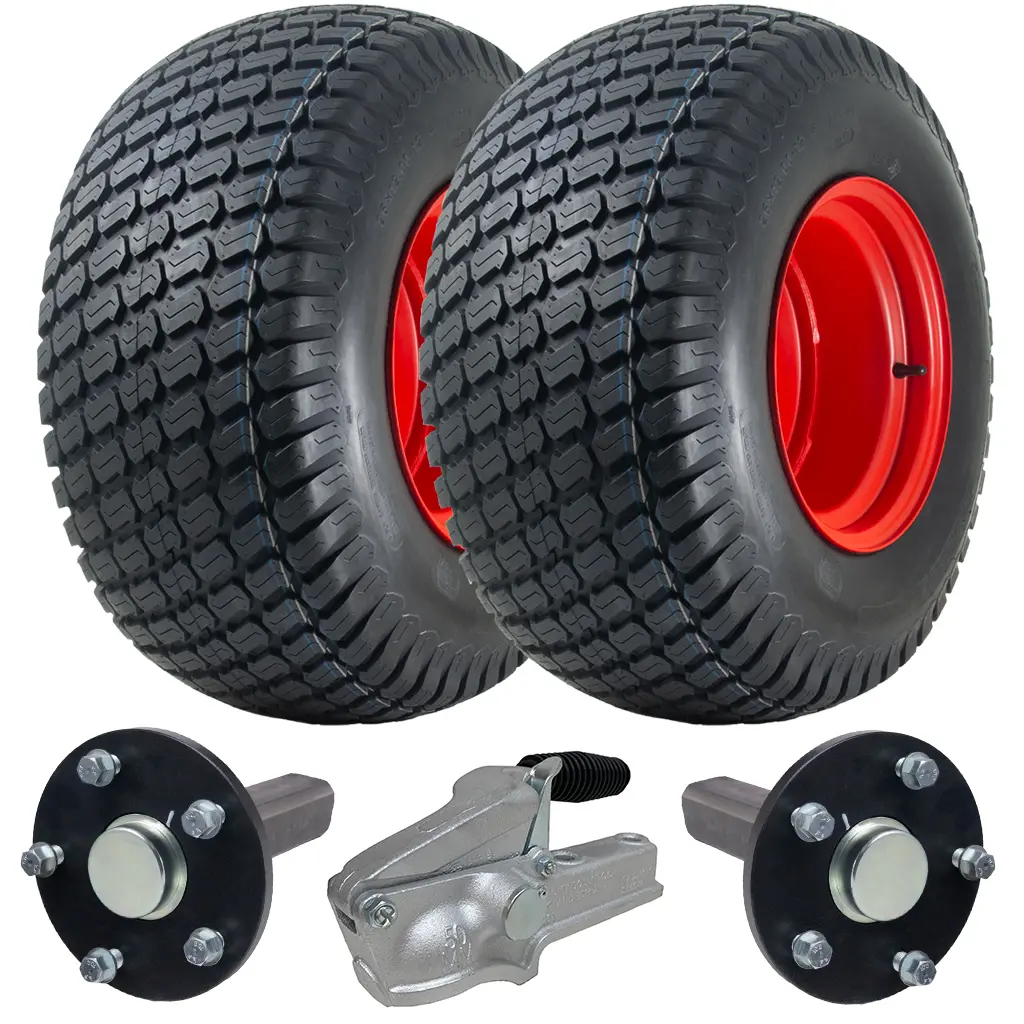

26x12.00-12 ATV Grass trailer kit
This kit contains:
Two - 26x12.00-12 wheels,
Two - 50mm x 50mm hub and stub axles.
&
One - Bradleys Doublelock Cast Tow Hitch.

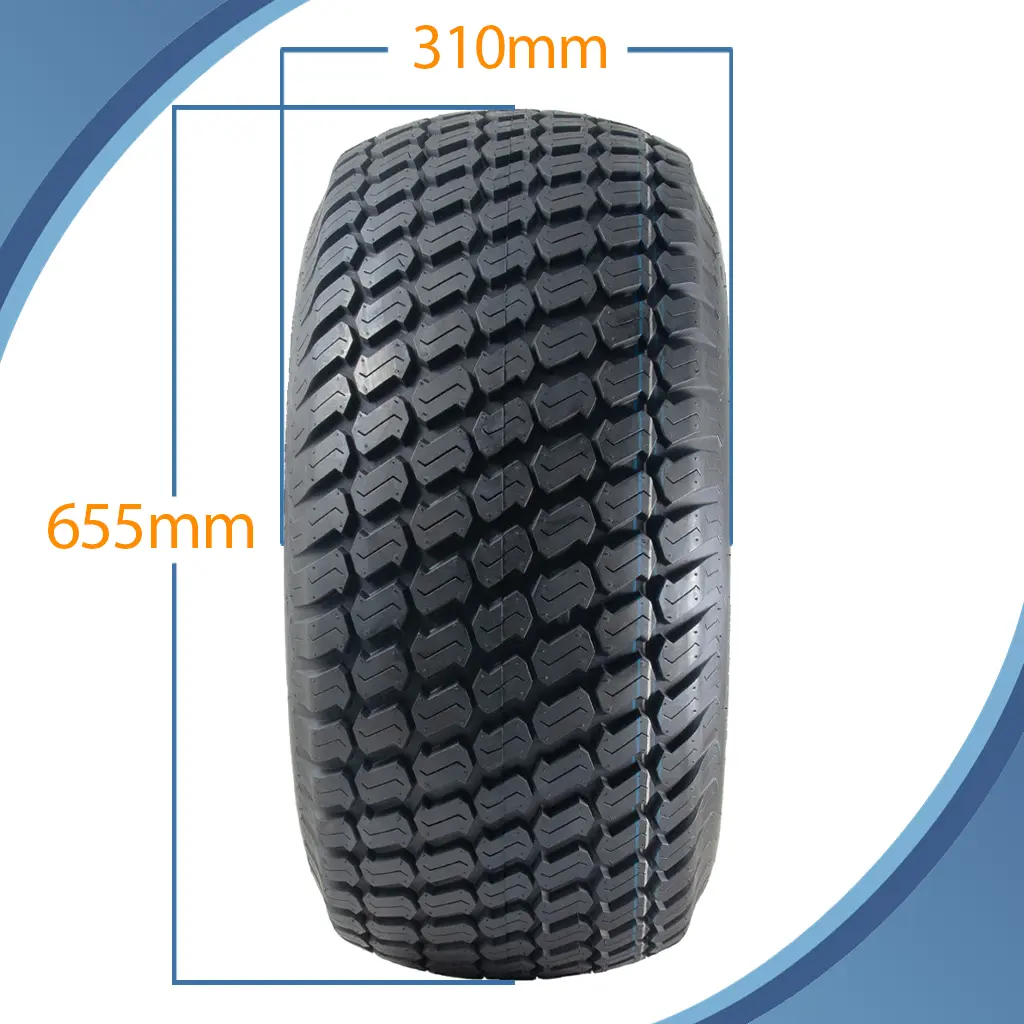

Tyre Specification:
Overall diameter: 655mm,
Max section width: 310mm,
Max load: 2469lbs (1120kg),
PSI: 35,
Ply Rating: 6ply,
Tread Depth: 8.8mm,
Tyre Pattern number: P332,
Load Rating: 112 = 1120kgs,
Speed Rating: A4 20km/h,
Road Legal number: E4-106R-004651,
Rim Specification:
Solid steel welded heavy duty rims,
5x140mm PCD stud spacing,
94mm centre hole diameter,
18.5mm stud hole diameter,
Offset: ET0 (zero).
Rim Colour: RAL3020 Red.

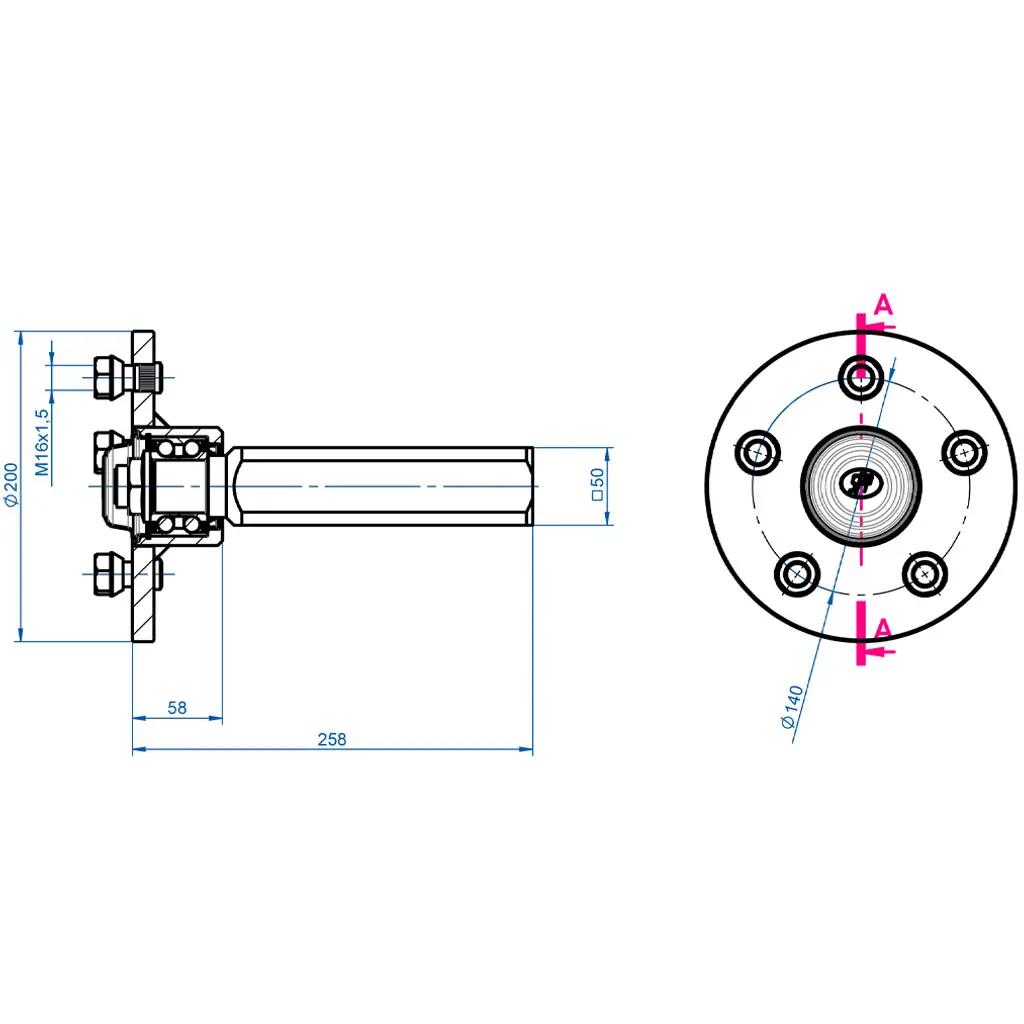

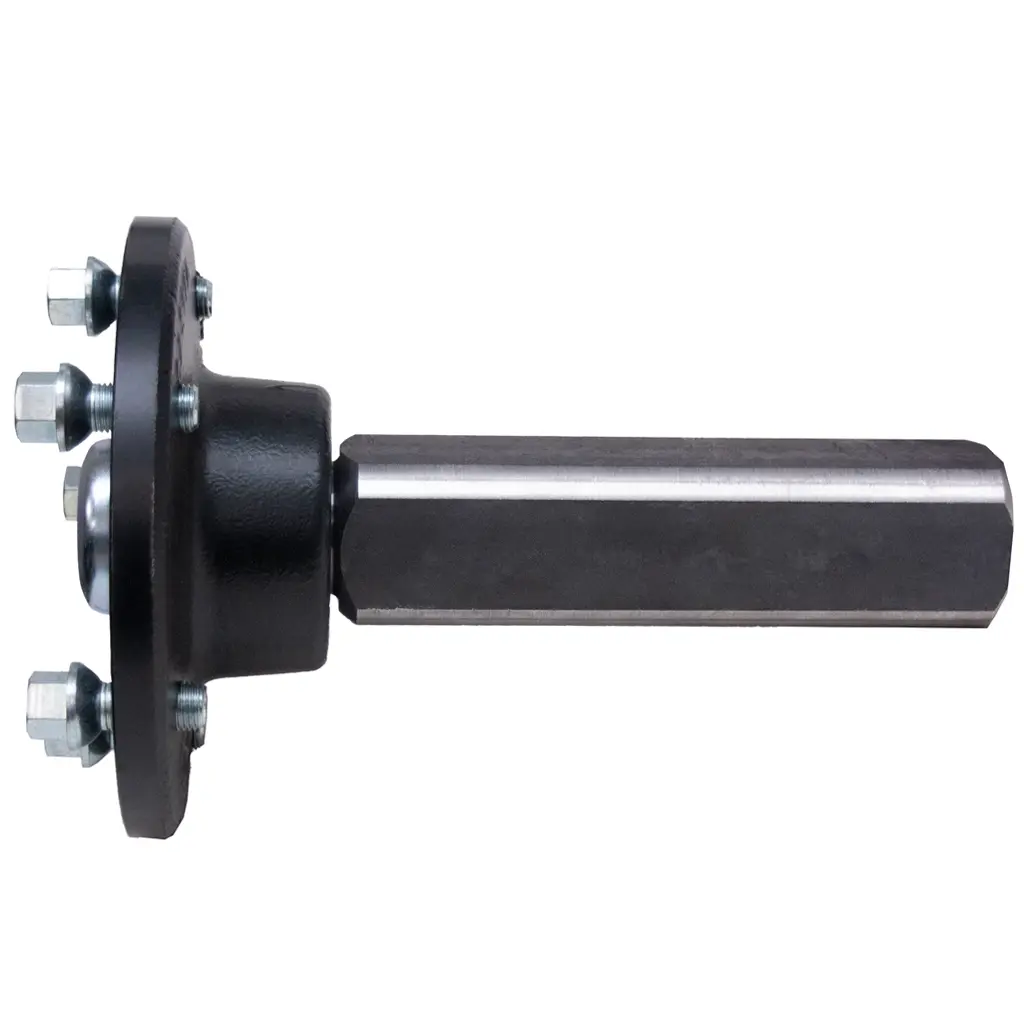

Hub & Stub Specification:
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings.
The hub has 5 x M14 studs, the PCD is 140mm.
The shaft is 50x50mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 2200kg per pair.

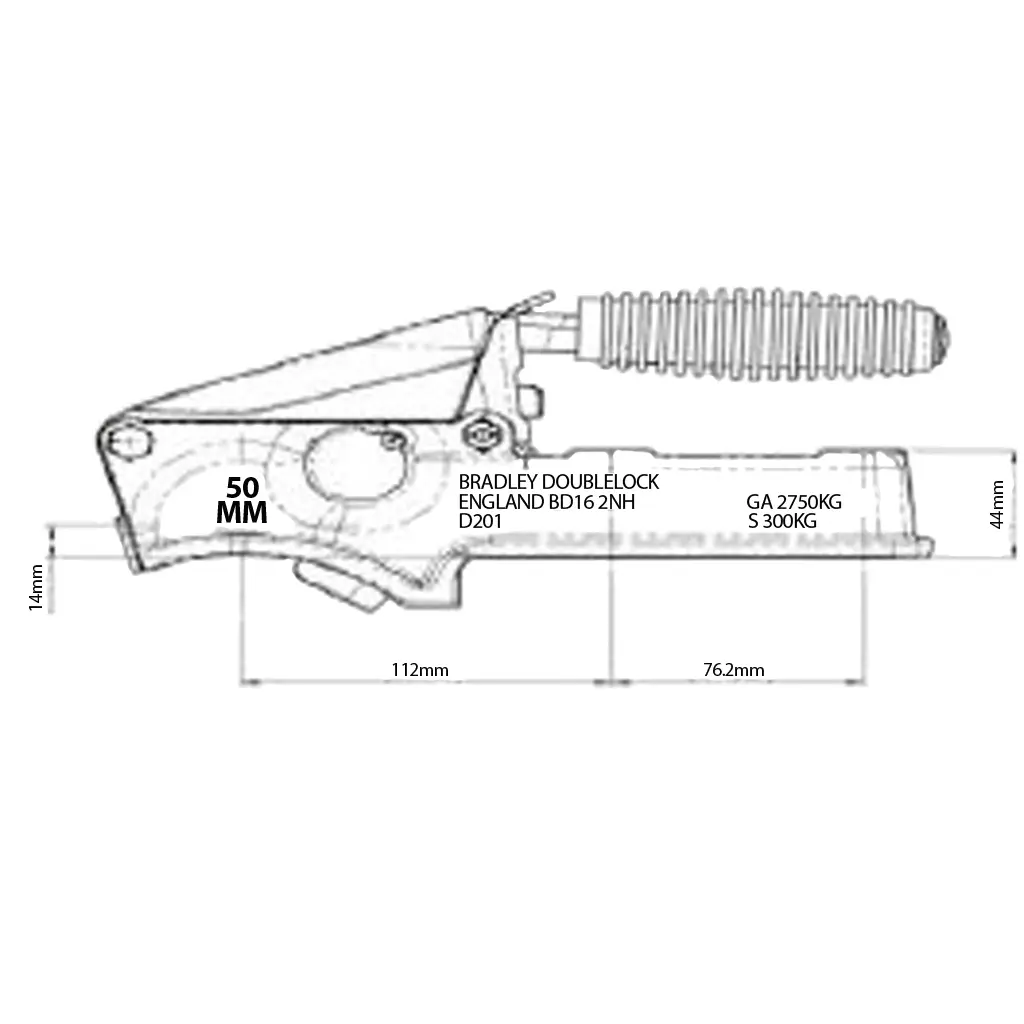

Tow Hitch Specification:
Genuine Bradley Doublelock D201 Cast Coupling,
Cast Iron body and handle,
Rubber handle for comfortable smooth grip,
2 Bolt mounting, unbraked hitch,
Can be mounted on tube or round bar,
Ball head 50mm.
Total Kit Capacity is 2200kgs
| Part Number | KIT1087 |
| Brand | Parnells |
| Ply | 6 |
| Rim Width (in) | 10.50 |
| OD (mm) | 655 |
| SW (mm) | 310 |
| PSI | 35 |
| E-Mark | E4-106R-004651 |
| Tread Depth (mm) | 8.8 |
| Max Load Each (Kg) | 1120 |
| Load/Speed Index | 112 A4 |
| TT/TL | TL |
| Pattern | P332 |
| Stud / PCD | 5x140 |
| Hitch (1pcs) | Bradley Cast Hitch |
