T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
Wheel series 100mm YELLOW polyurethane on cast iron centre 15mm bore hub length 40mm ball bearing 300kg
Wheel series 100mm YELLOW polyurethane on cast iron centre 15mm bore hub length 40mm ball bearing 300kg
27.97 €
27.97 €

M10x125 Zinc plated tilting levelling foot, 100mm plastic base with holes 470kg

https://www.parnells.eu/web/image/product.template/37668/image_1920?unique=6fefb88
(0 review)

Part Number: R101-10-125
Base Diameter: 100mm
Tread size: M10x125mm
Thread Material: Zinc Plated Steel
Base Material: Plastic
Load Capacity: 470kg

14.45 € 14.450000000000001 EUR 14.45 €

16.78 €

Login for trade prices

Not Available For Sale


  • Hole Diameter (mm)
  • Thread Size
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Hole Position (mm)
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M10x125 Zinc plated tilting levelling foot, 100mm plastic base with holes 470kg

M10x125 Zinc plated tilting levelling foot, 100mm plastic base with holes 470kg

  • Levelling foot with zinc plated threads.
  • Base made of glass reinforced nylon.
  • Base with integrated bolt-down holes suitable for when a secure fitting on a flat surface is required.
  • The stem tilt up to 20° from perpendicular. Enables adjustment for items with angled legs.
  • Stainless steel available on request (MOQs apply).
  • Standard base colour black. Other RAL colours available (MOQs apply).

Add to cart

Sign in

Pay

Get Delivered

Part Number R101-10-125
Hole Diameter (mm) 9
Thread Size M10
Thread Length (mm) 125
Base Height (mm) 29
Base Diameter (mm) 100
Hole Position (mm) 74
Max Load (Kg) 470
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery

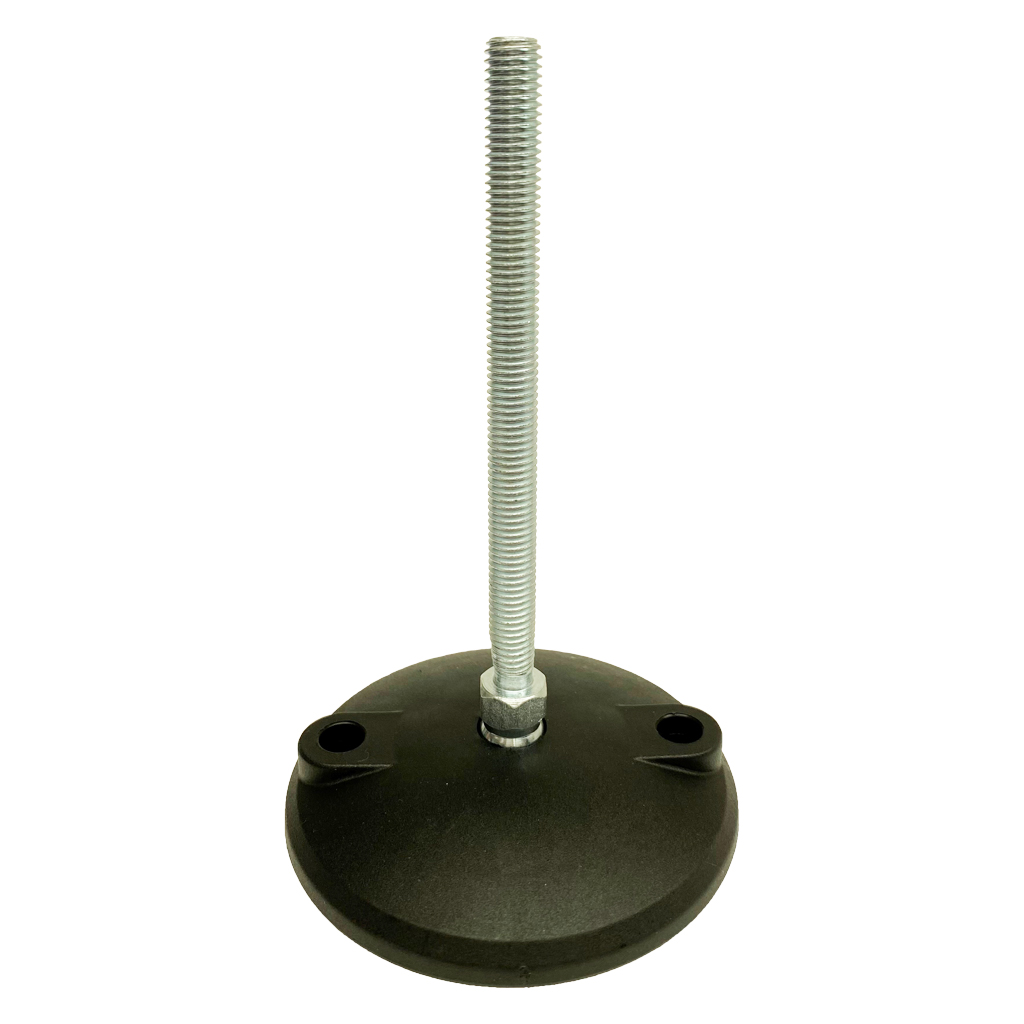

Image for R101-10-125.jpg
Download
Spec Sheet for R101-10-125.pdf
Download

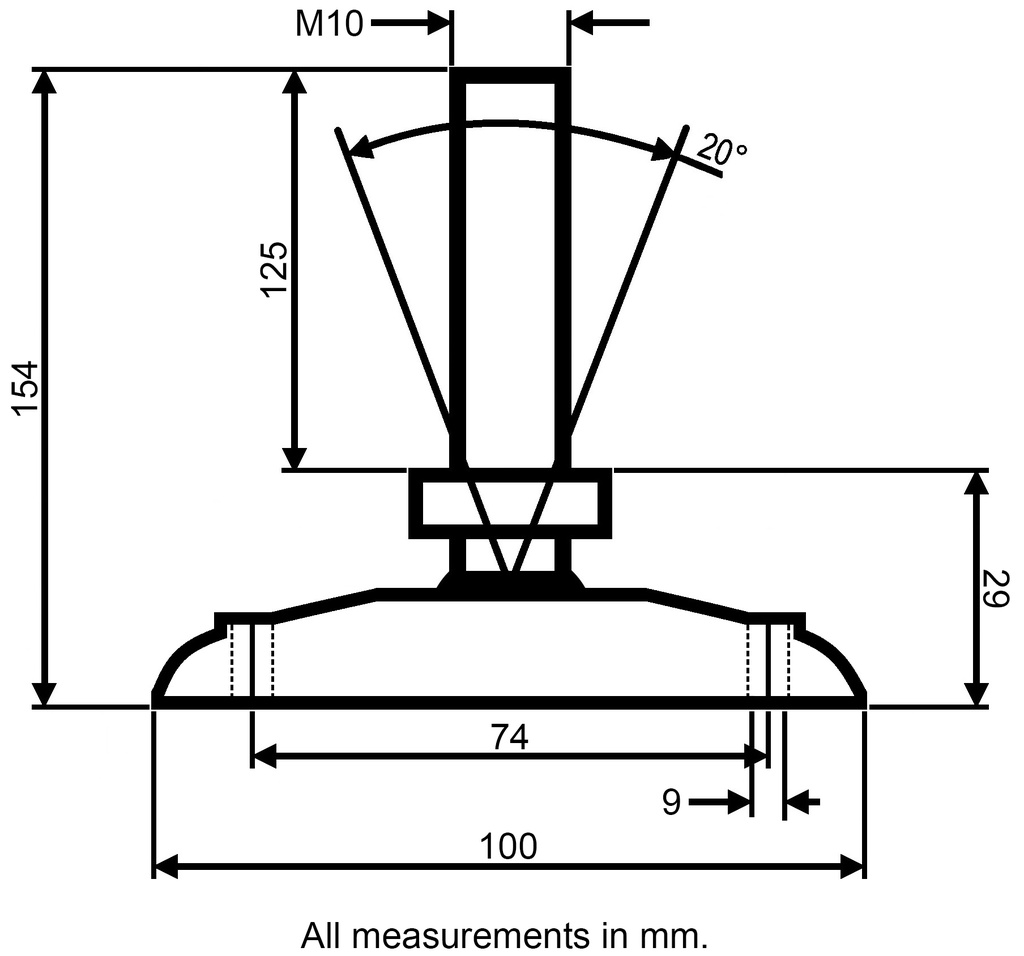

Dimensions for R101-10-125.jpg
Download
8080Y 100mm bolt down.stp
Download
9299V M10 x 125mm.stp
Download
