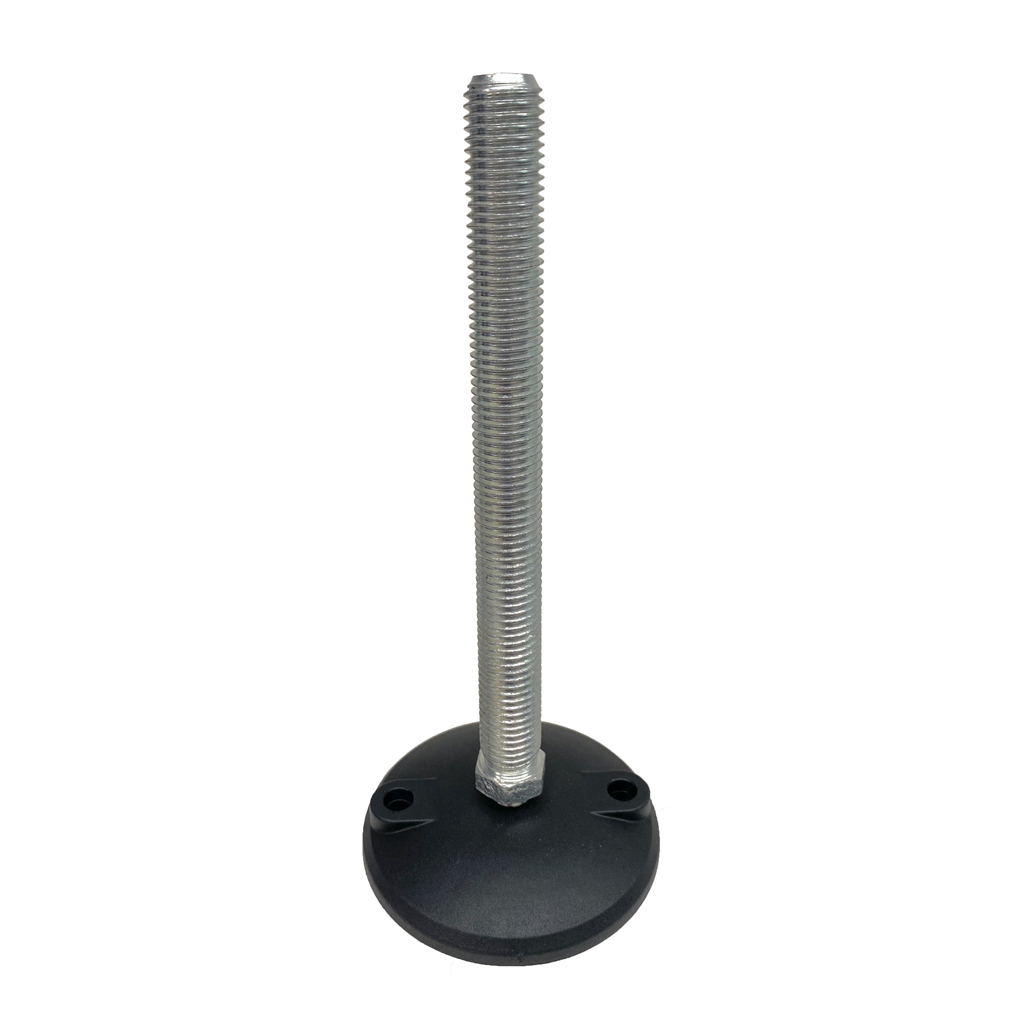

M20x200 Zinc plated tilting levelling foot, 100mm plastic base with holes 900kg

https://www.parnells.eu/web/image/product.template/34171/image_1920?unique=7875724

Part Number: R101-20-200
Base Diameter: 100mm
Tread size: M20x200mm
Thread Material: Zinc Plated Steel
Base Material: Plastic
Load Capacity: 900kg

25.99 € 25.990000000000002 EUR 25.99 €

30.19 €

Login for trade prices

Not Available For Sale


  • Hole Diameter (mm)
  • Thread Size
  • Brand
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Hole Position (mm)
  • Max Load (Kg)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M20x200 Zinc plated tilting levelling foot, 100mm plastic base with holes 900kg

M20x200 Zinc plated tilting levelling foot, 100mm plastic base with holes 900kg

  • Levelling foot with zinc plated threads.
  • Base made of glass reinforced nylon.
  • Base with integrated bolt-down holes suitable for when a secure fitting on a flat surface is required.
  • The stem tilt up to 20° from perpendicular. Enables adjustment for items with angled legs.
  • Stainless steel available on request (MOQs apply).
  • Standard base colour black. Other RAL colours available (MOQs apply).
Part Number R101-20-200
Hole Diameter (mm) 9
Thread Size M20
Brand Rencol
Thread Length (mm) 200
Base Height (mm) 29
Base Diameter (mm) 100
Hole Position (mm) 74
Max Load (Kg) 900

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Image for R101-20-200.jpg
Download
Spec Sheet for R101-20-200.pdf
Download
Dimensions for R101-20-200.jpg
Download
8080Y 100mm bolt down.stp
Download
9228T M20 x 200mm.stp
Download
