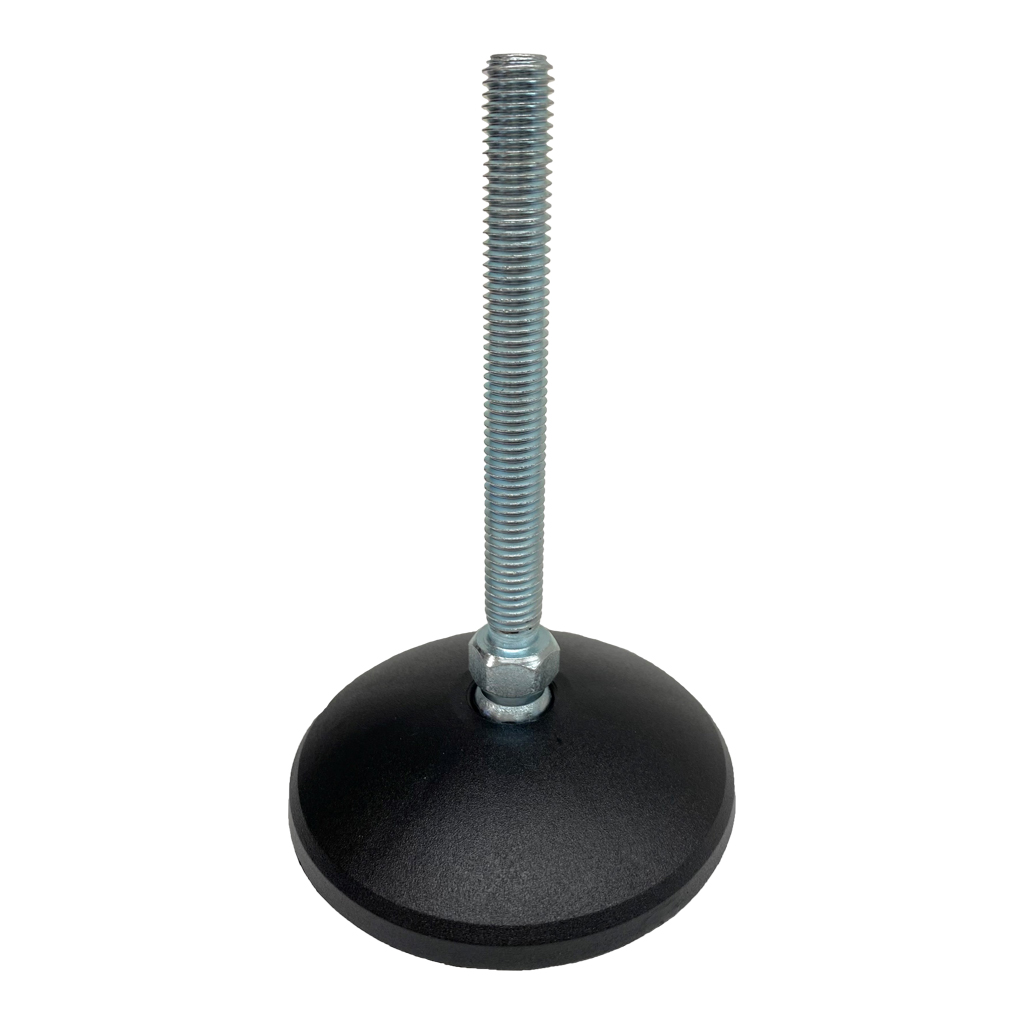

M10x90 Zinc plated tilting levelling foot with 80mm plastic base 470kg

https://www.parnells.eu/web/image/product.template/35262/image_1920?unique=fb70141
(0 review)

Part Number: R80-10-90
Base Diameter: 80mm
Tread size: M10x90mm
Thread Material: Zinc Plated Steel
Base Material: Plastic
Load Capacity: 470kg

9.02 € 9.02 EUR 9.02 €

10.48 €

Login for trade prices

Not Available For Sale


  • Thread Size
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M10x90 Zinc plated tilting levelling foot with 80mm plastic base 470kg

M10x90 Zinc plated tilting levelling foot with 80mm plastic base 470kg

  • Levelling foot with zinc plated threads.
  • Base made of glass reinforced nylon.
  • The stem tilt up to 20° from perpendicular. Enables adjustment for items with angled legs.
  • Stainless steel available on request (MOQs apply).
  • Standard base colour black. Other RAL colours available (MOQs apply).

Add to cart

Sign in

Pay

Get Delivered

Part Number R80-10-90
Thread Size M10
Thread Length (mm) 90
Base Height (mm) 29
Base Diameter (mm) 80
Max Load (Kg) 470
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Image for R80-10-90.jpg
Download
Spec Sheet for R80-10-90.pdf
Download

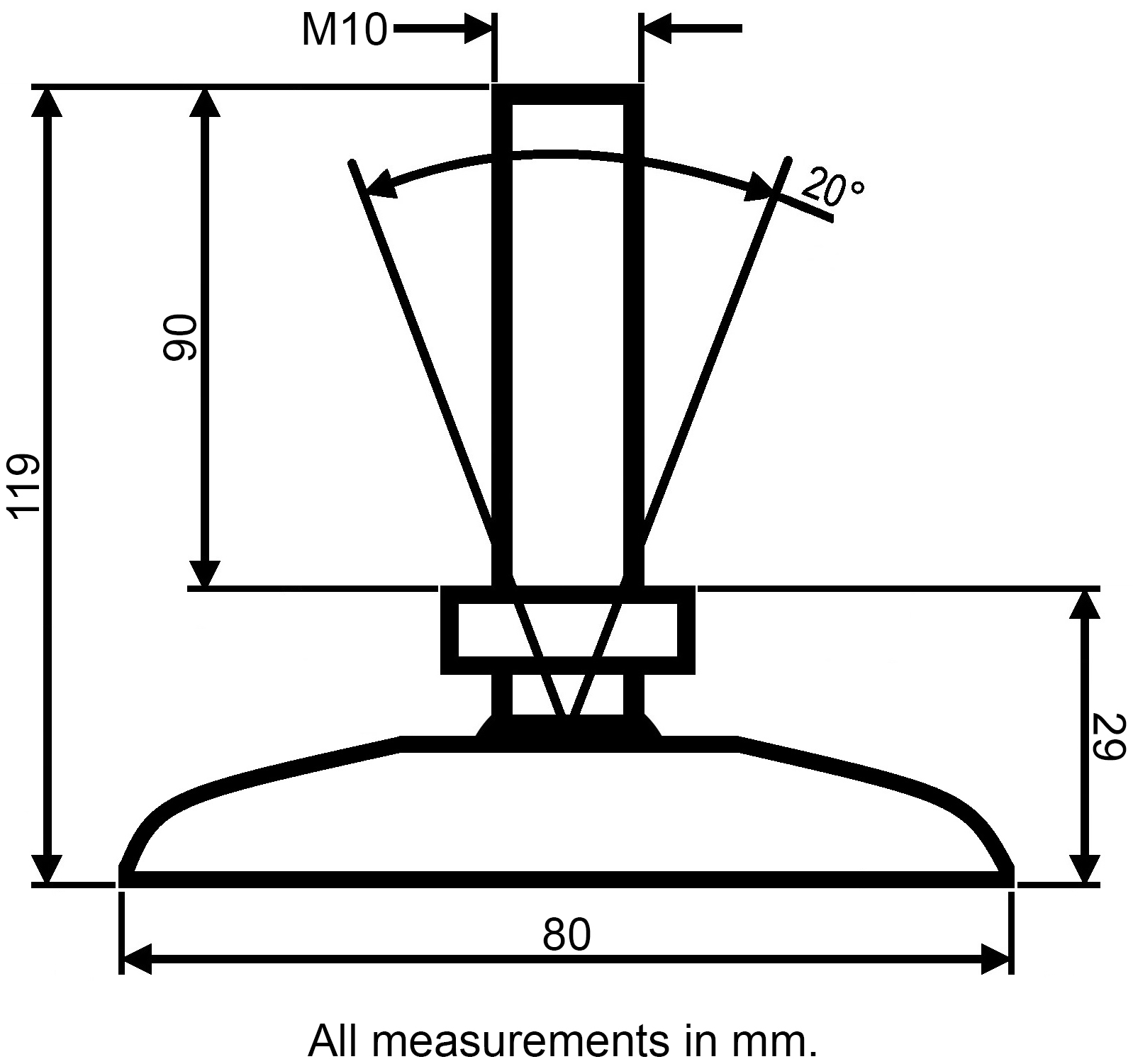

Dimensions for R80-10-90.jpg
Download
8082Q 80mm.stp
Download
8100V M10 x 90mm.stp
Download
