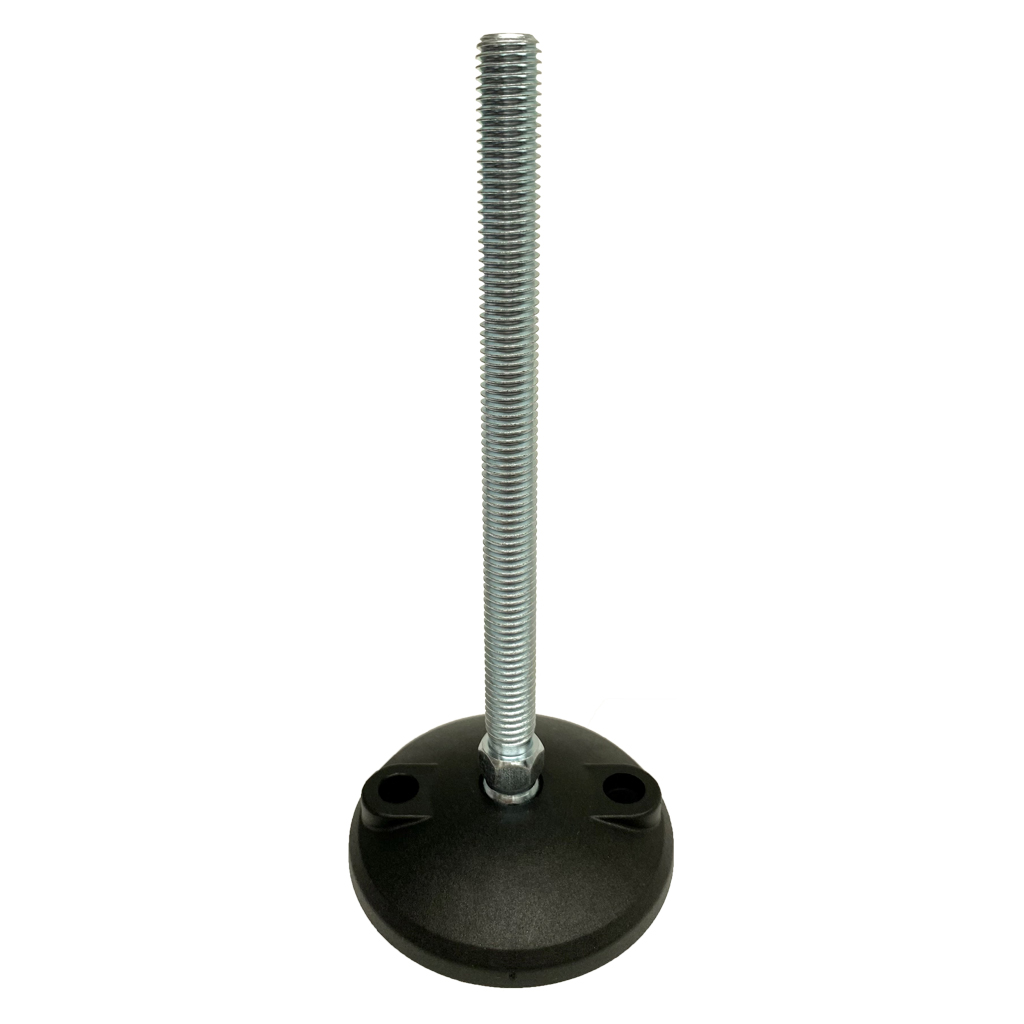

M12x150 Zinc plated tilting levelling foot, 80mm plastic base with holes 750kg

https://www.parnells.eu/web/image/product.template/34161/image_1920?unique=848ec72
(0 review)

Part Number: R81-12-150
Base Diameter: 80mm
Tread size: M12x150mm
Thread Material: Zinc Plated Steel
Base Material: Plastic
Load Capacity: 750kg

11.09 € 11.09 EUR 11.09 €

12.88 €

Login for trade prices

Not Available For Sale


  • Hole Diameter (mm)
  • Thread Size
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Hole Position (mm)
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M12x150 Zinc plated tilting levelling foot, 80mm plastic base with holes 750kg

M12x150 Zinc plated tilting levelling foot, 80mm plastic base with holes 750kg

  • Levelling foot with zinc plated threads.
  • Base made of glass reinforced nylon.
  • Base with integrated bolt-down holes suitable for when a secure fitting on a flat surface is required.
  • The stem tilt up to 20° from perpendicular. Enables adjustment for items with angled legs.
  • Stainless steel available on request (MOQs apply).
  • Standard base colour black. Other RAL colours available (MOQs apply).

Add to cart

Sign in

Pay

Get Delivered

Part Number R81-12-150
Hole Diameter (mm) 9
Thread Size M12
Thread Length (mm) 150
Base Height (mm) 29
Base Diameter (mm) 80
Hole Position (mm) 54
Max Load (Kg) 750
