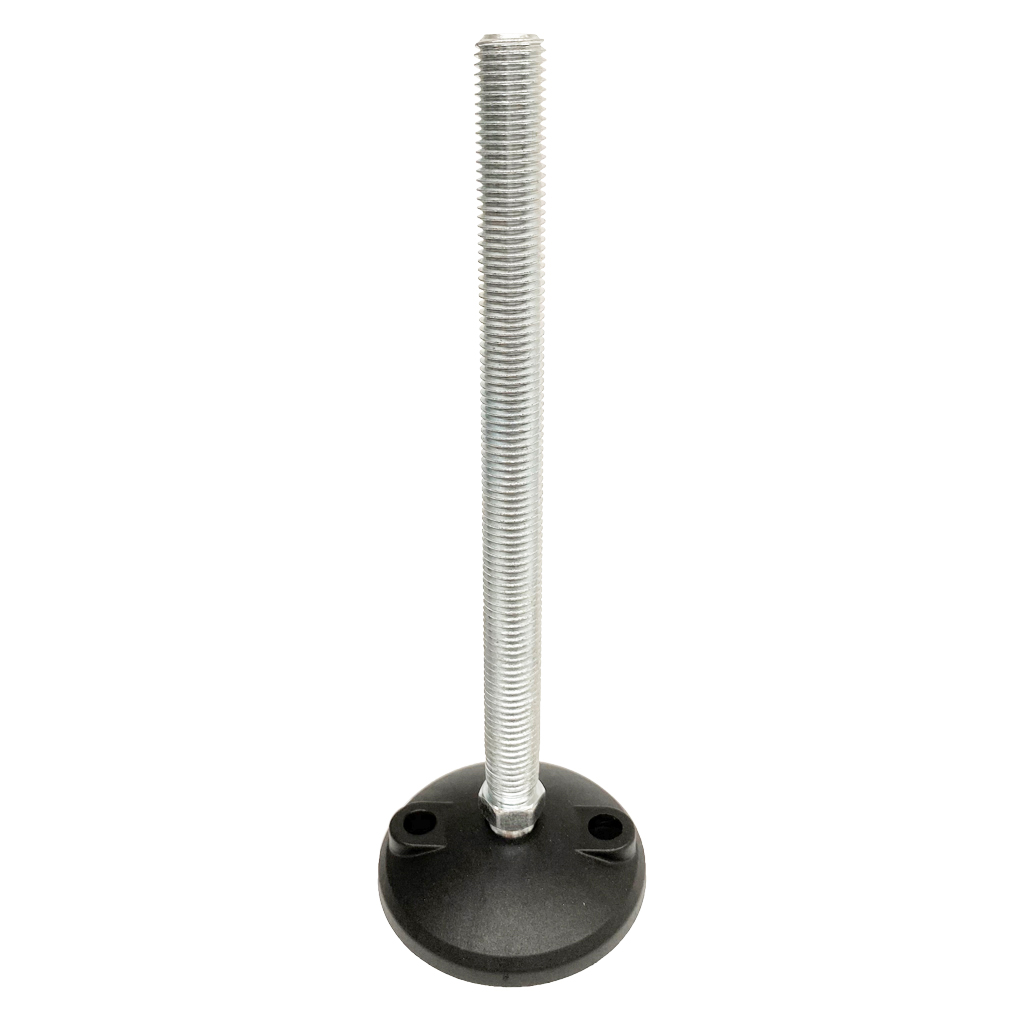

M16x200 Zinc plated tilting levelling foot, 80mm plastic base with holes 900kg

https://www.parnells.eu/web/image/product.template/34168/image_1920?unique=3da4a28

Part Number: R81-16-200
Base Diameter: 80mm
Tread size: M16x200mm
Thread Material: Zinc Plated Steel
Base Material: Plastic
Load Capacity: 900kg

16.59 € 16.59 EUR 16.59 €

19.27 €

Login for trade prices

Not Available For Sale


  • Hole Diameter (mm)
  • Thread Size
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Hole Position (mm)
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M16x200 Zinc plated tilting levelling foot, 80mm plastic base with holes 900kg

M16x200 Zinc plated tilting levelling foot, 80mm plastic base with holes 900kg

  • Levelling foot with zinc plated threads.
  • Base made of glass reinforced nylon.
  • Base with integrated bolt-down holes suitable for when a secure fitting on a flat surface is required.
  • The stem tilt up to 20° from perpendicular. Enables adjustment for items with angled legs.
  • Stainless steel available on request (MOQs apply).
  • Standard base colour black. Other RAL colours available (MOQs apply).
Hole Diameter (mm) 9
Thread Size M16
Thread Length (mm) 200
Base Height (mm) 29
Base Diameter (mm) 80
Hole Position (mm) 54
Max Load (Kg) 900
