T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
Wheel series 100mm YELLOW polyurethane on cast iron centre 15mm bore hub length 40mm ball bearing 300kg
Wheel series 100mm YELLOW polyurethane on cast iron centre 15mm bore hub length 40mm ball bearing 300kg
27.97 €
27.97 €

M16x150 stainless steel certified hygienic levelling foot with 105mm stainless base and anti-vibration rubber pad 2200kg AISI 304/A2

https://www.parnells.eu/web/image/product.template/86455/image_1920?unique=1c3904c
(0 review)

Part Number: XHS105-16-150
Base Diameter: 105mm
Tread Length: M16x150mm
Thread and Base Material: Stainless Steel
Load Capacity: 2200kg

125.72 € 125.72 EUR 125.72 €

204.43 €

Login for trade prices

Not Available For Sale


  • Thread Size
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M16x150 Stainless certified hygienic levelling foot 105mm stainless base with anti-vibration rubber pad 2200kg AISI 304/A2

M16x150 stainless steel certified hygienic levelling foot with 105mm stainless base and anti-vibration rubber pad 2200kg AISI 304/A2

  • Thread is covered with a hygienic sleeve functioning as counter nut.
  • 10° articulation for uneven floors.
  • All movable parts are 100% hygienically sealed.
  • Minimum cleaning effort is obtained by the design of self-draining surfaces.
  • Vulcanized FDA-approved, anti-vibration and anti-slip rubber pad under the base.
  • Design and patent protected.

Add to cart

Sign in

Pay

Get Delivered

Part Number XHS105-16-150
Thread Size M16
Thread Length (mm) 150
Base Height (mm) 34
Base Diameter (mm) 105
Max Load (Kg) 2200
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery

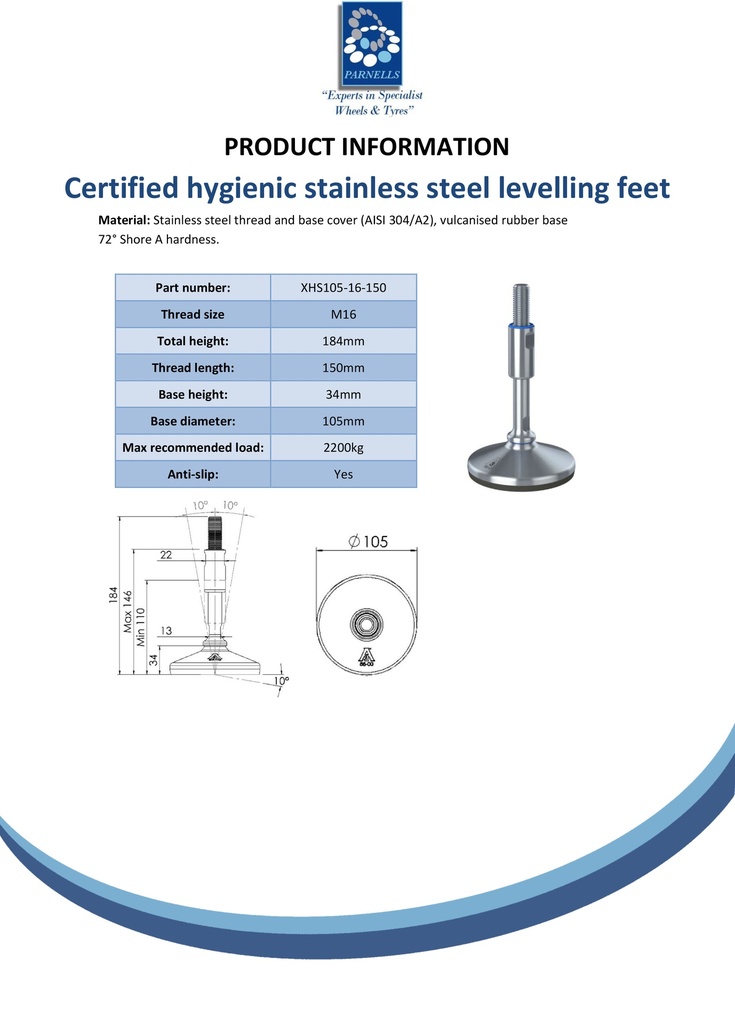

Spec Sheet for XHS105-16-150.pdf
