4.80/4.00x8 6ply P811 Trailer Kit, Wheel 4/100mm & 35x35mm ALKO Hub & Stub axle 100mm PCD & Tow Hitch
Part Number: EC7561
Tyre Size: 4.80/4.00x8
Axle Size: 35mm Square, 200mm Long
Load Capacity: 690kgs
Trailer kit.
High speed and road legal.

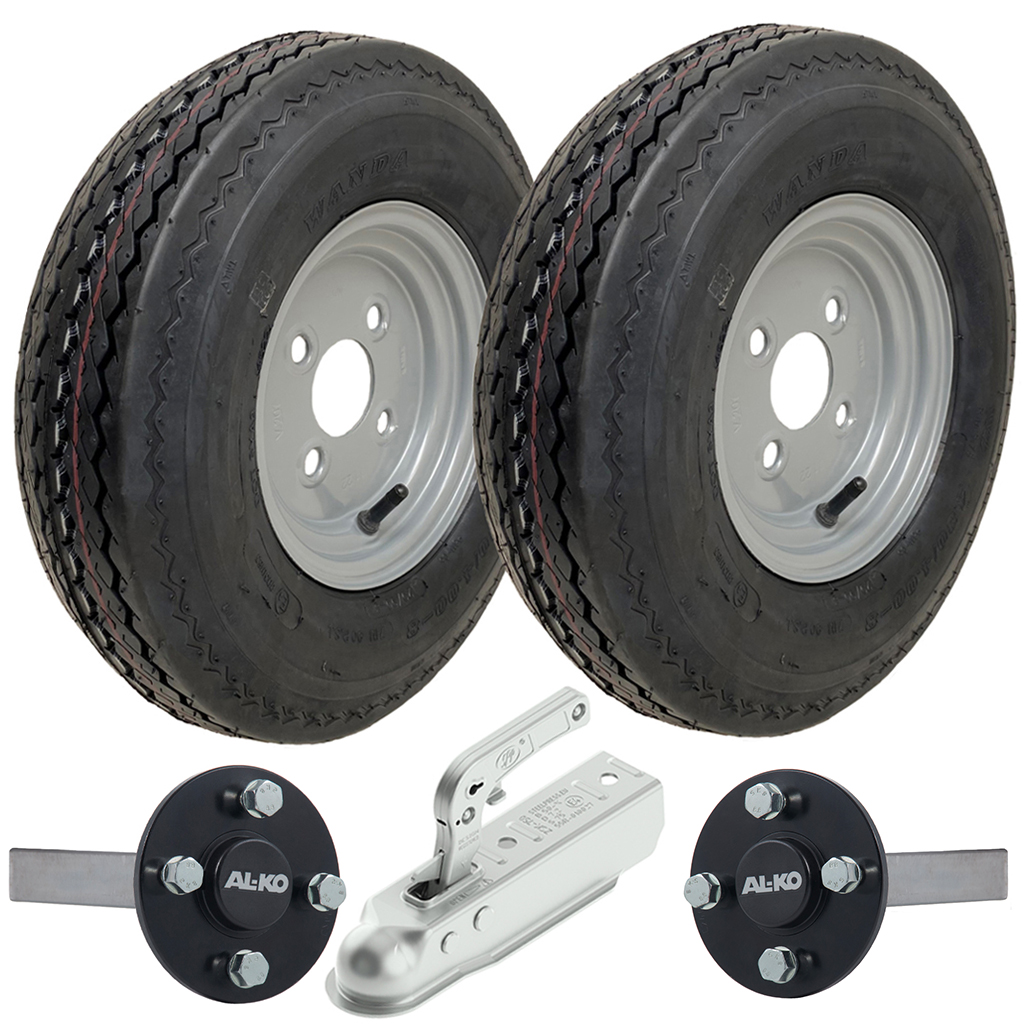

Kit Contains:
2 Wheels,
2 ALKO hub & Stub axles,
1 Pressed steel hitch.

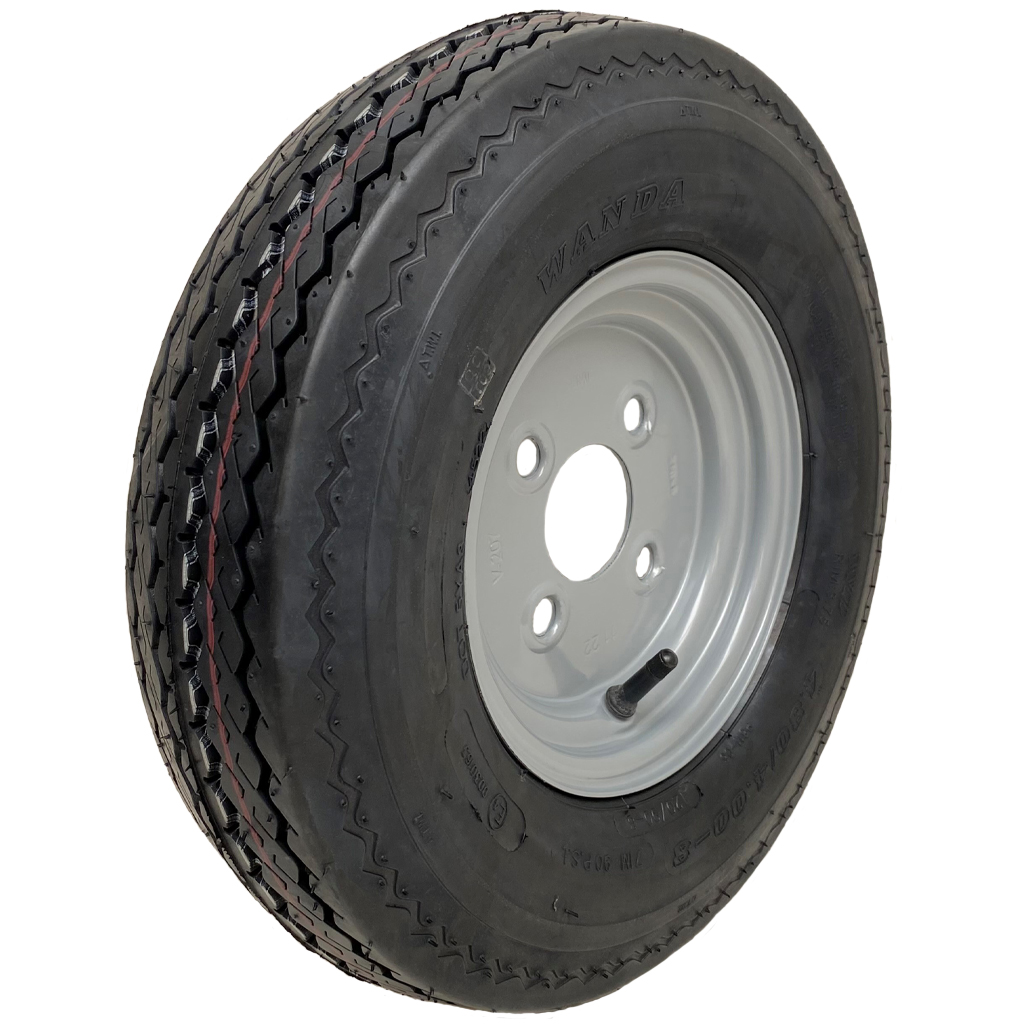

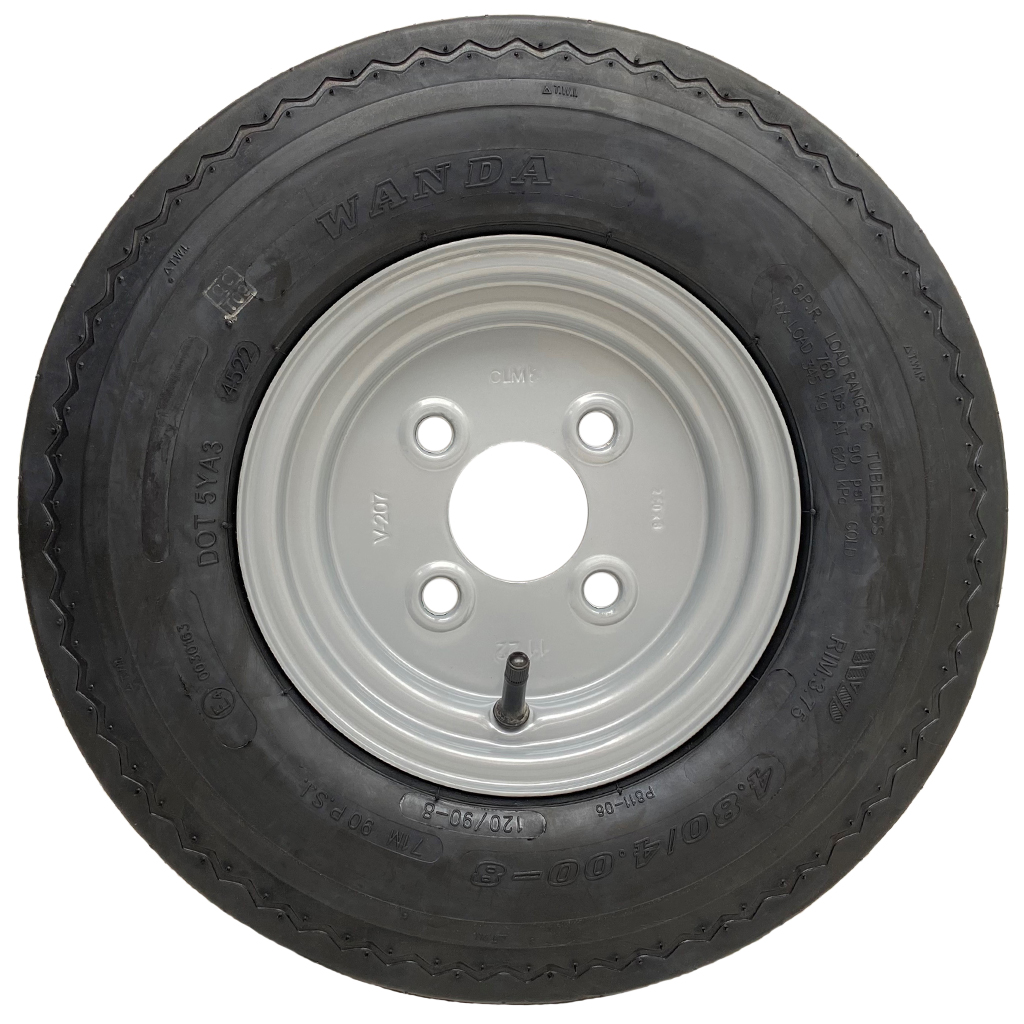

Wheel Specification:
Wheel size 4.80/4.00-8,
Overall diameter: 418mm,
Max section width: 120mm,
Max load: 760lbs (345kg) each @ 90psi,
Max speed: 81mph (130kph),
E marked road legal in the UK and EU,

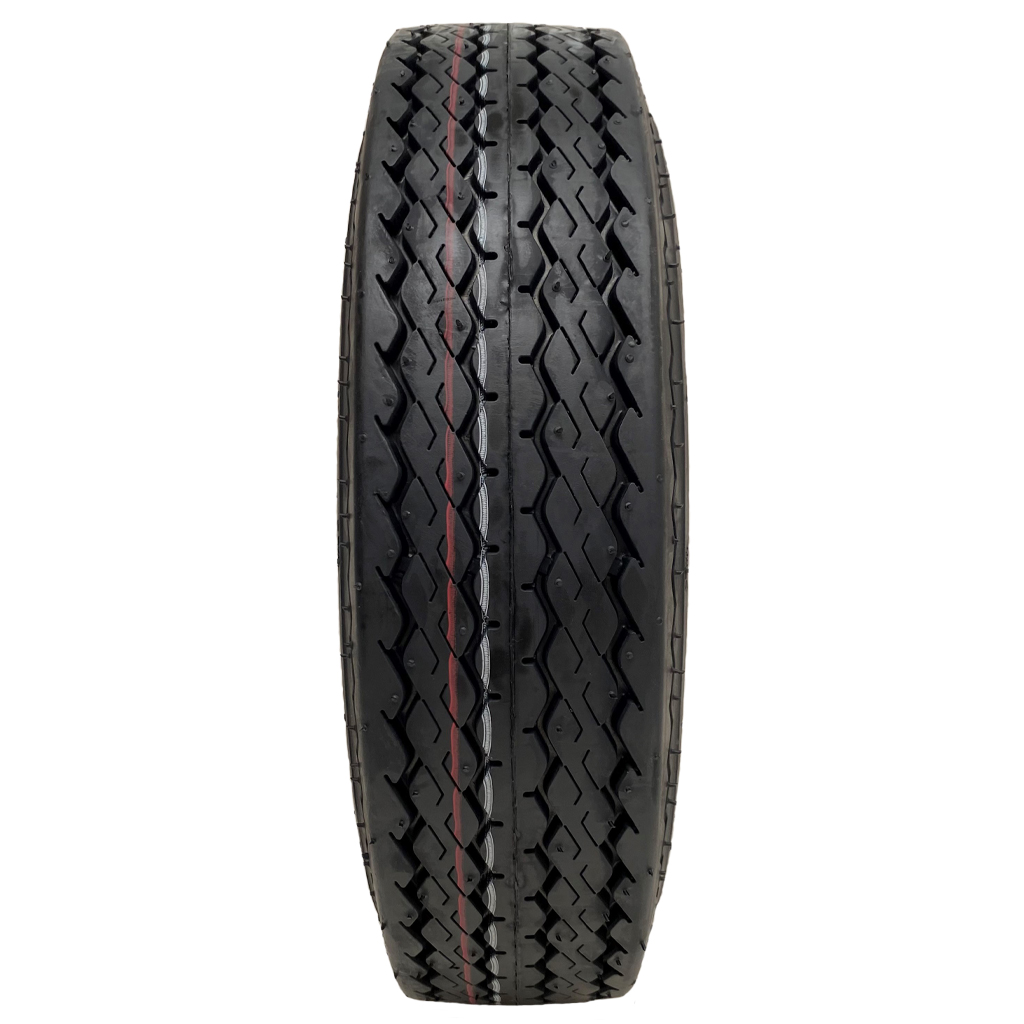

They are hard wearing tyres with a tread depth of 4.5mm.
The wheels are heavy duty steel rims with 4 studs.
100mm PCD (centre hole is 60mm).

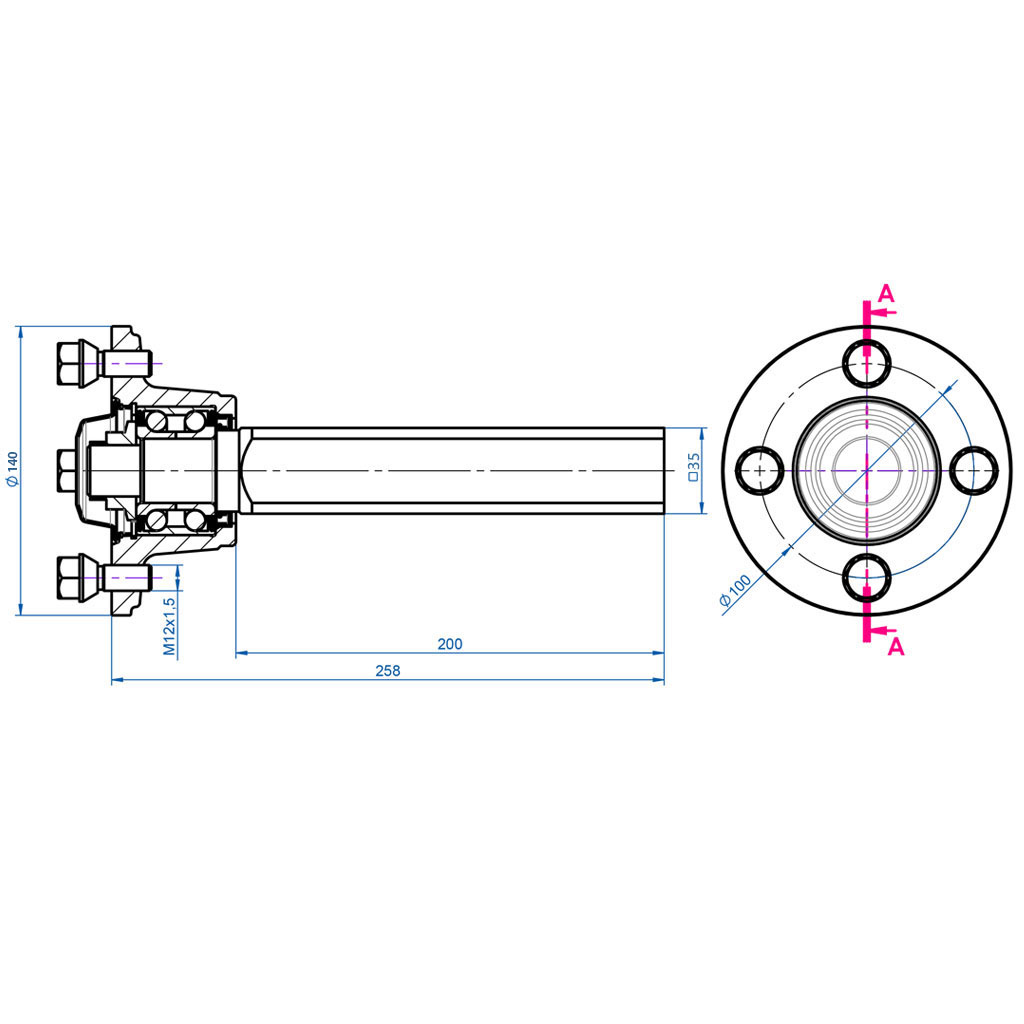

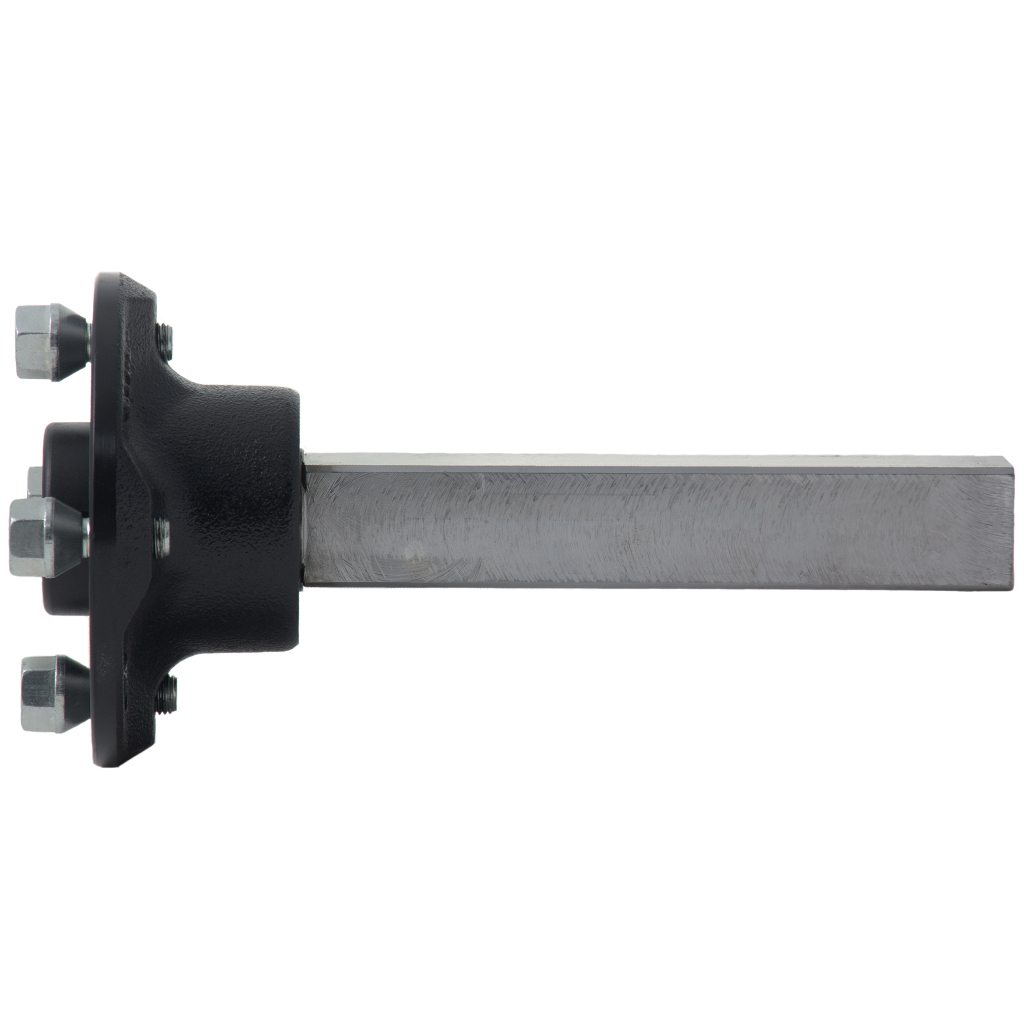

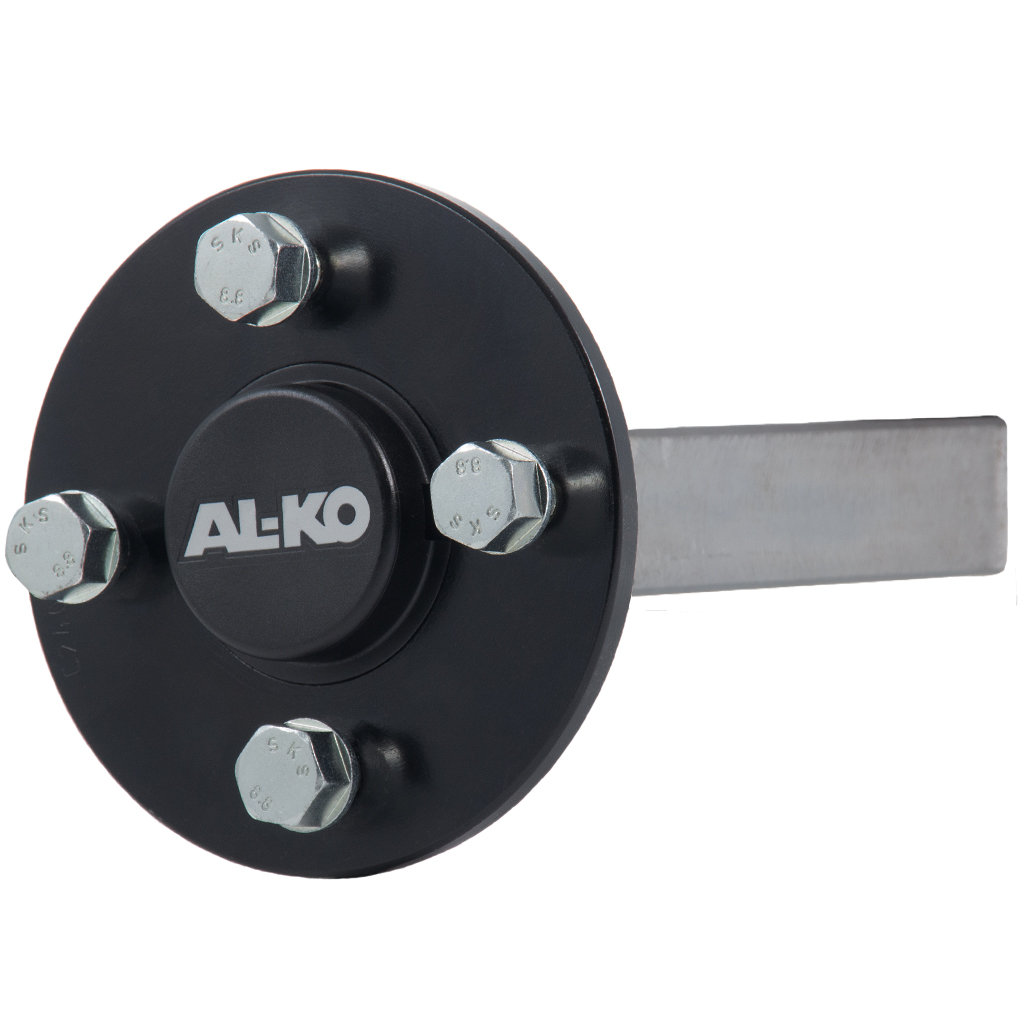

Hub & Stub Specification:
The hubs are 4 stud 100mm PCD, M12 stud they have high speed sealed ball bearings,
The stub axles are 35x35mm square 200mm long, with rounded edges for easy fitting,
They are a genuine ALKO product.
Manufactured in the EU.

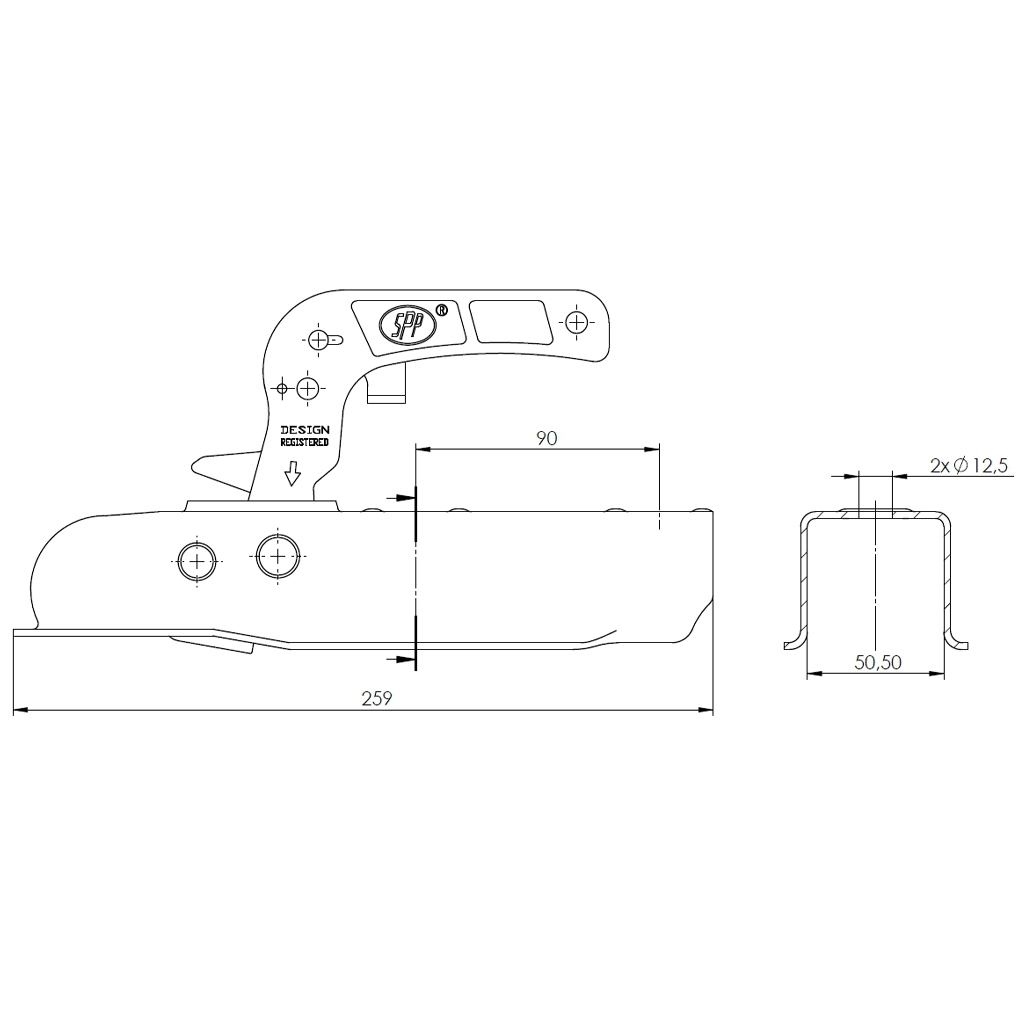

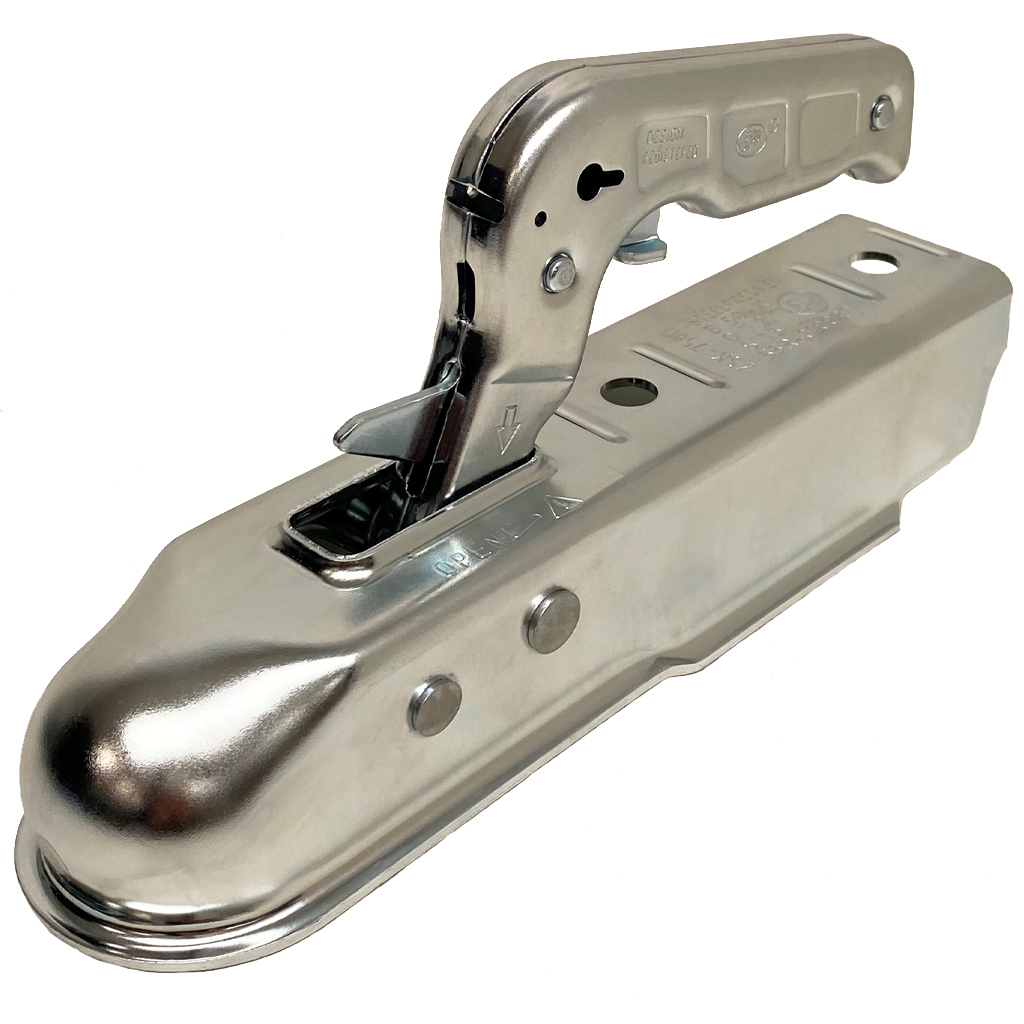

Hitch Specifications:
750kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55
of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution:
DEKRA Automobil GmbH in Germany.
Steelpress hitches ensure free head tilting up to 20° below and above the
horizontal plane and by 25° in each direction from the vertical plane.
Max weight per kit 690kgs.
| Part Number | EC7561 |
| Brand | Parnells |
| Tyre Size | 4.80/4.00-8 |
| Ply | 6 |
| TT/TL | TL |
| Pattern | P811 |
| Tread Depth (mm) | 4.5 |
| Rim Width (in) | 2.5 |
| SW (mm) | 120 |
| PSI | 90 |
| Load/Speed Index | 71M |
| Max Load (Kg) | 345 |
| Wheel & Tyres (2pcs) | (34481, '[AS7001] 4.80/4.00-8 (120/85-8) 6ply trailer wheel & tyre assembly 4/100/60') |
| Hub & Stub Axle (2pcs) | HU1044 |
| Hitch (1pcs) | (31997, '[TR1000] SPP 750kg Pressed hitch') |
