22x11.00-8 Journey P308 Twin Axle ATV trailer kit 620ks capacity, ALKO stub axles
Part Number: EC7562
Wheel Size: 22x11.00-8
Axle Size: 35mm Square, 200mm Long
Load Capacity: 620kgs

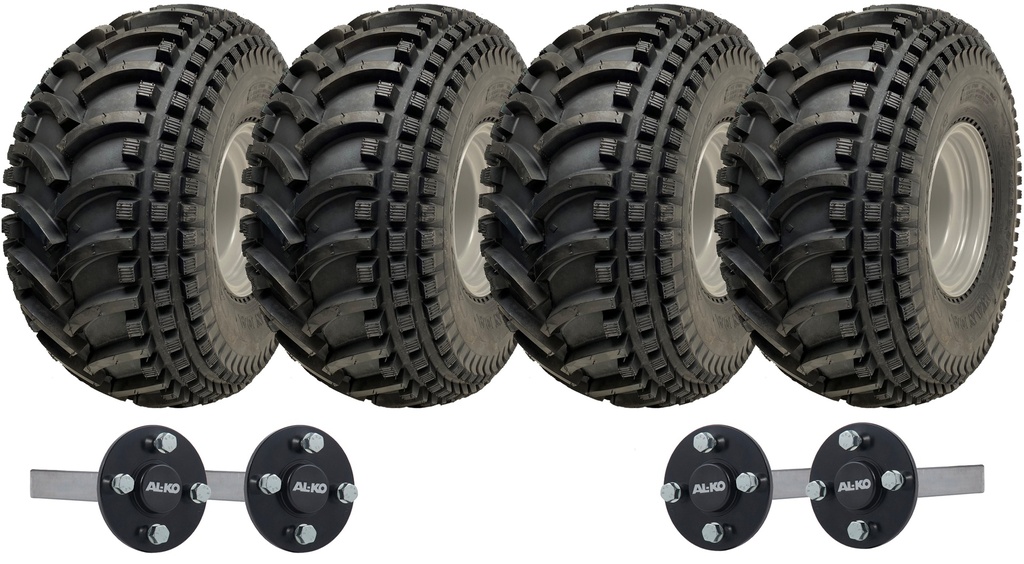

Twin Axle ATV trailer kit.
Contents of this kit include:
4 x Wheels, 22x11.00-8.
4 x ALKO Stub axles, 35x35x200mm solid stub.
Wheel Specifications:
22x11.00-8 4ply Wanda P308 knobby open centre tyres on steel rim 4x100mm PCD,
Overall diameter: 535mm,
Max width of tyre: 260mm,
Tread depth: 16mm,
Inflation: 5psi,
Max load per wheel: 155kg @ 100km/h,
Load/speed index: 43J,
E-marked road legal number: E4-75R-0006182,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.
Stub Specifications:
Hubs are forged steel, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by AL-KO.
Maximum Kit load capacity 620kgs.
Part Number | EC7562 |
Brand | Parnells |
Rim Colour | Silver |
Tyre Size | 22X11.00-8 |
Ply | 4 |
TT/TL | TL |
Pattern | P308 |
SW (mm) | 260 |
OD (mm) | 535 |
PSI | 5 |
Load/Speed Index | 43J |
E-Mark | E4-75R-0006182 |
Max Load (Kg) | 620 |
Hub & Stub Axle (4pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
