18x9.50-8 Twin Axle Grass care trailer kit, 35mmx35mm ALKO axles
Part Number: EC7567
Tyre Size: 18x9.50-8
Tyre Pattern: P332
Load Capacity: 1500kgs
ATV Grass trailer kit 18x9.50-8.

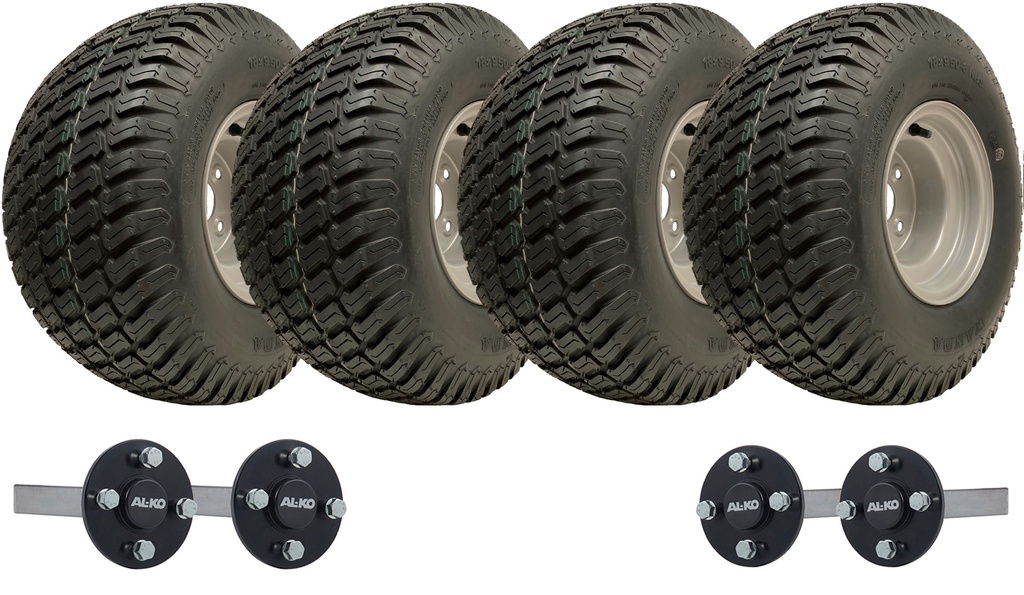

This kit contains:
4 - 18x9.50-8 grass pattern wheels
&
4 - ALKO 35mm x 35mm hub and stub axles.

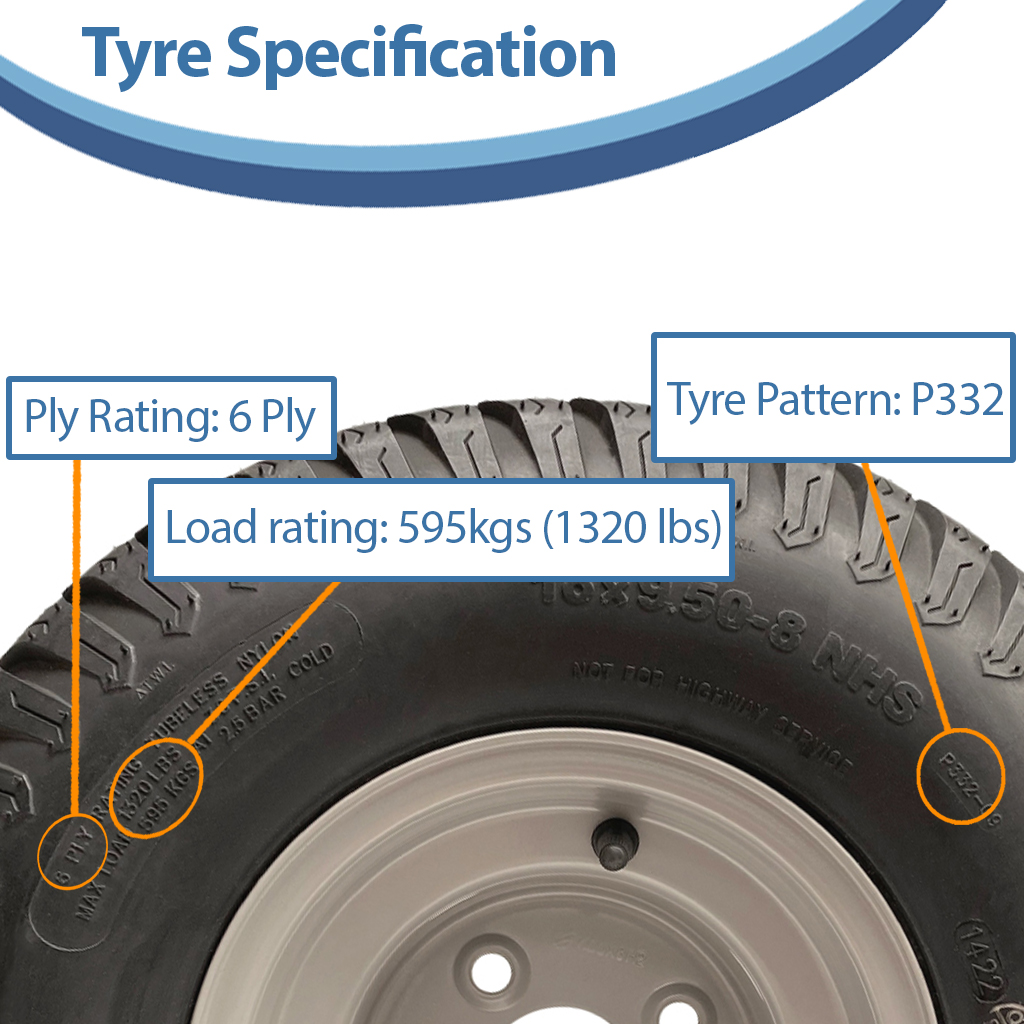

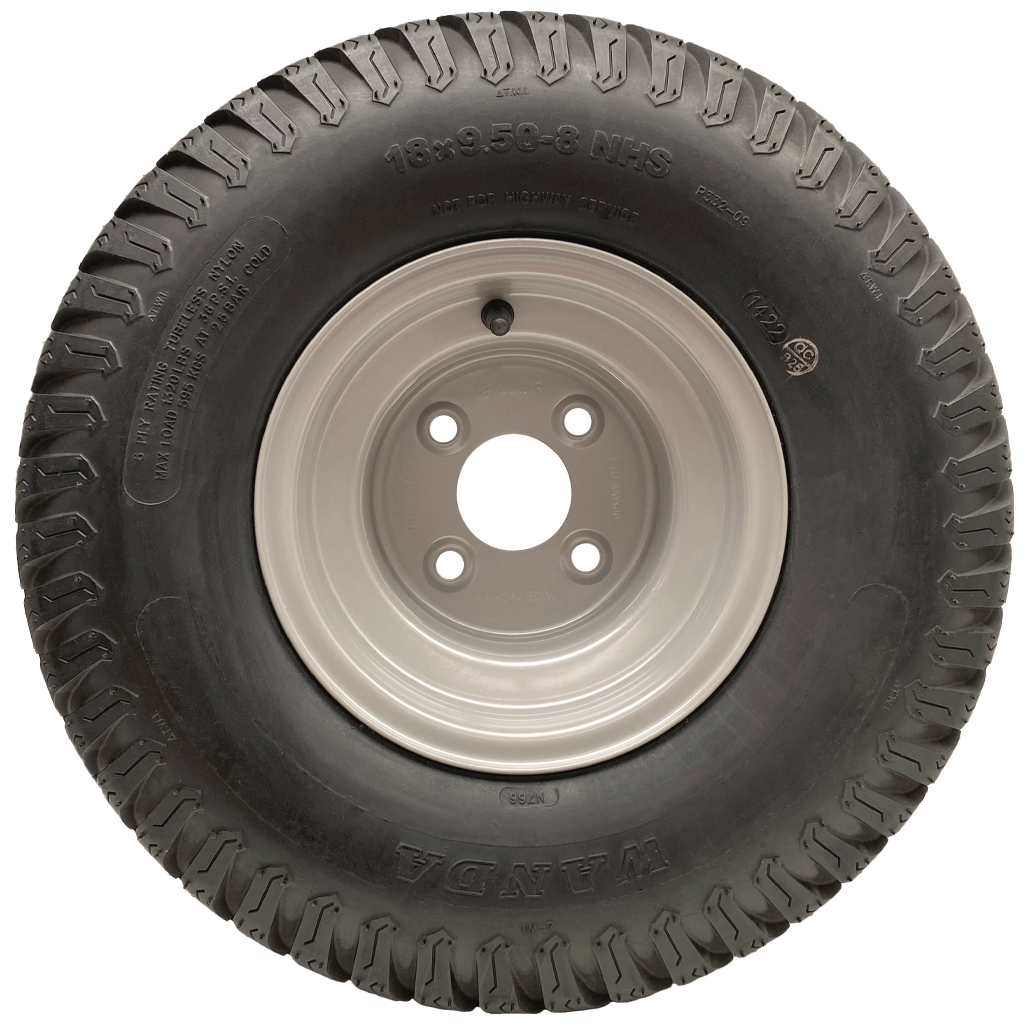

Wheel Specification:

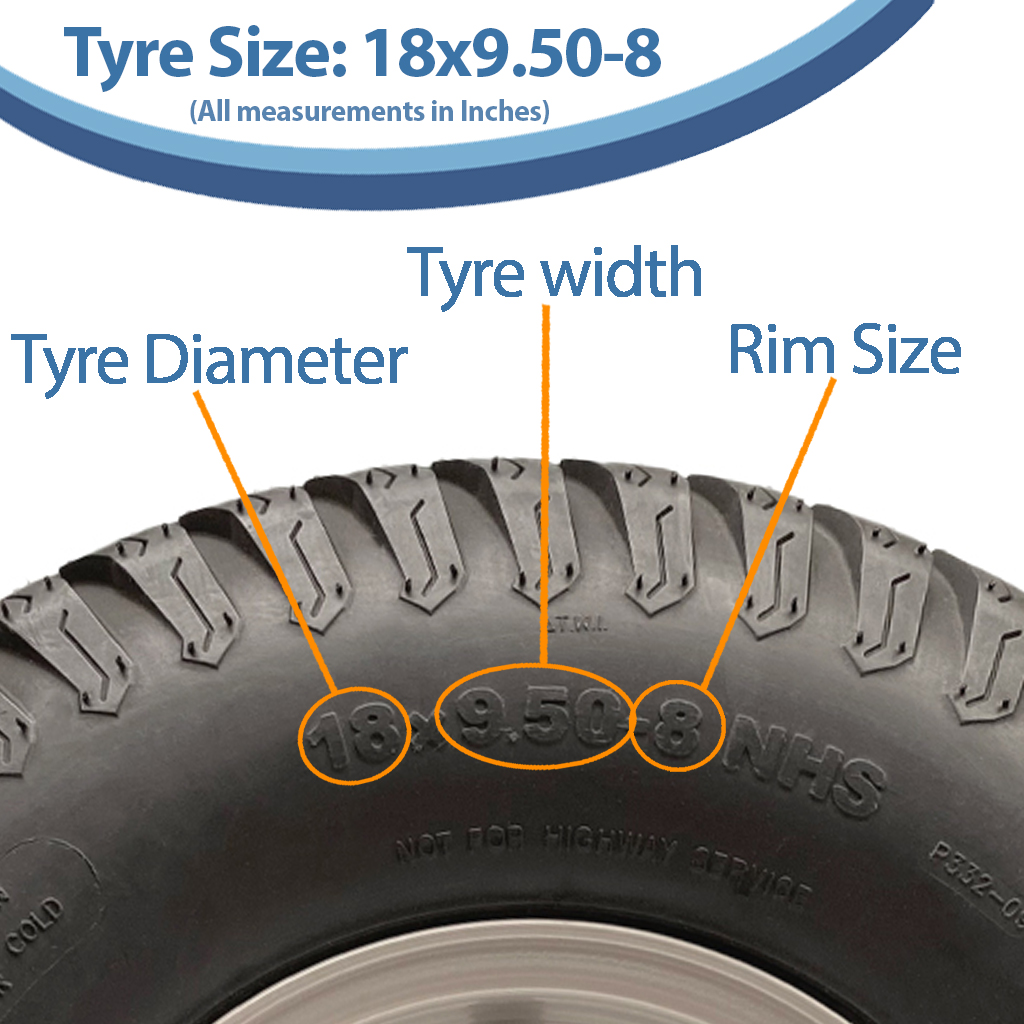

Size:18x9.50-8,
Brand: Wanda,
Tyre pattern: P332,
Ply rating: 6ply,
Load capacity: 595kgs at 36PSI,

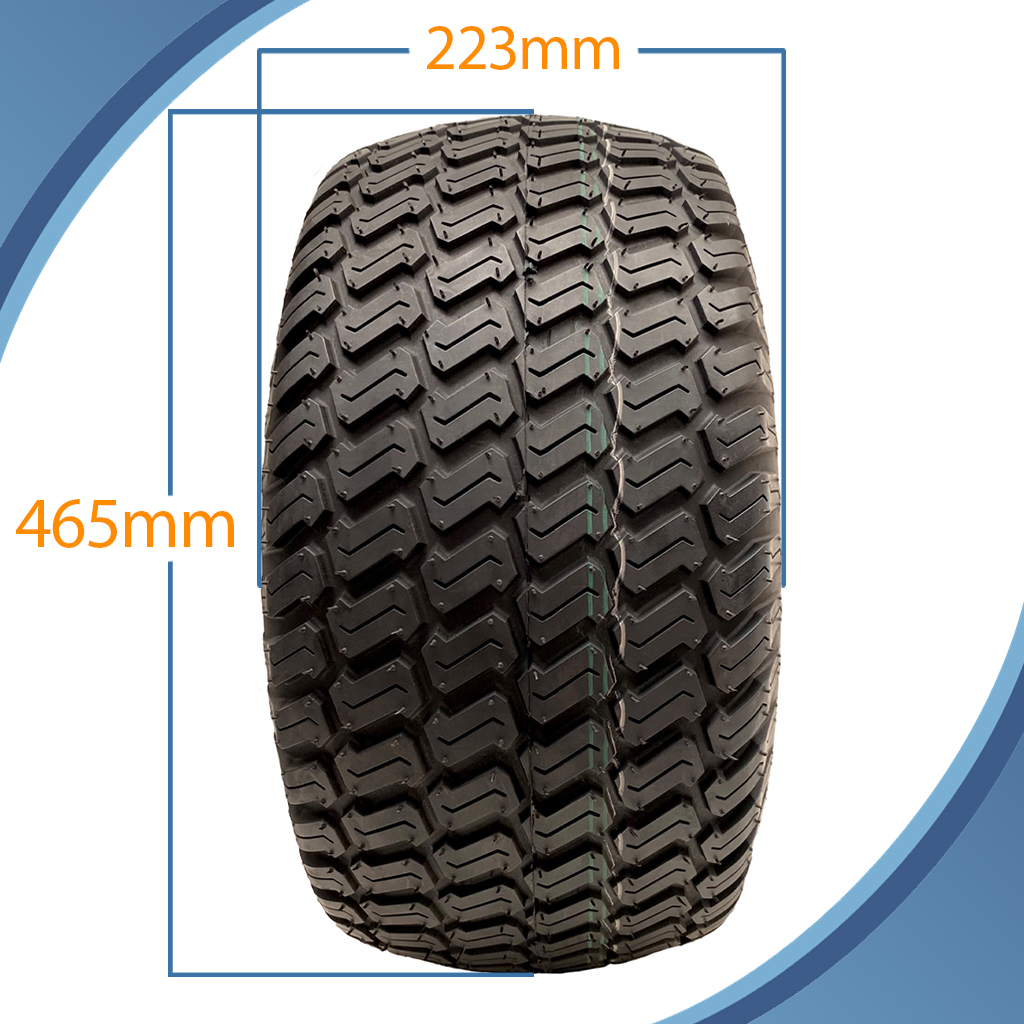

Tyre height: 465mm,
Tyre width: 223mm,
Tread Depth: 5mm,
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

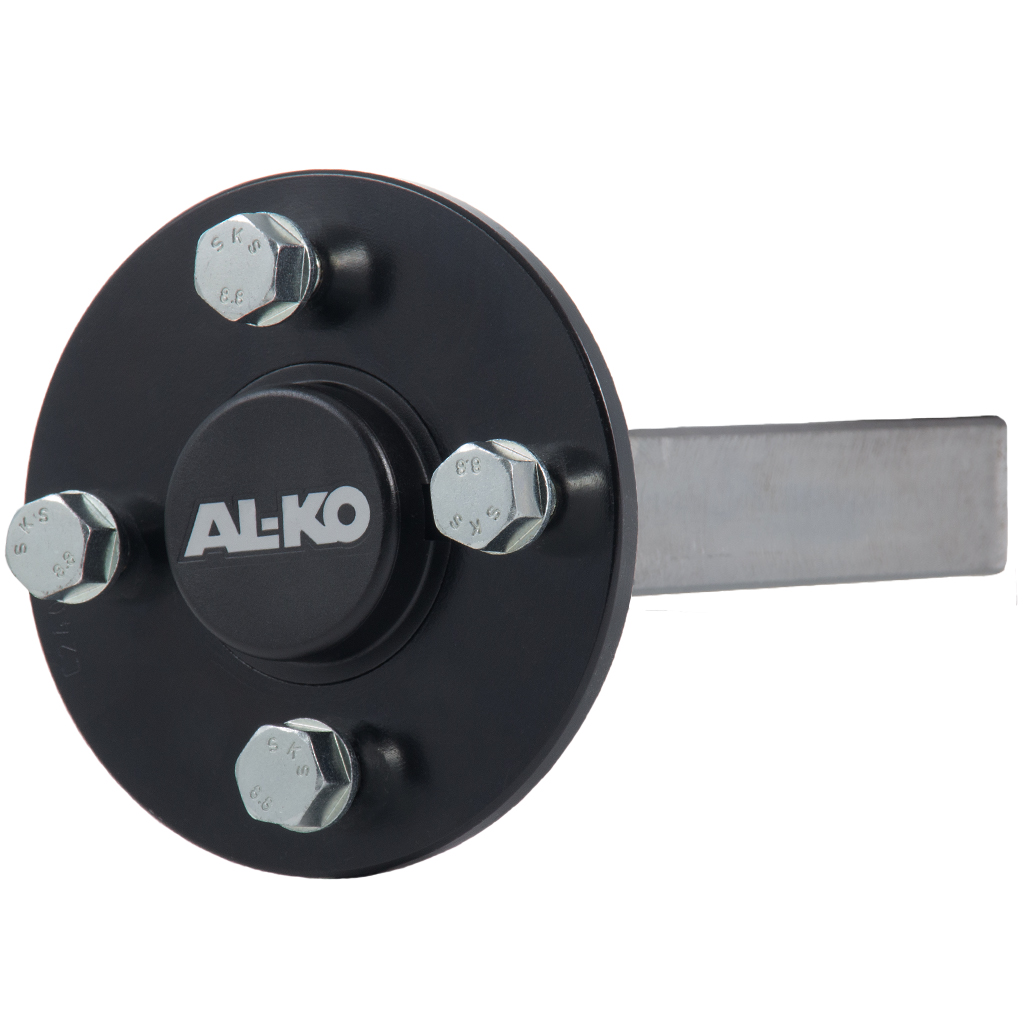

Hub & Stub Specification:
These are genuine ALKO parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings.

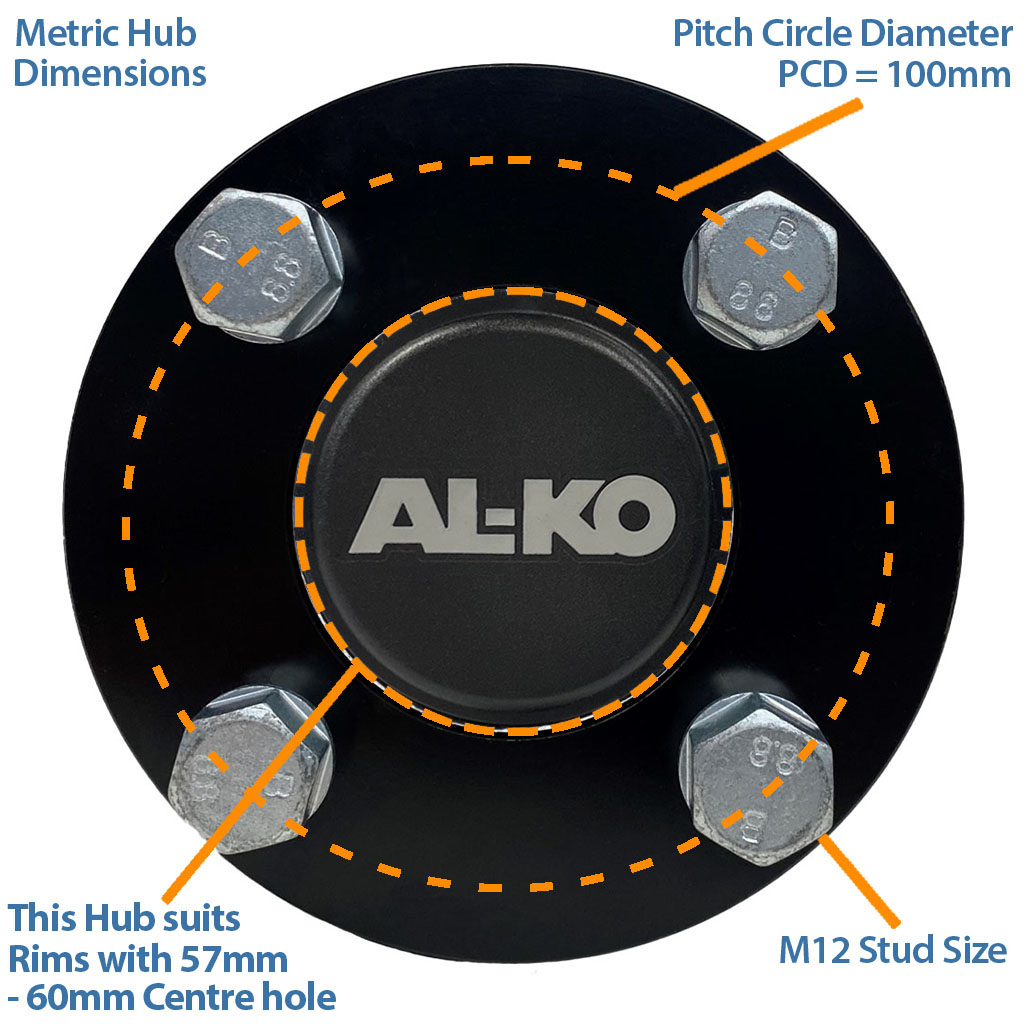

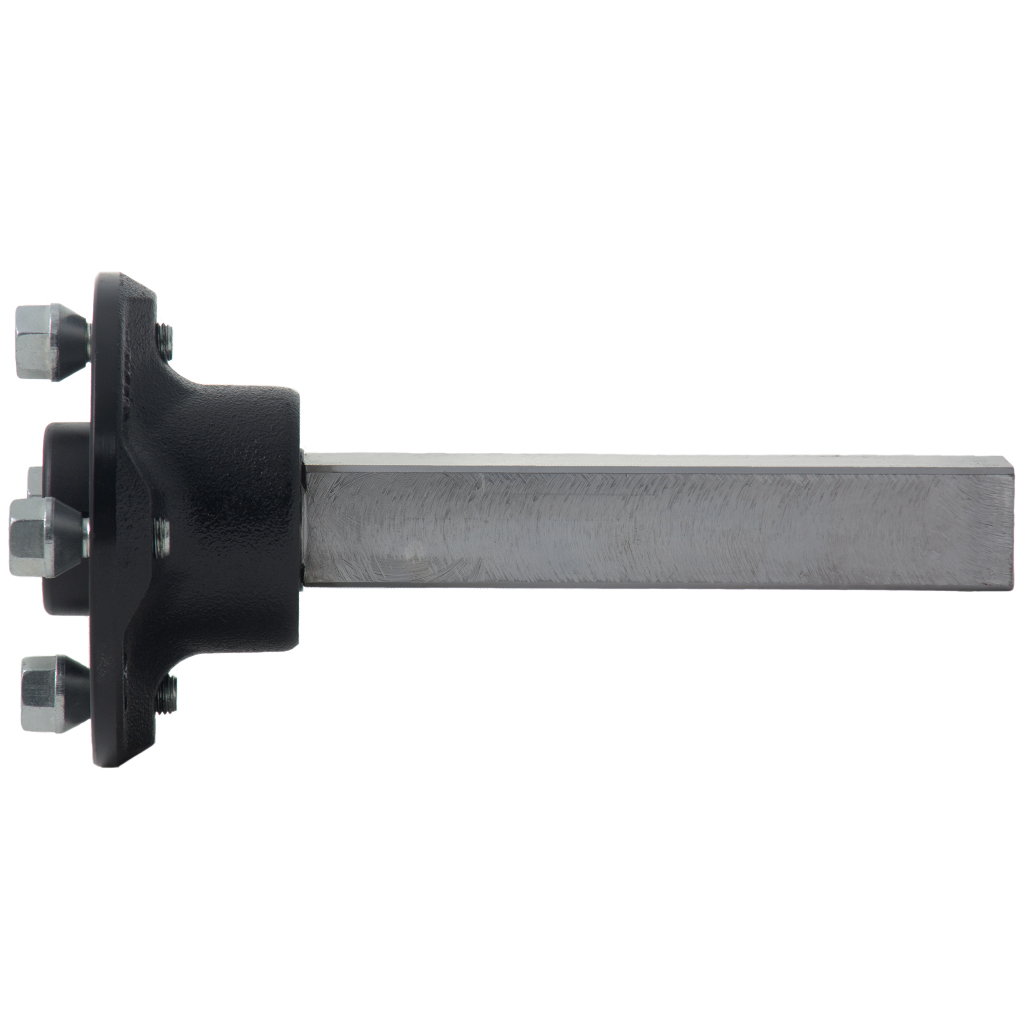

The hub has 4 x M12 studs, the PCD is 100mm.

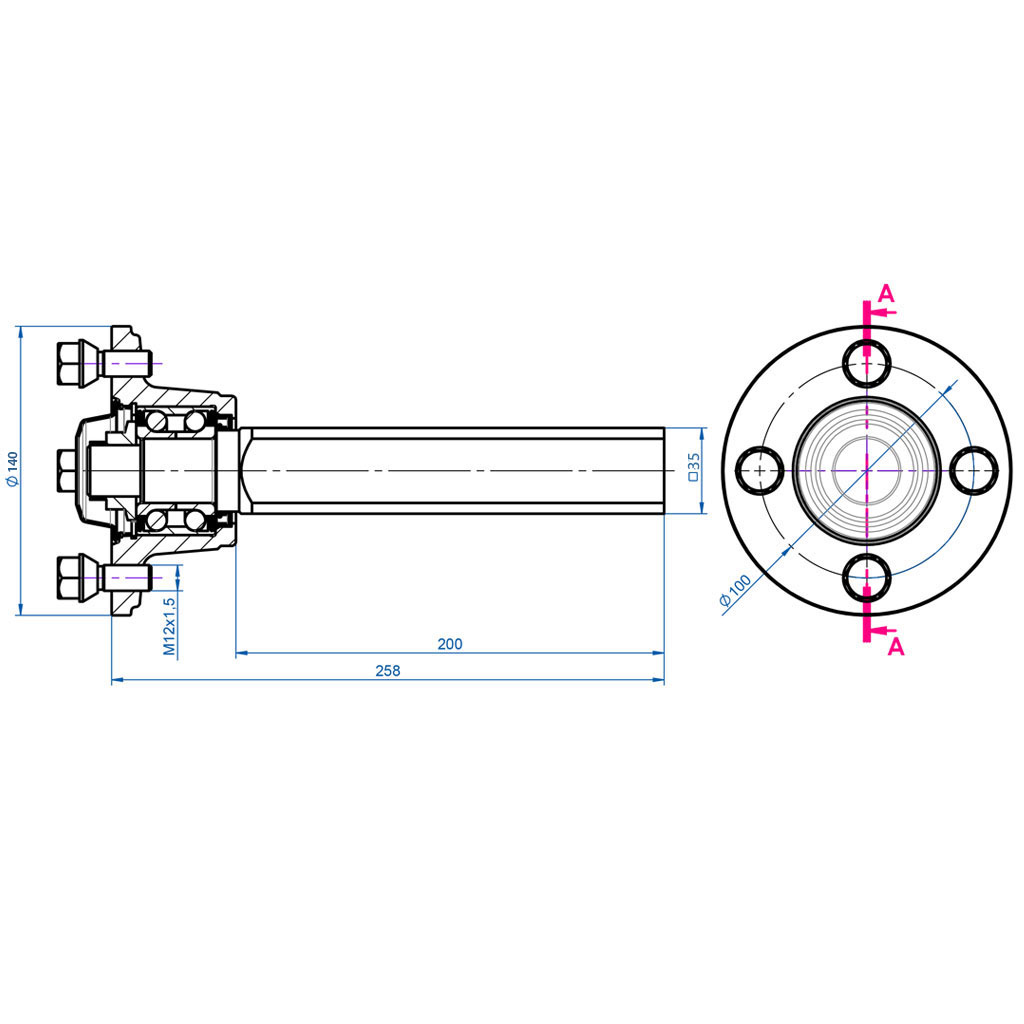

The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 750kg per pair.
This kit is for off road use only.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .
The hubs are fitted with sealed automotive precision bearings.
Maximum kit weight capacity 1500kgs.
| Part Number | EC7567 |
| Brand | Parnells |
| Rim Colour | Silver |
| Ply | 6 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 5.0 |
| Rim Width (in) | 7.0 |
| SW (mm) | 223 |
| OD (mm) | 465 |
| PSI | 36 |
| Stud / PCD | 4x100mm |
| E-Mark | No |
| Max Load (Kg) | 595 |
| Hub & Stub Axle (4pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
