20.5x8.00-10 High Speed Trailer Kit, Wheels + ALKO Hub & Stub Axles 750kgs

https://www.parnells.eu/web/image/product.template/94234/image_1920?unique=f934312

Part Number: EC7568
Wheel Size: 20.5x8.00-10
Hub & Stub Axle Size: 35mm Square, 200mm long
Load Capacity: 750kg

364.36 € 364.36 EUR 364.36 €

423.18 €

Login for trade prices

Not Available For Sale


  • Brand
  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Rim Size
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
Trailer kit - 20.5x8.00-10 4ply TRAILER WHEEL 4/100 & Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed(Alko)

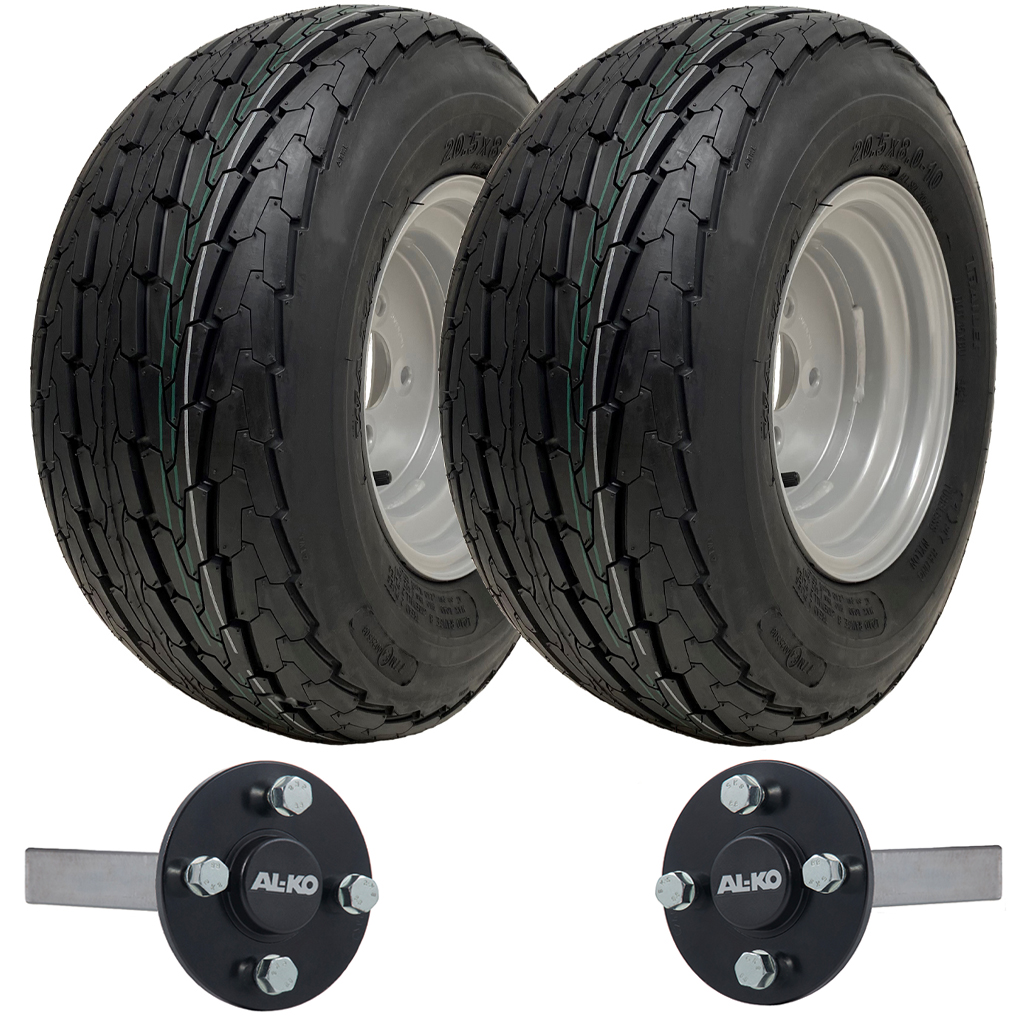

20.5x8.00-10 Trailer Kit.


This Kit contains:

Two: High Speed Wheels (tyres fitted on rims).

&

Two: High Speed ALKO Hub & Stub Axles.

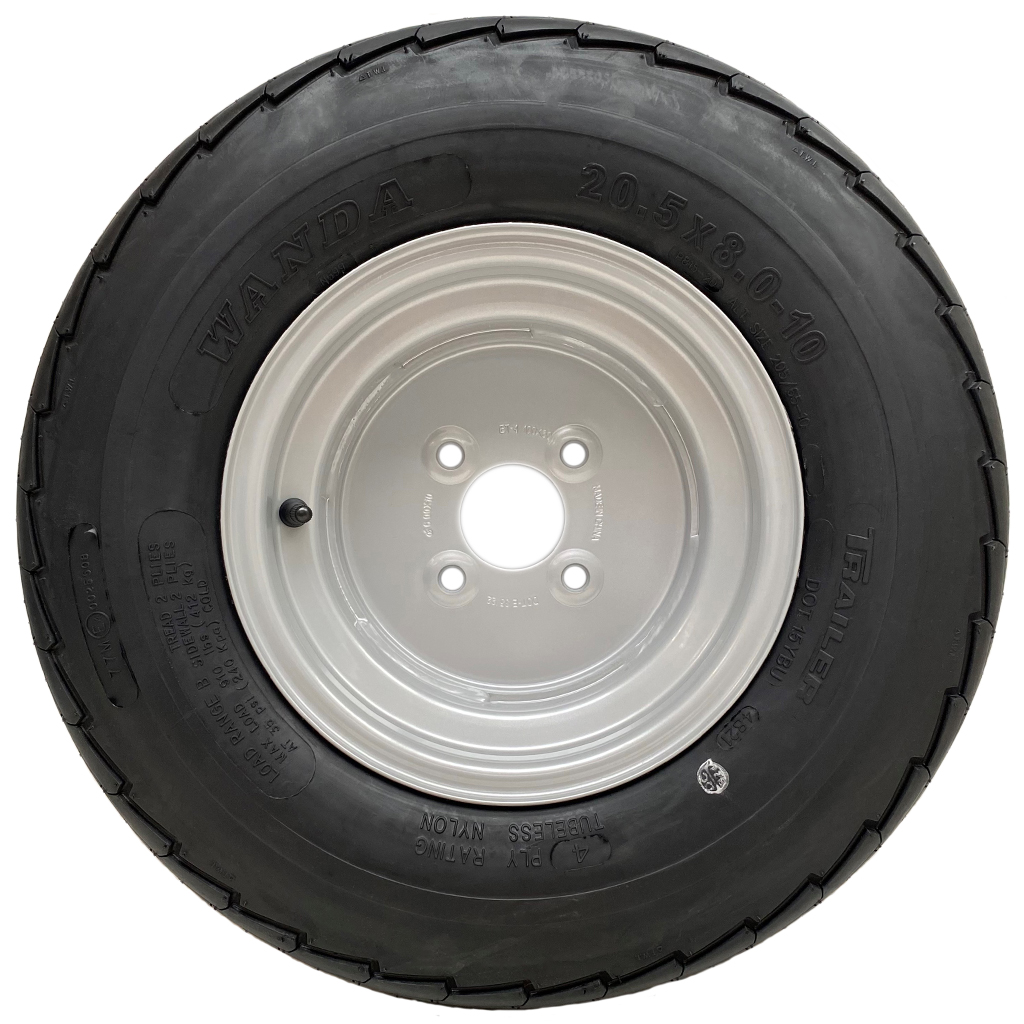

Wanda P815 trailer tyre fitted to a heavy duty 4 stud 100mm PCD steel rim.

These are tubeless tyres.

They are E marked for road legal use in Europe and the UK.

They are hard wearing 4ply tyres with a tread depth of 7mm.

The wheels are heavy duty steel rims with 4 studs 100mm PCD,

(the centre hole is 60mm).

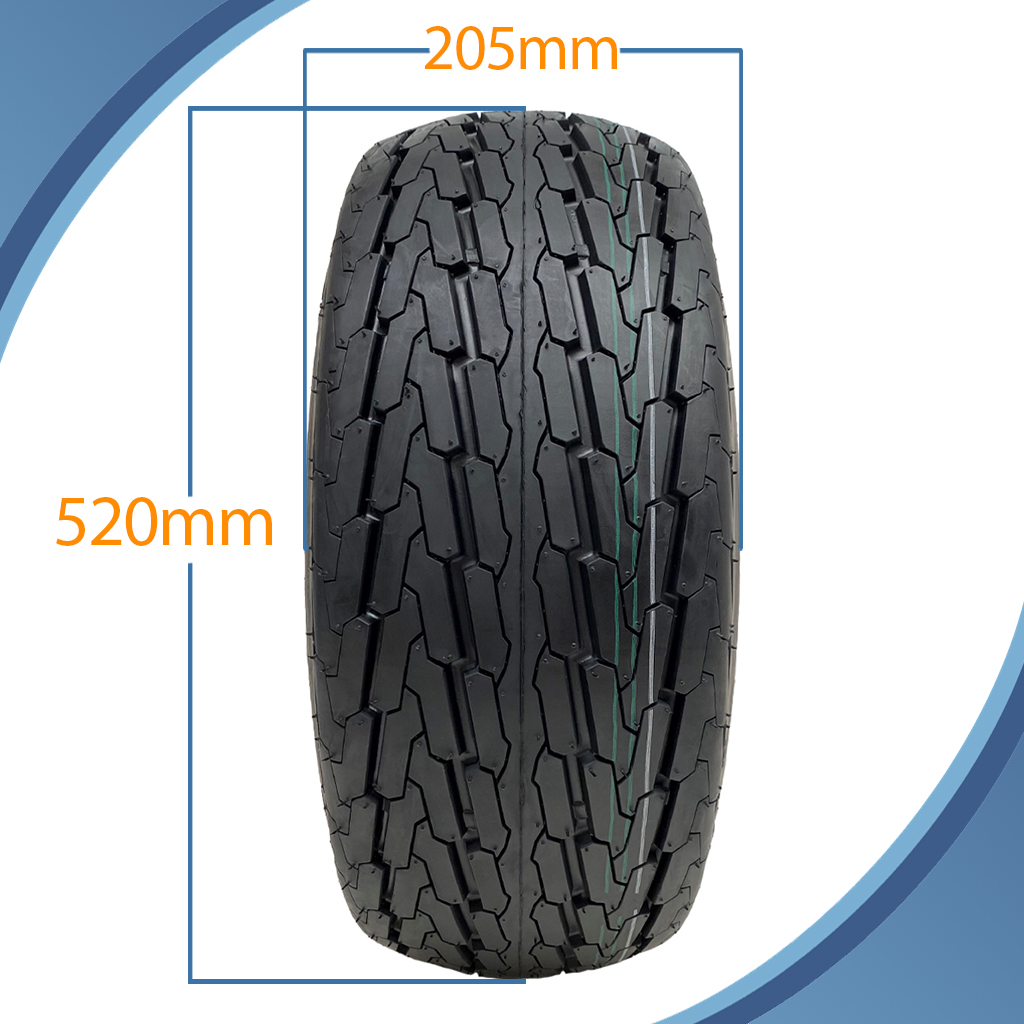

Wheel Specifications:

Overall diameter: 520mm,

Max section width: 205mm,

Max load: 910lbs (412kg),

tread Depth: 7mm,

Brand: Wanda,

Tyre pattern: P815,

PSI: 35,

Max speed: 130km/h (81mp/h).


Rim Specifications:

Rim Size: 6.00x10,

Pitch Circle Diameter: 100mm PCD,

Centre Hole Size: 60mm,

Stud Hole Size: 14.5mm,

Rim Offset: ET-4 (offset 4mm towards the inside edge),

Silver powder coated finish with electro coating.

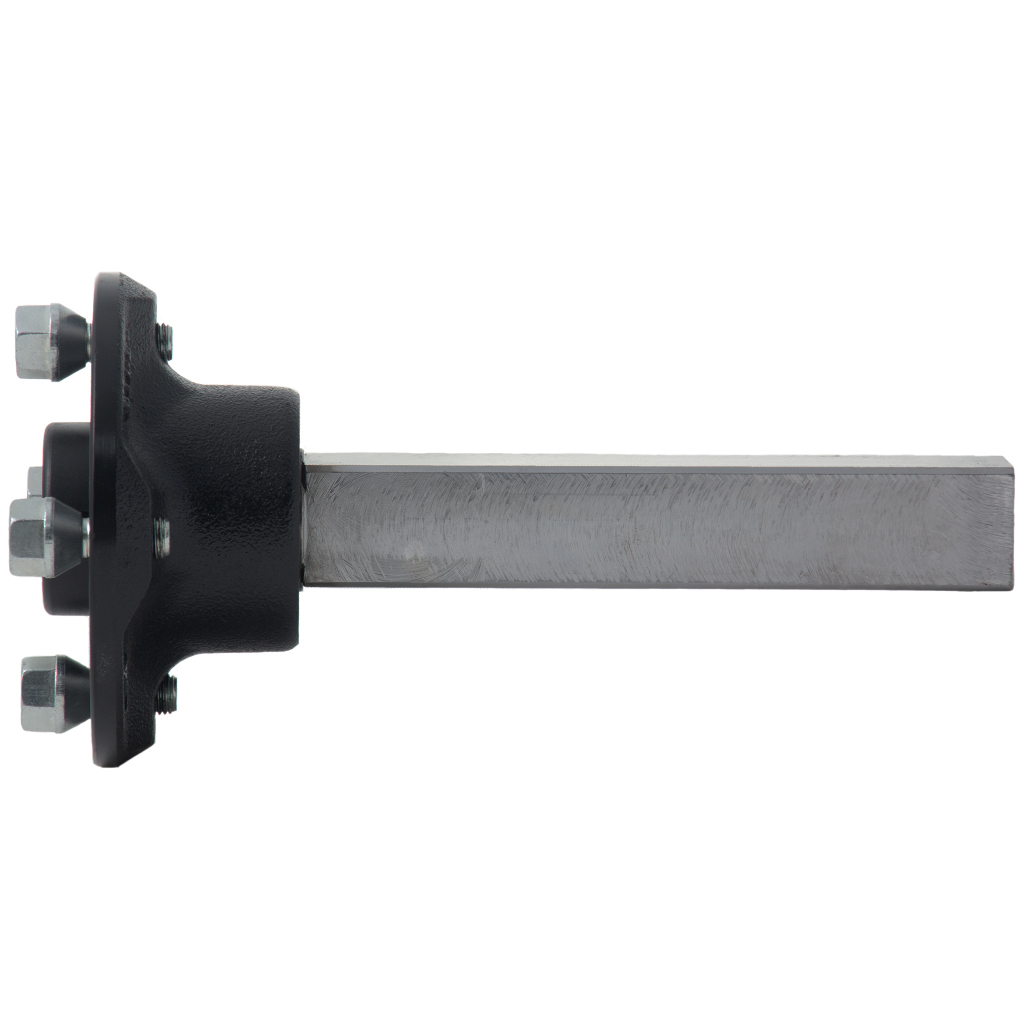

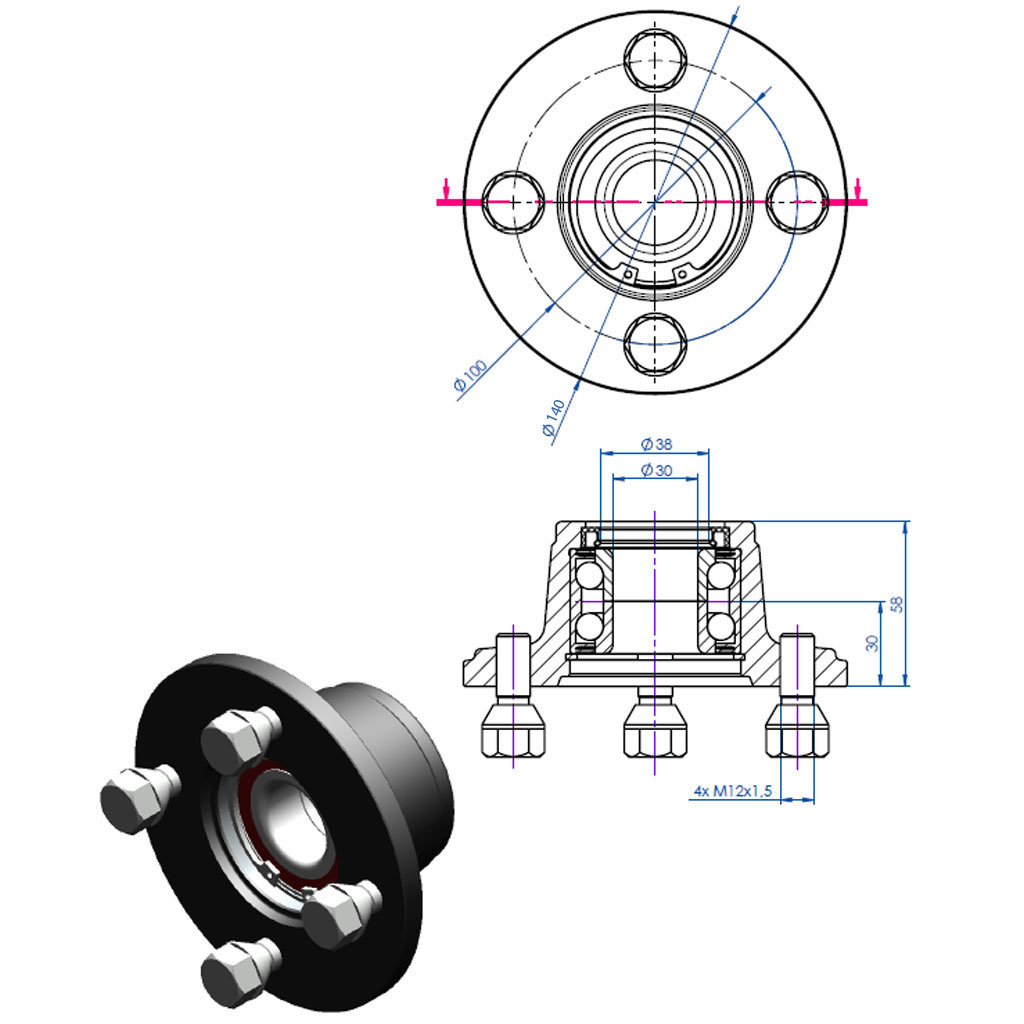

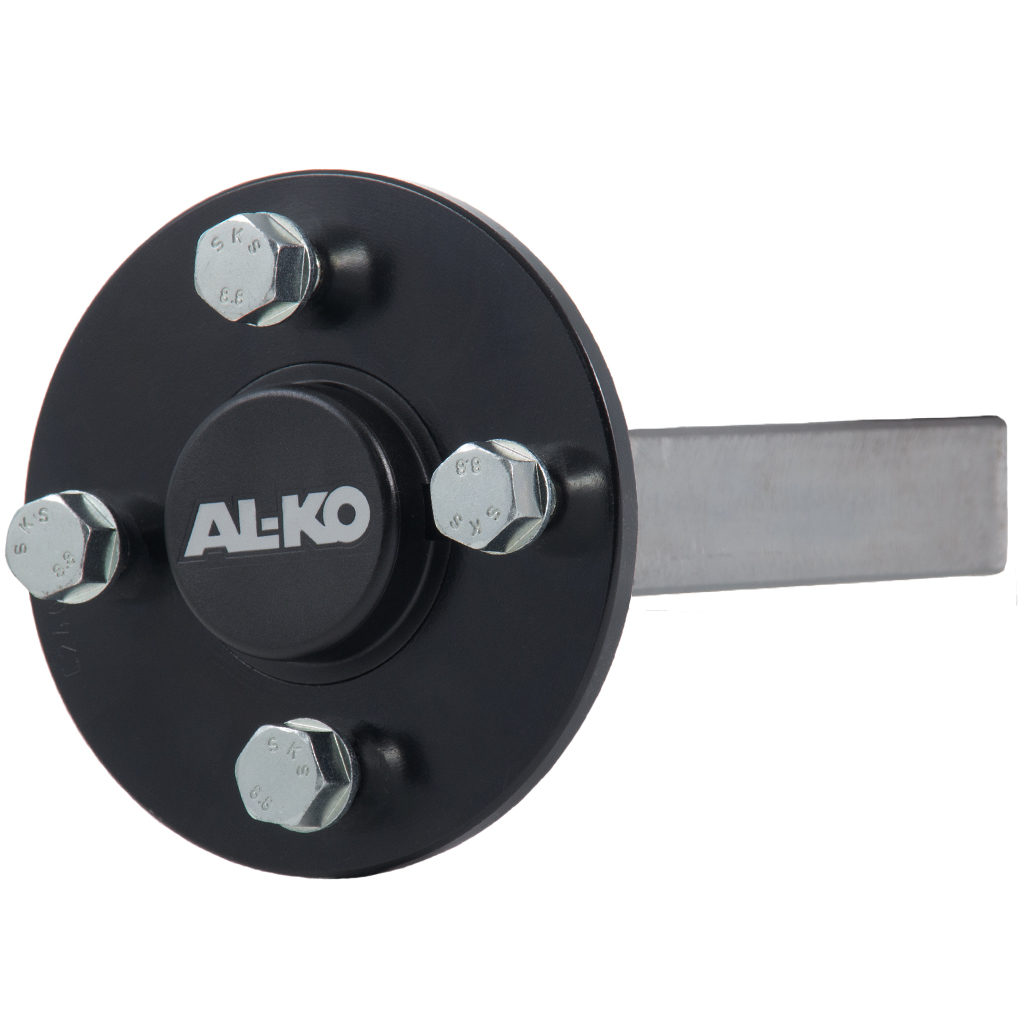

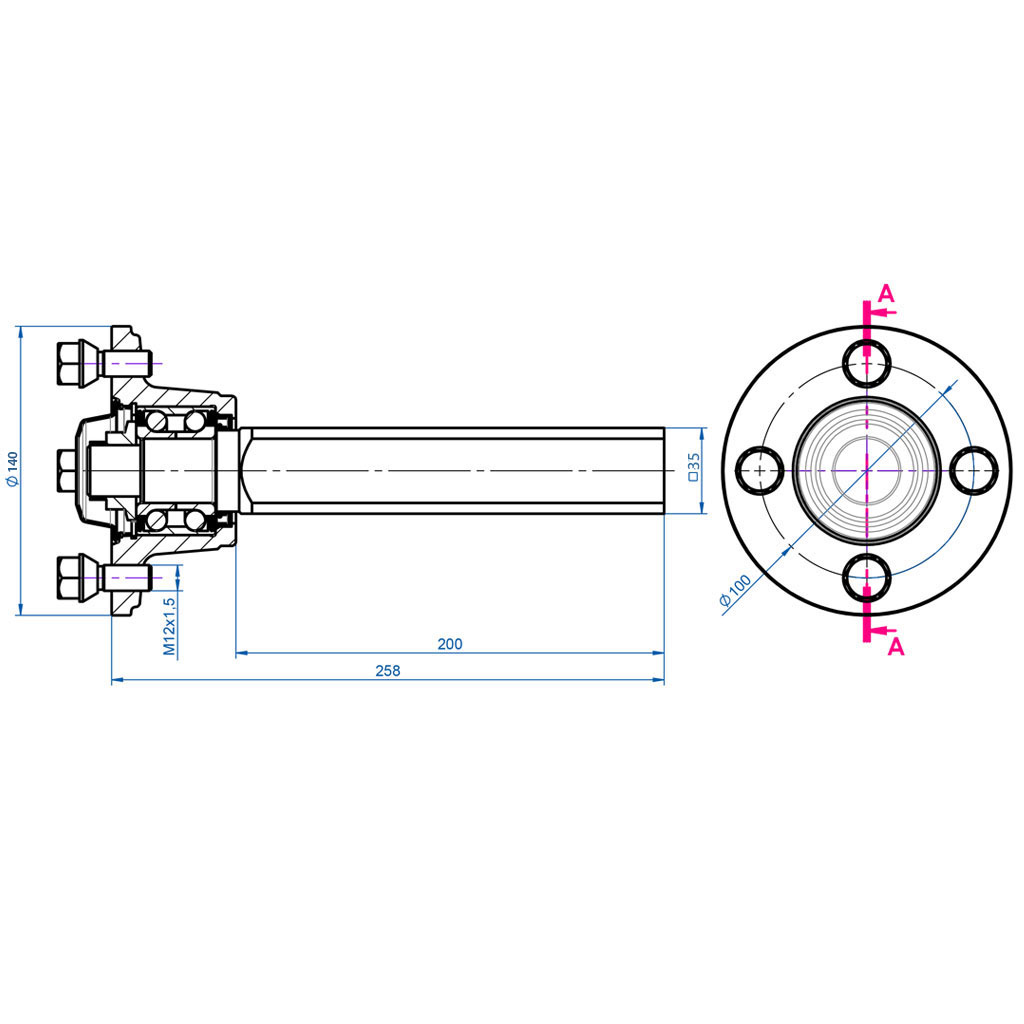

Hub & Stub Axle Specifications:

These hubs are rated to 80mph, they are fully legal to use on the road.

They have sealed precision ball bearings, they never need to be greased.

The hub has 4 x M12 studs, the PCD is 100mm.

The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.

These are genuine ALKO parts, manufactured in Europe.


Non directional Tyre.

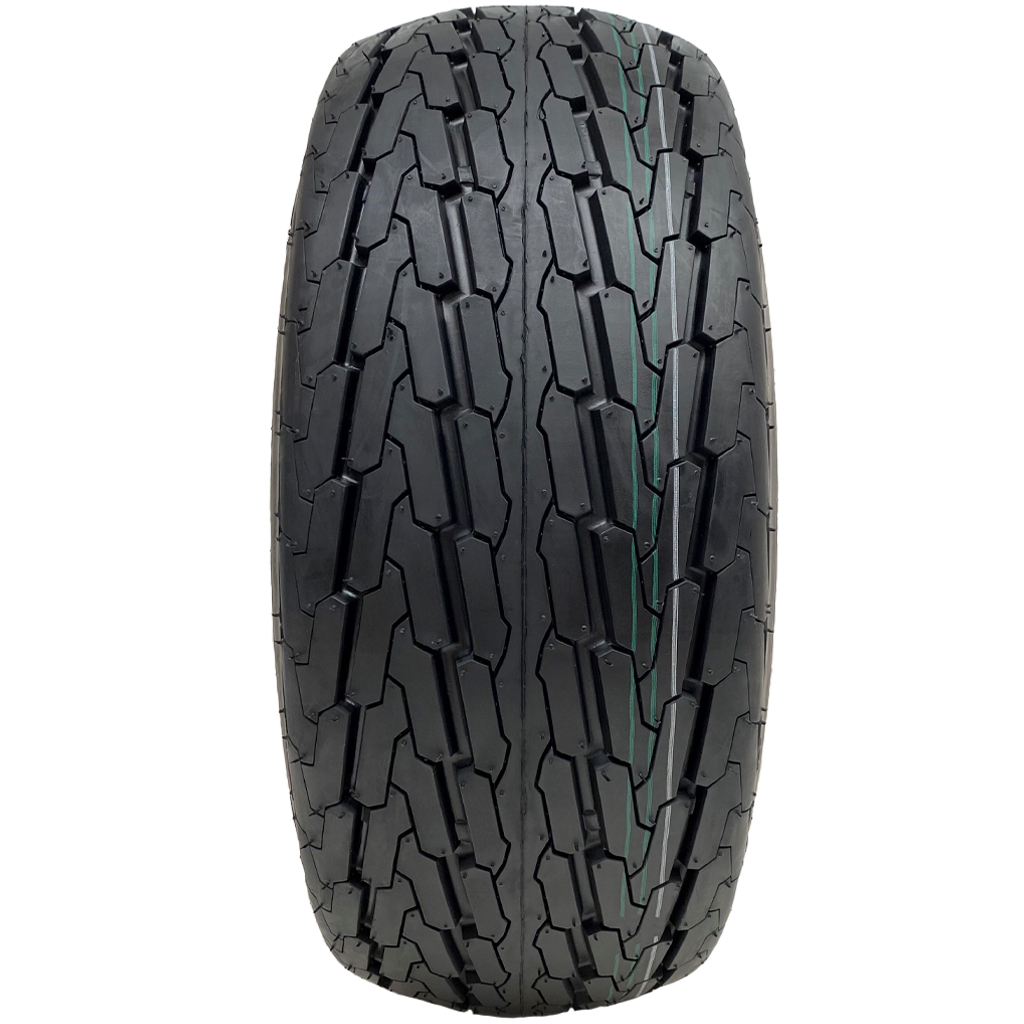

The Wanda P815 is a classic high speed trailer tyre pattern.

The wide profile gives increased stability.


Maximum Kit Load Capacity 750kgs.

Part Number EC7568
Brand Parnells
Rim Colour Silver

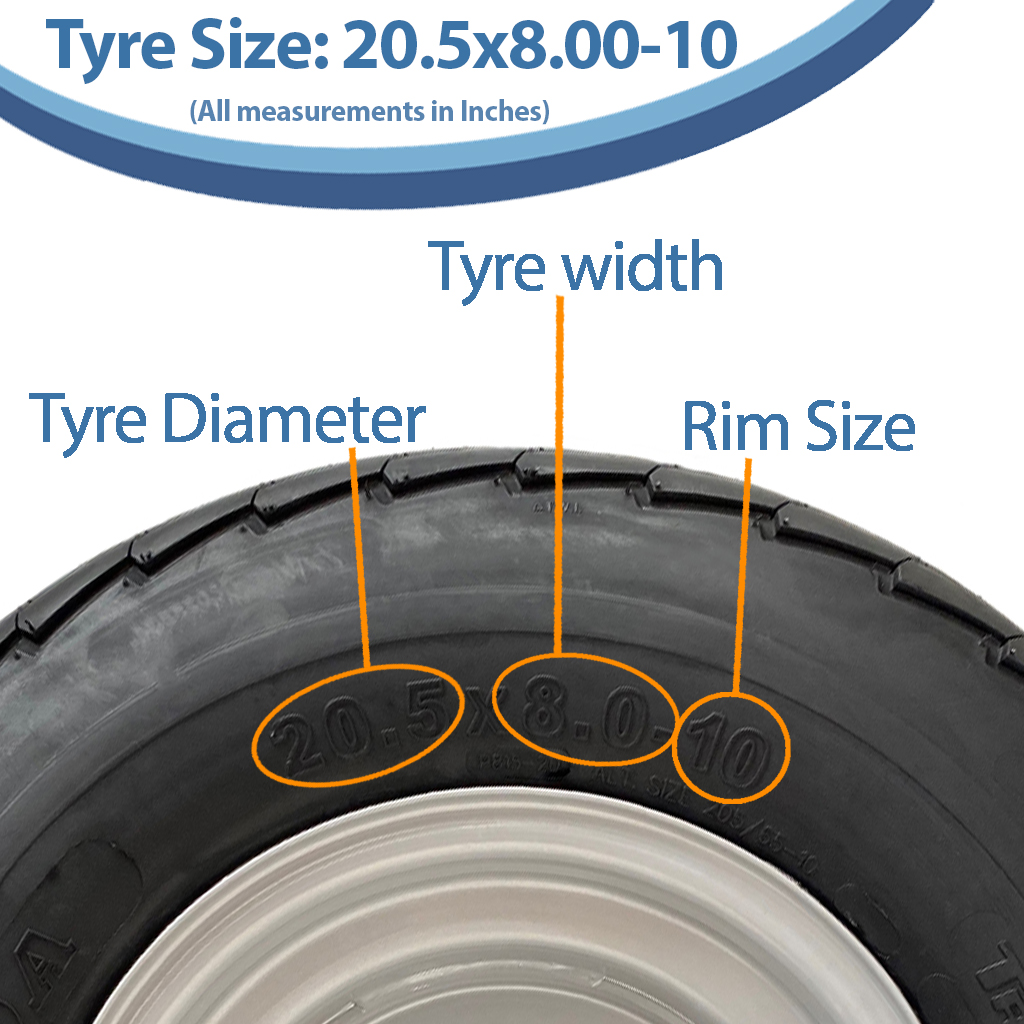

Tyre Size 20.5x8.00-10
Ply 4
TT/TL TL
Pattern P815
Tread Depth (mm) 7.0
SW (mm) 205
OD (mm) 520
PSI 35
Rim Size 6.00x10
Max Load (Kg) 750
Hub & Stub Axle (2pcs) Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed
