18x9.50-8 Knobby ATV Trailer kit, 2 Wheels, 2 ALKO Hub & Stub Axles, & Pressed Steel hitch
Part Number: KIT1069
Wheel Size: 18x9.50-8
Stub axles: 35mm square, 200mm long
Load Capacity: 204kg

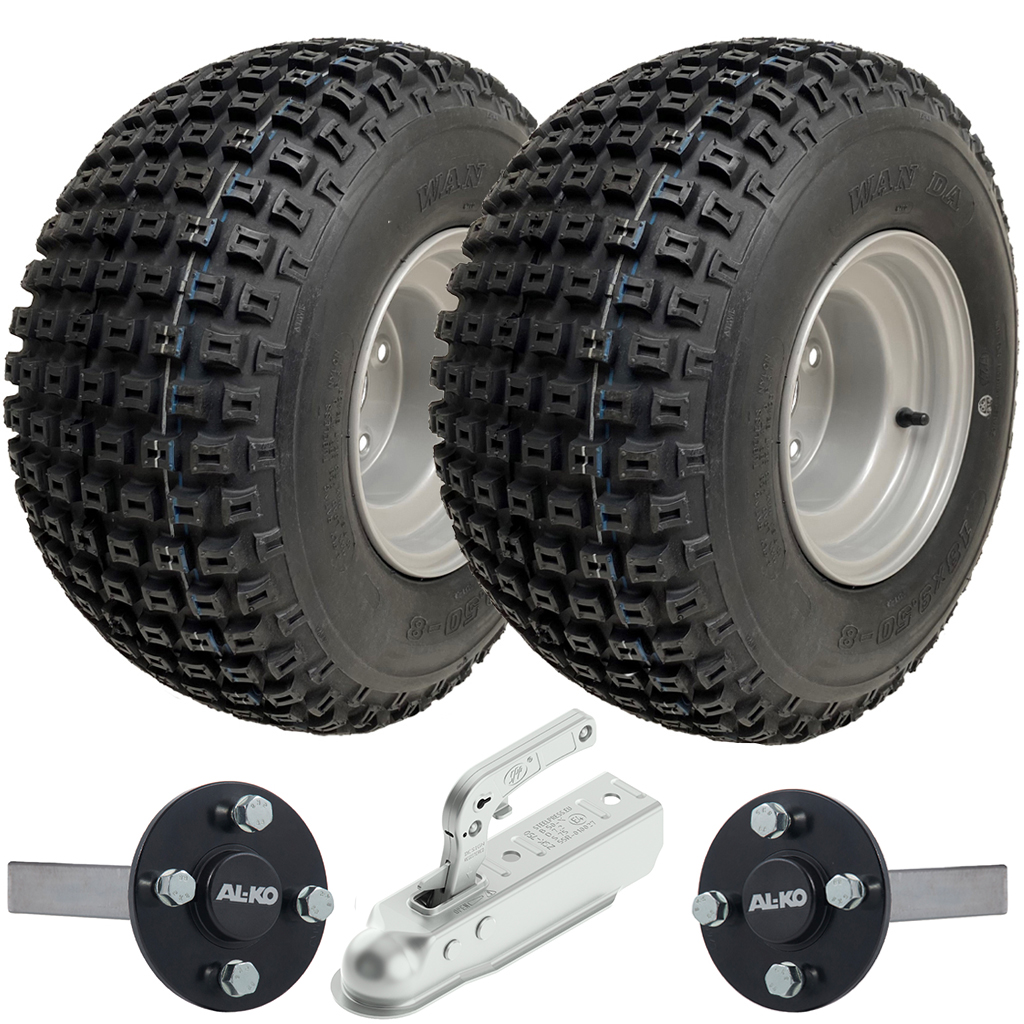

18x9.50-8 ATV trailer kit.
Contents of this kit include:
2x Wheels,
2x ALKO Hub & Stub axles,
1x Pressed steel tow hitch.
Wheel Specifications:

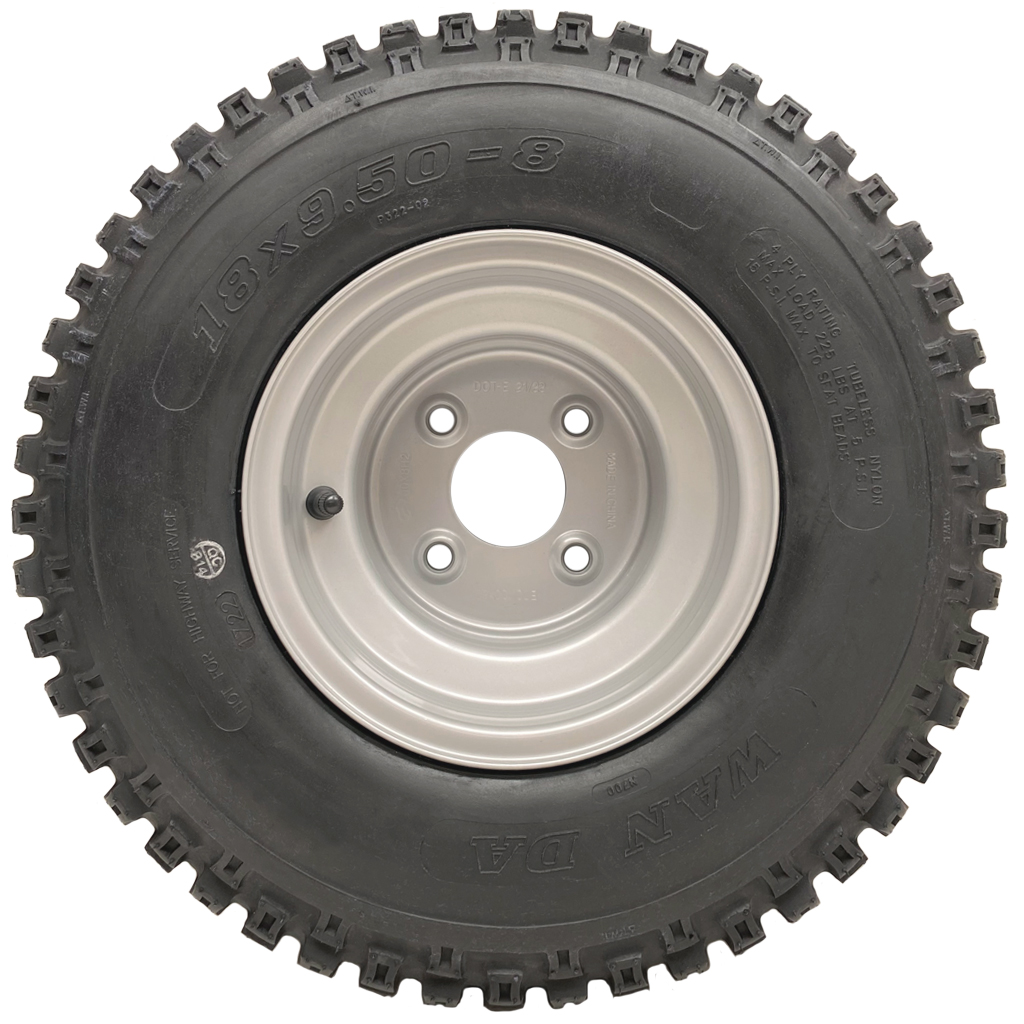

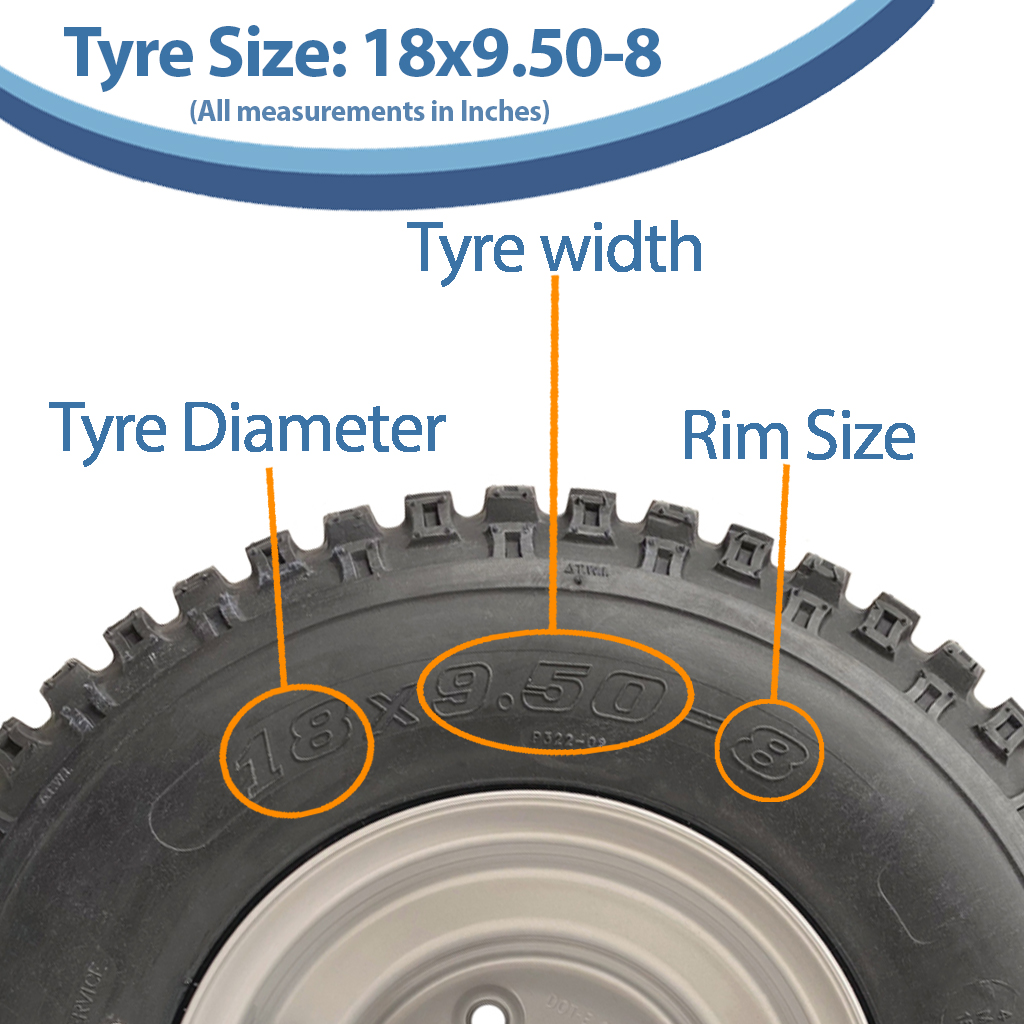

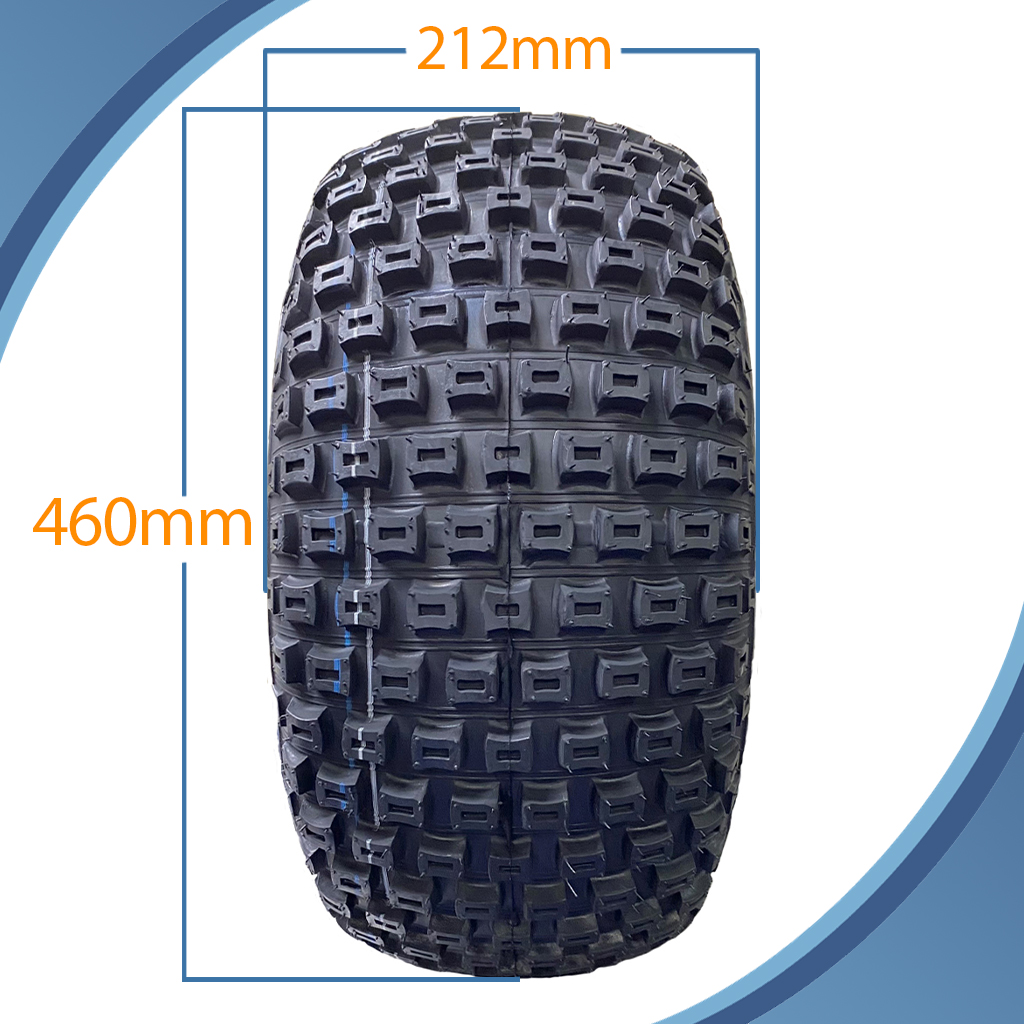

18x9.50-8 4ply Wanda P322 knobby tyres on steel rim 4x100mm PCD.
Overall diameter: 460mm,
Max width of tyre: 212mm,
Tread depth: 9.5mm,
Inflation: 5psi,
Max load per wheel: 102kg,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

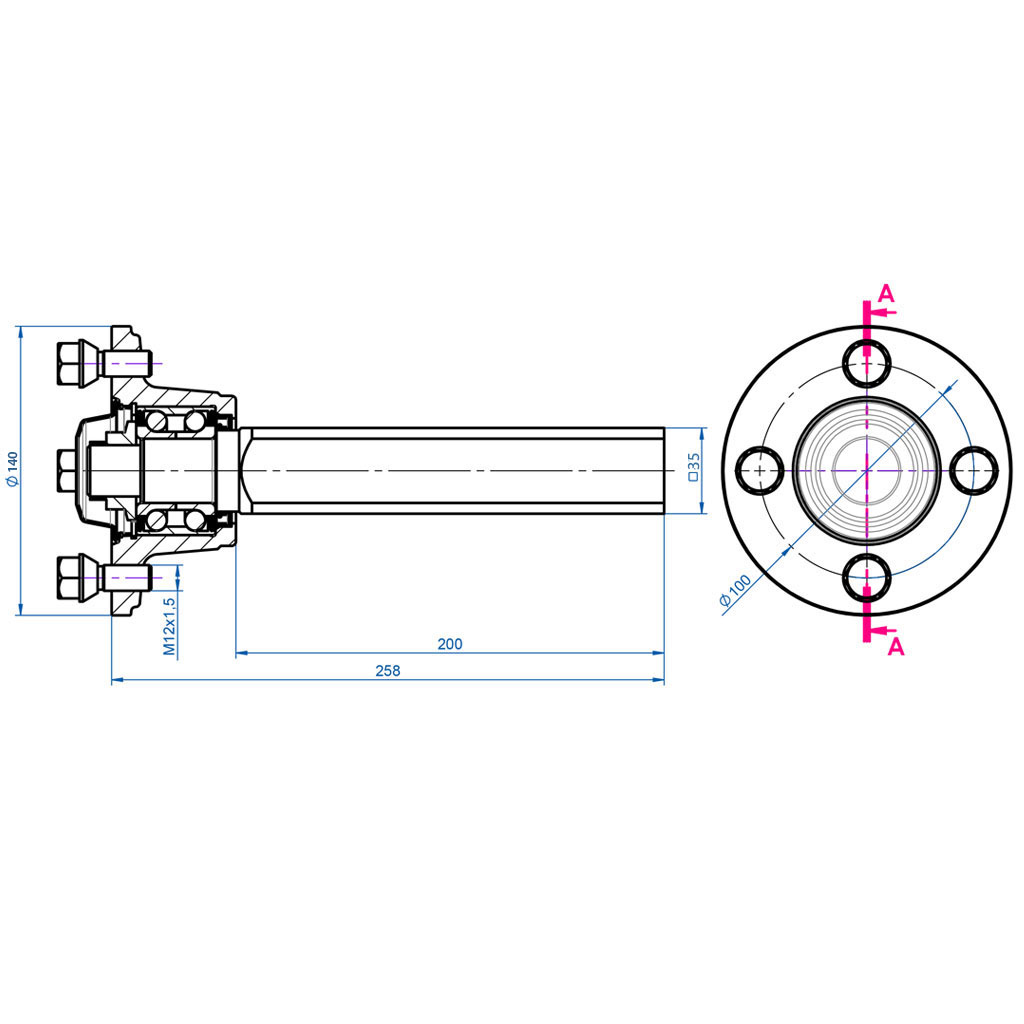

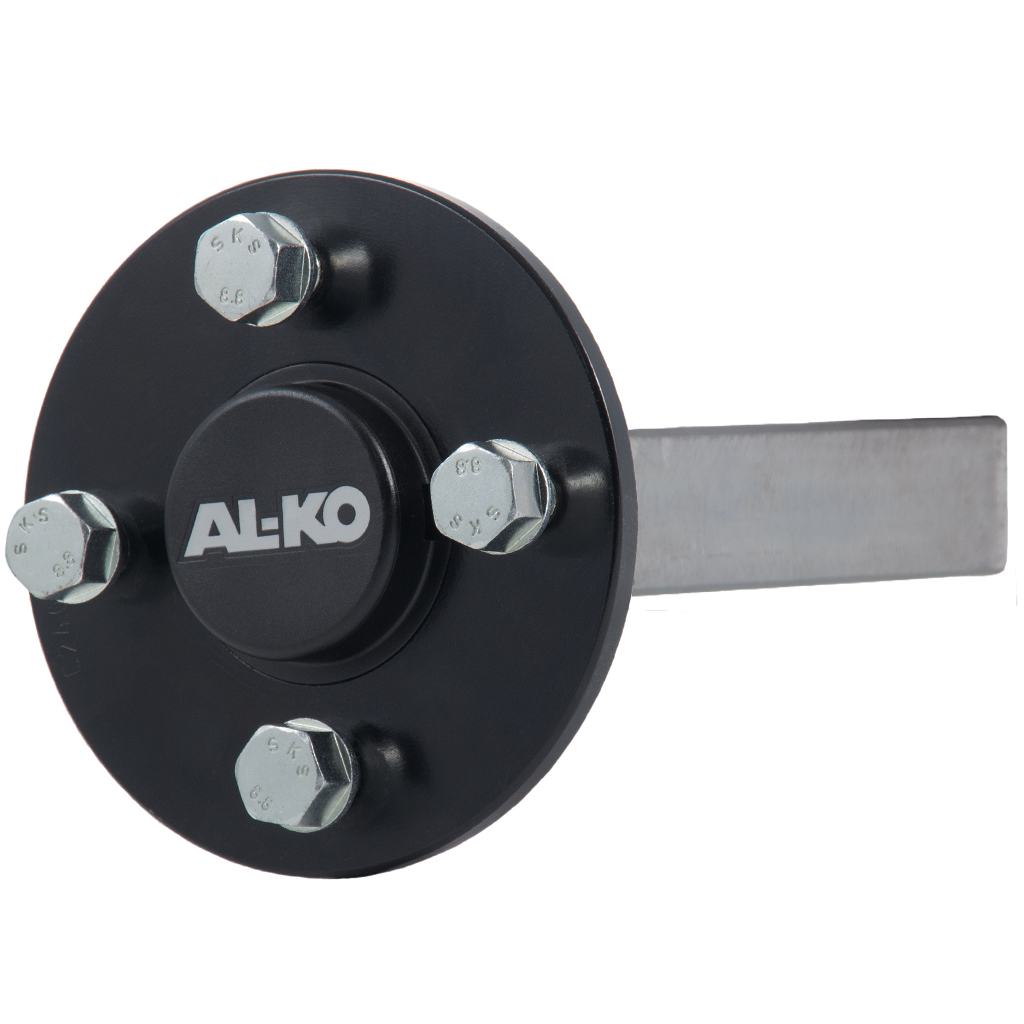

Stub axle specifications:

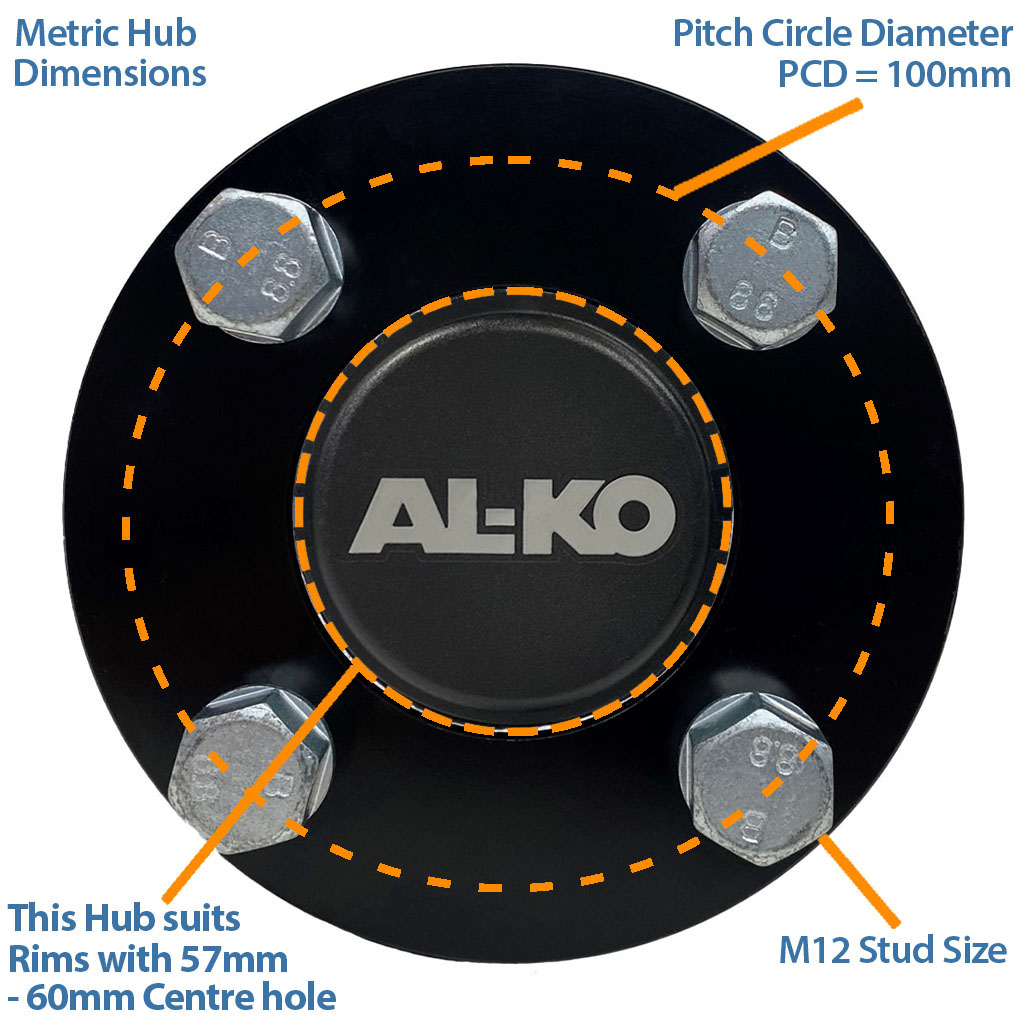

Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts.
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long.
The shaft is 35x35mm x 200mm long, solid steel.
Manufactured by ALKO in Europe.

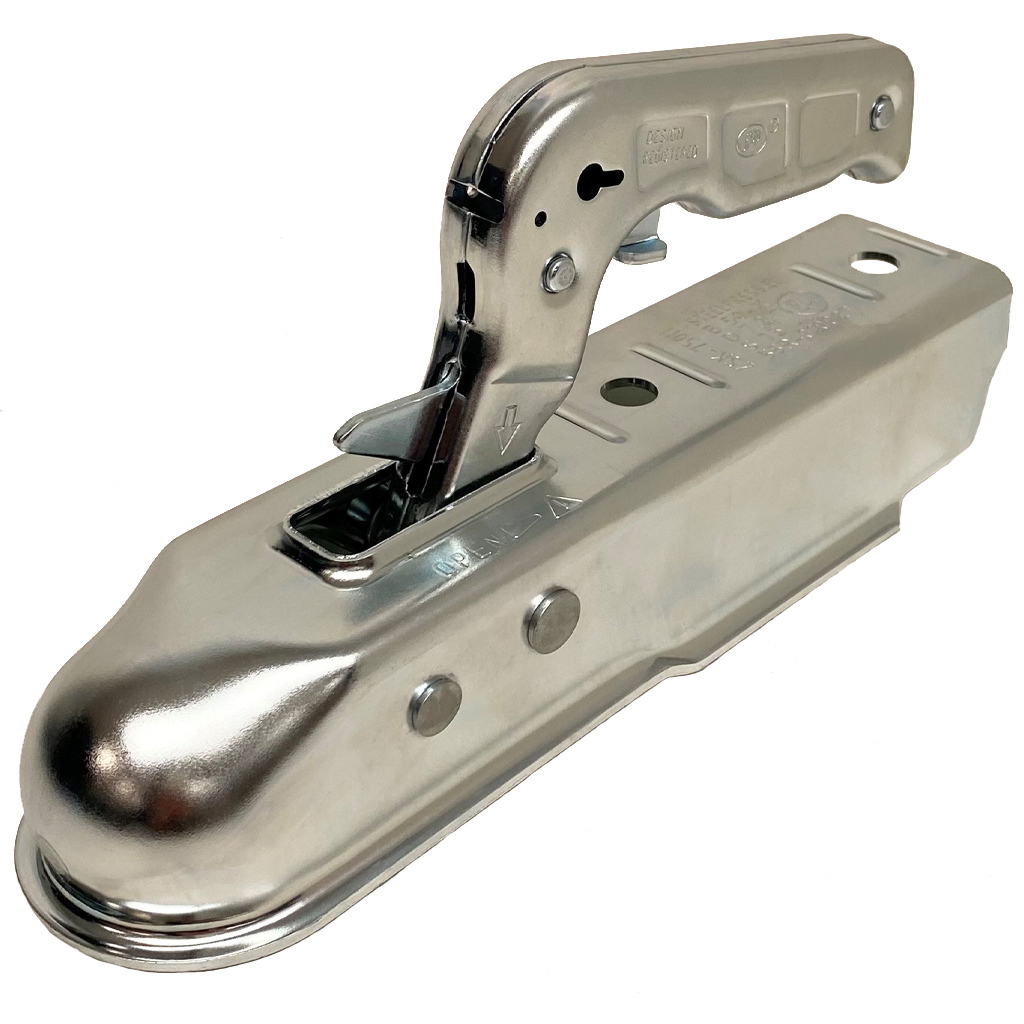

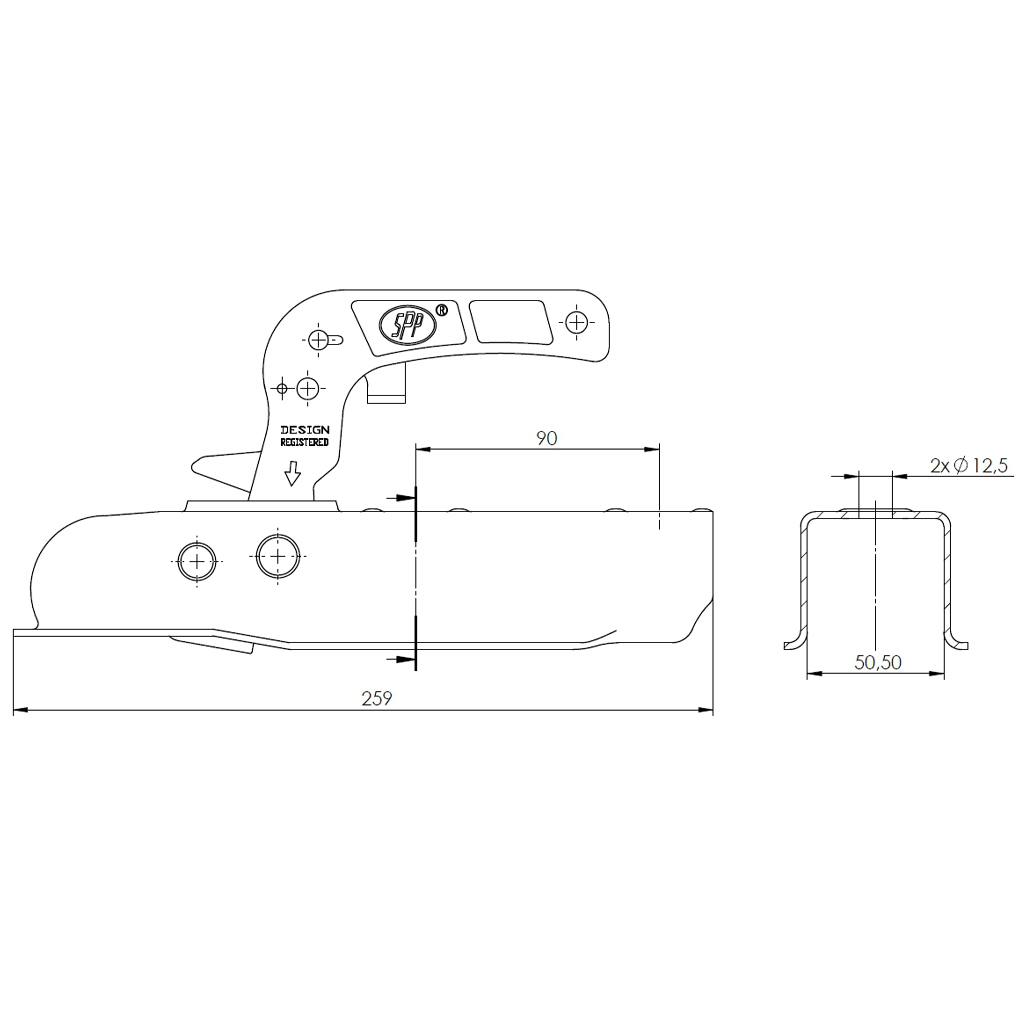

Hitch specifications:
750kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
These kits can be used for making trailers for off-road use.
Maximum kit load capacity 204kgs
