22x11.00-8 Knobby ATV quad trailer kit 310kg capacity, wheels and ALKO axles (no hitch)
Part Number: KIT1070
Wheel Size: 22x11.00-8
PCD: 100mm
Load Capacity: 310kgs
22x11.00-8 ATV trailer kit.

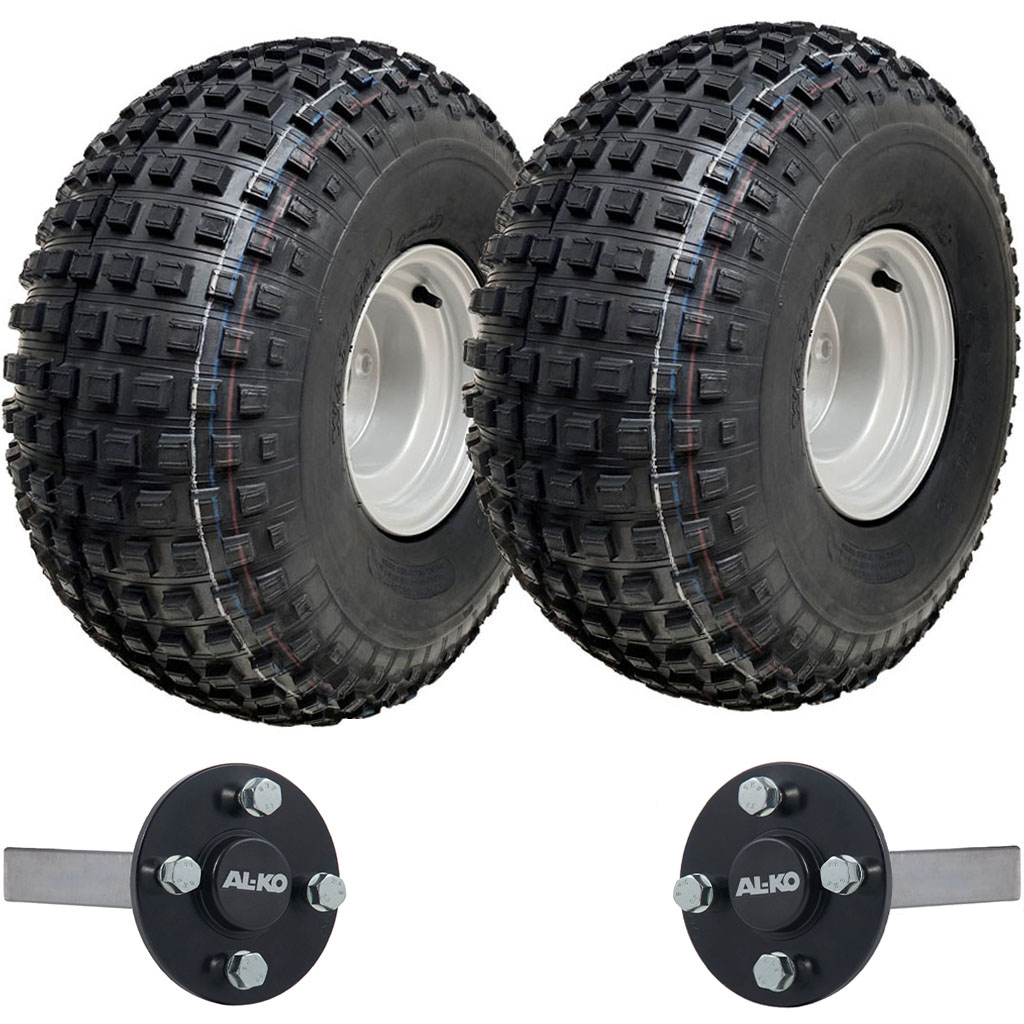

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x ALKO Stub axles, 35x35x200mm solid stub.
Wheel Specifications:

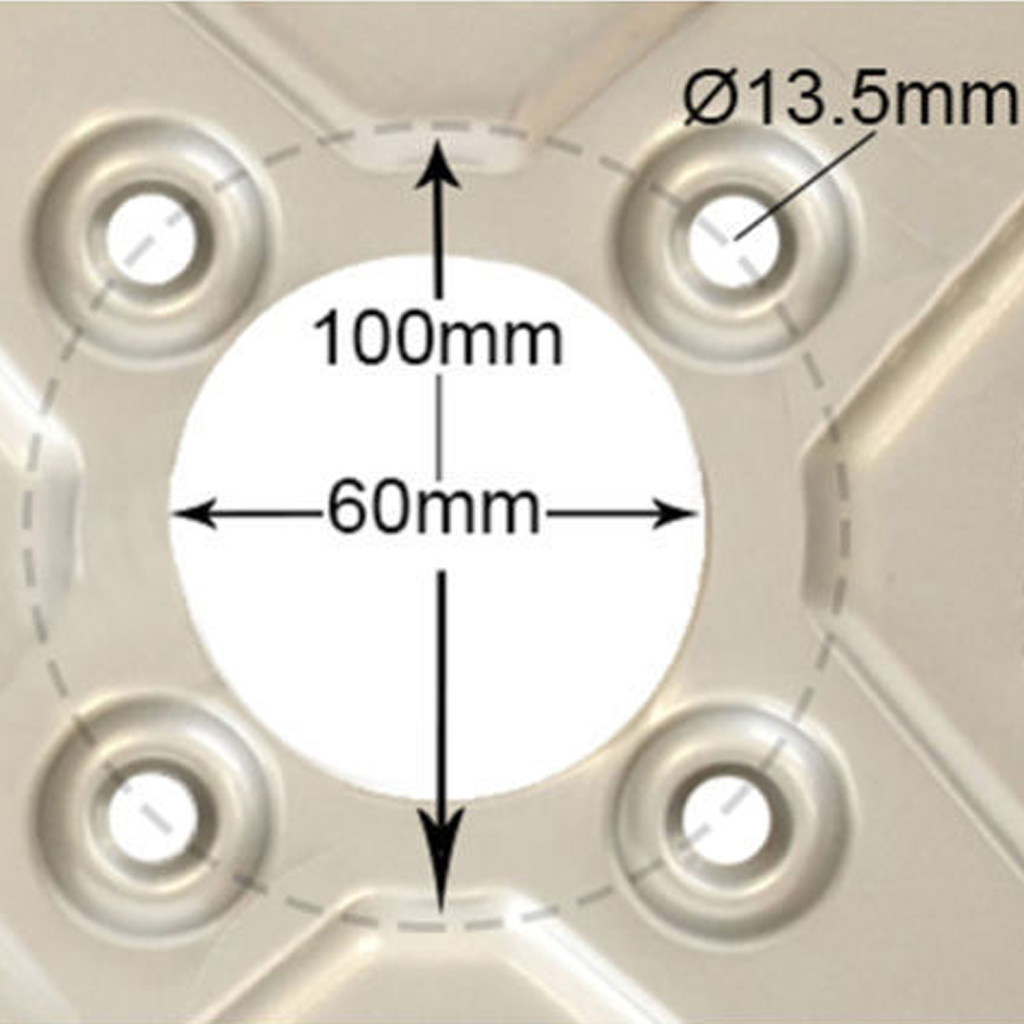

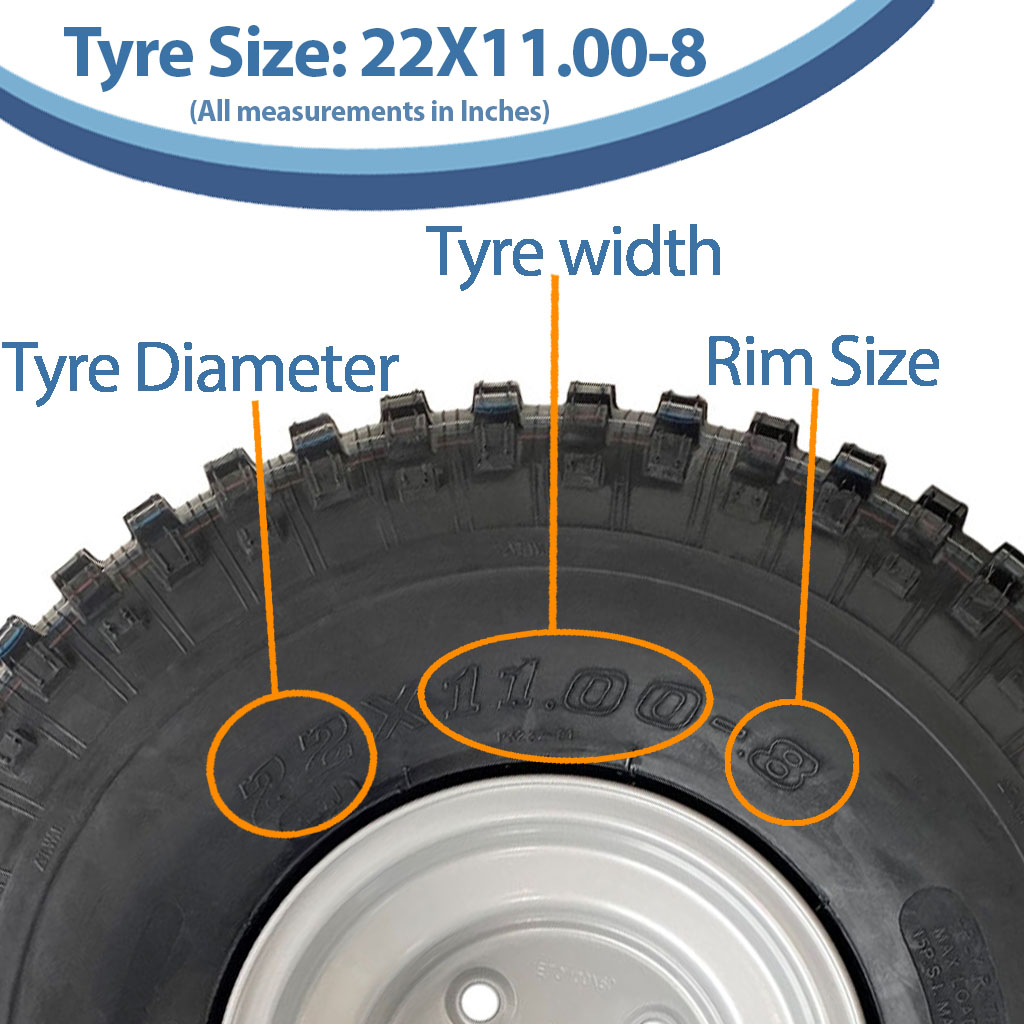

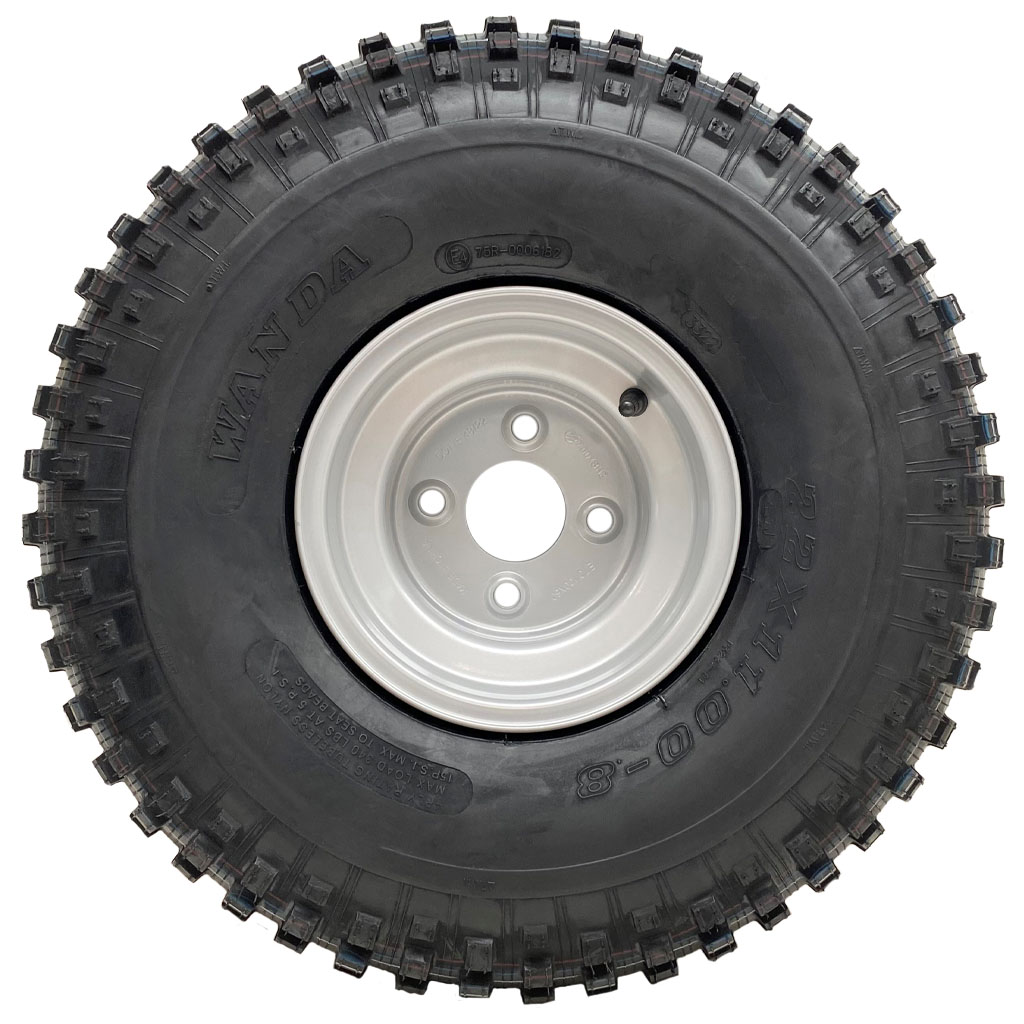

22x11.00-8 4ply Wanda P323 knobby tyres on steel rim 4x100mm PCD,

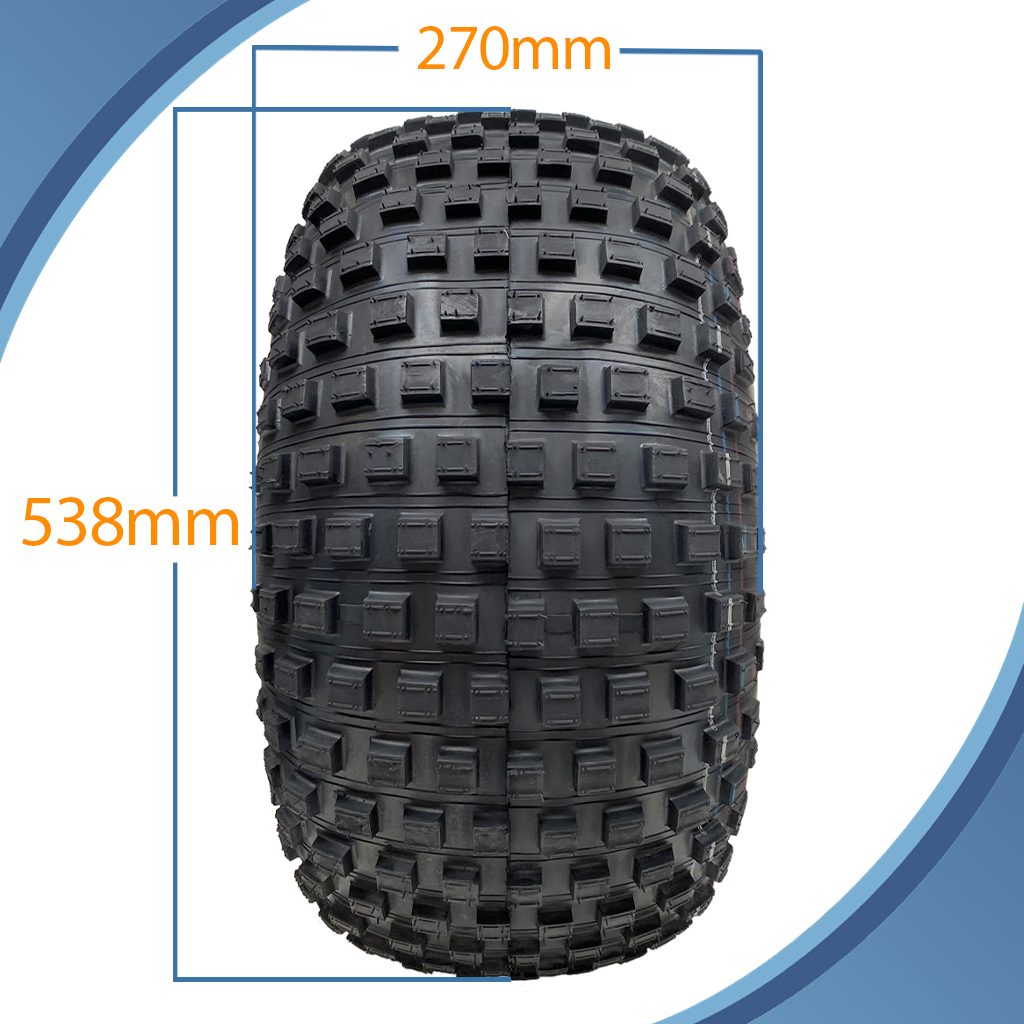

Overall diameter: 538mm,
Max width of tyre: 270mm,
Tread depth: 9.5mm,
Inflation: 5psi,
Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),
E-marked road legal tyres,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

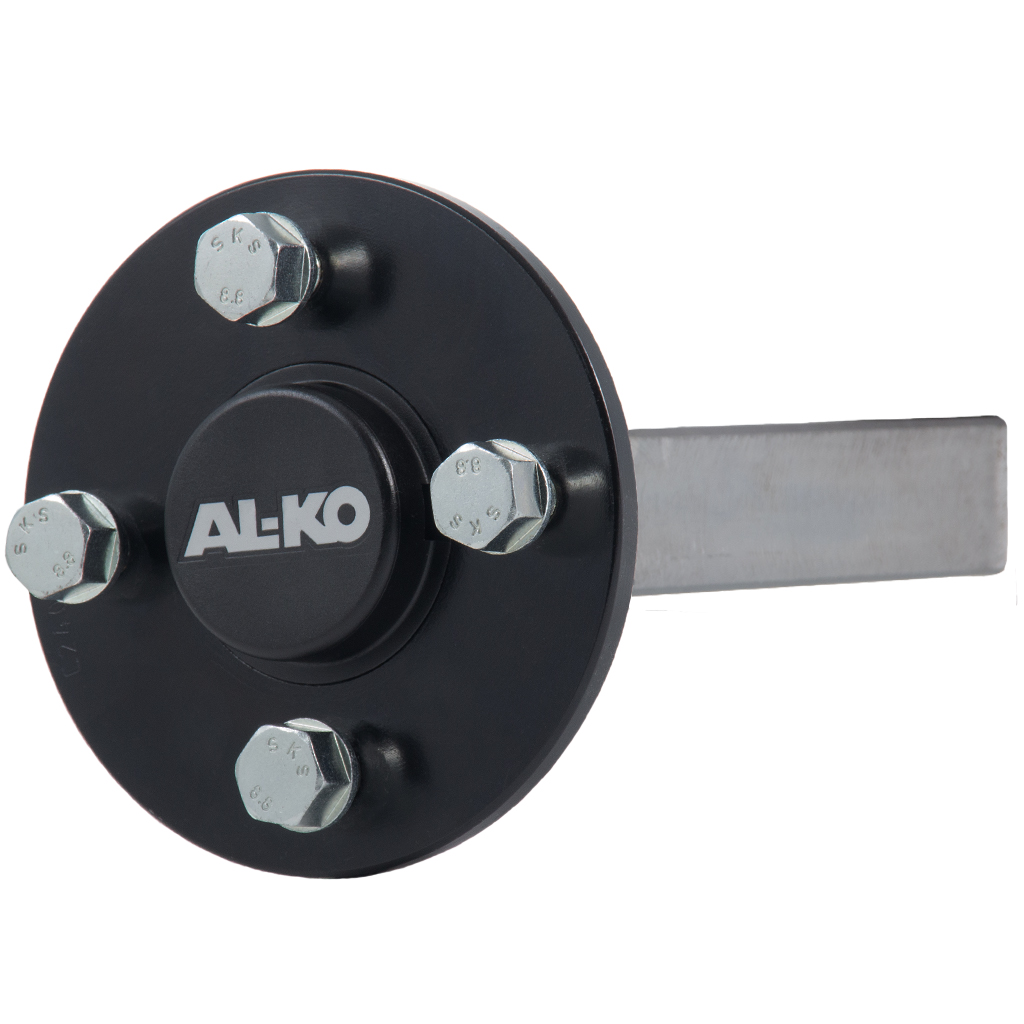

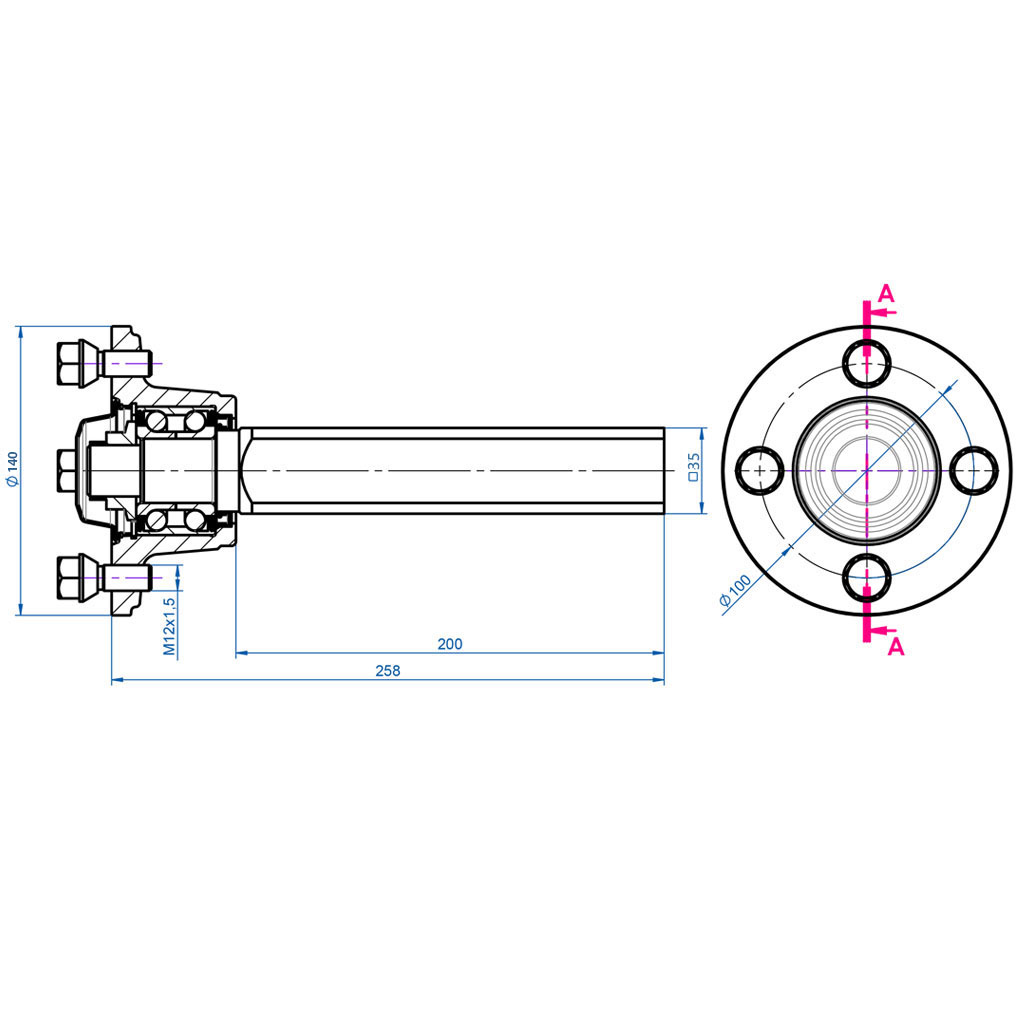

Stub Axle Specifications:

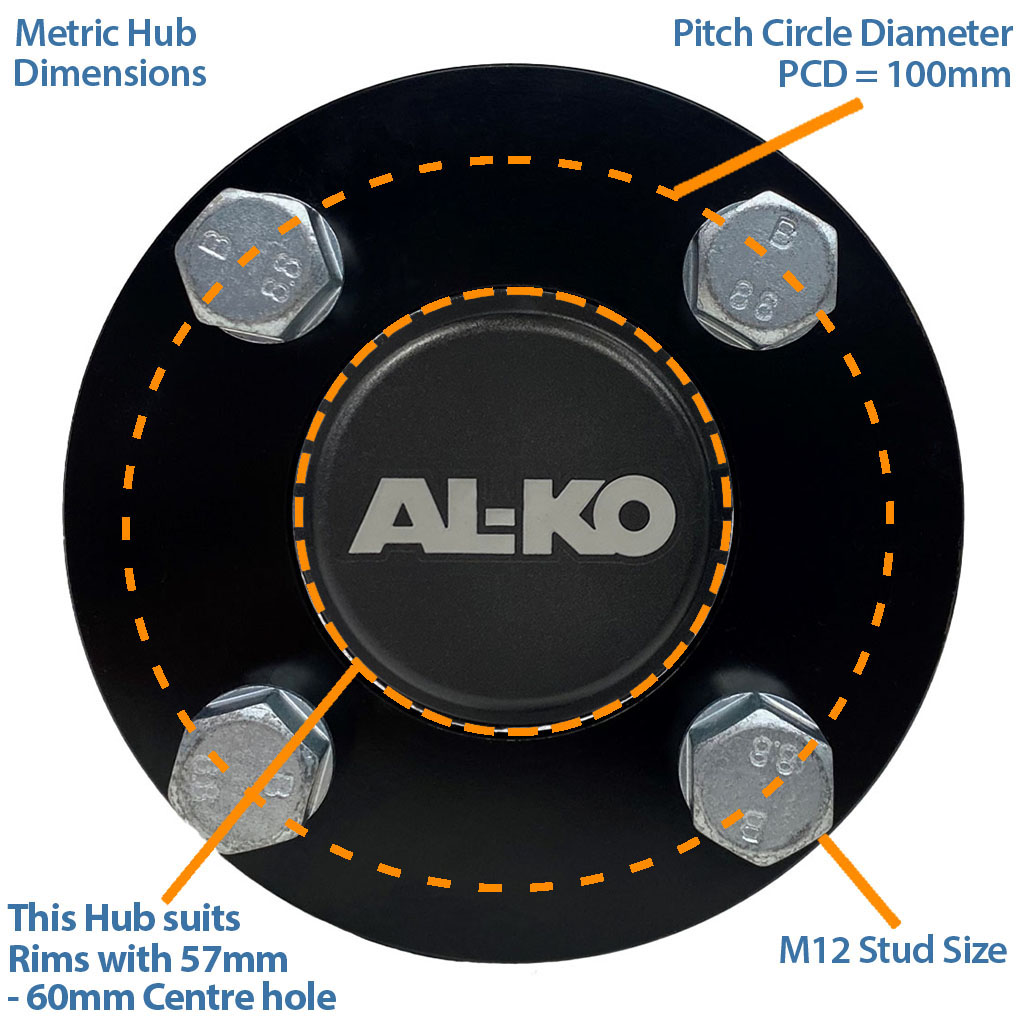

Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

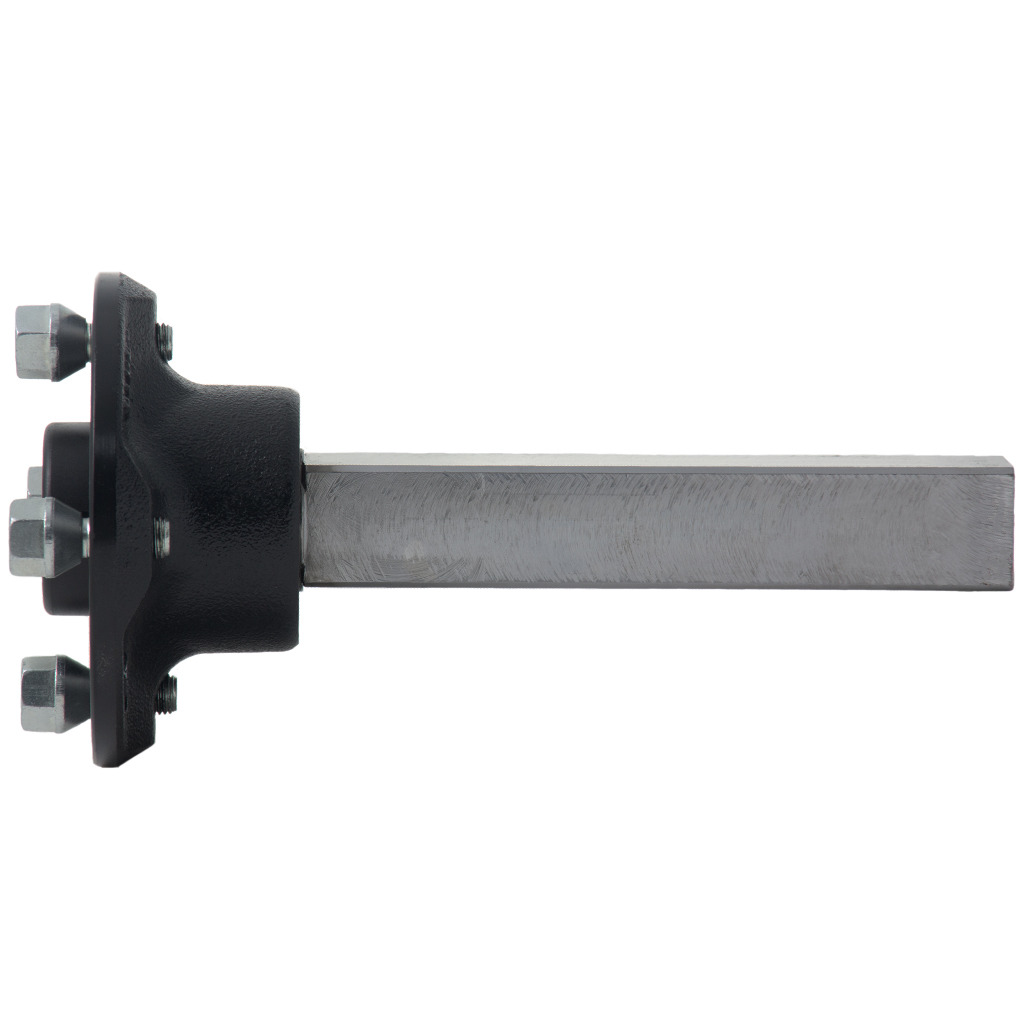

The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by ALKO in Europe.
Maximum Kit Load Capacity 310kgs.
| Part Number | KIT1070 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 22X11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P323 |
| Tread Depth (mm) | 9.5 |
| SW (mm) | 270 |
| OD (mm) | 538 |
| PSI | 5 |
| Load/Speed Index | 43J |
| E-Mark | E4-75R-0006182 |
| Max Load (Kg) | 310 |
| Hub & Stub Axle (2pcs) | HU1044 |
