18x8.50-8 P332 ATV Trailer Kit, ALKO axles (no hitch)
Part Number: KIT1077
Wheel Size: 18x8.50-8
Stub Axles: 35mm square & 200mm long
Load Capacity: 750kgs
18x8.50-8 ATV Grass trailer kit

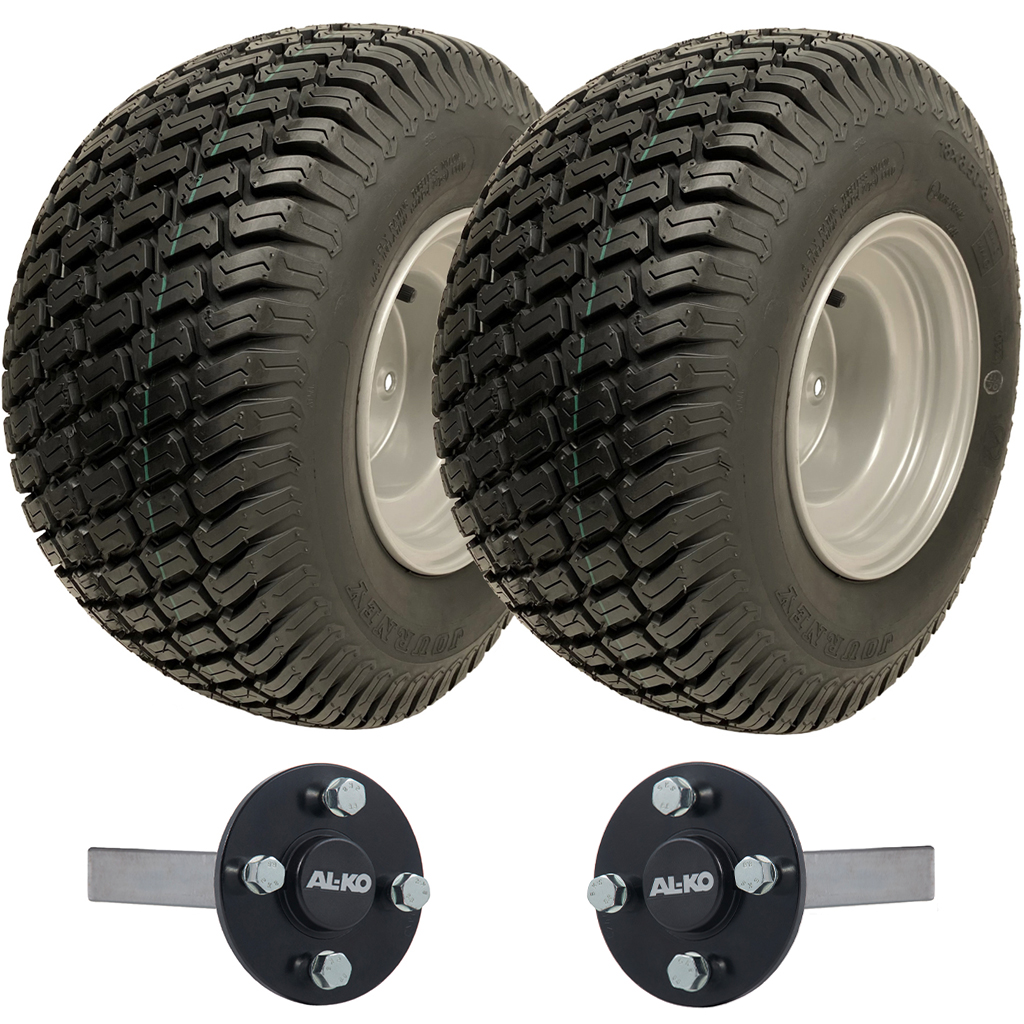

This kit contains:
2 - 18x8.50-8 wheels
&
2 - 35mm x 35mm ALKO hub and stub axles.

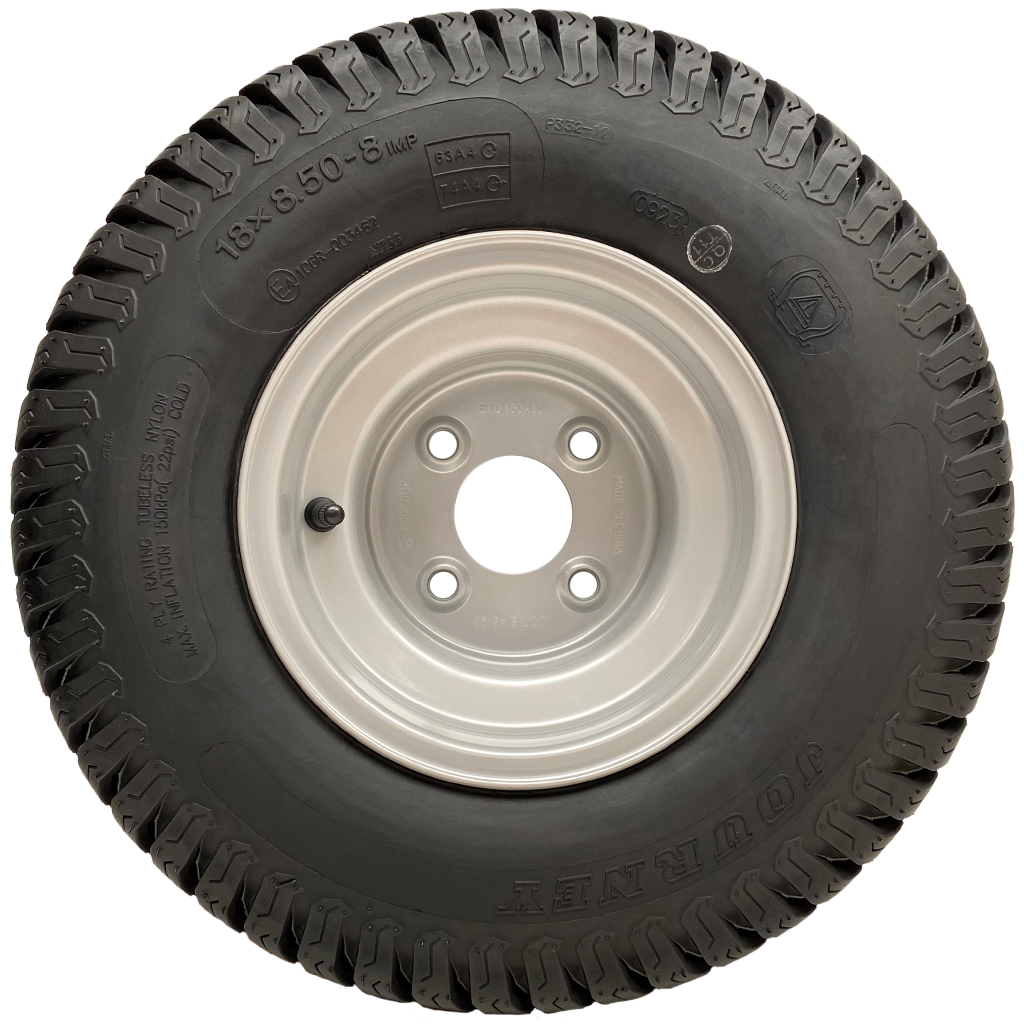

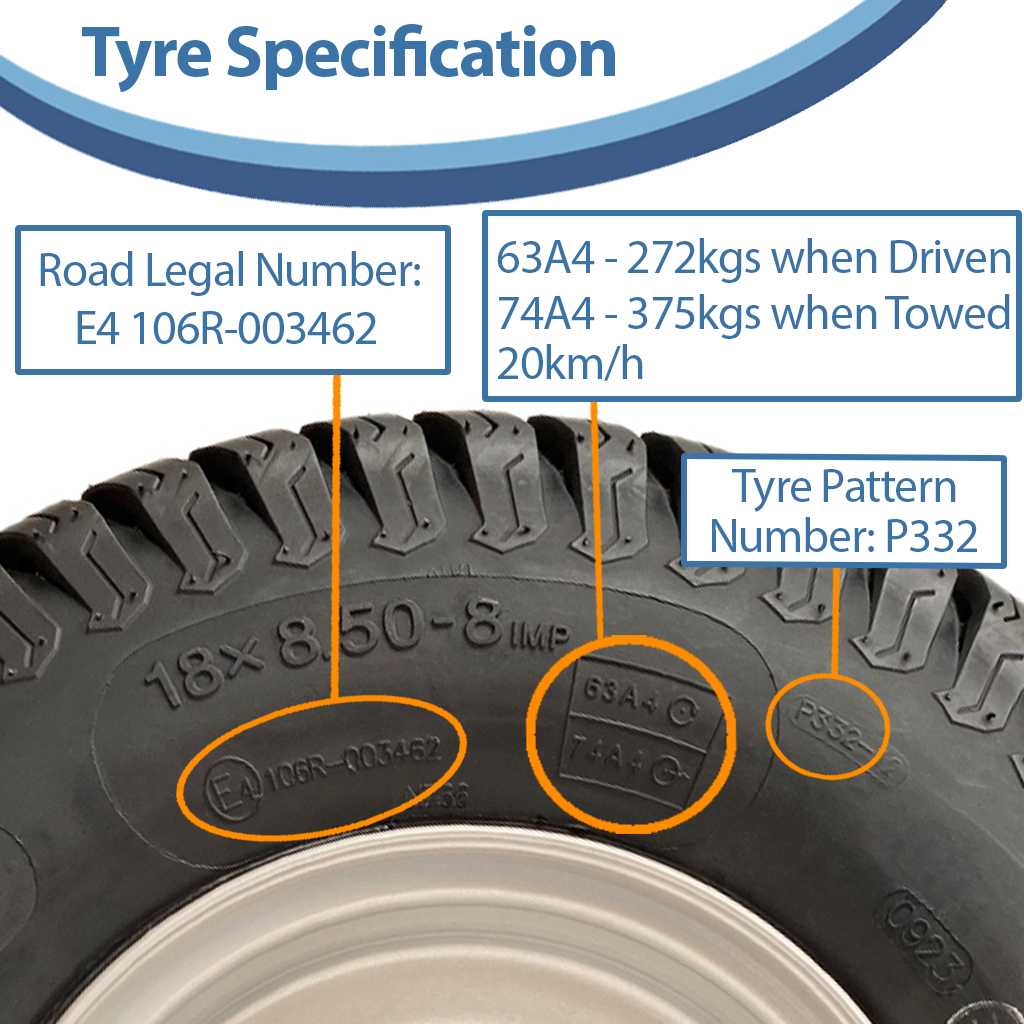

Wheel Specification:

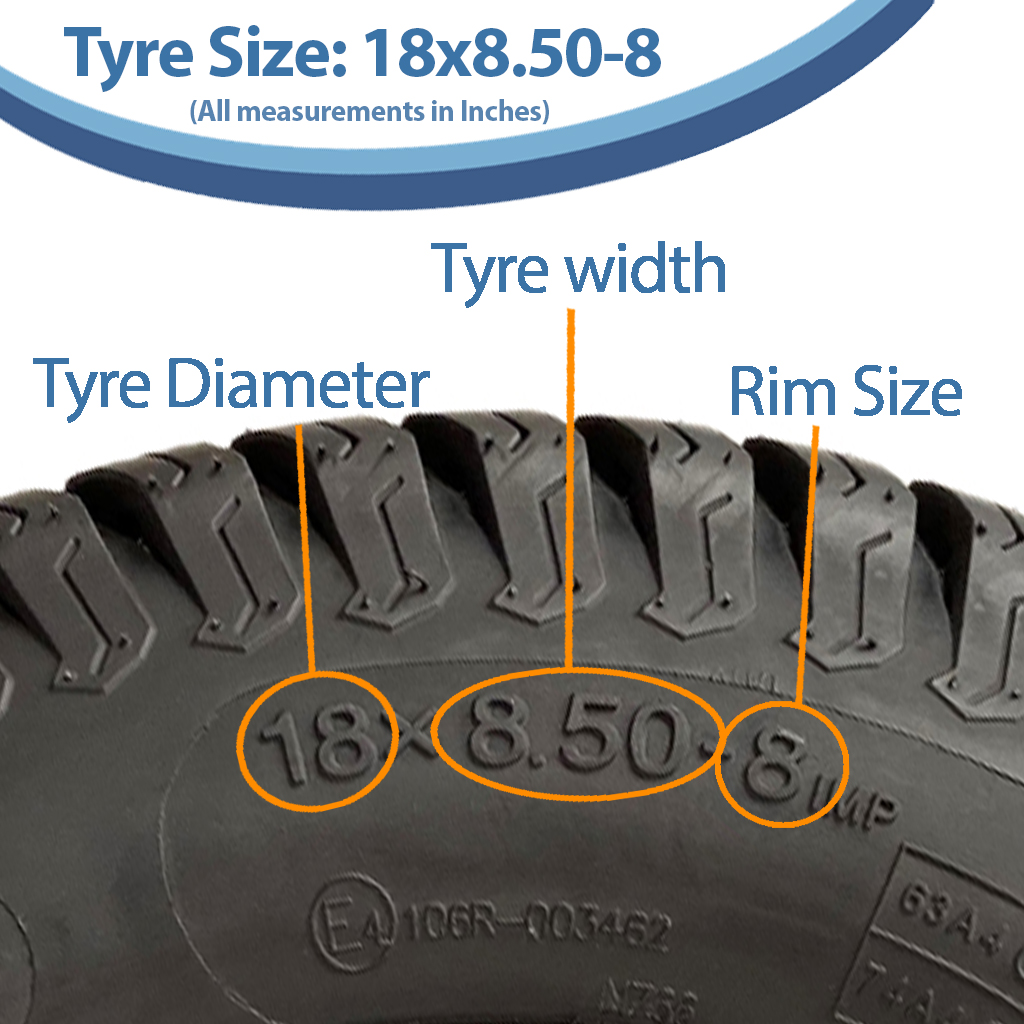

Size:18x8.50-8,
Brand: Wanda,
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 375 kgs at 22PSI,

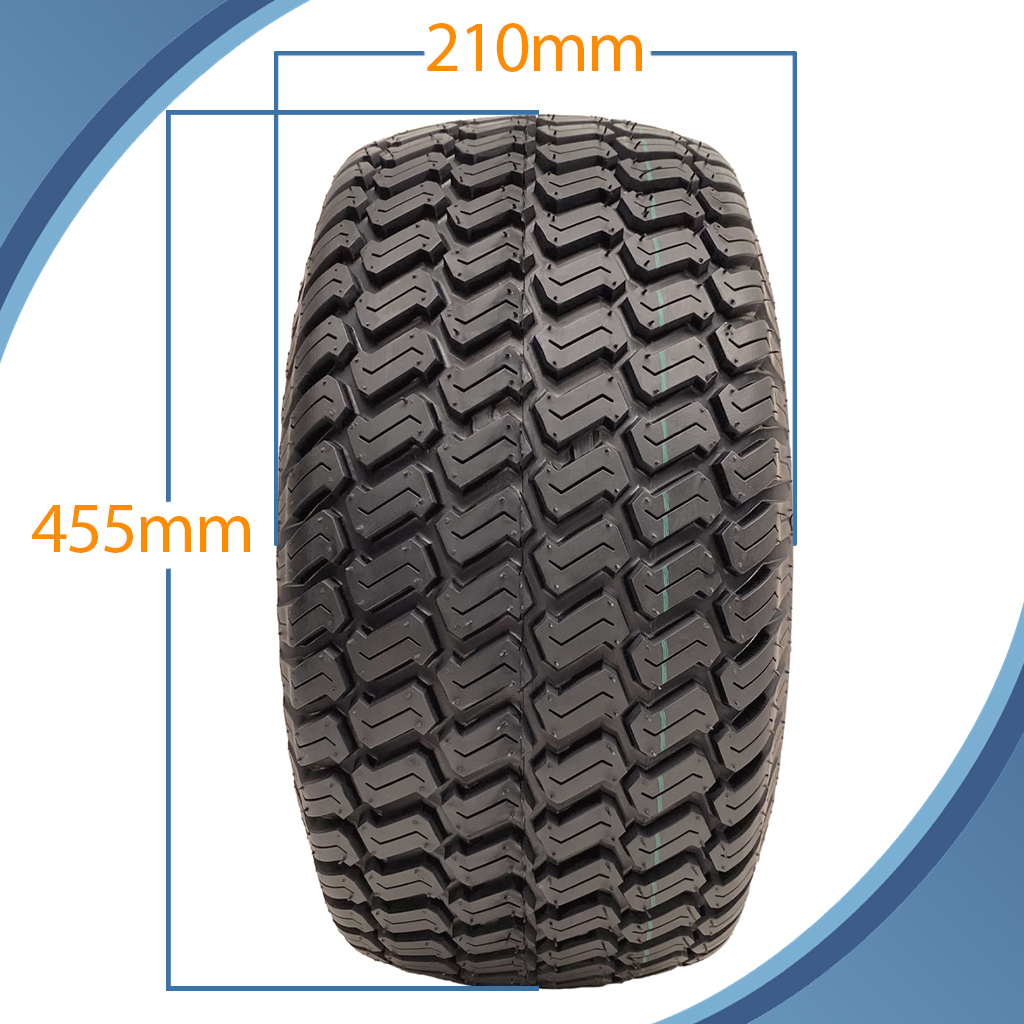

Tyre height: 455mm,
Tyre width: 210mm,
Tread Depth: 7.1mm,
E Marked road legal: E4106R-003462
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

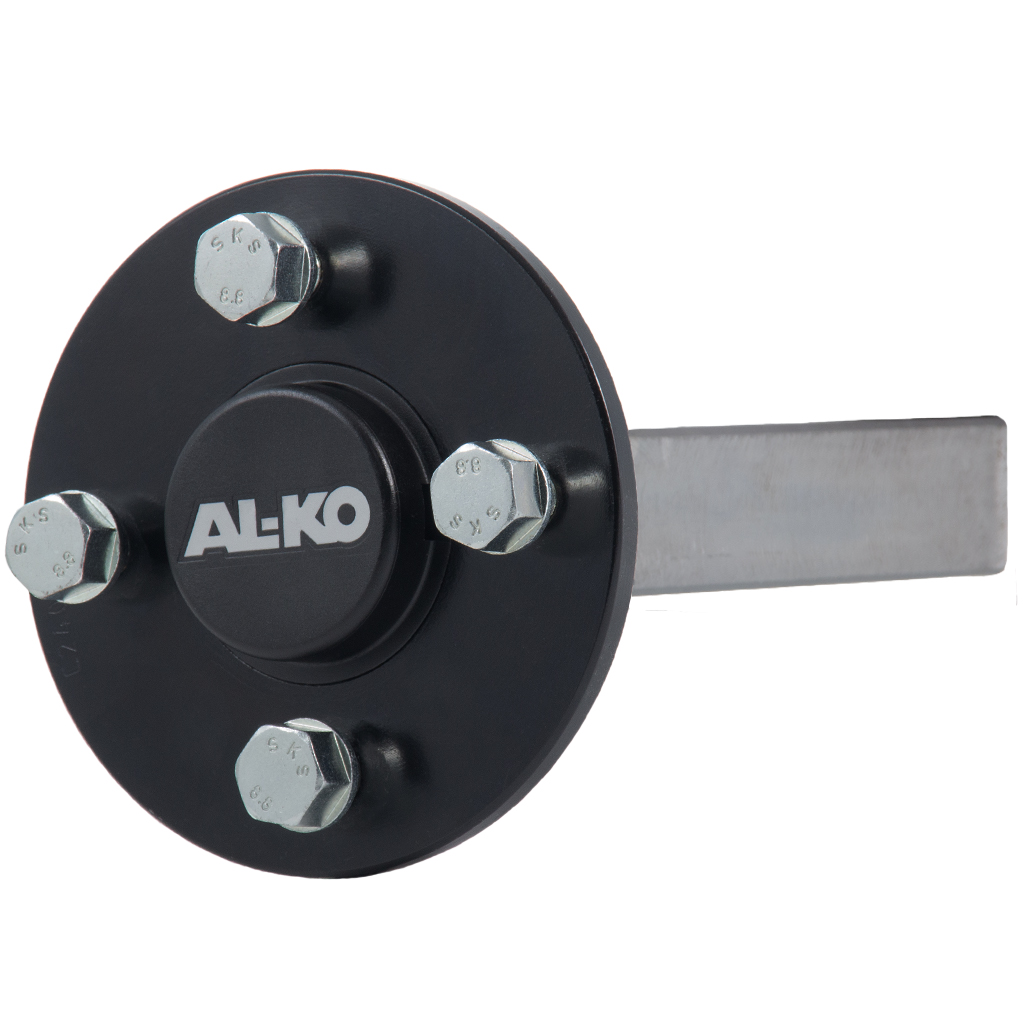

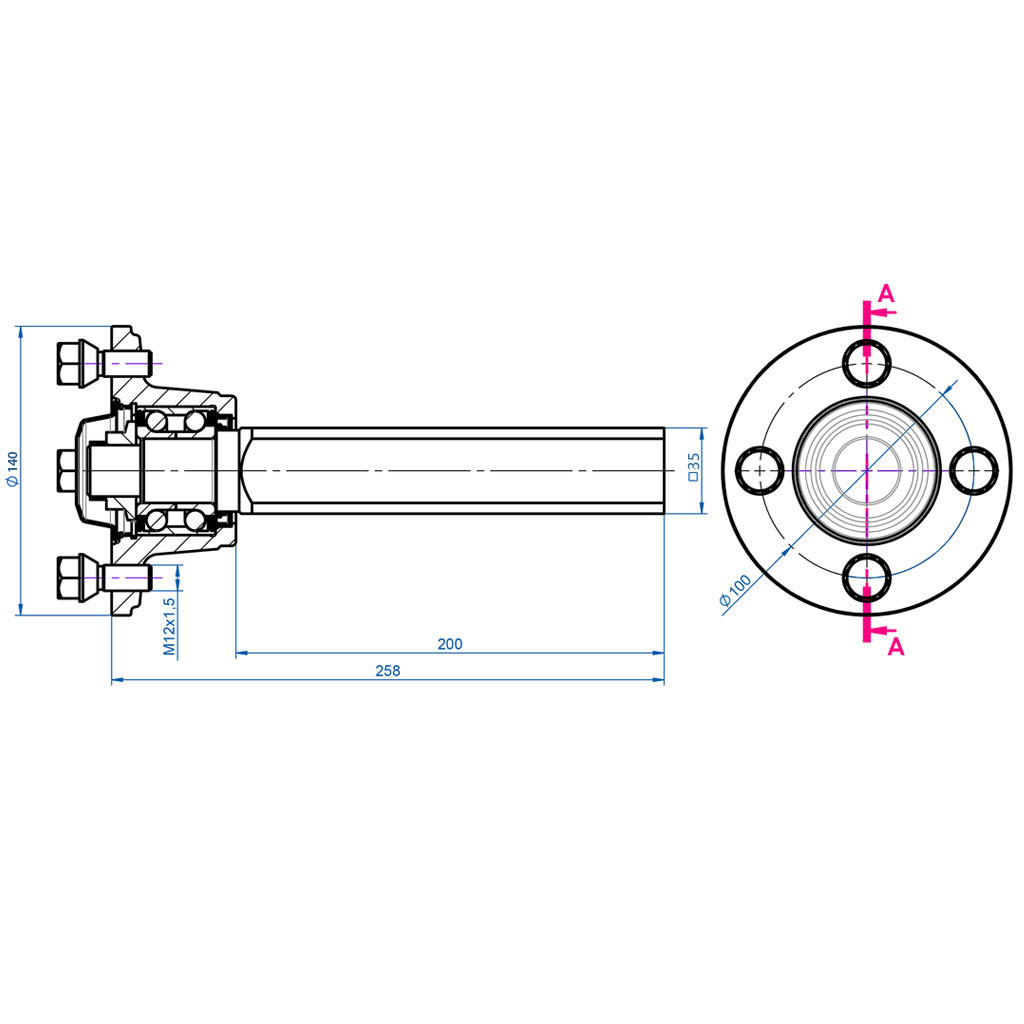

Hub & Stub Specification:
These are genuine ALKO parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings.

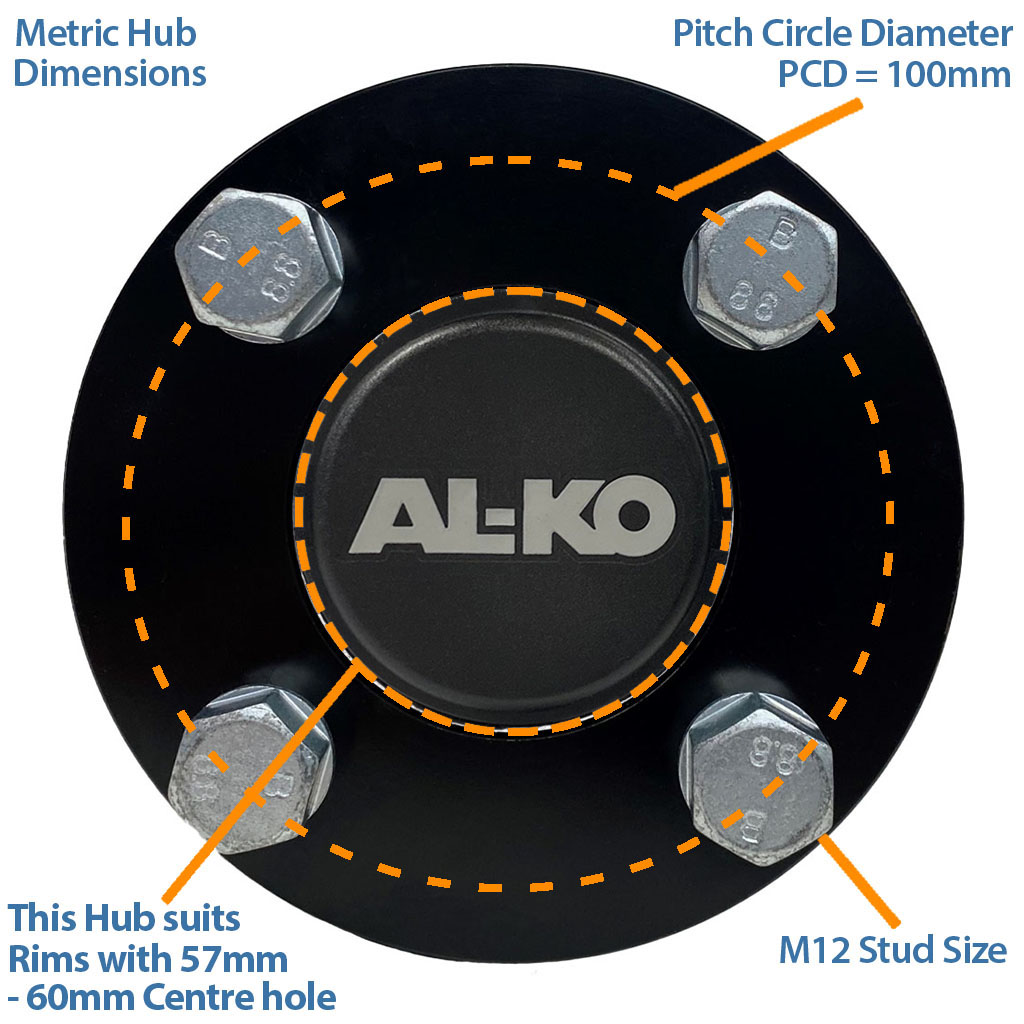

The hub has 4 x M12 studs, the PCD is 100mm.

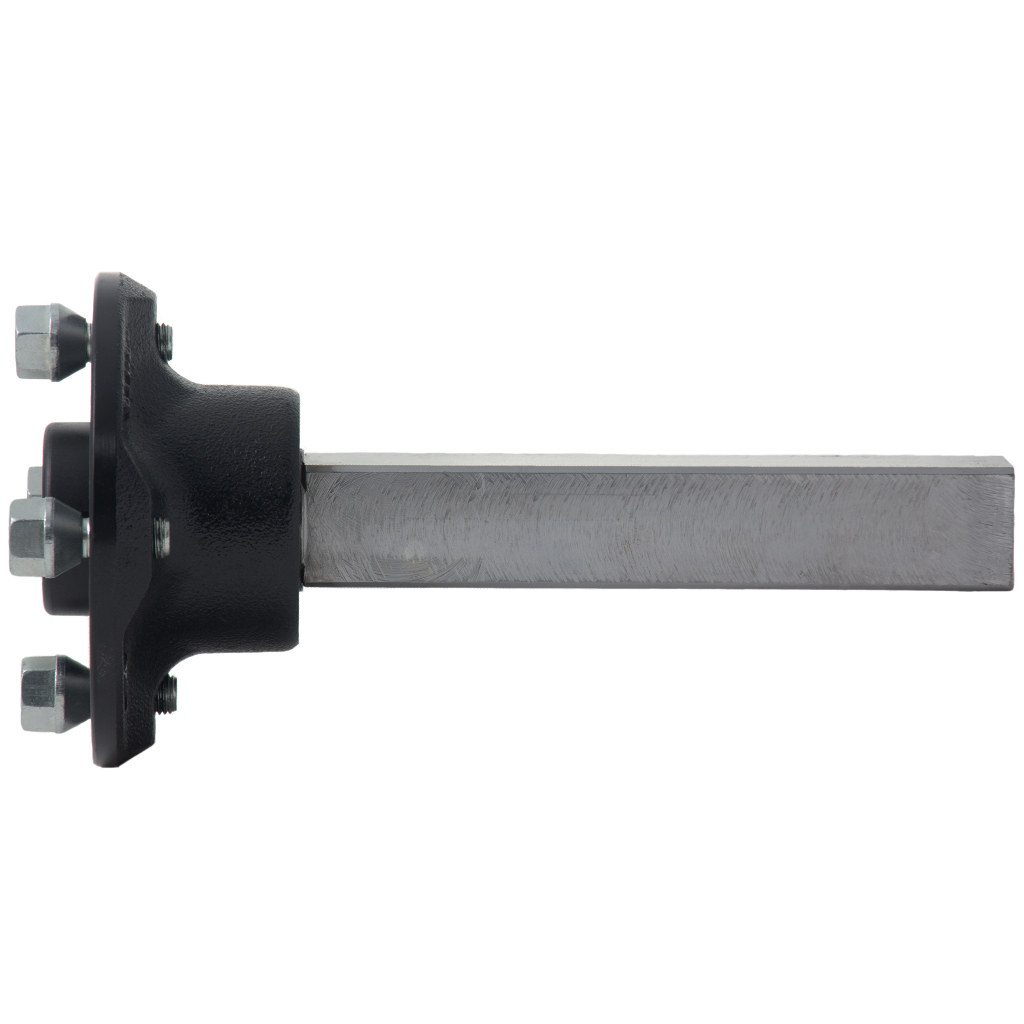

The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 750kg per pair.
This kit is predominantly for off road use. But it is road legal up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .
The hubs are fitted with sealed automotive precision bearings.
Maximum kit weight capacity 750kgs.
Part Number | KIT1077 |
Brand | Parnells |
Tyre Size | 18X8.50-8 |
Ply | 4 |
TT/TL | TL |
Pattern | P332 |
Tread Depth (mm) | 7.1 |
Rim Width (in) | 7.0 |
SW (mm) | 210 |
OD (mm) | 455 |
PSI | 22 |
Load/Speed Index | 63/74 A4 |
Stud / PCD | 4x100mm |
E-Mark | E4-106R-003462 |
Max Load (Kg) | 375 |
Hub & Stub Axle (2pcs) | HU1044 |
