18x8.50-8 P332 ATV Trailer Kit, ALKO Axles, swivel hitch
Part Number: KIT1078
Wheel Size: 18x8.50-8
Stub Axles: 35mm square & 200mm long
Load Capacity: 750kgs
18x8.50-8 ATV trailer kit.

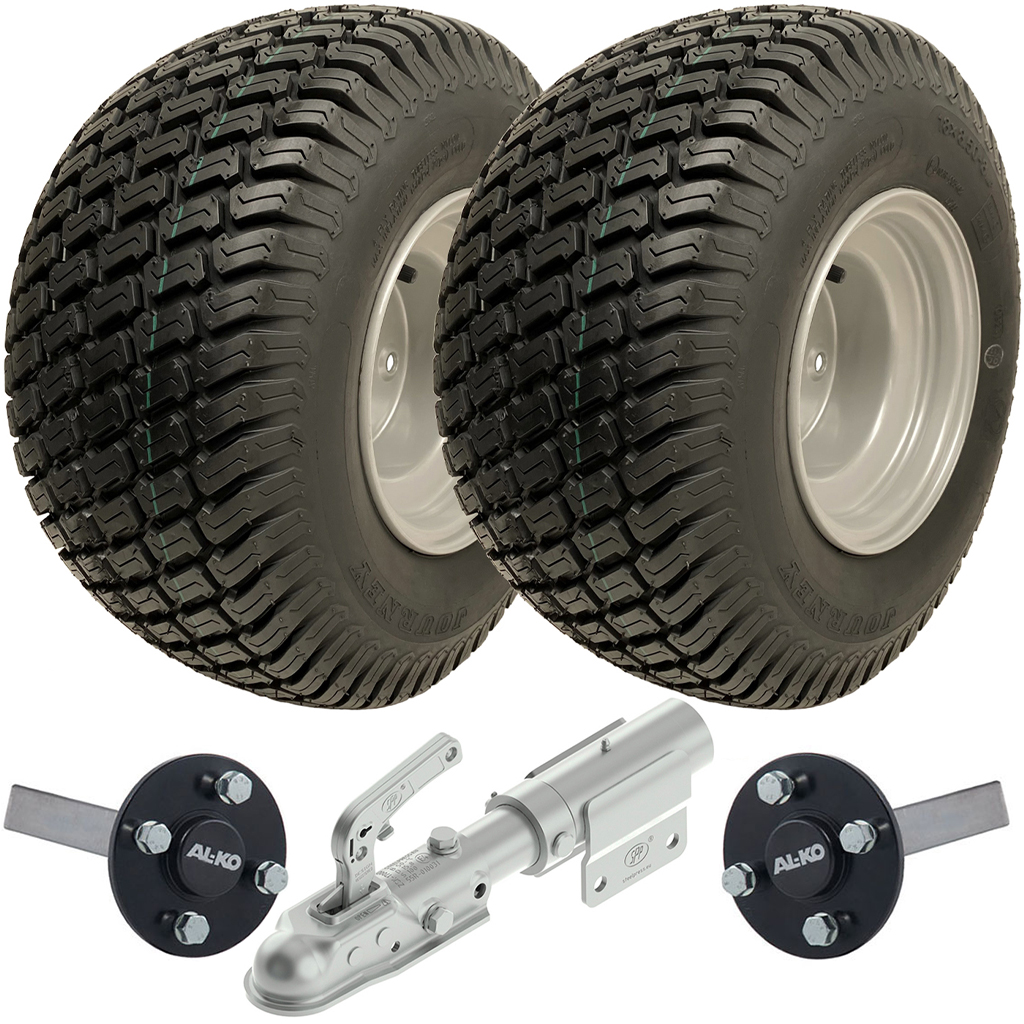

This kit contains:
2 - 18x8.50-8 wheels
&
2 - 35mm x 35mm ALKO hub and stub axles.
1 - Swivel Tow Hitch.

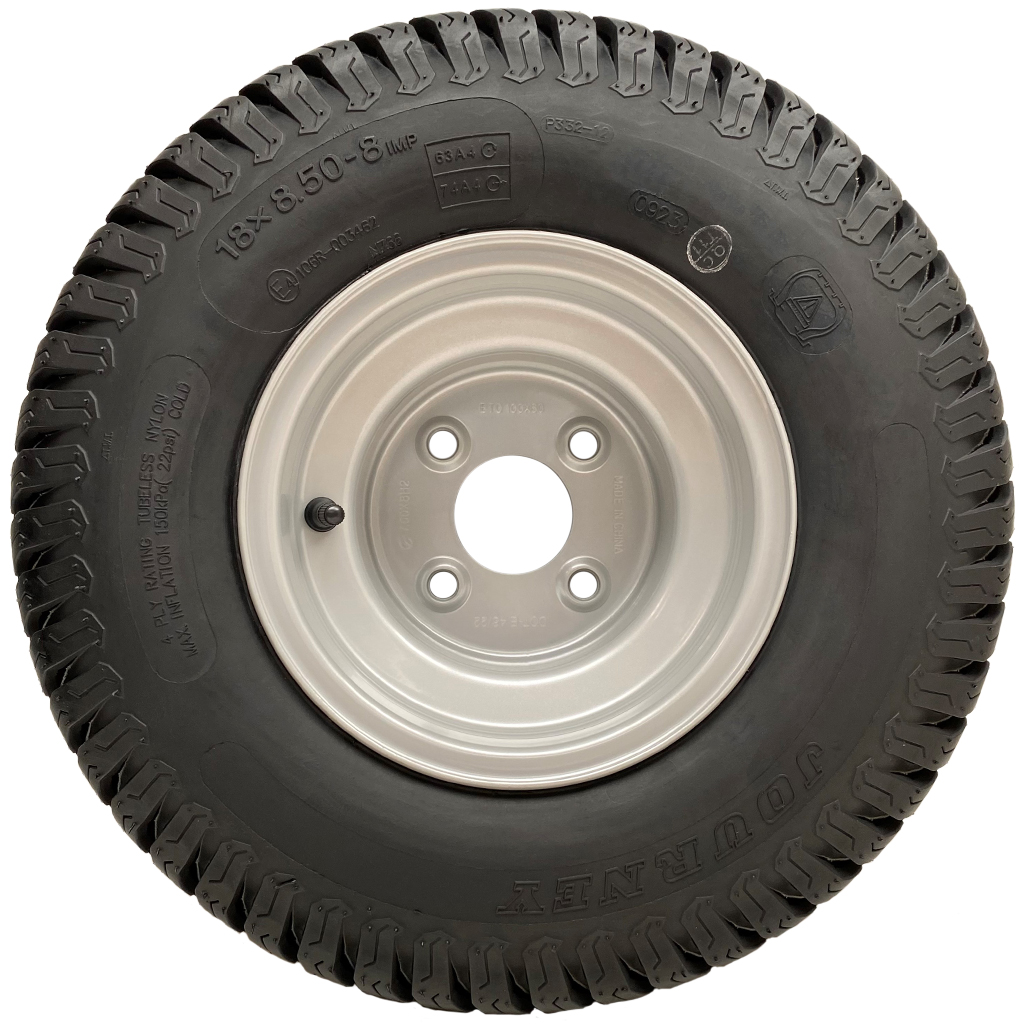

Wheel Specification:

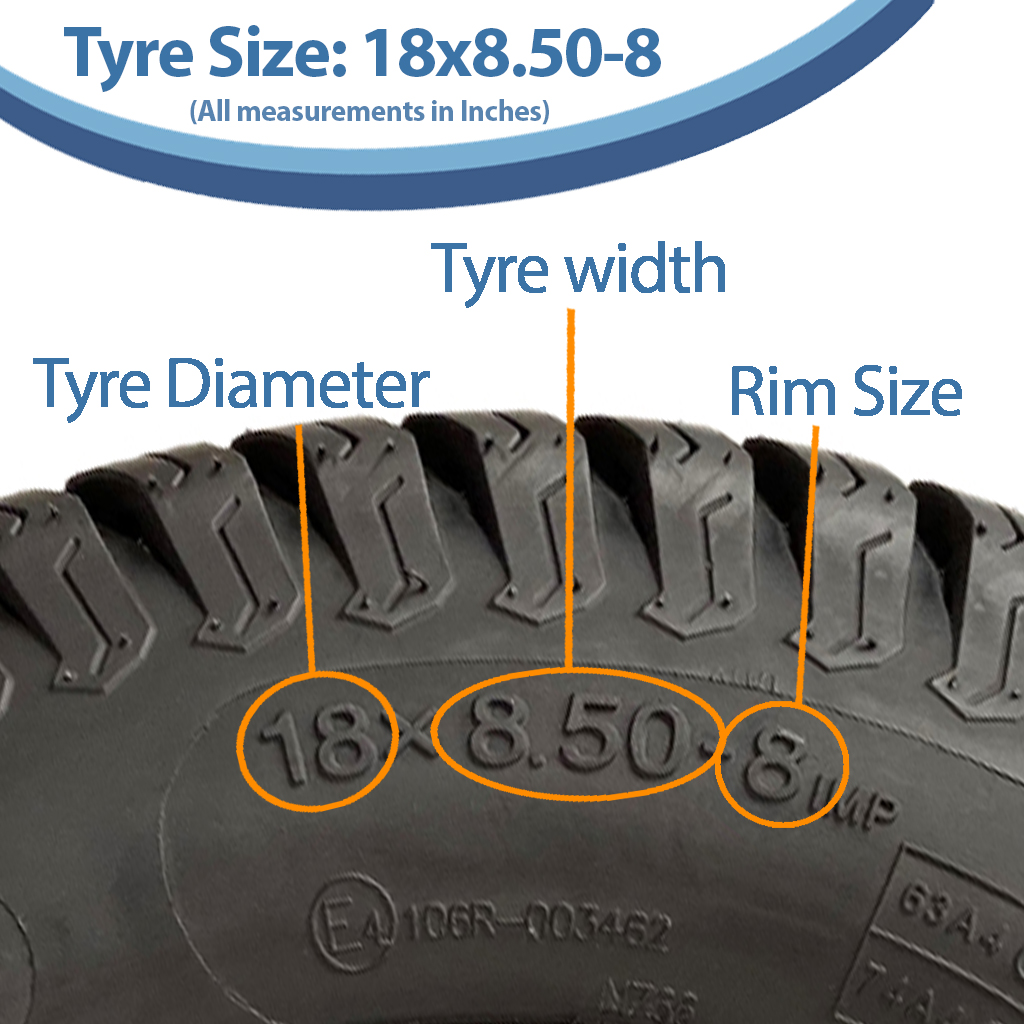

Size:18x8.50-8,
Brand: Wanda,
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 375kgs at 22PSI,

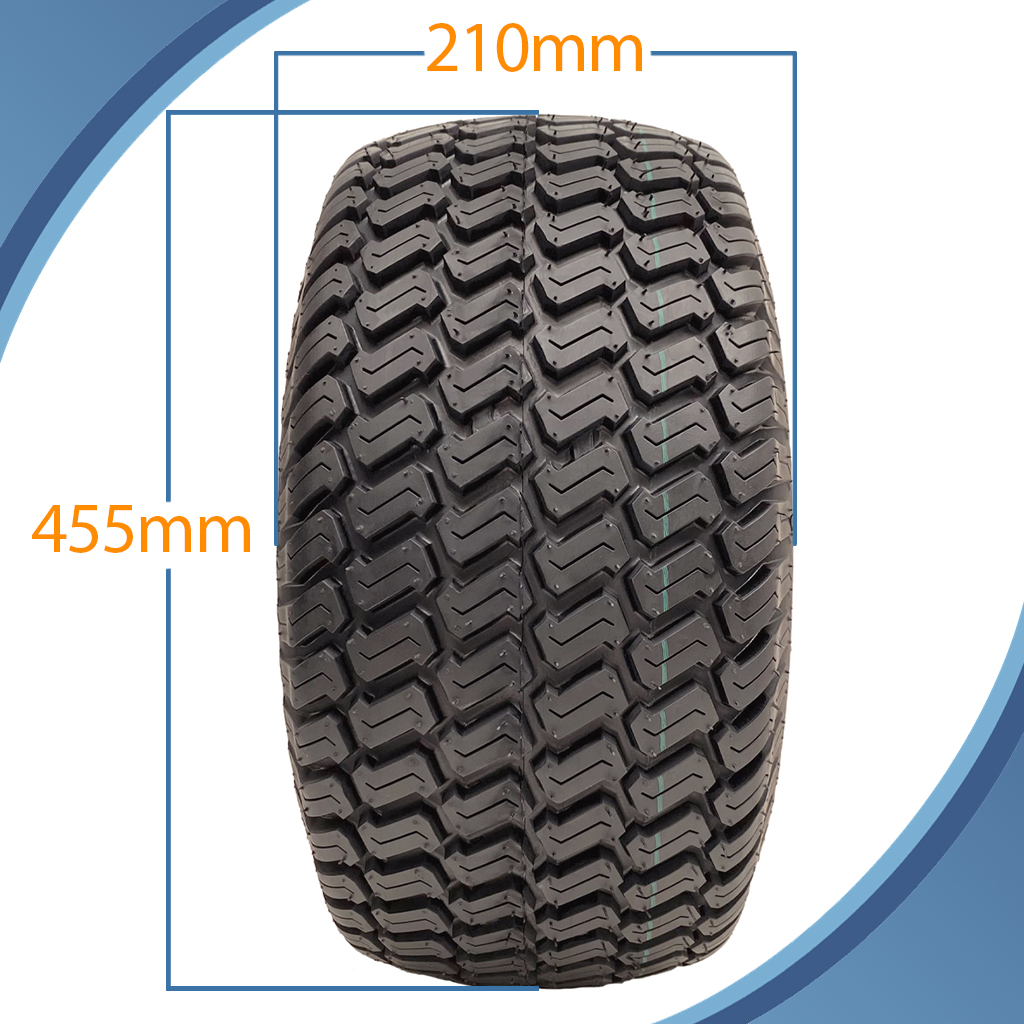

Tyre height: 455mm,
Tyre width: 210mm,
Tread Depth: 7.1mm,
E Marked road legal: E4106R-003462.
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

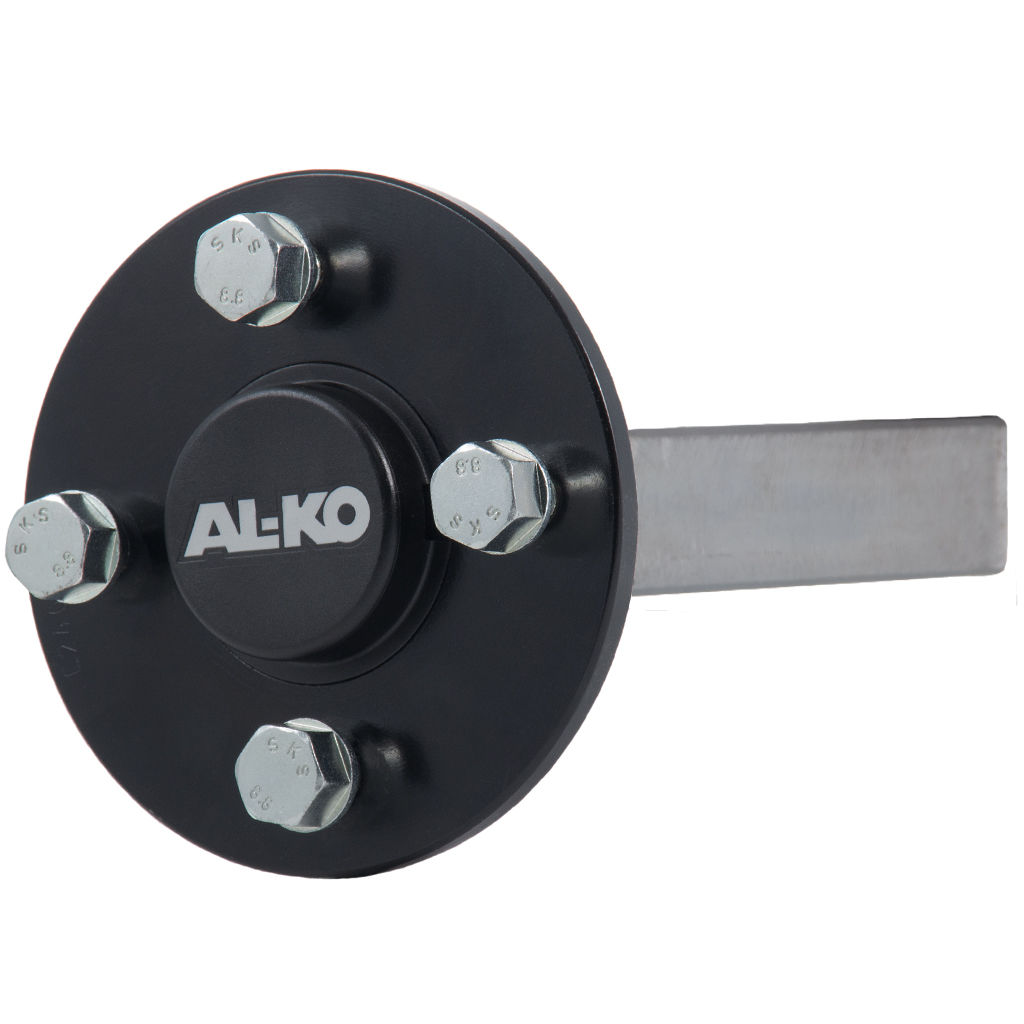

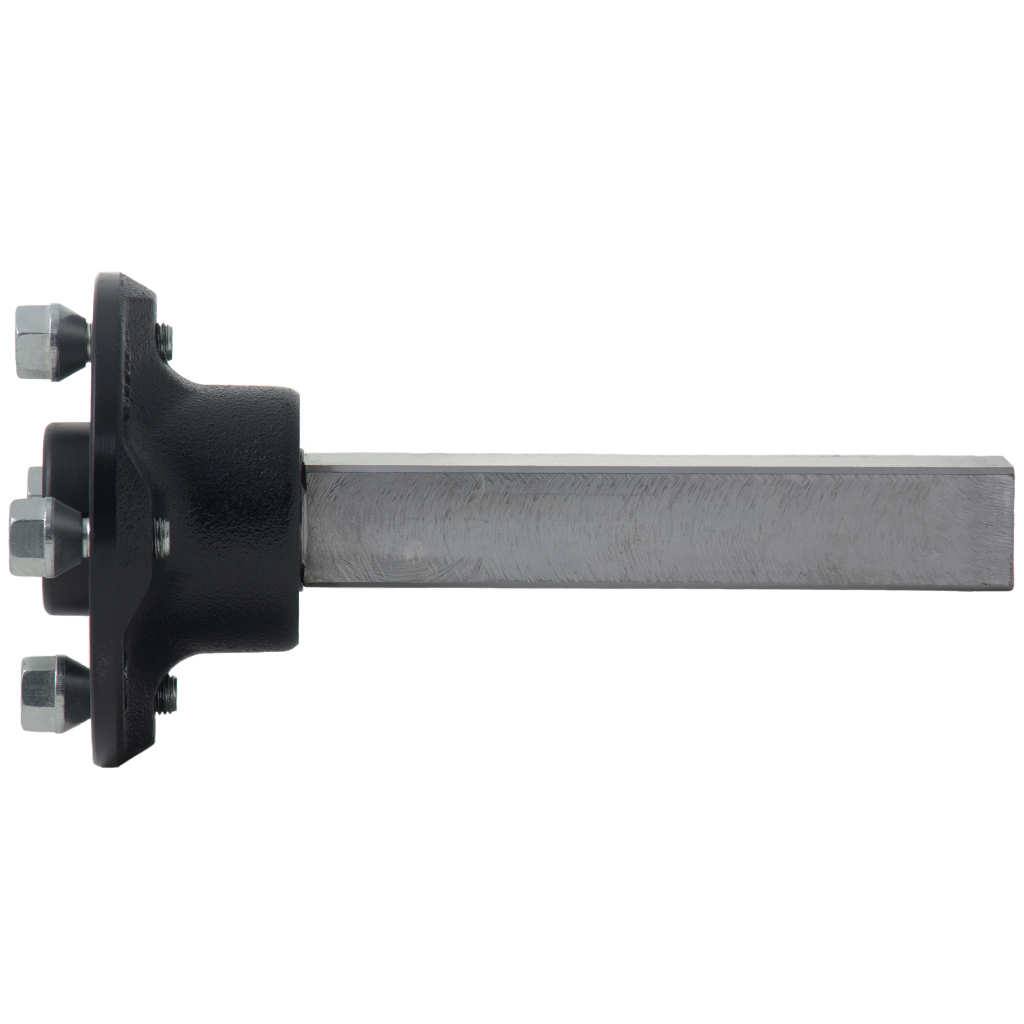

Hub & Stub Specification:
These are genuine ALKO parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.

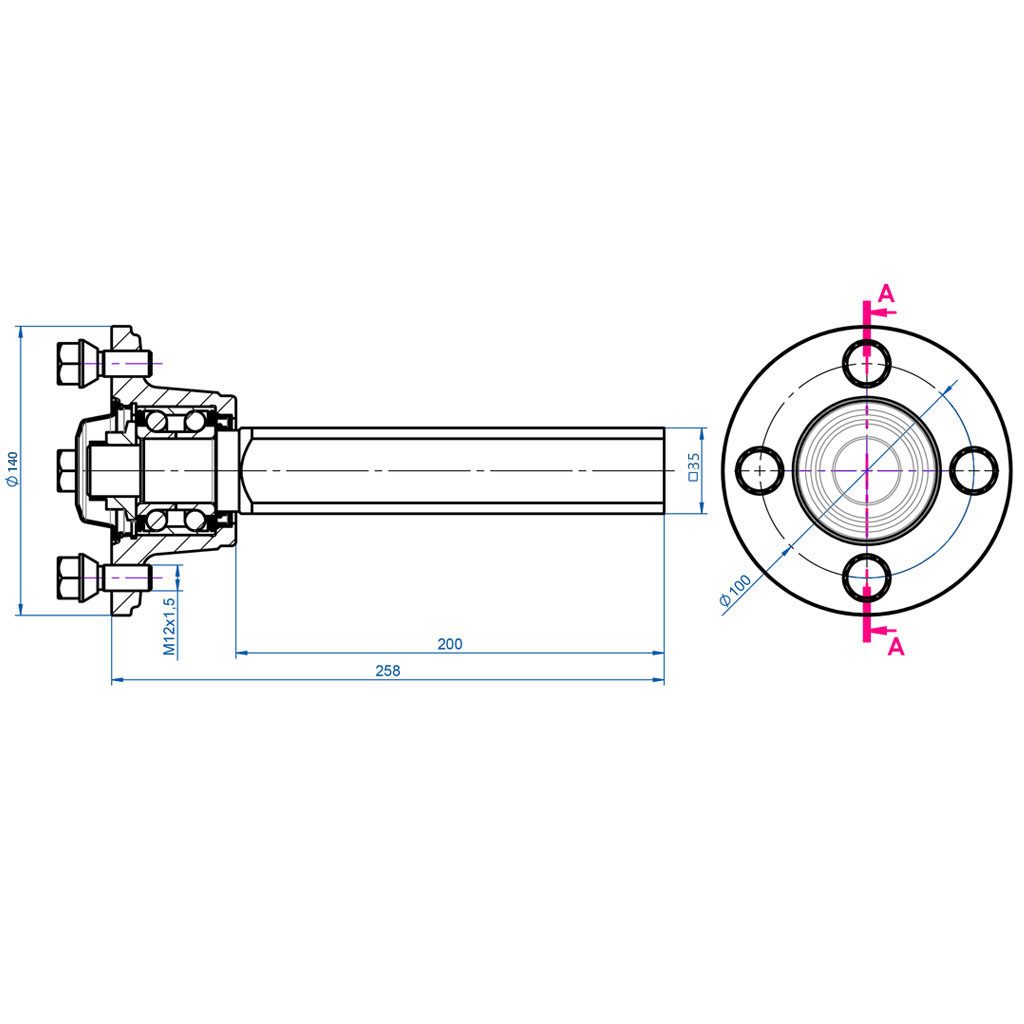

The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 750kg per pair.
Item specifications:

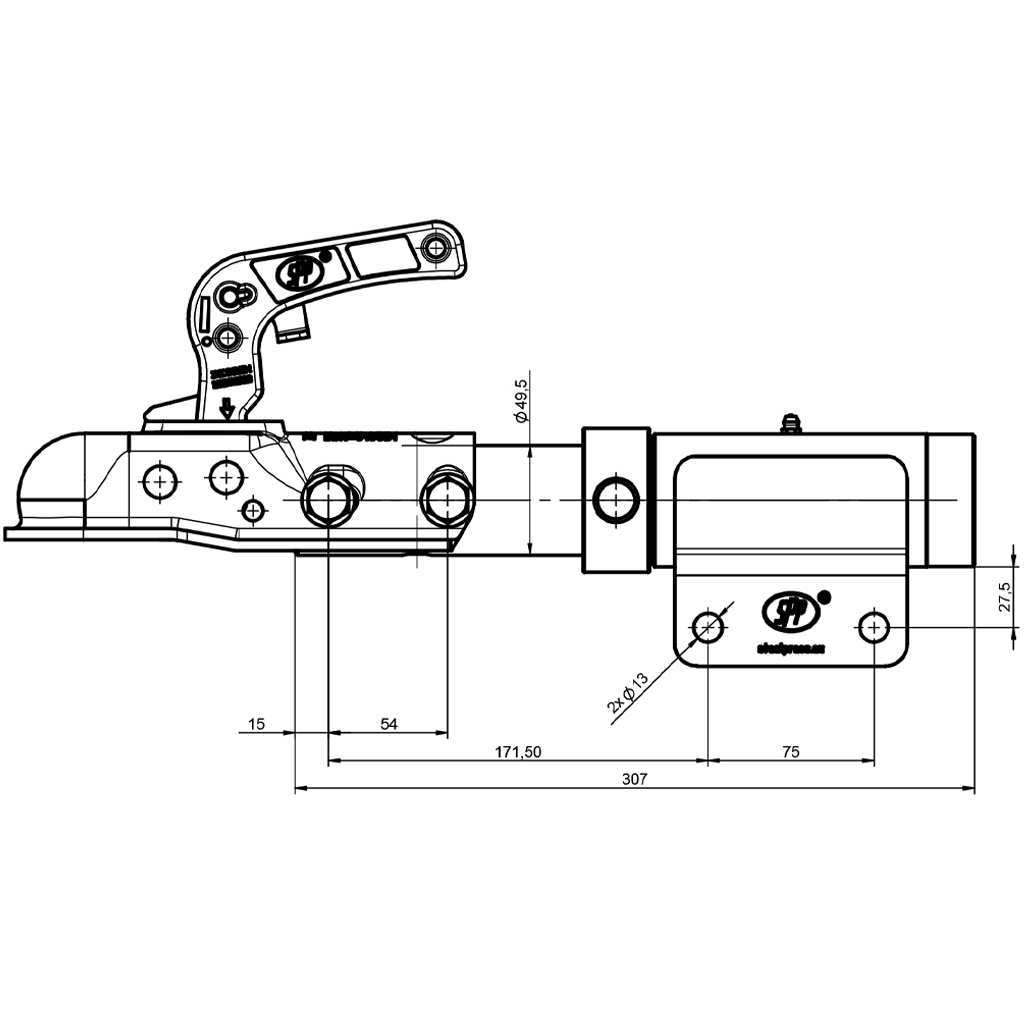

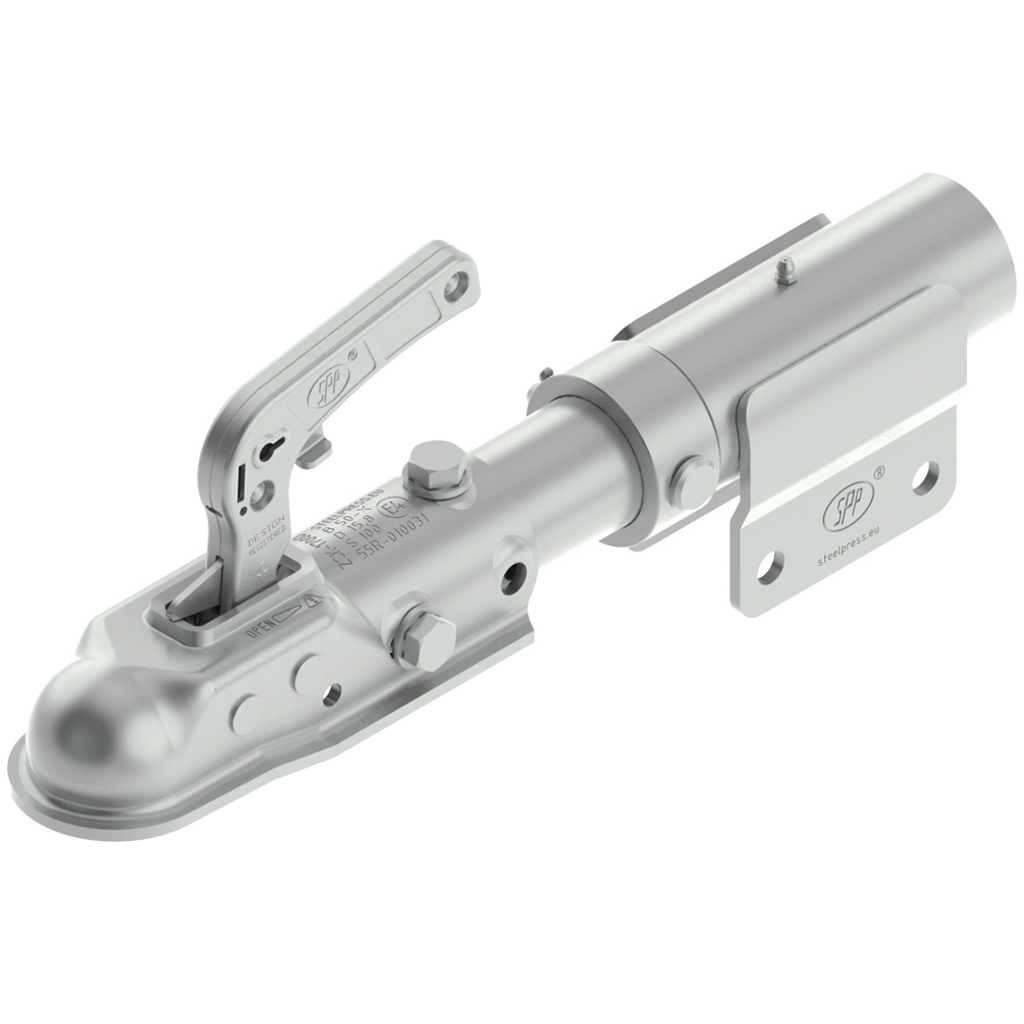

Swivel Hitch.
Heavy duty steel towing hitch with 360 Degree.
This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart).
The bolt holes are from an M12 bolt.
Overall length is 440mm.
This is for use on ATV trailers & equipment.
Off Road use it is produced in the EU.
Safety feature for off road towing.
If your trailer turns over the swivel hitch rotates and your vehicle towing is not flipped with it.
This kit is for off road use, up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .
The hubs are fitted with sealed automotive precision bearings.
With the swivel hitch this kit is for off road use only.
Maximum kit weight capacity 750kgs.
| Part Number | KIT1078 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 18X8.50-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 7.1 |
| Rim Width (in) | 7.0 |
| SW (mm) | 210 |
| OD (mm) | 455 |
| PSI | 22 |
| Load/Speed Index | 63/74 A4 |
| E-Mark | E4-106R-003462 |
| Max Load (Kg) | 375 |
